Red Stone 58813TS User manual

1
MODEL: 58813TS
Read this g rill g uide before attempting to assemble or operate your grill.
Follow all safety instructions.
Check for your leaks according to directions in this grill guide before operating
your grill, even if you purchased this grill assembled.
K eep this grill guide for future reference.
Always read and follow all
notices in this g rill g uide. Failure to follow these notices may result in
property damage, bodily injury,or death.
1. Grill installation must conform with local codes, or in their absence, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
“
“
“
“Before
Before
Before
Before returning
returning
returning
returning to
to
to
to your
your
your
your retailer,
retailer,
retailer,
retailer, call
call
call
call our
our
our
our customer
customer
customer
customer service
service
service
service department
department
department
department at
at
at
at
1-877-292-9888
1-877-292-9888
1-877-292-9888
1-877-292-9888 with
with
with
with hours
hours
hours
hours of
of
of
of operation
operation
operation
operation 9:00am
9:00am
9:00am
9:00am –
–
–
–5:00pm
5:00pm
5:00pm
5:00pm EST,
EST,
EST,
EST, Monday
Monday
Monday
Monday –
–
–
–Friday.
Friday.
Friday.
Friday. ”
”
”
”

2
2. This gas grill, when installed, must be electrically grounded in accordance with local
codes, or, in the absence of local codes, with the National Electrical Code,
ANSI/NFPA 70, or the Canadian Electrical Code, CSAC22.1.
3. This gas grill is intended for outdoor use only, and should not be used in a building,
garage, or any other enclosed area.
4. This gas grill is not intended to be installed in or on recreational vehicles and/or
boats.
5. Never use any other type of fuel for this grill other than LP gas (propane).
6. Only use the pressure regulator with a type 1 connector that is supplied with this gas
grill.
7. Before each use, check the gas hose for excessive abrasion, cracking, fraying, wear,
or cuts. Replace a hose assembly showing those signs with the hose assembly
specified in the parts list before using the grill.
8. Always perform a l eak t est before operating your grill.
1 Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliance.
2 A LP cylinder not connected for use should not be stored in the vicinity of this or any
other appliance.
If you smell gas:
1 Shut off gas to the appliance.
2 Extinguish any open flame.
3 Open lid.
4 If odor continues, keep away from appliance and call your local fire department.

3
Parts
Parts
Parts
Parts List
List
List
List
(1)Lid Handle Base-4pcs (2)Lid Handle -4pcs (3)Stack ( Gas)-2pcs
(4)Stack ( Gas) cover-2pcs (5)Thermometer Bottom-2pcs (6) Thermometer-2pcs
(7 )Stack ( Charcoal)-1pc (8) Chimney Lid-1pc (9)Warming Rack-2pcs
(10)Cooking Grate-4 pcs (11)Lifter-2pcs (12)Charcoal Panel-1pc
(13)Flame Shield-3pcs (14)Burner-3pcs (15)Side Burner with Regulator and hose-1pc

4
(16)Knob-4pcs (17) Firebox-1pc (18 -1 ) Gas Lid (18 -2 ) Charcoal Lid
(19)Gas Tank Hook-1pc ( 20)Control Panel-1pc (21)Accessories-1pc
(22)Smoker Side Handle-1pc (23)Smoker Handle Base-4pcs (24)Smoker 1pc
(25)Smoker Handle-1pc (26)Smoker Charcoal Grate-1pc (27)Smoker Cooking Grate-2pcs

5

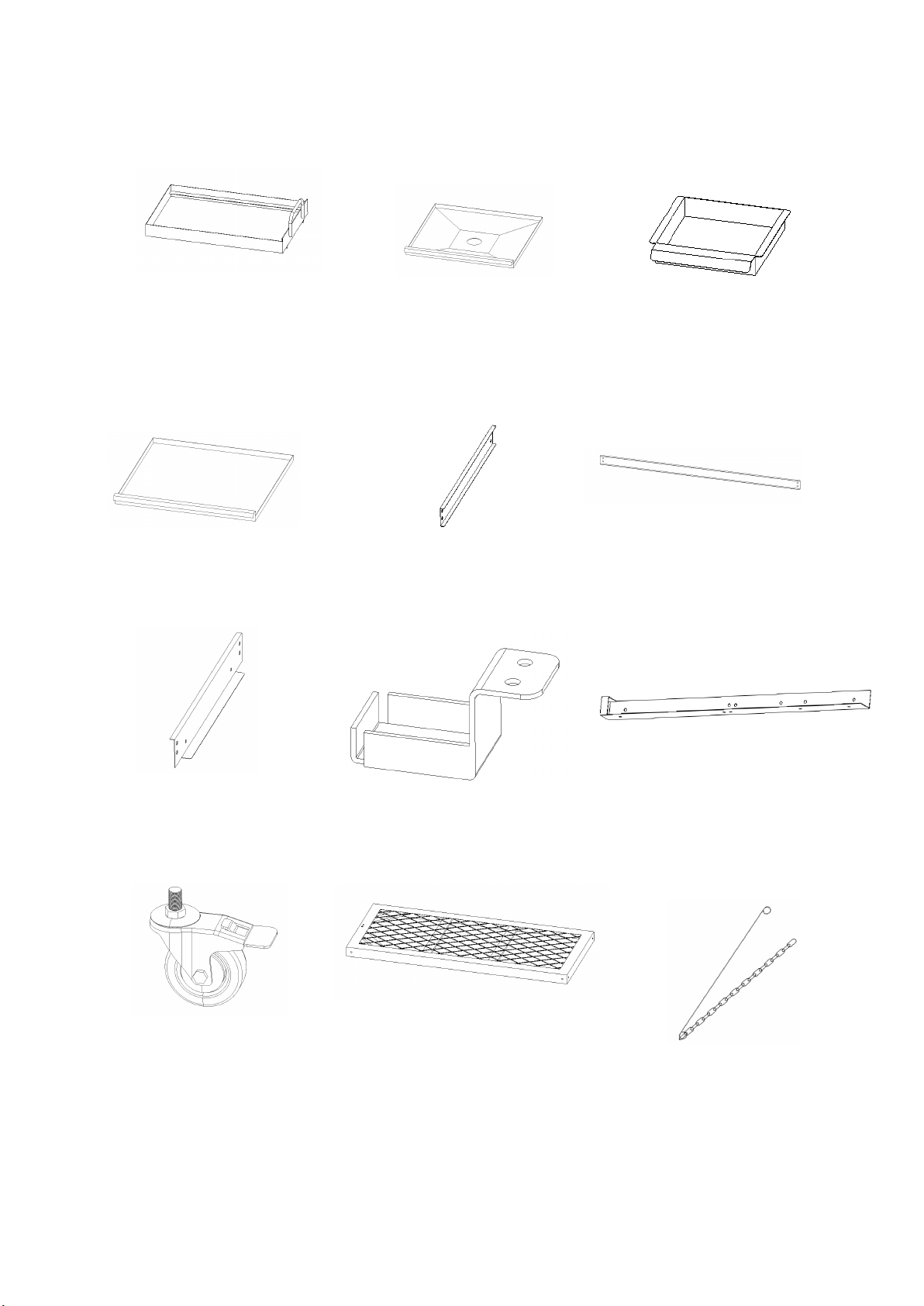

(28)Smoker Ash Pan-1pc (29)Drip Pan-1pc (30)Grease tray-1pc
(31)Ash Pan-1pc (32)Stabilizing Plate(Left)-1pcs 33Stabilizing Plate-2pcs
(34)Stabilizing Plate(Right)-1pc (35)Gas Tank -1pc (36)Legs 4pcs
(37)Caster-4pcs (38)Bottom Shelf-1pc (39)Fire Rod

6

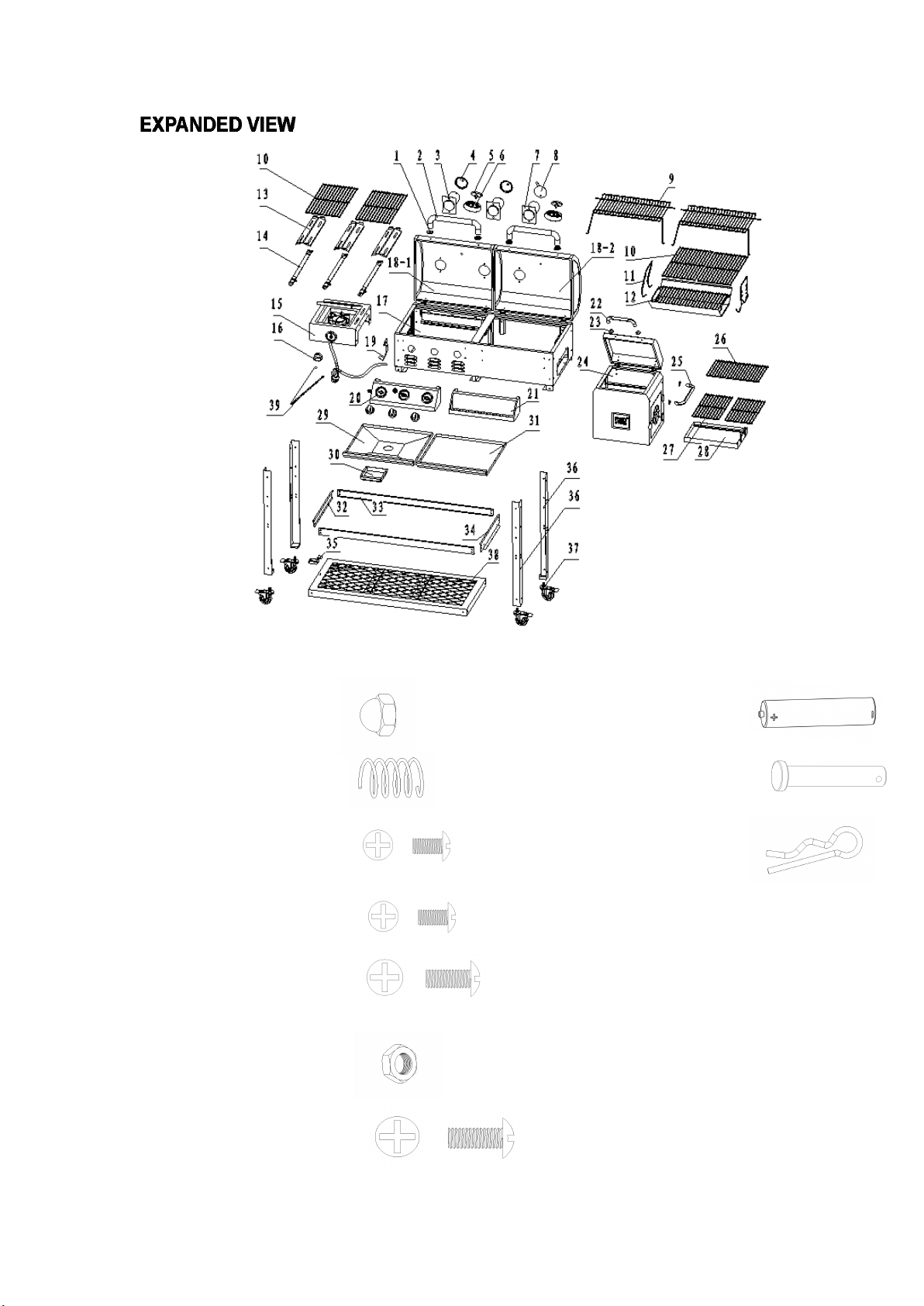

Hardware
Hardware
Hardware
Hardware List
List
List
List
( H) Battery(AA) Qty: 1pc
(A) M8 Nut Qty: 1pc
(B)Spring Qty: 1pc ( I ) Hinge Pins Qty: 4 pcs
(C) M5 ×8bolt Qty:9pcs (J ) Cotter Pins Qty: 4 pcs
(D) M6 ×12 bolt Qty:68pcs
(E) M6 ×25 bolt Qty: 8pcs
(F) M6 Nut Qty:58pcs
(G) M6 ×35 bolt Qty: 4pcs

7
Befor eassembl yrea dinstructio ncarefully.Assembl e gril lo n aclean ,fla t surface .Thi s
uni tisheavy .
2 . Turn the Firebox(18) assembly upside
down. Attach the legs (36) and fire rod
(39) to the Lid&Firebox (18) using M6 x 12
bolts (D) for each corner. The fire rod (39)
in the left. Only hand tighten until all bolts
are in, then tighten with a Phillips
screwdriver.
3 . Us ehardwar e M6 x 12 bolts ( D) to
attac hth ebotto m shel f( 28 )tolegs .
Als oassembl eth ega stan khoo k an d
ga s tan kholde r ( 1 9,35 )a s show n
usin g hardwar e M6 x 12 bolts ( D).
Mak esur e i tisplace d unde r th ega s
sectio n o fth e grill .Thi sisth esectio n
wit hth e ven t slot s in th ebody .
1. Attach the g as Lid(18 -1 ) and charcoal
lid(18-2) to the firebox (17) by insert ing
hinge pins ( I ) through the holes on the
upper hinges and lower hinges Insert
cotter pins ( J ) into the ends of the hinge
pins ( I ).

8
4 . Tak eou tcaster s ( 37 )an dscre w the m
tightl yint o th ebotto m hole s o flegs .
5 . Turn the grill assembly upright and attach
the Stabilizing Plate(Left)(32),Stabilizing
Plate(33),Stabilizing Plate(Right)(34) to the
legs. Us ehardwar e M6 x 12 bolts ( D)and M6
Nuts (F).
6. Instal lth e as hpa n ( 31 ) and Instal lth e
dri p pa n (3 0 )unde r th ega ssection .Pu t
th egreas e tra y ( 29 )unde r th edri p pa n (3 0 )

9
7 . Assembl e th eaccessorie s
shel f( 21 )toth echarcoa l
sectio n usin g hardwar e M6 x 12
bolts (D). Se e illustratio n below .
8 . Assembl e th econtro lpane l( 20 )
toth ega ssectio n b yusin g hardwar e
M6 x 12 bolts (D). Instal lth e knob s
( 16 )toth epanel .Tighte nal l
connections .
Put into the Battery(AA)( H) Control
Panel( 20)

10
9 . Attac hth e burner s (1 4 )int o ga s valv e
bod yusin g hardware M5 ×8bolt ( C) .
Se e th e illustratio n a s below .
10 . Insta ll th e kno bs ( 16 ) to the side
burner with regulator and hose (15) .
Assembl e th e sid e burne r t o t he
body . Use hardwar e M6 x 12 bolts
( D) and M6 Nuts (F). Inser t th e
regulat or a s shown . Tighte n al l
connection s a t thi s time .
