RED MINI-MAG 750-0075 User manual

RED MINI-MAG SYSTEM |REDMAG 1.8" SSD SYSTEM
RED.COM
RED DSMC MEDIA
OPERATION GUIDE

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-T | 2
TABLE OF CONTENTS
Disclaimer 3
Copyright Notice 3
Trademark Disclaimer 3
Compliance Statements 3
Safety Instructions 4
Chapter 1: Media Overview 5
RED MINI-MAG System 5
REDMAG 1.8” SSD System 6
Mixing Carbon Fiber and Aluminum Components 7
Additional Resources 7
Chapter 2: RED MINI-MAG System 8
RED MINI-MAG 8
RED MINI-MAG Modules 9
RED STATION RED MINI-MAG 11
Chapter 3: REDMAG 1.8” SSD System 14
REDMAG 1.8” SSD 14
SSD Modules 15
RED STATIONs 21
Chapter 4: Install EPIC/SCARLET Media Modules 31
Install EPIC/SCARLET Side Media Modules 31
Install the Rear SSD Module 35
Chapter 5: Eject and Format Media 36
Eject Media from Camera (Unmount) 36
Format Media In-camera 37
Format (Erase) Media Via Computer 40
Clip Naming Conventions 43
Metadata 43
Media Capacity Remaining Status 44
Chapter 6: Offload Media 45
Connect a RED MINI-MAG to your Computer 45
Connect a REDMAG 1.8” SSD to Your Computer 46
Offload Data From Media to Your Computer 48
RED Watchdog 48
Chapter 7: Troubleshoot Media 49
SSD Maintenance 49
In-Camera Errors 49
Media Does Not Mount to Camera 50
Media Does Not Mount to Computer 50
LED Does Not Illuminate on RED Station 51
Cannot Format SSD on Computer 51
RED MINI-MAG 1TB Slow to Mount 51
Slow Offload Speeds 52
Identify SSD Type In-Camera 53
Appendix A: Technical Specifications 54
RED MINI-MAG 54
Carbon Fiber RED MINI-MAG Side SSD Module 55
RED MINI-MAG Side SSD Module 55
RED STATION RED MINI-MAG 56
REDMAG 1.8” SSD 56
DSMC 1.8” SSD Side Module 57
RED STATION REDMAG 1.8” 57
RED STATION REDMAG 2.5” 58
RED STATION Base 58
Appendix B: EPIC/SCARLET REDCODE Options 59
RED MINI-MAG REDCODE Options 59
REDMAG 1.8” SSD REDCODE Options 67
SCARLET-X DRAGON REDCODE Options 83
SCARLET MYSTERIUM-X REDCODE Options 84
Appendix C: WEAPON REDCODE Options 85
WEAPON 6K (Magnesium) REDCODE Options 85
WEAPON 6K (Carbon Fiber) REDCODE Options 88

RED DSMC MEDIA OPERATION GUIDE
COPYRIGHT © 2015 RED.COM, INC 955-0047, REV-T | 3
DISCLAIMER
RED has made every effort to provide clear and accurate information
in this document, which is provided solely for the user’s information.
While thought to be accurate, the information in this document is
provided strictly “as is” and RED will not be held responsible for is-
sues arising from typographical errors or user’s interpretation of the
language used herein that is different from that intended by RED.
All safety and general information is subject to change as a result of
changes in local, federal or other applicable laws.
RED reserves the right to revise this document and make changes
from time to time in the content hereof without obligation to notify
any person of such revisions or changes. In no event shall RED, its
employees or authorized agents be liable to you for any damages
or losses, direct or indirect, arising from the use of any technical or
operational information contained in this document.
For comments or questions about content in this Operation Guide,
please send a detailed email to [email protected].
COPYRIGHT NOTICE
COPYRIGHT© 2015 RED.COM, INC.
All trademarks, trade names, logos, icons, images, written mate-
rial, code, and product names used in association with the accom-
panying product are the copyrights, trademarks or other intellec-
tual property owned and controlled exclusively by RED.COM, INC.
TORX is a registered trademark of Acument Intellectual Properties,
LLC in the United States or other countries. Windows is either a
registered trademark or trademark of Microsoft Corporation in the
United States and/or other countries. Mac is a registered trademark
of Apple Inc. in the U.S. and other countries. LEMO is a registered
trademark of LEMO USA.
TRADEMARK DISCLAIMER
All other company, brand and product names are trademarks or reg-
istered trademarks of their respective holders. RED has no affiliation
to, is not associated or sponsored with, and has no express rights
in third-party trademarks. SEARAY is a trademark of Samtec, Inc.
COMPLIANCE STATEMENTS
INDUSTRIAL CANADA EMISSION COMPLIANCE STATEMENTS
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
FEDERAL COMMUNICATIONS COMMISSION (FCC) STATE-
MENTS
This equipment has been tested and found to
comply with the limits for a Class B digital de-
vice, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reason-
able protection against harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio fre-
quency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
NOTE: This device complies with Part 15 of the FCC Rules.
Operations subjected to the following two conditions (1) this device
may not cause harmful interference, and (2) this device must accept
any interference received, including that may cause undesirable in-
terference.
CAUTION: If the device is changed or modified
without permission from RED, the user may
void his or her authority to operate the equip-
ment.
AUSTRALIA AND NEW ZEALAND STATEMENTS
This device has been tested and found to comply with the limits for
a Class B digital device, pursuant to EN 55022:2006.
JAPAN STATEMENTS
This is a Class B product based on the
standard of the Voluntary Control Council
for Interference (VCCI) for information tech-
nology equipment. If this equipment is used
near a radio or television receiver in a do-
mestic environment, it may cause radio in-
terference. Install and use the equipment
according to the instruction manual.
EUROPEAN UNION COMPLIANCE STATEMENTS
RED declares that the
equipment described in this
document complies with the
requirements of the Europe-
an Council EMC Directive
2004/108/EC, Low Voltage
Directive 2006/95/EC, RoHS
Directive 2002/95/EC, and the WEEE Directive 2002/96/EC.
This declaration is based on compliance of the product to the fol-
lowing standards.
EN 55022, Information Technology Equipment - Radio Distur-
bance Characteristics
EN 55024, Information Technology Equipment - Immunity
Characteristics
EN 61000-3-2, Limits for harmonic current emissions
EN 61000-3-3, Limits for harmonic current emissions
EN 60950-1, Information Technology Equipment – Safety
INFORMATION
Products with the CE marking comply with the EMC Directive
(2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued
by the Commission of the European Community. Compliance with
these directives implies conformity to the following European Prod-
uct Family Standards.
EN 55022 (CISPR 22) – Electromagnetic Interference

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-T | 4
EN 55024-1 (CISPR 24) – Electromagnetic Immunity
EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics
EN 61000-3-3 (IEC610000) – Power Line Flicker
EN 60065 (IEC60065) – Product Safety
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)
The Waste Electrical and Electronic Equip-
ment (WEEE) mark applies only to countries
within the European Union (EU) and Norway.
This symbol on the product and accompany-
ing documents means that used electrical
and electronic products should not be mixed
with general household waste. For proper
treatment, recovery and recycling, please
take this product to designated collection
points where it will be accepted free of
charge. Alternatively, in some countries you
may be able to return your products to your
local retailer upon purchase of an equivalent
new product.
Disposing of this product correctly will help save valuable resources
and prevent any potential negative effects on human health and the
environment, which could otherwise arise from inappropriate waste
handling. Please contact your local authority for further details of
your nearest designated collection point. Penalties may be appli-
cable for incorrect disposal of this waste, in accordance with you
national legislation.
For business users in the European Union, if you wish to discard
electrical and electronic equipment, please contact your dealer or
supplier for further information.
NORWAY
This subsection does not apply for the geographical area within a
radius of 20 km from the centre of Ny-Ålesund
Dette gjelder ikke for det geografiske området innenfor en radius av
20 km fra sentrum av Ny-Ålesund
RESPONSIBLE PARTY:
RED Digital Cinema
34 Parker
Irvine, CA 92618
USA
SAFETY INSTRUCTIONS
DO NOT use the media or media modules near water. Avoid
exposing your media or media modules to moisture. The units
are not waterproof, so contact with water could cause perma-
nent damage to the units as well as electric shock and serious
injury to the user. DO NOT use the media or media modules in
the rain or under other conditions with high moisture without
appropriate protection, and immediately remove power source
if the media or media modules are exposed to moisture.
WARNING: To reduce the risk of fire or elec-
tric shock, do not expose the media or
media modules to rain or moisture.
If fluids or foreign objects get inside any of the media modules
or RED STATIONs, disconnect the power source immediately
and file a support ticket on http://support.red.com.
DO NOT expose your media or media modules to excessive
vibration or impact (shock). Be careful not to drop your media
or media modules. Internal mechanisms may be damaged by
severe shock. Mechanical alignment of elements may be af-
fected by excessive vibration.
Avoid using the media or media modules in areas with high
humidity or dust.
DO NOT expose the media or media modules to strong elec-
tronic or magnetic fields.
Clean only using a dry cloth. When cleaning your media or
media modules, remember that it is not waterproof and mois-
ture can damage electronic circuitry. DO NOT rinse or immerse
any element of the media or media modules, keep them dry at
all times. DO NOT use soaps, detergents, ammonia, alkaline
cleaners, and abrasive cleaning compounds or solvents. These
substances may damage coatings and electronic circuitry.
The RED STATIONs operate best in an air-conditioned environ-
ment.
DO NOT operate or store near any heat sources such as radia-
tors, heat registers, stoves, or any other apparatus that pro-
duce heat. Store in a protected, level and ventilated place.
Avoid exposure to temperature extremes, damp, severe vibra-
tion, strong magnetic fields, direct sunlight or local heat sourc-
es during storage. Recommended storage and usage tempera-
tures for your media and media modules are:
‒Operating range: 0°C to 40°C (32°F to 104°F)
‒Storage range: –20°C to 50°C (–4°F to 122°F)
If there are any performance issues with your media or media
modules when operating within this temperature range, please
file a support ticket on https://support.red.com.
The Rear SSD Module, RED MINI-MAG Side SSD Module, and
DSMC 1.8" SSD Side Module are NOT HOT SWAPPABLE –
meaning you cannot remove or install them while the camera is
turned on. Before installing or removing any of these modules,
you MUST power down the camera. Failure to do so may result
in damage to the module or camera that will not be covered
under warranty.
Protect all power cords from being pinched, walked on or
driven over by a vehicle. Replace any power cords suspected
of sustaining damage due to crushing or other forms physical
damage. Use media and media modules only when they are in
good operating condition.
Always use the original packaging or similarly structured pack-
aging for transportation.
USE AT YOUR OWN RISK. RED is not responsible for lost data,
corrupted data, or damaged SSDs while using any of the SSD
media modules or RED STATIONs.
CAUTION: Refer all service and repair to
qualified RED service personnel. To reduce
the risk of electric shock, and damage to
the camera or accessories, DO NOT at-
tempt to perform any servicing other than
any procedures that are recommended in
the operating instructions.

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-R | 5
This guide describes the media systems for EPIC, SCARLET®, and WEAPON®cameras. RED®offers two (2)
media systems for your RED Digital Still and Motion Camera (DSMC®):
RED MINI-MAG®system
REDMAGTM 1.8" SSD system
NOTE: Third-party SSDs are not compatible with the DSMC system.
RED MINI-MAG SYSTEM
This system centers around the RED MINI-MAG, which is the fastest, smallest, and most powerful media option
for your RED camera. Compared to their predecessor, the REDMAG®1.8”, RED MINI-MAGs have faster read/
write speeds to support higher frame rates and resolutions with minimal compression. The RED MINI-MAG
system is compatible with EPIC, SCARLET, and WEAPON.
RED MINI-MAG SYSTEM COMPONENTS
The RED MINI-MAG system includes the following items, available at www.red.com (this table does not include
any of the RED MINI-MAG collections or packages, which are made up of the items below):
ITEM PART NUMBER
RED MINI-MAG (120GB) 750-0075
RED MINI-MAG (240GB) 750-0082
RED MINI-MAG (512GB) 750-0078
RED MINI-MAG (1TB) 750-0081
RED MINI-MAG Side SSD Module1720-0021
Carbon Fiber RED MINI-MAG Side SSD Module2N/A
RED STATION®RED MINI-MAG 750-0055
RED MINI-MAG Case (4-PACK) 790-0404
RED MINI-MAG Case (12-PACK) 790-0405
1. The RED MINI-MAG Side SSD Module is only compatible with EPIC and SCARLET cameras.
2. The Carbon Fiber RED MINI-MAG Side SSD Module is only available with a carbon fiber EPIC/SCARLET.
01 MEDIA
OVERVIEW

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-R | 6
REDMAG 1.8" SSD SYSTEM
This system centers around the REDMAG 1.8" SSD, which is a fast and reliable media option for your camera
system. The REDMAG 1.8" SSD system is compatible with EPIC and SCARLET cameras.
REDMAG 1.8" SSD SYSTEM COMPONENTS
The REDMAG 1.8" SSD system includes the following items, available at www.red.com (this table does not
include any of the REDMAG 1.8" SSD collections or packages, which are made up of the items below):
ITEM PART NUMBER
REDMAG 1.8" SSD (48GB) 750-0044
REDMAG 1.8" SSD (64GB) 750-0025
REDMAG 1.8" SSD (128GB) 750-0021
REDMAG 1.8" SSD (240GB)1750-0061
REDMAG 1.8" SSD (256GB) 750-0026
REDMAG 1.8" SSD (512GB)2750-0037
RED DSMC Side 1.8" SSD Module 720-0013
RED DSMC Side 1.8" SSD Module (DRAGON)3N/A
RED Carbon Fiber DSMC Side 1.8" SSD Module (DRAGON)4N/A
Rear SSD Module 720-0009
RED STATION REDMAG 1.8" 750-0006
RED STATION REDMAG 1.8" (Mini)–eSATA 750-0035
RED STATION REDMAG 1.8" (Mini)–USB 3.0 750-0036
RED STATION REDMAG 2.5" 750-0007
RED STATION Base 750-0004
REDMAG Case (4-PACK) 790-0204
REDMAG Case (12-PACK) 790-0144
1. The REDMAG 1.8" SSD (240GB) requires that your camera is on firmware v5.1.44 or later.
2. The REDMAG 1.8" SSD (512GB) is no longer available for purchase at ww.red.com, but is still supported by RED.
3. The DSMC 1.8" SSD Side Module (DRAGON) is only available with an EPIC/SCARLET with a RED DRAGON sensor.
4. The Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON) is only available with a carbon fiber EPIC/SCARLET.
DSMC Media Pack

RED DSMC MEDIA OPERATION GUIDE
COPYRIGHT © 2015 RED.COM, INC 955-0047, REV-R | 7
MIXING CARBON FIBER AND ALUMINUM COMPONENTS
NOTE: This section is not applicable to WEAPON.
The structural mounting points for the carbon fiber media modules are optimized for the carbon fiber EPIC/
SCARLET, whereas the structural mounting points for the standard aluminum side SSD modules are optimized
for use with the standard aluminum camera.
Using a carbon fiber media module with an aluminum EPIC/SCARLET or using an aluminum side SSD module
with a carbon fiber EPIC/SCARLET may lead to an unstable connection between the camera and the module,
which could affect data integrity.
WARNING: Damage to the camera, side SSD module, or other components of the camera system caused by
mixing carbon fiber components with non-carbon-fiber components is not covered under warranty, and may
void the warranty for both the camera and the side SSD module.
SUMMARY OF CARBON FIBER RESTRICTIONS
DO NOT attach any of the following side SSD modules to a carbon fiber EPIC/SCARLET:
RED MINI-MAG Side SSD Module
DSMC 1.8" SSD Side Module
DSMC 1.8" SSD Side Module (DRAGON)
DO NOT attach the following side SSD modules to a standard aluminum EPIC/SCARLET:
Carbon Fiber RED MINI-MAG Side SSD Module
Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON)
ADDITIONAL RESOURCES
The following resources offer additional information about RED, the camera system, and the RED community:
RED.com: Check the official RED website for the latest information about RED products.
RED Learn Articles: RED offers in-depth technical articles about RED cameras, post production, and digital
cinematography.
RED.com/downloads: Go to the RED Downloads page to download the latest firmware, operation guides,
and post production software.
DSMC Toolkit: Go to the RED Downloads page to find the DSMC Toolkit that offers a number of helpful tools
and resources to customize and improve your camera workflow and operation.
Support.red.com: Check the RED SUPPORT site for FAQs, or to file a support ticket.
Bomb Squad Support: For more information, contact your Bomb Squad representative.
In-Camera Help: Select the Help button on an in-camera screen to open up the help for that screen.
Reduser.net: Discuss all things RED on the REDUSER third-party forum.

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-R | 8
02
RED MINI-MAG
The RED MINI-MAG®is the fastest, smallest, and most powerful media option for your camera system.
Compared to their predecessor, the REDMAG®1.8”, RED MINI-MAGs have faster read/write speeds to support
higher frame rates and resolutions with minimal compression. The RED MINI-MAG system is compatible with
EPIC, SCARLET®, and WEAPON®.
The RED MINI-MAG is available in the following storage capacities: 120GB, 240GB, 512GB, and 1TB.
NOTE: If your EPIC/SCARLET is on an earlier firmware than what a RED MINI-MAG requires, you can use a
RED MINI-MAG to upgrade to a compatible firmware. While you can use a RED MINI-MAG to downgrade
firmware versions, the EPIC/SCARLET will not be fully functional with the RED MINI-MAG Side SSD Module
installed. You will need to either switch to a DSMC 1.8" SSD Side Module or upgrade to a later firmware.
RED MINI-MAG INCLUDED COMPONENTS
The item listed in the table below ships with the RED MINI-MAG.
ITEM PART NUMBER REQUIRED FIRMWARE
RED MINI-MAG (120GB) 750-0075 EPIC/SCARLET: v5.3.46 or later; or v6.0.39 or later
WEAPON: v6.1.33 or later
RED MINI-MAG (240GB) 750-0082 v5.1.47 or later
RED MINI-MAG (512GB) 750-0078 v5.1.34 or later
RED MINI-MAG (1TB)1750-0081 v5.3.34 or later
1. The RED MINI-MAG 1TB can take up to 20 seconds to mount to a computer or a camera.

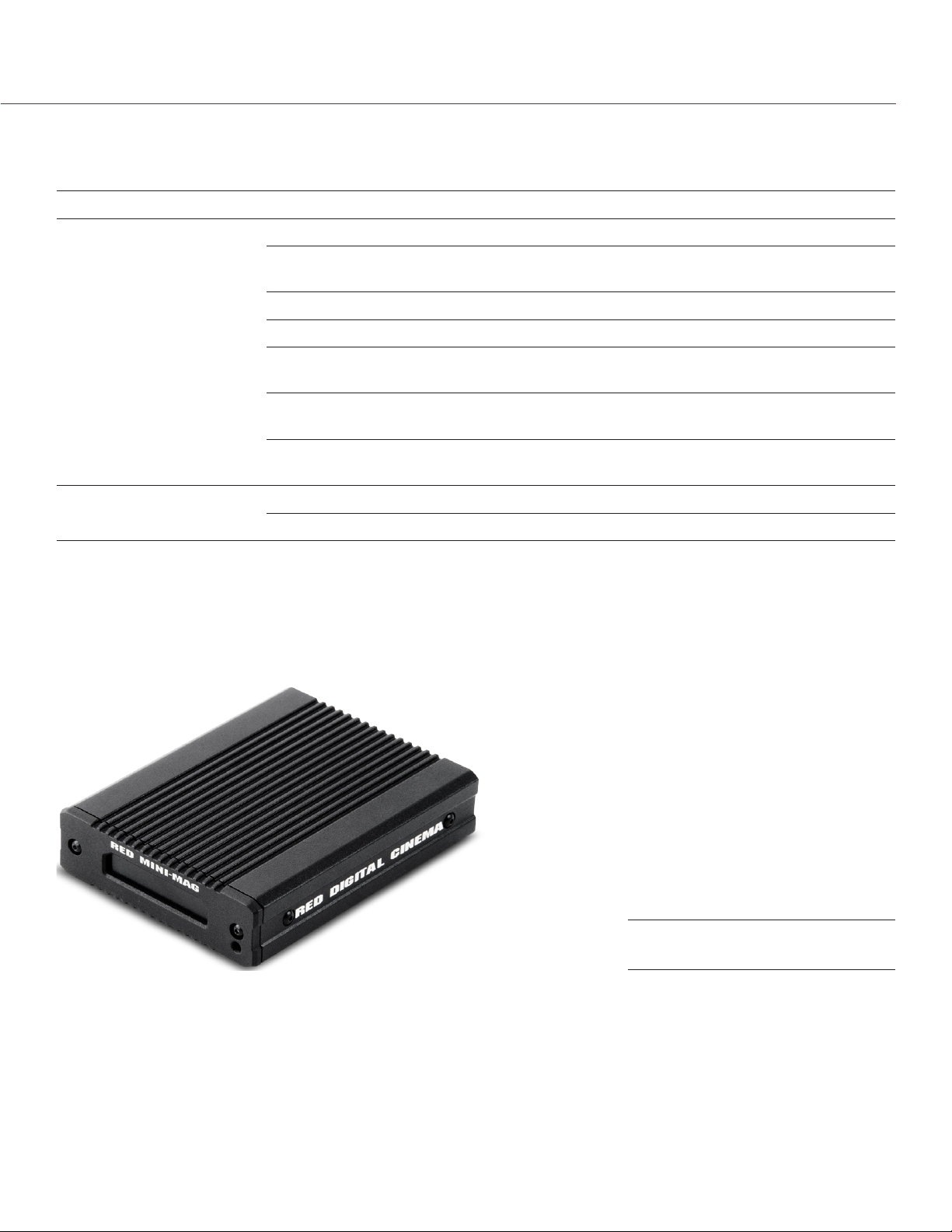

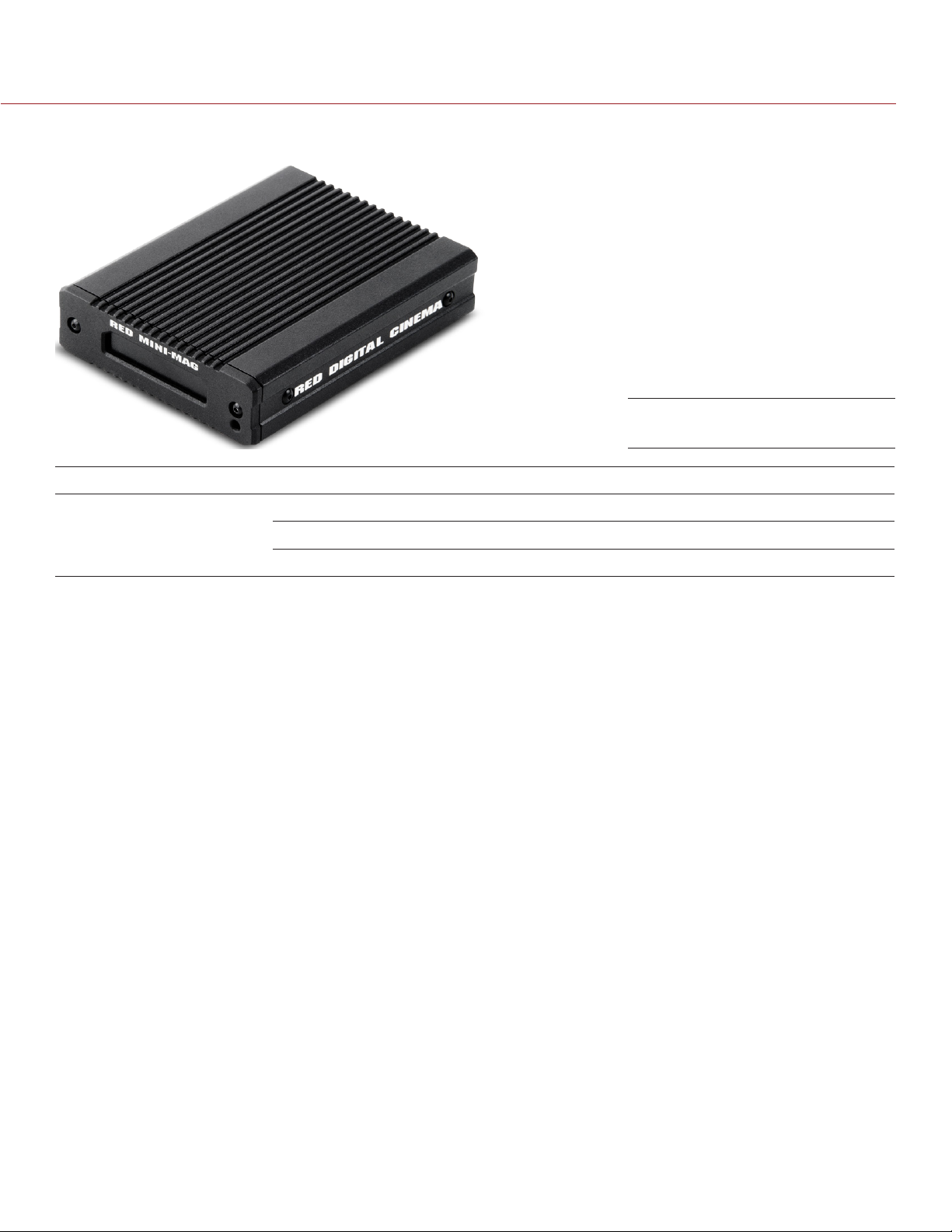

RED MINI-MAG (120GB)
RED MINI-MAG
SYSTEM

RED DSMC MEDIA OPERATION GUIDE
COPYRIGHT © 2015 RED.COM, INC 955-0047, REV-R | 9
RED MINI-MAG MODULES
RED®offers the following RED MINI-MAG modules for EPIC/SCARLET:
RED MINI-MAG Side SSD Module: Mounts to any standard aluminum camera.
Carbon Fiber RED MINI-MAG Side SSD Module: Mounts to any carbon fiber EPIC/SCARLET, and is only available
with a carbon fiber EPIC/SCARLET.
NOTE: RED MINI-MAG Modules are not compatible with WEAPON.
Each RED MINI-MAG module attaches to the EPIC/SCARLET so that you can mount a RED MINI-MAG to your
camera.
Each RED MINI-MAG module has the same EVF/LCD LEMO connector, user keys, and REC button as the
DSMC 1.8" SSD Side Module.
NOTE: The two (2) screws under the SSD slot on the standard aluminum side SSD modules secure an internal
bracket that provides structural support. DO NOT loosen these screws. Loosening these screws DOES NOT
provide extra clearance for the SSD.
WARNING: The red metal heat sink under the SSD slot on the Carbon Fiber RED MINI-MAG Side SSD Module
may get hot during long-term operation.
WARNING: The RED MINI-MAG modules are NOT HOT SWAPPABLE, meaning you cannot remove or install
the modules while the camera is turned on. Before installing or removing the module, you MUST turn off the
camera. Failure to do so may result in damage to the module or camera that will not be covered under warranty.
RED MINI-MAG SIDE SSD MODULE INCLUDED COMPONENTS
The item listed in the table below ships with the RED MINI-MAG Side SSD Module.
ITEM PART NUMBER
RED MINI-MAG Side SSD Module 720-0021
RED MINI-MAG SIDE SSD MODULE CONTROLS
This section describes the controls for all of the RED MINI-MAG modules.
CONTROL DESCRIPTION
User Key 1 Programmable key
User Key 1 + 2 Press: Eject Media
User Key 2 Programmable key
User Key 1 + 2 Press: Eject Media
REC button Programmable key
Full Press: Record Toggle
Half Press: AF Start
RED MINI-MAG
Side SSD Module

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-R | 10
RED MINI-MAG SIDE SSD MODULE CONNECTORS
This section describes the connectors for all of the RED MINI-MAG modules.
Each RED MINI-MAG module mounts to the left side of the EPIC/SCARLET. The rear face of this module
features a slot for inserting a RED MINI-MAG.
WARNING: DO NOT attempt to insert any media type except for the RED MINI-MAG, or any foreign objects, into
the SSD slot, as that may damage the RED MINI-MAG module or camera system.
The EVF/LCD connector on the front face of the RED MINI-MAG module provides digital video,
communications, and power interconnection between the camera system and a RED EVF or RED LCD.
Due to the requirement for absolute data integrity, the pinout of the EVF/LCD connector is not published.
CONNECTOR DESCRIPTION COMPATIBLE PARTS PART NUMBERS
EVF/LCD connector VIEWFINDER output LCD/EVF Cable (Right-to-Right) 7" 790-0158
LCD/EVF Cable (Right-to-Right) 12" 790-0162
LCD/EVF Cable (Right-to-Right) 18" 790-0448
LCD/EVF Cable (Right-to-Right) 32" 790-0449
LCD/EVF Cable (Right-to-Straight) 24" 790-0451
LCD Cable 6' 790-0055
LCD Cable 10' 790-0056
RED MINI-MAG slot Slot for inserting a
RED MINI-MAG RED MINI-MAG (120GB) 750-0075
RED MINI-MAG (240GB) 750-0082
RED MINI-MAG (512GB) 750-0078
RED MINI-MAG (1TB) 750-0081
RED MINI-MAG SIDE SSD MODULE LEDS
This section describes the LED for all of the RED MINI-MAG modules.
LED COLOR/FLASHING DESCRIPTION
Media Status LED Off No media present
Green Preview; media mouunted with > 10% of media
space available
Amber Record finalizing or playback mode
Amber flashing (slow) Formatting media
Red Recording; media mounted with >10 % of media
space available
Red flashing (slow) Preview/Recording; media mounted <= 10% and >
5% of media space available
Red flashing (fast) Preview/Recording; media mounted with <= 5% of
media space available

RED DSMC MEDIA OPERATION GUIDE
COPYRIGHT © 2015 RED.COM, INC 955-0047, REV-R | 11
WEAPON MEDIA BAY LEDS
This section describes the LED for all of the RED MINI-MAG modules.
LED COLOR/FLASHING DESCRIPTION
Media Status LED
(Back of media bay) Off No media present
Green Preview; media mouunted with > 10% of media
space available
Amber Record finalizing or playback mode
Amber flashing (slow) Formatting media
Red Recording; media mounted with >10 % of media
space available
Red flashing (slow) Preview/Recording; media mounted <= 10% and >
5% of media space available
Red flashing (fast) Preview/Recording; media mounted with <= 5% of
media space available
Record Status LED Off Not recording, or media not mounted
Red Recording
For more information, go to the DSMC Operation Guide: WEAPON, available at www.red.com/downloads.
RED STATION RED MINI-MAG
The RED STATION RED MINI-MAG is designed exclusively for offloading data from RED MINI-MAGs, and
connects to your computer via Firewire 800, eSATA 6G, or USB 3.0. Its compact design takes up less space
than the traditional RED STATION REDMAG 1.8" and fits easier into cases for storage.
RED STATION RED MINI-MAG

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-R | 12
RED STATION RED MINI-MAG INCLUDED COMPONENTS
The items listed in the table below ship with the RED STATION RED MINI-MAG.
ITEM PART NUMBER
RED STATION RED MINI-MAG 750-0055
RED STATION eSATA Cable (24") 790-0250
RED STATION USB 3.0 Cable (24") 790-0314
RED STATION FW800 Cable (2") 790-0253
RED STATION FW800 Cable (24") 790-0251
RED STATION AC Power Adaptor 790-0292
RED STATION USB to DC Power Cable (24") 790-0316
RED STATION RED MINI-MAG CONNECTORS AND CONTROLS
1 2 3 4 5
#CONNECTOR DESCRIPTION COMPATIBLE PARTS PART NUMBERS
1eSATA 6G connector1Connect to a computer via
an eSATA connection RED STATION eSATA Cable (24") 790-0250
2FireWire 800 Connect to a computer or
additional RED STATIONs via
a FireWire 800 connection
RED STATION FW800 Cable (2") 790-0253
RED STATION FW800 Cable (24") 790-0251
3USB 3.0 slot Connect to computer via
USB 3.0 connection RED STATION USB 3.0 Cable (24") 790-0314
4On/Off Switch Turn on/off N/A N/A
5+5 VDC IN +5 VDC power in RED STATION AC Power Adaptor 790-0292
RED STATION USB To DC Power
Cable (24") 790-0316
N/A RED MINI-MAG slot
(front) Slot for inserting a RED MINI-MAG RED MINI-MAG (240 GB) 750-0082
RED MINI-MAG (512GB) 750-0078
RED MINI-MAG (1TB) 750-0081
1. Only Silicon Image or HighPoint SATA cards connect to the RED STATION RED MINI-MAG through eSATA.
RED STATION RED MINI-MAG
(Rear)

RED DSMC MEDIA OPERATION GUIDE
COPYRIGHT © 2015 RED.COM, INC 955-0047, REV-R | 13
RED STATION RED MINI-MAG LEDS
LED COLOR/FLASHING DESCRIPTION
Power Indicator LED Off No power present; RED STATION RED MINI-MAG off
Red Power present; RED STATION RED MINI-MAG on
Red flashing (fast) Accessing media
RED STATION RED MINI-MAG

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-R | 14
03
REDMAG 1.8" SSD
The REDMAG™ 1.8" SSD media works with the DSMC®1.8" SSD Side Module and Rear SSD Module to provide
a fast and reliable recording medium. The REDMAG 1.8" SSD system is compatible with EPIC and SCARLET®
cameras.
The REDMAG 1.8" SSD is available in the following storage capacities: 48GB, 64GB, 128GB, 256GB, and
512GB.
REDMAG 1.8" SSD INCLUDED COMPONENTS
Each REDMAG 1.8" SSD ships with one (1) of the following:
ITEM PART NUMBER
REDMAG 1.8" SSD (48GB) 750-0044
REDMAG 1.8" SSD (64GB) 750-0025
REDMAG 1.8" SSD (128GB) 750-0021
REDMAG 1.8" SSD (240GB)1750-0061
REDMAG 1.8" SSD (256GB) 750-0026
REDMAG 1.8" SSD (512GB)2750-0037
1. The REDMAG 1.8" SSD (240GB) requires that your camera is on firmware v5.1.44 or later.
2. The REDMAG 1.8" SSD (512GB) is no longer available for purchase at www.red.com, but is still supported by RED.
REDMAG 1.8" SSD
REDMAG 1.8" SSD
SYSTEM

RED DSMC MEDIA OPERATION GUIDE
COPYRIGHT © 2015 RED.COM, INC 955-0047, REV-R | 15
SSD MODULES
You can mount the REDMAG 1.8" SSD to the following modules:
DSMC 1.8" SSD Side Module
DSMC 1.8" SSD Side Module (DRAGON)
Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON)
Rear SSD Module
DSMC 1.8" SSD SIDE MODULES
RED®offers the following DSMC 1.8" SSD Side Modules:
DSMC 1.8" SSD Side Module: Mounts to any standard aluminum EPIC/SCARLET.
DSMC 1.8" SSD Side Module (DRAGON): Mounts to an EPIC/SCARLET with a RED DRAGON sensor, and is
only available with an EPIC/SCARLET with a RED DRAGON sensor.
Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON): Mounts to a carbon fiber EPIC/SCARLET, and is only
available with a carbon fiber EPIC/SCARLET.
Each DSMC 1.8" SSD Side Module attaches to the camera system so that you can mount a REDMAG 1.8" SSD
to your camera.
Each DSMC 1.8" SSD Side Module has the same EVF/LCD LEMO connector, user keys, REC button, and LED
as the RED MINI-MAG Side SSD Module.
NOTE: The two (2) screws under the SSD slot on the standard aluminum side SSD modules secure an internal
bracket that provides structural support. DO NOT loosen these screws. Loosening these screws DOES NOT
provide extra clearance for the SSD.
WARNING:The red metal heat sink under the SSD slot on the Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON)
may get hot during long-term operation.
WARNING: The REDMAG modules are NOT HOT SWAPPABLE, meaning you cannot remove or install the modules
while the camera is turned on. Before installing or removing the module, you MUST turn off the camera. Failure
to do so may result in damage to the module or camera that will not be covered under warranty.
DSMC 1.8" SSD Side Module
(Rear and Front)

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-R | 16
DSMC 1.8" SSD SIDE MODULE INCLUDED COMPONENTS
The items listed in the table below ship with the DSMC 1.8" SSD Side Module.
ITEM PART NUMBER
DSMC 1.8" SSD Side Module 720-0013
Four (4) M3x0.5 x 6 mm Cap Screws N/A
DSMC 1.8" SSD SIDE MODULE CONTROLS
This section describes the controls for all of the DSMC 1.8" SSD Side Modules.
1
2
3
#CONTROL DESCRIPTION
1User Key 1 Programmable key
User Key 1 + 2 Press: Eject Media
2User Key 2 Programmable key
User Key 1 + 2 Press: Eject Media
3REC button Programmable key
Full Press: Record Toggle
Half Press: AF Start
DSMC 1.8" SSD Side Module
(Front)

RED DSMC MEDIA OPERATION GUIDE
COPYRIGHT © 2015 RED.COM, INC 955-0047, REV-R | 17
DSMC 1.8" SSD SIDE MODULE CONNECTORS
This section describes the connectors for all of the DSMC 1.8" SSD Side Modules.
The DSMC 1.8" SSD Side Module mounts to the left side of the EPIC/SCARLET. The rear face of this module
features a slot for inserting a REDMAG 1.8" SSD.
WARNING: DO NOT attempt to insert any media type except for the REDMAG 1.8" SSD, or any foreign objects,
into the SSD slot, as that may damage the DSMC 1.8" SSD Side Module or camera system.
The EVF/LCD connector on the front face of the DSMC 1.8" SSD Side Module provides digital video,
communications, and power interconnection between the camera system and a RED EVF or RED LCD.
Due to the requirement for absolute data integrity, the pinout of the EVF/LCD connector is not published.
CONNECTOR DESCRIPTION COMPATIBLE PARTS PART NUMBERS
EVF/LCD connector VIEWFINDER output LCD/EVF Cable (Right-to-Right) 7" 790-0158
LCD/EVF Cable (Right-to-Right) 12" 790-0162
LCD/EVF Cable (Right-to-Right) 18" 790-0448
LCD/EVF Cable (Right-to-Right) 32" 790-0449
LCD/EVF Cable (Right-to-Straight) 24" 790-0451
LCD Cable 6' 790-0055
LCD Cable 10' 790-0056
REDMAG 1.8" SSD
slot (rear) Slot for inserting a REDMAG 1.8" SSD REDMAG 1.8" SSD (48GB) 750-0044
REDMAG 1.8" SSD (64GB) 750-0025
REDMAG 1.8" SSD (128GB) 750-0021
REDMAG 1.8" SSD (256GB) 750-0026
REDMAG 1.8" SSD (512GB) 750-0037
WARNING: Damage to the camera, side SSD module, or other components of the camera system caused by
mixing carbon fiber components with non-carbon-fiber components is not covered under warranty, and may
void the warranty for both the camera and the side SSD module. For more information, go to “Mixing Carbon
Fiber and Aluminum Components” on page 7.
DSMC 1.8" SSD Side Module
(Rear and Front)

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-R | 18
DSMC 1.8" SSD SIDE MODULE LED
This section describes the LED for all of the DSMC 1.8" SSD Side Modules.
LED COLOR/FLASHING DESCRIPTION
Media Indicator LED Off No media present
Green Ready to record
Amber Finalizing
Amber flashing Accessing media (for example, when formatting)
Red Recording
Red flashing (slow) Recording; 25% media left
Red flashing (fast) Recording; 5% media left
DSMC 1.8" SSD Side Module
(Rear)

RED DSMC MEDIA OPERATION GUIDE
COPYRIGHT © 2015 RED.COM, INC 955-0047, REV-R | 19
REAR SSD MODULE
The Rear SSD Module secures onto the back of a Module Adaptor or a +1 Adaptor Module to serve as a rear
location for recording to a REDMAG 1.8" SSD. In the case that you are using cables or configurations that
make it difficult to access your DSMC 1.8" SSD Side Module, the Rear SSD Module is positioned to make it
easy to swap and record to a REDMAG 1.8" SSD.without interference.
The Rear SSD Module does not have any user keys or control buttons.
NOTE: The Rear SSD Module mounts only to a Module Adaptor or a +1 Adaptor Module.
REAR SSD MODULE INCLUDED COMPONENTS
The item listed in the table below ships with the Rear SSD Module
ITEM PART NUMBER
Rear SSD Module 720-0009
Rear SSD Module

COPYRIGHT © 2015 RED.COM, INC
RED DSMC MEDIA OPERATION GUIDE
955-0047, REV-R | 20
REAR SSD MODULE CONNECTORS
The Rear SSD Module mounts to a Module Adaptor or a +1 Adaptor Module on the back of the camera. The
side of the Rear SSD Module features a slot for inserting a REDMAG 1.8" SSD.
WARNING: DO NOT attempt to insert any media type except for the REDMAG 1.8" SSD, or any foreign objects,
into the SSD slot, as that may damage the Rear SSD Module or camera system.
CONNECTOR DESCRIPTION COMPATIBLE PARTS PART NUMBERS
SEARAYTM
connector (front) Connects to complementary SEARAY connector on the Module
Adaptor facilitates
communication between camera
and Rear SSD Module
Module Adaptor 720-0008
+1 Adaptor Module 720-0018
SEARAY connector
(rear) Connects to complementary SEARAY connector on RED rear
modules
Battery Module (Dual 720-0005
Battery Module (Quad) 720-0006
RED®Quickplate (Short) Module 790-0343
REDVOLT XL Module 740-0031
Pro I/O Module 720-0004
REDMOTE®770-0006
1/4-20 mounting
holes (top) Five (5) 1/4-20 mounting holes for mounting the RED TOUCH or other
RED products
N/A N/A
Lock (bottom) Use T20 TORX®driver to lock (CW)
and unlock (CCW) the module T20 TORX driver N/A
REDMAG 1.8" SSD
slot (side) Slot for inserting a REDMAG 1.8" SSD REDMAG 1.8" SSD (48GB) 750-0044
REDMAG 1.8" SSD (64GB) 750-0025
REDMAG 1.8" SSD (128GB) 750-0021
REDMAG 1.8" SSD (256GB) 750-0026
REDMAG 1.8" SSD (512GB) 750-0037
REAR SSD MODULE LED
LED COLOR/FLASHING DESCRIPTION
Media Indicator LED Off No media present
Green Ready to record
Red Recording
Red flashing (slow) Recording; 25% media left
Red flashing (fast) Recording; 5% media left
Amber Finalizing
Amber flashing Accessing media (for example, when formatting)
