Redback A 4952 User manual

www.redbackaudio.com.au Redback® Proudly Made In Australia 1
Redback® A 4952 5 Pin XLR - Cat5 Extender (Transmitter)
OVERVIEW:
This handy interface box allows balanced signals to be transmitted over long distances using economical UTP data cabling,
and provides easy local zone connection for audio sources. This unit carries the push-to-talk (PTT) signal to the connected
equipment ensuring seamless operation for paging microphones (connects to pins 4 and 5 of the XLR socket).
The unit has adjustable input sensitivities to handle either microphone (3mV) or line levels (1V) and has provision for phantom
power (15V DC). Both of these are DIP switch selectable. The output volume is adjusted via the control on the front.
The balanced output from the A 4952 can be received by the Redback® A 4954 Receiver. The unit is powered from 24V
DC, which can be connected to the DC socket on the rear of the unit, or it can be supplied through the Cat5/6 cabling from
other compatible Redback® products such as the A 4954 receiver (24V DC Plugpack supplied).
A 4952 DIP Switch Settings
Switch 1 - Sets the sensitivity of the input to either 3mV or 1V
ON - Input Sensitivity 3mV, OFF - Input Sensitivity 1V.
Switch 2 - Enables the Phantom Power to the input.
ON - Phantom Power Enabled (15V DC), OFF - Phantom Power Disabled.
Fig 1. Redback® A 4954 Receiver (Front)
RJ45 cabling conguration for system components (568A ‘Straight through’)
Components are connected using “pin to pin” conguration RJ45 data cabling as
shown in gure 3. When installing ensure all connections are veried with a LAN
cable tester before switching any system component on.
Failure to follow the correct wiring conguration may result in damage to
system components.
Fig 2. Redback® A 4954 Receiver (Rear)
Fig 3. RJ45 Pin to Pin Wiring Diagram
Operating Manual
A 4952 5 Pin XLR - Cat5 Extender (Transmitter)
User manual revision number: 1.0 05/01/2022
568A
1 TX+
2 TX-
3 RX +
4
5
6 RX-
7
8
StraightThrough
(both ends)
Pins Face Upwards
1 TX+
2 TX-
3 RX +
4
5
6 RX-
7
8

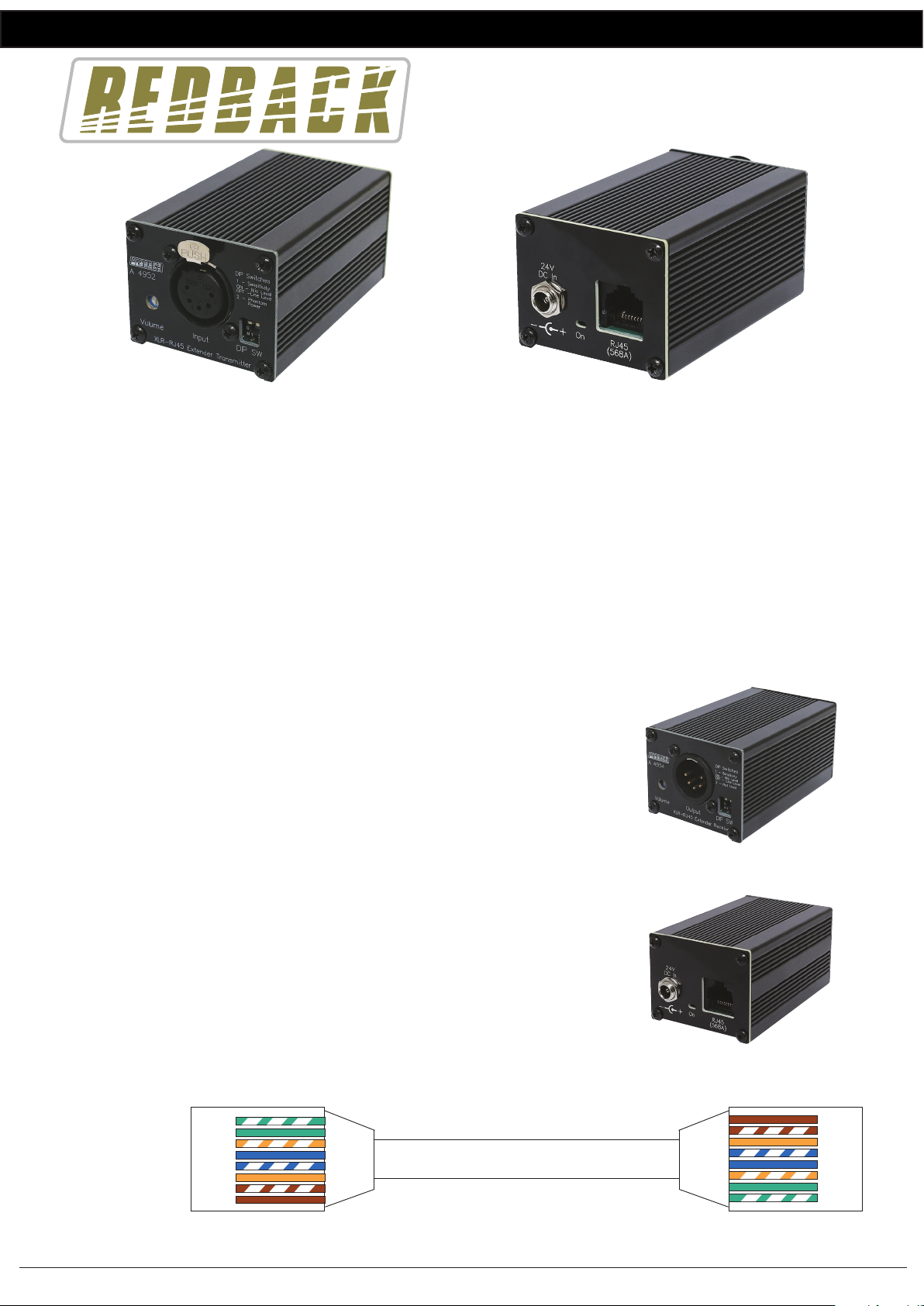

Redback® A 4952 (Front) Redback® A 4952 (Rear)

www.redbackaudio.com.au Redback® Proudly Made In Australia 1
Redback® A 4954 5 Pin XLR - Cat5 Extender (Receiver)
OVERVIEW:
The Redback® A 4954 receives audio from compatible Redback® Cat5e/6 transmitters and converts the signal to a balanced
XLR output with PTT connection. The output level is DIP switch selectable, and the output volume is screwdriver adjusted via
the trimpot on the front of the unit.
The unit is powered from 24V DC, which can be connected to the DC socket on the rear of the unit, or it can be supplied
through the Cat5/6 cabling from other compatible Redback® products. A 24V DC plugpack is supplied for connection to
the DC socket.
The Redback® A 4954 can be connected to compatible Redback® products such as the A 4952 and A 4953. These units
carry the balanced output and push-to-talk (PTT) signal to the A 4954 ensuring seamless operation for paging microphones
(PTT connects to pins 4 and 5 of the XLR socket).
DIP Switch Settings
Switch 1 - Sets the output as either a high or low level.
ON - Mic Level, OFF - Line Level.
Switch 2 - Not Used
Fig 1. Redback® A 4952 Transmitter
RJ45 cabling conguration for system components (568A ‘Straight through’)
Components are connected using “pin to pin” conguration RJ45 data cabling as
shown in gure 3. When installing ensure all connections are veried with a LAN
cable tester before switching any system component on.
Failure to follow the correct wiring conguration may result in damage to
system components.
Fig 2. Redback® A 4953 Transmitter Wallplate
Fig 3. RJ45 Pin to Pin Wiring Diagram
Operating Manual
A 4954 5 Pin XLR - Cat5 Extender (Receiver)
User manual revision number: 1.0 06/01/2022
568A
1 TX+
2 TX-
3 RX +
4
5
6 RX-
7
8
StraightThrough
(both ends)
Pins Face Upwards
1 TX+
2 TX-
3 RX +
4
5
6 RX-
7
8
Redback® A 4954 (Front) Redback® A 4954 (Rear)
