RedWing RC 30cc Slick 540 User manual

30cc Slick 540
Thank you for purchasing a Redwing RC aircraft. We have
worked hard to provide you with a high quality and great flying
aircraft. Please read through the manual before starting the
assembly. If you have any questions about your aircraft you can
E-mail us [e-mail] or call us at 636-600-8735.
Thank you
Redwing RC

2
Redwing RC assumes no liability for any damage resulting from
the user assembled product. By the act of using the assembled
product, the user accepts all resulting liability. The purchaser or
designated person flying this aircraft accepts all liability associated
with the use of this product. This product is sold as is and the
purchaser accepts any and all responsibility for structural or
mechanical failures. Because of the stresses that are associated
with aerobatic flight there is no warranty provided and Redwing
RC cannot be held liable.
WARNING:
Radio Control Model aircraft are not toys. If improperly used, it can
cause serious injury or death. Fly only in open areas, and at AMA
(Academy of Model Aeronautics) approved flying sites. The AMA
Safety Code must be followed. Follow all instructions included with
your plane, radio, and engine. The purchaser accepts all liabilities.
SPECIFICATIONS:
Wingspan –75”
Length - 72”
Wing area - 1100 sq. inches
Weight - 10.5-11 pounds
Engine - 30cc-36cc

3
Miscellaneous Needed:
Drill and Drill Bits
Rotary Tool & Sanding Drum
Various Hand tools
Thread locker
Hobby Knife
Crimping tool
30-Minute Epoxy
Additional Items Needed:
30cc to 36cc single cylinder engine
Factory Muffler or Canister Muffler
Propeller (Engine manufacturer recommended)
3 ½” Spinner and a appropriate sized spinner bolt
Radio 6 channel Minimum
1- 2.4 GHz receiver
2- Elevator servos 200 ounce of torque (minimum)
2- Aileron servos 200 ounce of torque (minimum)
1- Rudder servo 200 ounce of torque (minimum)
1- Throttle servo
1- Receiver battery pack (1600 mAH minimum)
1- Ignition battery 1100 to 1600 mAH
1 or 2 - Voltage Regulators (if needed)

4
Servo extensions required:
Ailerons: 2 x 6”-12”
Elevators: 2 x 24”
Rudder: Not required
Throttle: 12”
Switches: 1 for receiver, & 1 for ignition.
Unpacking:
Carefully remove the aircraft from the boxes and inspect for any
damage. If you have any damage it must be reported to the freight
company immediately. Redwing RC is not responsible for any
shipping damage. You must contact the carrier. We will work with
the purchaser and the freight company to resolve any issues.
However a claim must be filed before we can begin the process.
Re-shrink the Covering:
Before doing any assembly or installation it is very important to re-
shrink or re-tighten the already applied covering. Due to the
shipping process, heat and humidity changes from different

5
climates, the covering may become lose and wrinkle in the sun. If
you take the time to re-tighten the covering, you will be rewarded
with a long lasting and beautiful airplane. Using your covering
iron with a soft sock, gently apply pressure and rub in the covering.
If any bubbles occur, your iron may be to hot. Reduce heat and
work slowly. You should be able to just see the wood grain under
the covering when proper adhesion has occurred. Go over any and
all seams and color overlaps with your iron to assure good
adhesion of the covering to the wood. Be careful; don’t apply too
much heat to one area for long periods of time. This may cause the
trim colors to over shrink and pull away leaving gaps on the color
lines. The trim stripes are especially vulnerable to over shrinking.
Getting Started:
Using a hobby knife or soldering iron, carefully remove the
covering from the areas shown below.

6

7

8

9
Control Horn Installation:
(Elevator Hardware Bag)
(Rudder Hardware Bag)

10
(Wing Hardware Bag)
The control horns come pre-assembled and pre-painted. Use 30
minute epoxy to glue the control horns in place.
(Elevator Control Horn)

11
(Elevator Control Horn Installed)
The rudder control horns need 1/8” trimmed off of the bottom of
each control horn so they don’t hit inside the rudder.
(Rudder Control Horn Trimmed)

12
Landing Gear Installation:
(Landing Gear Hardware Pack)
Install the axles on the Carbon Fiber Landing gear as shown.

13
(Landing Gear Mounting Hardware)
(Landing Gear Cover)

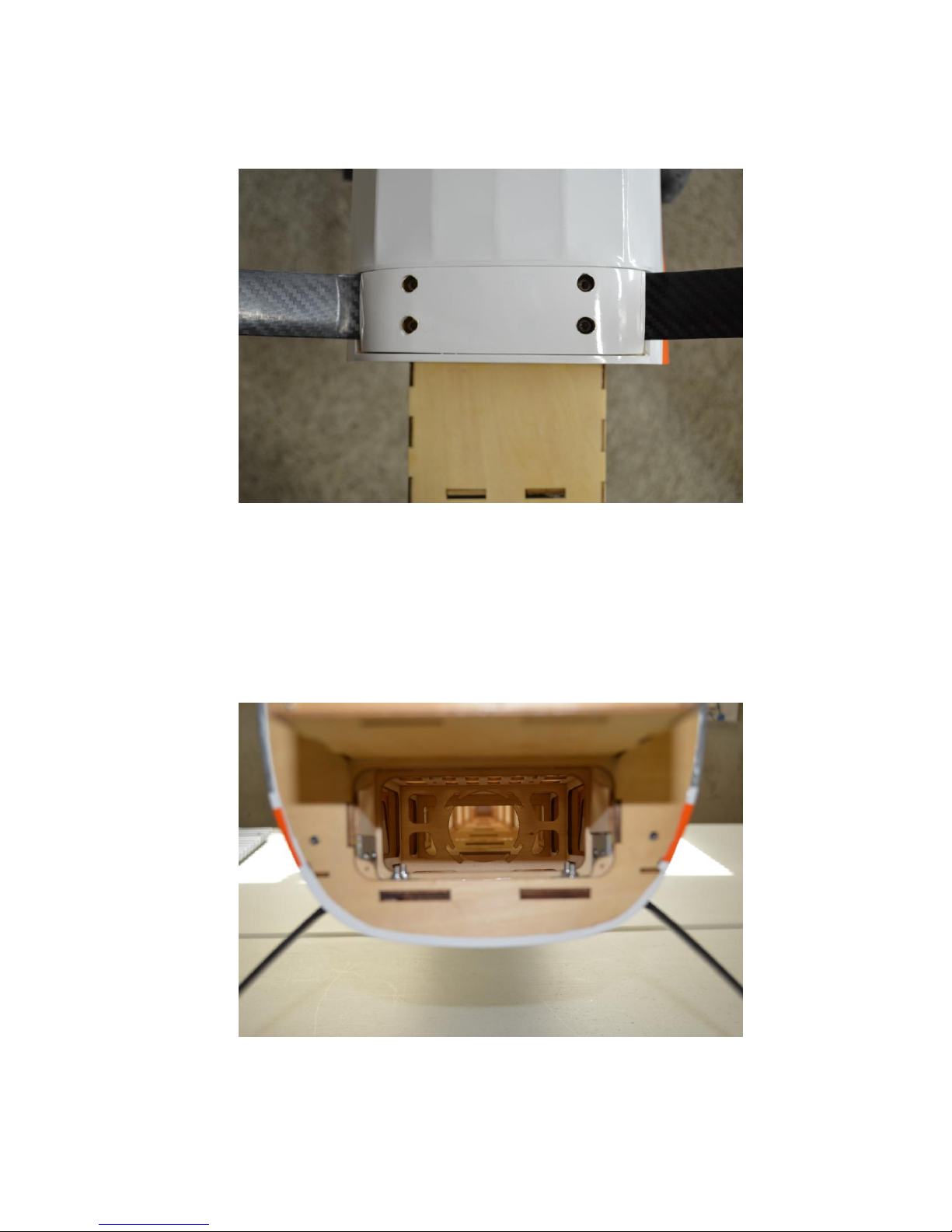

Place the flat washers on each of the four socket head cap screws.
These screws go through the holes in the landing gear cover and
then through the holes in the landing gear. The landing gear is
then secured in place by installing the four locknuts in the fuselage.

14
(Landing Gear Installed)
(Lock Nuts installed inside fuse)

15
Tail wheel Bracket Installation:
(Tail Wheel Assembly)

16
Assemble the tail wheel bracket as shown.
Install the tail wheel assembly on the fuselage. Make sure the
bracket is centered on the bottom of the fuselage.

17
Hinging the Control Surfaces:
30 minute epoxy is used to glue the hinges in place in the control
surfaces. Be careful to not get any epoxy in the hinge joint.
Once the epoxy has fully cured the control surfaces can be glued in
place on the airframe. Masking tape is used to hold the control
surface in place while the epoxy cures. Paper Towels and rubbing
alcohol can be used to clean up any excess epoxy.

18
Before gluing the rudder in place on the fuselage install the tail
wheel tiller arm mount in the rudder. Drill a 3/16” hole located 2
½” from the hinge line. The mount is centered on the rudder.
Glue the mount in place with 5 minute epoxy.

19
(Rudder Installed)
Aileron Servo Installation:

20
(Aileron Servo Mount)
Attach a 6”-12” servo extension to each aileron servo. Place a
servo safety clip over the connectors. Use servo screws to mount
the servo in the servo mount. Install your preferred servo arms on
the aileron servo. Included with the aircraft are carbon fiber servo
arms that bolt on to your existing servo arms. You may also
