Reeves G2 series User manual

TECHNICAL MANUAL
OPERATOR AND MAINTENANCE MANUAL
FOR
G2 SERIES DECONTAMINATION WATER HEATER
33 Kings Highway, Orangeburg, NY 10962 Phone: [phone]
Hotline: [phone]
Fax: [phone]
TECH MANUAL PART NUMBER: 1006375 Web:
REVISED DATE: 17 NOVEMBER 11 Email:
www.reevesems.com
[e-mail]
ISO 9001: 2008 Registered
Quality Management System

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater
Part Number: 1006375 a DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
SAFETY STEPS TO FOLLOW IF SOMEONE IS
THE VICTIM OF ELECTRICAL SHOCK.
SEND FOR HELP AS SOON AS POSSIBLE.
DO NOT TRY TO PULL OR GRAB THE INDIVIDUAL.
IF POSSIBLE, TURN OFF THE ELECTRICAL POWER.
IF YOU CANNOT TURN OFF THE ELECTRICAL POWER, PULL, PUSH OR
LIFT THE PERSON TO SAFETY USING A DRY WOODEN POLE, OR A
DRY ROPE, OR SOME OTHER INSULATING MATERIAL.
AFTER THE INJURED PERSON IS FREE OF CONTACT WITH THE
SOURCE OF ELECTRICAL SHOCK, MOVE THE PERSON A SHORT
DISTANCE AWAY AND IMMEDIATELY START ARTIFICIAL
RESUSCITATION.

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater
Part Number: 1006375 b DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
ELECTRICAL HAZARD
Under adverse conditions, voltage used in this equipment can cause death or serious injury. Observe the following
safety precautions:
GROUND THE EQUIPMENT Before connecting primary power cables; connect grounding cable from
ground lug on power control box to earth ground. Do not remove grounding
cable until signal cables and primary power cables have been disconnected
and generator has been shut down.
AVOID THE POWER INPUT Be careful not to contact 115 VAC input connections when installing or
servicing equipment.
DO NOT SERVICE ALONE Never work on equipment unless there is another person nearby who is
familiar with operation and hazards of equipment and who can administer
first aid.
USE ONLY ONE HAND Whenever possible, use only one hand to service equipment. Keep other
hand away to reduce hazard of current flowing through vital organs of the
body.
For Artificial Respiration, refer to FM 4-25.11.
WARNING
BURN HAZARD
Equipment may be hot to touch. Allow unit to cool before handling or use gloves when handling. Failure to observe
this warning can result in serious injury.

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater
Part Number: 1006375 c DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
WARNING
HEAVY EQUIPMENT
Improperly lifting or carrying heavy equipment can result in serious injury or death. Refer to the
following weight limits as guidelines:
Handling Function One-Person
Max. Lift Two-Person Max. Lift Two-Person Max. Lift (Male Only)
Lift object from floor and place it on surface not
greater than 5 feet above floor. 37 lb. 74 lb. 112 lb.
Lift object from floor and place it on surface not
greater than 3 feet above floor. 44 lb. 88 lb. 174 lb.
Carry object 33 feet or less. 42 lb. 84 lb. 164 lb.

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater
Part Number: 1006375 d DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
DANGER
Risk of Explosion or Fire. Do Not place unit in an area where flammable gas vapors may be present. A spark
could cause an explosion or fire.
DANGER
Risk of Electrocution. This unit must be connected to a properly grounded outlet. Do Not use an adapter or
remove the third grounding prong.
DANGER
Risk of Fire. Do Not smoke while fueling. Do Not fill the fuel tank while unit is running or hot. Allow two
minutes before refueling. Do Not fill fuel tank to point of overflowing.
WARNING
Risk of Asphyxiation. Use this unit ONLY in well ventilated areas. The exhaust contains carbon monoxide, a
poisonous, odorless, and invisible gas. Breathing this gas can cause serious injury, illness, and possible
death.
WARNING
To reduce the risk of electrocution, keep all connections dry and off the ground. Do Not touch plug with wet
hands
WARNING
Risk of Explosion or Fire. Always store fuel away from water heater while unit is operating or hot.
WARNING
Incorrect operation of this water heater could result in serious injury and or damage to equipment. Do Not
alter or modify this equipment in any manner.
WARNING
Remove all rings, watches, and other jewelry when performing maintenance on this equipment. Secure all
loose fitting clothing to prevent from being caught in moving or rotating parts. Death or loss of limb may
result.
CAUTION
Risk of Unit Damage. Be certain the discharge hose is not connected to the unit while flushing the system.
Flushing allows mineral deposits to be released which would obstruct or damage the hoses.

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater
Part Number: 1006375 i DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
TECHNICAL MANUAL
OPERATOR AND MAINTENANCE MANUAL
FOR
REEVES
G2 SERIES DECONTAMINATION WATER HEATER
TABLE OF CONTENTS WP Sequence No.
WARNING SUMMARY
HOW TO USE THIS MANUAL
CHAPTER 1 – GENERAL INFORMATION, EQUIPMENT DESCRIPTION, AND
THEORY OF OPERATION
General Information........................................................................................................................... 0001
Equipment Description and Data....................................................................................................... 0002
Theory of Operation........................................................................................................................... 0003
CHAPTER 2 – OPERATOR INSTRUCTIONS
Description and Use of Controls, Indicators, and Connections......................................................... 0004
Water Heater Preparation, Set-Up and Pre-Start Procedures .......................................................... 0005
Flushing the System Procedures....................................................................................................... 0006
G2 Series Start-up Procedures.......................................................................................................... 0007
Hot Water Operation Procedures ...................................................................................................... 0007
Decon Solution Injector Operation Procedures................................................................................. 0007
G2 Series Shutdown Procedures………………………………………………..................................... 0008
CHAPTER 3 – OPERATOR TROUBLESHOOTING
Operator Troubleshooting Index........................................................................................................ 0009
Operator Troubleshooting, Mechanical.............................................................................................. 0010
CHAPTER 4 – OPERATOR MAINTENANCE INSTRUCTIONS
Service upon Receipt......................................................................................................................... 0011
PMCS Introduction............................................................................................................................. 0012
PMCS................................................................................................................................................. 0013
G2 / G2-I Equipment Maintenance Procedures................................................................................. 0014
G2S / G2S-I Equipment Maintenance Procedures………................................................................. 0015
CHAPTER 5 – DESTRUCTION OF EQUIPMENT
Destruction of Equipment ………....................................................................................................... 0016
Destruction Procedures ……............................................................................................................. 0017
CHAPTER 6 – ILLUSTRATED PARTS BREAKDOWN (IPB)
G2 Water Heater Illustrated Parts Breakdown and Parts List ........................................................... 0018
G2S Water Heater Illustrated Parts Breakdown and Parts List………………................................... 0019

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater
Part Number: 1006375 ii DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
HOW TO USE THIS MANUAL
PURPOSE AND SCOPE
This technical manual provides Operator and Maintenance information for the G2 Series Decontamination Water
Heater. The information includes equipment description and theory of operation, operator instructions,
troubleshooting procedures, maintenance and testing procedures, and supporting data.
ARRANGEMENT, IDENTIFICATION AND LOCATION OF FRONT MATTER, REAR MATTER, CHAPTERS, AND
WORK PACKAGES
This manual is composed of front matter, chapters containing Work Packages (WPs), appendixes, and rear matter.
These areas are described in greater detail in the following paragraphs.
Front Matter
The front matter includes such items as the Warning Summary, List of Effective Pages/WPs, Table of Contents, and
How to Use This Manual.
Chapters and WPs
The WPs contain information pertinent to the performance of specific tasks. Each WP is maintained as a separate
entity. The WPs are grouped into chapters based on overall content. WPs are arranged in numerical sequence
regardless of chapter division. The chapter divisions and the WPs contained within the chapters are listed in the
Table of Contents. The contents of each chapter are outlined briefly in the following paragraphs.
Chapter 1 - General Information, Equipment Descriptions, and Theory of Operation. This chapter provides general
and descriptive information concerning the equipment. Theory of Operation appropriate to the maintenance level
covered is also provided.
Chapter 2 - Operator Instructions. This chapter provides a description and location of the controls, indicators, and
connectors for each G2 and or G2S Decontamination Water Heater. It also contains a description and location of the
decals and data plates for each piece of equipment and operation under usual and unusual conditions.
Chapter 3 - Operator Troubleshooting Procedures. This chapter provides operational checkout and troubleshooting
procedures appropriate to the maintenance level covered.
Chapter 4 – Operator Maintenance Procedures. This chapter provides troubleshooting/fault isolation procedures
appropriate to the maintenance level covered.
Chapter 5 – Destruction of Equipment. This chapter provides procedures for Destruction of Equipment.
Chapter 6 – Illustrated Parts Breakdown (IPB). This chapter provides Assemblies and Sub-Assemblies with part
numbers lists.

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater
Part Number: 1006375 iii DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
Identifying WPs
Each WP is identified by a six-digit number. The first four digits are assigned sequentially. The last two digits, if other
than 00 (01, 02, 03, etc.), indicate WP revision level. WPs are revised due to equipment configuration differences,
support equipment differences, or other similar situations. For example:
•WP 0005 00 might cover installation of a cable on a basic unit.
•WP 0005 01 might cover installation of the same cable on a differently configured unit.
•Installation of an alternate handle in place of the original handle, requiring a different procedure.
•Installation of the handle using an alternate technique or different tools.
•Installation of the handle using alternate fasteners.
Locating WPs
There are two ways to locate a WP when the number is not known, using the Table of Contents in the manual's front
matter and using the Index in the manual's rear matter.
Locating a WP in the Table of Contents
First determine the category of the WP subject and then find the appropriate chapter in the Table of Contents. Scan
the WP titles in that chapter until the WP subject matter is found. In the example below, it is desired to locate the
PMCS for the Operator (shaded). PMCS falls into the category of maintenance. Go to the Table of Contents and find
the chapter titled "Operator Maintenance Instructions." (Make sure the chapter applies to the appropriate
maintenance level). Scan the WP titles within that chapter until "PMCS" is found, and follow the leader line to find the
WP number.
TABLE OF CONTENTS
WP Sequence No.
WARNING SUMMARY
HOW TO USE THIS MANUAL
CHAPTER 1 - GENERAL INFORMATION, EQUIPMENT DESCRIPTION, AND THEORY OF OPERATION
General Information..................................................................................................WP 0001
Equipment Data and Description.............................................................................. WP 0002
Theory of Operation .................................................................................................WP 0003
CHAPTER 2 - OPERATOR INSTRUCTIONS
Description and Use of Operator Controls, Indicators and Connections.................. WP 0004
Flushing the System Procedures .............................................................................WP 0005
G2 Start-up Procedures ...........................................................................................WP 0006
G2S Start-up Procedures…….................................................................................. WP 0007

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater
Part Number: 1006375 iv DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
WP CONTENT AND PRESENTATION
The content and the presentation techniques used in the WPs vary according to the material covered.
Common Features
In all cases, the WP title is placed at the top of the page immediately below the manual and WP number and is set off
by horizontal lines as shown below.
G2 Series Decontamination Water Heater 0002
GENERAL INFORMATION, EQUIPMENT DESCRIPTION, AND THEORY OF OPERATION
G2 Series Decontamination Water Heater
EQUIPMENT DATA AND DESCRIPTION
On the second and subsequent pages of the WP, the manual and WP number is repeated.
The page number is placed at the bottom of the page and consists of the WP number and a sequential number
denoting the page within the WP as shown below.
0002-1
Paragraphs are not numbered.
Primary paragraphs are denoted by headings set in BOLD UPPER CASE (CAPITAL) type.
Secondary and lower-level paragraphs are denoted by headings set in Bold Upper and Lower Case type. These
paragraphs always relate to and are subordinate to the most recent primary paragraph heading.
Figures and tables are numbered sequentially within each WP starting with numeral 1

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater
Part Number: 1006375 DHS Systems LLC
CHAPTER 1
GENERAL INFORMATION
FOR
REEVES
G2 SERIES
DECONTAMINATION WATER HEATER

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater 0001
Part Number: 1006375 0001-1 DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solelyfor use by its customers. No portion of this document maybe reproduced
for release to a third party without written consent of DHS Systems LLC.
GENERAL INFORMATION, EQUIPMENT DESCRIPTION, AND THEORY OF OPERATION
G2 SERIES DECONTAMINATION WATER HEATER
GENERAL INFORMATION
SCOPE
This Operator’s Manual describes the safe operation and field maintenance of the G2 Series Decontamination Water
Heater. You can be assured your hot water heater was constructed and designed with quality and performance in
mind. Each component has been rigorously tested to ensure the highest level of acceptance.
This operator’s manual was complied for your benefit. By reading and following the simple safety, installation,
operation, troubleshooting, and maintenance steps described in this manual, you will receive years of trouble free
operation from your new hot water heater.
There are four Decontamination Water Heater models available: The G2 and G2-I; the G2S and G2S-I. See WP
0002 for Equipment Descriptions.
RECEIPT OF G2 SERIES DECONTAMINATION WATER HEATER
Once the unit has been uncrated, immediately write the model and serial number (see WP 0004 for serial number
location) in the space provided below.
Model Number__________________ Serial Number_____________________
Inspect for signs of obvious or concealed freight damage. If damage does exist, file a claim with the transportation
company immediately. Be sure that all damaged parts are replaced and that the mechanical and electrical problems
are corrected prior to operation of the unit. If you require service, contact REEVES EMS, Customer Service. Please
have the model number and serial number available for all service calls.
EQUIPMENT SPECIFIC SAFETY ISSUES
GENERAL
The cautions and warnings point out known conditions that are potentially hazardous. However, no manual can cover
every possible situation. If in doubt, contact Reeves. Service and repair procedures not covered in this manual
should be performed only by authorized Reeves EMS technicians.
GENERAL PRECAUTIONS
REMEMBER SAFETY FIRST
. If unsure of the
instructions or proper operating procedures, contact
Reeves before continuing.
This manual emphasizes the safety precautions
necessary during the operation and maintenance of the
G2 Series Decontamination Water Heater. Each section
uses caution and warning messages for both the safety
of the operator as well as the durability of the equipment.
If any of the cautions or warnings is not readily
understood, contact Reeves EMS, before proceeding.
When an abnormal condition is observed and
procedures in the manual do not specifically describe the
condition, all operations should be stopped and Reeves
EMS should be contacted immediately for assistance.
REEVES EMS, Contact Information
Phone: [phone]
FAX: [phone]
Email: [e-mail]

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater 0001
Part Number: 1006375 0001-2 DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solelyfor use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
The following safety precautions should be observed:
•This unit must
•
be grounded. Make sure the water heater is equipped with a GFCI built into the power supply
cord.
Never
•
fill the burner fuel tank while the water heater is running or hot. Allow a minimum of five minutes for
the water heater to cool before refueling.
Do Not
•
modify the electrical plug. If the plug will not fit into the outlet, have a proper outlet installed by a
qualified electrician.
Do Not
•
use extension cords with this water heater.
Never
•Stay alert – watch what you are doing.
allow any part of your body or clothing to come in contact with the heat exchanger.
Do Not
•Before performing any maintenance work:
operate the unit when fatigued or under the influence of drugs
or alcohol.
(a). Turn power switch to the OFF position.
(b). Disconnect the power cord from grounded power supply.
(c). Wait for water heater to cool down.
QUALIFIED PERSONNEL
A qualified person is someone who is familiar with this manual, the operation of the G2 Series Decontamination Water
Heater, the hazards involved in its operation and maintenance and who has been certified by the Reeves EMS
training program.
This manual is not intended to be a substitute for proper training. Reeves EMS strongly recommends that all receive
training directly from Reeves EMS.
READ ALL OF THE INFORMATION CONTAINED IN THIS MANUAL BEFORE
OPERATING THE DECONTAMINATION WATER HEATER
IMPORTANT
END OF WORK PACKAGE

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater 0002
Part Number: 1006375 0002-1 DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
GENERAL INFORMATION, EQUIPMENT DESCRIPTION, AND THEORY OF OPERATION
G2 SERIES DECONTAMINATION WATER HEATER
EQUIPMENT DESCRIPTION AND DATA
EQUIPMENT CHARACTERISTICS AND CAPABILITIES
The G2 /G2-I Decontamination Water Heaters is a man portable, easy to maneuver, four outlet system, with a
heating output of 425,000 BTU, capable of supplying multiple showers and sinks with heated water. The G2-I has a
6.6 gallon polyethylene decontamination solution holding tank and has the capability of supplying hot water for one or
two decontamination shelters.
The G2S / G2S-I Decontamination Water Heaters is a smaller version of the G2 with similar features except it is a
two outlet system and it doesn’t have the 6.6 gallon decontamination solution holding tank. The G2S is capable of
supplying hot water for a single shelter with a heating output of 168,000 BTU.
All models of Water Heaters have an enclosed fan-cooled electric motor with manual thermal overload protection, and
are capable of using multiple fuel types for the burner. All units have a built in Anti-Scald Protection device and
Pressure Relief Valves to protect the coils and components.

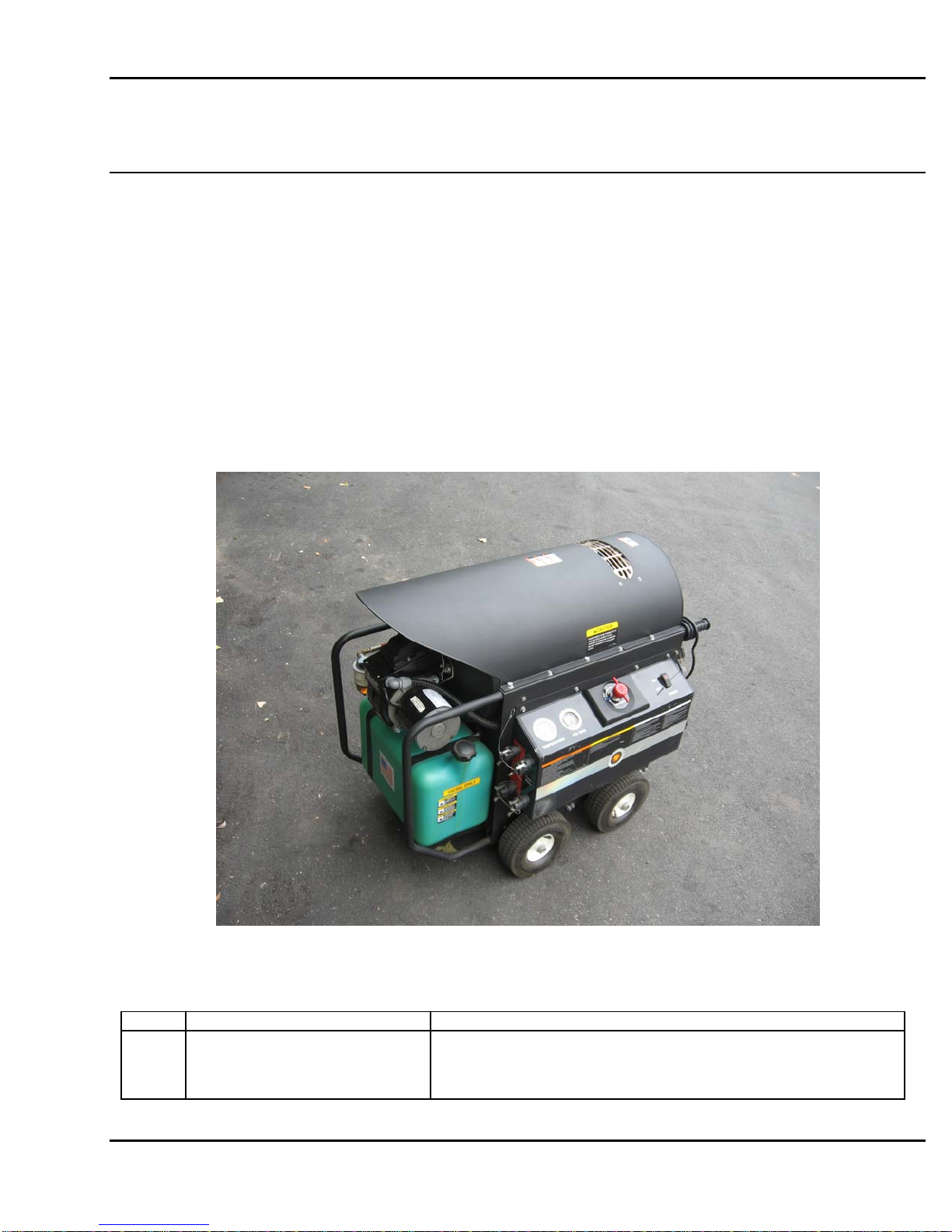

Figure 1. G2 / G2-I Water Heater Configuration.
Table 1. G2 / G2-I Water Heater Configuration.
ITEM ASSEMBLY FUNCTION
G2 Water Heater 425,000 BTU, G2 Water Heater
G2-I Water Heater 425,000 BTU, G2-I Water Heater with Decon Solution Injection

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater 0002
Part Number: 1006375 0002-2 DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
Figure 2. G2S / G2S-I Configuration.
Table 2. G2S / G2S-I Configuration.
ITEM ASSEMBLY FUNCTION
G2S Water Heater 165,000 BTU, G2S Water Heater
G2S-I 165,000 BTU, G2S-I Water Heater with Decon Solution Injection
END OF WORK PACKAGE

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater 0003
Part Number: 1006375 0003-1 DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
GENERAL INFORMATION, EQUIPMENT DESCRIPTION, and THEORY of OPERATION
G2 SERIES DECONTAMINATION WATER HEATER
THEORY OF OPERATION
GENERAL
The following WP identifies the theory of operation for each model of the G2 Series Decontamination Water Heaters.
The G2 Series Water Heaters consists of a self-heating water system with or without mobile Decon injection system
designed to connect to a Reeves S and XB Decon Shelter which support various operations.
WATER HEATERS
G2:
The Reeves G2 multi-fuel 425,000 BTU, self-heating water system is portable, easy to maneuver and built for field
use. The unit is the ideal way to supply multiple decontamination showers or field showers and sinks with heated
water, thus increasing the safety and comfort of both patients and personnel.
FEATURES:
•425,000 BTU, self-heating water system
•Multi-Fuel (diesel, kerosene, home heating oil, and JP4)
•Flow rate of up to 28 gallons per minute
•10-gallon on-board fuel tank with drain plug
•110V outlet onboard for convenience
•Instructional panel for ease of operation
•Built-in Anti-Scald Protection device factory pre-set at 110ºF
•Thermostatically-controlled
•Operator's panel with color-coded temperature and pressure gauges
•Heater ignited by solid state electrical system (NO FLAME) that ignites upon water flow
•Burner motor is a 1/4 hp, 120 V, 60hz, 1 ph and runs at 3450 rpm
•Inline GFCI protection
•Fuel filter with water separator
•Modular design -- ruggedized for field use
•Man portable and easy to maneuver
•Mounted on four (4) no flat tires with hand brake for safety
•1 ½” Female NST inlet with swivel and tethered compressed air adapter for winterization purposes
•Unit will safely accept incoming water pressure of up to 125 psi
•System can be adapted for use with multiple water sources that provide adequate water pressure and flow
(adapters not included)
•Four (4) discharge outlets with male cam lock fittings and tethered caps
•Includes two (2) 35-foot, ½” supply hoses with cam lock fittings that provide heated water and solution to
Reeves shower plumbing
•Discharge outlets and supply hoses can be factory modified in order to supply heated water to non-Reeves
shower systems

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater 0003
Part Number: 1006375 0003-2 DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
WATER HEATERS CONTINUED
G2-I:
The Reeves G2-I multi-fuel 425,000 BTU, self-heating water and mobile Decon Solution Injection System is portable,
easy to maneuver and built for field use. The unit is the ideal way to supply multiple decontamination showers or
multiple field showers and sinks with heated water, thus increasing the safety and comfort of both patients and
personnel.
FEATURES
•425,000 BTU, self-heating water system
•Multi-Fuel (diesel, kerosene, home heating oil, and JP4)
•Flow rate of up to 28 gallons per minute
•10-gallon on-board fuel tank with drain plug
•110V outlet onboard for convenience
•Instructional panel for ease of operation
•Built-in Anti-Scald Protection device factory pre-set at 110ºF
•Thermostatically-controlled
•Operator's panel with color-coded temperature and pressure gauges
•Heater ignited by solid state electrical system (NO FLAME) that ignites upon water flow
•Burner motor is a 1/4 hp, 120 V, 60hz, 1 ph and runs at 3450 rpm
•Inline GFCI protection
•Fuel filter with water separator
•Modular design -- ruggedized for field use
•Man portable and easy to maneuver
•Mounted on four (4) no flat tires with hand brake for safety
•1 ½” Female NST inlet with swivel and tethered compressed air adapter for winterization purposes
•Unit will safely accept incoming water pressure of up to 125 psi
•System can be adapted for use with multiple water sources that provide adequate water pressure and flow
(adapters not included)
•Four (4) discharge outlets with male cam lock fittings and tethered caps (2 - decontamination solution / 2 -
fresh rinse
•Includes two (2) 35-foot, ½” supply hoses with cam lock fittings that provide heated water and solution to
Reeves shower plumbing
•Discharge outlets and supply hoses can be factory modified in order to supply heated water to non-Reeves
shower systems
FEATURES OF INJECTION SYSTEM:
•Unit includes a non-electric, volumetric proportional injection system
•Injection rate adjustable onboard -- even while water is flowing
•Injection system designed to operate upon water flow
•Chemically resistant to Sodium Hypo-Chloride
•Built-in mixing chamber
•Easy to use black manual bypass (ON/OFF) lever
•In-line 100 micron filtration system
•Automatic air relief valve
•Flow range: 4.2 to 600 gallons per hour
•Injection rate: 1% (1:100) to 10% (1:10)
•Injector operating pressure: 10-85 psi
•Heavy-duty siphon hose
•Hose draws out of 6.6-gallon decontamination solution tank placed in storage area below

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater 0003
Part Number: 1006375 0003-3 DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
WATER HEATERS CONTINUED
G2S:
The Reeves G2S multi-fuel 165,000 BTU, self-heating water system is portable, easy to maneuver and built for field
use. The unit is the ideal way to supply multiple decontamination showers or multiple field showers and sinks with
heated water, thus increasing the safety and comfort of both patients and personnel.
FEATURES
•165,000 BTU, self-heating water system
•Multi-Fuel (diesel, kerosene, home heating oil, and JP4)
•Flow rate of up to 18 gallons per minute
•4-gallon on-board fuel tank with drain plug
•Instructional panel for ease of operation
•Built-in Anti-Scald Protection device factory pre-set at 110ºF
•Thermostatically-controlled
•Operator's panel with color-coded temperature and pressure gauges
•Heater ignited by solid state electrical system (NO FLAME) that ignites upon water flow
•Burner motor is a 1/5 hp, 120 V, 60hz, 1 ph and runs at 3350 rpm
•Inline GFCI protection
•Fuel filter with water separator
•Modular design -- ruggedized for field use
•Man portable and easy to maneuver
•Mounted on four (4) no flat tires with hand brake for safety
•1 ½” Female NST inlet with swivel and tethered compressed air adapter for winterization purposes
•Unit will safely accept incoming water pressure of up to 125 psi
•System can be adapted for use with multiple water sources that provide adequate water pressure and flow
(adapters not included)
•Two (2) discharge outlets with male cam lock fittings and tethered caps
•Includes two (2) 35-foot, ½” supply hoses with cam lock fittings that provide heated water and solution to
Reeves shower plumbing
•Discharge outlets and supply hoses can be factory modified in order to supply heated water to non-Reeves
shower systems

Operation & Maintenance w/IPB G2 Series Decontamination Water Heater 0003
Part Number: 1006375 0003-4 DHS Systems LLC
This document contains information proprietary to DHS Systems LLC and is intended solely for use by its customers. No portion of this document may be reproduced
for release to a third party without written consent of DHS Systems LLC.
WATER HEATERS CONTINUED
G2S-I:
The Reeves G2S-I multi-fuel 165,000 BTU, self-heating water and mobile Decon Solution Injection System is
portable, easy to maneuver and built for field use. The unit is the ideal way to supply multiple decontamination
showers or multiple field showers and sinks with heated water, thus increasing the safety and comfort of both patients
and personnel.
FEATURES
•165,000 BTU, self-heating water system
•Multi-Fuel (diesel, kerosene, home heating oil, and JP4)
•Flow rate of up to 18 gallons per minute
•4-gallon on-board fuel tank with drain plug
•Instructional panel for ease of operation
•Built-in Anti-Scald Protection device factory pre-set at 110ºF
•Thermostatically-controlled
•Operator's panel with color-coded temperature and pressure gauges
•Heater ignited by solid state electrical system (NO FLAME) that ignites upon water flow
•Burner motor is a 1/5 hp, 120 V, 60hz, 1 ph and runs at 3350 rpm
•Inline GFCI protection
•Fuel filter with water separator
•Modular design -- ruggedized for field use
•Man portable and easy to maneuver
•Mounted on four (4) no flat tires with hand brake for safety
•1 ½” Female NST inlet with swivel and tethered compressed air adapter for winterization purposes
•Unit will safely accept incoming water pressure of up to 125 psi
•System can be adapted for use with multiple water sources that provide adequate water pressure and flow
(adapters not included)
•Two (2) discharge outlets with male cam lock fittings and tethered caps (1 - decontamination solution / 1 -
fresh rinse)
•Includes two (2) 35-foot, ½” supply hoses with cam lock fittings that provide heated water and solution to
Reeves shower plumbing
•Discharge outlets and supply hoses can be factory modified in order to supply heated water to non-Reeves
shower system
FEATURES OF INJECTION SYSTEM:
•Unit includes a non-electric, volumetric proportional injection system
•Injection rate adjustable on board -- even while water is flowing
•Injection system designed to operate upon water flow
•Chemically resistant to Sodium Hypo-Chloride
•Built-in mixing chamber
•Easy-to-use black manual bypass (ON/OFF) lever
•In-line 100 micron filtration system
•Automatic air relief valve
•Flow range: 4.2 to 600 gallons per hour
•Injection rate: 1% (1:100) to 10% (1:10)
•Injector operating pressure: 10-85 psi
•Heavy-duty siphon hose
END OF WORK PACKAGE
