Refco GOBI Installation guide

GOBI
Installation and operating guide
Installations- und Bedienungsanleitung
Guide d’installation et d’utilisation
Istruzioni per l'installazione e l'uso
Guía de instalación y funcionamiento
Ðóêîâîäñòâî ïî óñòàíîâêå è ýêñïëóàòàöèè
Installatiehandleiding en gebruiksaanwijzing

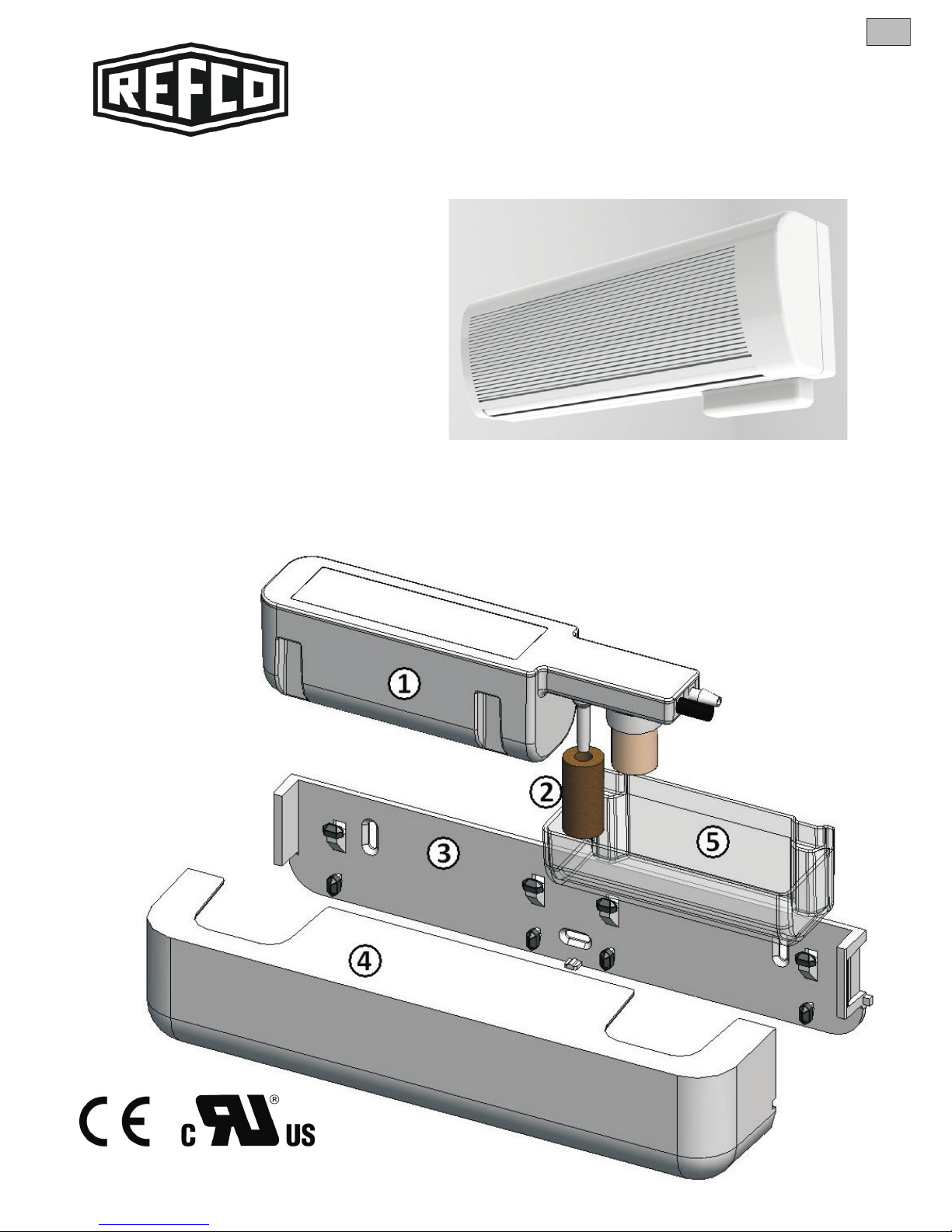

INSTRUCTIONS

Box Contents
1. GOBI Pump
2. Filter
3. Backplate
4. Front cover
5. Condensate collection tray
No.6 x 25mm (1”) screws (x3)
Rawl plugs (x3)
GOBI
Condensate removal pump
Installation and operating guide
The GOBI is a self-contained
condensate removal system for
use outside but directly adjacent to
air conditioning air handlers, as
shown opposite.
GB
1

SAFETY INSTRUCTIONS AND WARNING
Under normal use this equipment requires no user intervention. Installation, both fixing
and electrical, and maintenance work shall be carried out only by the manufacturer or
by its service center or in any case by a person having similar skills, so as to prevent
any risk. Electrical installation of equipment shall be in compliance with these
installation instructions and with all National and Local Regulations for Electrical Safety.
To reduce the risk of fire, electrical shock and injury to persons, the following safety
instructions shall be used:
• This pump is intended for indoor use with water only (max 25°C).
This pump is NOT SUBMERSIBLE.
Disconnect ALL power supplies before starting installation, connection or
maintenance work.
This pump is provided with a grounding conductor. To reduce the risk of electric
shock, be certain that it is connected only to a properly grounded, grounding type
receptacle.
During electrical installation, make sure this condensate pump is connected to a
circuit having a switch with contact separation in all poles that provide full
disconnection from the power supply under over-voltage categories III.
During electrical installation, a fuse non-time delay (rated 250V 1A), shall be fitted
into the line, supply side, see electrical installation section.
The power cord is not replaceable. If the power cord is damaged then the entire
pump must be replaced.
Children should be supervised to ensure that they are not left unattended in the
area where the pump is in use.
Children or persons with reduced physical, sensory or mental capabilities which
limits their ability to use the appliance should have a responsible person to instruct
them in its use.
Do not allow any chemicals to come into contact with this pump. Remove the pump
from the system before using cleaning fluid or any other chemicals. Flush the system
with clean water before re-connecting the pump.
In any installations where property damage and/or personal injury might result from an
inoperative or leaking pump, it is strongly recommended that the alarm relay should be
used to operate an alarm and/or switch off the air conditioning unit.
•
•
•
• All interconnecting tubes and cables should be confined within the air conditioning
unit, or enclosed in any way.
•
•
•
•
•
All fittings on this pump are designed to be finger-tight. The use of tools to attach
pipework may result in damage to the pump.
GB
2

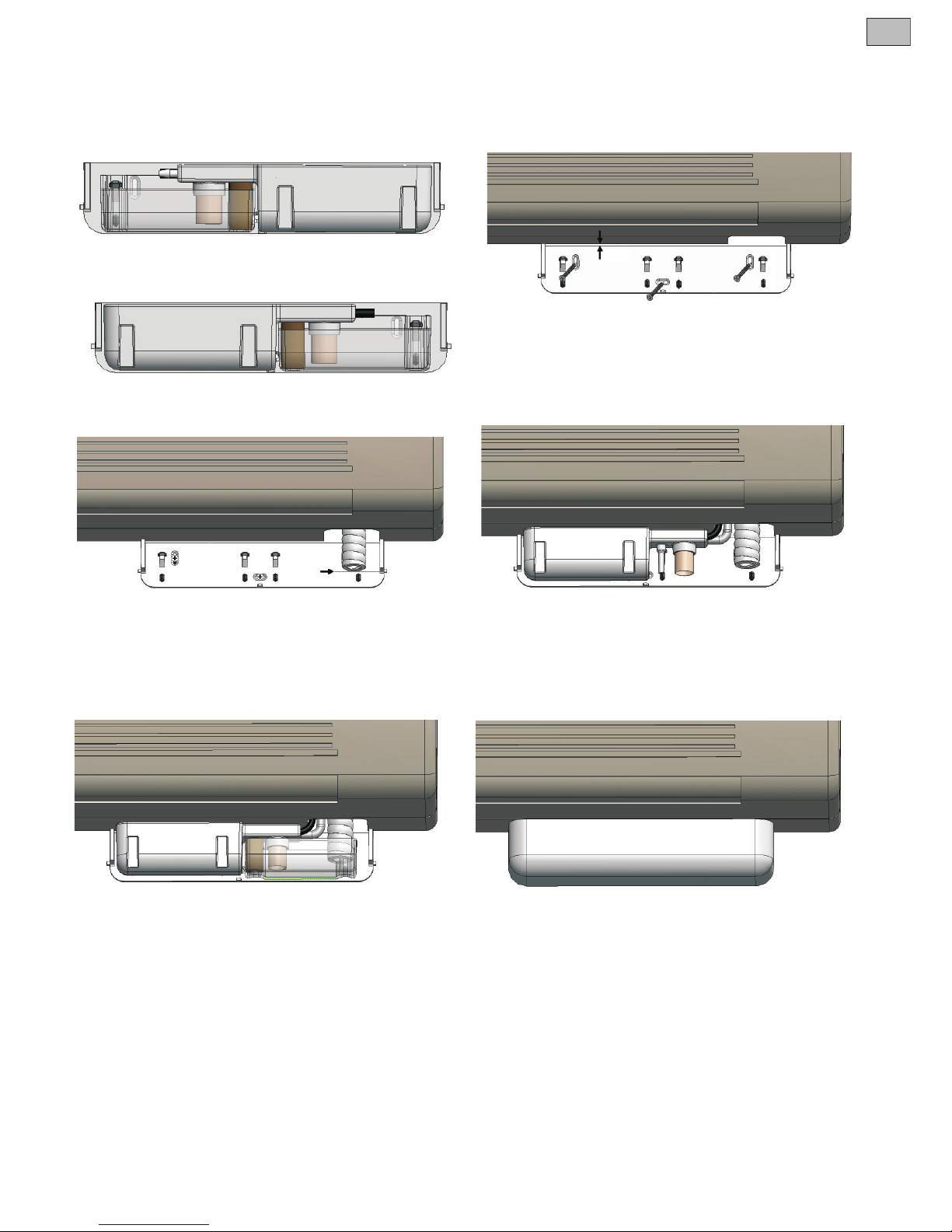

Right Handed
Left Handed
Fig.1. Screw the backplate to the wall
below the air handler and just
overlapping the outlet hole. Enlarge the
outlet hole if necessary.
3 mm
Fig.2. Cut the drain hose level with the
bottom of the bracket.
Fig.2
Fig.3. Place the GOBI pump on the
mounting posts, feed the power cable
through the air handler outlet hole and
connect the discharge tube.
Fig.3
Fig.4. Slide the filter over the pump inlet
tube and fit the condensate collection
tray onto the backplate.
Fig.4
Fig.5. Slide on the cover and snap into
place.
Fig.5
Installation
The GOBI can be installed on the left or right hand side of the air handler.
The following installation instructions refer to a right handed installation. For left handed
installations swap the positions of the pump and condensate collection tray as shown
below.
GB
3
Fig.1
3mm

Wiring Connections
Connect the ground, live and neutral wire from the supply cable of the GOBI pump to
the supply terminals (see Fig.6)
This product must be connected using a switch with contact separation in all poles that
provide full disconnection from the power supply under over-voltage categories III. A
fuse non time delay (rated 250V 1A), shall be fitted into the line, supply side (see ).Fig.6
Alarm Contacts
Volt Free Break On Fault connection is rated 5
amps 1250VA. It may be necessary to use a
contactor if the air handler supply is to be switched.
Cable Connections
1 GREEN/ YELLOW EARTH E
2 BLACK LIVE L
3 WHITE NEUTRAL N
4 VIOLET Alarm contact
5 VIOLET Alarm contact
Wire Colour Connect Symbol
EL N
POWER SUPPLY
CONTROL
CIRCUIT
1A
FUSE
1 2 3 4 5
Fig.6
Set-up & Test
Warning .1. - the pump is live during testing
2. Remove the GOBI cover.
3. Half fill the condensate collection tray with
clean tap water - The pump will start on low
power. It may be noisy whilst air is purged
from the system.
4. Continue to add water until the sensor is fully
submerged - The pump will switch to full
power and the alarm contacts will open.
5. Allow the GOBI to remove the water from
the collection tray - The pump will stop and
the alarm contacts will close.
6. Re-fit the GOBI cover. Coil Cleaning
Do not allow the pump to collect or
operate with cleaning chemicals in the
system.
Disconnect ALL power supplies.1.
2. Remove air-handler cover, GOBI cover
and condensate collection tray.
3. Follow manufacturers instructions but
collect chemicals in a separate container.
4. Flush the system with clean water.
5. Re-fit condensate collection tray, GOBI
cover and air-handler cover.
4
GB

2 3 4 5 6 71 9 10 11 12 13 148 16 17 18 19 2015
1
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
30 40 5010 60 20
0
0
0
0
Vertical lift
(m)
(ft)
Flow rate
(l/h)
(US gal/h))
0m Horiz
50m Horiz
100m Horiz
Capacity
Specifications Power supply: 120/240Vac, 50/60Hz Auto sensing
Power consumption: 16W max., 0.25W when idle
Alarm relay: 5A, 30Vdc, 250Vac Break on fault
Capacity: 12 litres/hour max. (3.17 US gal/h)
Maximum head: Vertical >20m (65 ft), Horizontal >100 m
(328 ft) Suction 1 m max. (3.28 ft)
Ambient temp: 0 - 40°C
Water temp: 25°C max.
Material: Flame retardant ABS UL94 5VA
Discharge tube: 6mm (1/4”) ID
Dimensions: 286 x 61 x 53mm (11.3” x 2.4” x 2”)
IP: 44
Trouble Shooting
Pump does not run:
Pump is pumping air:
Check fuse and electrical supply
connections.
Check that water is reaching the pump
sensor.
Check that the collection tray is level.
Check that the sensor is clean and
undamaged.
Check that the outlet tube is not
syphoning.
Pump is noisy:
Pump continues to run with no water:
Check that the mains cable and outlet tube
are not vibrating against the sides of the
equipment.
The sensor may be contaminated by dirt,
mould or certain cleaning chemicals. Gently
wipe the sensor with a damp cloth. If the
problem persists, repeat with methylated
spirit and then rinse with water.
5
GB

WARRANTY
This product is guaranteed for two years to be free from manufacturing defects or faulty
materials. If it should fail for either of these reasons within two years from the date of
manufacture it will be repaired or replaced free of charge, at the option of REFCO
Manufacturing Ltd.
REFCO Manufacturing Ltd. can accept no liability whatsoever for any loss or damage
arising from the use of this product, however caused. Before using this product the user
should satisfy himself that it is suitable for use in the intended application and for the
manner in which it is intended that it be used.
This product is subject to continuous development and improvement and REFCO
Manufacturing Ltd. reserves the right to alter the specification or design without prior
notice.
