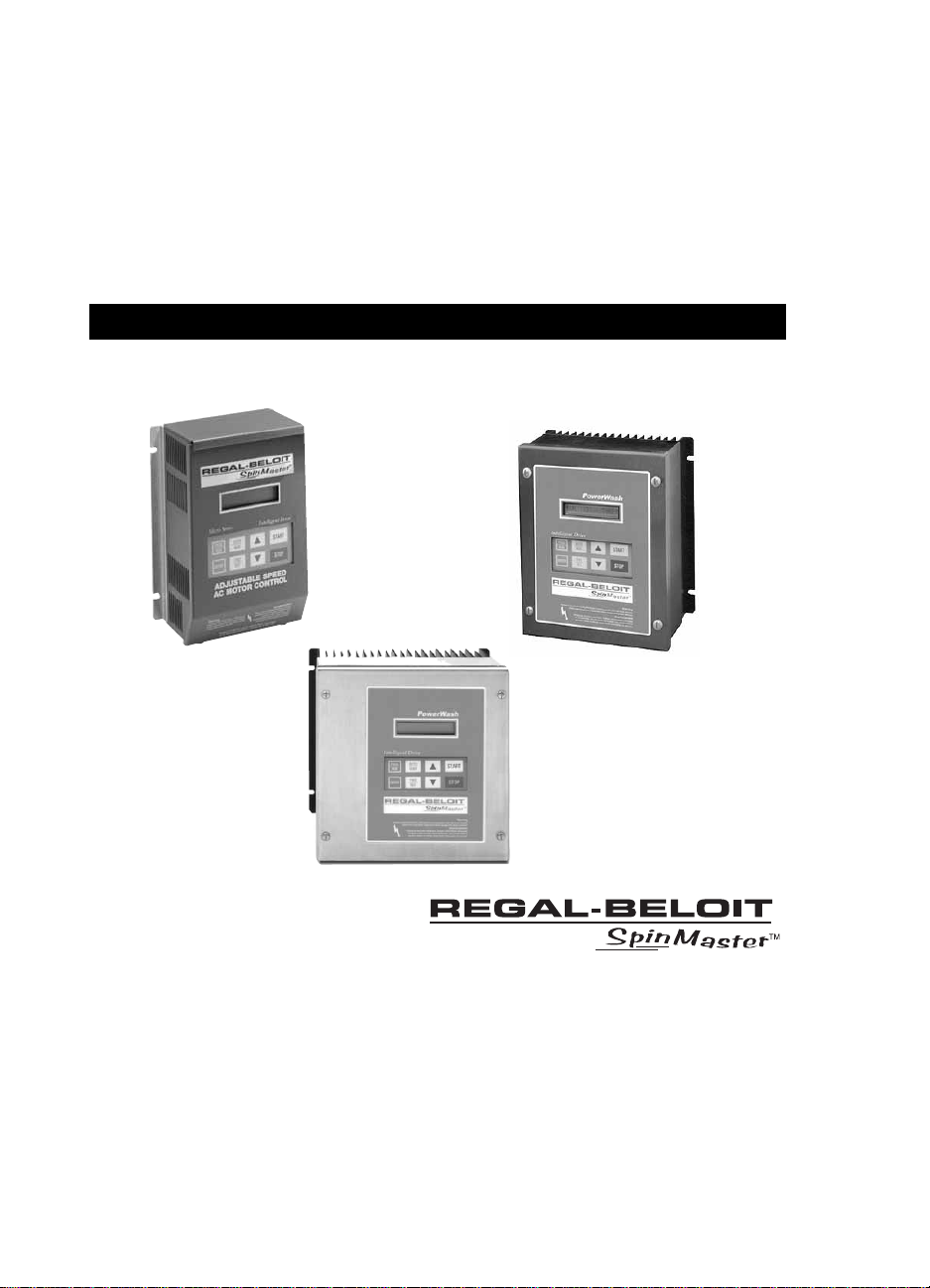

Regal-Beloit Spin Master PowerWash Series User manual

REGAL-BELOIT
Variable Speed AC Motor Drives
Installation and Operation Manual
Micro and PowerWash Series

Manual Number: SB184
TABLE OF CONTENTS
1.0 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
PRODUCTS COVERED IN THIS MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . .1
PRODUCT CHANGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
RECEIVING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
CUSTOMER MODIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.0 SpinMaster™ Micro Drive SPECIFICATIONS . . . . . . . . . . . . . . . . . .3
3.0 SpinMaster™ Micro Drive MODEL
ENCLOSURE DESIGNATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
4.0 SpinMaster™ Micro Drive DIMENSIONS . . . . . . . . . . . . . . . . . . . . .5
5.0 SpinMaster™ Micro Drive RATINGS . . . . . . . . . . . . . . . . . . . . . . . .10
6.0 THEORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
DESCRIPTION OF AC MOTOR OPERATION . . . . . . . . . . . . . . . . . . . . . . . .14
DRIVE FUNCTION DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7.0 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8.0 INPUT AC REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
9.0 VOLTAGE SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
10.0 POWER WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
11.0 SpinMaster™ Micro Drive POWER WIRING DIAGRAM . . . . . . .23
12.0 INITIAL POWER UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
13.0 KEYPAD CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
KEYPAD FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
SpinMaster™ Micro Drive DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
14.0 CONTROL WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
START/STOP AND SPEED CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
15.0 SpinMaster™ Micro Drive CONTROL WIRING DIAGRAMS . . . .38
SpinMaster™ Micro Drive TERMINAL STRIP . . . . . . . . . . . . . . . . . . . . . . . .38
TWO-WIRE START/STOP CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
THREE-WIRE START/STOP CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
SPEED POT AND PRESET SPEED CONTROL . . . . . . . . . . . . . . . . . . . . . . .41
16.0 PROGRAMMING THE SpinMaster™ Micro DRIVE . . . . . . . . . . . .42
PROGRAMMING THE PARAMETERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
PARAMETER ACCESS USING SPEED DIAL . . . . . . . . . . . . . . . . . . . . . . . . .44
17.0 PARAMETER MENU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
18.0 DESCRIPTION OF PARAMETERS . . . . . . . . . . . . . . . . . . . . . . . . . .48
19.0 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
20.0 USER SETTING RECORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

IMPORTANT NOTICE
The following , and information is supplied to you for
your protection and to provide you with many years of trouble free and safe operation of your
Marathon Electric product.
• Hazard of electrical shock! Disconnect incoming power and wait three minutes before
servicing the drive. Capacitors retain charge after power is removed.
• Hazard of electrical shock! Wait three minutes after disconnecting incoming power
before servicing drive. Capacitors retain charge after power is removed.
• If CONTROL is set to LOCAL, TB-1 is disabled and CANNOT be used as a STOP switch!
Incorrect use of TB-1 may result in damage to equipment and/or injury to personnel! See
Parameter 30 - CONTROL.
• STOP (TB-1) and EXTERNAL FAULT (TB-13D) circuitry may be disabled if parameters are
reset to factory defaults! The drive must be reprogrammed after a RESET in order to
insure proper operation (see Parameter 65 - PROGRAM). FAILURE TO DO SO MAY
RESULT IN DAMAGE TO EQUIPMENT AND/OR INJURY TO PERSONNEL!
• Consult motor manufacturer before operating motor above rated frequency.
Overspeeding the motor and/or driven equipment can cause damage to equipment
and injury to personnel!
• This method requires TB-13C to be set for RUN REVERSE, which will disable TB-1 as a
STOP switch! Incorrect use of TB-1 may result in damage to equipment and/or injury to
personnel! Refer to Parameter 49 - TB13C.
• If TB-13C is programmed for RUN REVERSE, TB-1 is disabled and CANNOT be used as
a STOP switch! This is true in LOCAL and REMOTE mode. Incorrect use of TB-1 may result
in damage to equipment and/or injury to personnel! Refer to Parameter 49 - TB-13C for
more information.
• Automatic start of equipment may result in damage to equipment and/or injury to
personnel! Automatic start should only be used on equipment that is inaccessible to
personnel.
•DRIVES MUST NOT BE INSTALLED WHERE SUBJECTED TO ADVERSE ENVIRONMENTAL
CONDITIONS! DRIVES MUST NOT BE INSTALLED WHERE SUBJECTED TO: COMBUSTIBLE,
OILY, OR HAZARDOUS VAPORS OR DUST; EXCESSIVE MOISTURE OR DIRT; STRONG
VIBRATION; EXCESSIVE AMBIENT TEMPERATURES. CONSULT CUSTOMER SERVICE
FOR MORE INFORMATION ON THE SUITABILITY OF A DRIVE TO A PARTICULAR
ENVIRONMENT.
• Severe damage to the drive can result if it is operated after a long period of storage or
inactivity without reforming the DC bus capacitors!
• Do not connect incoming AC power to output terminals T1, T2, or T3! Severe damage
to the drive will result.
• DO NOT connect incoming AC power to output terminals T1, T2, and T3! Do not cycle
input power to the drive more than once every two minutes. Damage to the drive will
result.
• When operating in JOG mode, the STOP key WILL NOT stop the drive. To stop the
drive, the contact between TB-13B and TB-2 must be opened.

IMPORTANT NOTICE (continued)
• Consult qualified personnel with questions. All electrical repairs must be performed by
trained and qualified personnel only.
• Consult motor manufacturer before operating motor and/or driven equipment above
base speed.
Resale of Goods:
In the event of the resale of any of the goods, in whatever form, Resellers/Buyers will include the following
language in a conspicuous place and in a conspicuous manner in a written agreement covering such sale:
The manufacturer makes no warranty or representations, express or implied, by operation of law or
otherwise, as to the merchantability or fitness for a particular purpose of the goods sold hereunder.
Buyer acknowledges that it alone has determined that the goods purchased hereunder will suitably
meet the requirements of their intended use. In no event will the manufacturer be liable for
consequential, incidental or other damages. Even if the repair or replacement remedy shall be
deemed to have failed of its essential purpose under Section 2-719 of the Uniform Commercial Code,
the manufacturer shall have no liability to Buyer for consequential damages.
Resellers/Buyers agree to also include this entire document including the warnings and cautions above in
a conspicuous place and in a conspicuous manner in writing to instruct users on the safe usage of the
product.

1.0 GENERAL
1.1 PRODUCTS COVERED IN THIS MANUAL
This manual covers the REGAL-BELOIT CORPORATION SpinMaster™ Micro and PowerWash
Variable Frequency Drive.
1.2 PRODUCT CHANGES
REGAL-BELOIT CORPORATION reserves the right to discontinue or make modifications to the
design of its products and manuals without prior notice, and holds no obligation to make
modifications to products sold previously. REGAL-BELOIT CORPORATION also holds no liability
for losses of any kind which may result from this action. Instruction manuals are available for
download from www.marathonelectric.com.
1.3 WARRANTY
REGAL-BELOIT CORPORATION warrants the SpinMaster™ Micro Series AC motor control to be
free of defects in material and workmanship for a period of eighteen months from the date of
sale to the user, or two years from the date of shipment, which ever occurs first. A SpinMaster™
control, or any component contained therein, which under normal use, becomes defective
within the stated warranty time period, shall be returned to REGAL-BELOIT’ CORPORATION,
freight prepaid, for examination (contact Customer Service for authorization prior to returning
any product). REGAL-BELOIT CORPORATION reserves the right to make the final
determination as to the validity of a warranty claim, and sole obligation is to repair or replace
only components which have been rendered defective due to faulty material or
workmanship. No warranty claim will be accepted for components which have been
damaged due to mishandling, improper installation, unauthorized repair and/or alteration of
the product, operation in excess of design specifications or other misuse, or improper
maintenance. REGAL-BELOIT CORPORATION makes no warranty that its products are
compatible with any other equipment, or to any specific application, to which they may be
applied and shall not be held liable for any other consequential damage or injury arising from
the use of its products.
This warranty is in lieu of all other warranties, expressed or implied. No other
person, firm or corporation is authorized to assume, for REGAL-BELOIT
CORPORATION, any other liability in connection with the demonstration or
sale of its products.
1

1.4 RECEIVING
Inspect all cartons for damage which may have occurred during shipping. Carefully unpack
equipment and inspect thoroughly for damage or shortage. Report any damage to carrier
and/or shortages to supplier. All major components and connections should be examined for
damage and tightness, with special attention given to PC boards, plugs, knobs and switches.
1.5 CUSTOMER MODIFICATION
REGAL-BELOIT CORPORATION, its sales representatives and distributors, welcome this oppor-
tunity to assist our customers in applying our products. Many customizing options are available
to aid in this function. REGAL-BELOIT CORPORATION cannot assume responsibility for any
modifications not authorized by its engineering department.
2

2.0 SpinMaster™ PowerWash SPECIFICATIONS
Storage Temperature -20° to 70° C
Ambient Operating Temperature Type 1 (IP 31) -10° to 50° C
(With 2.5, 6 and 8 kHz carrier, Type 4 (IP 65) -10° to 40° C
derate for higher carriers) Type 12 (IP 54) -10° to 40° C
Ambient Humidity Less than 95% (non-condensing)
Altitude 3300 feet (1000 m) above sea level
without derating
Input Line Voltages 240/120 Vac, 240/200 Vac,
480/400 Vac, and 590/480 Vac
Input Voltage Tolerance +10%, -15%
Input Frequency Tolerance 48 to 62 Hz
Output Wave Form Sine Coded PWM
Output Frequency 0-120 Hz, Optional up to 1000 Hz
Carrier Frequency 2.5 kHz to 14 kHz
Frequency Stability ±0.00006% / °C
Service Factor 1.00
Efficiency > 97% throughout speed range
Power Factor (displacement) > 0.96
Overload Current Capacity 150% of output rating for 60 seconds
180% of output rating for 30 seconds
Speed Reference Follower 0-10 VDC, 4-20 mA
Control Voltage 15 VDC
Analog Outputs 0-10 VDC, or 2-10 VDC
Proportional to speed and load
Digital Outputs Form C relay: 2A at 28 VDC or 120 Vac
Open-collector outputs: 40 mA at 30 VDC
3

4
HP VOLTAGE PHASE NEMA 1 NEMA 4 NEMA 4X NEMA 12
.25 120/240 1 T1110 T400 T410 —
.50 120/240 1 T1112 T402 T412 —
208/240 3 T1212 T422 T452 —
120/240 1 T1114 T404 T414 —
1208/240 3 T1214 T424 T454 —
480 3 T1414 T434 T464 —
575 3 T15144 T444 T474 —
1.5 120/240 1 T1115 T405 T415 —
208/240 T1215 T425 T455 —
240 1 T1116 T406 T416 —
2208/240 3 T1216 T426 T456 —
480 3 T1416 T436 T466 —
575 3 T1516 T446 T476 —
240 1 T1117 T407 T417 —
3208/240 3 T1217 T427 T457 —
480 3 T1417 T437 T467 —
575 3 T1517 T447 T477 —
208/240 3 T1218 T438 T458 —
5 480 3 T1418 T438 T468 —
575 3 T1518 T448 T478 —
208/240 3 T1219 T429 T459 —
7.5 480 3 T1419 T439 T469 —
575 3 T1519 T449 T479 —
208/240 3 T1220 T430 T460 —
10 480 3 T1420 T440 T470 —
575 3 T1520 T450 T480 —
208/240 3 T1221 T431 T461 —
15 480 3 T1421 T441 T471 —
575 3 T1521 T451 T481 —
208/240 3 T1222 — — T532
20 480 3 T1422 T442 T472 —
575 3 T1522 T453 T482 —
208/240 3 T1223 — — T533
25 480 3 T1423 — — T543
575 3 T1523 — — T553
208/240 3 T1224 — — T534
30 480 3 T1424 — — T544
557 3 T1524 — — T554
40 480 3 T1425 — — T545
575 3 T1525 — — T555
50 480 3 T1426 — — T546
575 3 T1526 — — T556
60 480 3 T1427 — — T547
575 3 T1527 — — T557
3.0 SpinMaster™ Micro DRIVE MODEL
ENCLOSURE DESIGNATION

5
4.0 SpinMaster™ Micro DIMENSIONS

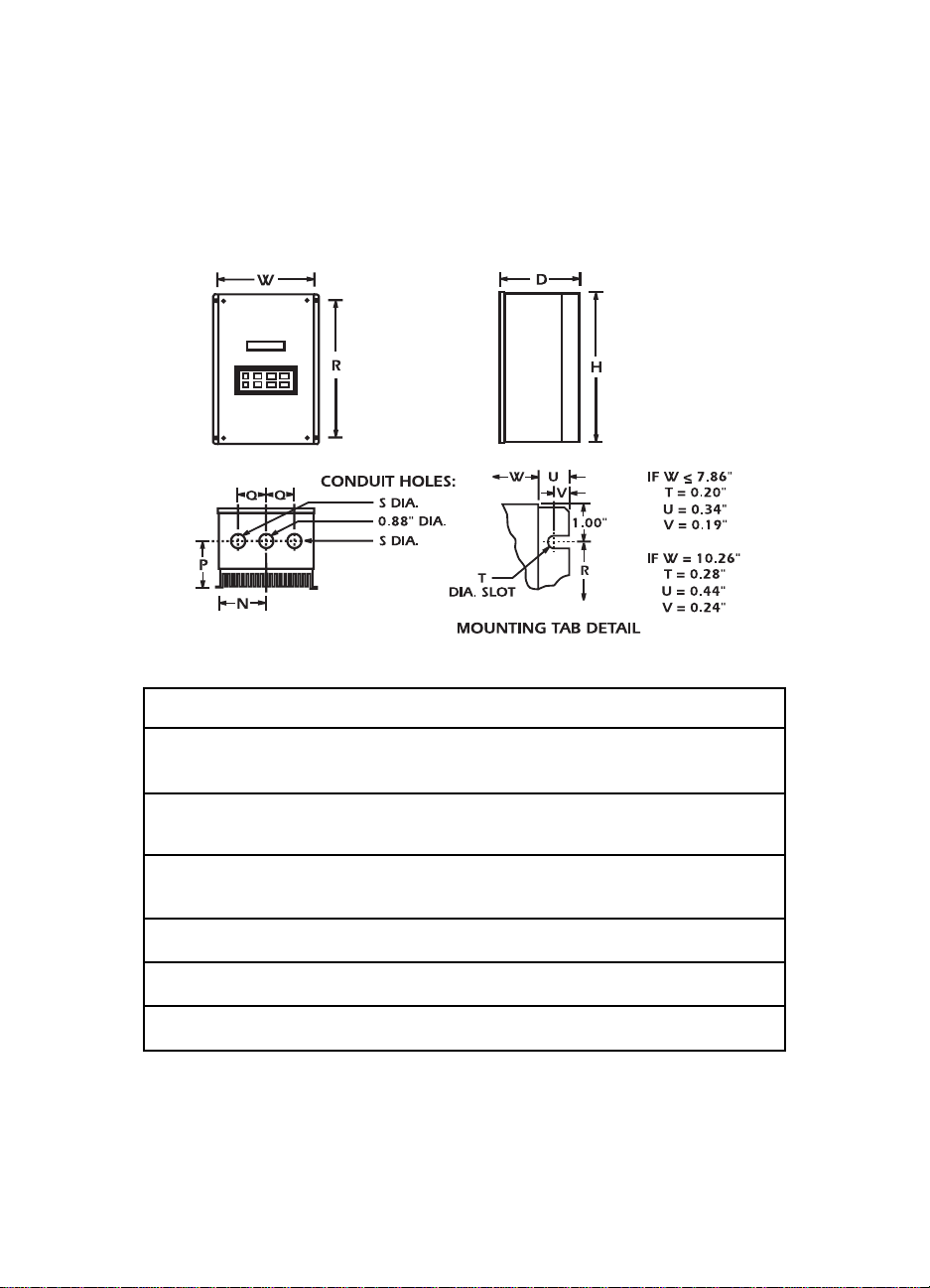

4.1 SpinMaster™ NEMA 1 Enclosed
INPUT
HP VOLTAGE MODEL H W D N P Q R S
0.25 120/240 T1110 7.50 4.70 3.33 2.35 1.60 1.37 5.50 0.88
0.5 120/240 T1112 7.50 6.12 3.63 3.77 1.80 1.37 5.50 0.88
208/240 T1212 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
120/240 T1114 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
1208/240 T1214 7.50 4.70 4.33 2.35 2.60 1.37 5.50 0.88
480 T1414 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
575 T1514 7.50 4.70 3.63 2.35 1.90 1.37 5.50 0.88
1.5 120/240 T1115 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
208/240 T1215 7.50 4.70 4.33 2.35 2.60 1.37 5.50 0.88
240 T1116 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
2208/240 T1216 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
480 T1416 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
575 T1516 7.50 6.12 4.22 3.77 2.40 1.37 5.50 0.88
240 T1117 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
3208/240 T1217 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
480 T1417 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
575 T1517 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
W
R
Q
P
N
QWU
D
H
R
V
1.00”
T
DIA. SLOT
S DIA.
0.88” DIA.
S DIA.
IF W ≤7.86”
T = 0.20”
U = 0.34”
V = 0.19”
IF W = 10.26”
T = 0.28”
U = 0.44”
V = 0.24”
CONDUIT HOLES:
MOUNTING TAB DETAIL

INPUT
HP VOLTAGE MODEL H W D N P Q R S
208/240 T1218 7.88 7.86 5.94 5.13 3.95 1.50 5.88 1.13
5 480 T1418 7.50 6.12 5.12 3.77 3.30 1.37 5.50 0.88
575 T1518 7.88 7.86 5.94 5.13 3.95 1.50 5.88 1.13
208/240 T1219 9.38 7.86 6.84 3.93 4.19 2.00 5.88 1.13
7.5 480 T1419 9.38 7.86 6.25 5.13 3.95 1.50 7.38 1.13
575 T1519 9.38 7.86 6.25 5.13 3.95 1.50 7.38 1.13
208/240 T1220 11.25 7.86 6.84 3.93 4.19 2.00 7.75 1.38
10 480 T1420 9.38 7.86 6.84 3.93 4.19 2.00 5.88 1.13
575 T1520 9.38 7.86 7.40 3.93 4.19 2.00 5.88 1.13
208/240 T1221 12.75 7.86 6.84 3.93 4.19 2.00 9.25 1.38
15 480 T1421 11.25 7.86 6.84 3.93 4.19 2.00 7.75 1.38
575 T1521 12.75 7.86 6.84 3.93 4.19 2.00 9.25 1.38
208/240 T1222 12.75 10.26 7.74 5.13 5.00 2.50 9.25 1.38
20 480 T1422 12.75 7.86 6.84 3.93 4.19 2.00 9.25 1.38
575 T1522 12.75 7.86 7.40 3.93 4.19 2.00 9.25 1.38
208/240 T1223 15.75 10.26 8.35 5.13 5.0 2.50 12.25 1.38
25 480 T1423 12.75 10.26 7.74 5.13 5.00 2.50 9.25 1.38
575 T1523 12.75 10.26 7.74 5.13 5.00 2.50 9.25 1.38
208/240 T1224 15.75 10.26 8.35 5.13 5.00 2.50 12.25 1.38
30 480 T1424 12.75 01.26 7.74 5.13 5.00 2.50 9.25 1.38
575 T1524 12.75 10.26 8.25 5.13 5.00 2.50 9.25 1.38
40 480 T1425 15.75 10.26 8.35 5.13 5.0 2.50 12.25 1.38
575 T1525 15.75 10.26 8.35 5.13 5.00 2.50 12.25 1.38
50 480 T1426 19.75 10.26 8.55 5.13 5.75 2.50 16.25 1.75
575 T1526 19.75 10.26 8.55 5.13 5.75 2.50 16.25 1.75
60 480 T1427 19.75 10.26 8.55 5.13 5.75 2.50 16.25 1.75
575 T1527 19.75 10.26 8.55 5.13 5.75 2.50 16.25 1.75
6
4.1 SpinMaster™ NEMA 1 Enclosed (continued)

7
4.2 PowerWash NEMA 4 AND 4X Enclosed
INPUT NEMA 4 NEMA 4X
HP VOLTAGE MODEL MODEL H W D N P Q R S
0.25 120/240 T400 T410 7.88 6.12 3.63 3.06 2.00 1.37 5.88 0.88
0.5 120/240 T402 T412 7.88 7.86 3.75 4.80 2.10 1.37 5.88 0.88
208/240 T422 T452 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
12/0240 T404 T414 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
1208/240 T424 T454 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
480 T434 T464 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
575 T444 T474 7.88 6.12 4.35 3.06 2.70 1.37 5.88 0.88
1.5 120/240 T405 T415 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
208/240 T425 T455 7.88 6.12 5.25 3.06 3.60 1.37 5.88 0.88
240 T406 T416 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
2208/240 T426 T456 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
480 T436 T466 7.88 7.88 4.90 4.80 3.25 1.37 5.88 0.88
575 T446 T476 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
240 T407 T417 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
3208/240 T427 T457 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
480 T437 T467 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88
575 T447 T477 7.88 7.86 4.90 4.80 3.25 1.37 5.88 0.88

8
4.2 PowerWash NEMA 4 AND 4X Enclosed (continued)
INPUT TYPE 4 TYPE 4X
HP VOLTAGE MODEL MODEL H W D N P Q R S
208/240 T428 T458 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
5 480 T438 T468 7.88 7.86 5.90 4.80 4.25 1.37 5.88 0.88
575 T448 T478 7.88 7.86 5.90 4.80 3.25 1.37 5.88 0.88
208/240 T429 T459 11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.13
7.5 480 T439 T469 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
575 T449 T479 9.75 10.26 7.20 5.13 5.25 2.00 7.75 1.13
208/240 T430 T460 13.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
10 480 T440 T470 11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.38
575 T450 T480 11.75 10.26 8.35 5.13 5.75 2.00 9.75 1.38
208/240 T431 T461 15.75 10.26 8.35 5.13 5.75 2.00 13.75 1.38
15 480 T441 T471 13.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
575 T451 T481 13.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
208/240 – – (See NEMA 12)
20 480 T442 T472 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
575 T452 T482 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38

9
4.3 SpinMaster™ NEMA 12 Enclosed
INPUT NEMA 12
HP VOLTAGE MODEL H W D N P Q R S
208/240 T532 15.75 10.26 8.35 5.13 5.75 2.0 1..75 1.38
20 480 N/A (See NEMA 4 or 4X)
575 N/A (See NEMA 4 or 4X)
208/240 T533 20.25 10.26 8.35 5.13 5.75 2.00 16.25 1.38
25 480 T543 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
575 T553 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
208/240 T534 20.25 10.26 8.35 5.13 5.75 2.00 16.25 1.38
30 480 T544 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
575 T554 15.75 10.26 8.35 5.13 5.75 2.00 11.75 1.38
40 480 T545 20.25 10.26 8.35 5.13 5.75 2.00 16.25 1.38
575 T555 20.25 10.26 8.35 5.13 5.75 2.00 16.25 1.38
50 480 T546 21.00 13.72 8.35 5.13 6.10 2.0 16.25 1.38
575 T556 21.00 13.72 8.35 5.13 6.10 2.0 16.25 1.38
60 480 T547 21.00 13.72 8.35 5.13 6.10 2.0 16.25 1.38
575 T557 21.00 13.72 8.35 5.13 6.10 2.0 16.25 1.38

10
5.0 SpinMaster™ Micro Drive RATINGS
The following tables indicate the input and output ratings of the SpinMaster™ Micro drive
series.
NOTE: The output current ratings are based on operation at carrier frequencies of 8 kHz and
below. At full ambient temperature, operation at carrier frequencies above 8 kHz require der-
ating the drive by multiplying the output current rating by the following factors: 0.94 at 10
kHz, 0.89 at 12 kHz, and 0.83 at 14 kHz. Refer to Parameter 23 - CARRIER in Section 18.0 -
DESCRIPTION OF PARAMETERS.
SpinMaster™ Micro Drive 120/240 Vac Ratings
Models Input Output
(Note 1) (120/240 Vac, 50 - 60 Hz) (0 - 230 Vac)
Nominal Nominal
Current Current
Rated Input (Amps) Power (Amps) Power
HP Phase (Note 2) (KVA) (Note 2) (KVA)
T1110, T400, T410 .25 1 6.0 / 3.0 0.72 1.4 / 1.4 0.56
T1112, T402, T412 .50 1 9.2 / 4.6 1.1 2.2 / 2.2 0.88
T1114, T404, T414 1.0 1 16.2 / 8.1 1.9 4.0 / 4.0 1.6
T1115, T405, T415 1.5 1 21 / 10.4 2.5 5.2 / 5.2 2.1
NOTE 1: See Section 3 for Drive Enclosures
NOTE 2: N/A
NOTE 3: See Section 8.0 for recommended fuse type.

SpinMaster™ Micro Drive RATINGS (continued)
11
SpinMaster™ Micro Drive 208/240 Vac Ratings
Models Input Output
(Note 1) (240 Vac, 50 - 60 Hz) (0 - 230 Vac)
Nominal Nominal
Current Current
Rated Input (Amps) Power (Amps) Power
HP Phase (Note 2) (KVA) (Note 2) (KVA)
T1112, T402, T412 .50 3 2.7 1.1 2.2 0.9
T1214, T424, T454 1.0 3 4.8 2.0 4.0 1.6
T1215, T405, T415 1.5 3 6.2 2.6 5.2 2.1
T1116, T406, T416 2 1 14.9 3.6 6.8 2.7
T1117, T407, T417 3 1 21 5.0 9.6 3.8
T1217, T427, T457 3 3 11.3 4.7 9.6 3.8
T1218, T428, T458 5 3 17.7 7.4 15.2 6.1
T1219, T429, T459 7.5 3 26 10.6 22 8.6
T1220, T430, T460 10 3 32 13.2 28 11.2
T1221, T431, T461 15 3 48 19.8 42 16.7
T1222, T532 20 3 61 25.3 54 21.5
T1223, T533 25 3 77 32.0 68 27.1
T1224, T534 30 3 90 37.6 80 31.9
NOTE 1: See Section 3 for Drive Enclosures
NOTE 2: For 200 VAC Input Voltage Models (Three Phase only) multiply the input and
output current ratings by 1.15 and the output voltage by 0.87.
NOTE 3: See Section 8.0 for recommended fuse type.

12
SpinMaster™ Micro Drive RATINGS (continued)
SpinMaster™ Micro Drive 480 Vac Ratings
Models Input Output
(Note 1) (480 Vac, 50 - 60 Hz) (0 - 460 Vac)
Nominal Nominal
Current Current
Rated Input (Amps) Power (Amps) Power
HP Phase (Note 2) (KVA) (Note 2) (KVA)
T1414, T434, T464 1 3 2.4 2.0 2.0 1.6
T1416, T436, T466 2 3 4.1 3.4 3.4 2.7
T1417, T437, T467 3 3 5.7 4.7 4.8 3.8
T1418, T438, T468 5 3 8.9 7.3 7.6 6.1
T1419, T439, T469 7.5 3 12.8 10.6 11.0 8.8
T1420, T440, T470 10 3 15.9 13.2 14.0 11.2
T1421, T441, T471 15 3 24 19.8 21 16.7
T1422, T442, T472 20 3 31 25.3 27 21.5
T1423, T543 25 3 38 31.9 34 27.1
T1424, T544 30 3 45 37.6 40 31.9
T1425, T545 40 3 59 49.0 52 41.4
T1426, T546 50 3 74 61.5 65 51.8
T1427, T547 60 3 87 72.3 77 61.3
NOTE 1: See Section 3 for Drive Enclosures
NOTE 2: For 400 VAC Input Voltage Models (Three Phase only) multiply the input and
output current ratings by 1.15 and the output voltage by 0.87.
NOTE 3: See Section 8.0 for recommended fuse type.

SpinMaster™ Micro Drive RATINGS (continued)
13
SpinMaster™ Micro Drive 575 Vac Ratings
Models Input Output
(Note 1) (590 Vac, 50 - 60 Hz) (0 - 575 Vac)
Nominal Nominal
Current Current
Rated Input (Amps) Power (Amps) Power
HP Phase (Note 2) (KVA) (Note 2) (KVA)
T1514, T444, T474 1 3 1.9 1.9 1.6 1.6
T1516, T446, T476 2 3 3.3 3.4 2.7 2.7
T1517, T447, T477 3 3 4.6 4.7 3.9 3.9
T1518, T448, T478 5 3 7.1 7.3 6.1 6.1
T1519, T449, T479 7.5 3 10.5 10.7 9.0 8.8
T1520, T450, T480 10 3 12.5 12.8 11.0 11.0
T1521, T451, T481 15 3 19.3 19.7 17.0 16.9
T1522, T453, T482 20 3 25 25.4 22 21.5
T1523, T553 25 3 31 31.2 27 26.9
T1524, T554 30 3 36 37.1 32 31.9
T1525, T555 40 3 47 47.5 41 40.8
T1526, T556 50 3 59 60.3 52 51.8
T1527, T557 60 3 71 72.5 62 61.7
NOTE 1: See Section 3 for Drive Enclosures
NOTE 2: For 480 VAC Input Voltage Models (Three Phase only) multiply the input and
output current ratings by 1.15 and the output voltage by 0.87.
NOTE 3: See Section 8.0 for recommended fuse type.

6.0 THEORY
6.1 DESCRIPTION OF AC MOTOR OPERATION
Three phase AC motors are comprised of two major components, the stator and the rotor. The
stator is a set of three electrical windings held stationary in the motor housing. The rotor is a
metal cylinder, fixed to the motor drive shaft, which rotates within the stator. The arrangement
of the stator coils and the presence of three phase AC voltage give rise to a rotating
magnetic field which drives the rotor. The speed at which the magnetic field rotates is known
as the synchronous speed of the motor. Synchronous speed is a function of the frequency at
which the voltage is alternating and the number of poles in the stator windings.
The following equation gives the relation between synchronous speed, frequency, and the
number of poles:
Ss - 120 f/p
Where: Ss = Synchronous speed (rpm), f = frequency (Hz), p = number of poles
In three phase induction motors the actual shaft speed differs from the synchronous speed as
load is applied. This difference is known as “slip”. Slip is commonly expressed as a percentage
of synchronous speed. A typical value is three percent at full load.
The strength of the magnetic field in the gap between the rotor and stator is proportional
to the amplitude of the voltage at a given frequency. The output torque capability of the
motor is, therefore, a function of the applied voltage amplitude at a given frequency. When
operated below base (rated) speed, AC motors run in the range of “constant torque”. Constant
torque output is obtained by maintaining a constant ratio between voltage amplitude (Volts)
and frequency (Hertz). For 60 Hz motors rated at 230, 460, and 575 Vac, common values
of this V/Hz ratio are 3.83, 7.66, and 9.58 respectively. Operating with these V/Hz ratios
generally yields optimum torque capability. Operating at lower ratio values results in lower
torque and power capability. Operating at higher ratio values will cause the motor to
overheat. Most standard motors are capable of providing full torque output from 3 to 60 Hz.
However, at lower speeds, where motor cooling fans become less effective, supplemental
cooling may be needed to operate at full torque output continuously.
If the frequency applied to the motor is increased while the voltage remains constant, torque
capability will decrease as speed increases. This will cause the horsepower capability of the
motor to remain approximately constant. Motors run in this mode when operated above
base speed, where drive output voltage is limited by the input line voltage. This operating
range is known as the “constant horsepower” range. The typical maximum range for constant
horsepower is about 2.3 to 1 (60 to 140 Hz). The diagram on the next page depicts the
characteristics of a typical AC induction motor with a 60 Hz base speed.
Consult motor manufacturer before operating motor and/or driven equipment
above base speed.
14

15
6.1.1 VARIABLE TORQUE VS. CONSTANT TORQUE
Variable frequency drives, and the loads they are applied to, can generally be divided into
two groups: constant torque and variable torque. Constant torque loads include: vibrating
conveyors, punch presses, rock crushers, machine tools, and just about every other
application that is not considered variable torque. Variable torque loads include centrifugal
pumps and fans, which make up the majority of HVAC applications.
Variable torque loads are governed by the affinity laws, which define the relationships
between speed, flow, torque and horsepower. The diagram below illustrates these relation-
ships:

“Variable torque” refers to the fact that the torque required varies with the square of the speed.
Also, the horsepower required varies with the cube of the speed, resulting in a large reduction
in horsepower for even a small reduction in speed. It is easily seen that substantial energy
savings can be achieved by reducing the speed of a fan or pump. For example, reducing
the speed to 50% results in a 50 HP motor having to produce only 12.5% of rated horsepower,
or 6.25 HP. Variable torque drives usually have a low overload capacity (110% - 120% for 60
seconds), because variable torque applications rarely experience overload conditions. To
optimize efficiency and energy savings, variable torque drives are usually programmed to
follow a variable V/Hz ratio.
The term “constant torque” is not entirely accurate in terms of the actual torque required for
an application. Many constant torque applications have reciprocating loads, such as vibrating
conveyors and punch presses, where the rotational motion of the motor is being converted to
a linear motion. In such cases, the torque loads, this fluctuation in torque is not a direct
function of speed, as it is with a variable torque load. As a result, constant torque drives
typically have a high overload rating (150% for 60 seconds) in order to handle the higher peak
torque demands. To achieve maximum torque, constant torque drives follow a constant V/Hz ratio.
SpinMaster™ PowerWash drives have full overload capacity (150% for 60 seconds, 180% for
30 seconds), so that either one can be used for either type of application. The V/Hz ratio can
also be changed to optimize performance for either type of application.
6.2 DRIVE FUNCTION DESCRIPTION
The SpinMaster™ Micro Series Drives are a 16 bit microprocessor based, keypad
programmable, variable speed AC motor drive. There are four major sections: an input diode
bridge and filter, a power board, a control board, and an output intelligent power module.
6.2.1 DRIVE OPERATION
Incoming AC line voltage is converted to a pulsating DC voltage by the input diode bridge.
The DC voltage is supplied to the bus filter capacitors through a charge circuit which limits
inrush current to the capacitors during power-up. The pulsating DC voltage is filtered by the
bus capacitors which reduces the ripple level. The filtered DC voltage enters the inverter
section of the drive, composed of six output intelligent insulated gate bi-polar transistors
(IGBTs) which make up the three output legs of the drive. Each leg has one intelligent IGBT
connected to the positive bus voltage and one connected to the negative bus voltage.
Alternately switching on each leg, the intelligent IGBT produces an alternating voltage on each
of the corresponding motor windings. By switching each output intelligent IGBT at a very high
frequency (known as the carrier frequency) for varying time intervals, the inverter is able to
produce a smooth, three phase, sinusoidal output current wave which optimizes motor
performance.
6.2.2 CIRCUIT DESCRIPTION
The control section consists of a control board with a 16 bit microprocessor, keypad and
display. Drive programming is accomplished via the keypad or the serial communications port.
16
