Regal VAC 2000 Training manual

The VAC 2000 is a full featured vacuum monitoring
system. The system uses the latest in integrated circuit
technology which allows a compact design, accuracy
and reliability. The VAC 2000 features independent
high and low vacuum detection using separate high,
low and latch alarm relays. The VAC 2000 also includes
a three digit display of vacuum in inches of Hg., LED
status indicators and an analog output. The high and
low alarm levels are adjustable as is a variable delay
timer. The enclosure has a NEMA 4X rating and can
be mounted outside. Applications include loss of chlo-
rination in water and wastewater treatment.
REGAL MODEL VAC 2000
VACUUM MONITOR
INSTRUCTION BULLETIN 2000
1. The entire contents of this instruction manual should be
thoroughly reviewed and understood prior to installing and
operating this equipment.
2. Do not discard this instruction book upon completion of the
installation. This book contains complete maintenance
instructions, and includes spare parts lists. Replacement or
additional manuals are available at a nominal cost.
3. Plastic pipe or tubing connector fittings may be broken or damaged
if tightened excessively.
IMPORTANT NOTES
1. This equipment is suitable for use only with the gases
specified (DETERMINED BY THE SYSTEM OR SYSTEM
COMPONENTS MODEL AND/OR PART NUMBER). DO NOT USE
THIS EQUIPMENT WITH OTHER GASES. Such use can result
in failures having hazardous consequences.
2. This equipment is designed FOR VACUUM SERVICE ONLY.
3. To insure proper operation of this equipment, use only parts
manufactured by Chlorinators. The use of non- REGALparts in this
equipment WILL void the REGAL warranty and result in a loss of
REGAL’s insurance coverage.
4. Maintenance on REGAL Systems and System Components
should be performed by competent personnel familiar with this
type of equipment, such as authorized REGAL dealers or
Chlorinators.
5. It is essential that all external wiring be done exactly as shown
on the wiring diagrams depicted in this manual. Incorrect wiring
or improper grounding of this equipment WILL cause improper
operation and presents a safety hazard.
6. Field wiring MUST conform to national and local electrical codes.
7. DISCONNECT POWER BEFORE removing the cover or servicing
this equipment.
8. ALWAYS make sure that the cover is in place and securely
fastened to prevent the entry of moisture, water, or corrosive
gases and also to eliminate the potential for electric shock.
9. Any equipment powered by AC line voltage presents a potential
shock hazard. Installation and servicing of this equipment
should only be attempted by qualified electronics technicians.
10. This non-metallic enclosure DOES NOT automatically provide
grounding between the conduit connections. Grounding MUST
be provided as part of the installation.
11. Damage to the circuit boards or internal components incurred
by drilling the enclosure for field wiring or connecting power
lines to low voltage signal terminals voids the warranty.
12. Changing parameter settings and selections WILL affect the
operation of this equipment. If unsure, consult Chlorinators
BEFORE changing parameters or selections.
WARNINGS
1044 SE Dixie Cutoff Road, Stuart, Florida 34994 USA
Phone: [phone] Fax: [phone]
www.regalchlorinators.com Email: [email protected]

2
CHLORINATORS
ONE (1) YEAR LIMITED WARRANTY
Chlorinators sets forth the following warranties with respect to
its REGAL Vacuum Monitor. This warranty does not apply to
the purchase of spare parts or other services performed by
Chlorinators. This represents the entire agreement between
Chlorinators and Buyer (also referred to as "end-user") and
shall apply unless modified in writing and signed by a
Chlorinators Officer, and this warranty and its intended terms
shall supersede any prior negotiations, correspondence, under-
standings, or agreements, written or oral. The Buyer agrees to
and accepts all terms of this warranty by its contracting for or
acceptance of Chlorinator's products, and forms or other doc-
uments or statements issued by Buyer or any other person shall
not modify or otherwise affect any of the following terms.
Buyer should be aware that reseller must rely entirely upon
Chlorinators warranties, or assume their own responsibility.
The following states Chlorinators entire warranty
and represents Buyer’s exclusive remedy with
respect to its product. Such warranties are
expressly given in lieu of any other warranty,
expressed or implied, including but not limited
to those of merchantability and fitness for
a particular purpose. This expressed warranty
or any other warranty implied by law shall
not cover defects due to accident, improper use,
or non-compliance with Chlorinators operating
and maintenance, assembly, installation manual
and instructions.
Recommendations and advice as to specifications, capabilities,
design, installation, engineering, application, and use of products
are provided as an accommodation and are intended only
as suggestions. Chlorinators assumes no liability for such
recommendations and advice and they are not to be construed
as constituting any warranty, expressed or implied.
TERMS OF WARRANTY
Chlorinators warrants its REGAL Vacuum Monitor for a
period of one (1) year from date of shipment from
Chlorinators. Date of shipment from the factory shall be
determined solely on the basis of the monitor’s serial code
located inside the monitor enclosure. All serial numbers are also
registered by Chlorinators as to date of shipment, model
number and billing name. If the serial number is missing,
defaced, changed, or in any way rendered unreadable,
Chlorinators shall, at its option, have the right to declare the
warranty void. If the serial number does not match the
registered model number as to, but not limited to, such items as
maximum chlorine feed rate, the same shall be applicable.
The warranty shall apply against material defects in components
and workmanship occurring in the course of manufacture.
Buyer's sole remedy for breach of said warranty shall be, at
Chlorinators option, either repair or replacement of any unit
which is received by Chlorinators at its plant in Stuart, Florida
(shipping charges prepaid by buyer), within the time period set
forth above and which is found by Chlorinators to be defective
by reason of manufacture.
Notwithstanding the foregoing, Chlorinators
shall not be liable to Buyer for damages,
including personal injury or death to any
person or persons, or claims of any kind by a
third party or property damage or loss of business
or profits. In no event shall Chlorinators be
liable to Buyer for consequential or accidental
damages of any kind, even if Chlorinators. was
aware of the possibility of such damages. There
are no remedies except those set forth. Further,
that there are no other authorized warranty
repair facilities other than those at the
Chlorinators factory in Stuart, Florida.
EXCLUSIONS
The following are considered external environmental factors
beyond the control of Chlorinators, and which may cause damage
and/or need for service which will be specifically excluded
from this warranty (i.e., not a material defect in components
and workmanship occurring in the course of manufacture).
1. Damage by extraneous causes such as fire, water, lightning,
chemical or galvanic attack, etc.
2. Damage to the circuit boards or internal components
incurred by drilling the enclosure for field wiring.
3. Damage due to the connection of AC power lines to the
analog output terminals.
4. Physical damage due to force, dropping, misuse or other
abuse.
5. Use other than that as described in this Instruction Manual.
6. Improper installation for the application.
7. Any alteration of design, or use of non-Chlorinators manu-
factured parts.
The exclusions listed above are provided for purposes of
clarification, and are not intended to, in any way, limit or
eliminate other possible exclusions.
NO OTHER WARRANTIES
Unless otherwise explicitly agreed in writing, and signed by
a Chlorinators officer, it is understood that this is the only
written warranty given by Chlorinators for the systems and
components stated.
The dealers or representatives of Chlorinators.
may not make verbal representations that add,
modify or change the written warranties contained
herein or change the extent and nature of
Chlorinators liability. In no event shall
Chlorinators be liable for direct, consequential,
special, incidental or punitive damages of any
kind with respect to the product, including but
not limited to those which may allegedly arise
out of breach of warranty, breach of contract,
negligence, strict liability, or any other law,
governmental regulation, or court decision,
except as provided herein.

IMPORTANT:
Please mail or fax this registration form
to establish your warranty.
REGAL REGISTRATION CARD
IMPORTANT: To further establish your warranty and to enable us to contact you should the
need arise, please fill out this card and return it promptly. Please do it now. Thank you. Chlorinators, Stuart, FL is the only authorized Warranty Repair facility for REGAL VACUUM MONITORS.
PLEASE PRINT, THANK YOU
Vacuum Monitor Serial No.(s)* 1._________________ 2._________________
*Serial No. located inside unit on the bottom right of circuit board.
Purchased From __________________________________________________________ Your Name ____________________________________________ Title_______________ Organization______________________________________________________________
Mailing Address___________________________________________________________ City _____________________________________ State _____________ Zip ___________ Phone (__________) _____________________________________ Ext. ____________
REGAL Registration Card
3
2.0 INSTALLATION
2.1 Opening Unit
2.2 Enclosure Mounting
2.3 Vacuum Line and Reset Button
2.4 Analog Output
2.5 Power and Alarm Wiring
4.0 OPERATION BASICS
4.1 Digital Display
4.2 LED Indicators
4.3 Alarm Relays
1.0 BASIC INFORMATION
1.1 Specifications
4.0 TROUBLE SHOOTING
3.0 SET UP AND CALIBRATION
3.1 Delay Adjustments
3.2 Low Level Alarm
3.3 High Level Alarm
3.4 Alternate Method for Adjustment
3.5 Maintenance and Calibration
CONTENTS

IMPORTANT:
Fill out and mail or fax the form on the reverse side
to establish your warranty.
CHLORINATORS 1044 SE Dixie Cutoff Road Stuart, FL 34994-3436
PLACE
STAMP
HERE
DRAWINGS
Drawing No. 1

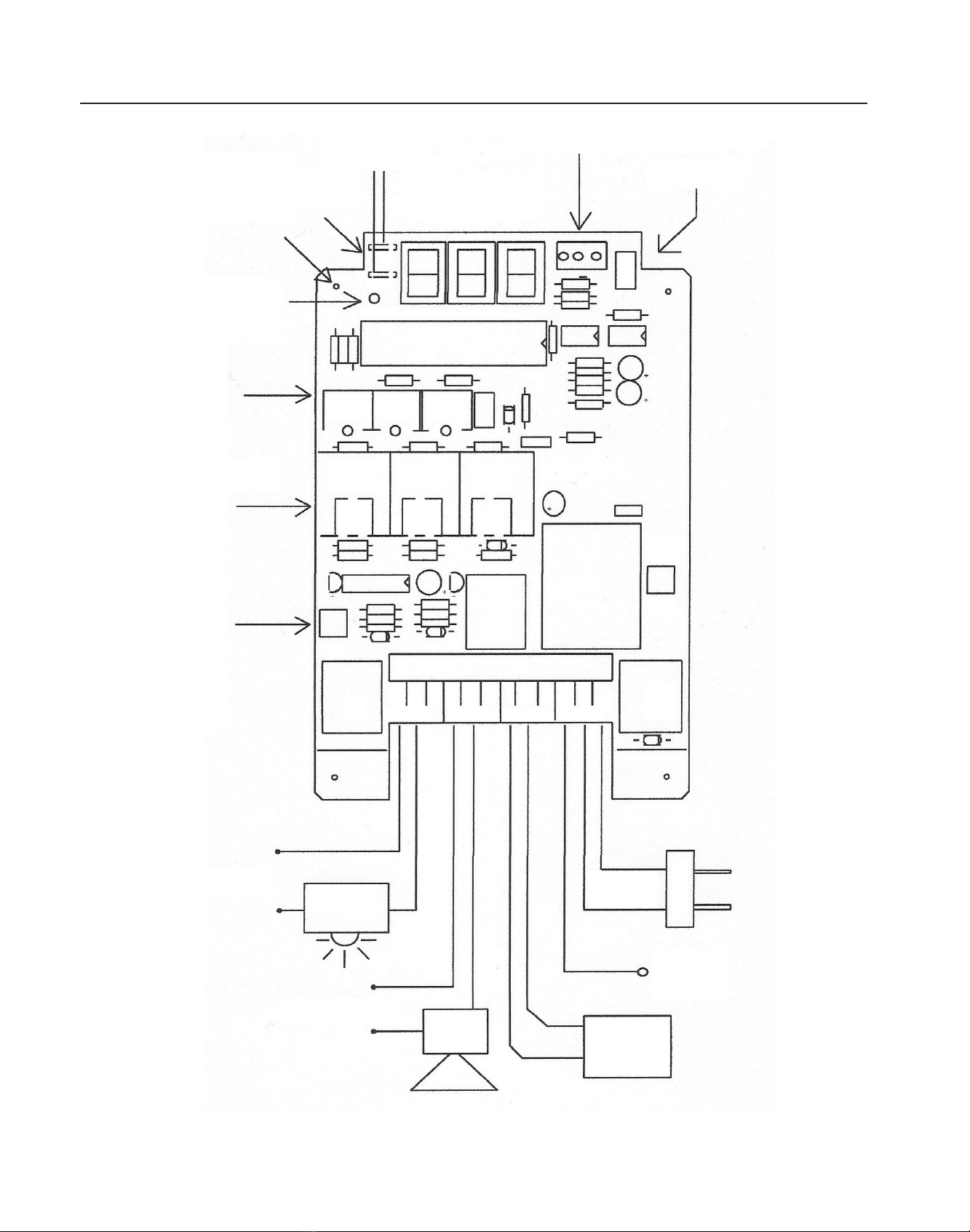

Wiring Diagram
Drawing No. 2

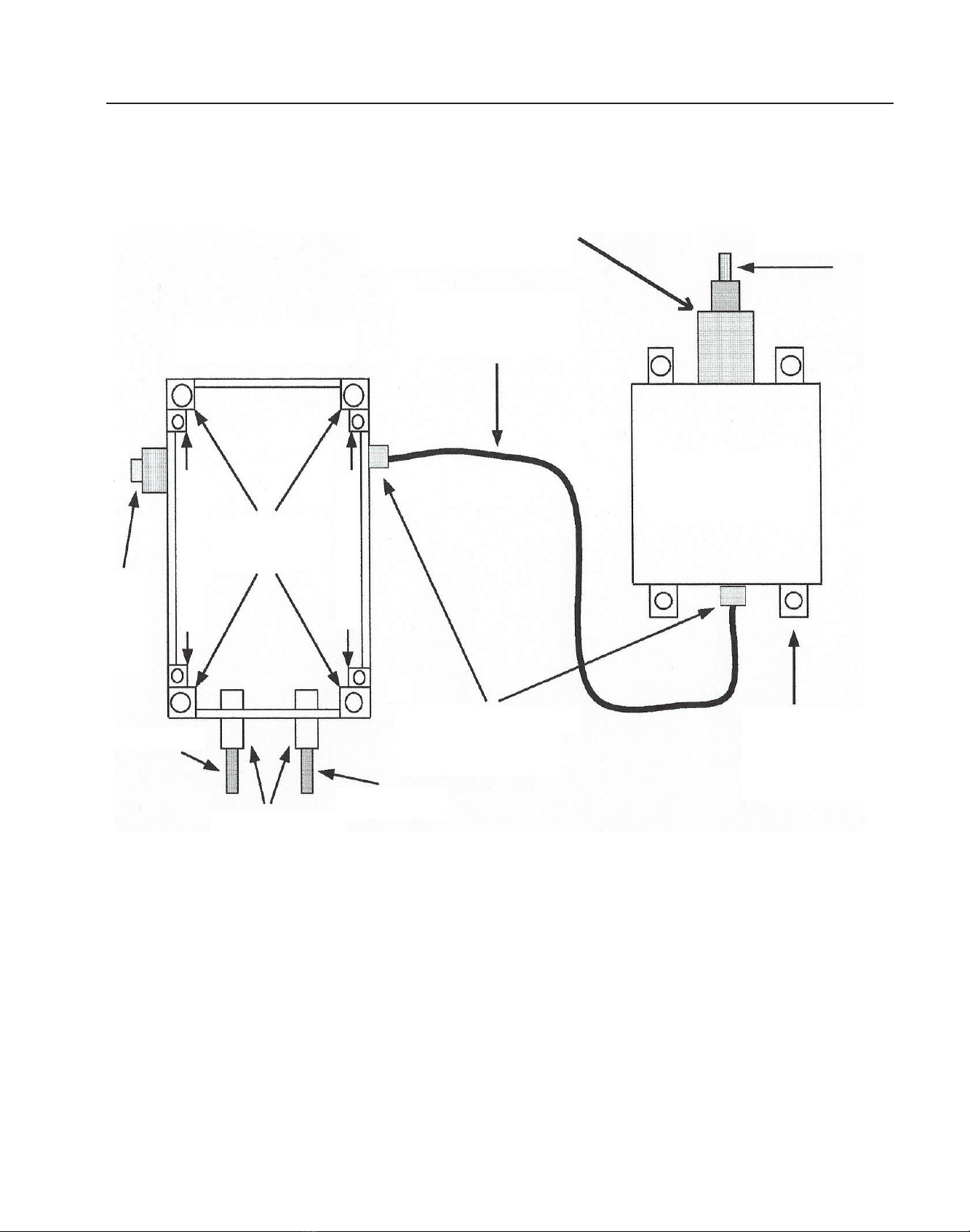

Enclosure Mounting
Drawing No. 3

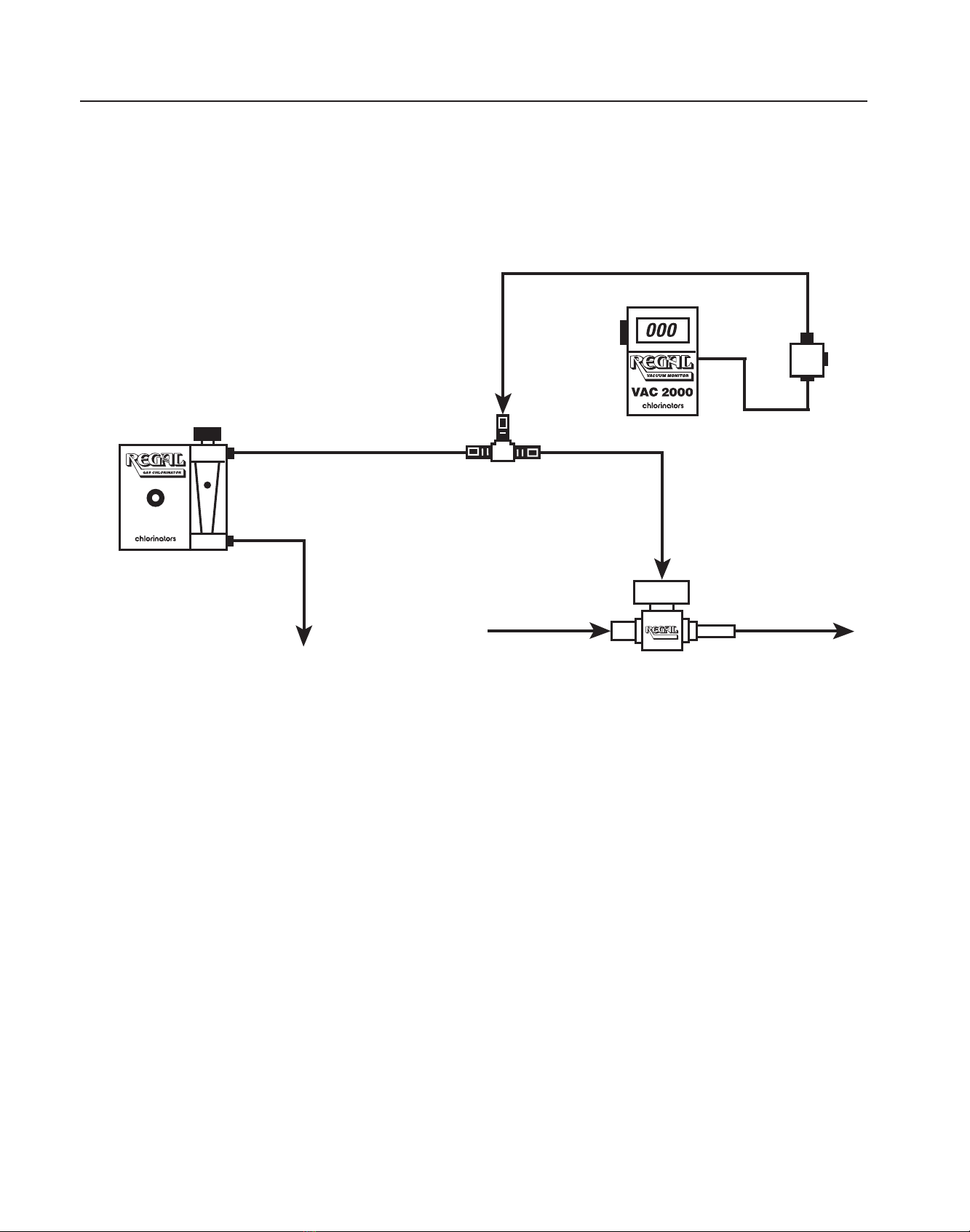

Typical Installation
Drawing No. 4

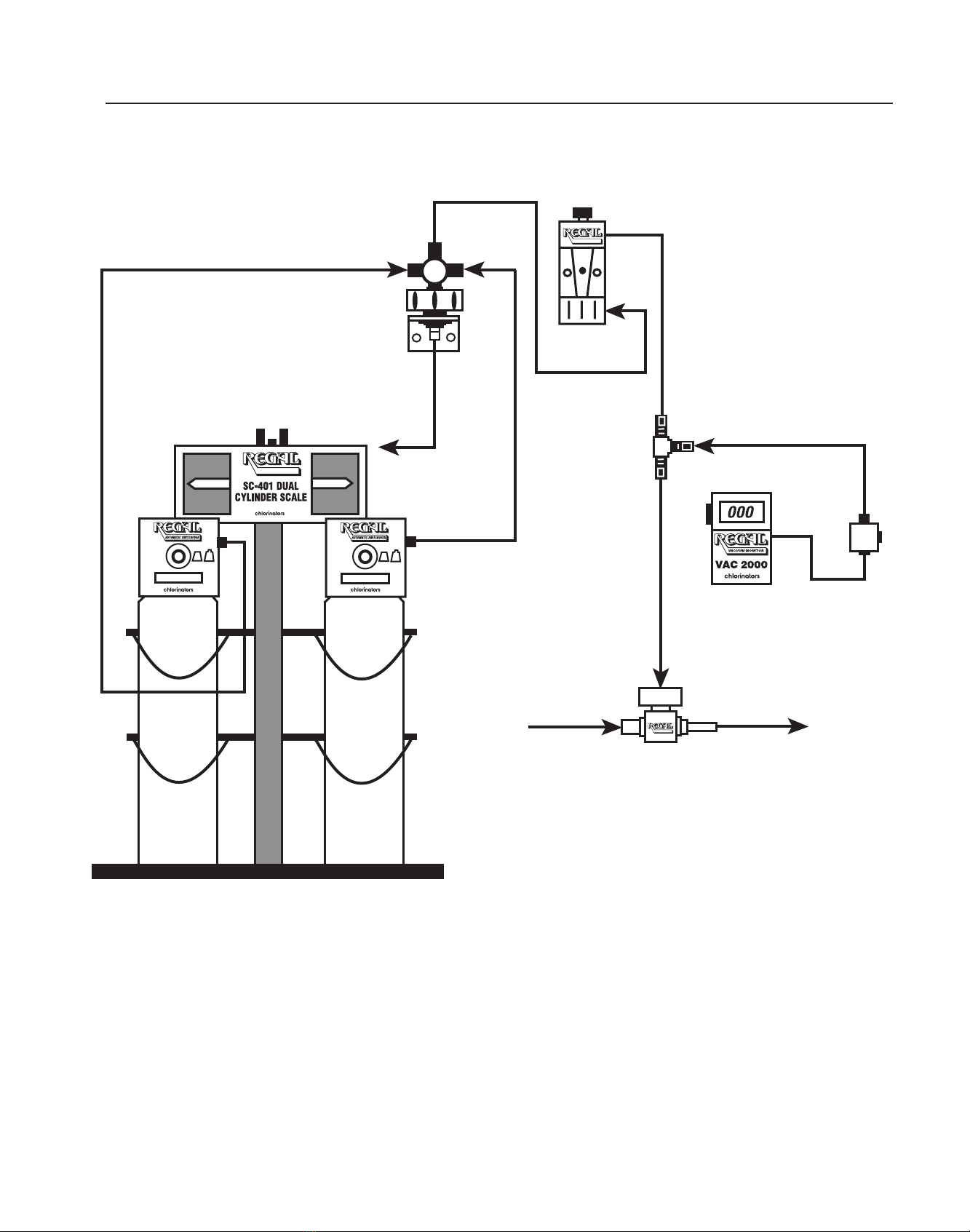

Typical Automatic Switchover System Installation
4

1.1 SPECIFICATIONS
Input Voltage: 90-265V AC 50-60Hz @ 0.1 Amps
Alarm Relays: NO/NC Type
240V AC @ 5 Amps resistive
115V AC @ 5 Amps general use
30V DC @ 5 Amps general use
Gas/Fluid Compatibility: System includes a protection device that
uses a chemically inert synthetic oil
compatible with chlorine, sulfur dioxide
and ammonia gas
Enclosure: NEMA 4X rated
Vacuum Measurement
Range: 0 to 30 inches Hg
Low Alarm Range: 0 to 15 inches Hg
High Alarm Range: 15 to 30 inches Hg
Over Pressure: 85 PSI
Delay Timer: 1 to 100 sec.
Analog Output:
Voltage: 0 to 3 VDC
Current: 0 to 3 mA DC
Reset Switch: IP 65 protection
External Connectors: IP 68 protection
Indicators:
Vacuum: 3 digit digital LED display
Alarms: 3 LED indicators – high, low and latch
Polarity: 1 LED indicator for pressure
Temperature Range (System):
Storage: -30°C to 70°C (4°F to 158°F)
Operating: -20°C to 50°C (14°F to 122°F)
Vacuum Temperature: -40°C to 50°C (-6°F to 122°F)
Humidity: Relative 0 to 90% noncondensing
Installation should only be performed by a licensed electrician.
Follow any local, state or other applicable codes that apply when
installing this unit.
THIS UNIT SHOULD BE WIRED TO A GROUND FAULT
RECEPTACLE.
CAUTION: HIGH VOLTAGE COULD EXIST INSIDE THIS UNIT.
DISCONNECT ALL POWER BEFORE INSTALLATION.
2.1 OPENING UNIT
Remove the four plastic screws to open the VAC 2000. The printed
circuit board contains static sensitive parts.
THE INSTALLER MUST WEAR A GROUNDING STRAP WHEN
HANDLING THE BOARD.
2.2 ENCLOSURE MOUNTING
IMPORTANT: This unit contains two enclosures. The larger one
contains the electronics and the smaller one contains the sensor.
The two enclosures are permanently connected together by a low
voltage wire. The sensor enclosure contains an oil-based protection
device that is filled with a special fluid. The protection device
has a cap over the 3/8" fitting to prevent the oil from leaking out
during shipping and installation.The sensor enclosure must be
mounted in an upright position to prevent the fluid from
leaking out. Once the unit is securely mounted in an upright
position, the cap over the 3/8" fitting can be removed.
The recommended mounting method for the VAC 2000 is to use
the four mounting holes located where the 4 plastic screws are
that hold down the lid. Use the box as a template for mounting.
(See Drawing 2).
NOTE: THE VAC 2000 SHOULD NOT BE MOUNTED WHERE
SUNLIGHT CAN DIRECTLY ENTER THE TRANSPARENT COVER.
2.3 VACUUM LINE AND RESET BUTTON
Connect the vacuum tubing to the fitting attached to the protection
device. The reset button is prewired to the board reset terminals.
2.4 ANALOG OUTPUT
The VAC 2000 has an analog output which will allow the vacuum
to be remotely monitored. The connection for this is located in
the upper left section of the printed circuit board (See Drawing 1).
Two spade lugs are provided for the connection. These are
labeled "GND" for ground and "OUT" for the output. The output is
capable of sourcing 0 to 3 VDC or 0 to 3 mA. If a 4 to 20 mA loop
is required, a signal conditioner can be used to convert the
output.These are available from many sources.
5
1.0 BASIC INFORMATION 2.0 INSTALLATION

2.5 POWER AND ALARM WIRING
CAUTION: BE SURE POWER IS DISCONNECTED BEFORE
HANDLING ANY WIRES.
WARNING: Improper wiring to this unit can damage unit and
could cause serious bodily injuries.
See Drawing 1 for typical electrical wiring. Connect 115/240V AC
to the connector location labeled GND, L1/N, L2.
NOTE: A surge arrestor is recommended on the AC power line to
prevent damage from lightning strikes or other power surges.
Be sure the relay specifications are not exceeded. The relay
outputs are labeled HIGH ALARM, LOW ALARM and LATCH
ALARM. Remember the latch alarm will stay active until the reset
button is pushed.
NOTE: NO = Normally open contact
NC = Normally closed contact
COM = Relay common
The VAC 2000 comes preset at the following default levels:
Delay: 50 Sec.
Low Alarm: 5 inches Hg
High Alarm: 25 inches Hg
The following is a procedure for changing these values. See
Drawing 1 for the location of the adjustment potentiometers.
CAUTION: HIGH VOLTAGE EXISTS INSIDE THE UNIT.
3.1 DELAY ADJUSTMENTS
The delay time is adjustable from approximately 1 second to 100
seconds. To adjust the delay, insert a small screwdriver into pot
R24 and rotate until the desired delay is achieved.
3.2 LOW LEVEL ALARM
The low level alarm is adjustable from approximately 0.0 to 15
inches of Hg. To adjust the low level, insert a screwdriver into
pot R19 and rotate it to the desired level. MIN = 0 and MAX = 15
inches of Hg.
NOTE: If you want to disable the low alarm, turn the pot counter
clockwise until it stops.
3.3 HIGH LEVEL ALARM
The high level alarm is adjustable from approximately 15 to 30
inches of Hg. To adjust the high level, insert a screwdriver into pot
R16 and rotate it to the desired level. MIN = 15 and MAX = 30
inches of Hg
NOTE: If you want to disable the high alarm, turn the pot clock-
wise until it stops.
3.4 ALTERNATE METHOD FOR ACCURATE
HIGH/LOW LEVEL ADJUSTMENT
If a high degree of accuracy is required, then use the procedure
in the following example.
EXAMPLE:
Desire a high level alarm at 26.3 inches of Hg.
1. Adjust your vacuum level until the digital readout reaches 26.3.
2. Rotate the high level alarm pot full counterclockwise.
3. Rotate the high level pot clockwise slowly until the high level
LED comes on. This represents the correct adjustment for 26.3
inches of Hg.
This method can be used for low level adjustment, except the
rotation of the pot is reversed.
3.5 MAINTENANCE AND CALIBRATION
Once the VAC 2000 has been in operation for approximately one
week, the unit should be checked for the correct zero reading.
This is the reading when no vacuum is present. Ideally, the zero
reading would be 00.0. However, due to the ambient temperature
or if the vacuum line is attached, some variation is normal. If the
zero reading is over 00.7, then an adjustment may be needed.
The zero adjustment pot is located in the upper right hand corner
of the board (See Fig. 1). Slowly turn this pot to get the zero
reading as close to 00.0 as you can without the polarity LED
coming on. This will end the zero calibration.
Once a month the system should be functionally tested. This testing
should include all relays, LED indicators, delay timer and vacuum
level accuracy. To perform this test, adjust your vacuum level up
and down to cause the high and low alarms to engage. The delay
timer and reset can also be tested in the same manner. At this
time, inspect the board for any corrosion or loose wires. If corrosion
is present, check all fittings for a snug fit. Corrosion can only
be removed by a trained technician. The sensor is made from
Stainless Steel and is sealed from any chlorine and the oil protection
fluid. The outside of the enclosure can be cleaned with warm
water and a damp cloth.
DO NOT ATTEMPT TO CLEAN ANY CORROSION FROM THE
BOARD. HIGH VOLTAGE EXISTS ON THE BOARD.
6
3.0 SET UP AND CALIBRATION

4.1 DIGITAL DISPLAY
The three digit display indicates the working vacuum level in inches
of Hg. Minimum vacuum equals 00.0 and the maximum vacuum
reading, depending on altitude, is approximately 30.0 inches.
4.2 LED INDICATORS
The VAC 2000 has four LED indicators: High, Low, Latch and
Polarity. See Drawing 1 for their location.
A) HIGH LED INDICATOR
This LED indicates that the vaacuum level exceeds the pre-
set "high alarm" set point.
NOTE: This indicator confirms the existence of a high vacuum
condition prior to the activation of the timed delay alarm.
B) LOW LED INDICATOR
This LED indicates that the vaacuum level is below the pre-
set "low alarm" set point.
NOTE: This also activates prior to the timed delay alarm.
C) LATCH LED INDICATOR
When either the high or low indicators are active, this starts
the delay timer. If the alarm is active longer than the preset
delay time, the latch LED indicator will activate. It stays
active until the manual reset button (See Figure 2) is pushed.
This indicator verifies that either an alarm occurred or is still
present. If the latch indicator is on and the high/low indicators
are off, an alarm condition has occurred, but has been
corrected. If the high/low indicators are lighted, the alarm
condition still exists.
NOTE: The alarm relays do not become active until the latch
alarm indicator is on.
D) POLARITY LED INDICATOR
When this LED is on, this indicates that the VAC 2000 is
measuring pressure. The digital display shows this pressure
in inches of Hg pressure.
4.3 ALARM RELAYS
The VAC 2000 has three alarm relay outputs. These do not
become active until the time on the delayed timer has run out.
This causes the latch alarm indicator to become active. The three
alarm relays are general purpose and can be used for exterior
alarms, load switching or phone monitoring.
NOTE: Do not exceed relay specifications.
A) HIGH ALARM RELAY
This relay becomes active from a high alarm condition only
after the time on the delayed timer has run out. This relay
remains active as long as the alarm condition exists. Once
the alarm condition is corrected, this relay becomes inactive.
B) LOW ALARM RELAY
This relay becomes active from a low alarm condition only
after the time on the delayed timer has run out. This relay
remains active as long as the alarm condition exists. Once
the alarm condition is corrected, this relay becomes inactive.
C) LATCH ALARM RELAY
When either the high or low alarm relays become active, the
latch alarm relay also becomes active. This is indicated by
the latch alarm indicator. This relay stays active until the
manual reset button is pushed (See Drawing 2).
NOTE: In some applications, special attention needs to be given
to the electrical hookup. If your vacuum source, under normal
operation is cycled on and off (as is the case when the vacuum is
created only when a well pump is operating), the 115V AC power
to the VAC 2000 should be switched on and off with the well
pump. This will prevent a low alarm condition when the pump is off.
7
4.0 OPERATION BASICS

8
DRAWING NO. 1 - WIRING DIAGRAM
PRESSURE
INDICATOR
ANALOG
OUTPUT
ALARM
INDICATORS
High Alarm
Low Alarm
Latch Alarm
HIGH
ALARM
POLARITY
ZERO
ZERO
ADJUSTMENT
GND
OUT
P2
P1
HIGH
LEVEL
WARNING
LIGHT
RE3
NC
LATCH ALM HIGH ALM LOW ALM
J2
R16 R19 R24
J1
RE1
PWM
RE2
REMOTE
PHONE
MONITOR
LOW
LEVEL
LOW
ALARM
LATCH
ALARM
ADJUSTMENT
POTS
High Level
Low Level
Delay Time
RESET
SWITCH
CONNECTION
BOARD MOUNTING
HOLES (4 places)
115/240V AC 90-265V AC
115/240V AC
AC IN
EARTH GROUND
COM
NO
MIN
MAX
MIN
MAX
1 100
50
NC
COM
NO
NC
COM
NO
L1/N
VAC IN
TO
COMPUTER
DIGITAL DISPLAY
(INCHES Hg)
GND L2
SENSOR CONNECTION
J3
+5V
GND
SIREN
DELAY
TIME

LOW VOLTAGE WIRE
WATER TIGHT FITTINGS
VACUUM
HOSE
CONNECTION
MOUNTING
LOCATIONS
4 places
VS-2
SENSOR
ENCLOSURE
VAC 2000
NOTE:
SENSOR ENCLOSURE MUST BE
MOUNTED IN AN UPRIGHT POSITION
POWER CORD
ALARM
WIRES
RESET
SWITCH
EXTERNAL
FITTINGS
BOX MOUNTING
LOCATIONS
BOARD MOUNTING HOLES
BOARD MOUNTING HOLES
9
DRAWING NO. 2 - ENCLOSURE MOUNTING

10
DRAWING NO. 3 - TYPICAL (NON SWITCHOVER) INSTALLATION

11
DRAWING NO. 4 - TYPICAL AUTOMATIC SWITCHOVER SYSTEM INSTALLATION

Copyright © 2023 Chlorinators Incorporated Printed in U.S.A.
Pub. No. 0823-1
1044 SE Dixie Cutoff Road, Stuart, Florida 34994 USA
Phone: [phone] • Fax: [phone] • www.regalchlorinators.com • Email: [email protected]
