Regency P33E-NG4 Quick start guide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-849a
MODELS: P33E-NG4 Natural Gas P33E-LP4 Propane
11/02/10
WARNING:
Iftheinformationintheseinstructionsarenotfollowedexactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fire.com
Owners &
Installation Manual
P33E-4 Zero Clearance
Direct Vent Gas Fireplace

2Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. The
P33E-4 has been designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch.
The P33E-4 has been approved by Warnock Hersey/Intertek for both safety and efficiency. As it also bears our own
mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please
take a moment now to acquaint yourself with these instructions and the many features of your Regency®Fireplace.

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 3
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency®product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following
standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2009/CSA 2.33-2009 and GAS-FIRED APPLIANCES FOR USE
AT HIGH ALTITUDES CAN/CGA-2.17-M91.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for
Manufactured Home Installations, Sites, and CommunitiesANSI/NFPA501A, and with CAN/CSAZ240-MH Mobile Home Standard
in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of
local codes follow the current National Fuel Gas Code,ANSI Z223.1 and the current National Electrical Code ANSI/NFPA70 in the
U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
Ensure that structural members are not cut or weakened during installation.
Nailing Strip
Nailing Strip
#8 Mobile Home Ground
Nailing Strip
ThisRegency®Mobile/ManufacturedHomeListed
appliance comes factory equipped with a means
to secure the unit.
ThisRegency®Mobile/ManufacturedHomelisted
appliance comes equipped with a dedicated #8
groundlugtowhichan18gaugecopperwirefrom
the steel chassis ground must be attached.
Thisappliancemaybeinstalledinanaftermarket
permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only use with the type of gas
indicated on the rating plate. This appliance is
not convertible for use with other gases, unless
a certified kit is used.

4Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 4
TABLE OF CONTENTS
Flush Louvers.............................................................43
Double Screen Door...................................................43
Optional Bay Door......................................................43
Optional Bay Trim.......................................................43
Bay Louvers................................................................44
Full Screen doors .......................................................45
Contemporary Faceplate Installation Part 1...............47
Contemporary Faceplate Installation Part 2...............48
Contemporary Faceplate Installation Part 3...............49
Wall Thermostat .........................................................51
Remote Control ..........................................................51
Wall Switch.................................................................51
Wiring Diagrams ........................................................52
Installing the Optional Fan..........................................53
OPERATING INSTRUCTIONS
Copy of the Lighting Plate Instructions.......................54
Operating Instructions ............................................... 55
Lighting Procedure .....................................................55
Shutdown Procedure................................................. 55
First Fire .....................................................................55
Aeration Adjustment .................................................. 55
MAINTENANCE
Maintenance Instructions............................................56
General Vent Maintenance........................................ 56
Gold-Plated Louvers/Trim...........................................56
Log Replacement .......................................................56
Normal Operating Sounds of Gas Appliances........... 56
Glass Gasket..............................................................57
Door Glass..................................................................57
Removing Valve..........................................................58
Installing Valve............................................................58
PARTS LIST
Main Assembly ...........................................................59
Burner & Log Assembly..............................................61
Flush Front & Louvers................................................62
Contemporary Faceplate............................................63
WARRANTY
The Warranty: Limited Lifetime...................................67
SAFETY LABEL
Safety Label...................................................................5
REQUIREMENTS
MA Code - CO Detector.................................................6
INSTALLATION
Important Message ......................................................7
Before You Start ............................................................7
General Safety Information............................................7
Requirements................................................................7
Checklist........................................................................8
Locating Your Fireplace.................................................8
Heat Wave Duct System Option....................................8

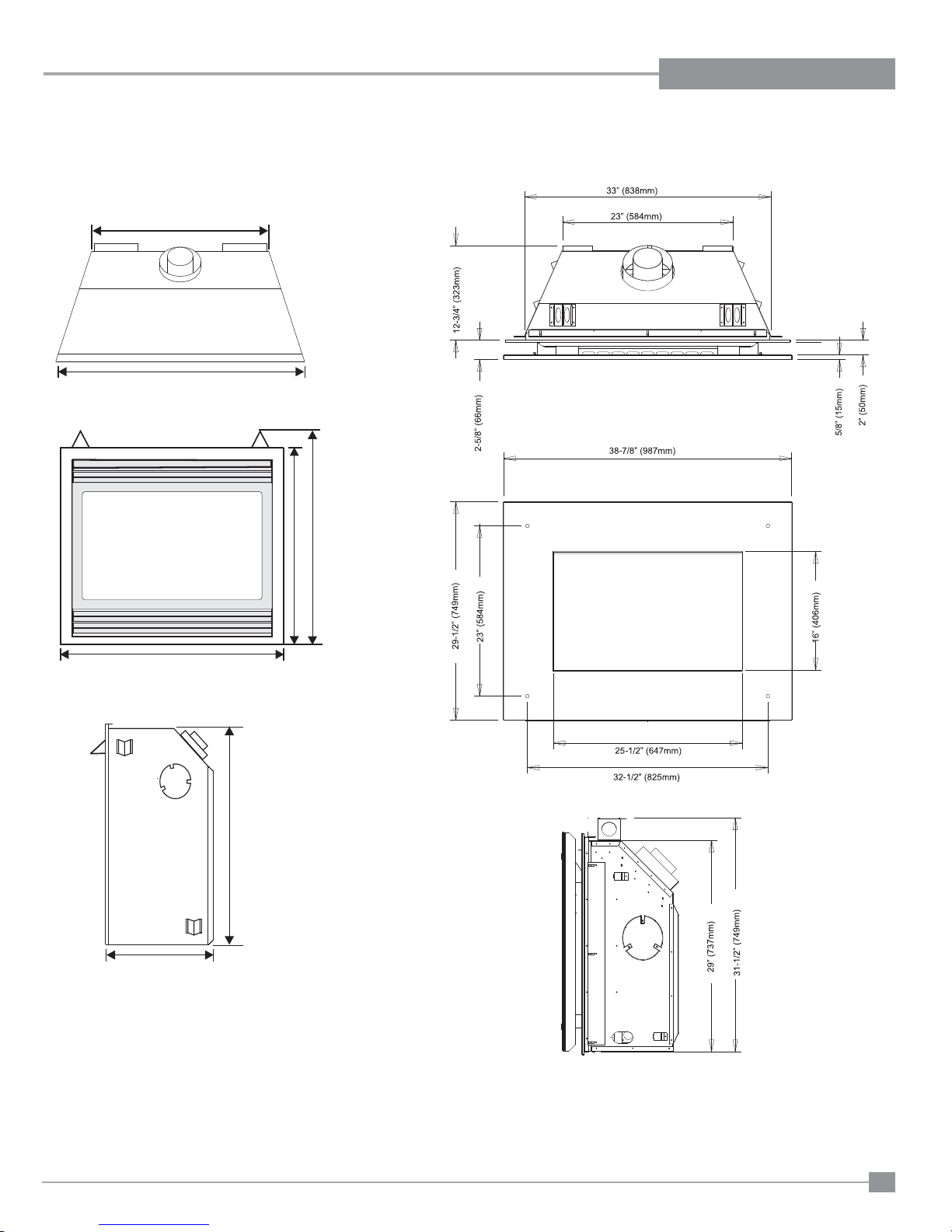

Unit Dimensions ............................................................9
Unit Dimensions with Contemporary Faceplate ............9
Clearances w\ Bay or Flush Front...............................10
Clearances w\ Contemporary Faceplate.....................10
Combustible Mantels...................................................11
Mantel Leg Clearances w\ Flush or Bay Glass............12
Mantel Leg Clearances w\ Contemporary Faceplate ..12
Framing and Finishing.................................................13
Framing Dimensions w\ Contemporary Faceplate ......14
Framing & Finishing w\ Contemporary Faceplate .......15
Unit Assembly Prior to Installation...............................16
Venting Introduction.....................................................16

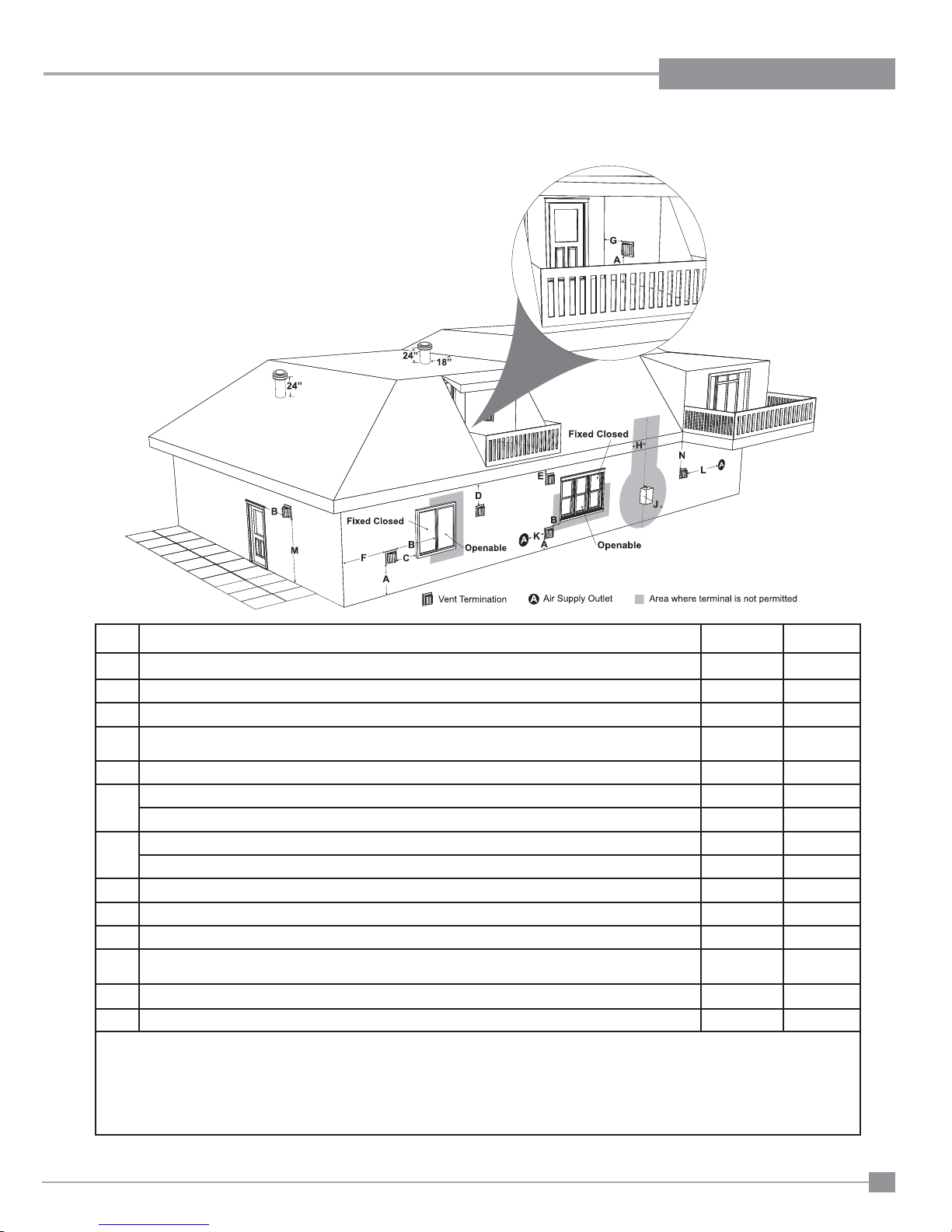

Exterior Vent Termination Locations............................17
Regency®Direct Vent Flex System ............................18
Installation Procedures................................................19
Rigid Pipe Venting Systems ........................................20
4” x 6-5/8” Rigid Pipe Cross Reference Chart.............21
Rigid Pipe Venting Arrangements ...............................23
Vertical Termination with Co-Linear Flex System........ 29
Venting Arrangements - Vertical Terminations ............30
Unit Installation with Horizontal Termination................31
Unit Installation with Vertical Termination.....................32
Gas Line Installation....................................................32
Pilot Adjustment...........................................................33
High Elevation .............................................................33
Gas Pipe Pressure Testing..........................................33
886 S.I.T. Valve Description.........................................33
Conversion from NG to LP ..........................................34
Optional Brick Panels...................................................36
Log Set Installation......................................................36
Standard Flush Door ...................................................37
Optional Flush Trim .....................................................37
GT Remote Installation................................................38
GTM Remote Installation.............................................39
GTMF Remote Installation..........................................41

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 5
SAFETY LABEL
SAFETY LABEL
This is a copy of the label that accompanies
each P33E-4 Zero Clearance Direct Vent Gas
Fireplace.Wehaveprintedacopyofthecontents
here for your review. The safety label is located
onthefrontinsidebaseof the unit, visible when
the bottom louver is open.
NOTE: Regency®units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
358
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
NATURAL GAS: Model P33E-NG4
PROPANE: Model P33E-LP4
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
FPI Fireplace Products International Ltd.
Delta, BC, Canada
Serial No./ No de serie
918-848
5" WC (1.25 kPa)
3.5" WC (0.87 kPa)
1.6" WC (0.39 kPa)
# 44 DMS
0-4500 ft/pi (0-1372 m)
14,000 Btu/h (4.10 kW)
20,000 Btu/h (5.86 kW)
APPAREIL FONCTIONNANT AU NATURAL GAS
CONCU POUR ETRE POELE:
Pression d'allimentation minimum
Pression a la tubulure d' chappement lev e
Pression a la tubulure d' chappement basse
Grandeur de l'injecteur
D bit Califorique minimum selon
D bit Caliorfique maximum selon
l'altitude
Modéle P33E-NG4
ééé
é
é
é
APPAREIL FONCTIONNANT AU PROPANE
CONCU POUR ETRE POELE:
Pression d'allimentation minimum
Pression a la tubulure d' chappement lev e
Pression a la tubulure d' chappement basse
Grandeur de l'injecteur
D bit Califorique minimum selon
D bit Caliorfique maximum selon
l'altitude
Modéle P33E-LP4
ééé
é
é
é
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Listed:
Certified for/Certifi e pour:
Tested to:
WN# 16509
VENTED GAS FIREPLACE HEATER
CANADA and U.S.A.é
CAN/CGA-2.17-M91, ANSI Z21.88-2009/CSA 2.33-2009
Model/Modele:
P33E-NG4
Model/Modele:
P33E-LP4
Made in Canada / Fabrique au Canada
11" WC (2.73 kPa)
10" WC (2.49 kPa)
6.4" WC (1.59 kPa)
# 54 DMS
0-4500 ft/pi (0-1372 m)
16,500 Btu/h (4.83 kW)
20,000 Btu/h (5.86 kW)
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the
United States, or when such a standard is not applicable,ANSI/NCSBCSA225.1/NFPA501A, Manufactured Home Installations Standard or ANSIA119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See
owner's manual for details.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installationANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard.
Si ces normes ne sont pas pertinentes, utilisez la normeANSI/NCSBCS A225.1/NFPA501A, Manufactured Home Installations Standard, ouANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles.
For use with glass doors certified with the appliance only
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
Fan (Part # 432-917) LP conversion kit # 434-972
Electrical supply / Électrique 115VAC, 1.13A, 60Hz.
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les
règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.
Pour utilisation uniquement avec les portes en verre certifiées avec l'appareil
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.
NE PAS UTILISER AVEC DUCOMBUSTIBLE SOLIDE.FOYER AU GAZ À ÉVACUATION -
Model P33E-NG4 convertible to 17,500 Btu for Altitude 0- 4500ft/pi
Orifice size
Maximum input
Minimum input
#47 DMS
17,500 Btu/h (5.13 kW)
9,800 Btu/h (2.87 kW)
Grandeur de l'injecteur
D bit Caliorfique maximum selon
D bit Califorique minimum selon
é
é
(For use with Faceplate)
Model P33E-LP4 convertible to 17,500 Btu for Altitude 0- 4500ft/pi
Orifice size
Maximum input
Minimum input
Minimum Clearances to Combustibles
Degagement Minimum De Materiaux Combustibles
0" Clearance to
combustibles from:
Mantel Clearances from Top:
Side Wall Clearance from Side
Facing
Top, sides, bottom and rear of unit
A) Min. 7" (177mm)
B) 7.5"(191mm)
C) Min 1” (26mm) w/Faceplate
Min 0” (0mm)
All Other Applications
with Flush or Bay Front
Clearance to finished floor from
Base:
Max. Depth 36" (914mm)
Min. Width 48" (1219mm),
Min. Height 59“ (1499mm)
Alcove Clearances for Bay &
Flush Louvers:
BB
30"
Ceiling
Wall
A

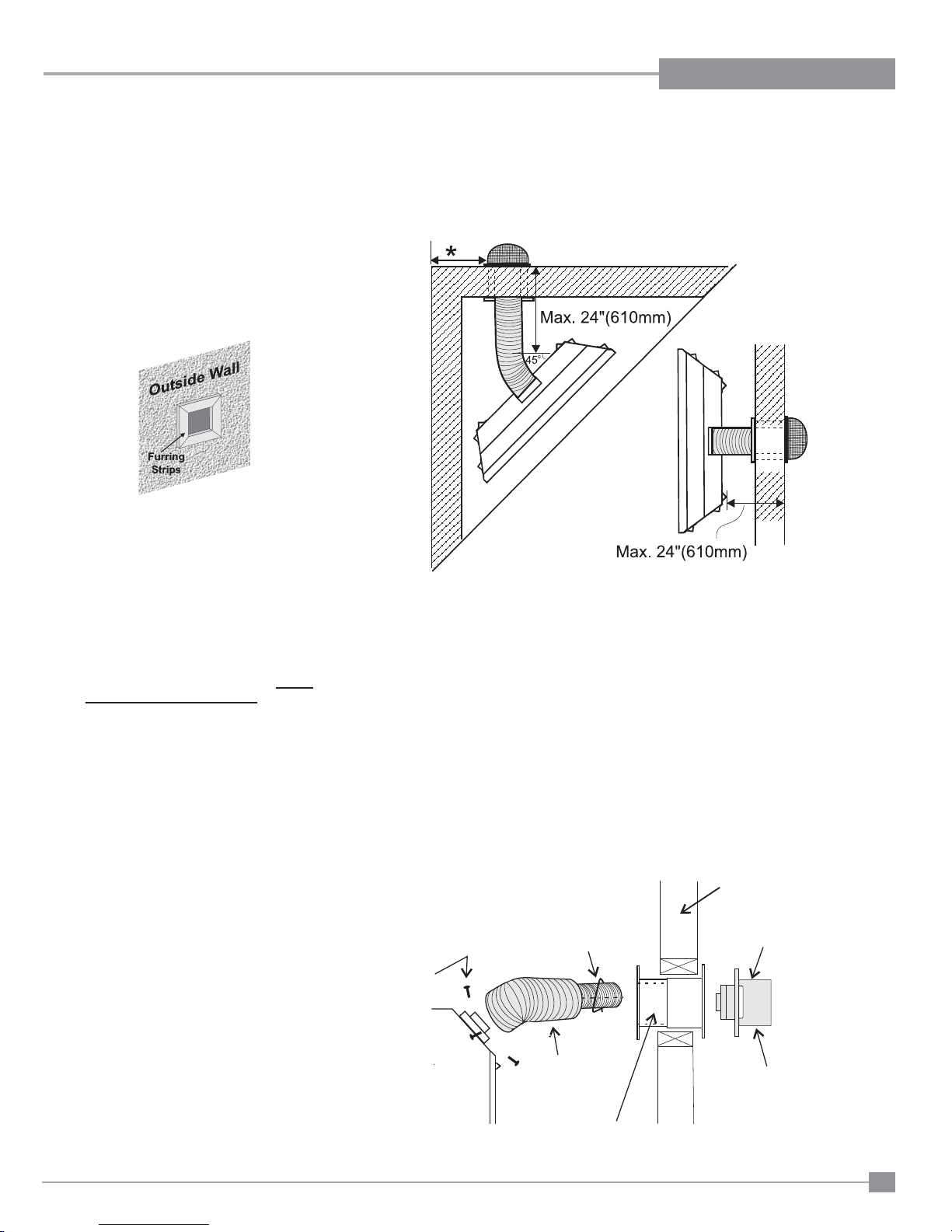

Minimum clearance of Vent
Terminal to Outside Corner &
Inside Corner: 6"/150mm

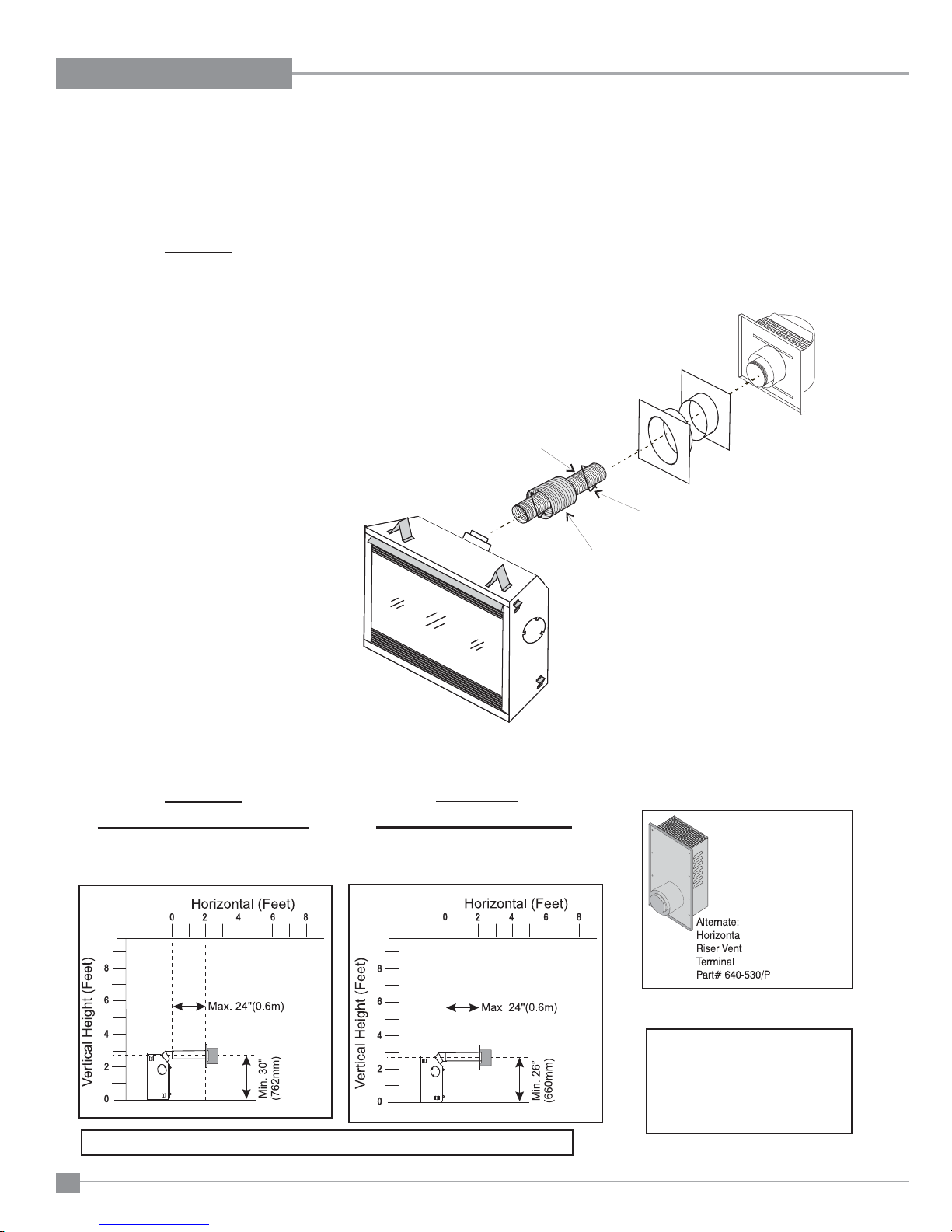

Horizontal Terminations require
the use of the
(Part # 946-523)
AstroCapTM
A
B
C
B
# 56DMS
15,500Btu/h (4.54 kW)
9,000Btu/h (2.64 kW)
The "Bay Louvers" be
used with the Bay Glass option
MUST DOOR SEAL: Please check that
the door is properly sealed
Grandeur de l'injecteur
D bit Caliorfique maximum selon
D bit Califorique minimum selon
é
é
(For use with Faceplate)
FortheState of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordancewithNFPA720 and a COalarm
withbatterybackupinthesameroomwhere
the gas appliance is installed.

6Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 7
INSTALLATION
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The P33E-NG4 or P33E-LP4 Direct Vent Fireplace
must be installed in accordance with these
instructions. Carefully read all the instructions in
this manual first. Consult the "authority having
jurisdiction"todetermine the need forapermitprior
to starting the installation. It is the responsibility of
the installer to ensure this fireplace is installed in
compliancewithmanufacturer'sinstructionsandall
applicable codes.
BEFORE YOU START
Safe installation and operation of this appliance
requirescommon sense, however,we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform with
local codes or, in the absence of local codes,
with the current Canadian or National Gas
Codes, CAN1-B149 orANSI Z223.1 Installa-
tion Codes.
2) The appliance when installed, must be electri-
cally grounded in accordance with local codes,
orintheabsenceoflocalcodeswiththecurrent
NationalElectricalCode,ANSI/NFPA70orCSA
C22.1 Canadian Electrical Code.
3) See general construction and assembly in-
structions. The appliance and vent should be
enclosed.
4) Thisappliance must beconnectedtothespeci-
fied vent and termination cap to the outside of
the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5) Inspecttheventingsystemannuallyforblockage
and any signs of deterioration.
6) Ventingterminals shallnotberecessedinto awallor
siding.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliarwiththeoperationtousethefireplace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in walls
andceilingswhencuttingholesfortermination.
11) Under no circumstancesshould this appliance
be modified. Parts that have to be removed for
servicingshouldbereplacedpriortooperating
this appliance.
12) Installation and any repairs to this appliance
should be done by a qualified service person.
Aprofessionalservicepersonshouldbe called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13) Do not slam shut or strike the glass door.
14) Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
15) The appliance area must be kept clear and
freeofcombustiblematerials,(gasesandother
flammable vapours and liquids).
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut or
weakened during installation.
2) Ensure proper grounding using the #8 ground
lugprovided.Referto"WiringDiagram"Section.
Emissionsfromburning woodorgascould
contain chemicals known to the State of
California to cause cancer, birth defects
or other reproductive harm.

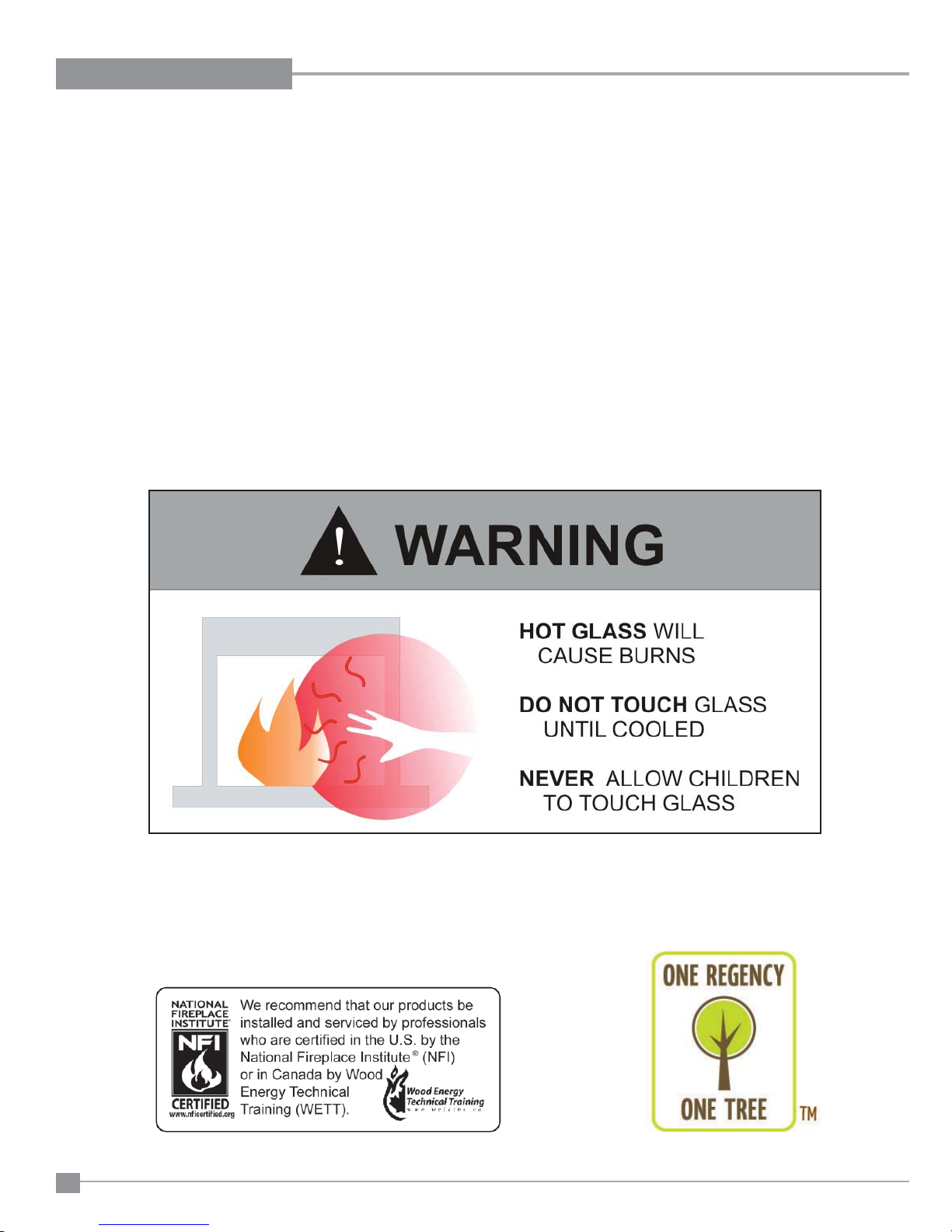

CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROL COMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.

8Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
DUCT SYSTEM OPTION
Kit #946-556
The HeatWave Air Duct Kit increases the
effectiveness of your fireplace by dispersing warm
airfromthefireplacetoremotelocationsinthesame
room or other rooms in your home.
Up to two kits may be installed on the fireplace.
Please Note: Only 1 HeatWave kit may be oper-
ated at one time. This includes the internal blower
option as well.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location
(Referto"LocatingYourFireplace"Section)
b) Clearances to Combustibles
(Refer to "Clearances" Section)
c) Mantle Clearances
(Refer to "Combustible Mantels" Section)
d) Framing&FinishingRequirements(Refer
to "Framing & Finishing" Section)
e) Venting Requirements
(Refer to "Venting" Sections)
2) Assemble Top Facing Support and Side
Nailing Strips (Refer to "Unit Assembly Prior
toInstallation" Section). NOTE: Mustbe done
before installing unit into fireplace.
3) Install vent (Refer to "Venting" Sections)
4) Make gas and electrical connections. Test the
pilot. Must be as per diagram.
(Refer to "Gas Line Installation" and "Pilot
Adjustment" Section).
Convert to Propane if desired.
(Refer to "Conversion Kit from NG to LPG"
Section).
5) Install 4-AA batteries into the battery pack.
Batteriesmustbeinstalledtooperatetheburner
switch.
6) Installstandardandoptionalfeatures.Referto
the following sections:
a. Optional Brick Panels
b. Log Set Installation
c. Standard Flush Door
d. Optional Flush Trim
e. Double Screen Door
f. Optional Bay Door
g. Optional Bay Trim
h. Flush Louvers
i. Bay Louvers
j. Full Screen Doors
k. Optional Contemporary Faceplate
l. Optional Wall Thermostat
m. Optional Remote Control
n. Optional Wall Switch
o. Installing the Optional Fan
7) Final check.
Diagram 1
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on label) after burning
appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the flame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
FIREPLACE
1) When selecting a location for your fireplace,
ensure that the clearances outlined on this
page are met.
2) Provide adequate clearances for servicing.
3) The appliance must be installed on a flat,
solid, continuous surface (e.g. wood, metal,
concrete). This may be the floor, or raised up
on a platform to enhance its visual impact.
If the appliance is going to be installed on
carpeting, combustible linoleum tile or other
combustiblematerialotherthanwoodflooring,
the appliance must be installed on a metal or
wood panel extending the full width and depth
of the appliance.
4) The P33E-4 can be installed in a recessed
position or framed out into the room as in A,
B, C, D. See Diagram 1 below.
5) This appliance is Listed for bedroom
installations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
6) The P33E-4 Direct Vent Gas Fireplace is
approvedforalcoveinstallations,whichmeetthe
clearances listed on the "Clearances" Section.
7) Werecommendthatyouplanyourinstallationon
paperusingexactmeasurementsforclearances
andfloorprotectionbeforeactuallyinstallingthis
appliance.Haveaqualifiedinspector,dealer,or
installer review your plans before installation.
Note: For vent terminations see "Exterior Vent
Termination Locations" Section.
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 9
INSTALLATION
UNIT DIMENSIONS WITH
CONTEMPORARY FACEPLATE
33"(838mm)
33"(838mm)
23"(584mm)
12-3/4"(324mm)
29"(737mm)
28-1/2"(724mm)
31-1/2"(800mm)
UNIT DIMENSIONS

10 Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.
CLEARANCES WITH CONTEMPORARY FACEPLATE
The clearances listed below are Minimum distances unless otherwise stated:
A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest
importance that this fireplace and vent system be installed only in accordance with these instructions.
Clearance: Dimension Measured From:
A: *Front Floor Clearance (min.) 1" (25mm) Underside of Unit
B: *Sidewall 7-1/2" (241mm) Side of Unit
C: *Ceiling
(room and/or alcove) 30" (889mm) Top of Unit
D: Alcove Width 48" (1219mm) Sidewall to Sidewall (Minimum)
E: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
B
C
Close to Ceiling
Flue Clearances to
Combustibles
Horizontal - Top 2-1/2"
Horizontal - Side 1-1/2"
Horizontal - Bottom 1-1/2"
Vertical (Flex Vent) 1-1/2"
Vertical (Rigid) 1-1/4"
*Note: All measurements are from the top/side of the unit, not optional front.
Clearances for Bay or Flush Front
The clearances listed below are Minimum
distances unless otherwise stated:
A major cause of chimney related fires is
failure to maintain
requiredclearances(airspace)tocombus-
tible materials.
It is of the greatest importance that this
fireplace and vent system
be installed only in accordance with these
instructions.
Clearance to Combustibles from:
Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)
NOTE: The minimum floor clearance must be
maintained
from the top surface of the carpeting, tile,
etc.
CLEARANCES WITH BAY OR FLUSH FRONT
Minimum Clearance from Top of Unit to:
Mantel* min. 7" (177mm)
Ceiling 30" (762mm)
from top of unit.
Side Wall Clearance
Bay or Flush Front 7-1/2" (191mm)
Minimum Vent Clearances:
2-1/2" (64mm) Horizontal Top
1-1/2" (38mm) Horizontal Side
1-1/2" (38mm) Horizontal Bottom
1-1/4" (32mm) Vertical Vent Clearance
(Rigid Vent)
1-1/2" (38mm) Vertical Vent Clearance
(Flex Vent)
Alcove Clearances:
Max. Depth 36" (914mm)
Min. Width 48" (1219mm)
Min. Height 59" (1499mm)
* see mantel clearance instructions.
Warning
Firehazardisanextremeriskifthese
clearances are not adhered to.

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 11
INSTALLATION
COMBUSTIBLE MANTELS
Because of the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of unit are
shown in the diagram below.
Note: Anon-combustiblemantel may be installed atalower height if the framing ismadeof metal studs covered with anon-combustible
board.
This drawing is to scale at 1:6 (one inch = 6 inches). Mantel can be installed anywhere in shaded area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
Combustible mantel leg clearances as per diagrams below:
Drywall
Mantel Clearances
with Flush, Full Screens or Bay Glass
2
0
12 64
810
2
0
12
6
4
8
10
Side View
Top of
Unit
12" (305mm)
0” - 3-1/2" (89mm)
7-1/2"(191mm)
11"(279mm)
7"(178mm)
9"(229mm)
29"(737mm)
to floor
3"(76mm)
Standoff
Mantel Clearances with
Contemporary Faceplate

12 Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
MANTEL LEG CLEARANCES WITH CONTEMPORARY FACEPLATE
Combustible mantel leg clearances from side of unit as per diagram:
MANTEL LEG CLEARANCES WITH FLUSH OR BAY GLASS
Combustible mantel leg clearances from side of unit as per diagram:
Maximum
1-1/2" projection at 2" minimum
clearance.

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 13
INSTALLATION
3) For exterior walls, insulate the enclosure to
the same degree as the rest of the house,
apply vapour barrier and drywall, as per
local installation codes. (Do not insulate
the fireplace itself.)
4) The top of the unit must not be closer than
30" (762mm) to the ceiling.
5) Combustible material may be brought up to
the top and sides of the unit and be covered
with ceramic tiles, bricks, rock or other
suitable combustible finishing materials.
Note: Theunitdoesnothavetobecompletely
enclosedinachase.Theclearanceon
topoftheunitis0"tothestandoffsso
combustiblebuildingmaterialscanbe
laid directly on top of the standoffs.
You must maintain clearance from
the vent to combustible materials
for flex or for Rigid Vent (Refer to
"Clearances" Section).
1) Determine the total thickness of facing
material (e.g. drywall plus ceramic tiles) to
allow the finished surface to be flush with
the front of the unit. Total facing thickness
canvaryfrom1/2"(13mm)to1-1/4"(32mm)
thick.
6) Use steel studs for framing where the
1-1/2" (38mm) clearance from the vent
to combustible material cannot be
maintained.
2) Frame in the enclosure for the unit with
framing material.
FRAMING AND FINISHING
16-1/2”
(419mm)
Minimum
4"
(102mm)
3"
(76mm)
1-1/2"
(38mm)
30”
(762mm)
10" (254mm)
dia. Hole through
wall for Dura-Vent
1/2"
(13mm)
Drywall
Top Header
Opening for gas
connection
12-3/4”
(324mm)
Minimum
4"
(102mm)
3"
(76mm)
1-1/2"
(38mm)
26”
(660mm)
10" (254mm)
dia. Hole through
wall for Flex
1/2"
(13mm)
Drywall
Top Header
Opening for gas
connection
Rigid Vent
Minimum Clearances
Flex Vent
Minimum Clearances
Vertical Termination or
Vertical Rise with Horizontal
Termination
NOTE: If this is an outside corner, the
minimum distance between the vent and the
outside corner is 6" (15cm) with AstroCap
terminationcapor12"(30cm)withRigidVent
termination cap. (For example Dura-Vent).
For Both Rigid & Flex
Rear Termination
NOTE:Ifthisisanoutsidecorner,theminimum
distance between the vent and the outside
corneris 6" (15cm) withAstroCaptermination
cap or 12" (30cm) with Rigid Vent termination
cap. (For Example Dura-Vent).
For Rigid Vent
For Flex Vent
For Both Rigid & Flex
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.
NOTE: Framing is different when using the
faceplate option.
See framing section when using faceplate in
this manual.
Install Side Nailing Strips, and Top Facing
Supportbeforeunitisslippedintoposition.
See "Unit Assembly Prior to Installation"
Section

14 Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
G
H
I
I
M
J
L
K
P
Q
O
N
10" (254mm)
dia. Hole through
wall Vent.
Opening for gas
connection
Top Header
.
Wood, drywall
or other facing
JI
Floor
Framing Dimensions Description P33E-4
G Framing Width 33-1/4"(845mm)
H Framing Height * 31-3/4" (806mm)
I Framing Rise from Floor 1" (25mm) Min.
J Framing Depth Vertical
Horizontal 19-1/2" (495mm) Vertical Rise 16-1/2" (419mm) Rigid / 12-3/4" (324mm) Flex
K Corner Wall Length 37-1/2" (953mm)
L Corner Facing Wall Width 53-1/4" (1353mm)
M Framed Chase Ceiling* 36" (914mm) Rigid 32" (812mm) Flex
NVent Centerline Height* 30" (762mm) Rigid 26" (660mm) Flex
OGas Connection Height* 1 1/2" (38mm)
P Gas Connection Inset* 4" (102mm)
Q Gas Connection Width* 3" (76mm)
FRAMING DIMENSIONS WITH CONTEMPORARY FACEPLATE
NOTE: If this is an outside corner, the
minimum distance between the vent
and the outside corner is 6" (15cm)
with AstroCap termination cap or 12"
(30cm)withRigidVentterminationcap.
(For example Dura-Vent)
* Measured from base of unit.

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 15
INSTALLATION
Note: When constructing the framed opening, please ensure there is
access to install the gas lines when the unit is installed.
3) For exterior walls, insulate the enclosure to the same degree as the rest
of the house, apply vapour barrier and drywall, as per local installation
codes. (Do not insulate the fireplace itself.)
WARNING: Failure to insulate and add vapor barriers to the inside of
theexterior wall will result in operational and performance problems
including,butnotlimitedto:excessivecondensationonglassdoors,
poor flame package, carbon, blue flames etc. These are not product
related issues.
FRAMING & FINISHING WITH CONTEMPORARY FACEPLATE
2) Frame in the enclosure for the unit with framing material.
Wood,
1) Determine the total thickness of facing material (e.g. drywall, wood plus
ceramic tiles) to allow the finished surface to be flush with the front of the
unit. Total facing thickness can vary from 1/2" (13mm) to 1-1/4" (32mm)
thick.
NOTE: Facing material may not protrude beyond unit, otherwise the op-
tional accesories will not be able to be mounted to the unit.
Install Side Nailing Strips, and Top Facing
Supportbeforeunitisslippedintoposition.
See "Unit Assembly Prior to Installation"
Section
4) Combustible material may be brought up to the top and sides of the unit
and be covered with wood, drywall, ceramic tiles, bricks, rock or other
suitable combustible finishing materials.
Note: Theunitdoesnothave to be completely enclosed in a chase. The
clearance on top of the unit is 0" to the standoffs so combustible
buildingmaterialscanbelaiddirectlyontopofthe standoffs.You
must maintain clearance from the vent to combustible materials
for flex or for Rigid Vent (Refer to "Clearances" Section).
5) Use steel studs for framing where the 1-1/2" (38mm) clearance from the
vent to combustible material cannot be maintained.
The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.
Important:
If the Contemporary Faceplate is used on the P33E-NG4/P33E-LP4
Gas Fireplace, the burner orifice (Both NG/LP supplied in this
package) must be replaced and an overlay decal (also supplied with
kit) must be affixed to the current serial number decal
supplied with unit.
Note: Also see framing dimensions for this optional front if installed
on the P33E-4 unit.
Note: Unit must be raised up by 1' to allow for faceplate
installation.
NG LP
Current P33E-4 orifice size: #44 #54
Must replace with: #47 #56
Warning: Fire hazard is an extreme risk if these changes are not
adhered to.

16 Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
TheTopFacingSupport,theSideNailingStripsand
the2TopStandoffsmustbecorrectlypositionedand
attachedtothetopbeforetheunitisputintoposition.
Top Standoff Assembly
The top standoffs are shipped in a flat position and
must be pulled up and bent into the correct shape.
1) Removethestandoffsfromontopofthe firebox
by undoing the screws.
2) Take each standoff and bend into the correct
shape.Bendupatthebendlinesuntilthescrew
holesinthestandoffandthepre-punchedscrew
holes on the firebox top line-up.
3) Attach the standoffs securely to the top with 4
screws per standoff.
Note: Securethe standoffsto the holesclosest
to the edge of the firebox top.
Top Facing Support &
Side Nailing Strips
Determine the total thickness of facing material
(e.g.drywallplusceramictiles)toallowthefinished
surface to be flush with the front of the unit. Total
facing thickness can vary from 1/2" (13mm) to
1-1/4" (32mm) thick.
The Top Facing Support & Side Nailing Strips can
bemounted invariouspositionsdependingonthe
thickness of the facing material.
1) MountTopFacingSupportusingthe3supplied
screwsintothethreepre-punchedscrewholes
on the top front of the unit. Adjust support to
desired facing material depth.
2) Mount Side Nailing Strip using the 3 supplied
screwsintothethreepre-punchedscrewholes
at the front sides of the unit.Adjust support to
desired facing material thickness.
UNIT ASSEMBLY PRIOR TO INSTALLATION
Top Facing
Support
Side
Nailing
Strips
(folded out)
VENTING INTRODUCTION
The P33E-4 uses the "balanced flue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner
draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room
air up the chimney.
There are 5 vent systems approved for use with the P33E-4: the Regency®Direct Vent Flex System for Horizontal Terminations only and the Simpson
Dura-Vent Pro, Selkirk Direct-Temp, Amerivent Direct Vent, Metal-Fab Sure Seal, Security Secure Vent and ICC Excel Direct for Horizontal and Vertical
Terminations (see following "Venting" Sections for more details).
Note: These flue pipes must not be connected to any other appliance.
The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid
fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited. (See "Rigid
Pipe Venting System" for more details and exceptions).
NOTE: Ensure compliance with the outside vent terminal location before cutting hole as both dimensions must be met.
For a facing material depth of
1-1/4"(32mm), the top facing
support must be reversed.

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 17
INSTALLATION
EXTERIOR VENT TERMINATION LOCATIONS
Minimum Clearance Requirements Canada1USA2
AClearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
BClearance to window or door that may be opened 12"(30cm) 9" (23cm)
CClearance to permanently closed window **
DVertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm)
from the center line of the terminal (check with the local code)
18"(46cm) 18"(46cm)
EClearance to unventilated soffit 15"(38cm) 15"(38cm)
FClearance to outside corner: with AstroCap Termination Cap. 6"(15cm) 6"(15cm)
Clearance to outside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)
GClearance to inside corner: with AstroCap Termination Cap 6"(15cm) 6"(15cm)
Clearance to inside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)
HClearance to each side of center line extended above meter/regulator assembly 36"(90cm)a*
JClearance to service regulator vent outlet 36"(90cm) *
KClearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
LClearance to a mechanical air supply inlet
#3' (91cm) above if within 10' (3m) horizontally.
72"(1.8m) 36"(90cm)b
MClearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)┼*
NClearance under veranda, porch, deck, or balcony 12"(30cm)‡*
1In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
*Clearance in accordance with local installation codes and the requirements of the gas supplier
a3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b3 feet (91cm) above - if within 10 feet (3m) horizontally

18 Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
Wherever necessary due to
external location of cap, the
AstroCapcanbereplacedwith
theFPIRiserVentTermination
Cap or the Dura-Vent Snorkel
Termination Cap.
REGENCY®DIRECT VENT FLEX SYSTEM
Horizontal Terminations Only
This venting system, in combination with the P33E-4 Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock Hersey/
Intertek. The location of the termination cap must conform to the requirements in the "Exterior Vent Terminal Locations" Section .
Regency®Direct Vent Flex Termination Kit (Part # 946-513) includes all the parts needed to install the P33E-4 with a maximum run of 2 feet. If install-
ing the P33E with a continuous vent length of more than 2 ft (.6m) to a maximum of 10 ft. (3.0m) use Kit # 946-515 (4 ft) or 946-516 (10 ft) or see "Rigid Pipe
Venting Systems" Section for alternate venting arrangements.
1) 6-7/8" dia. flexible liner (2 ft. length)
2) 4" dia. flexible liner (2 ft. length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) screws #8 x 1-1/2" drill point,
stainless steel (4)
6-7/8"
(173mm)
dia. Flue pipe
4" (102mm)
dia. flue pipe
Wall Thimble (2 pc)
(required in
Canada only)
Termination Cap
(Part# 946-523/P)
AstroCapTM
spring
spacer
See Figure 1 below for
Alternate Caps.
Notes:
1) Liner sections should be continuous
without any joints or seams.
2) OnlyFlexpipepurchasedfromRegency®
may be used for Flex installations.
MINIMUM
FLEX KIT CENTER-LINE
MINIMUM
RIGID PIPE CENTER-LINE Alternate
Horizontal
Termination
Caps
Note: for P33E-NG4 with contemporary faceplate - unit must be raised by 1".
Figure 1

Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace 19
INSTALLATION
Termination Cap
Wall Thimble 2 pieces
(10" (254mm) Outer Diameter)
2”x4”or2”x6”
(21mm x 102mm
or 21mm x 152mm)
6-7/8"
(175mm)
dia. air intake
4" (102mm)
dia. flue pipe
with spring spacer
Screws
(4 per connection)
Screws
(3 per
connection)
INSTALLATION PROCEDURES
for Regency®Direct Vent System (Flex)
Minimum and Maximum Vent Clearances
1) Locate the unit in the framing, rough in the gas
(preferablyonthe right side oftheunit)and the
electrical (Junction block is on the left side) on
theleft.Locatethecenterlineofthetermination
and mark wall accordingly. Cut a 10"(254mm)
hole in the wall (inside dimension).
Note: Tomaketheinstallationmoreaesthetically
pleasing, we recommend framing out a
square to mount the terminal to.
*If this is an outside corner, the minimum distance between the vent and the outside
corneris6"(15cm) with AstroCap termination cap or 12"(30cm)withDura-Vent ter-
minationcap.See"F"inthediagramin"ExteriorVentTerminationLocations"Section.
Note: A 2-1/2" (64mm) horizontal top and
1-1/2"(38mm)horizontalsides&bottom
clearancearoundthelinermustbemain-
tainedexceptthatonlya1"(25mm)clear-
ance is needed at the termination end.
We recommend framing a 10"(254mm)
x 10"(254mm) (inside dimensions) hole
to give structural rigidity for mounting
the termination.
Note: If installing termination on a siding
covered wall, furring strips must be
used to ensure that the termination is
not recessed into the siding.
2) Level the fireplace and fasten it to the framing
usingnailsorscrewsthroughthenailingstrips.
3) Assemble the vent assembly by applying
Mill Pac to the 4"(100mm) inner collar of the
termination and slipping the 4"(100mm) liner
overitatleast1-3/8"(35mm).Fastenwiththe3
screws(drillingpilotholeswillmakethiseasier).
Apply Mill Pac or high temperature silicone to
the6-7/8"(175mm) flexpipeandslip itoverthe
6-7/8" outer collar of the vent terminal at least
1-3/8"(35mm) and fasten with the 3 screws.
4) Separate the 2 halves of the wall thimble and
securely fasten the one with the tabs to the
outside wall making sure that the tabs are on
top and bottom. Fasten the other thimble half
totheinsidewall.Thethimblehalvesslipinside
each other and can be adjusted for 2 x 4 or 2 x
6walls. The liners must slipoverthe collars
a minimum of 1-3/8".
5) Slip the assembled liner and termination as-
sembly through the thimble making sure the
termination cap faces up (there are markings
onthecapthatshowwhichwayisup).Thiswill
position the termination cap with proper down
slope for draining water. Fasten the cap to the
outer wall with the 4 supplied screws.
6) Pull the centre 4"(100mm) liner and outer
6-7/8"(175mm) liner out enough to slip over
the flue collars of the fireplace.
7) Apply Mill Pac over the fireplace inner collar
and slip the 4"(100mm) liner down over it and
attach with 3 supplied screws.
8) Do the same with the 6-7/8"(175mm) liner.
9) Applyabeadofsiliconebetween the thimble
andterminationandaroundtheouteredgeof
the terminal at the wall in order to keep the
water out.
IMPORTANT: Do not locate termination
hood where excessive snow or ice
buildup may occur. Be sure to check
vent termination area after snow falls,
andcleartopreventaccidentalblockage
of venting system. When using snow
blowers,makesuresnowisnotdirected
towards vent termination area.

20 Regency® P33E-4 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
The minimum components required for a basic
horizontal termination are:
1 AstroCap Horizontal Termination Cap
1 45oElbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness
(see chart)
Forsidingotherthanvinylfurringstripsmaybeused,
insteadofthevinylsidingstandoff,tocreatealevel
surface to mount the vent terminal. The Terminal
must not be recessed into siding.
If a Vinyl Siding Standoff is required (it must be
usedwith vinylsiding),measure tooutsidesurface
of wall without siding and add 2 inches.
Flat Wall Installation
Max. Wall Vent Length
Thickness (inches) Required (inches)
7 - 1/4" 6"
10 - 1/4" 9"
13 - 1/4" 12"
12-1/4" - 15-7/8" 11" - 14-5/8" Adj. Pipe
18-1/4" - 25-1/4" 11" - 14-5/8" Adj. Pipe
Alternate
Horizontal
Termination
Caps
This product has been evaluated by Intertek
for using a Rigid Pipe Adaptor in conjunction
withDuraventDirect-Vent,SelkirkDirect-Temp,
AmeriVentDirectventingandSecuritySecure
Vent systems. Use of these systems with the
Rigid Pipe adaptor is deemed acceptable and
does not affect the Warnok Hersey/Intertek
listing of components.
WARNING:
Do not combine venting components from
different venting systems.
However use of theAstroCapTM and FPI Riser
is acceptable with all systems.
When using Rigid Vent other than
Simpson Dura-Vent, 3 screws must be
used to secure rigid pipe to adaptor.
The FPI AstroCapTM and FPI Riser Vent terminal are certified for installations using FPI venting systems as well as Simpson Dura-Vent®Direct Vent Pro,
American Metal Products Ameri Vent Direct Vent, Security Secure Vent®, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark of FPI Fireplace
Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
