Regency P48-LP2 User manual

P48 Zero Clearance Direct Vent Gas Fireplace
Model P48-NG2 P48-LP2
Fuel Type Natural Gas Propane
Minimum Supply Pressure 5” W.C. (1.25 kPa) 12” W.C. (3.00 kPa)
Manifold Pressure - High 3.8” W.C. (0.95 kPa) 11” W.C. (2.74 kPa)
Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 3.3” W.C. (0.82 kPa)
Orifice Size #27 DMS - 0-4500ft #47 DMS
Minimum Input 29,000 BTU/h (8.49 kW) 26,000 BTU/h (3.07 kW)
Maximum Input 51,000 BTU/h (14.94 kW) 48,000 BTU/h (6.30 kW)
Vent Sizing 5” Inner / 8” Outer 5” Inner / 8” Outer
A
B
A
DC F
E
G
H
I
K
J
L
O
P
N
M
11" (279mm)
dia. Hole through
wall Vent.
Opening for gas
connection
Top Header
Drywall
(or other
facing)
P48 Gas Fireplace

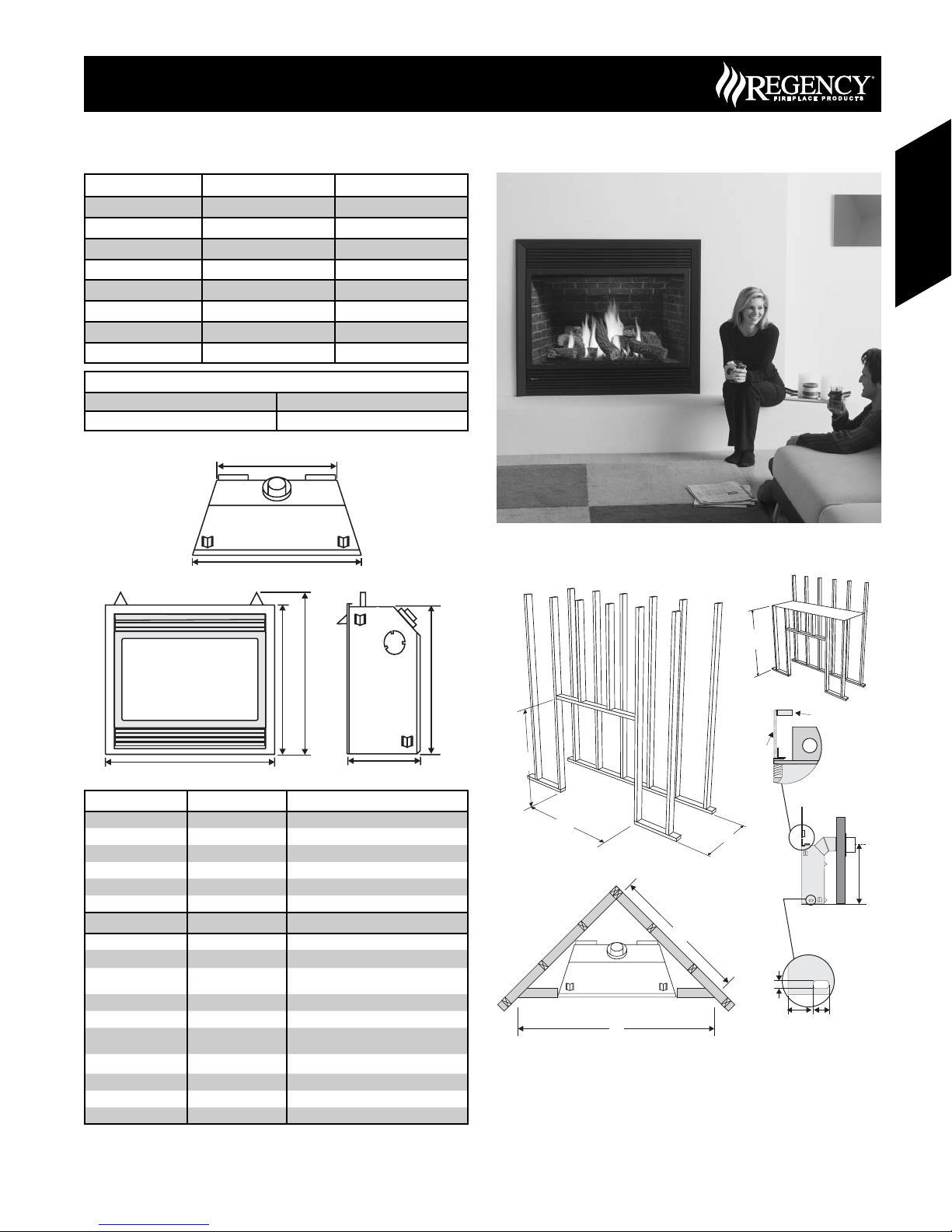

Unit Dimensions Description P33
A Front Face Width 48” (1219mm)
B Rear Firebox Width 34-1/2” (876mm)
C Front Face Height 41” (1041mm)
D Height w/ Standoff 47” (1193mm)
E Unit Depth 23-1/4” (324mm)
F Firebox Height 40” (1016mm)
Framing Dimensions Description P33
G Framing Width 48-1/2” (1232mm)
H*** Framing Height*** 47-1/2” (1207mm)***
I Framing Depth 29-3/4” (756mm) Vertical Rise
26-1/4” (667mm) No Vertical Rise
J Corner Wall Length 57-5/8 ” (1464mm)
K Corner Facing Wall Width 81-1/2” (2070mm)
L Framed Chase Ceiling N/A - Vertical Rise
50” (1270mm) No Vertical Rise
M Vent Centerline Height 43” (1092mm)
N Gas Connection Height 2” (51mm)
O Gas Connection Inset 3-3/4” (95mm)
P Gas Connection Width 5” (127mm)
Approved Venting Systems
Flex Vent Systems: FPI AstroCap™ Flex Vent
Rigid Pipe Vent Systems: Simpson Dura-Vent® Direct Vent GS
***Important: Framing height requires consideration of the hearth
depth. Dimension H = H + the thickness of installed hearth.
Please refer to Page 11 (Exterior Vent Terminations)
for additional guidelines on vent locations.
61June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

Framing and Finishing
1) Determine the total thickness of facing material (e.g. drywall plus
ceramic tiles) to allow the finished surface to be flush with the front
of the unit. Total facing thickness can vary from 1/2” (13mm) to 1-¼”
(32mm) thick.
2) Frame in the enclosure for the unit with framing material.
3) For exterior walls, insulate the enclosure to the same degree as
the rest of the house, apply vapor barrier and drywall, as per local
installation codes. (Do not insulate the fireplace itself.)
4) The top of the unit must not be closer than 39” (990mm) to the
ceiling.
5) Combustible material may be brought up to the top and
sides of the unit and be covered with ceramic tiles, bricks,
rock or other suitable combustible finishing materials.
Note: The unit does not have to be completely enclosed in a
chase. The clearance on top of the unit is 0” to the standoffs
so combustible building materials can be laid directly on top
of the standoffs. You must maintain proper clearances from
the vent to combustible materials (See Below).
6) Use metal studs for framing where the minimum clearance from
the vent to combustible material cannot be maintained.
Drywall

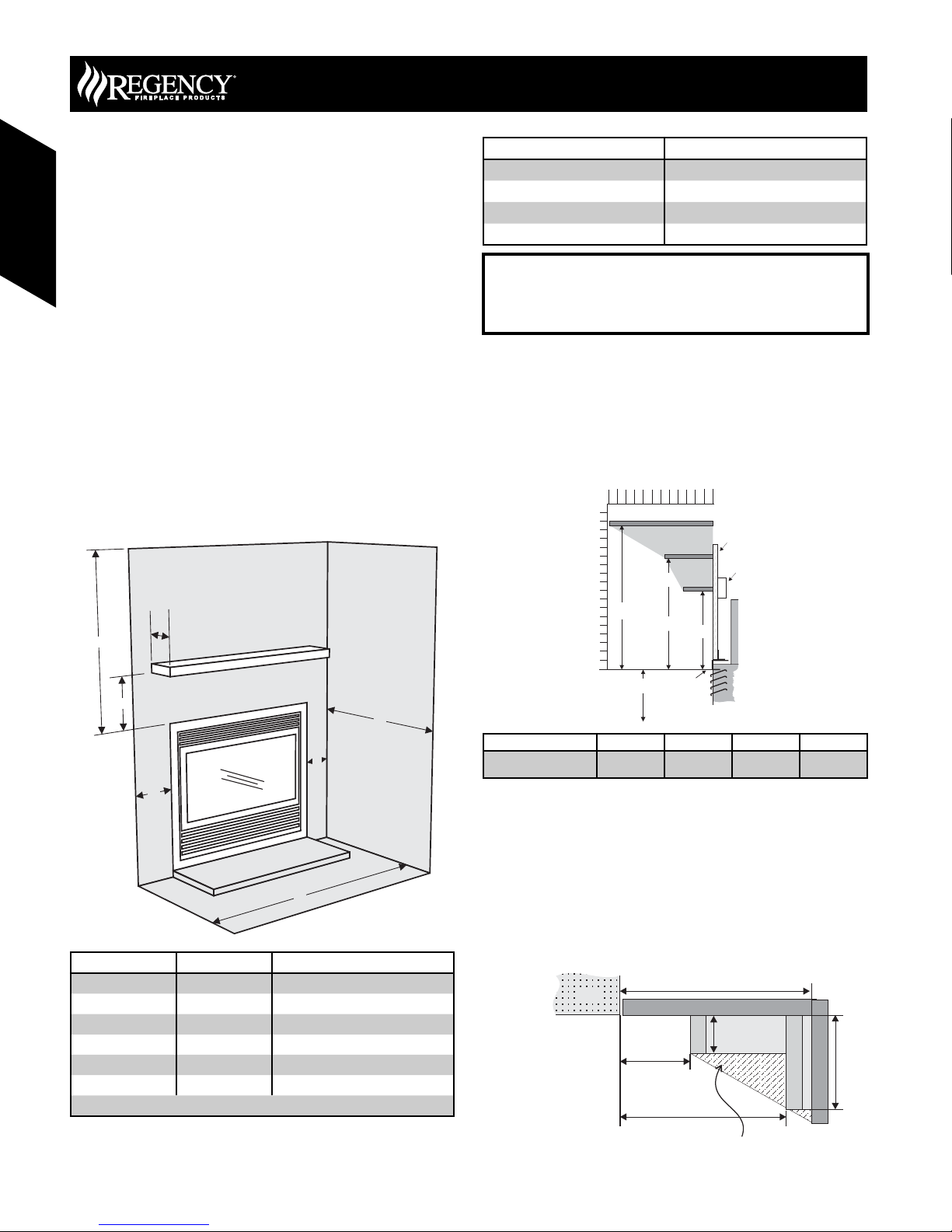

Mantel Clearances
2
0
12 64
810
0
Side View
Top o f
Louvers
12" (305mm)
3 ½" (89mm)
5 ½” (140mm)
A
Standoff
BCD
Header
Side Wall (Min 6”)
6”
3”
Mantel leg
Mantel leg
P48
Allowable mantel leg
projection.
3”
1-1/2"
Mantel Leg Clearances
Combustible mantel leg clearances as per diagram below:
Clearances are from the finished edge of the unit
Maximum
1-½” projection at 3”
minimum clearance.
Mantel Clearances ABCD
Front 41” (1041mm) 15” (381mm) 10” (254mm) 8” (203mm)
P48 Gas Fireplace
WARNING
Failure to maintain required clearances is a major cause of
chimney related fires. Installation of this fireplace must comply
with these clearances.
Combustible Mantels
Because of the extreme heat this fireplace emits, the mantel
clearances are critical. Combustible mantel clearances from top of
the louvers are shown in the diagram below. Mantel may be installed
anywhere in the shaded area or higher.
Note: If desired a non-combustible mantel may be installed at a
lower height.
Note: Ensure the paint that is used on the mantel and the facing
is “heat resistant” or the paint may discolour.
Clearance: Dimension Measured From:
A: Mantel Height 8” (203mm) Minimum (Additional on this page)
B: Sidewall 6” (152mm) Side of installed front
C: Ceiling 36” (914mm) Top of installed unit
D: Mantel Depth 12” (305mm) Maximum (Additional on this page)
E: Alcove Width 60” (1524mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36” (914mm) Front to back wall (Maximum)
Top of Hearth must not be higher than the base of the firebox.
Vent Clearances Clearance Dimension
Horizontal - Top 2-1/2” (64mm)
Horizontal - Side 1-1/2” (38mm)
Horizontal - Bottom 1-1/2” (38mm)
Vertical 1-1/4” (32mm)
E
B
B
A
C
D
F
Clearance Requirements
62 June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

8" dia.
Flue pipe
5” dia.
Flue pipe
Spring Spacer
AstroCap XL
(Part# 946-623/P)
Wall Thimble
Vinyl Siding
Standoff
Alternate Horizontal
Termination Caps
Snorkel Terminations
Snorkel Terminations:
For installations requiring a vertical rise on the exterior of the building, 14-
inch and 36-inch tall Snorkel Terminations are available. Follow the same
installation procedures as used for standard Horizontal Termination.
NEVER install the snorkel upside down.
Min. 12"*
(305mm)
Dura-Vent
Snorkel
Below Grade Snorkel Installation (Dura-Vent Only)
If the Snorkel Termination must be installed below grade, i.e. basement
application, proper drainage must be provided to prevent water from
entering the Snorkel Termination. Refer to Rigid Pipe Installation
instructions for details. Do not attempt to enclose the Snorkel within the
wall, or any other type of enclosure.
Min. 12"*
(305mm)
Adequate
drainage
Window
Well
Gravel
Dura-Vent
Snorkel
P48 Gas Fireplace

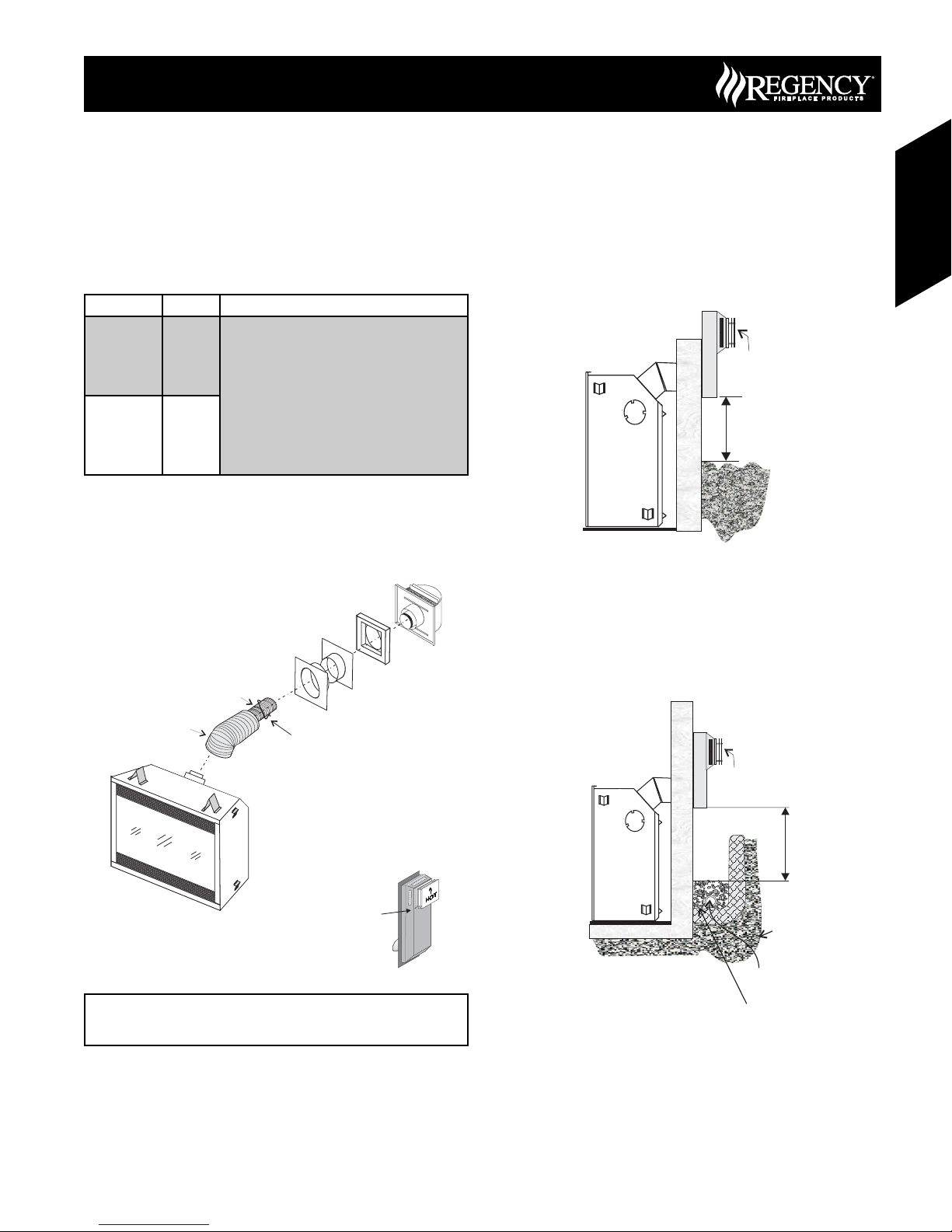

Regency Direct Vent System (Flex)
Horizontal Terminations Only
These venting systems, in combination with the P48 Direct Vent Gas
Fireplace, have been tested and listed as a direct vent heater system
by Warnock Hersey. The location of the termination cap must conform
to the requirements in the Vent Terminal Locations diagram.
FPI Direct Vent (Flex) System Termination Kits include all the parts
needed to install the P48 using a flexible vent.
FPI Kit # Length Contains:
#946-618 6 Feet 1) 6-5/8” flexible liner (Kit length)
2) 4” flexible liner (Kit length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) S.S. screws #8 x 1-1/2” drill point, (4)
10) vinyl siding standoff
#946-616 10 Feet
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency may be used for Flex
installations.
3) Horizontal sections must be supported every 3 feet.
If required by the external termination location the listed
alternate termination caps may be used. (Refer to Page 11)
Alternate Snorkel
Termination Cap
Part #1282 (14”)
Part #1281 (36”)
63June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

Pipe Length
Vertical
Terminal
Storm Collar
Flashing
Ceiling Firestop
24" Length
Adj.Pipe Length
11" - 14-5/8”
90 Elbow
o
Horizontal
Termination Cap
# 946-623/P
Wall Thimble
Vinyl Siding
Standoff
Rigid Pipe Adapter
# 770-994
45 Elbow
o
Adj.Pipe Length
11" - 14-5/8”
Horizontal
Termination Cap
# 946-623/P
Wall Thimble
Vinyl Siding
Standoff
Rigid Pipe Venting
Horizontal or Vertical Terminations
Venting Arrangements - Vertical
Terminations
Rigid Pipe System
(Propane & Natural Gas)

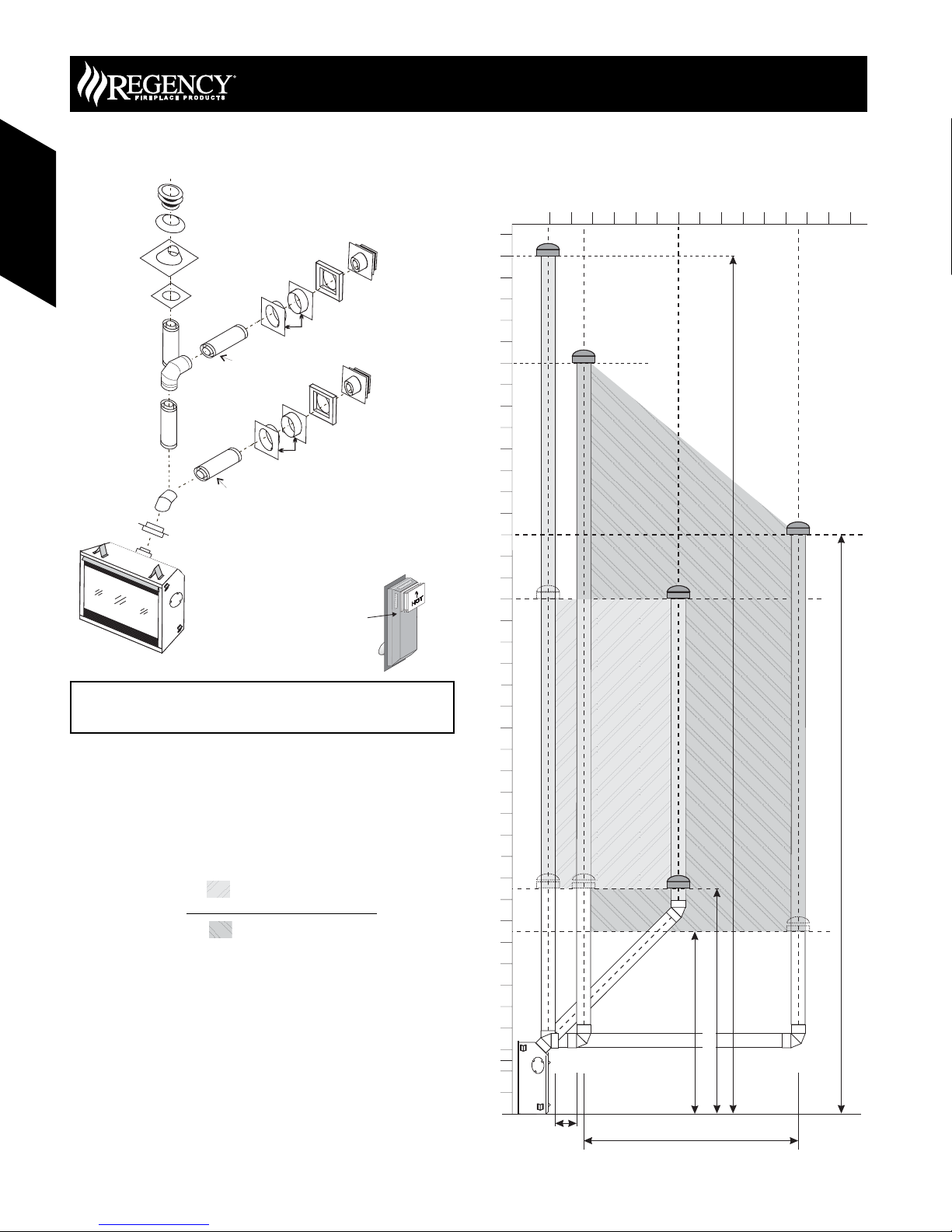

The P48 is approved for a maximum 40 ft. straight vertical, with Rigid
Pipe vent systems for Propane and Natural Gas.
The lightly shaded area,
68
2
0
410
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
12
, in the diagram shows allowable venting
configurations with a maximum two 45° elbows allowed.
The darker shaded area,
68
2
0
410
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
12
, in the diagram shows allowable venting
configurations using 45° and one 90° elbow.
• Vent must be supported at offsets.
• Horizontal sections must be supported every 3 feet.
• Firestops are required at each floor level and whenever
passing through a wall.
• Maintain clearances to combustible materials.
• Minimum of 1’ pipe section between elbows.
Note: Must use optional flue adapter when using Rigid Pipe (Part
# 770-994).
Maximum: 40 ft. (12.2m)
Minimum 10’6” (3.2m)
Minimum 8’6” (2.6m)
Max. 10’ (3m)(centerline to centerline)
Minimum 12” (305mm)
Maximum: 27 ft. (8.2m)
0
2
4
6
40
8
10
12
14
16
18
20
22
24
26
28
30
Vertical Height (Feet)
32
34
36
38
68
2
0
410 12
12 16 18
14
20 26 28
22 24 30
P48 Gas Fireplace
If required by the external termination location the listed
alternate termination caps may be used. (Refer to Page 11)
Alternate Horizontal
Termination Caps
Alternate Snorkel
Termination Cap
Part #1282 (14”)
Part #1281 (36”)
64 June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

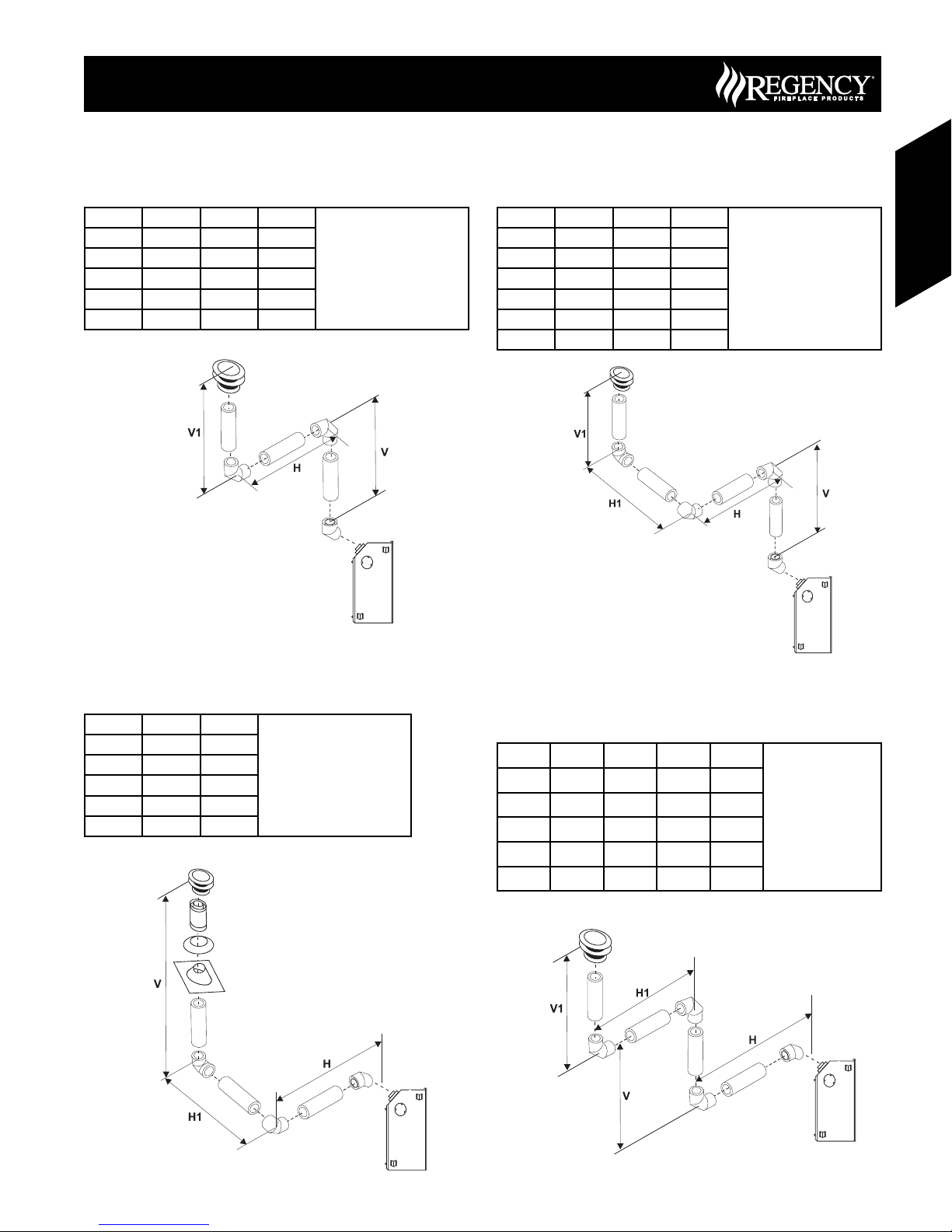

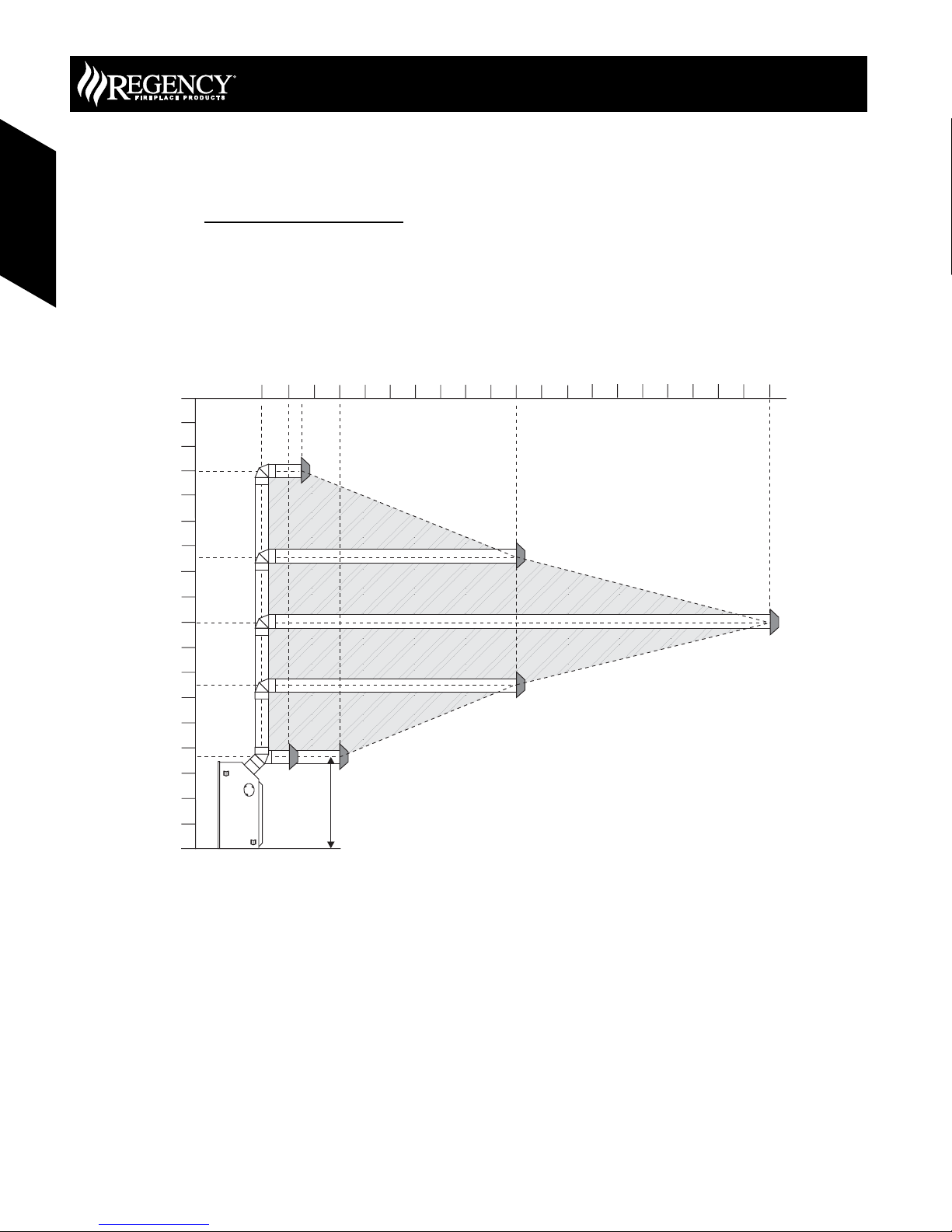

Vertical Venting with Two (2) 90° Elbows
- Initial vertical section.
Two 45° elbows = One 90° elbow
Option V H V+ V1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
A) 1’ Min. 4’ Max. 2’ Min.
B) 2’ Min. 5’ Max. 3’ Min.
C) 3’ Min. 6’ Max. 4’ Min.
D) 4’ Min. 7’ Max. 5’ Min.
E) 5’ Min. 8’ Max. 6’ Min.
Vertical Venting with Two (2) 90° Elbows
- Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H + H1 V Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 6 feet.
Minimum of 1 foot between
90° elbows is required.
A) 2’ Max. 2’ Min.
B) 3’ Max. 3’ Min.
C) 4’ Max. 4’ Min.
D) 5’ Max. 5’ Min.
E) 6’ Max. 6’ Min.
Vertical Venting with Three (3) 90°
Elbows - Initial vertical section.
Two 45° elbows = One 90° elbow
Option V H + H1 V+ V1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
A) 2’ Min. 3’ Max. 4’ Min.
B) 3’ Min. 4’ Max. 6’ Min.
C) 4’ Min. 5’ Max. 7’ Min.
D) 5’ Min. 6’ Max. 8’ Min.
E) 6’ Min. 7’ Max. 9’ Min.
F) 7’ Min. 8’ Max. 10’ Min.
Vertical Venting with Three (3) 90°
Elbows - Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H V H + H1 V+ V1 Maximum total pipe:
length, of all sections,
must not exceed 30
feet.
Total horizontal sections
must not exceed 7
feet.
Minimum of 1 foot
between 90° elbows
is required.
A) 1’ Max. 1’ Min. 3’ Max. 3’ Min.
B) 2’ Max. 2’ Min. 4’ Max. 5’ Min.
C) 3’ Max. 3’ Min. 5’ Max. 7’ Min.
D) 4’ Max. 4’ Min. 6’ Max. 9’ Min.
E) 5’ Max. 5’ Min. 7’ Max. 11’ Min.
P48 Gas Fireplace
65June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

16
2
4
6
8
10
12
14
2
0
0
12 20
614
43” (1092mm)
Minimum
Height
Requirement
43” (1092mm)
Minimum
Height
Requirement
4810 18
16
Vertical Height (Feet)
Vertical Height (Feet)
Horizontal (Feet)
Horizontal (Feet)
Venting Arrangements - Horizontal
Terminations
This diagram shows all allowable combinations of vertical runs with
horizontal terminations, using one 45° and one 90° elbow (two 45º
elbows equal one 90° elbow).
Note: Must use optional flue adapter (Part # 770-994) when using
Rigid Pipe.
• Maintain clearances to combustibles.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each floor level and whenever passing
through a wall.
A vent guard should be used whenever the termination is lower than the
specified minimum or as per local codes.
Note: FPI Direct Vent System (Flex) is only approved for horizontal
terminations.
Please refer to Page 11 (Exterior Vent Terminations)
for additional guidelines on vent locations.
P48 Gas Fireplace
66 June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces

Horizontal Venting with Two (2) 90°
Elbows - Initial vertical section.
Two 45° elbows = One 90° elbow
Option V H+ H1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
A) 1’ Min. 3’ Max.
B) 2’ Min. 4’ Max.
C) 3’ Min. 5’ Max.
D) 4’ Min. 6’ Max.
E) 5’ Min. 7’ Max.
F) 6’ Min. 8’ Max.
Horizontal Venting with Two (2) 90°
Elbows - Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H V H + H1 Maximum total pipe: length, of
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
A) 1’ Max. 1’ Min. 3’ Max.
B) 2’ Max. 2’ Min. 5’ Max.
C) 3’ Max. 4’ Min. 6’ Max.
D) 4’ Max. 6’ Min. 7’ Max.
E) 5’ Max. 8’ Min. 8’ Max.
Horizontal Venting with Three (3) 90°
Elbows - Initial vertical section.
Two 45° elbows = One 90° elbow
Option V H V+ V1 H + H1 Maximum total
pipe: length, of
all sections, must
not exceed 30
feet.
Total horizontal
sections must not
exceed 8 feet.
Minimum of 1
foot between
90° elbows is
required.
A) 2’ Min. 1’ Max. 3’ Min. 4’ Max.
B) 3’ Min. 2’ Max. 4’ Min. 5’ Max.
C) 4’ Min. 3’ Max. 6’ Min. 6’ Max.
D) 5’ Min. 4’ Max. 8’ Min. 7’ Max.
E) 6’ Min. 5’ Max. 10’ Min. 8’ Max.
F) 7’ Min. 6’ Max. 12’ Min. 9’ Max.
Horizontal Venting with Three (3) 90°
Elbows - Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H V H + H1 + H2 Maximum total pipe:
length, of all sections,
must not exceed 30
feet.
Total horizontal sections
must not exceed 7
feet.
Minimum of 1 foot
between 90° elbows
is required.
A) 1’ Max. 1’ Min. 3’ Max.
B) 2’ Max. 3’ Min. 5’ Max.
C) 3’ Max. 5’ Min. 6’ Max.
D) 4’ Max. 7’ Min. 7’ Max.
E) 5’ Max. 9’ Min. 8’ Max.
F) 6’ Max. 11’ Min. 9’ Max.
P48 Gas Fireplace
67June 2007 Regency Product Specifications Book
Gas Fireplaces
Gas Fireplaces
