Rego Monster Burger Truck 31104 User manual

Monster Burger Truck #31104 LIGHT KIT
INSTALLATION GUIDE

Hi There!
We’re here to help you get started on the LIGHT KIT for LEGO®
Monster Burger Truck #31104 LIGHT KIT INSTALLATION GUIDE.
This PDF details the instructions for the LED light kit only. If you
are wishing to purchase this product, please go to our webaite
at: www.regodesign.net.
If you run into any issues, please refer to the troubleshooting
section towards the end of this guide or contact us at email:
[email protected].
Enjoy!
Monster Burger Truck #31104 LIGHT KIT
INSTALLATION GUIDE
Monster Burger Truck #31104 LIGHT KIT INSTALLATION GUIDE
INSTRUCTIONS 2

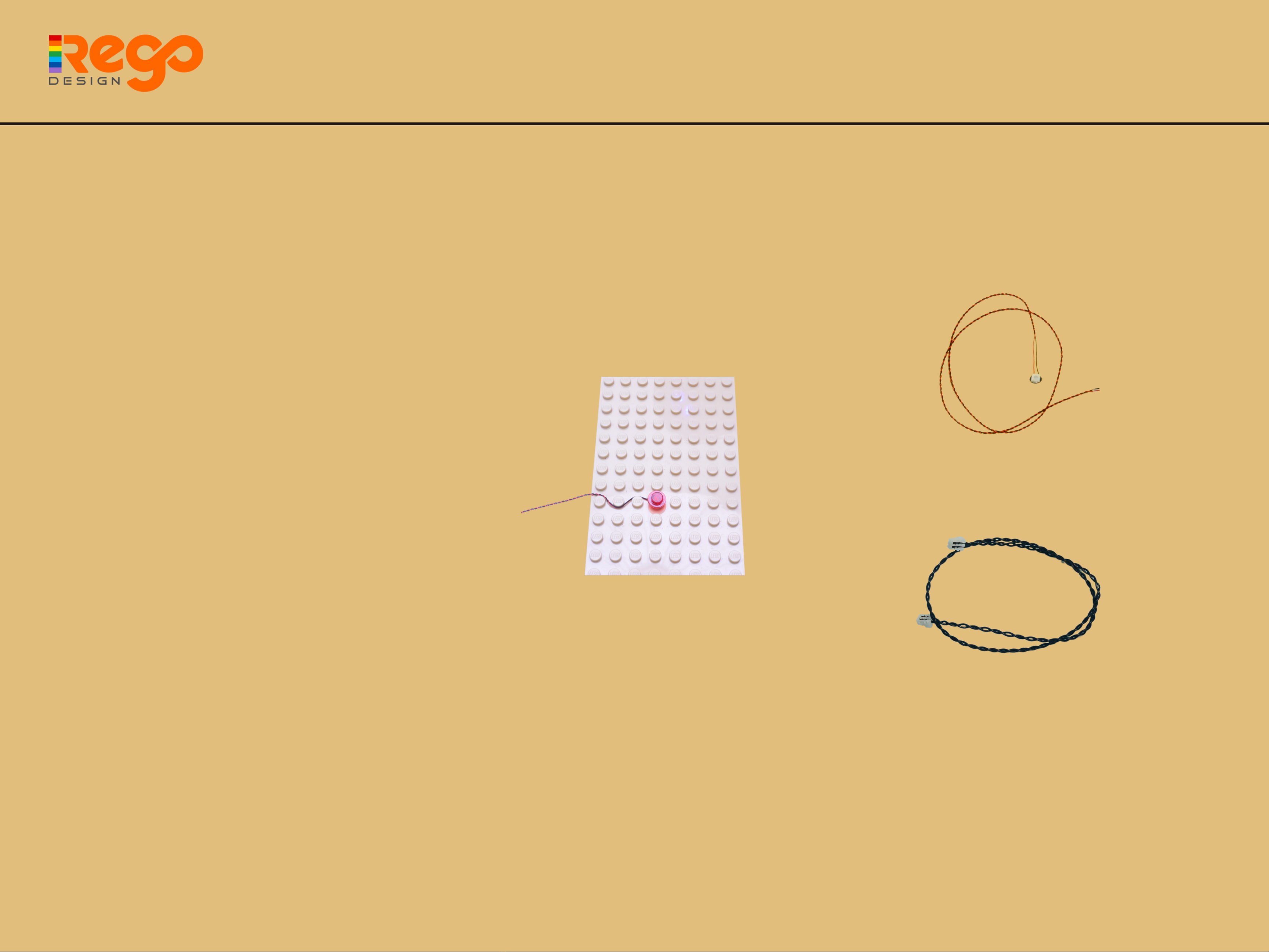

15cm Dot Light White x 4
30cm Bit Light White x 1
LEGO PIECES:
1 x 6-Port Expansion Board
1 x USB Power Cable
1 x Battery Case (Battery not included)
Monster Burger Truck #31104 LIGHT KIT INSTALLATION GUIDE
PACKAGE CONTENTS:
INSTRUCTIONS
1 x Strip Light White
3
1 x Wireless Power Connector x 1
2 x Red 1x1 Round Dot

Monster Burger Truck #31104 LIGHT KIT INSTALLATION GUIDE
Contents
Before You Begin
Instructions
Final Product
Troubleshooting
Contact
14
15
5
8
19
INSTRUCTIONS 4

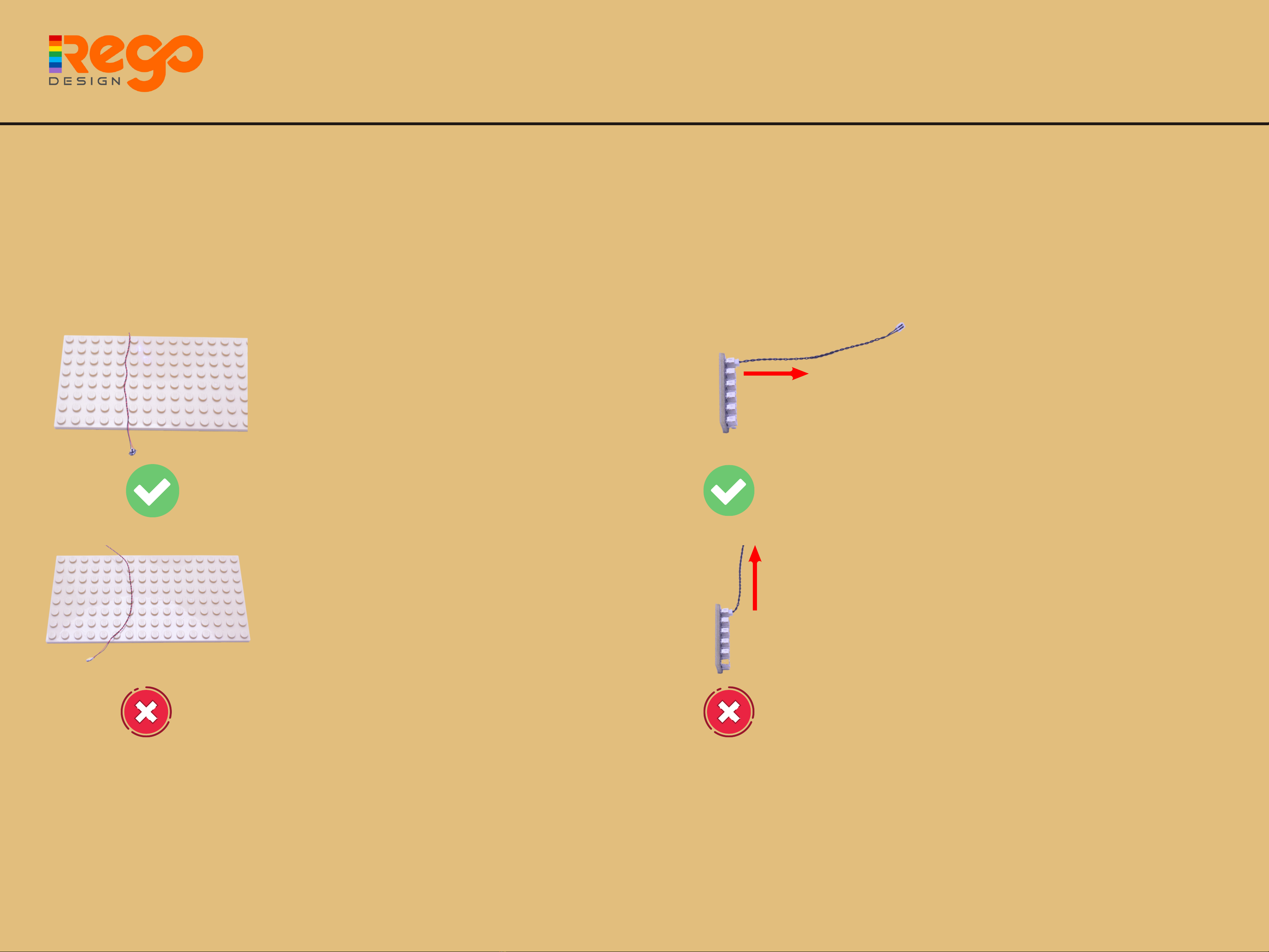

Cables can fit in between and underneath
LEGO® bricks, tiles, and plates providing they are
laid correctly between the LEGO® studs.
Please be careful when join LEGO® together
around cables; instead ensure they are laying
comfortably in between each stud.
CAUTION: You can't use force on LEGO® to
connect over a cable or it will result in damaging
the cable and light.
Please paid extra care when inserting connectors to
ports of Expansion Boards. When connectors can be
inserted only one way and it is the right way. With
the expansion board facing up, look for the soldered
“=” symbol on the left side of the port. The connector
side with the wires exposed should be facing toward
the soldered “=” symbol as you insert into the port. If
a plug won’t fit easily into a port connector, which it
should. PLEASE DO NOT FORCE IT.
Incorrectly inserting the connector will result in bent
pins inside the port or even overheating of the
expansion board when connected. So please don't
do it.
Laying cables in between and
underneath bricks
Connecting Cable Connectors
To Expansion Boards
INSTRUCTIONS
Monster Burger Truck #31104 LIGHT KIT INSTALLATION GUIDE
5
Before You Begin
