REI 10.2" TFT LCD Flip-Down User manual

1
User Guide
LCD/LED Monitor
Thank you for choosing
REI of Brazil .
¿Do you need help?
Read your user guide to get quick help making your REI device easy to use. If after reading the instructions you
still need support, access:
www. reibrasil.com.br
[e-mail]
Call to (19) 3801-5888 w ith the product
information within your reach
(Model / Serial Number )
Product code:
Serial Number :
Bairro Tombadouro –CEP 13337-300 –Indaiatuba / SP –Brasil
Phone: [phone] / Fax [phone]
10.2” TFT LCD Flip-Down Monitor
15.4” TFT LCD Flip-Down Monitor

2
Congratulations for your purchase!
Dear REI device owner: Thank you for trusting in REI of Brazil. The product you
have purchased is one of the best well produced and best technical support
available in the market. We will do everything as possible to keep you satisfied
with your acquisition for many years more.
As a REI customer, your product is being protected under one of the most
complete guarantees and an excellent service networks available and its field.
Most importantly, you can count with our unconditional commitment toward your
total satisfaction. That is how we say welcome and thank you for choosing
products of REI of Brazil.
IMPORTANT SAFETY INSTRUCTIONS
Please read all these instructions before operating your device
1. Read these instructions.
2. Keep these instructions.
3. Pay close attention to all warnings in this guide.
4. Follow the instructions carefully.
5. Do not operate this device near water
6. To clean the device, wipe the device with a damp cloth and mild soap.
7. Do not install near any heat sources such as radiators, heat registers, stoves or another device
that produces heat.
8. Do not defeat the safety purpose of the polarized plug (24Vdc red / GND black).
9. Protect the power cord from being walked on or pinched, particularly at plugs and the point
where it exit from the device.
10. Only use attachments and accessories specified by the manufacturer.
11. Only qualified service personnel might service this device.
12. This product may contain lead and mercury. Discarding this kind of materials can be regulated
by environmental issues. To get information about discarding and recycling, contact the local
authorities.
13. Protection against entry of objects and liquids –Care should be taken so that objects do not
fall into and liquids or not spilled into the unit.

3
Introduction...............................................................................................................................................2
Table of contents......................................................................................................................................3
1 –Warranty Policy........................................................................................................................4
2 –Security Precautions................................................................................................................4
3 –Recycling Procedures .............................................................................................................4
4 –Installation................................................................................................................................5
4.1 –Caution..........................................................................................................................5
4.2 –Warning.........................................................................................................................5
4.3 –Fastening ......................................................................................................................5
5 –Mounting...................................................................................................................................6
5.1 –Fixing the 10.2” Flip-Down Monitor.............................................................................6
5.1.1 –Unpacking..........................................................................................................6
5.1.2 –Preparing the installation..................................................................................6
5.2 –Fixing the 15.4” Flip-Down Monitor .............................................................................6
5.2.1 –Unpacking..........................................................................................................6
5.2.2 –Preparing the installation ..................................................................................6
6 –Technical Specifications..........................................................................................................8
6.1 –10.2” Flip-Down Monitor................................................................................................8
6.2 –15.4” Flip-Down Monitor................................................................................................8
7 –Troubleshooting.......................................................................................................................9
7.1 –No power ON................................................................................................................9
7.2 –No Image.......................................................................................................................9
8 –Operation Specifications..........................................................................................................9
9 –General Specifications ..........................................................................................................10
9.1 –Application...................................................................................................................10
9.2 –Technology .................................................................................................................10
9.3 –Identification................................................................................................................10
TABLE OF CONTENTS

4
1 –WARRANTY POLICY:
 To learn more about the warranty policy of REI of Brazil devices, access the “Warranty
Terms” in:
www.reibrasil.com.br/garantia.php
2 –SECURITY PRECAUTIONS:
 Make sure the monitor bracket is fixed to the vehicle’s chassis and the monitor LCD is fitted
and screwed to it. An inappropriate tighten screw makes the device unsteady.
 Never remove the monitor LCD when it is ON.
 Do not touch, press or rub the LCD screen with sharp pointed objects.
 When the LCD screen is dusty, wipe it carefully using a soft cloth or a dust cloth. DO NOT
USE acetone, toluene or alcohol to clean the display. Doing so may damage the screen.
 Remove water splashes from the screen if necessary. They may damage the screen when
exposed for some periods of time.
 Cares must be taken when temperature changes happen. Condensation may damage the
LCD screen and electrical components.
 Do not obstruct the monitor during its opening and closing cycle.
3 –RECYCLING PROCEDURE:
 REI of Brazil, respecting the environment, uses materials that can be recycled. To minimize
the quantity of electronic waste, verify if there are in your region electronic recycling
collection companies or contact the monitor retailer to get recycling information.
 Discard the box and packaging through the local waste material program in your region.

5
4 –INSTALLATION:
4.1 Caution:
 Refer all installation and servicing of your flip-down monitor system to authorized service
personnel.
 The manufacturer does not take responsibility for installations made by unauthorized and
unqualified service personnel.
4.2 Warning:
 Read all instructions carefully before mounting the system.
 It is essential that your mount is properly grounded for user’s safety and preserving device
durability.
 Use only parts, accessories and original cables supplied by REI of Brazil.
 The screws and mounting brackets for flip-down monitors are suitable for solid metal
structures.
 The mounting level surface must be flat and bigger than the mounting brackets that will be
fixed in the vehicle’s ceiling.
 Do not install this unit where the opening and closing cycle can be obstructed neither
obstruct the passenger circulation.
 Do not try to open or close the monitor with your hands. It may cause injury or damage the
unit.
4.3 Fastening:
 The 15.4” Flip-Down monitor mounting bracket is already included in the packaging.
 The mounting bracket comes with eight screw holes. Four of them with the appropriated
height to go through the car cover and to be tightened to the vehicle’s chassis.
 The 10.2” Flip-Down monitor mounting bracket is already included in the packaging.
 The 10.2” Flip-Down monitor mounting bracket comes with eight screw holes. Four of them
to fix the bracket in the car ceiling and another four (M4 nuts) to fix the monitor to the
bracket.
 The screws used to fix the monitor bracket into the vehicle’s ceiling are not included.
 The screws used to fix the monitor to the bracket are included.
 To some type of vehicles, due the distance between the vehicle cover and the metallic
vehicle chassis where the monitor will be fixed, it is necessary to use screw pins having
adjustable height to compensate the distance and vehicle ceiling irregularity. (These screw
pins are sold by REI of Brazil).
 The monitor bracket must be aligned against the vehicle horizontal line to avoid an
unevenness image causing discomfort when watching shows in the monitor.

6
WARNING: Discard the packaging
through the local waste material program
in your region.
WARNING: Discard the packaging
through the local waste material program
in your region.
5 –MOUNTING:
5.1 Fixing the 10.2” Flip-Down Monitor
5.1.1 Unpacking:
 Remove the system from its box carefully and its plastic protection.
 Remove the plastic bag from the monitor and
place the monitor over a safe surface to avoid
falls.
 Remove the screen protector film only when
the installation is finished.
5.1.2 Preparing the installation:
 Fix the monitor bracket in the vehicle’s ceiling using screw pins or M6 screws.
 Adjust the screw pins height to align the monitor bracket. An unaligned monitor bracket can
prevent the opening and closing monitor cycle works correctly and can reduce the useful life.
 Connect the power cord (Faston 2 pins) and then connect the video signal cable (BNC).
Cover this connector to prevent short-circuit with the vehicle’s chassis. This could produce
image distortion.
 Install the monitor to the bracket fixed in the vehicle’s ceiling, tighten the screws (M4 Phillips)
that are included within the packaging.
 Place the finishes over the screw holes.
 Remove the screen protector film.
5.2 Fixing the 15.4” Flip-Down Monitor
5.2.1 Unpacking:
 Remove the system from its box carefully and its plastic protection.
 Remove the plastic bag from the monitor and
place the monitor over a safe surface to avoid
falls.
 Remove the screen protector film only when
the installation is finished.
5.2.2 Preparing the installation:
 Take the monitor bracket that will be installed in the vehicle’s ceiling. This bracket is fitted in
the top of the flip-down monitor.
 Fix the monitor bracket in the vehicle’s ceiling using screw pins or M6 screws.

7
 Adjust the screw pins height to align the monitor bracket. An unaligned monitor bracket can
prevent the opening and closing monitor cycle works correctly and can reduce the useful life.
 Connect the power cord (Faston 2 pins) and then connect the video signal cable (BNC).
Cover this connector to prevent short-circuit with the vehicle’s chassis. This could produce
image distortion.
Note: Some monitors have JPT connectors. Whenever the case, use the table 01 to
assist you with these connections. (See table 01)
 Install the monitor to the bracket fixed in the vehicle’s ceiling, tighten the screws (M4 Phillips)
that are included within the packaging.
 Place the finishes over the screw holes.
 Remove the screen protector film.

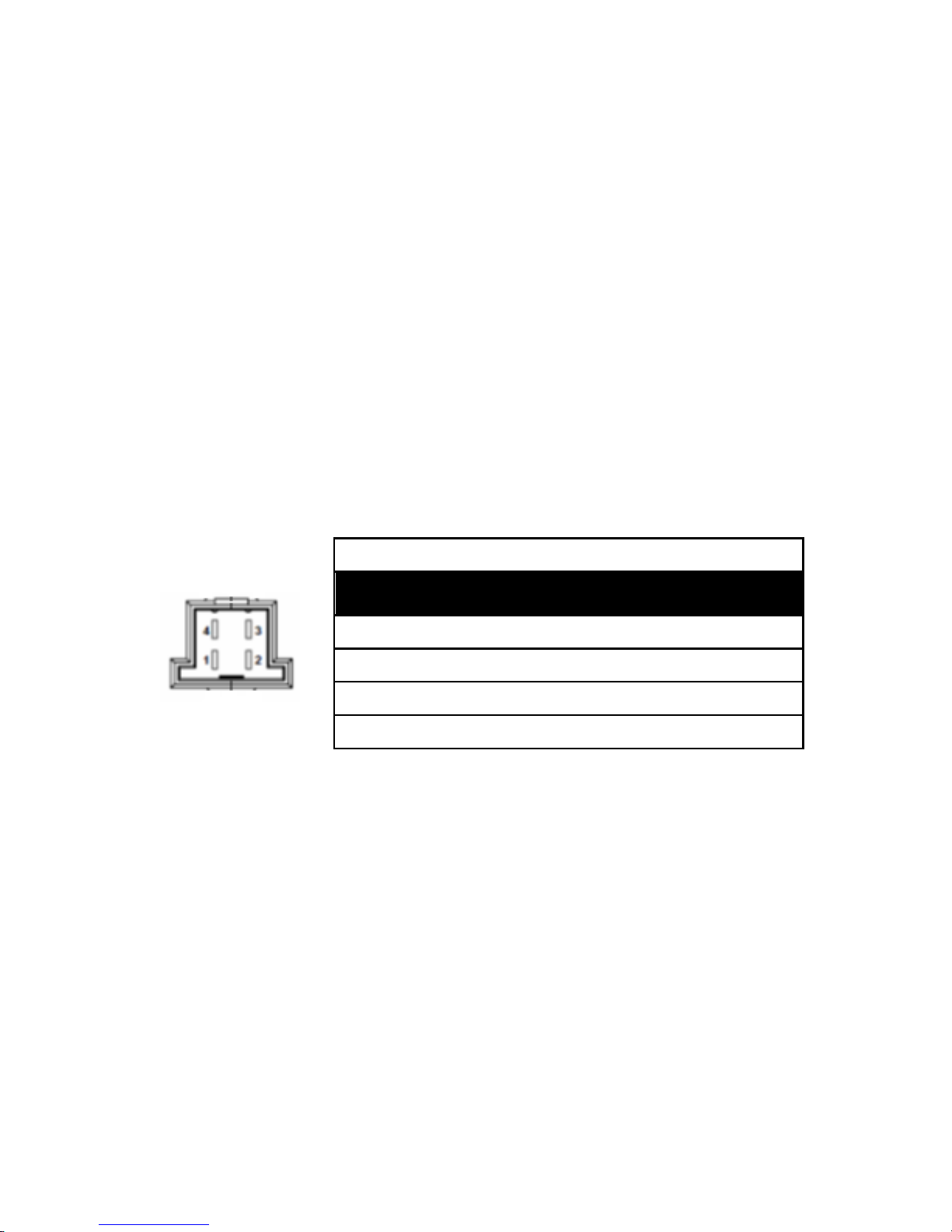

Table 01:
POWER AND VIDEO CONNECTOR JPT 4 PINS
Pin
Function
1
Power Input (24Vdc)
2
Power GND
3
Video Signal
4
Video GND

8
6 –TECHNICAL SPECIFICATIONS:
6.1 –10.2” Flip-Down Monitor
Item
Min.
Typ.
Max.
Unit
Rated Power Source
9
24
32
Vdc
Durable Temperature Range
-20
−
80
°C
Pixels
800 x 480
Pixel
Color System
NTSC / PAL
−
Power Consumption
430
mA (24Vdc)
Power Consumption (Closing cycle)
600
mA (24Vdc)
Input Impedance
75
Ω
Dimensions (closed) (W x H x D)
60 x 344 x 290
mm
Weight
2,65
Kg
6.2 –15.4” Flip-Down Monitor
Item
Min.
Typ.
Max.
Unit
Rated Power Source
9
24
32
Vdc
Durable Temperature Range
-20
−
80
°C
Pixels
1440 x 900
Pixel
Color System
NTSC / PAL
−
Power Consumption
460
mA (24Vdc)
Power Consumption (Closing cycle)
1,5
A
Input Impedance
75
Ω
Dimensions (closed) (W x H x D)
64 x 440 x 340
mm
Weight
5
Kg

9
7 –TROUBLESHOOTING:
7.1 No power ON :
 Verify if the power cord is connected to the monitor.
 Make sure that power cord is getting 24Vdc. Verify if the system fuse or the monitor fuse is
blown.
7.2 No Image:
 Verify the video inputs cables are connected correctly.
 In most of the cases, there is a video signal distributor that receives the image from the DVD
(or other video source) and retransmits the image to the monitors. Verify the video
connections and make sure the power cord is getting 24Vdc.
8 –OPERATION SPECIFICATIONS:
 The monitor has an automatic opening system, managed by the presence/absence of video
signal.
 When the video source is connected, the monitor opens automatically and in the back of the
screen, two blinking amber LEDs are warning passengers that the monitor is opening. When
the opening cycle finishes, the LEDs remain ON standing out the monitor and getting the
passengers attention that are walking through the bus aisle preventing possible accidents.
 When the video source is disconnected, the monitor closes automatically. During this cycle,
the LEDs blink and warn the passengers that the monitor is closing. When the monitor is
closed and locked, the LEDs turned OFF.
 When the screen opening is obstructed, the monitor returns to its original state (Closed) and
the opening cycle is interrupted. In this case, disconnect the system power and reconnect it
again causing the monitor restarts the opening cycle again.
 If the monitor is manually closed, the screen returns to an opening state when the lock is
released. If this happens four times, the monitor enters in Protection mode and stays in
standby. In this case, disconnect the system power and reconnect it again causing the
monitor restarts the opening/closing cycle again.
 When the screen closing is obstructed, the monitor returns to its original state (Open). If this
happens four times in a row, the monitor enters in Protection mode and stays in standby. In
this case, disconnect the system power and reconnect it again causing the monitor restarts
the closing cycle again.

10
9 – GENERAL SPECIFICATIONS :
9.1 Application:
 This product was developed using Embedded Technology principles, guaranteeing all its
components can work in environments with constant vibrations without affect the image
quality or causing damage the device.
 The screens have polycarbonate protection acting as an antiglare agent and allowing best
image visualization during the sunlight.
 In cases when the monitor needs to be disconnected (Closed) during the vehicle’s
operation, there is a lock on the screen that prevents the monitor opens, even if the monitor
is under constant vibrations. This lock will be only released when video signal is received.
9.2 Technology:
 The monitors manufactured by REI of Brazil use TFT technology, allowing best image
quality of the LCD monitors.
 Backlight LED technology guarantees less power consumption, high contrast, more
brightness, and thin screens reducing the weight and improving the heat dissipation.
9.3 Identification:
 All the devices have an identification label with: Product code, serial number, manufacturing
lot, manufacturing week and manufacturing year. This information is useful to track the
device, the year and manufacturing model and identify the components in case of requiring
replacement parts.
