Relax The Back AG-7100 User manual

861 S Oak Park Road, Covina, CA 91724
Tel: [phone]
Fax: [phone]
Email: [email protected]
USE & CARE MANUAL
Hale Air Comfort ZG-Recliner
AG-7100

SAFETY INSTRUCTIONS
Thank you for purchasing the AG-7100 Hale Air Comfort ZG-Recliner. Before using your chair, please
take some time to read the contents of this instruction manual, and for easy enjoyment of this product,
please continue to use same as a reference guide. Please ensure that you read these safety instructions before using your AG 7100 Hale Air Comfort
ZG-Recliner.
• This chair is intended for use only as described in this manual;
• While assembling the chair components, please ensure that the chair is not connected to any power
source
• Once fully assembled and intending to use the chair, please ensure that the power plug of the chair
is securely inserted into a properly fitted electrical socket;
• Unplug the chair from the electrical source when not in use or cleaning;
• If the power is cut for any reason, please ensure that the power switch of the chair is in the off
position and unplug the chair's power lead from the electrical socket, in order to prevent the risk of
short circuit or damage to the chair when the power is restored;
• If you notice any tear to the fabric of the chair and /or any of the chair's internal mechanisms are
visible, do not use until you have contacted the Servicing Department;
• If the electrical cord of the massage chair is damaged or frayed, it must be replaced by either the
manufacturer, the service agent or a qualified electrician;
• Please keep the chair's power cord away from external heat sources;
• Do not wind the power core around the chair itself, as this may cause damage or malfunction;
• Do not use the AG-7100 outdoors or place the chair where it may be exposed to direct sunshine for
prolonged periods or place near a heater or where temperatures may reach high levels or where
there is high humidity and water vapor such as bathroom;
• Do not attempt to insert any foreign objects into any part of the chair's structure;
• Any tampering with the internal components of this chair may result in electric shock or malfunction;
• Should any liquids be spilt on the chair while in operation, please terminate functioning immediately
to prevent the risk of short circuiting and resume using the chair only when it is in a clean and dry
condition;
• To prevent the risk of injury, do not use the AG-7100 when you yourself are wet and never attempt
to plug or unplug the power source with wet hands;
• Close and continuous supervision is necessary should children or disable persons use this chair and
the heat function should not be used to alleviate the chance of possible discomfort;
• Do not operate with any of the chair's openings blocked;
• No more than one person at a time should use this chair;
• To prevent the risk of injury or damage to the chair do not attempt to sit or stand on the back rest or
leg rest;
• Do not allow children or pets to play on or around the chair;
• Please consult your doctor prior to operation, if you have any doubts about using this chair of if you
are pregnant, undergoing medical treatment, using a medical electronic device or are receiving
oxygen;
• If you experience pain while using this chair, stop use immediately and consult your doctor;
• Do not sue other therapeutic equipment at the same time as you are using this chair;
• This product is not intended for self-treatment of any condition that should be managed by a
qualified health care provider.
AG-7100
Hale Air Comfort ZG-Recliner
TABLE OF CONTENTS
Safety Instructions 01-02
04
07-10
12-14
15
17-19
Chair Specifications
Chair Installation
Operation Guides
Maintenance Procedure
Warranty Information
Warranty Card (Attachment)
11Preparations Prior to Use
16Troubleshooting
05Chair Dimensions
06Placing The Chair
03Chair Components
Welcome To

Use and Care Manual 02/03
Please ensure that you read these safety instructions before using your AG 7100 Hale Air Comfort
ZG-Recliner.
• This chair is intended for use only as described in this manual;
• While assembling the chair components, please ensure that the chair is not connected to any power
source
• Once fully assembled and intending to use the chair, please ensure that the power plug of the chair
is securely inserted into a properly fitted electrical socket;
• Unplug the chair from the electrical source when not in use or cleaning;
• If the power is cut for any reason, please ensure that the power switch of the chair is in the off
position and unplug the chair's power lead from the electrical socket, in order to prevent the risk of
short circuit or damage to the chair when the power is restored;
• If you notice any tear to the fabric of the chair and /or any of the chair's internal mechanisms are
visible, do not use until you have contacted the Servicing Department;
• If the electrical cord of the massage chair is damaged or frayed, it must be replaced by either the
manufacturer, the service agent or a qualified electrician;
• Please keep the chair's power cord away from external heat sources;
• Do not wind the power core around the chair itself, as this may cause damage or malfunction;
• Do not use the AG-7100 outdoors or place the chair where it may be exposed to direct sunshine for
prolonged periods or place near a heater or where temperatures may reach high levels or where
there is high humidity and water vapor such as bathroom;
• Do not attempt to insert any foreign objects into any part of the chair's structure;
• Any tampering with the internal components of this chair may result in electric shock or malfunction;
• Should any liquids be spilt on the chair while in operation, please terminate functioning immediately
to prevent the risk of short circuiting and resume using the chair only when it is in a clean and dry
condition;
• To prevent the risk of injury, do not use the AG-7100 when you yourself are wet and never attempt
to plug or unplug the power source with wet hands;
• Close and continuous supervision is necessary should children or disable persons use this chair and
the heat function should not be used to alleviate the chance of possible discomfort;
• Do not operate with any of the chair's openings blocked;
• No more than one person at a time should use this chair;
• To prevent the risk of injury or damage to the chair do not attempt to sit or stand on the back rest or
leg rest;
• Do not allow children or pets to play on or around the chair;
• Please consult your doctor prior to operation, if you have any doubts about using this chair of if you
Use and Care Manual
CHAIR COMPONENTS
Check the accessories at first
Pillow Lumbar Cushion
Control Panel
Power Adaptor Battery
are pregnant, undergoing medical treatment, using a medical electronic device or are receiving
oxygen;
• If you experience pain while using this chair, stop use immediately and consult your doctor;
• Do not sue other therapeutic equipment at the same time as you are using this chair;
• This product is not intended for self-treatment of any condition that should be managed by a
qualified health care provider.

Use and Care Manual 04/05

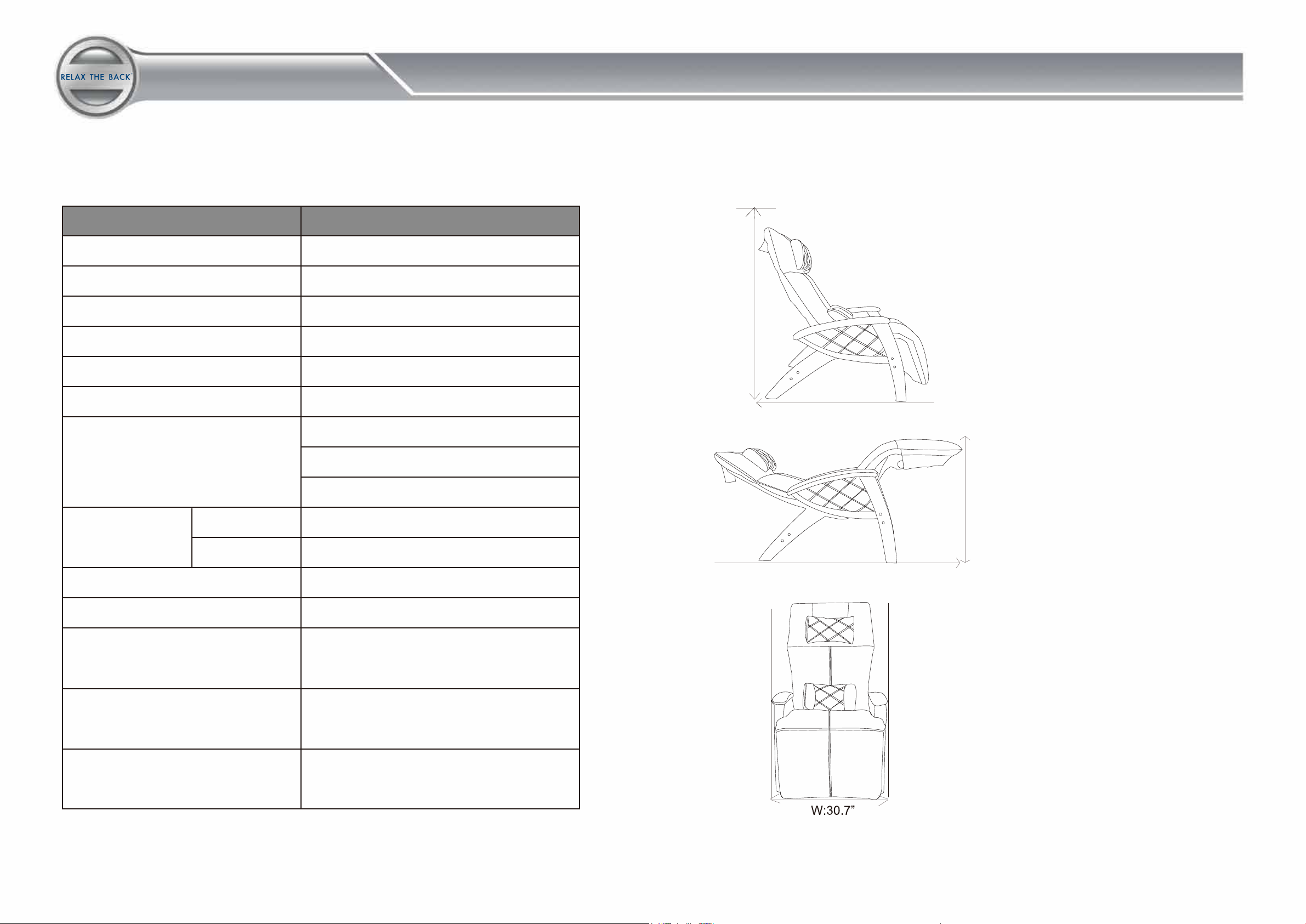

CHAIR DIMENSIONSCHAIR SPECIFICATIONS
* Specifications are subject to change without prior notice.
H:47.5”
H:30”
L:43.3”
L:63”
Specifications Description
Model No.
Rated Voltage
Rated Frequency
Out-put
Rated Power Consumption
Auto Timer
Dimensions (L*W*H)
Weight
Maximum Load Weight
Required Recline Clearance
Usage Condition
Storage Condition
Safety Feature
Environmental temperature 10℃-40℃
Contrasting humidity level 30-85RH
Storage temperature 20℃- 60℃
Storage humidity level 30-85RH
Equipped with overheating and power
surge detectors
AG-7100
In-put 110-120V
60Hz
24VDC 3A
72W
15 minutes
Chair Upright:43.3″*30.7″*47.5″
Chair Reclined:63″*30.7″*30″
Packing Carton: 45″*32″*33.9″
110 lbs
150 lbs
400 lbs
28″
Net Weight
Gross Weight

Use and Care Manual 06/07
PLACING THE CHAIR CHAIR INSTALLATION
• After unpacking, place the chair on a level surface;
• Allow a clearance from walls or other objects of at least 70 cms(28 inches) or more at both
the front and the back of the chair to allow the chair to recline and the footrest to be extended.
Step 1:
• Unfold the backrest frame, fix the “L” latch, and attach the rear fabric cover by Velcro.
Step 2:
• Connect the power adaptor to the chair, insert the power plug to the electrical socket, press the
Leg-Rest-Raise button or to lift up the legrest. Do remember to disconnect the power plug
after insert the legrest cushion to the leg frame.
Notes
• Place the chair on a level surface.
• Keep the chair at least 1 meter(3ft) away from AV machines like a TV or radio.
• Do not keep the chair in a place with high humidity like a bathroom.
• Do not keep the chair in a place where it will be exposed to direct sunshine for an extended
period, or in a place near a heater where the temperature may reaches high levels.

Use and Care Manual 08/09
Step 3:
• Pull the air hoses in the back pad through the fabric cover pocket on the seat. Please align hoses in
the back pad at the connectors. Connect to the connectors and the heat coils, and then zip up.
Step 4:
• Tidy, pull the seat pad to the seat frame as much as possible, align the Velcro and then attach the
seat pad.
Step 5:
• Articulate the head rest frame forward, pull up the back pad from the seat, pull it into the head rest
frame, and then zip up.
Step 6:
• Attach the pillow the head rest by the Velcro.
Step 7:
• Place the lumbar cushion on the seat.

Use and Care Manual 10/11
HOW TO INSTALL THE BATTERY
Your AG-7100 recliner may be equipped with a battery backup system that will activate during a power
failure. The backup system is powered by four 9V batteries (not included) that need to be installed into
the battery box located in the rear back of the chair as below picture demonstrated.
PREPARATION PRIOR TO USE
1. Check the cloth of the chair
Prior to use, be sure to check that the cover cloth or the cloth of other parts is not torn. If a tear is found,
stop using the chair immediately, unplug the power source,and obtain service. If the chair is used with
torn cloth, it may result in injury or electric shock.
2. Check the power cord
Check that there is neither breakage or damage to the power adaptor.
Check that the cords are not caught or placed beneath the chair.
3. How to connect the power source.
1) Ensure the battery box is placed with four fresh 9V batteries;
2) Connect the power adaptor with the chair.
3) Insert the power plug into an outlet.
Notes:
• Always make sure the battery box is equipped with four fresh 9V batteries, since the battery
backup system does not recharge itself. Fresh batteries are defined as 9V alkaline batteries
that are replaced every time the battery backup system is activated during a power failure, or
once a year if the battery backup system has not been activated;
• If you unplug your AG-7100 recliner for an extended period of time (more than one hour),
remove the batteries from the battery box. The AG-7100 recliner will draw power from the
batteries even when it is not in use.
FOLLOW THESE STEPS TO INSTALL THE BATTERIES:
1. Unplug the power plug from the electrical outlet;
2. Open the marked battery door;
3. Install four 9V batteries into the battery box;
4. Replace the door of the battery box.
4. Important information for attaching the remote control
To avoid any chance of damage to the remote control cord, make sure that after you attach the
remote control to the chair connection lead, you run the cord outside of the chair.
DO NOT run the cord between the Armrest and Backrest.

Use and Care Manual 12/13
OPERATION GUIDES
On pressing the On/Off button, a light will tell you that the chair is in the idle functioning mode and will
commence a massage program when you press any other function button. If during a massage
function program, should you wish to suspend same for any reason, please press the On/Off button
and the program will cease;
1. On/Off button
Press the Air-Stretch button to activate air massage programs.
Press Once for a wonderful all round air massage for gentle relaxation and loosening of muscles.
Press Twice for a slightly harder massage that gives special attention to your spine by slowly
stretching it at different points and releasing stress.
Note: with the air massage in action, should you wish to change the angle of the back or leg rest, the
program will pause and resume automatically once the back or leg rest action is completed.
4. Air-Stretch
Press this button to commence the heating function for the lumbar and seat region. A light will indicate
that the heating function is in operation. Press the button again to cease the function. With the heating
function in operation, should you wish to change the angle of the back rest or leg rest, the heating
function will pause and resume automatically once the back rest or leg rest action is completed;
3. Heating
On pressing the ZGR button the back rest, the foot rests and the seat are automatically adjusted to
preset reclining angles.
• The reclining motion can be stopped by pressing either the ZGR button, or the Back Rest
Recline/Restore button or the Leg Rest Raise/Restore button;
• After achieving the ZGR position, you may still adjust the angles of the backrest (incline
only) and footrest by pressing the relevant button;
2. ZGR button

Use and Care Manual 14/15
Press and hold the button until the backrest is at your desired angle. The angle of the seat will be
changed automatically to accord with the angle of the backrest. Movement of the backrest can be
stopped once you loosen the Back Rest Recline/Raise button.
When activating the backrest, the chair will not simultaneously respond to the Leg rest Recline/Raise
action or the Heating and Air-Stretch functions.
5/6. Back Rest-Recline/Raise
Press and hold the button until the leg rest is at your desired angle. Movement of the legrest
can be stopped once you loosen the Leg Rest Recline/Raise button .
When activating the legrest, the chair will not respond simultaneously to Back Rest
Raise/Recline action or the Heating and Air-Stretch functions.
7/8. Leg Rest-Recline/Raise
The chair is programmed to operate for a period of fifteen minutes, after which all functions will
stop and the chair will adopt an idle mode in its current position, except the heating function is
preset with one hour.To resume use of the chair after this period, simply press your desired
function button.
Automatic Timer
Be sure to disconnect the power plug from the outlet prior to maintenance
MAINTENANCE PROCEDURE
WARNING
NOTE
Do not attempt to use benzene. Thinner alcohol ,alkaline detergent or bleaching agent for cleaning,as
this may result in deformation, discoloration or cracking.
Perform daily maintenance by wiping with a soft dry cloth. When parts are badly soiled, adopt the
following maintenance procedure.
1. Soak a soft cloth in diluted neutral kitchen detergent and squeeze it well. Wipe the main unit with the
damp cloth in a tapping motion.
2. Soak a cloth in clean water, and squeeze it well. Wipe of the remaining detergent with the damp
cloth.
3. Wipe it with a dry cloth afterwards.
• Do not force-dry with a drier.
• Do not force contact with vinyl products for an extended period. It may cause discoloration.
HEAD REST, BACK PAD, SEAT COVER, ARM REST, FOOT REST, PILLOW(LEATHER)
NOTES
• Leather is a natural material, so imperfections grain, dye variations and natural markings do not
constitute a defect.
• Polyurethane foam padding tends to soften and light creases may form on the leather cover over a
period of three months. These are natural occurrences and do not require any type of maintenance.
• A professional cleaner should be contacted for particular types of stains such as ink marks.
