Relexz ZH05C User manual

SAVE THESE INSTRUCTIONS
Operation instructions
ZH05C Air Massage Mattress With Lifting Function
For reference only

CONTENTS
Thanks for purchasing this product. Please read this manual instruction carefully in
order to know how to use this product correctly before operation. Please pay more
attention to some important safety warning and keep this manual book properly for
future use.
Note: Our Company reserves the right to revise the design and description of this
product without any further notice. Please refer to the actual color of this product.
2
2
3
4
5
6
6
7
9
9
Important Safety Warning
Function
Name And Function Of Components
Start To Massage
The Adjustment Of The Angle Between Backrest And Calf-rest Of Bed Base
Restoring When Power Cut
Language Setting
Set Remote Communication Address Code
Common Phenomenon Disposal
Product Specification

IMPORTANT SAFETY WARNING

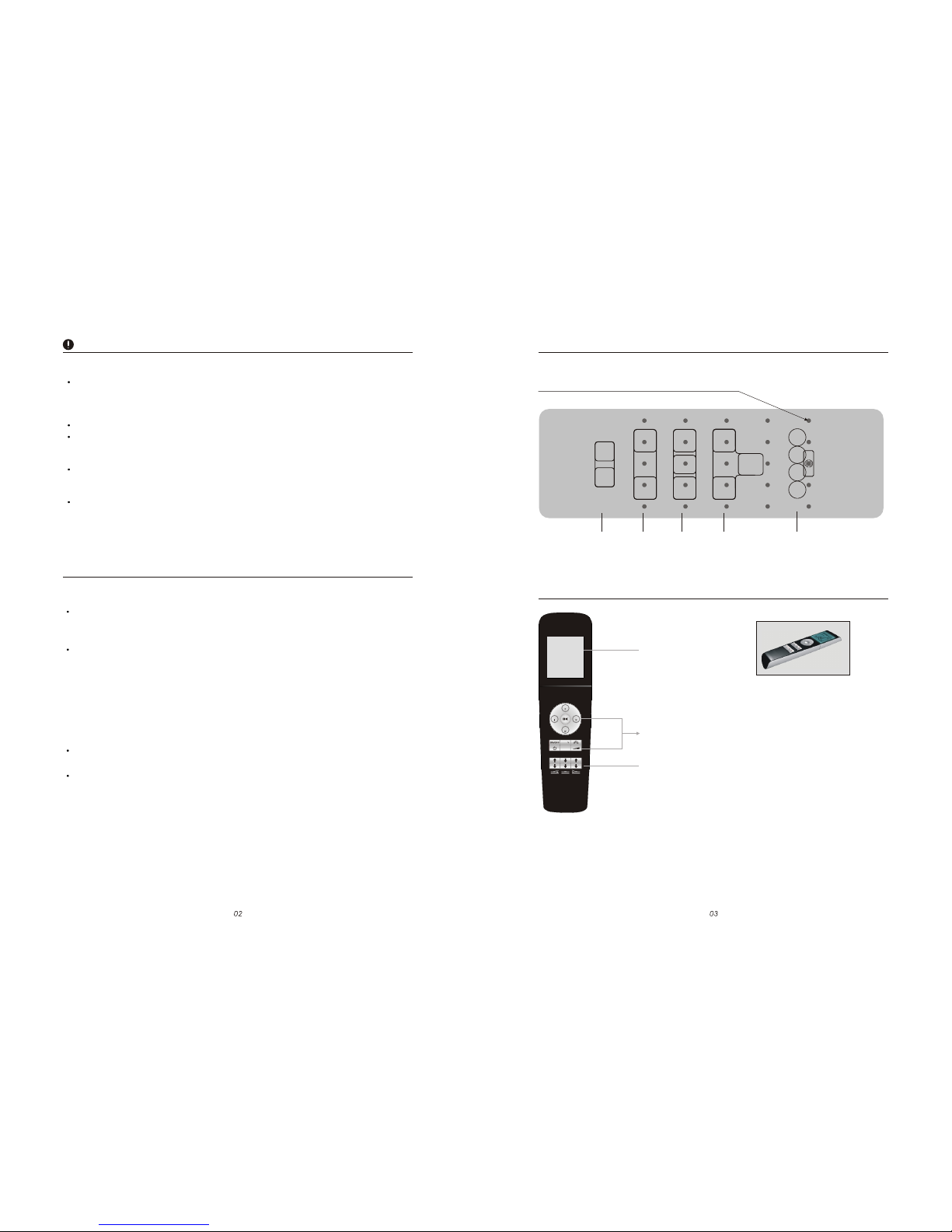

NAME AND FUNCTION OF COMPONENTS
FUNCTION
FUNCTION
remote controller
Air massage mattress with lifting function
This mattress is composed of modified polyurethane High-flexible foam, using
natural environmental protection material as surface fabric, with thermal insulation
character such as venting and environment protection.
The unique design of product can evenly contour to body curve and distribute
body weight. There are air pressure massage, airbags inside the mattress
corresponding to the body of the neck, shoulder, back & waist, buttocks, foot. The
leg is equipped with a vibration massage ball. When start massage function,
people lie on the mattress enjoy air pressure massage and various massage
methods. It will improve blood circulation, ensure deep stage sleep, prevent or
reduce tension, numbness and sore of your muscles, and relieve snoring and
insomnia.
Inside with 25 pieces high magnets which can carry on magneto therapy to every
acupoint of human body .
With 24V dynamo external power make the mattress working , safety and low
consumption , with remote wireless controller , easy for handing . The back and
legs of the mattress were controlled by air pressure, which can adjust the angle of
the back and the height of the legs, to make human get a natural posture. When
power off, turn the air escape cock to restore to flat state.
This appliance is not intended for use by persons with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
For massage appliance with power cord, if the power cord is damaged, it must be
replaced by the manufacture, the maintain department or similar professional
person in order to avoid danger.
For massage appliance with adapter, if the adapter is damaged, it must be
replaced by the manufacture, the maintain department or similar professional
person in order to avoid danger.
For the massage appliance with heating function, please note the appliance has
a heated surface, person insensitive to heat must be careful when using it.
AUTO
AUTO
AUTO
AUTO
WAIST
STRETCH
AUTO
Screen
Function button
Lifting function button
Neck
Airbags
Shoulder
Airbags
Back And
Waist
Airbags
Buttock
Airbags
Foot Airbags And
Strong Vibration Swinger
25 pieces high magnetic distribution inside foam

START TO MASSAGE
Press the button on the handheld remote controller, you can see the
communication testing interface and the testing function start, if the handheld
remote controller communicate well with the controller of the massage bed, and the
handheld remote controller will display the test was successful and change to
massage interface (and the default model is automatic 1;Vibration massage on ,with
2 levels), or else display the test was failed and presents the message
Standby Connected
Communication Test
OK
Communication
Testing...
connection testing
Communication Test
Communication
Testing...
Unconnected
Communication Test
Communication
Testing...
ERROR
Warning
Communication
ERROR
Please check if
the main power
is turned on or
not.
THE ADJUSTMENT OF THE ANGLE BETWEEN BACKREST AND CALF-REST OF BED BASE
1) Adjust the degree of the backrest
Back up button: press this button when turn on the power, the back will up
gradually, with dripping sound at the same time. (During two minutes this button
not touched or mattress go to the top position, the power will be off automatically.).
Press this button again to stop it.
Back down button: press this button when turn on the power, the back will drop
gradually, with dripping sound at the same time. (If it was no reaction within two
minutes, then you can press this button again to turn it off). Press this button
again to stop it.
Name Button Massage Content
Massage Features Display
Massage model
Auto 1
Auto 2
Auto 3
AIR MODE
Auto
AUTO
AUTO
AUTO
AIR MODE
Auto
AIR MODE
Auto
AIR MODE
AIR MODE
AIR MODE
AUTO Auto 4
Auto
START TO MASSAGE
AUTO
WAIST
STRETCH Waist
Stretch
Auto 5
Auto
1. Plug in the machine instruction manual
Step1 Step2 Step3
Figure : Connecting the power
configuration of the mattress
Attention
1.Connecting the power, two sides of power line docking port should arrow
aligned, slight enforce, or hard plug will damage the inside needle.
2.Be sure not to switch adaptor power unless you finish all the steps above,
otherwise you will cause damage to the machine
2.Massage
Massage focus on whole body air pressure, loosens
the limbs (Advice lay on bed and flat on back
massage)
This model is to remove the neck massage function
in Auto 1. (Advice lay on bed and flat on back
Massage focus on neck and shoulder, buttock,
improve the fatigue symptoms. (Advice lay on bed)
This model is to remove the neck massage function
in Auto 3. (Advice lay on bed and flat on back
massage)
Massage focus on belly, promote the gastrointestinal
function. (Advice lying face up on a bed)
Massage focus on push waist to alleviate the pain
on the waist.(Advice lay on bed and flat on back
massage)
Waist
Stretch
vibration
switch Switch on, foot Vibration massage.
Vibration
intensity
With 3 levels adjustable
Vibration
massage
Vibration
model
Figure : Connecting the
power of the mattress
The card
slotretainingring
Aimed at the
card slot point
After docking, the retaining ring must
be across thecard slot point
making a sound then fixed interface.

RESTORING WHEN POWER CUT
LANGUAGE SETTING
Language Setting
Under the below situations, it needs to reset IP:
1) Change the hand held controller.
2) The hand held can't start the corresponding function, or always showing
communication error.
1.Press the address restoration switch of the inside steam resource box of the
mattress for 3 seconds, when there is ringing sound of [BI] , [BI] it shows the
communication address of the main controller is restored.
The schematic diagram of the address restoration switch on the steam resource
box inside the mattress.
.Steps for setting communication password of mattress.
WARNING
When power off unusual, push this
botton reset the mattress
Please make sure this botton in off
posintion, when you are using any
function
Air releasing
Switch
When the power cut, and the mattress at the lifting state, press the recovery button
to make the mattress restore to flat state.
SET REMOTE COMMUNICATION ADDRESS CODE
1.Into Chinese/ English display optional interface
In standby state, press button and the back lift
button at the same time, then release, into Chinese/
English display optional interface.
Auto
AUTO AUTO
NECK&
SHOULDER
AUTO
2.Choose the language you need
Pressure the function button (rise) and (down) to choose,
the pressure button, it will be ok.
AUTO
Bed Rise/Fall
Control
Bed Rise/Fall
Control
Bed Rise/Fall
Control Bed Rise/Fall Control
Bed Rise/Fall
Control
3) Adjust the angle of the backrest and calf rest together
Lay down and press the button at the massage condition, the
backrest and calf rest will drop together, with dripping sound at
the same time.(If it was no reaction within two minutes, then you
can press this button again to turn it off). Press this button again
to stop it.
THE ADJUSTMENT OF THE ANGLE BETWEEN BACKREST AND CALF-REST OF BED BASE
2) Adjust the degree of the calf rest
Back up button: press this button when turn on the power, the legs will up
gradually, with dripping sound at the same time. (During two minutes this button
not touched or mattress go to the top position, the power will be off automatically.).
Press this button again to stop it.
Back down button: press this button when turn on the power, the legs will drop
gradually, with dripping sound at the same time. (If it was no reaction within two
minutes, then you can press this button again to turn it off). Press this button
again to stop it

4.After set communication address value, press [OK] key to confirm, the
communication address setting is successful if heard once bee hoot and the
interface is turned to standby interface, the communication address setting is
failed if heard twice Bee hoots, re-press [OK] key to confirm or return to the
st
1 step to reset.
COMMON PHENOMENON DISPOSAL
PRODUCT SPECIFICATION
Model ZH05C
Name Air massage mattress with lifting function
Rated Voltage 110-120V~ 60Hz
220-240V~ 50Hz/60Hz
Rated Power Input 85W
Safety Structure
Phenomenon
The product doesn't
work when power on
Machine suddenly
stop working
Potential cause
Unwell contact of both
lifting mechanism plugs
Unwell contact between
plug and socket
Power on or not
Disposal method
Inspect the plug of lifting
mechanism and driven box to
make them contact
Inspect power of socket to
ensure plug and socket
contact well
Inspect and recover
When pressing the
lifting key, no up and
down changes for
the bed frame
Whether the power cut
and air release switch are
off
Rotate the power cut and air
release switch to keep them
off

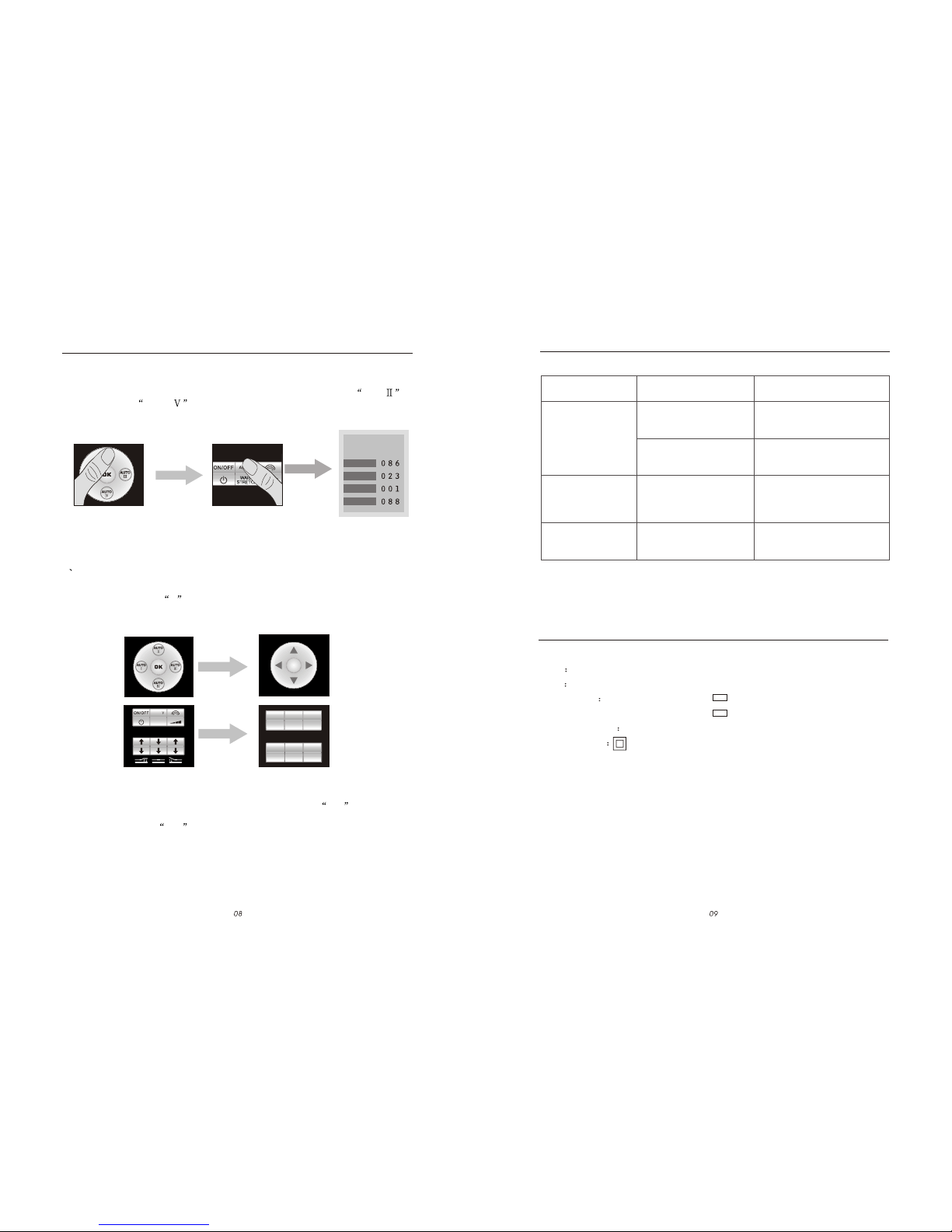

3 Set communication address value through Navi and Digital Keys, totally 4
address values, setting range of each address value is among 0 to 255. (Schematic
diagram of remote controller digital keys)
Setting method: the * sign in the communication address setting interface
represents the current data bits to be set, change the data bits through Navi Key,
and set the value of current data bits through digital key.
0
123
456
7 8 9
OK
WAIST
STRETCH
AUTO
2. Into the address setting interface
With the standby state of the handheld remote controller, press the Auto
button and the AUTO button at the same time, then release, in to the
address setting interface (the two buttons pressed at the same time)
Address code setting
Nation code
Customer code
Serial No.
Batch Number
SET REMOTE COMMUNICATION ADDRESS CODE
