iComfort ic1121 User manual

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
ic1121
THERAPEUTIC MASSAGE CHAIR
FAUTEUIL DE MASSAGE THÉRAPEUTIQUE
USER MANUAL
MANUEL DE
L’UTILISATEUR
02m2_manuel_IC1121_11512.indd 1 12/09/11 3:53 PM

TOLL FREE CUSTOMER SERVICE /
SERVICE À LA CLIENTÈLE SANS FRAIS
1 866 967.7333 ext. 227
PLEASE DO NOT RETURN
THIS PRODUCT TO THE STORE
FOR QUESTIONS OR ASSISTANCE ON ASSEMBLY, PARTS OR OPERATION,
CONTACT OUR CUSTOMER SERVICE!
S’IL VOU PLAIT, NE RENVOYEZ PAS
CE PRODUIT EN MAGASIN
POUR TOUTE QUESTION OU AIDE CONCERNANT LE MONTAGE,
LES PIÈCES OU LE FONCTIONNEMENT,
CONTACTEZ NOTRE SERVICE À LA CLIENTÈLE!
02m2_manuel_IC1121_11512.indd 2 12/09/11 3:53 PM

1
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
Thank you for purchasing this product. Please read this instruction manual carefully
before operating this massage chair.
Please pay attention to the important safety warnings and keep this manual for future use.
Note: EBI reserves the right to revise the design and description of this product
without notice.
1. CONTENTS
1. Safety warnings............................................................................................... 2
2. Environment.................................................................................................... 2
3. Restrictions..................................................................................................... 2
4. Maintenance................................................................................................... 3
5. Troubleshooting............................................................................................... 3
6. Features and benefits ..................................................................................... 3
7. Installation...................................................................................................... 4
8. Components ................................................................................................... 6
9. Operation........................................................................................................ 8
10. Floor protection..............................................................................................14
11. Moving the chair ............................................................................................14
12. Product specifications....................................................................................14
13. Warranty ....................................................................................................... 15
FRANÇAIS................................................................................................16
02m2_manuel_IC1121_11512.indd 1 12/09/11 3:53 PM

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
2
1. SAFETY WARNINGS
•This product is not recommended for children.
•Disconnect the chair before cleaning.
•Please pull out the plug after use or before cleaning to avoid injury or damage to
the product.
•Please operate this product according to the instructions in this manual.
•Use only accessories recommended by iComfort®.
•This product is designed for indoor use only.
•Recommended use time is 30 minutes or less.
•Please avoid use if the chair is damaged and call your iComfort® technician
or dealer.
•Make sure the chair radiator in the lower back behind the chair is well ventilated
and not obstructed.
•Please make sure small objects are not dropped into the chair mechanism.
•Use of this chair under the influence of drugs or alcohol is not recommended.
•Do not use wet hands to pull the AC cord.
•Do not spill liquids onto this product to avoid electric shock or cause damage
to this product.
•Maintain your chair and avoid damaging the wires.
•Do not use a wet cloth to clean the electric parts.
•In the event of a power failure disconnect the chair.
•If the chair works abnormally, stop using it, disconnect the chair and call your
iComfort® service technician or customer service representative.
2. ENVIRONMENT
This chair should be used only in a well ventilated, normally dry
and dust free environment.
3. RESTRICTIONS
People with osteoporosis, heart disease and heart pacemakers, pregnancies, injuries
or any other health related issues should consult their doctor before using
this massage chair.
Stop immediately the use of this massage chair if you feel unwell and consult
your doctor.
02m2_manuel_IC1121_11512.indd 2 12/09/11 3:53 PM

3
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
4. MAINTENANCE
•This product should only be maintained by iComfort® certified technicians.
Otherwise, EBI reserves the right to void the warranty.
•Disconnect the power cord after use.
•Make sure the wall outlet is in good working order before use.
•If this chair will not be used for an extended period of time, store in a dry
and dustless environment.
•Avoid chair exposure to high temperatures and direct sunlight.
•Clean this product with a dry cloth. Do not use thinner, benzene or alcohol.
•When moving the chair on wood floor, rough ground or in a narrow space two people
should lift the chair together.
•We recommend to use the massage chair intermittently and not for long
time periods.
5. TROUBLESHOOTING
•It is normal for the motor to make noise while in use.
•If the controller doesn’t work normally, please check that the plug and socket
are properly connected and the switch is turned on.
•When the programmed working time is over, the chair will power-off automatically.
•After several use, the chair might power-off because of overheat. It can be used
again after half an hour of cooling time.
6. FEATURES AND BENEFITS
Ease your tension and massage away stress with our top of the line iComfort® ic1121
Therapeutic Massage chair. You will feel as if you had your very own massage therapist.
It can even massage your arms or head! The handy retractable and articulated footrest
gives you maximum configuration options. The iComfort® ic1121 Therapeutic massage
chair reproduces over 5 massage therapies to help increase blood circulation, alleviate
tension and soothe away stress all with the sensation of a professional massage in the
comfort of your very own home! The iComfort® ic1121 Therapeutic massage chair will
provide you with many years of soothing massage and comfort.
02m2_manuel_IC1121_11512.indd 3 12/09/11 3:53 PM

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
4
•Contemporary design with high-quality soft touch leatherette.
•5 massage modes: kneading, reverse kneading, Knocking, Taping and vibration to
create some of the best massages you have ever felt.
•Sophisticated air massage for the leg, foot, underfoot, waist, arms or head.
•4 head rotating massage mechanism for smooth wrist movement simulation.
•Built-in MP3/auxiliary player amplifier with external speakers and adjustable
music synchronization.
•The remote control indicates the type of massage being performed.
•Power recline feature up to 170 degrees with separate recline/incline controls.
•Retractable footrest.
•Certified ULc
7. INSTALLATION
The ic1121 massage chair comes partly assembled.
•Assemble this massage chair according to the installation instructions provided
in this guide.
•Check the parts list carefully to make sure nothing is missing.
•Sitting in the massage chair before it is completely assembled could result in
permanent damage to the chair and personal injury.
•This massage chair is equipped with a cord having a grounding conductor.
The AC connector must be plugged into an appropriate socket that is properly
installed and grounded.
•If the massage chair fuse is burned out, please turn the chair off and unplug the
power. You can open the lid covering the fuse located in the switch box at the
bottom of the chair in the back.
A) Unplug the chair from the AC wall outlet.
B) Unscrew the fuse cover underneath and behind the chair.
C) Remove the fuse and replace it with an identical fuse type then screw back
the fuse cover.
You can call iComfort® at 1-866-967-7333 ext 227 if you need help.
CAUTION: Never substitute a missing part with one of your own. If a part is missing,
contact customer service at: 1-866-967-7333 ext 227
02m2_manuel_IC1121_11512.indd 4 12/09/11 3:53 PM

5
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
Step 1: Unpacking
1. Remove the massage chair from the box.
2. Remove all plastic wraps from the massage chair, cushions, bags, etc.
When positioning the chair, make sure there are at least 60cm of free space behind the
backrest and 60cm of space in front of the footrest.
3. Tilt back the back rest until you hear a ‘click’ sound.
Step 2: Install the back cushion and pillow pad.
a. The back cushion of the ic1121 has 2 integrated speakers. These must be
connected to the back rest as per image before zipping the backrest cushion.
b. Zip the back cushion in place.
c. Use the Velcro tape to secure the head rest.
Step 3: Final Installation
1. Insert the AC power cord into the wall outlet
2. Turn on the main power switch on the lower back behind the massage chair
(the light on the side of the armrests will turns on).
3. Use the remote control to choose your preferred massage function and enjoy
a comfortable massage
02m2_manuel_IC1121_11512.indd 5 12/09/11 3:53 PM

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
6

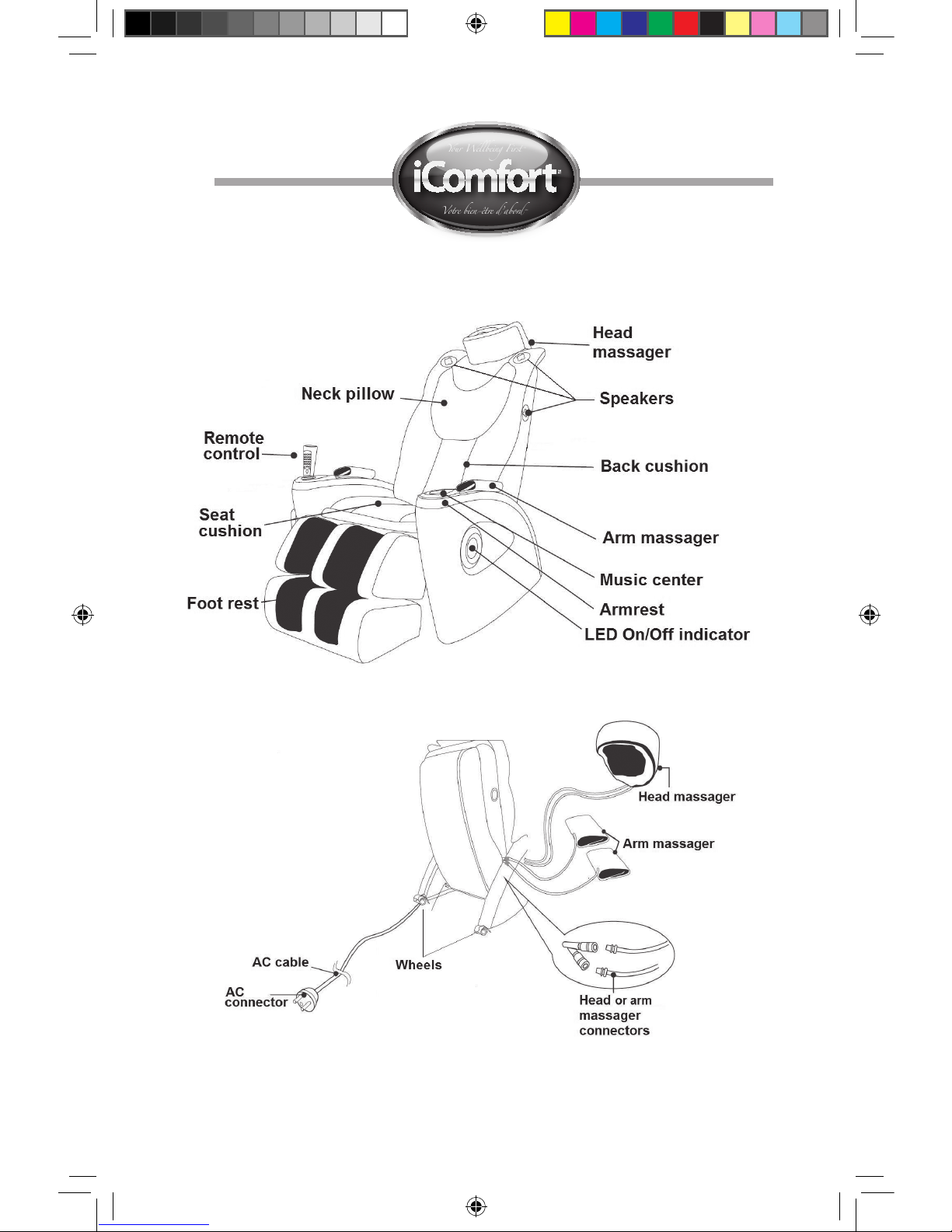

8. COMPONENTS
Massage chair
02m2_manuel_IC1121_11512.indd 6 12/09/11 3:53 PM

7
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC

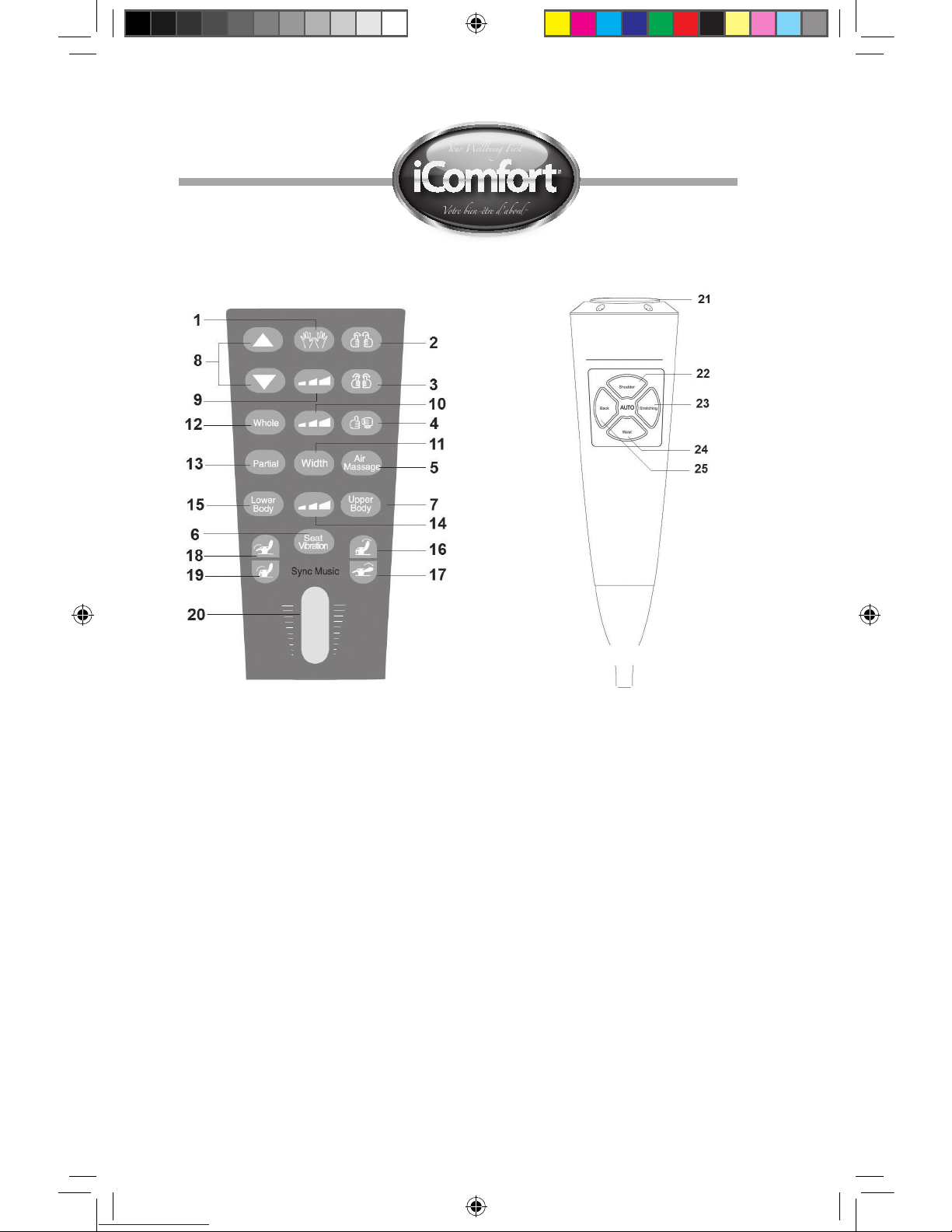

Remote control
FRONT (Manual massage) BACK (automatic massage)
1. Tapping massage button
2. Kneading massage button
3. Kneading counter rotation
massage button
4. Knocking massage button
5. Air massage button
6. Seat vibration massage button
7. Upper body massage button
8. Up and down massage
mechanism control button
9. Reverse kneading intensity
massage button
10. Knocking intensity massage button
11. Width adjustment
(small, medium, large)
12.Whole massage button
13.Partial massage button
14. Lower body or upper body airbag
massage intensity adjustment button
15. Lower body massage button
16. Back rest up and foot rest down button
17. Back rest down and footrest up button
18.Leg rest up button
19. Leg rest down button
20.Music synchronization activation
and control button
21. Power ON/OFF button
22.Shoulder massage program button
23.Stretching massage program button
24. Waist massage program button
25.Back massage program button
02m2_manuel_IC1121_11512.indd 7 12/09/11 3:53 PM

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
8
9. OPERATION
Once the massage chair is connected to a wall outlet, turn on the power switch behind
the massage chair at the bottom. The LED power indicator lights on the side of both
armrests will light up.
Press the power switch located on top of the remote control.
Pressing again turns off the chair.
AUTOMATIC MASSAGE MODES
Option 1)
Press on the power switch on top of the remote control. After about 7 seconds, the full
body automatic massage program will start. You can adjust the foot massage intensity
by pressing on the foot massage intensity button on the manual massage side of the
remote control. There are 3 choices (low, medium and high). At this point, pressing
on any massage type buttons on the manual massage side of the remote control will
activate the massage chair manual mode.
Option 2)
Press on the power switch on top of the remote control. After about 7 seconds, the full
body automatic massage program will start. Press on one of the 4 automatic massage
modes on the back of the remote control to choose another automatic massage mode.
A red light on the button will confirm your choice.
To go into manual massage mode, you must first deactivate the automatic massage
mode you have chosen by pressing again on the automatic massage button. This will
deactivate the red light. You can then press on any massage type you want on the frontal
part of the remote control.
02m2_manuel_IC1121_11512.indd 8 12/09/11 3:53 PM

9
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
MANUAL MASSAGE MODE
You can activate the manual massage mode at any time during any automatic
massage modes.
Press on the power switch on top of the remote control. After about 7 seconds, the full
body automatic massage program will start. You can then press on any manual massage
types, functions or intensity.
If you have activated one of the four other automatic massage modes on the back of
the remote and want to go in manual massage mode, you must first deactivate the
automatic massage mode by pressing the button of the activated automatic massage
mode. The red light of this mode will turn off and you can then activate your preferred
manual massage mode.
Press this button to activate the inward Kneading massage feature. The
massage mechanism will massage your back on this specific area. If you
want the massage mechanism to move up and down using this massage
technique you must press on the ‘Whole’ button or the ‘Partial’ button
(For more information on the later, please refer on the instructions of
these two buttons) or on the up or down buttons to massage a specific
back area.
02m2_manuel_IC1121_11512.indd 9 12/09/11 3:53 PM

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
10
Press this button to activate the outward Kneading massage feature. The
massage mechanism will massage your back on this specific area. If you
want the massage mechanism to move up and down using this massage
technique you must press on the ‘Whole’ button or the ‘Partial’ button
(For more information on the later, please refer on the instructions of
these two buttons) or on the up or down buttons to massage a specific
back area.
Press this button to activate the Knocking massage feature. If you want
the massage mechanism to move up and down using this massage
technique you must press on the ‘Whole’ button or the ‘Partial’ button
(For more information on the later, please refer on the instructions of
these two buttons) or on the up or down buttons to massage a specific
back area.
Press this button to activate the Taping massage feature. If you want
the massage mechanism to move up and down using this massage
technique you must press on the ‘Whole’ button or the ‘Partial’ button
(For more information on the later, please refer on the instructions of
these two buttons) or on the up or down buttons to massage a specific
back area.
Press the outward kneading intensity adjustment button to adjust
massage speed. There are 3 massage speed levels. The preset is low
indicated by a yellow light on this button. This button is just underneath
the Massage button.
Press the knocking intensity adjustment button to adjust massage
speed. There are 3 massage speed levels for Knocking. The preset is low
indicated by a yellow light on this button. This button is just above the
width adjustment button.
Press this button to select a whole back massage area. This will move
the massage mechanism up and down for the chosen massage type.
Press this button to select a specific back area massage. For this feature
to be activated, the Whole button must be activated first. On a downward
massage mechanism movement, pressing on the Partial button will
determine the massage area from the top to the area pressed. On an
upward movement, pressing on the Partial button will determine the
massage area from the bottom to the area pressed.
02m2_manuel_IC1121_11512.indd 10 12/09/11 3:53 PM

11
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
Press this button to move the massage mechanism up or down to your
specific desired massage location.
Press this button to select a specific back massage width. There are
three massage widths to choose from (Narrow, Medium and Large). This
feature increases or decreases the space between the massage rollers
for increased massage comfort.
Press this button to increase or decrease the leg, foot and underfoot
airbag, seat and waist massage intensity. The preset is low indicated
by a yellow light on this button. There are three levels of air massage
intensity.
Press this button to activate the air bag massage for the whole body,
which includes the feet, leg, seat and waist (Airbag massage of the head
or arms are not activated from this button)
Press this button once to activate the foot underfoot and leg airbag
massage feature. The light will turn yellow. Press again to activate to
activate the foot massage feature only. The light will turn green. Press a
third time to activate the leg massage feature only. The light will turn red.
Press again to deactivate all lower body airbag massage features.
Press this button to activate or deactivate the seat vibration massage
function.
Press this button once to activate to activate the seat airbag massage
feature. The light will turn yellow. Press again to activate to activate the
waist massage feature only. The light will turn green. Press a third time
to activate the head or arms massage feature (either the head or
arms not both at the same time). The light will turn red. Press again to
deactivate all upper body airbag massage features.
02m2_manuel_IC1121_11512.indd 11 12/09/11 3:53 PM

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
12
Press this button to adjust the leg rest angle up or down.
Press this button to adjust both the footrest and the backrest angle up
or down at the same time..
Arm or head air massage feature
The ic1121 can provide you with a relaxing arm or head massage. Before you activate
this feature, you must first attach the air connectors on the side of the chair to the
massage device you prefer (arm or head massager). Since there are two air connectors,
you can only connect one device at a time. You cannot use both at the same time.
Arm massage
a) Attach the air connectors on the side of the chair to the arm
massage device.
b) Place the arm massage device around your arms using the velcro tape.
02m2_manuel_IC1121_11512.indd 12 12/09/11 3:53 PM

13
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
You can then activate the arm air massage feature on the remote control by pressing on
the ‘Upper body’ button three (3) times (red light).
Head massage
For the head massager, the activation is the same as for the arms:
a) Attach the air connectors on the side of the chair to the arm
massage device.
b) Then, place the head massage device around your head using the velcro tape.
c) You can then activate the air massage feature on the remote control by pressing on
the ‘Upper body’ button three (3) times (red light).
MP3/iPod® music feature
After having connected a music source to the massage chair using
the provided connector and activated a file, press this button on the
remote control to choose music massage synchronization feature.
Press this key again and the function will stop. When activated, turn
the knob to increase or decrease the music synchronization effect.
The music volume control knob is situated inside the music
compartment on the right armrest.
02m2_manuel_IC1121_11512.indd 13 12/09/11 3:53 PM

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
14
10. FLOOR PROTECTION
Prolonged use of this massage chair can
damage wood floors. In order to prevent
permanent damage, place a carpet or mat
under the chair.
11. MOVING THE CHAIR
Disconnect the power cord and place it on
the massage chair.
Lift the leg and foot section until you feel
the chair moving forward or backward
easily. The chair should be tilted up to
about 30 degrees.
12. PRODUCT SPECIFICATIONS
Weight: Net: 132kgs,
Dimensions: 200 cm W x 79 cm L x 120 cm H
Power: 150 Watts
Voltage: 110V, 60Hz
02m2_manuel_IC1121_11512.indd 14 12/09/11 3:53 PM

15
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
13.WARRANTY
LIMITED ONE (1) YEAR WARRANTY
This product is guaranteed against all manufactured faults and defects for a period of One (1)
year from the date of purchase.
For repairs or product defects, please call our customer service department at: 1-866-967-7333.
Please have your proof of purchase on hand. If we are not able to replace your defective part, we
will send you a service technician for repairs.
Important notes: Any damages caused by an accident or an abusive usage are NOT covered
under warranty. We also decline all responsibility concerning indirect or consecutive damages. In
certain Canadian provinces, it is not permitted to limit indirect or consecutive damages. Therefore
it is possible these limitations are not applicable to you. This warranty gives you specific legal
rights. You may also have other legal rights which vary from one province to another.
CUSTOMER SERVICE: 1-866-967-7333 ext 227
You can also fill out the registration card on our website at www.iComfort.ca
02m2_manuel_IC1121_11512.indd 15 12/09/11 3:53 PM

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
16
Merci d’avoir acheté ce produit. Veuillez lire attentivement toutes les directives avant
d’utiliser votre fauteuil vibromasseur et conservez cette notice d’utilisation.
Portez attention aux consignes de sécurité et conservez cette notice d’utilisation afin de
pouvoir vous y référer ultérieurement.
Note: EBI se réserve le droit de modifier le design et la description de ce produit
sans autre préavis.
TABLE DE MATIÈRES
1. Consignes de sécurité....................................................................................17
2. Consignes de sécurité...................................................................................17
3. Contre-indications.........................................................................................17
4. Entretien ....................................................................................................... 18
5. Dépannage ................................................................................................... 18
6. Avantages et bénéfices ................................................................................. 18
7. Installation.................................................................................................... 19
9. Opération...................................................................................................... 23
10. Protection de plancher.................................................................................. 30
11. Déplacement de la chaise............................................................................. 30
12. Product specifications................................................................................... 30
13. Garantie.........................................................................................................31
02m2_manuel_IC1121_11512.indd 16 12/09/11 3:53 PM

17
YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
1. CONSIGNES DE SÉCURITÉ
•Ce produit n’est pas recommandé pour les enfants.
•Veuillez débrancher la chaise avant de la nettoyer.
•Utilisez cet appareil exclusivement aux fins décrites dans la présente notice.
•Veuillez n’utiliser que les accessoires recommandés par iComfort®.
•Cet appareil est conçu pour un usage intérieur seulement.
•Cet appareil est conçu pour un usage de 15 minutes ou moins à la fois.
•En cas de bris de l’appareil (tissus ou mécanique), débranchez celui-ci et appelez
un centre de service iComfort® ou votre revendeur.
•Assurez-vous que le radiateur de l’appareil en bas et au dos de celui-ci est bien
aéré et non-obstrué.
•Veuillez à ne pas laisser tomber de petits objets dans les orifices et mécanismes de
la chaise.
•L’utilisation de cette chaise n’est pas recommandée en cas d’abus d’alcool ou de
drogues.
•Ne tenez pas la fiche d’alimentation avec des mains mouillées.
•N’échappez pas de liquides sur cet appareil afin de réduire les risques de
décharges électriques et éviter de l’endommager.
•Maintenez votre chaise en bonne condition et veuillez ne pas endommager la fiche
d’alimentation.
•N’utilisez pas un linge mouillé pour nettoyer des composantes électriques telles que
l’interrupteur ou la fiche d’alimentation.
•Éteignez l’appareil lors d’une panne de courant.
•Cessez d’utiliser votre fauteuil vibromasseur s’il fonctionne anormalement. Coupez
immédiatement l’alimentation et contactez iComfort® au 1-866-967-7333 ext 227.
•Cessez d’utiliser l’appareil si vous ressentez un malaise et consultez votre médecin.
2. CONSIGNES DE SÉCURITÉ
Cet appareil est uniquement conçu pour être utilisé dans un environnement sec, bien
aéré, tempéré et sans poussière.
3. CONTRE-INDICATIONS
Il est fortement recommandé pour les personnes ayant des problèmes cardiaques,
d’ostéoporose, de fièvres, fractures, d’une chirurgie récente, dislocation ou qui portent
un stimulateur cardiaque, défibrillateur ou autres appareils de santé électroniques
sensibles aux interférences, de consulter leur médecin avant d’utiliser ce produit.
02m2_manuel_IC1121_11512.indd 17 12/09/11 3:53 PM

YourWellbeingFirst
TM
Votrebien-êtred’abord
MC
18
4. ENTRETIEN
•Cet appareil doit être entretenu uniquement par un technicien recommandé par
iComfort®. Dans le cas contraire, EBI se réserve le droit d’annuler la garantie de cet
appareil.
•Débranchez le cordon d’alimentation après chaque utilisation.
•Veuillez ne brancher cet appareil que sur des prises murales en parfait état de
marche.
•Si l’appareil demeure inutilisé pendant une période de temps prolongée,
entreposez-le dans un endroit sec et exempt de poussière.
•Ne rangez pas cet appareil près d’une source de chaleur élevée, d’un feu ou sous la
lumière directe du soleil.
•N’utilisez pas de benzène, de décapant ni d’autre solvant pour nettoyer l’appareil.
Utilisez plutôt un linge sec.
•Le mécanisme de cet appareil est conçu pour en minimiser l’entretien.
•Il n’est pas recommandé de déplacer le fauteuil sur ses roulettes si vos planchers
sont en bois, si vous êtes dans un espace trop étroit ou si la surface du sol est
accidentée. Dans ces cas précis, deux personnes seront requises pour soulever et
déplacer le fauteuil.
•Utilisez cet appareil de façon intermittente. Ne l’utilisez pas de façon continue
pendant de longues périodes de temps.
5. DÉPANNAGE
•Il est normal que le moteur fasse du bruit pendant que l’appareil fonctionne.
•Si le panneau de commande ne fonctionne pas normalement, assurez-vous que
le cordon d’alimentation et la prise d’alimentation sont bien connectés et que
l’interrupteur est allumé.
•L’appareil s’arrête automatiquement lorsque le temps prescrit s’est écoulé.
L’appareil s’éteindra également automatiquement pour éviter que le moteur
surchauffe lorsqu’il a fonctionné continuellement sur une longue période de temps.
Il pourra, à nouveau, être utilisé après trente minutes d’arrêt.
6. AVANTAGES ET BÉNÉFICES
Aidez à soulagez votre tension et faites disparaître le stress avec l’incroyable chaise
massage thérapeutique ic1121 de iComfort®. Elle masse même les bras, la tête et les
hanches! Le repose-pied comprend une série de systèmes de massage performants
pour les pieds fatigués. Il est aussi articulé et escamotable. La chaise de massage
02m2_manuel_IC1121_11512.indd 18 12/09/11 3:53 PM
