REMEHA Avanta Plus 35c Manual

1
• Remeha Avanta Plus 28c
• Remeha Avanta Plus 35c
• Remeha Avanta Plus 39c
• Remeha Avanta Plus 24s
Remeha Avanta Plus
Installation and service manual
Remeha Avanta Plus

2
Remeha Avanta Plus
INTRODUCTION
1 SAFETY 5
1.1 General safety 5
1.2 Safety during assembly and installation 5
1.3 Safety during installation, inspection and maintenance 5
2 INSTALLATION 7
2.1 Scope of delivery 7
2.2 Mounting the boiler 7
2.2.1 Clearance requirements 7
2.2.2 Dimensions and connection points. 8
2.2.3 Mounting the Remeha Avanta Plus 10
2.3 Water-side connections 10
2.3.1 Water flow 10

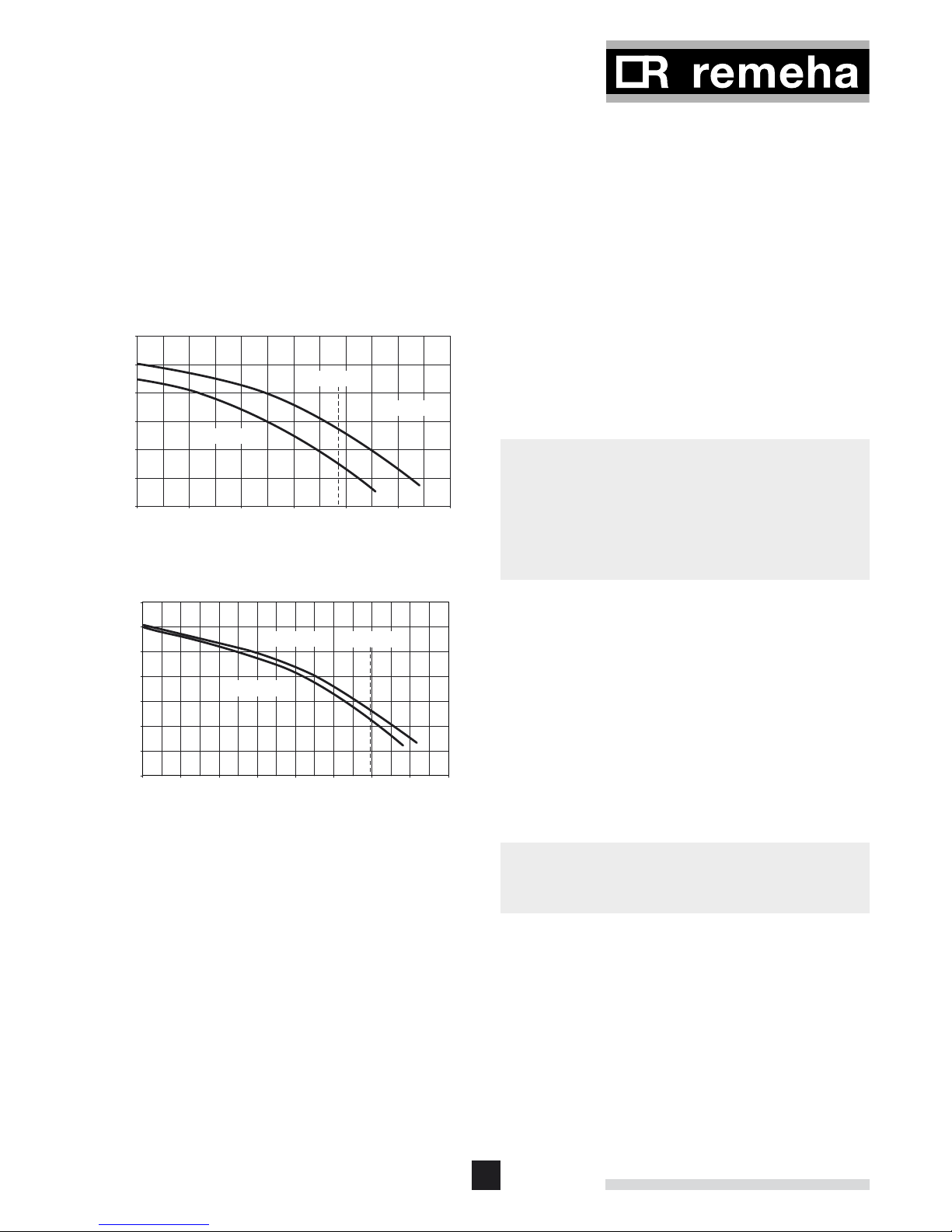

2.3.2 Circulation pumps 11
2.3.3 Additional guidelines for the domestic and CH water 11
2.3.4 Water treatment 11
2.3.5 Safety valve discharge 12
2.3.6 Expansion vessel 13

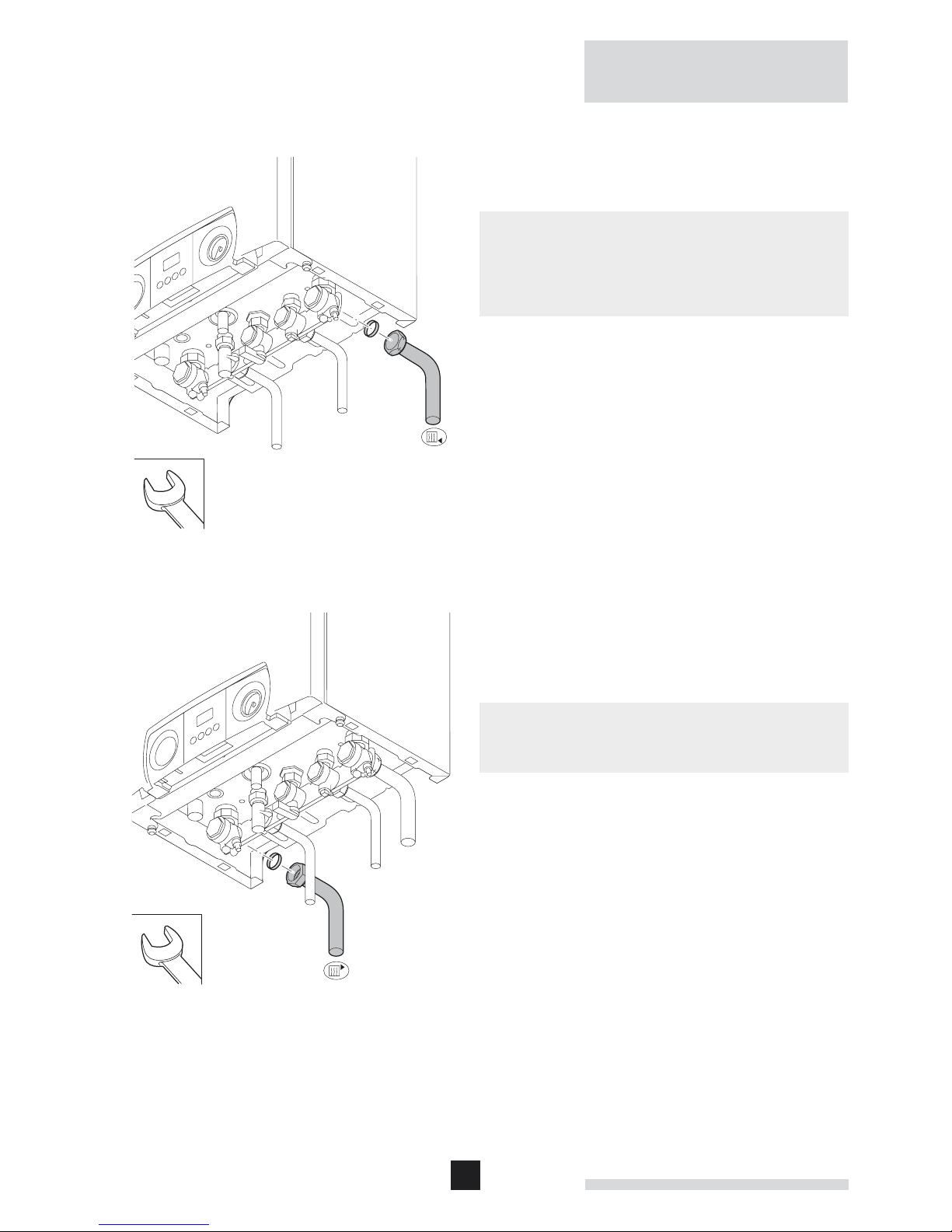

2.3.7 Connecting DHW pipes (Combi-type only) 13
2.3.8 Connecting the ‘CH return’ 14
2.3.9 Connecting ‘CH flow’ 14
2.3.10 Connecting condensate drain 15
2.3.11 Connecting under floor heating 15
2.4 Gas-side connections 15
2.4.1 Additional guidelines for gas connections 15
2.4.2 Connecting the gas supply 16
2.5 Flue terminal and air supply connections 16
2.5.1 Flue terminal positions 16
2.5.2 Room sealed flue 17
2.5.3 Connecting the flue terminal and air supply 18

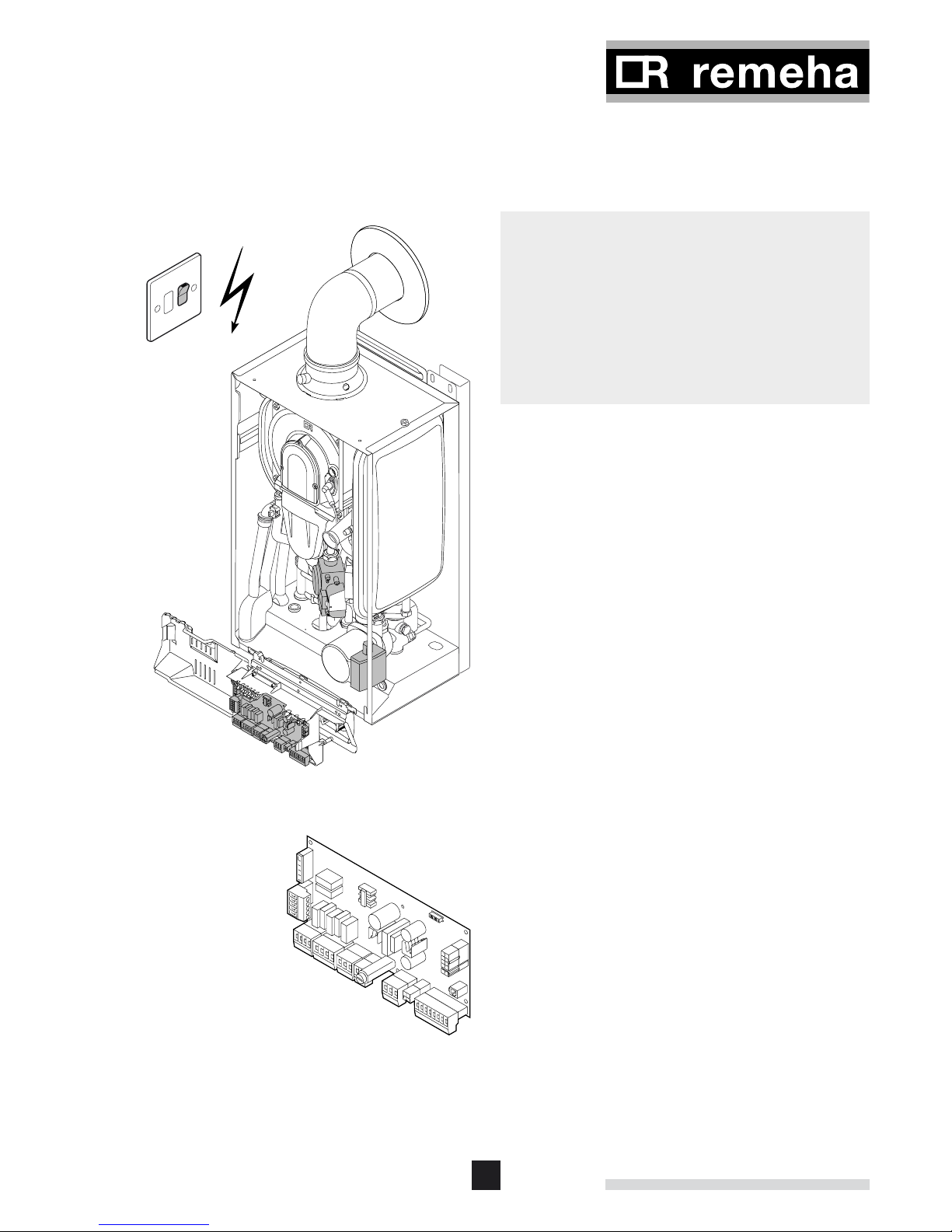

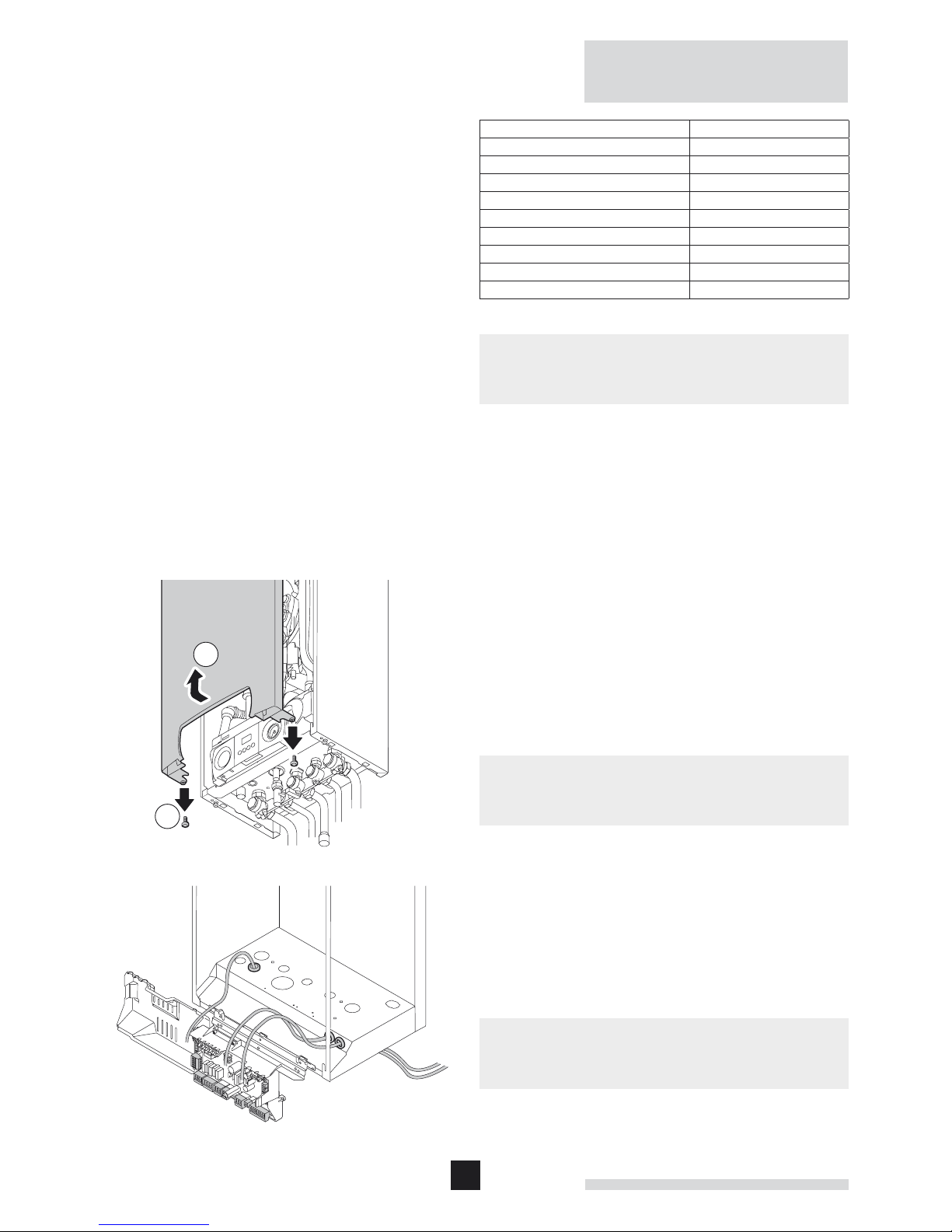

2.6 Electrical connection 19
2.6.1 The control unit 19
2.7 Connecting external controls 20
2.7.1 On/off control – room temperature (volt free switching) 22
2.7.2 Time control using an internal or external 230 V clock 23
2.7.3 Connecting a 230 V time clock in combination with a modulating room control 23
2.7.4 Modulating control – room or outside compensation 23
2.7.5 Connecting an outside temperature sensor 24
2.7.6 Connecting the DHW sensor/thermostat 25
2.7.7 Connecting a frost protection device 25
2.7.8 Connecting an external interlock 26
2.7.9 Connecting remote alarm and boiler run indication 26
2.7.10 Connecting a PC/PDA 26
2.8 Wiring diagram 27
2.9 Commissioning 27
2.9.1 Control Panel 27
2.9.2 Additional guidelines for commissioning 27
2.9.3 Putting the boiler into operation 27
2.9.4 Normal start-up procedure 33
2.9.5 Error during the start-up procedure 33
2.9.7 Adjust the boiler according to the system 35
2.9.8 Changing the parameters at service level (with access code) 35
2.9.9 Changing the maximum output (Hi) for CH operation 37
2.9.10 Restore factory settings 39

3
2.10 Putting the boiler out of operation 39
2.10.1 Boiler with frost protection, during longer periods of non-use 39
2.10.2 Boiler without frost protection, during longer periods of non-use 39
3 INSPECTION AND MAINTENANCE 40
3.1 Inspection 40
3.1.1 Checking the water pressure 41
3.1.2 Checking the flue pipes and air supply pipes for leaks 41
3.1.3 Checking the condensate siphon 42
3.1.4 Checking the ignition electrode 42
3.1.5 Checking the combustion 42
3.2 Maintenance 43
4 ERRORS 49
4.1 General 49
4.2 Error codes 49
4.3 Control stop or shut down 51
4.4 Error memory 51
4.4.1 Error read outs 52
4.4.2 Deleting errors 52
5 SERVICE PARTS 53
5.1 General 53
6 EC DECLARATION 56
7 REGULATIONS 57
7.1 EC regulations 57
7.2 Remeha factory test 57
8 TECHNICAL SPECIFICATIONS AND WORKING PRINCIPLE 58
8.1 Technical data 58
8.2 The boiler components 59
8.3 Working principle 59
8.3.1 Regulating 60
8.3.2 Advanced boiler control (‘abc®’-control) 60
8.3.3 Regulating the water temperature 61
8.3.4 Low flow / water protection 61
8.3.5 High Limit temperature protection 61
9 EFFICIENCY DATA AND GAS EFFICIENCY LABELS 62
9.1 Annual efficiency 62
9.2 Water-side efficiency 62

4
Remeha Avanta Plus

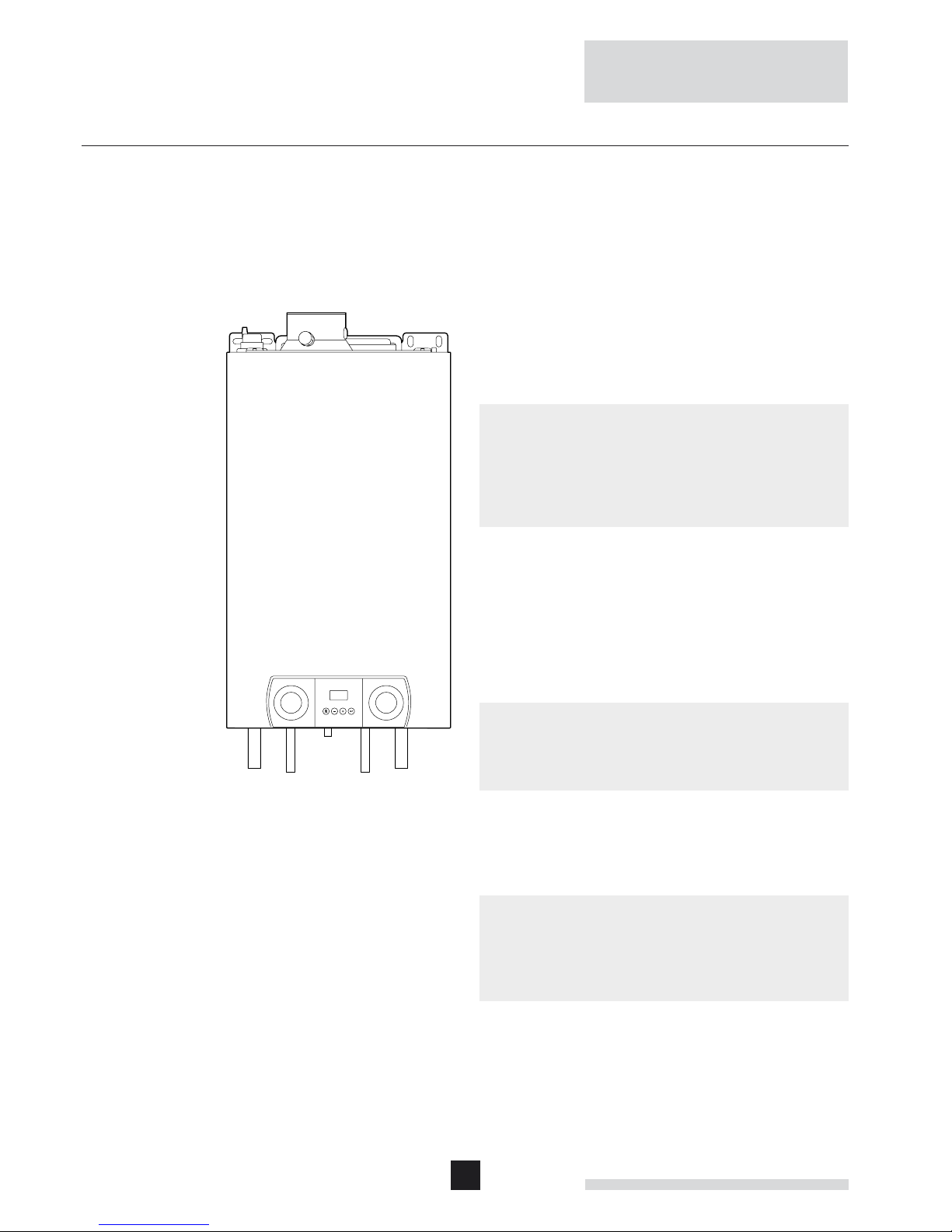

INTRODUCTION
The Remeha Avanta Plus is a series of high-efficiency fully
condensing central heating boilers, for wall mounting,
available in the following types:
• Remeha Avanta Plus 28c, 35c and 39c
- with integrated domestic hot water system (Combi-type)
• Remeha Avanta Plus 24s
- without integrated domestic hot water system
(System-type)
LT.AL.W7H.000.001
These technical instructions contain useful and important infor-
mation for the correct installation, operation and maintenance
of the Remeha Avanta Plus combi and system boilers.
o
Read these instructions carefully before putting the boiler into
operation, familiarise yourself with their control functions and
operation, strictly observing the instructions given. Failure to
do so may invalidate warranty or prevent the boiler from
operating correctly.
The installation, commissioning, inspection and servicing of the
boiler must be carried out by a competent Corgi registered engi-
neer who holds valid ACOPS certification and in accordance
with current gas safety (installation and use) regulations, the
building regulations and all other relevant codes of practice.
All electrical work must be carried out by a competent engi-
neer and to be installed in accordance with the current IEE
regulations.
o
On commissioning the certificate in the Boiler Service Log
book (supplied with the boiler) must be completed and left on
site with a copy send on to Broag Ltd for registration purposes.
If you have any questions, require an engineer to call on site,
or if you need more information about specific subjects relating
to this boiler, or it's installation please do not hesitate to con-
tact our technical help line 0118 978 3434.
o
When contacting Broag with a problem on the boiler, please
have available the boiler type, Serial No (located on the
bottom of the casing), and the symptoms or fault code (the
fault code is a series of flashing red digits in the display panel).
The data published in these technical instructions is based on
the latest information (at date of publication) and may be sub-
ject to revisions.
We reserve the right to continuous development in both design
and manufacture, therefore any changes to the materials or
technology employed may not be retrospective nor may we be
obliged to adjust earlier supplies accordingly.

5
1 SAFETY
1.1 General safety
The following pictograms are used in this Installation and Serv-
ice manual to specifically draw certain points to your attention:
Tip oUseful tip or practical advice.
Indication zImportant instruction in carrying out a
particular operation.
Warning mPossible danger of personal injury or
material damage to the regulator,
building or environment.
Danger {Serious personal injury can occur
because of risk of electric shocks.
1.2 Safety during assembly and installation
Observe the appropriate safety measures, as given in these
instructions.
m
Can you smell gas? What to do:
• do not smoke and do not create any flame or sparks;
• do not use any electric switches;
• turn off the gas tap;
• open windows and doors;
• trace possible leaks and seal them.
Warning! If the leak is before the gas meter, alert your gas
supplier, TRANSCO, tel. [phone]
m
Can you smell smoke or flue gasses? What to do:
• isolate power supply.
• open windows and doors;
• trace possible leaks and seal them.
1.3 Safety during installation, inspection and
maintenance
Under the current Gas Safety (Installation & Use) Regulations,
the Remeha Avanta Plus, in common with all gas appliances,
must be installed by a competent person in accordance with
that regulation.
Statutory regulations in any country, cannot be overridden by
any of the notes or instructions from the manufacturer.
Compliance with National Standards does not provide any
degree of immunity from legal obligations. In the UK, the
installation must be in accordance with the national and local
norms and requirements.
For any issues or circumstances not addressed within these
instructions, please call our Customer Care Department.

6
Remeha Avanta Plus
The Remeha Avanta Plus (combi and system) is a WRAS
(Water regulations) approved product.
LT.AL.W7H.000.074
Remeha Avanta Plus (combi and system) - PIN:
0063BQ3009
Gas Council numbers: Remeha Avanta Plus 28c: 47-673-02
Remeha Avanta Plus 35c : 47-673-03
Remeha Avanta Plus 39c: 47-673-04
Remeha Avanta Plus 24s: 41-288-05
Classification type for evacuation of the combustion products;
according EN 483: see Par. 8.1.
Health and safety information
• The weight of the Avanta Plus system and combi boilers
exceed the maximum lift weight for one person.
• All sealants and gaskets are free from harmful products. On
first firing the boiler, a smell from the sealants and gaskets
may be present and should cease after a short period.

7
400
min.600 300
min. 250
min. 250
670
2 INSTALLATION

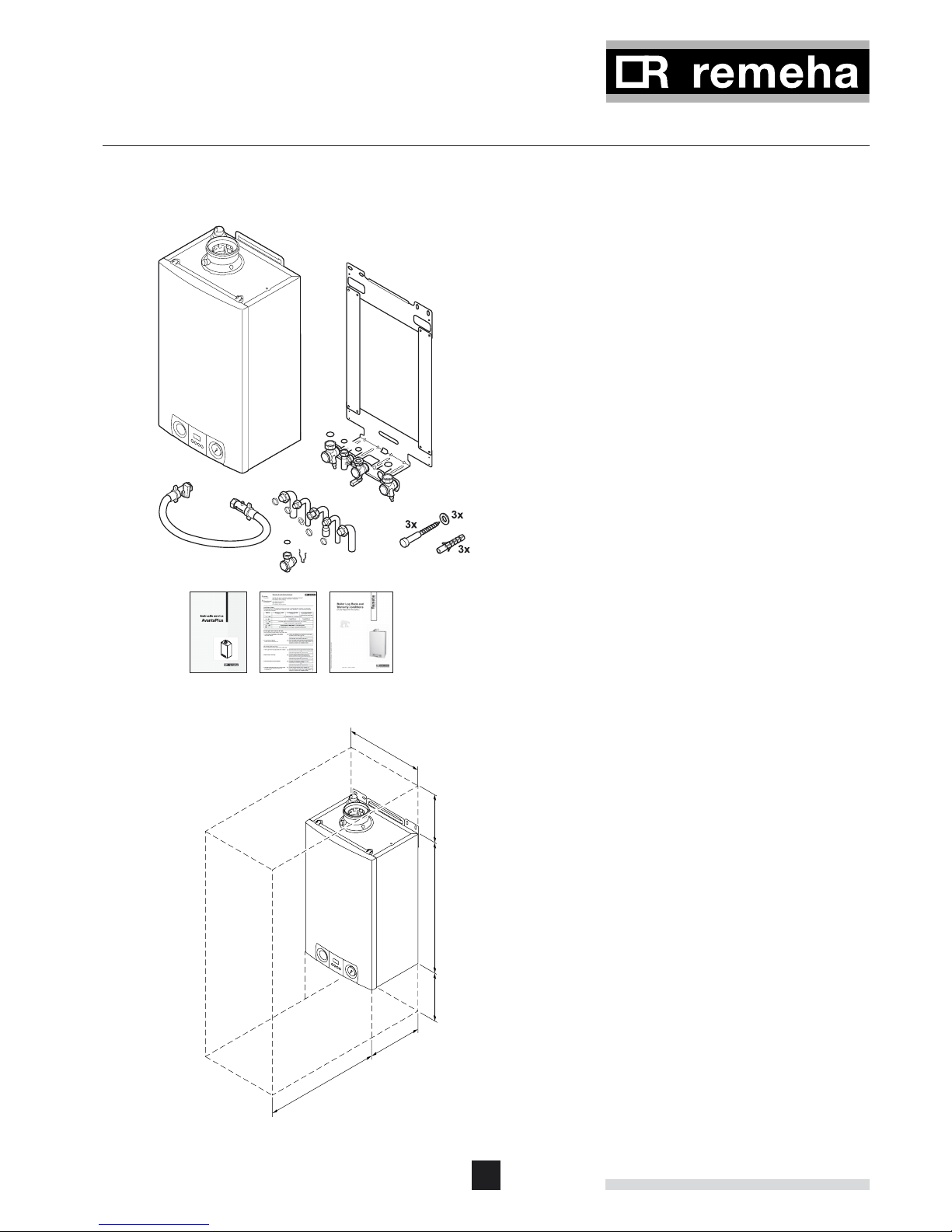

2.1 Scope of delivery
The standard delivery of the Remeha Avanta Plus boiler
includes:
LT.AL.W7H.000.011
- the boiler (including pressure gauge and safety valve);
- mounting plate (including isolation valve set and washers);
- nylon plugs and screws for fixing mounting plate;
- copper tails 15/22 mm;
- mounting template;
- filling loop;
- Boiler Service Log Book;
- Installation and Service manual and Users guide.
This Installation and Service manual deals with the standard
supplied boiler only. For the installation or assembly of any
optional accessories supplied with the boiler, such as stand off
frame, pipework kits, cover plate, control kits, etc, please refer
to the Assembly Instructions supplied with these accessories.
2.2 Mounting the boiler
Packed in the box with the Remeha Avanta Plus box is this
Installation and Service manual. Read instructions and remarks
carefully. This section includes the guidelines and instructions
for the connection of gas, water, electricity, safety devices, the
regulator, control unit, flue discharge and air supply.
2.2.1 Clearance requirements
The gas and water connections are located on the bottom of
the boiler whilst the air in and flue gas outlet is located on the
top of the boiler. The boiler is supplied as standard with pipe-
work tails to allow connections facing downwards.
Optional stand off frame and pipework kits are available
to enable the pipework to run upwards behind the boiler if
required. For installation, servicing and inspection min. 600
mm in front of the boiler is required. If this free space is
obtained by opening a door or removing a panel, the boiler
may be installed for instance in a closed cupboard.
We do recommend a side clearance of 0.5 cm so that the unit
is easy to open, with a free space of 25 cm under the appli-
ance and 25 cm above the appliance, as the minimum require-
ment.
LT.AL.W7H.000.003

8
Remeha Avanta Plus
System-type
Return connection Ø 22 mm
Flow connection Ø 22 mm
Gas connection Ø 22 mm
Combustion air inlet Ø 100 mm (concentric)
Flue duct Ø 60 mm (concentric)
Condensate drain connection ¾”
(standard overflow pipe size)
ºConnection safety valve Ø 15 mm

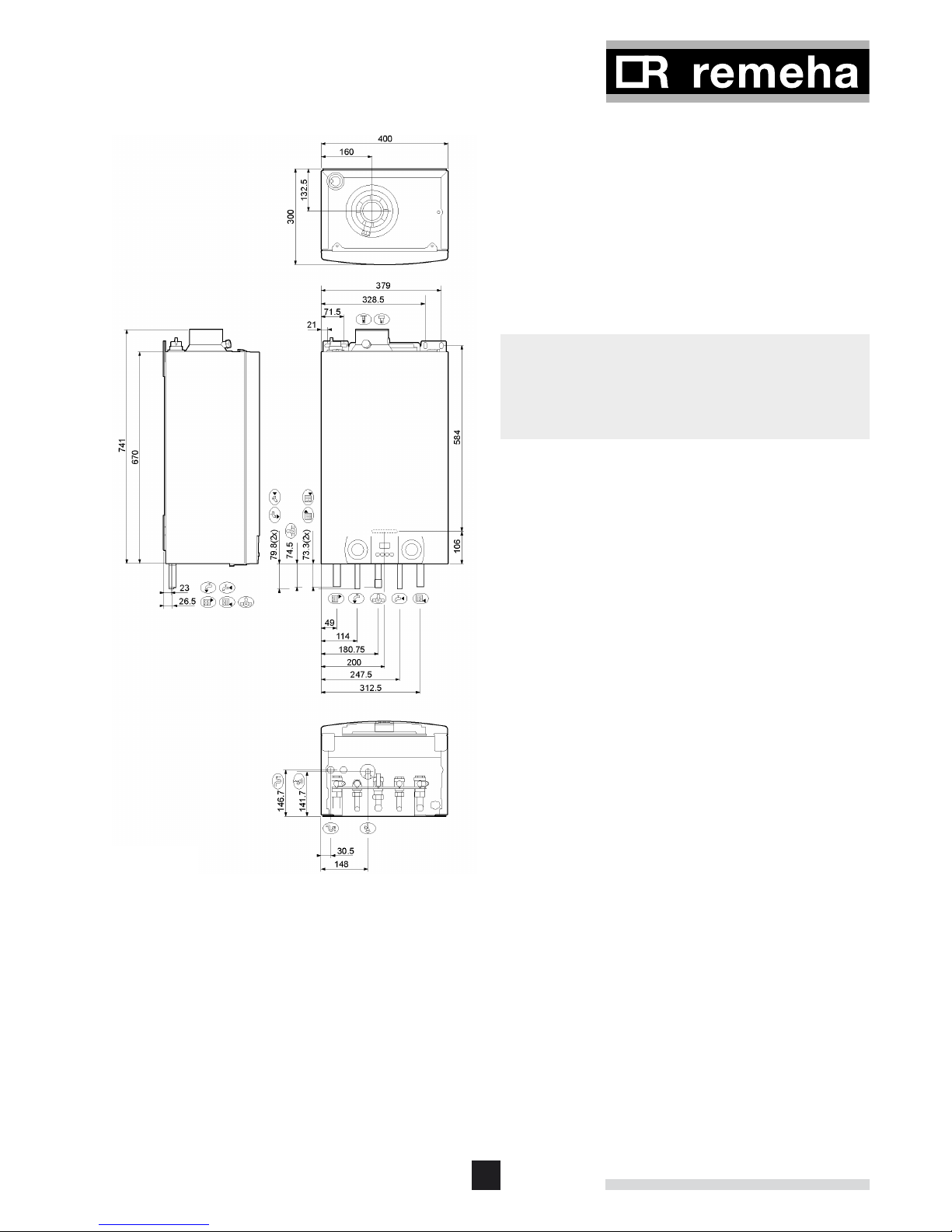

2.2.2 Dimensions and connection points.
LT.AL.W7H.000.005

9
Combi-type
Return connection Ø 22 mm
Flow connection Ø 22 mm
Gas connection Ø 22 mm
Combustion air inlet Ø 100 mm (concentric)
Flue duct Ø 60 mm (concentric)
DHW inlet (cold) connection Ø 15 mm
¢DHW outlet (hot) connection Ø 15 mm
Condensate drain connection ¾”
(standard overflow pipe size)
ºConnection safety valve Ø 15 mm
z
• Based on the guidelines and the required installation
space, determine where to mount the Remeha Avanta
Plus.
• In determining the boiler position, consider carefully the
flue outlet position and any pluming consequences.
LT.AL.W7H.000.002

10
Remeha Avanta Plus
2.2.3 Mounting the Remeha Avanta Plus
LT.AL.W7H.000.012
• Remove the mounting plate and template from the box.
• Using the template determine and mark the position of the
three mounting holes and center line of flue, making sure
the plate is absolutely level.
• Drill the (Ø 10 mm) holes.
• Fit the (Ø 10 mm) plugs.
• Fit (Ø 8 mm) screws into the plugs.
• Check the mounting plate is level and tighten the screws.
• Fit the valve set to the mounting plate.
• Fit fibre washers on the CH valves.
• Remove boiler from the box and suspend it on mounting
plate.
• Connect the valves to the boiler remembering to fit fibre
washers supplied.
• Connect the supplied copper tails to the isolating valves.
m
• The boiler should be mounted on a suitable vertical wall
which is able to support the weight of the boiler.
• The boiler should be mounted in a room which, even during
severe cold weather, remains frost-free.
• If the boiler is to be installed in a timber framed building,
please refer to British Gas publication: ‘Guide for Gas
Installations in Timber frame Housing’, reference DM2.
• In a new installation it is possible to fit just the wall plate and
valve set to enable the system pipework to be completed
and tested before fitting the boiler at a later date (place
fibre washers supplied in a safe place for use when fitting
the boiler).
z
• Make sure the boiler and any open connections are
protected from building etc. dust during the installation.
• There must be a 3 amp fused switched spur within 1m of
the boiler.
• Provision must be made for the condensate discharge.
2.3 Water-side connections
2.3.1 Water flow
An internal automatic flow by-pass is supplied in the Avanta
Plus to ensure correct operation on systems fitted with TRV’s
on all heat emitters. The ‘abc®’ control also monitors the tem-
perature difference across the flow and return connections and
the rate of temperature rise and will automatically regulate the
boiler output to ensure that it remains operational for as long
as possible without the need to ‘lock out’ requiring a manual
re-set.

11
Residual head UPR 15-60
0
100
200
300
400
500
600
0 200 400 600 800 1000 1200
CH-flow [l/h]
Residualhead[mbar]
dT 20°C 18kW
Pump 'high'
Pump 'low'
Residual head UPR 15-70
0
100
200
300
400
500
600
700
0 200 400 600 800 1000 1200 1400 1600
CH- flow [l/h]
Residual head [mbar]
Pump 'high'
Pump 'low'
dT 20°C 28kW
2.3.2 Circulation pumps
The Remeha Avanta Plus 24s and 28c are fitted with the
Grundfos UPR 15-60 and the Avanta Plus 35c and 39c with
the UPR 15-70, two-speed circulation pumps. The control unit
ensures that when the hot-water function is active, the pump
runs at ‘high’. The factory setting of the pump for CH func-
tion is ‘low.’ If necessary, the service installer can adjust this
to ‘high’ by switching parameter 21 (from 0to 1) see par.
2.9.8.
LT.AL.W7H.000.013
LT.AL.W7H.000.014
2.3.3 Additional guidelines for the domestic and CH water
• The system should be filled with mains cold water (for the
UK this will usually have a pH of between 7 and 8).
• Power flush the pipes and radiators thoroughly to remove
all fluxes and debris before connecting the boiler to the cen-
tral heating system in accordance with BS 7593 (1992).
m
• The temperature of the central heating pipes and the
radiators can rise to 95°C.
• Use untreated tap water only to fill the CH system.
• The pH value of the system water must be between 6 and 9.
• In case inhibitors are being used, please follow the
instructions given in par. 2.3.4.
2.3.4 Water treatment
If used correctly water treatment can improve the boilers
efficiency and increase the anticipated life expectancy of the
boiler. For further information a special document “Quality
requirements CH water” is available from Broag.
As most systems contain a variety of metals, it is considered
good practice to provide some form of water treatment in order
to prevent or reduce the following:
• Metallic corrosion
• Formation of scale and sludge
• Microbiological contamination
• Chemical changes in the untreated system water
m
All scale deposits however small will reduce the efficiency of
the boiler and should be prevented.
Suitable chemicals and their use should be discussed with a
specialist water treatment company prior to carrying out any
work (environmental aspects, health aspects). The specifica-
tion of the system and manufacturers recommendations must
be taken into account, along with the age and condition of
the system. New systems should be flushed thoroughly to
BS 7593(1992) to remove all traces of flux, debris, grease
and metal swarf generated during installation. Care to be
taken with old systems to ensure any black metallic iron oxide
sludge and other corrosive residues are removed, again by
power flushing, ensuring that the system is drained completely
from all low points.

12
Remeha Avanta Plus
z
Please ensure that the new boiler plant is not in circuit when
the flushing takes place, especially if cleansing chemicals are
used to assist the process.
It is important to check the inhibitor concentration after installa-
tion, system modifications, filling the system and every service
in accordance with these instructions.
For the correct dosage and the suitability of inhibitors for use
with our boilers and for further information on water treatment
or system cleaning we advise direct contact with either of the
following companies:
‘Copal®’manufactured by:
Fernox, Cookson Electronics
Forsyth Road
Sheerwater
Woking
Surrey GU21 5RZ
Tel No: 01483 793200
Fax No: 01483 793201
Email: [email protected]
Web site: www.fernox.com
or:
Sentinal ‘X100®’manufactured by:
BetzDearborn Ltd
Sentinal
Foundry Lane
Widnes
Cheshire WA8 8UD
Tel No: 0151 424 5351
Fax No: 0151 420 5447
2.3.5 Safety valve discharge
A pressure relief safety valve is fitted in the boiler set to the
maximum operating pressure of the boiler at 3 bar.
If the pressure in the boiler becomes too high the pressure is
relieved by releasing water outside via the safety valve dis-
charge pipe. The safety valve discharge pipe must be at least
15 mm Ø. The discharge should be terminated facing down-
wards exterior to the building in a position where discharging
water will not create danger or nuisance but remains in a vis-
ible position.

13

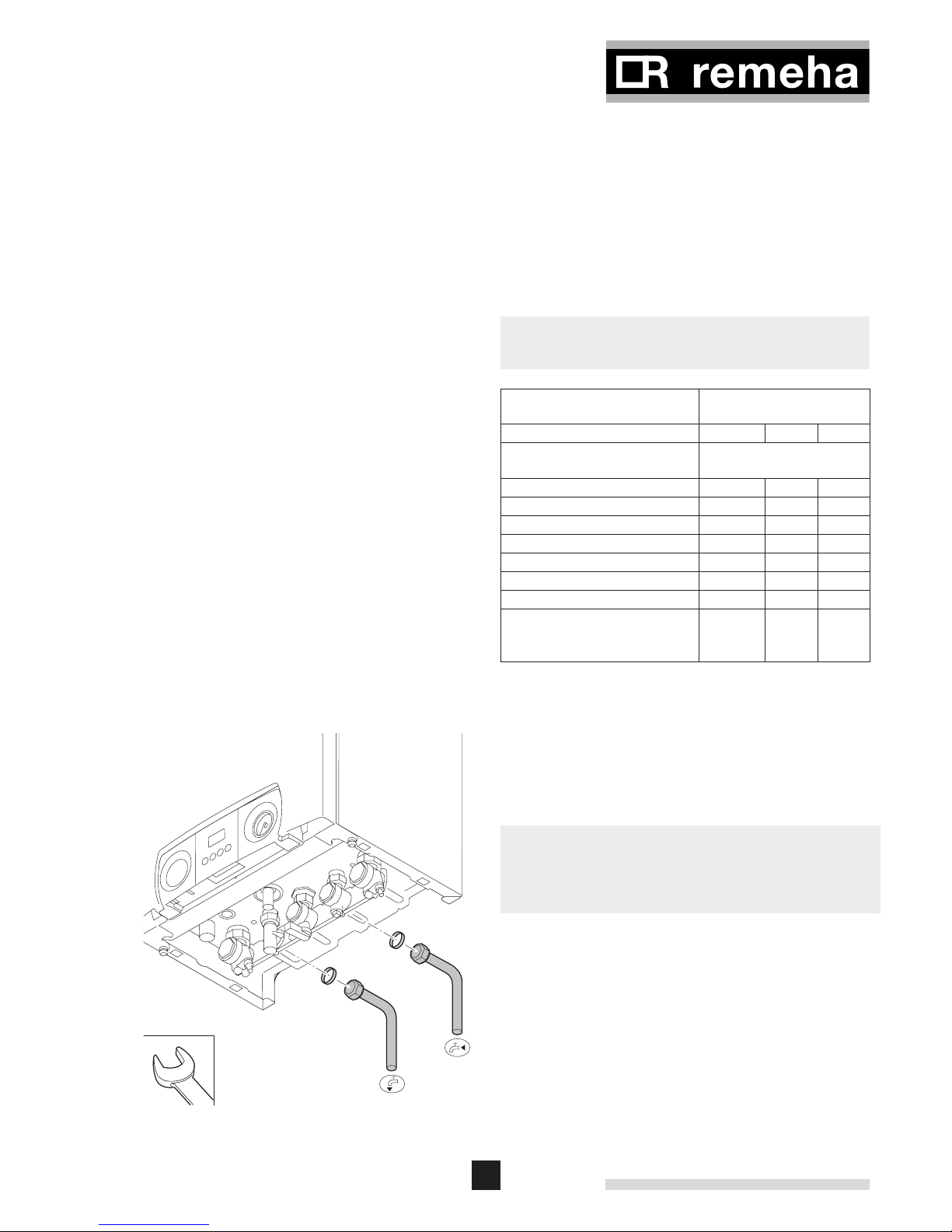

2.3.6 Expansion vessel
An 8 litre expansion vessel (with the vessel charge set to 1.0
bar) is fitted as standard within the boiler case and is suitable
for use in a heating system with a water content up to 100
litres, operating at a flow temperature of 80°C, a maximum
pressure of 3 bar and a maximum system static head of 5
metres above the boiler. If the system water content is greater
than 100 litres, or the system static head above the boiler is
greater than 5 m, an additional vessel must be installed in the
system to allow for the increase in expansion, see table 01.
m
Install additional vessel according BS 5449, part1.
Boiler Safety Valve Setting
(Bar) 3.0
Vessel Charge (Bar) 0.5 1 1.5
Heating System Water Content
(Litres)
Expansion Vessel Size
(Litres)
100 4.8 8.0 13.3
125 6.0 10.0 16.6
150 7.2 12.0 20.0
175 8.4 14.0 23.3
200 9.6 16.0 26.6
250 12.0 20.0 33.3
300 14.4 24.0 39.9
For other system volumes,
multiply the system volume
by the factor across:
0.048 0.080 0.133
table 01 Expansion Vessel Size
2.3.7 Connecting DHW pipes (Combi-type only)
LT.AL.W7H.000.015
• Fit the outlet pipe for hot water to the DHW outlet ¢15 mm
Ø connection.
• Fit the inlet pipe for cold water to the DHW inlet 15 mm
Ø connection.
z
• The DHW pipes must be connected in accordance with
current regulations.
• For plastic pipes, follow the manufacturer’s instructions
(for connection).

14
Remeha Avanta Plus
2.3.8 Connecting the ‘CH return’
LT.AL.W7H.000.016
• Fit the inlet pipe for CH water to the ‘CH return’ 22 mm
Ø connection.
o
The Remeha Avanta Plus has a drain cock built into the return
isolating valve
It is considered good practice to install an air separator / dirt
removal device in the return to the boiler.
2.3.9 Connecting ‘CH flow’
LT.AL.W7H.000.017
• Fit the outlet pipe for CH water to the ‘CH flow’ 22 mm
Ø connection.
o
The Remeha Avanta Plus has a drain cock built into the flow
isolating valve.

15

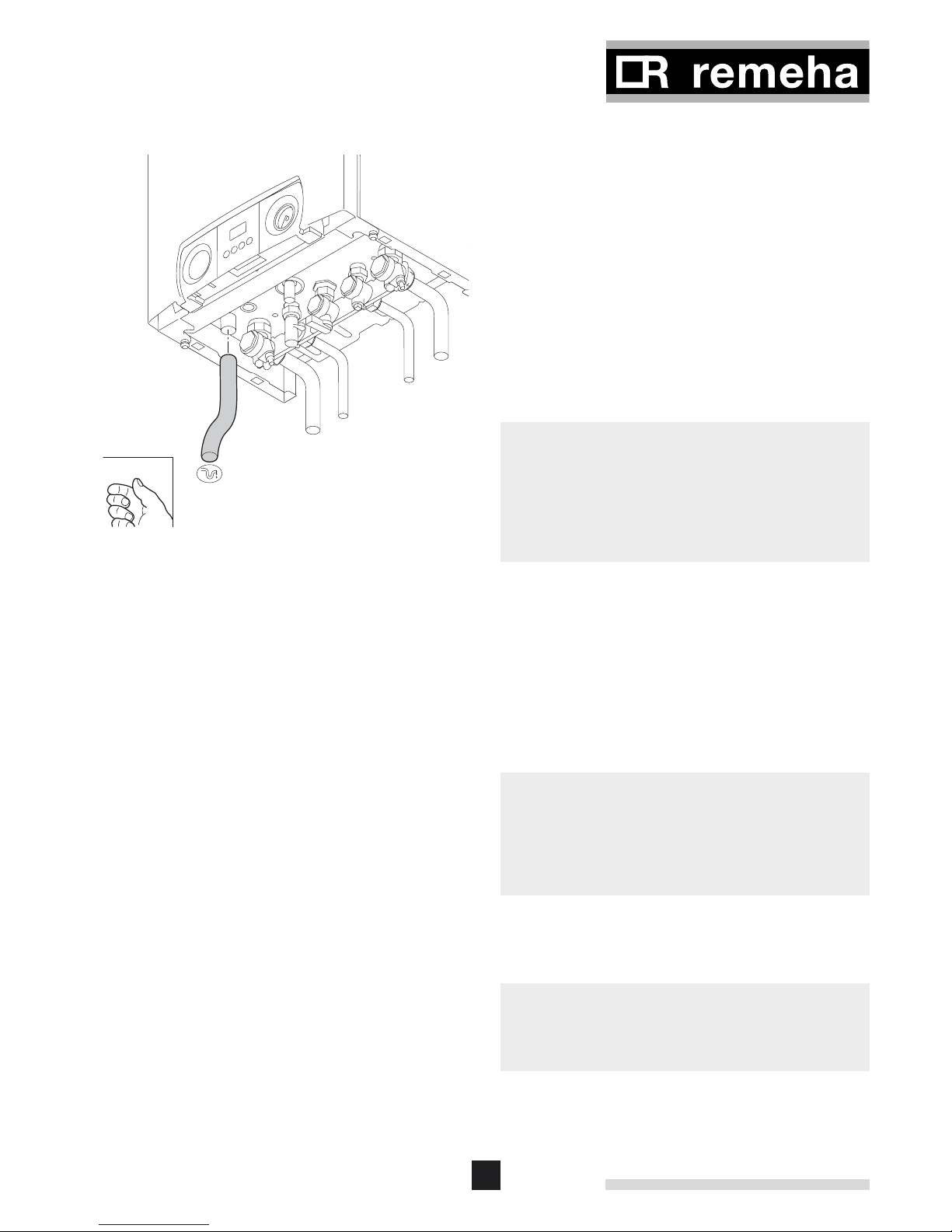

2.3.10 Connecting condensate drain
LT.AL.W7H.000.018
• Connect the condensate drain outlet to a suitable
waste water drain point using acid resisting pipe work
(i.e. - ¾” overflow). To enable the siphon in the boiler to be
removed / serviced, the connection should not be a perma-
nent one (i.e. “push fit” system).
• To prevent the risk of freezing connect the condensate into
an internal vertical soil pipe using a tundish (air break) c/w
a min 75 mm water seal trap.
• If the condensate pipe has to run externally make sure
this is done by realizing the shortest possible route, and
increase the diameter to at least 1¼” or insulate it with
weather resistant insulation.
• The drain should slope at least 3 cm per meter, with a maxi-
mum horizontal length of 5 m.
z
• If connecting into an internal discharge branch (i.e. sink
waste etc) the connection must be down stream of the
existing waste trap.
• Fill the boiler siphon with water before operation, to prevent
flue gasses discharging into the room.
• The condensate drain must be connected in accordance
with current regulations.
2.3.11 Connecting under floor heating
The Remeha Avanta Plus can be connected directly to an
under floor heating system.
If plastic pipes have been used they must be made oxygen dif-
fusion proof in compliance with DIN 4726/4729.
When installing under floor heating with a separate pump, the
layout should be such that the under floor heating pump can-
not cause a flow to the boiler if there is no heat demand. A low
loss header should therefore be fitted between the system and
the boiler.
z
Please ensure that the residual pump duty of the boiler is
sufficient for the resistance of the under floor system. If not a
low loss header should be used to separate the boiler from
the under floor circuit to allow a separate pump sized for the
resistance of the under floor system to be used.
2.4 Gas-side connections
2.4.1 Additional guidelines for gas connections
m
Before installation, check that the gas meter has sufficient
capacity for the demand. Remember to consider the
consumption of all household appliances.

16
Remeha Avanta Plus
2.4.2 Adjusting boiler to other gas-type
The Avanta Plus boilers are suitable for both natural gas and
propane firing. For the Avanta Plus 39c an optional LPG-set is
needed. The boilers are supplied as standard set for natural
gas (H), therefore the following procedure must be carried out
BEFORE the boilers are fired and commissioned for the first
time on propane: Adjust the fan speed (see Par. 2.9.8) and
adjust the gas/air ratio (see Par. 2.9.3).
2.4.3 Connecting the gas supply
LT.AL.W7H.000.019
• Before starting any work on the gas supply, turn off the
main isolation valve.
• Connect the gas supply to the 22 mm Ø boiler con-
nection.
m
• Make sure there is no dirt in the gas pipe. Blow through the
pipe before installation or tap well to purge.
• Make sure that the minimum gas service pressure is high
enough (in full load > 17 mbar).
• Preferably install a gas filter in the gas pipe to prevent the
gas block from getting dirty.
• The gas supply must be connected, tested for soundness
and purged by a qualified Engineer and in accordance with
BS6891.
2.5 Flue terminal and air supply connections
The Remeha Avanta Plus is only suitable for room sealed
operation with a standard concentric connection 60/100 mm Ø
or the optional 80/125 mm Ø connection.
Detailed recommendations for air supply and flue terminals are
given in BS 5440.
2.5.1 Flue terminal positions
The flue terminal must be located with care to ensure that the
products of combustion are dispersed properly in all weather
conditions and cause minimum nuisance to the building user
or any adjacent buildings. If the terminal is positioned less
than 2 m above the ground, balcony, or flat roof where access
by persons is possible a suitable guard must be employed.
z
The boiler will produce a water vapour plume during normal
operation.
Positions for the Remeha Avanta Plus are shown in the figure
and table 02.

17
G
G
A
A
B
600 mm
600 mm
2000 mm
D,E
S
S
F
P
H
C
J
J
L
M
K,N
No flue must penetrate
area within dotted lines
round roof light
LT.AL.W7H.000.020
Dimen-
sions
Terminal location Minimum
distance
(in mm)
to terminal
(room
sealed)
A Directly below an opening, air brick,
opening window, etc. 300
B Above an opening, air brick, opening
window, etc. 300
C Horizontally to an opening, air brick,
opening window, etc. 300
D Below a gutter or sanitary pipe work 40 1)
E Below the eaves 40 1)
F Below a balcony or carport roof 40 1)
G Above ground, roof or balcony level 300
H From vertical drain/soil pipe work 40 1)
J From an internal or external corner 40 1)
K From a surface or boundary facing the
terminal 600 2)
L Vertically from a terminal on same wall 1500
M Horizontally from a terminal on same
wall 300
N From a terminal facing the terminal 1200
P From an opening in a carport (e.g.
door, window) into the building 1200
R From a vertical structure on the roof n/a
S Above an intersection with the roof n/a
table 02 Minimum distances to terminal
1) = We advise to use deflectors in case of these small dis-
tances.
2) = Where the terminal is positioned directly opposite an
opening in the facing wall the min will be 2 m.
n/a = not applicable.
2.5.2 Room sealed flue
See table 03 for the maximum pipe length of flue ducts and air
supply pipes for this ‘room sealed’ application.
It is not necessary to provide combustion air to the room or
internal space in which the boiler is installed.
24s 28c 35c 39c
Diameter in mm Ø 60/100 80/125 60/100 80/125 60/100 80/125 60/100 80/125
Maximum length ‘L’
allowed [m]
6 29 6 29 7 30 5 25
Eq. Length of 90° elbow 1.4
Eq. Length of 45° elbow 0.65
L
VRS roof
mounted
room sealed
terminal
L
80/125 or 60/100
table 03 Maximum pipe lengths for flue duct and air supply in
room sealed application

18
Remeha Avanta Plus
158 mm
ø 125 mm
21
2
1
z
For flue installations not covered by this booklet, please
contact our technical help line 0118 978 3434.
2.5.3 Connecting the flue terminal and air supply
LT.AL.W7H.000.021
• Check the depth of the wall and cut the terminal to suit
– taking note of the cutting instructions supplied with it
• Core drill a 125 mm Ø hole in the wall, fit the rubber closure
plate at the exit end and slide the terminal through the wall
until the closure plate is clear of the outer edge of the wall
– pull back the terminal till the closure plate is flush then fit
inner wall closure to secure.
z
• All connections must be airtight and waterproof.
• Horizontal extension sections should slope towards the
boiler (at least 3 cm per metre).

19
230 V
2.6 Electrical connection
• Connect the boiler to the fused (3 amp) switch spur unit
adjacent to boiler.
• The switch unit must always be accessible.
LT.AL.W7H.000.022
{
When the switch spur is on the following components of this
appliance can be live (230 V):
• electrical connection pump;
• electrical connection gas combination block;
• electrical connection three-way valve;
• most parts of the control unit;
• ignition transformer;
• X1, X2, X4, X5, X6 and X7 terminal strip;
• 230 V supply cable connection.
2.6.1 The control unit
The Remeha Avanta Plus has an electronic regulation and
control unit with an integrated ionisation flame detector. The
heart of the boiler control unit is a microprocessor, the ‘abc®’,
which controls and protects the boiler.
LT.AL.W7H.000.023
The boiler is not phase sensitive. The maximum rated input is
between 115 and 180 W (depending on boiler type).
The boiler is fully pre-wired internally, all external connections
can be made using the terminal strips X5 - X7 - X9 and 230
V input (X2 terminal). See the diagram for the position of the
connectors and fuse (F2) on the control unit.
The most important properties of the control unit are summa-
rized in table 04.

20
Remeha Avanta Plus
1
2
Manufacturer Sit Controls
Supply voltage 230 V – 1ph – 50 Hz
Pre-purge time 3 s
Post-purge time 5 s
Ignition time 2.5 s
Safety time 5 s
Anti-cycling time 3 till 10 min.
Fuse value F1 (230 V) 2 AT
DC fan (for 24s, 35c and 28c) 24 VDC
AC fan (for 39c only) 230 VAC
table 04 Control unit characteristics
m
Any loads other than those specified above are only allowed if
an isolating transformer is used.
The output of the Remeha Avanta Plus can be controlled in
the following ways:
On/off control – volt free switching - The boilers internal
control will modulate the output to achieve the flow tempera-
ture set point of the boiler. This contact is on the X9 terminal
strip (low voltage only).
Modulated control – Open Therm - The external controls will
modulate the boiler’s output to achieve the flow temperature
determined by the modulating regulator. This contact is on the
X9 terminal strip (low voltage only).
On/off control – 230 V switching - The boilers internal con-
trol will modulate the output to achieve the flow temperature
set point of the boiler. This contact is on the X2 terminal strip
(230 VAC only).
Modulated control – Open Therm in combination with an
externally mounted simple 230 V switching time clock -
The boiler will provide room compensated heating and time
control over CH and DHW (System boiler).
z
• All connections on terminal X1, X2, X4, X5, X6 and X7 are
230 VAC.
• All connections on terminal X9 are low voltage only.
2.7 Connecting external controls
• Release the two screws at the bottom of the front casing
and remove the front casing.
• Feed the cables through the grommet in the base of the
boiler.
• Connect the cables to the relevant connectors, as shown in
the diagrams.
LT.AL.W7H.000.024
{
• Isolate power supply at the fused spur before carrying out
any work on the boiler controls.
