REMEHA Quinta Pro 65 Manual

Great Britain
EN
Wall-hung gas condensing boilers
Quinta Pro 30 - 45 - 65 - 90 - 115
Installation and
Service Manual
123157-AF

EG declaration of conformity
The device complies with the standard type described in the EG
declaration of conformity. It was manufactured and commissioned in
accordance with European directives.
The original of the declaration of compliance is available from the
manufacturer.

Contents
1 Introduction ................................................................................................6
1.1 Symbols used .......................................................6
1.2 Abbreviations ........................................................6
1.3 General ..................................................................6
1.3.1 Manufacturer's liability .............................................6
1.3.2 Installer's liability .....................................................7
1.3.3 User's liability ..........................................................7
1.4 Homologations ......................................................8
1.4.1 Certifications ...........................................................8
1.4.2 Equipment categories .............................................8
1.4.3 Additional Directives ................................................8
1.4.4 Factory test .............................................................8
2Safety instructions and recommendations ..............................................9
2.1 Safety instructions ...............................................9
2.2 Recommendations ................................................9
3Technical description ..............................................................................11
3.1 General description ............................................11
3.2 Main parts ............................................................11
3.3 Operating principle .............................................11
3.3.1 Shunt pump ...........................................................11
3.3.2 System in cascade ................................................12
3.3.3 Calorifier connection .............................................12
3.3.4 Water flow rate ......................................................12
3.4 Technical specifications ....................................12
4 Installation ................................................................................................15
4.1 Regulations governing installation ...................15
4.2 Package list .........................................................15
4.2.1 Standard delivery ..................................................15
4.2.2 Accessories ...........................................................15
4.3 Choice of the location ........................................16
4.3.1 Data plate ..............................................................16
4.3.2 Location of the boiler .............................................17
4.3.3 Ventilation .............................................................17
4.3.4 Main dimensions ...................................................18
09/06/2011 - 123157-AF 1

4.4 Positioning the boiler .........................................19
4.5 Hydraulic connections .......................................20
4.5.1 Flushing the system ..............................................20
4.5.2 Connection of the heating circuit ...........................20
4.5.3 Connecting the expansion vessel .........................21
4.5.4 Connecting the condensate discharge pipe ..........21
4.6 Gas connection ...................................................22
4.7 Connections for the air and exhaust
pipes ....................................................................22
4.7.1 Classification .........................................................22
4.7.2 Outlets ...................................................................23
4.7.3 Lengths of the air/flue gas pipes ...........................24
4.7.4 Additional Directives ..............................................25
4.7.5 Connection of the combustion gas exhaust
pipe .......................................................................26
4.8 Electrical connections ........................................26
4.8.1 Control unit ............................................................26
4.8.2 Recommendations ................................................27
4.8.3 Standard control PCB ...........................................28
4.8.4 Connecting the pump ............................................29
4.8.5 Connecting a third party control unit .....................30
4.8.6 Connecting the outside temperature sensor ........31
4.8.7 Connect frost protection ........................................32
4.8.8 Connecting the calorifier sensor/thermostat .........33
4.8.9 PC/Laptop connection ...........................................33
4.8.10 Shutdown input .....................................................33
4.8.11 Release input ........................................................34
4.9 Optional electrical connections ........................35
4.9.1 Box for the control PCBs .......................................35
4.9.2 Connection options for the 0-10 V control PCB
(IF-01) ...................................................................36
4.9.3 Connection possibilities for the PCB (SCU-
S02) .......................................................................37
4.9.4 Connection possibilities for the PCB (SCU-
S03) .......................................................................39
4.9.5 Connection possibilities for the PCB (SCU-
X01) .......................................................................40
4.9.6 Connection possibilities for the PCB (SCU-
X02) .......................................................................40
4.9.7 Connection possibilities for the PCB (SCU-
X03) .......................................................................41
4.9.8 Connection possibilities for the PCB (c-Mix) .........42
4.10 Electrical diagram ...............................................43
4.11 Filling the system ...............................................44
4.11.1 Water treatment ....................................................44
4.11.2 Filling the siphon ...................................................44
4.11.3 Filling the system ..................................................45
Contents
09/06/2011 - 123157-AF 2

5 Commissioning ........................................................................................46
5.1 Control panel .......................................................46
5.1.1 Functions of the keys ............................................46
5.1.2 Meaning of the symbols on the display .................46
5.2 Check points before commissioning ................47
5.2.1 Preparing the boiler for commissioning .................47
5.2.2 Gas circuit .............................................................47
5.2.3 Hydraulic circuit .....................................................48
5.2.4 Electrical connections ...........................................48
5.3 Commissioning the boiler ..................................48
5.4 Gas settings ........................................................50
5.4.1 Adapting to another gas type ................................50
5.4.2 Setting the air/gas ratio (Full load) ........................51
5.4.3 Setting the air/gas ratio (Part load) ......................52
5.5 Finalizing work ....................................................53
5.6 Reading out measured values ...........................53
5.6.1 Reading the various current values .......................53
5.6.2 Readout from the hour counter and percentage of
successful starts ....................................................54
5.6.3 Status and sub-status ...........................................55
5.7 Changing the settings ........................................56
5.7.1 Parameter descriptions .........................................56
5.7.2 Modification of the user-level parameters .............58
5.7.3 Modification of the installer-level parameters ........58
5.7.4 Setting the maximum heat input for central heating
operation ...............................................................59
5.7.5 Return to the factory settings ................................61
5.7.6 Carrying out an auto-detect ...................................61
5.7.7 Setting the manual mode ......................................62
6 Switching off the boiler ............................................................................63
6.1 Installation shutdown .........................................63
6.2 Frost protection ..................................................63
7 Checking and maintenance .....................................................................64
7.1 Maintenance message ........................................64
7.2 Preventive maintenance with automated service
message ..............................................................64
7.2.1 Resetting the automatic maintenance
message ................................................................65
7.2.2 Dealing with the next maintenance message and
starting the new maintenance period ....................65
09/06/2011 - 123157-AF 3

7.3 Standard inspection and maintenance
operations ...........................................................66
7.3.1 Checking the hydraulic pressure ...........................66
7.3.2 Checking the ionization current .............................66
7.3.3 Checking the tightness of the flue gas evacuation and
air inlet connections ..............................................66
7.3.4 Checking combustion ............................................67
7.3.5 Checking the automatic air vent ............................68
7.3.6 Checking the siphon ..............................................68
7.3.7 Checking the burner and cleaning the heat
exchanger .............................................................69
7.4 Specific maintenance operations ......................70
7.4.1 Inspection of the ignition electrode ........................70
7.4.2 Replacing the non-return valve .............................71
7.4.3 Assembling the boiler ............................................72
8 Troubleshooting .......................................................................................73
8.1 Error codes ..........................................................73
8.2 Shutdowns and lock-outs ..................................76
8.2.1 Blockage ...............................................................76
8.2.2 Lock-out ................................................................76
8.3 Error memory ......................................................78
8.3.1 Error readout memorised ......................................79
8.3.2 Deletion of the error display ..................................80
9 Spare parts ................................................................................................81
9.1 General ................................................................81
9.2 Spare parts ..........................................................81
10 Checklists .................................................................................................86
10.1 Checklist for commissioning .............................86
10.2 Checklist for periodic inspection and
maintenance ........................................................87
Contents
09/06/2011 - 123157-AF 4

09/06/2011 - 123157-AF 5

1 Introduction
1.1 Symbols used
In these instructions, various danger levels are employed to draw the
user's attention to particular information. In so doing, we wish to
safeguard the user's safety, obviate hazards and guarantee correct
operation of the appliance.
DANGER
Risk of a dangerous situation causing serious physical
injury.
WARNING
Risk of a dangerous situation causing slight physical
injury.
CAUTION
Risk of material damage.
Signals important information.
¼ Signals a referral to other instructions or other pages in the
instructions.
1.2 Abbreviations
4Central heating: Central heating
4PCU: Primary Control Unit - PCB for managing burner operation
4PWM: Pulse Wide Modulation
4SCU: Secondary Control Unit - Electronic printed circuit board for
extra connections
1.3 General
1.3.1. Manufacturer's liability
Our products are manufactured in compliance with the requirements
of the various applicable European Directives. They are therefore
delivered with [ marking and all relevant documentation.
1. Introduction Quinta Pro 30 - 45 - 65 - 90 - 115
609/06/2011 - 123157-AF

In the interest of customers, we are continuously endeavouring to
make improvements in product quality. All the specifications stated in
this document are therefore subject to change without notice.
Our liability as the manufacturer may not be invoked in the following
cases:
4Failure to abide by the instructions on using the appliance.
4Faulty or insufficient maintenance of the appliance.
4Failure to abide by the instructions on installing the appliance.
1.3.2. Installer's liability
The installer is responsible for the installation and inital start up of the
appliance. The installer must respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
4Carry out installation in compliance with the prevailing legislation
and standards.
4Perform the initial start up and carry out any checks necessary.
4Explain the installation to the user.
4If a maintenance is necessary, warn the user of the obligation to
check the appliance and maintain it in good working order.
4Give all the instruction manuals to the user.
1.3.3. User's liability
To guarantee optimum operation of the appliance, the user must
respect the following instructions:
4Read and follow the instructions given in the manuals provided
with the appliance.
4Call on qualified professionals to carry out installation and initial
start up.
4Get your fitter to explain your installation to you.
4Have the required checks and services done.
4Keep the instruction manuals in good condition close to the
appliance.
This appliance is not intended to be used by persons (including
children) whose physcial, sensory or mental capacity is impaired or
persons with no experience or knowledge, unless they have the
benefit, through the intermediary of a person responsible for their
safety, of supervision or prior instructions regarding use of the
appliance. Care should be taken to ensure that children do not play
with the appliance.
Quinta Pro 30 - 45 - 65 - 90 - 115 1. Introduction
09/06/2011 - 123157-AF 7

1.4 Homologations
1.4.1. Certifications
CE identification no PIN 0063CL3333
NOx classification 5 (EN 297 pr A3, EN 656)
Type of connection
(Flue gas outlet)
B23, B23P, B33, C13, C33, C43, C53, C63, C83, C93
1.4.2. Equipment categories
Gas category Gas type Connection pressure (mbar)
II2H3P G20 (Gas H) 20
G31 (Propane) 37/50
1.4.3. Additional Directives
Apart from the legal provisions and Directives, the additional
Directives described in these instructions must also be observed.
For all provisions and Directives referred to in these instructions, it is
agreed that all addenda or subsequent provisions will apply at the
time of installation.
1.4.4. Factory test
Before leaving the factory, each boiler is set for optimum performance
and tested to check the following items:
4Electrical safety
4Adjustment (CO2)
4Water tightness
4Gas tightness
4Parameter settings
1. Introduction Quinta Pro 30 - 45 - 65 - 90 - 115
809/06/2011 - 123157-AF

2 Safety instructions and
recommendations
2.1 Safety instructions
DANGER
If you smell gas:
1. Do not use a naked flame, do not smoke, do not
operate electrical contacts or switches ( doorbell,
light, motor, lift, etc..).
2. Shut off the gas supply.
3. Open the windows.
4. Report any leaks immediately.
5. Trace possible leaks and seal them immediately.
6. If the gas leak is before the gas meter, contact the
gas supplier.
DANGER
If you smell flue gases:
1. Switch the appliance off.
2. Open the windows.
3. Report any leaks immediately.
4. Trace possible leaks and seal them immediately.
2.2 Recommendations
WARNING
4Installation and maintenance of the boiler must be
carried out by a qualified professional in compliance
with prevailing local and national regulations.
4When working on the boiler, always disconnect the
boiler from the mains and close the main gas inlet
valve.
4After maintenance or repair work, check all
installations to ensure that there are no leaks.
CAUTION
The boiler must be installed in a frost-free environment.
Keep this document close to the place where the boiler is
installed.
Quinta Pro 30 - 45 - 65 - 90 - 115 2. Safety instructions and recommendations
09/06/2011 - 123157-AF 9

Casing components
Only remove the casing for maintenance and repair operations. Put
the casing back in place after maintenance and repair operations.
Instructions stickers
The instructions and warnings affixed to the appliance must never be
removed or covered and must remain legible during the entire lifespan
of the appliance. Immediately replace damaged or illegible
instructions and warning stickers.
Modifications
Modifications may only be made to the boiler after the written
permission of Remeha to do so.
2. Safety instructions and recommendations Quinta Pro 30 - 45 - 65 - 90 - 115
10 09/06/2011 - 123157-AF

3 Technical description
3.1 General description
High-efficiency wall-hung condensing gas boilers
4High efficiency heating (Production of domestic hot water can be
ensured by a separate hot water calorifier).
4Low pollutant emissions.
4Very suitable for cascade systems with several boilers.
3.2 Main parts
1Smoke nozzle / Air intake
2Casing/air box
3Heat exchanger (Central heating)
4Outlet for measuring combustion gases
5Ignition/ionization electrode
6Mixer pipe
7Combined venturi and gas valve unit
8Air intake silencer
9Instrument box
10 Siphon
11 Box for the control PCBs
12 Fan
13 Water flow pipe
3.3 Operating principle
3.3.1. Shunt pump
The boiler is supplied without a pump. When choosing a pump, take
account of the boiler resistance and system resistance.
¼ See chapter: "Technical specifications", page 12.
If possible, install the pump directly under the boiler on the return
connection.
¼ See chapter: "Connection of the heating circuit", page 20.
T002036-B
8
7
4
55
6
2
3
9
11
10
12
13
1
Quinta Pro 30 - 45 - 65 - 90 - 115 3. Technical description
09/06/2011 - 123157-AF 11

CAUTION
The pump may have a maximum input of 200 W. Use an
auxiliary relay for a pump with a larger input.
3.3.2. System in cascade
The boiler is ideally suited for a cascade system. There are a number
of standard solutions available. For example:
4Cascade sets (quick assembly) for the installation of 2 to 6 boilers
next to each other or 3 to 6 boilers mounted back to back on a free-
standing frame. When the boilers are mounted next to each other,
they can be mounted either on the wall or on a free-standing frame.
4Low loss headers for a cascade system of 2 or 3 boilers (Quinta
Pro 45 and/or Quinta Pro 65). The flow and return of each boiler
can be directly connected to these.
Please contact us for further information.
3.3.3. Calorifier connection
A calorifier can be connected to the boiler. Our product range includes
various calorifiers.
Please contact us for further information.
The calorifier can be connected to the boiler in two ways:
4Using a three-way valve.
4Using a calorifier pump.
3.3.4. Water flow rate
The boiler's modulating control system limits the maximum difference
in temperature between the heating flow and return and the maximum
speed at which the flow temperature increases. For this reason the
boiler is, so to speak, insensitive to a flow which is too low.
In all cases, maintain a minimum water flow of 0.4 m3/h.
3.4 Technical specifications
Boiler type Quinta Pro 30 45 65 90 115
General
EC indentification no. PIN 0063CL3333
Gas Council number 41-288-15 41-288-16 41-288-17
Flow rate setting Adjustable Modulating, Start/Stop, 0 - 10 V
(1) Front panel removed
3. Technical description Quinta Pro 30 - 45 - 65 - 90 - 115
12 09/06/2011 - 123157-AF

Boiler type Quinta Pro 30 45 65 90 115
Nominal output (Pn)
Heating System (80/60 °C)
minimum-
maximum
kW 8.0 - 29.3 8.0 - 40.0 12.0 - 61.0 14.1 - 84.2 16.6 - 107.0
Factory setting kW 29.3 40.0 61.0 84.2 107.0
Nominal output (Pn)
Heating System (50/30 °C)
minimum-
maximum
kW 8.9 - 31.4 8.9 - 43.0 13.3 - 65.0 15.8 - 89.5 18.4 - 114.0
Factory setting kW 31.4 43.0 65.0 89.5 114.0
Nominal input (Qn)
Heating System (Hi)
minimum-
maximum
kW 8.2 - 30.0 8.2 - 41.2 12.2 - 62.0 14.6 - 86.0 17.2 - 110.2
Factory setting kW 30.0 41.2 62.0 86.0 110,2
Nominal input(Qn)
Heating System (Hs)
minimum-
maximum
kW 9.1 - 33.3 9.1 - 45.7 13.6 - 68.8 16.2 - 95.5 19.1 - 122.4
Factory setting kW 33.3 45.7 68.8 95.5 122.4
Heating efficiency under full load
(Hi) (80/60 °C) - % 97.5 97.2 98.3 97.9 96.6
Heating efficiency under full load
(Hi) (50/30 °C) - % 102.9 102.9 104.6 104.1 102.5
Heating efficiency under partial
load (Hi) (Return temperature
60°C)
- % 97.5 97.5 98.3 96.6 96.5
Heating efficiency under partial
load (EN 92/42)(Return
temperature 30°C)
- % 107.7 107.7 108.9 108.1 107.1
Data on the gases and combustion gases
Gas categories - II2H3P
Gas inlet pressure at boiler
connection - G20 (Gas H)
minimum-
maximum mbar 17- 30
Gas inlet pressure at boiler
connection - G31 (Propane)
minimum-
maximum mbar 37 - 50
Gas resistance between boiler
connection and measurement
point on the gas valve unit
mbar 1 1 2 2.5 3
Gas consumption - G20 (Gas H) minimum-
maximum
m3/h 0.9 - 3.3 0.9 - 4.4 1.3 - 6.6 1.5 - 9.1 1.8 - 11.7
Gas consumption - G31
(Propane)
minimum-
maximum
m3/h 0.3 - 1.3 0.3 - 1.7 0.5 - 2.5 0.6 - 3.5 0.6 - 4.7
NOx-Emission per year
(BREEAM) mg/kWh 37 37 32 29 35
Mass flue gas flow rate minimum-
maximum
kg/h 14 - 50 14 - 69 21 - 104 28 - 138 36 - 178
Flue gas temperature minimum-
maximum
°C 30- 65 30 - 67 30 - 68 30 - 68 30 - 72
Maximum counter pressure Pa 70 150 100 160 220
Characteristics of the heating circuit
Water content l 5.5 5.5 6.5 7.5 7.5
Water operating pressure minimum bar 0,8
Water operating pressure (Open
vented) minimum bar 0.3 0.3 0.3 0.3 0.5
Water operating pressure (PMS) maximum bar 4.0
Water temperature maximum °C 110
Water temperature (Open
vented) maximum °C 95
Operating temperature maximum °C 90
Operating temperature (Open
vented)
maximum °C 80
Water resistance (∆T = 20K) mbar 70 90 130 140 250
(1) Front panel removed
Quinta Pro 30 - 45 - 65 - 90 - 115 3. Technical description
09/06/2011 - 123157-AF 13

Boiler type Quinta Pro 30 45 65 90 115
Electrical characteristics
Power supply voltage VAC/Hz 230/50
Power consumption - Full load maximum W 39 68 88 125 199
Power consumption - Part load maximum W 18 18 23 20 45
Power consumption - Standby maximum W 5 5 6 4 7
Electrical protection index IP X4D
Other characteristics
Weight (empty) Total kg 53 53 60 67 68
Mounting(1) kg 49 49 56 65 65
Acoustic level at 1 metre dB(A) 38 45 45 52 51
(1) Front panel removed
3. Technical description Quinta Pro 30 - 45 - 65 - 90 - 115
14 09/06/2011 - 123157-AF

4 Installation
4.1 Regulations governing installation
WARNING
The engineer must be Gas Safe registered and have the
correct ACS qualifications.
Installation of the appliance must be done by a qualified
engineer in accordance with prevailing local and national
regulations.
4.2 Package list
4.2.1. Standard delivery
The delivery includes:
4The boiler, fitted with a connection cable
4Connection cable for pump
4Mounting rail and mounting accessories for wall mounting
4Mounting template
4Installation and Service Manual
These installation and maintenance instructions deal only with the
items included in a standard delivery. For installation and assembly
of any accessories supplied with the boiler, see the relevant
installation/assembly instructions.
4.2.2. Accessories
Description
Remeha Celcia 10 on/off thermostat
Remeha qSense basic modulating control system
Remeha iSense extended modulating control system
Cascade controller
Outside temperature sensor
Flue kit
Combustion gas adapter 80/80 (Quinta Pro 30/45)
Combustion gas adapter 100/100 (Quinta Pro 65/90/115)
Calorifier tank
Kit for connection to the water heater
DHW sensor
Modulating pump
Quinta Pro 30 - 45 - 65 - 90 - 115 4. Installation
09/06/2011 - 123157-AF 15

Description
3 -speed pump
Flue gas thermostat
Cascade set (For fitting a Quinta Pro boiler in a Quinta cascade frame)
Cascade set
Duo and Trio low loss headers
Various control PCBs
Protective cover for the connections
Exchanger cleaning tool
Maintenance box
Recom communication kit
4.3 Choice of the location

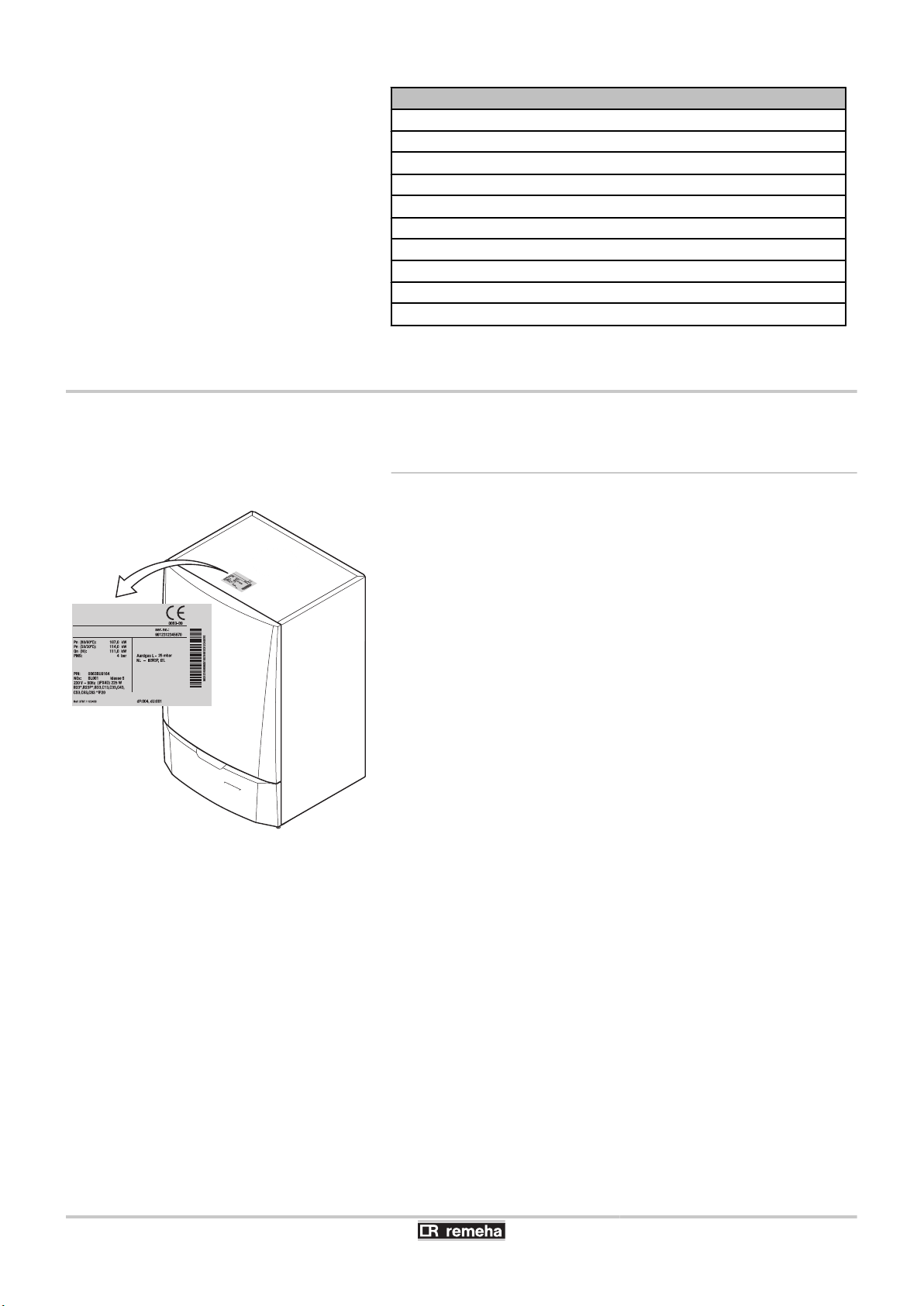

4.3.1. Data plate
The data plate located on top of the boiler provides important
information on the appliance: serial number, model, gas category, etc.
T001982-A
4. Installation Quinta Pro 30 - 45 - 65 - 90 - 115
16 09/06/2011 - 123157-AF

4.3.2. Location of the boiler
4Before mounting the boiler, decide on the ideal position for
mounting, bearing the Directives and the dimensions of the
appliance in mind.
4When choosing the position for mounting the boiler, bear in mind
the authorised position of the combustion gas discharge outlets
and the air intake opening.
4To ensure adequate accessibility to the appliance and facilitate
maintenance, leave enough space around the boiler.
WARNING
4Fix the appliance to a solid wall capable of bearing
the weight of the appliance when full of water and fully
equipped.
4It is forbidden to store inflammable products and
materials in the boiler room or close to the boiler,
even temporarily.
CAUTION
4The boiler must be installed in a frost-free
environment.
4An earthed electrical connection must be available
close to the boiler.
4A connection to the mains drainage system for the
discharge of condensate must be available close to
the boiler.

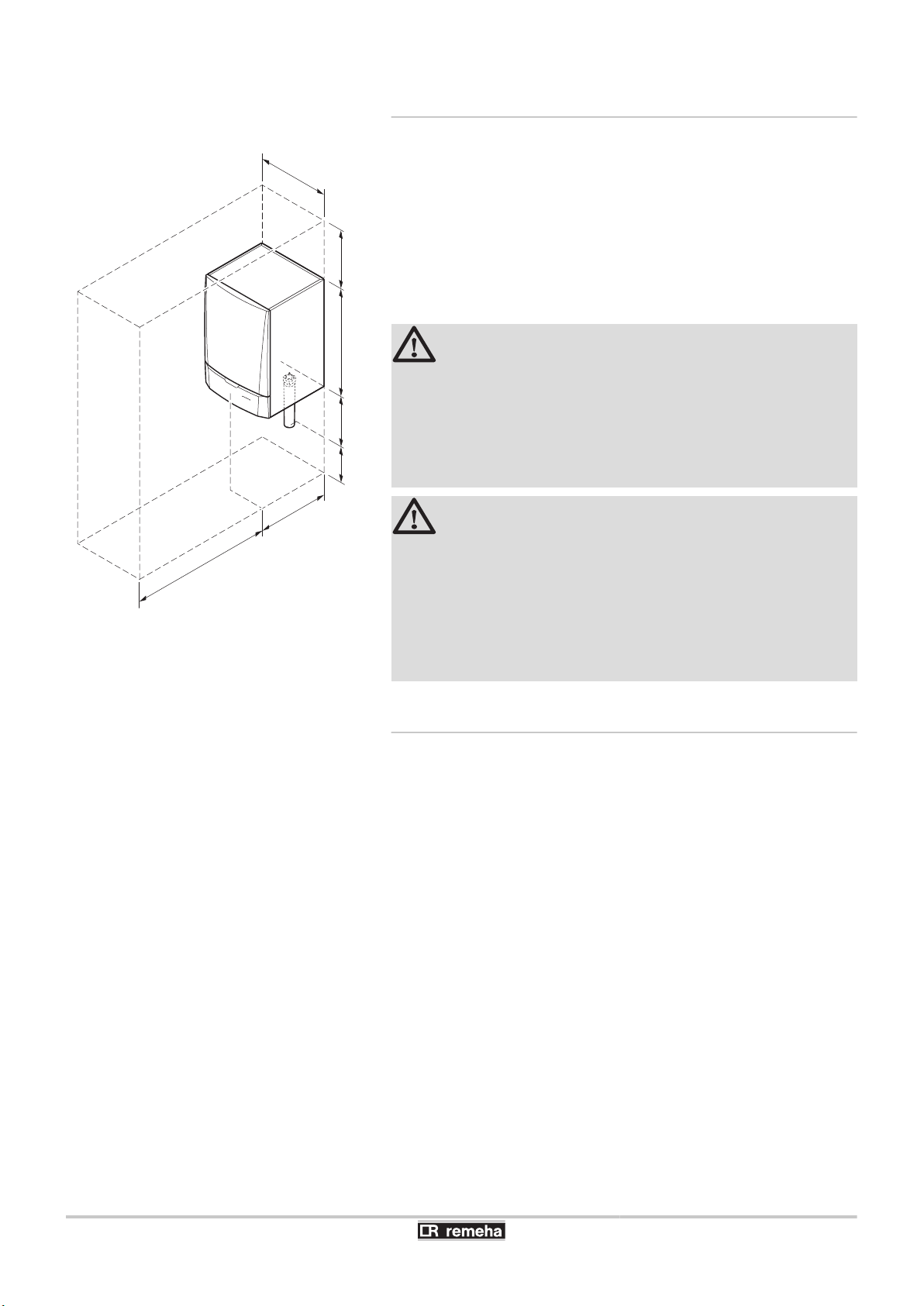

4.3.3. Ventilation
The installation must comply with BS 5540 (part 1 + 2), BS 6640 en
IGUP/10.
T002599-B
500
min.1000 500
min.
400
350
min.
250
750
Quinta Pro 30 - 45 - 65 - 90 - 115 4. Installation
09/06/2011 - 123157-AF 17

4.3.4. Main dimensions
iConnection of the combustion gas exhaust pipe ;
Ø 80 mm (≤ 45 kW) / Ø 100 mm (≥ 65 kW)
hConnection of the air intake pipe ;
Ø 125 mm (≤ 45 kW) / Ø 150 mm (≥ 65 kW)
âSiphon connection bush
zHeating circuit return ; 1 ¼" Male thread
Gas /
Gaz
Gas connection ; ¾" Male thread
{Heating circuit flow ; 1 ¼" Male thread
T002614-C
191
500
750
500
100
50
50
130
191
365
4. Installation Quinta Pro 30 - 45 - 65 - 90 - 115
