REMKO SWK 4 User manual

Assembly instructions
Read the instructions prior to performing any task!
REMKO noise protection hood SWK 4, SWK 5, SWK 7
for REMKO heat pumps
0162-2018-01 Edition 2, en_GB

Translation of the original assembly instructions
Read these operating instructions carefully before commis-
sioning / using this device!
These instructions are an integral part of the system and must
always be kept near or on the device.
Subject to modifications; No liability accepted for errors or mis-
prints!

Table of contents
1 Safety and usage instructions............................................................................................................. 4
1.1 General safety notes....................................................................................................................... 4
1.2 Identification of notes...................................................................................................................... 4
1.3 Personnel qualifications.................................................................................................................. 4
1.4 Dangers of failure to observe the safety notes................................................................................ 4
1.5 Safety-conscious working............................................................................................................... 5
1.6 Safety instructions for the operator................................................................................................. 5
1.7 Safety notes for installation and inspection tasks........................................................................... 5
1.8 Unauthorised modification and changes......................................................................................... 5
1.9 Intended use................................................................................................................................... 5
1.10 Guarantee..................................................................................................................................... 6
1.11 Transport and packaging............................................................................................................... 6
1.12 Environmental protection and recycling........................................................................................ 6
2 Technical data........................................................................................................................................ 7
2.1 Noise protection hood dimensions.................................................................................................. 7
2.2 Dimensions for noise protection hoods with outdoor units.............................................................. 8
2.3 Product data.................................................................................................................................... 9
2.4 Fire classification............................................................................................................................. 9

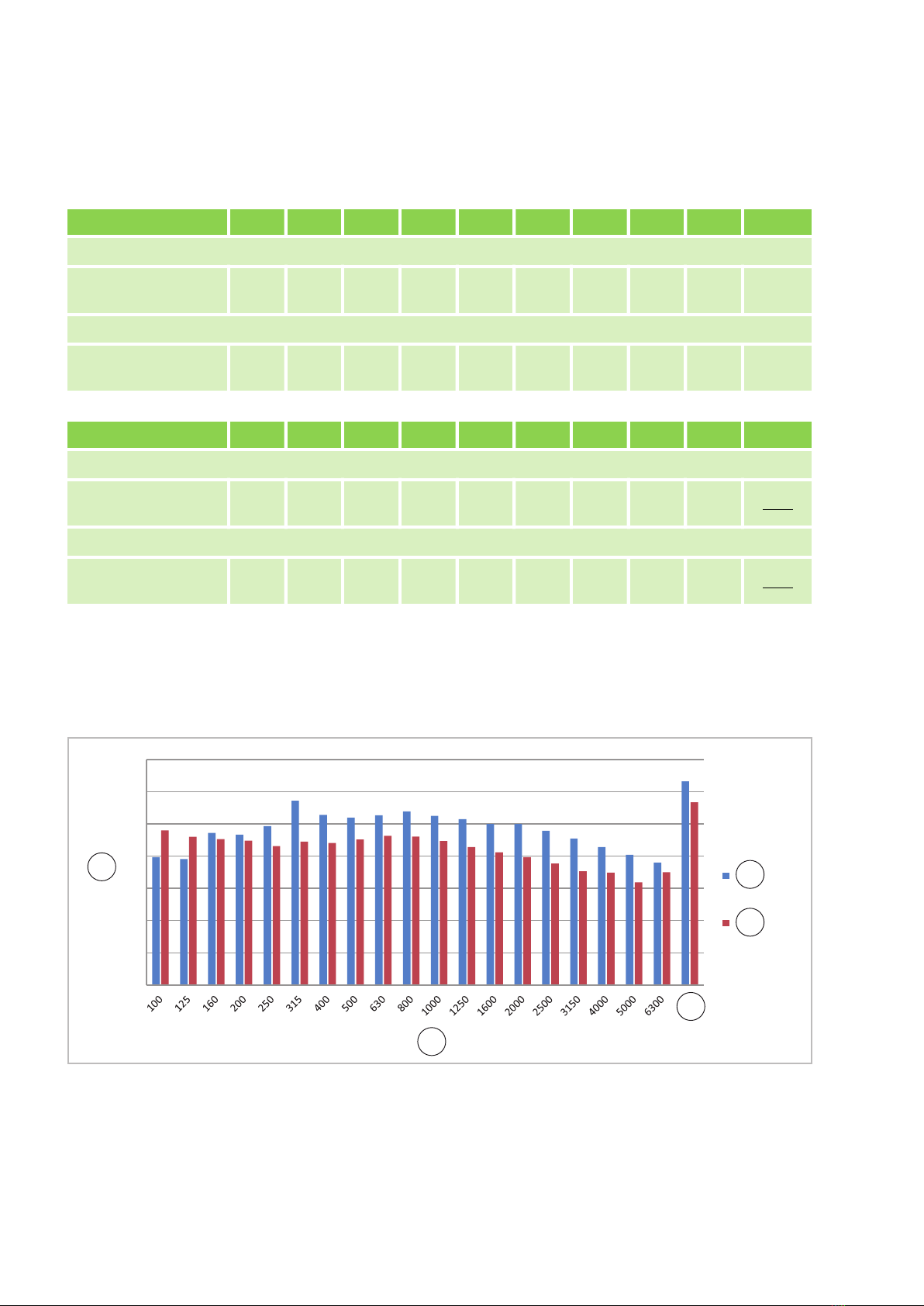

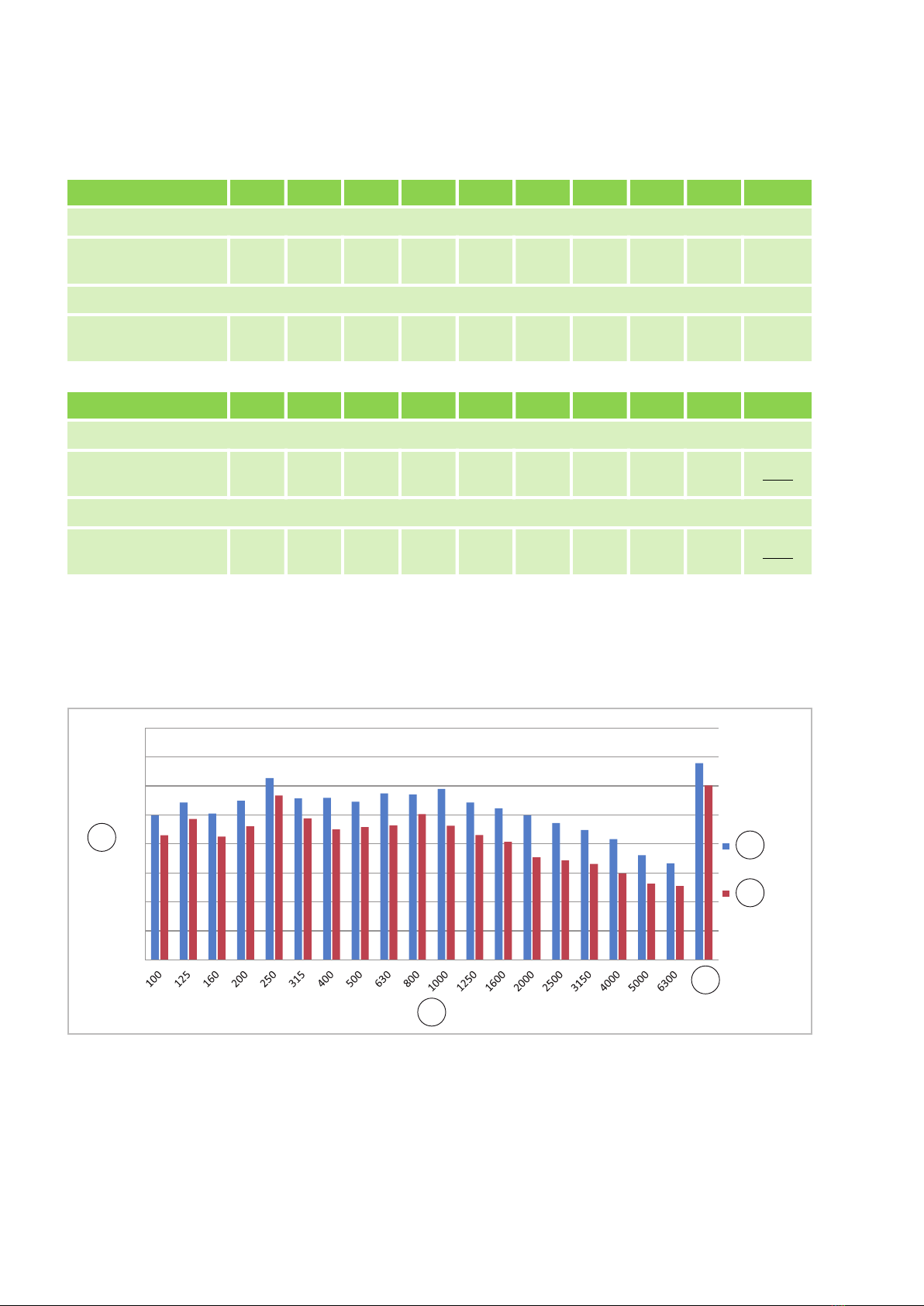

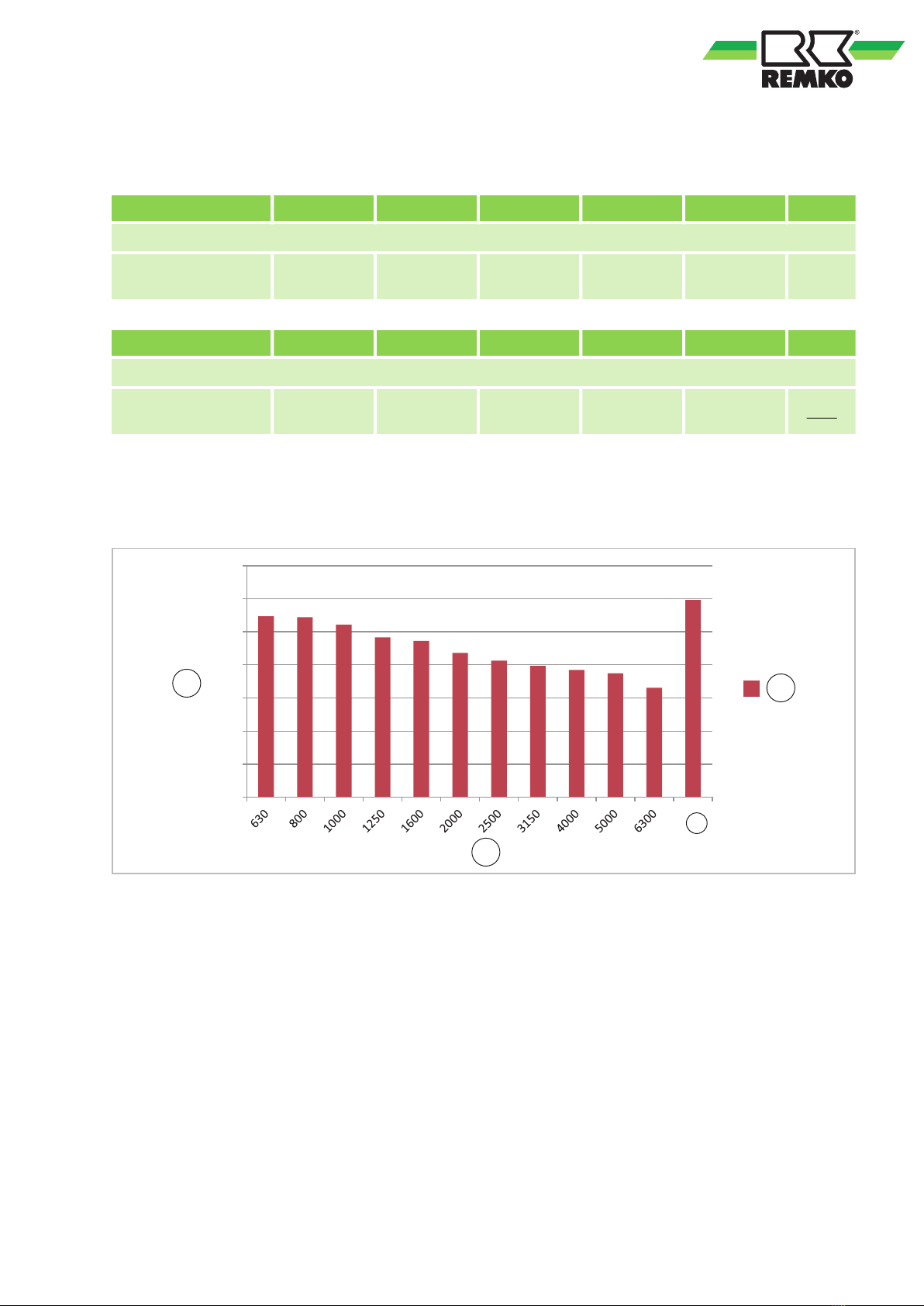

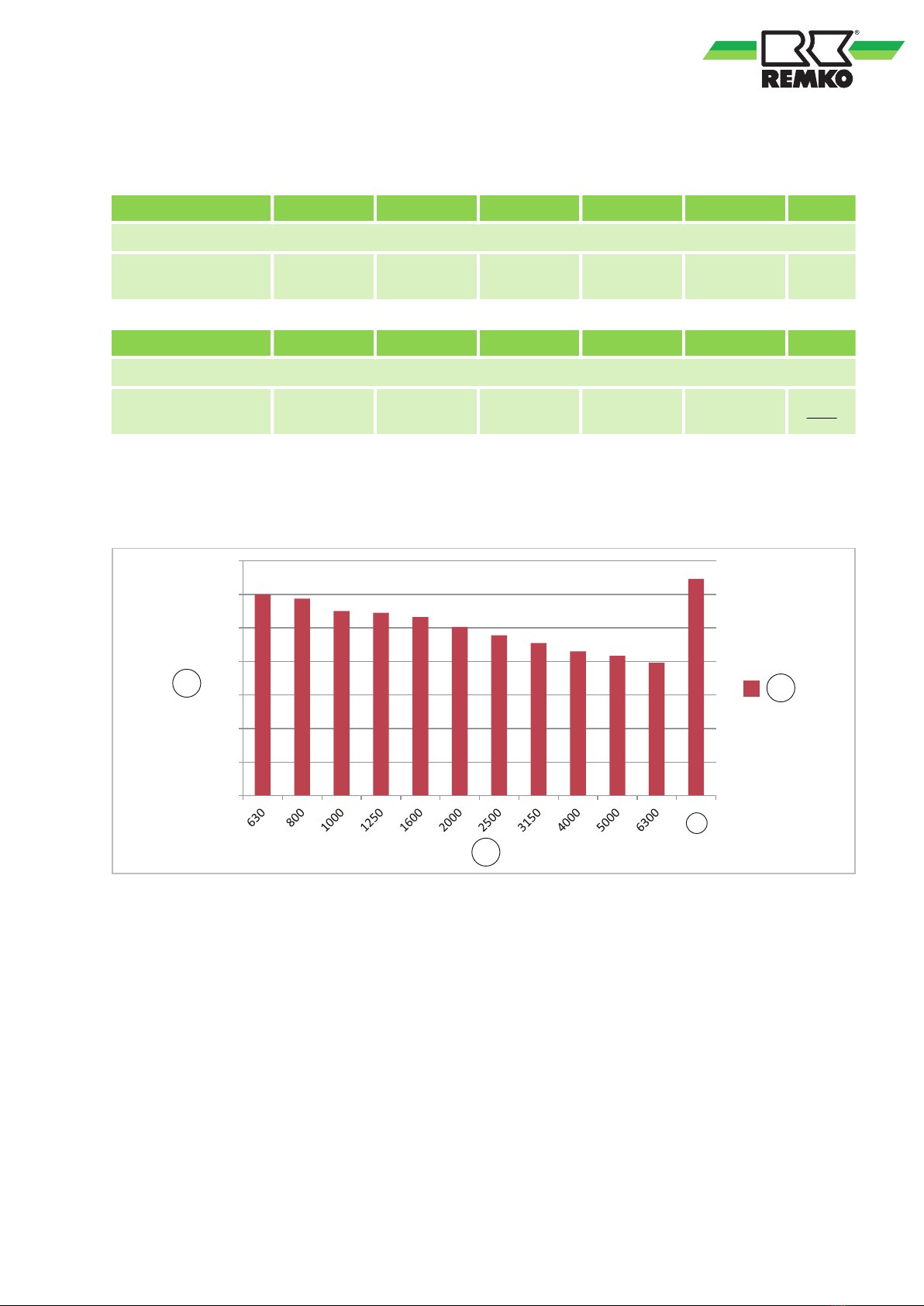

2.5 Reduce the sound power level ..................................................................................................... 10
3 Product description............................................................................................................................ 16

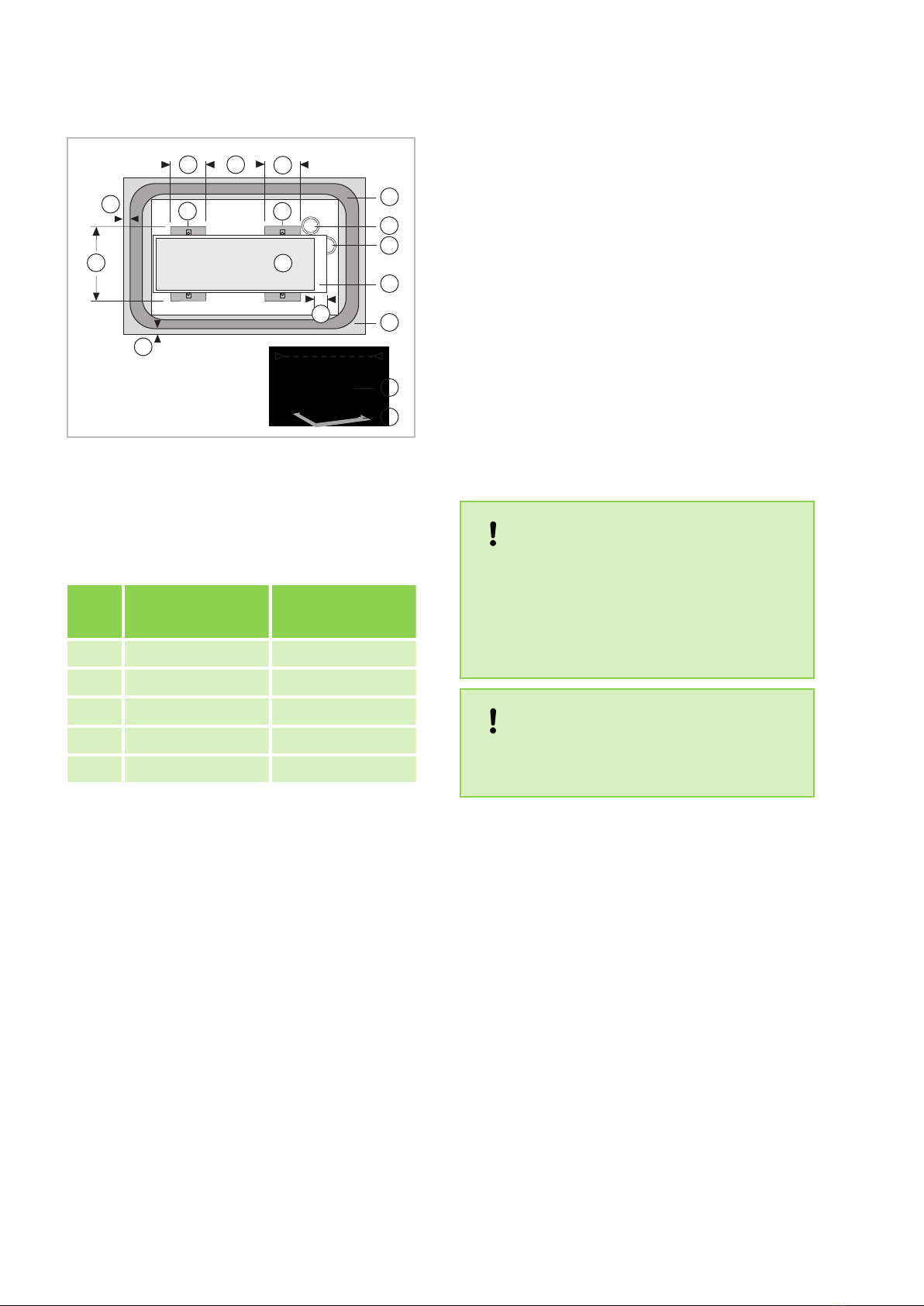

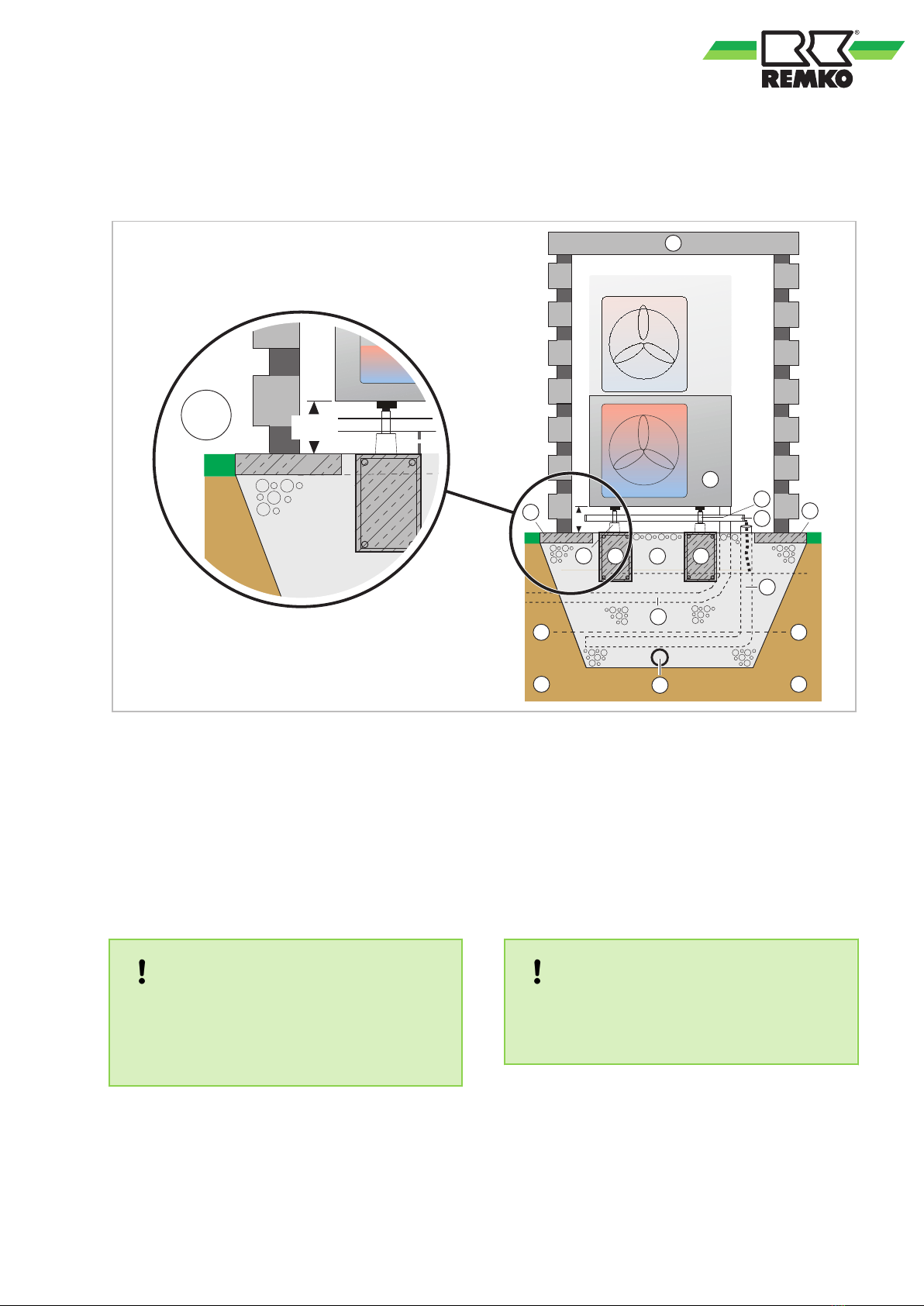

4Setting up the outdoor unit and the noise protection hood........................................................... 17
5 Design of the noise protection hood................................................................................................. 19
6 Exploded view of product and spare parts....................................................................................... 30
6.1 Exploded view of and spare parts list for noise protection hood SWK 4....................................... 30
6.2 Exploded view of and spare parts list for noise protection hood SWK 5....................................... 33
6.3 Exploded view of and spare parts list for noise protection hood SWK 7....................................... 36
7 Index..................................................................................................................................................... 39
3

1 Safety and
usage instructions
1.1 General safety notes
Carefully read the operating manual before instal-
ling the accessory item. It provides useful tips and
notes such as hazard warnings to prevent injury
and material damage. Failure to follow the direc-
tions in this manual can endanger persons, the
environment and the equipment itself or its compo-
nents and will void any claims for liability.
Keep this operating manual close to the accessory
item.
NOTICE!
The noise protection hood must never be
cleaned using a high pressure cleaner!
Do not use any sharp objects for cleaning!
1.2 Identification of notes
This section provides an overview of all important
safety aspects for proper protection of people and
safe and fault-free operation. The instructions and
safety notes contained within this manual must be
observed in order to prevent accidents, personal
injury and material damage.
Notes attached directly to the accessory items
must be observed in their entirety and be kept in a
fully legible condition.
Safety notes in this manual are indicated by sym-
bols. Safety notes are introduced with signal words
which help to highlight the magnitude of the danger
in question.
DANGER!
Contact with live parts poses an immediate
danger of death due to electric shock. Damage
to the insulation or individual components may
pose a danger of death.
DANGER!
This combination of symbol and signal word
warns of a situation in which there is immediate
danger, which if not avoided may be fatal or
cause serious injury.
WARNING!
This combination of symbol and signal word
warns of a potentially hazardous situation,
which if not avoided may be fatal or cause
serious injury.
CAUTION!
This combination of symbol and signal word
warns of a potentially hazardous situation,
which if not avoided may cause injuries or
material and environmental damage.
NOTICE!
This combination of symbol and signal word
warns of a potentially hazardous situation,
which if not avoided may cause material and
environmental damage.
This symbol highlights useful tips and recom-
mendations as well as information for efficient
and fault-free operation.
1.3 Personnel qualifications
Personnel responsible for commissioning, opera-
tion, maintenance, inspection and installation must
be able to demonstrate that they hold a qualifica-
tion which proves their ability to undertake the
work.
1.4 Dangers of failure to observe
the safety notes
Failure to observe the safety notes may pose a risk
to people, the environment and the units. Failure to
observe the safety notes may void any claims for
damages.
In particular, failure to observe the safety notes
may pose the following risks:
nThe failure of important unit functions.
nThe failure of prescribed methods of mainte-
nance and repair.
nDanger to people on account of electrical and
mechanical effects.
REMKO noise protection hood
4

1.5 Safety-conscious working
The safety notes contained in this manual, the
existing national regulations concerning accident
prevention as well as any internal company
working, operating and safety regulations must be
observed.
1.6 Safety instructions for the oper-
ator
The operational safety of the units and compo-
nents is only assured providing they are used as
intended and in a fully assembled state.
nThe units and components may only be set up,
installed and maintained by qualified per-
sonnel.
nThe existing regulations concerning accident
prevention must be adhered to.
nDo not operate units or components with
obvious defects or signs of damage.
nContact with equipment parts or components
can lead to injuries.
nEnsure that electrical energy does not pose a
risk.
nRegulations of the VDE and the local energy
supply company must be adhered to.
NOTICE!
The noise protection hood must never be
cleaned using a high pressure cleaner!
Do not use any sharp objects for cleaning!
NOTICE!
Material damage due to mineral oils!
Mineral oil products permanently damage
EPDM seal elements; the sealing properties
may therefore be lost. We do not take responsi-
bility or provide warranty replacements for
damage caused by seals that are damaged in
this way.
–It is essential that you prevent EPDM from
coming into contact with mineral oil sub-
stances.
–Use a lubricant that is free of mineral oil and
has a silicone or polyalkylene basis, such
as Unisilkon L250L and Syntheso Glep 1
made by Klüber, or a silicon spray.
1.7 Safety notes for installation and
inspection tasks
nThe operator must ensure that all inspection
and installation work is carried out by author-
ised and qualified personnel who have thor-
oughly read the operating manual.
nWork on the noise protection hood may only
ever be carried out when the system is sta-
tionary.
nAppropriate hazard prevention measures must
be taken to prevent risks to people when per-
forming installation, repair, maintenance or
cleaning work on the units.
nThe setup, connection and operation of the
units and its components must be undertaken
in accordance with the usage and operating
conditions stipulated in this manual and comply
with all applicable regional regulations.
nRegional regulations and laws as well as the
Water Ecology Act must be observed.
nThe units and components must be kept at an
adequate distance from flammable, explosive,
combustible, abrasive and dirty areas or
atmospheres.
CAUTION!
Ensure that the outdoor unit is shut down and
secured to prevent a restart during the installa-
tion, maintenance and repair times in order to
prevent injuries caused by the fan starting up!
1.8 Unauthorised modification and
changes
The operational safety of the noise protection hood
that was delivered is guaranteed only when used
as intended.
Modifications or changes to units and components
are not permitted and may cause malfunctions.
Original replacement parts and accessories
authorised by the manufacturer ensure safety. The
use of other parts may invalidate liability for
resulting consequences.
1.9 Intended use
The noise protection hood is only intended as a
noise and weather protector for outdoor units on
the heat pumps.
Any different or additional use is a non-intended
use. The manufacturer/supplier assumes no lia-
bility for damages arising from non-intended use.
The user bears the sole risk in such cases.
Intended use also includes working in accordance
with the operating and installation instructions and
complying with the maintenance requirements.
5

The threshold values specified in the technical
data must not be exceeded.
1.10 Guarantee
As a prerequisite for any guarantee claims to be
considered, it is essential that the ordering party or
its representative complete and return the "certifi-
cate of warranty" to REMKO GmbH & Co. KG at
the time when the units are purchased and com-
missioned. The warranty conditions are listed in
the "General terms and conditions". Furthermore,
only the parties to a contract can conclude special
agreements beyond these conditions. In this case,
contact your contractual partner in the first
instance.
1.11 Transport and packaging
The items are shipped in sturdy transport pack-
aging. Immediately check the components upon
delivery and make a note of any damage or
missing parts on the delivery note. Inform the for-
warding agent and contractual partner. Claims
under guarantee made at a later date will not be
accepted.
WARNING!
Plastic films and bags etc. are dangerous
toys for children!
Why:
- Leave packaging material are not around.
- Packaging material may not be accessible to
children!
NOTICE!
Sharp objects will damage the noise protection
hood's surface.
Remove the packaging carefully!
1.12 Environmental protection and
recycling
Disposing of packaging
All products are packed for transport in environ-
mentally friendly materials. Make a valuable contri-
bution to reducing waste and sustaining raw mate-
rials. Only dispose of packaging at approved
collection points.
Disposing of the units and their components
For the manufacture of the units and components,
only recyclable materials have been used. Help
protect the environment by ensuring that the units
or components (for example batteries) are not dis-
posed of in household waste, but only in accord-
ance with local regulations and in an environmen-
tally safe manner, e.g. using authorised disposal
and recycling specialists or council collection
points.
REMKO noise protection hood
6

2 Technical data
2.1 Noise protection hood dimensions
1385
1100
A
1150
118
860
B
C
D
Fig. 1: Noise protection hood dimensions (all dimensions in mm)
Series SWK 4 SWK 5 SWK 7
Heat pump type WKF 70 WKF 120 WKF 180
A 1155 1400 1880
B 500 615 1260
C 565 570 570
D 275 405 315
7

2.2 Dimensions for noise protection hoods with outdoor units
A
E
C
G
B
D
1
F
IH 1
Fig. 2: Dimensions for noise protection hoods with outdoor units
Series SWK 4 SWK 5 SWK 7
Heat pump type WKF 70 WKF 120 WKF 180
1 Outdoor unit
A 510
B 304 198 195
C 454 452 455
D - to fan middle 687 739 741
Minimum distances
E - to building wall 300
F - from outdoor unit to building wall 700
G - between two outdoor units 1000
H - from the outside edge of the hood to
the foot middle of the unit 407 393
I - from the outside edge of the hood to the
foot middle of the unit 318 372
From the unit's bottom edge to the top
edge of the solid base (see Fig. 4) 200
All dimensions in mm
REMKO noise protection hood
8

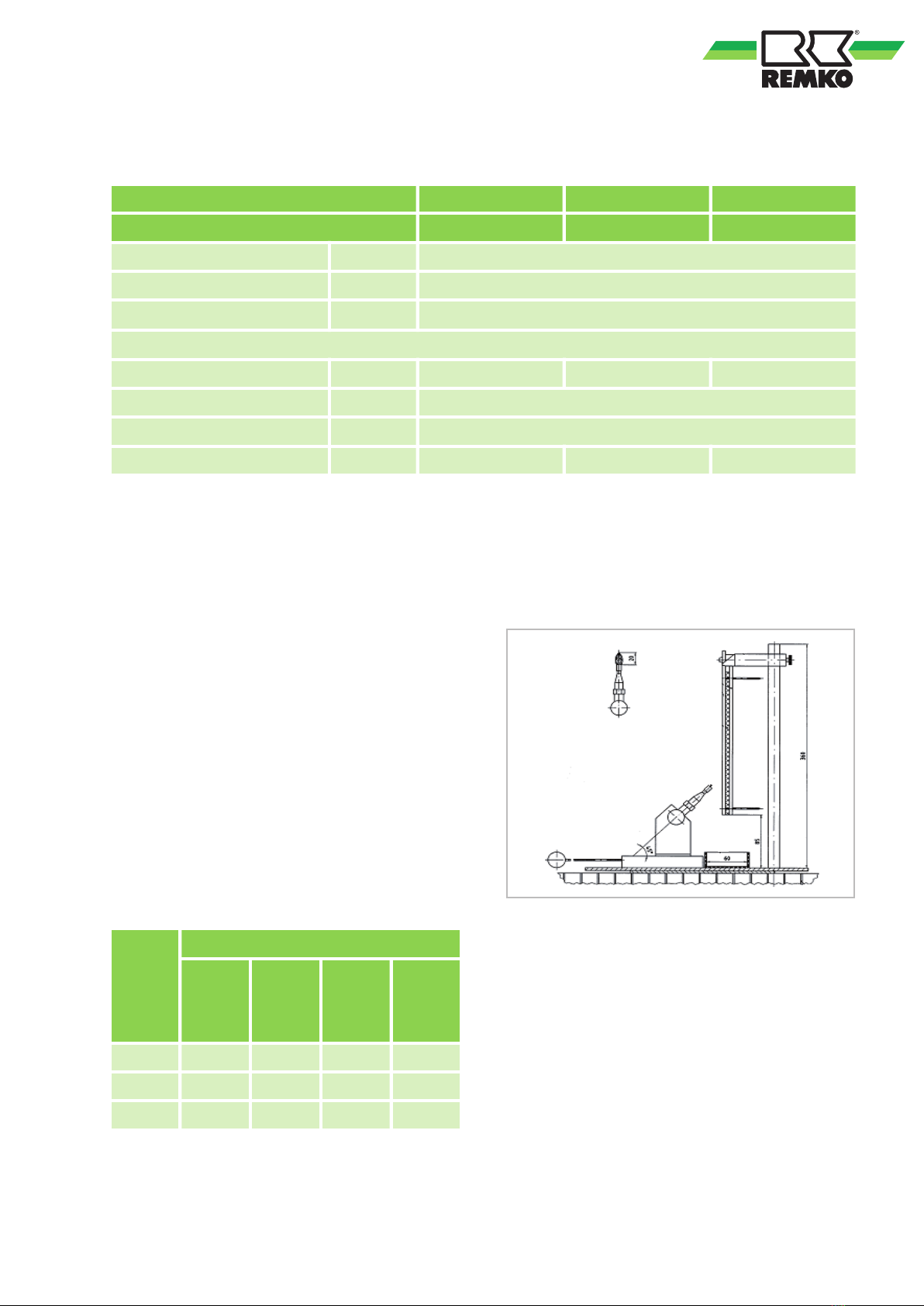

2.3 Product data
Series SWK 4 SWK 5 SWK 7
Heat pump type WKF 70 WKF 120 WKF 180
Noise suppression material EPP-polypropylene
Tonality dB(A) omitted
Fire protection class EPP 1) B2
Hood dimensions
Height mm 1155 1400 1880
Width mm 1385
Depth mm 1100
Weight kg 40 43 48
1) You will find further information in the safety data sheets; we shall be happy to provide these.
We reserve the right to make technical changes in connection with technical advancement.
2.4 Fire classification
Fire behaviour of building materials and com-
ponents (DIN 4102-1)
In DIN 4102-01, differentiation is made between
non-combustible (A1, A2) and combustible (B1,
B2, B3) building materials. This concerns the ver-
tical flame treatment of the test specimens. In addi-
tion to the fire speed, a fire shaft test (flue gas tem-
perature) is also conducted for the B1
classification.
EPP is classified among the combustible building
materials, which can be sub-categorised as fol-
lows:
nnot easily combustible B1
nflammable B2
neasily flammable B3
Current listing according to DIN 4102-1
for EPP standard
Thick-
ness of
the
panel
sec-
tions
Density [kg/m3]
30 40 60 80
10 mm B3 B3 B3/B2* B2
20 mm B3/B2* B2 B2 B2
30 mm B2 B2 B2 B2
* With use with covered edges, building material
class B2
Current listing according to DIN 4102-1/-16
for EPP FR
B1 (thickness: 10-40 mm, density: 40-60 g/L)
Fig. 3: Assembly for the vertical flame treatment of
the test specimens
Remark:
The information provided here is based on our cur-
rent knowledge and experience. It does not
release the user from conducting their own tests
and investigations, due to possible influential fac-
tors of the particle foam moulded parts or other
components present in the vicinity. It is not pos-
sible to derive any legally binding assurance of
specific characteristics or suitability for a certain
application case from this technical data. It is the
sole responsibility of the recipient of our products
to check for any infringements of industrial prop-
erty rights, laws and provisions.
9

2.5 Reduce the sound power level
Reduce the sound power level of a WKF 70 1) with the sound absorption hood SWK 4
Middle frequen. [Hz] 100 125 160 200 250 315 400 500 630 800
Measuring results from independent test report 2)
Sound power level
LWA [dB(A)] 37,9 39,1 47,2 46,7 49,3 57,2 52,8 52,0 52,7 53,9
Measuring results with the sound absorption hood 3),4)
Sound power level
LWA [dB(A)] 48,0 46,0 45,3 44,8 43,1 44,5 44,1 45,2 46,3 46,1
Middle frequen. [Hz] 1000 1250 1600 2000 2500 3150 4000 5000 6300 Total
Measuring results from independent test report 2)
Sound power level
LWA [dB(A)] 52,5 51,5 50,0 50,0 47,9 45,5 42,8 40,4 38,0 63,2
Measuring results with the sound absorption hood 3),4)
Sound power level
LWA [dB(A)] 44,7 42,8 41,2 39,7 37,7 35,3 34,9 31,9 35,0 56,7
1) Compressor frequency 54 Hz
2) Measurement in accordance with DIN EN ISO 9614-2 (12/1996) and DIN EN 12102 (09/2008)
3) Measurement in accordance with DIN EN ISO 3744
4) Less the measurement uncertainty of 4 dB(A) in accordance with DIN EN ISO 3744
2
1
A
B
63,2 dB(A)
56,7 dB(A)
0
10
20
30
40
50
60
70
a
A: Sound power level LWA [dB(A)]
B: Middle frequency [Hz]
a: Sound power level total
1: Measuring results independent test report
2: Measuring results with the sound absorption
hood
REMKO noise protection hood
10

Sound power level of a WKF 70 with a compressor frequency of 81 Hz with the sound absorption
hood SWK 4
Middle frequen. [Hz] 630 800 1000 1250 1600 2000
Measuring results with the sound absorption hood 3),4),5)
Sound power level
LWA [dB(A)] 46,4 47,4 46,0 42,8 41,3 38,8
Middle frequen. [Hz] 2500 3150 4000 5000 6300 Total
Measuring results with the sound absorption hood 3),4),5)
Sound power level
LWA [dB(A)] 37,2 35,5 36,3 30,3 29,0 52,9
3) Measurement in accordance with DIN EN ISO 3744
4) Less the measurement uncertainty of 4 dB(A) in accordance with DIN EN ISO 3744
5) Less room adjustment of 3.3 dB(A) assuming an absolute comparative measurement with the use of a
comparable sound source in accordance with DIN EN ISO 3744
1
A
B
a
52,9 dB(A)
0
10
20
30
40
50
60
A: Sound power level LWA [dB(A)]
B: Middle frequency [Hz]
a: Sound power level total
1: Measuring results with the sound absorption
hood
11

Reduce the sound power level of a WKF 120 1) with the sound absorption hood SWK 5
Middle frequen. [Hz] 100 125 160 200 250 315 400 500 630 800
Measuring results from independent test report 2)
Sound power level
LWA [dB(A)] 49,9 54,3 50,5 54,9 62,7 55,7 55,9 54,6 57,4 57,1
Measuring results with the sound absorption hood 3),4)
Sound power level
LWA [dB(A)] 43,0 48,6 42,5 46,1 56,7 48,8 45,0 45,8 46,4 50,3
Middle frequen. [Hz] 1000 1250 1600 2000 2500 3150 4000 5000 6300 Total
Measuring results from independent test report 2)
Sound power level
LWA [dB(A)] 59,0 54,3 52,3 49,9 47,2 44,8 41,7 36,1 33,3 67,9
Measuring results with the sound absorption hood 3),4)
Sound power level
LWA [dB(A)] 46,3 43,1 40,7 35,4 34,3 33,1 29,8 26,3 25,5 60,2
1) Compressor frequency 60 Hz
2) Measurement in accordance with DIN EN ISO 9614-2 (12/1996) and DIN EN 12102 (09/2008)
3) Measurement in accordance with DIN EN ISO 3744
4) Less the measurement uncertainty of 4 dB(A) in accordance with DIN EN ISO 3744
2
1
A
B
a
67,9 dB(A)
60,2 dB(A)
0
10
20
30
40
50
60
70
80
A: Sound power level LWA [dB(A)]
B: Middle frequency [Hz]
a: Sound power level total
1: Measuring results independent test report
2: Measuring results with the sound absorption
hood
REMKO noise protection hood
12

Sound power level of a WKF 120 with a compressor frequency of 90 Hz with the sound absorption
hood SWK 5
Middle frequen. [Hz] 630 800 1000 1250 1600 2000
Measuring results with the sound absorption hood 3),4),5)
Sound power level
LWA [dB(A)] 54,7 54,4 52,2 48,3 47,3 43,6
Middle frequen. [Hz] 2500 3150 4000 5000 6300 Total
Measuring results with the sound absorption hood 3),4),5)
Sound power level
LWA [dB(A)] 41,3 39,7 38,5 37,5 33,1 59,6
3) Measurement in accordance with DIN EN ISO 3744
4) Less the measurement uncertainty of 4 dB(A) in accordance with DIN EN ISO 3744
5) Less room adjustment of 3.3 dB(A) assuming an absolute comparative measurement with the use of a
comparable sound source in accordance with DIN EN ISO 3744
1
A
B
a
59,6 dB(A)
0
10
20
30
40
50
60
70
A: Sound power level LWA [dB(A)]
B: Middle frequency [Hz]
a: Sound power level total
1: Measuring results with the sound absorption
hood
13

Reduce the sound power level of a WKF 180 1) with the sound absorption hood SWK 7
Middle frequen. [Hz] 100 125 160 200 250 315 400 500 630 800
Measuring results from independent test report 2)
Sound power level
LWA [dB(A)] 60,4 56,3 61,1 54,8 55,1 56,4 55,3 55,4 56,9 57,8
Measuring results with the sound absorption hood 3),4)
Sound power level
LWA [dB(A)] 48,9 48,8 51,2 49,7 50,2 51,1 51,8 53,1 53,7 55,1
Middle frequen. [Hz] 1000 1250 1600 2000 2500 3150 4000 5000 6300 Total
Measuring results from independent test report 2)
Sound power level
LWA [dB(A)] 58,9 52,4 49,2 46,0 43,6 40,9 37,0 32,1 28,0 68,3
Measuring results with the sound absorption hood 3),4)
Sound power level
LWA [dB(A)] 51,3 48,6 46,7 43,4 40,6 38,5 36,1 34,8 32,5 62,8
1) Compressor frequency 56 Hz
2) Measurement in accordance with DIN EN ISO 9614-2 (12/1996) and DIN EN 12102 (09/2008)
3) Measurement in accordance with DIN EN ISO 3744
4) Less the measurement uncertainty of 4 dB(A) in accordance with DIN EN ISO 3744
2
1
A
B
a
68,3 dB(A)
62,8 dB(A)
0
10
20
30
40
50
60
70
80
A: Sound power level LWA [dB(A)]
B: Middle frequency [Hz]
a: Sound power level total
1: Measuring results independent test report
2: Measuring results with the sound absorption
hood
REMKO noise protection hood
14

Sound power level of a WKF 180 with a compressor frequency of 84 Hz with the sound absorption
hood SWK 7
Middle frequen. [Hz] 630 800 1000 1250 1600 2000
Measuring results with the sound absorption hood 3),4),5)
Sound power level
LWA [dB(A)] 60,0 58,7 55,9 54,5 53,2 50,3
Middle frequen. [Hz] 2500 3150 4000 5000 6300 Total
Measuring results with the sound absorption hood 3),4),5)
Sound power level
LWA [dB(A)] 47,8 45,5 43,0 41,7 39,6 64,6
3) Measurement in accordance with DIN EN ISO 3744
4) Less the measurement uncertainty of 4 dB(A) in accordance with DIN EN ISO 3744
5) Less room adjustment of 3.3 dB(A) assuming an absolute comparative measurement with the use of a
comparable sound source in accordance with DIN EN ISO 3744
1
A
B
a
64,6 dB(A)
0
10
20
30
40
50
60
70
A: Sound power level LWA [dB(A)]
B: Middle frequency [Hz]
a: Sound power level total
1: Measuring results with the sound absorption
hood
15

3 Product description
The noise protection hood is suitable for use in
regions with high requirements for low noise emis-
sions. The EPP housing, the specially-developed
air intake and air outlet openings reduce noise sig-
nificantly, which also enables installation in resi-
dential areas. The complete encapsulation protects
the heat pump against the effects of weather such
as hail, UV radiation and snow, as well as against
external damage or vandalism. The simple layout
thanks to the modular construction ensures easy
installation and fast access to the unit.
Features/equipment:
nSimple installation thanks to the modular con-
struction; suitable for use in conjunction with
REMKO WKF 70,120, 180 and 180 DUO heat
pump outdoor units.
nBlack or silver and black housing colour
nSound power level reduction of up to 15 dB(A)
A proper installation surface for stability with the
option to affix the sound protection hood and pro-
tection against plant growth from below must be
guaranteed.
The customer must provide suitable options for
frost-proof removal of the condensate that accu-
mulates.
REMKO noise protection hood
16

4 Setting up the outdoor unit and the noise protection hood
Strip foundations
3
2
4
8
5 5
10
6
7
9 9
11 11
1
200
12
13 13
200
A
Fig. 4: Condensate drainage, seepage of condensate and strip foundation (cross-section)
1: Outdoor unit
2: Feet for condensate catch pan
3: Condensate catch pan including pan heater
4: Floor bracket
5: Reinforced strip foundation
HxWxD = 300x160x600 mm
6: Gravel layer for seepage
7: Drainage channel
8: Conduit for refrigerant piping and electrical con-
necting line (temperature-resistant up to at least
80°C)
9: Frost line
10: Drainage pipe
11: Soil
12: Noise protection hood
13: Solid base (e.g. concrete plates)
NOTICE!
There must be a gap of 200 mm between the
outdoor unit’s bottom edge and the hood's
bottom edge!
(see detailed illustration A)
NOTICE!
The refrigerant lines must enter the housing
from the rear, side or front with the use of the
REMKO OA2 oil separator.
17

CB B
A
D
1
7
1
8
3
12
D
13
55
E
13
12
Fig. 5: Dimensioning of the strip foundation (sec-
tion below the cover)
For information on items 1,3,5,7,8 and 12, please
refer to the legend for Fig. 4
dimensioning the strip foundation
(all dimensions in mm)
Dime
nsion
WKF 70
WKF 120
WKF 180
A 600 600
B 160 160
C 400 420
D 75 75
E 100 100
Condensate drainage connection and safe
drainage
Condensate drainage connection
If the temperature falls below the dew point, con-
densation will form on the finned condenser during
heating mode.
A condensate tray should be installed on the
underside of the unit to drain any condensate.
nThe condensate drainage line must be pro-
vided by the customer and have an incline of at
least 2%. If necessary, fit vapour-diffusion-
proof insulation.
nWhen operating the unit at outside tempera-
tures below 4 °C, ensure the condensate
drainage line is laid to protect it against frost.
The lower part of the housing and condensate
tray is also to be kept frost free in order to
ensure permanent draining of the condensate.
If necessary, fit a pipe heater.
nFollowing installation, check that the conden-
sate run off is unobstructed and ensure that the
line is durably leak tight.
Safe drainage in the event of leakages
The REMKO oil separator OA 2.2 fulfils the fol-
lowing list of requirements from regional regula-
tions and laws.
NOTICE!
Local regulations or environmental laws, for
example the German Water Resource Law
(WHG), can require suitable precautions to pro-
tect against uncontrolled draining in case of
leakage to provide for safe disposal of escaping
refrigerator oil or hazardous media.
NOTICE!
With the connection of an external drain line to
the oil separator, it must be kept frost-free.
REMKO noise protection hood
18

5 Design of the noise protection hood
Components on the noise protection hood
12
7
3
4
5
68
9
Item Designation
Number
SWK 4 SWK 5 SWK 7
1 Ring element 4 5 7
2 Cover 1 1 1
3 Air intake baffle plate 1 1 1
4 Air outlet baffle plate 1 1 1
5 Base air outlet baffle plate 1 1 1
6 Buffer 1 1 2
7 Top/bottom aluminium frame 2 2 2
8 Aluminium support 4 4 4
9 Buffer support 1 1 1
Components not illustrated
Holding eyelets 2 2 2
Strap 2 2 2
M5 x 50 mm installation screws and washers for buffer 2 2 4
M6 x 120 mm threaded rod for cover (top aluminium frame) 4 4 4
M6 nuts and washers to affix the cover 4 4 4
Cover sealing cap 4 4 4
Corner connector 8 8 8
19

In order to assemble the noise protection hood,
proceed as follows:
1. Install the outdoor unit with the relevant floor
consoles and the condensate catch pan as
described in the relevant installation manual
for the heat pump/air conditioning unit.
REMKO recommends using the REMKO BK
600 plus floor consoles for installation. If the
noise protection hood is retrofitted to an out-
door unit that is already installed, the floor
consoles such as the REMKO BK 1000 plus
must be installed at right angles to the out-
door unit as described in point 3. Minimum
distance to the floor = 20 cm!
Fig. 6
2. The noise protection hood must be installed
on a base that is defined as suitable
according to the dimensions. It can be
installed on a foundation that is manufac-
tured separately or on ground that is pre-
pared for the installation (see the drawings in
Ä Chapter 4 ‘Setting up the outdoor unit and
the noise protection hood’ on page 17 and
11). Start with the bottom aluminium frame
when installing. Ensure that the aluminium
frame is connected securely to the base (e.g.
using anchor bolts, ground anchors or fixed
screw connections) so that the entire noise
protection hood is attached securely.
Fig. 7
3. Place the installation frame (
Ä ‘Components
on the noise protection hood’ on page 19,
item 7 ) over the heat pump's outdoor unit
and arrange the frame so that it has an even
gap all around the unit. Check whether the
relevant holes to attach the noise protection
hood enable it to be attached securely. As
there are several options for this, there are
no installation materials included with the
SWK noise protection hood for attaching.
These attachments must be provided by the
customer.
Fig. 8
4. If the refrigerant piping is laid visibly from the
rear for installation on the outdoor unit
(Fig. 9), the frame must be installed below
the piping. If the refrigerant piping is installed
on the outdoor unit from the bottom and is
not in the vicinity of the ring elements on the
noise protection hood, you can continue
installation without an opening. If this is the
case, continue installation as described in
point 7.
Fig. 9
REMKO noise protection hood
20
