User’s Manual
RA-60TB30SS
RA-60TB36SS
RA-60TB42SS
RA-60TB48SS
Please read this operation manual thoroughly before
using your range hood. Store it in a safe location for
when you need to reference it in the future.
NOTE: Ductless operation is
supported as an additional option.
For ductless operation, please
refer to the ductless kit.
For residential and indoor use only
WALL MOUNT SERIES

1TABLE OF CONTENTS
Table of Contents
Safety Information .............................................................. 2 – 3
Content Checklist ..................................................................... 4
Measurements ........................................................................... 5
Preparation ............................................................................... 6
Installation ........................................................................... 7 – 8
Installation Diagram .................................................................. 9
Operation & Features ...................................................... 10 – 11
Cleaning & Maintenance ......................................................... 12
Troubleshooting ...................................................................... 13

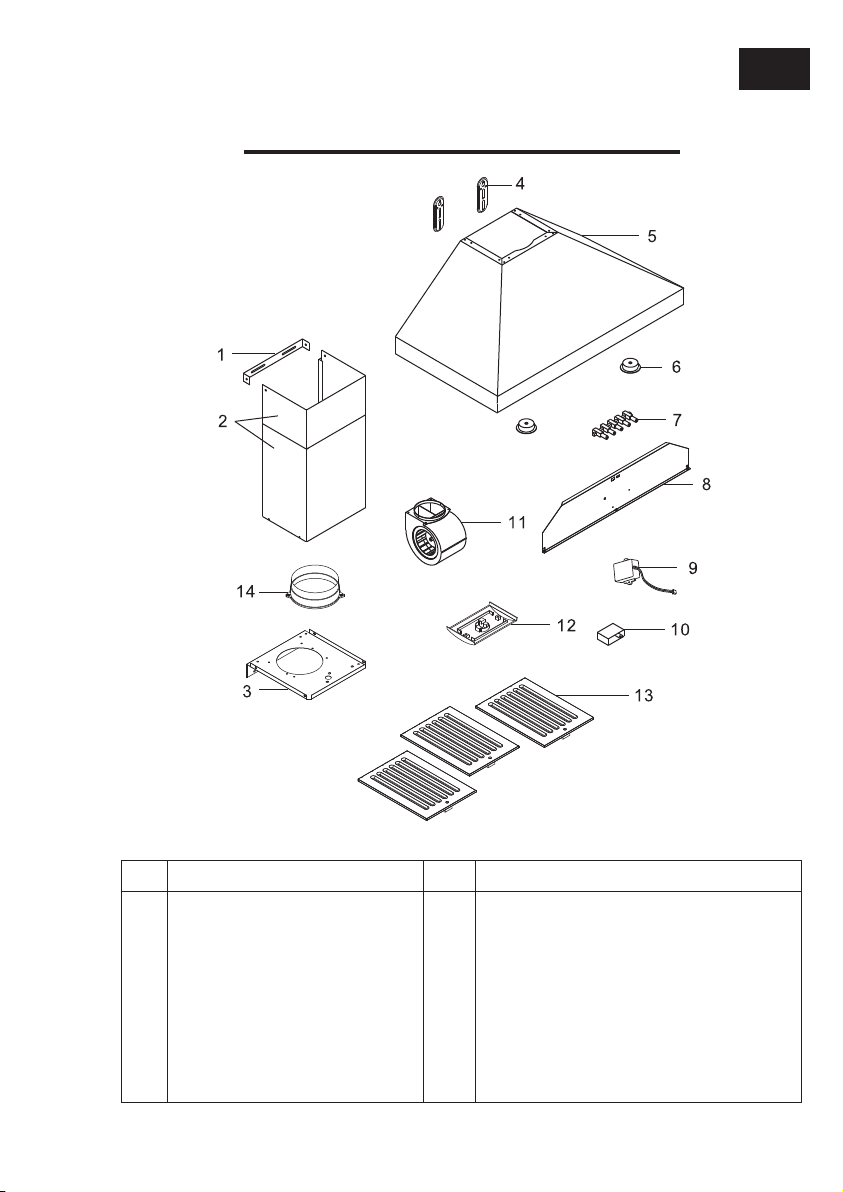

Part List / Replacement .......................................................... 14
Warranty / Contact Us ..................................................... 15 – 16

2SAFETY INFORMATION
SAFETY INFORMATION
TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK,
AND/OR INJURY OBSERVE THE FOLLOWING:
Unit is intended for indoor residential use only. If you should have questions,
contact the manufacturer at the address or telephone number listed in the
warranty.
In case the unit should need to be cleaned or repaired, switch power off at
either breaker or by disconnecting the power cord from the outlet.
Installation work and electrical wiring must be done by a qualified technician in
accordance with all applicable codes and standards, including fire-rated
construction.
Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
and the American Society of Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
Because the unit is made of stainless steel, it may contain sharp edges. Be
careful to avoid cuts and abrasions by wearing protective gloves during
installation and cleaning.
Before you begin to cut or drill into the wall, verify that there is no electrical
wiring or any other hidden electrical components.
Ducted fans must always be vented to the outdoors.
Use metal ductwork when possible.
Do not use this fan with any solid-state speed control device and/or in-line
motor.
The unit must be properly grounded before beginning operation.

3SAFETY INFORMATION
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
Regardless of heat level, never leave any surface materials unattended while
operating an open flame.
Always turn hood ON when cooking at high heat or when flambéing food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
Depending on amount of usage, clean ventilating fans and filters frequently.
Grease should not be allowed to accumulate on fan or filter. For instructions
on the how to clean, see maintenance page.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING:
SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not
go out immediately, EVACUATE AND CALL 911.
NEVER PICK UP A FLAMING PAN — Doing so may result in serious burns
and possibly spread the fire.
DO NOT USE WATER – Grease fire must be extinguished before further
action may be taken. Using water will agitate the grease and may cause a
violent steam explosion.
Use a Fire Extinguisher ONLY if:
You have a Class ABC extinguisher, and you already know how to
operate it.
The fire is small and contained in the area where it started.
The fire department is being called.
You are able to safely control the fire with your back to an open exit. *
Based on “Kitchen Fire safety Tips” published by NFPA.

4CONTENT CHECKLIST
CONTENT CHECKLIST
1. CONTENTS INCLUDED
a. (1) RA-60TB series (30”, 36”, 42” or 48”) hood assembly
b. (1) Lower duct cover (14-1/4”)
c. (1) Upper duct cover (14-1/4”)
d. (1) User’s manual
e. (1) 6” – 7” transition collar
f. (2) Baffle filters (RA-60TB 30” model only)
g. (3) Baffle filters (RA-60TB 36” / 42” model only)
h. (4) Baffle filters (RA-60TB 48” model only)
i. (1) Screw packet
2. CONTENTS NOT INCLUDED
a. RA-60TBEXTDC (Extension duct cover)
b. RA-60TBDK (Ductless kit)
c. RA-60TBCFMR (CFM reducer)
d. 6” / 7” round solid metal duct or flexible aluminum duct
3. TOOLS REQUIRED (NOT INCLUDED)
a. Safety gloves
b. Safety glasses
c. Electric drill w/ starter bit
d. Utility knife
e. Spirit level
f. Measuring tape
g. Writing instrument (pen, marker, pencil)
h. Aluminum tape

5MEASUREMENTS

6PREPARATION
PREPARATION
1. BEFORE YOU START
**BE SURE YOUR UNIT WILL FIT YOUR CEILING HEIGHT**
a. Be sure you have all the content of your purchase and required tools for
this installation.
b. Installation may take at least 1 to 2 hours from start to finish.
c. Plan to use as few elbows or turns as possible for more efficient air flow.
d. Collar size may need to be increased if utilizing a long duct run.
e. At least 12” of vertical duct is required before any turn.
f. Do not try to install this unit by yourself, SERIOUS INJURY MAY OCCUR.
g. At least two people are needed for installation.
h. Hiring a certified installer and electrician is recommended.
2. LOCATION
a. Determine the exact location where you want to install the range hood.
b. Distance between cooktop and range hood should be between 27”-33”.
c. Range hood should be mounted at stated measurements to ensure
performance and lifespan of electrical components.
d. Correctly measure the dimension needed to install the unit.
3. HOOD
a. Inspect for signs of defect or damage. (ie. scratches, dents, loose seams,
etc.)
b. Before mounting, power up the unit to make sure it is working properly.
c. Remove the protective file on the aluminum filters.

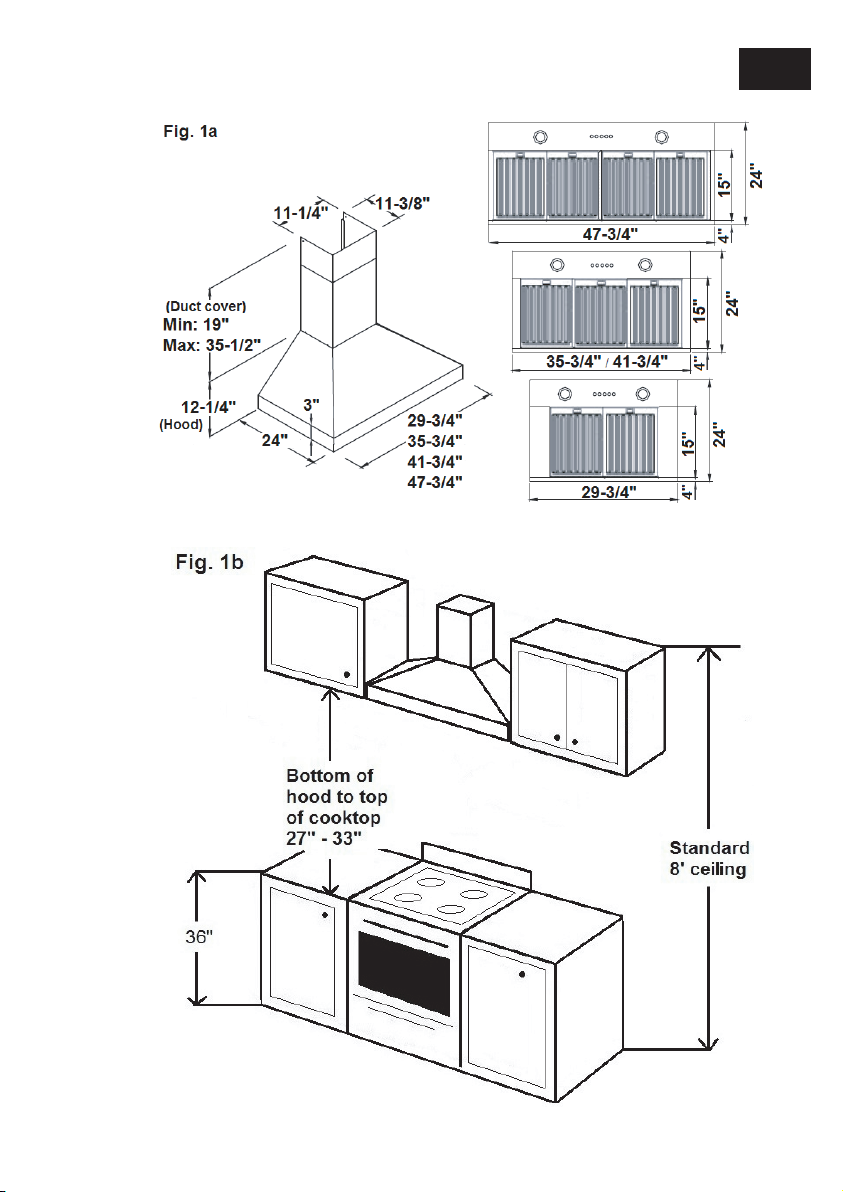

Use Fig. 1a on page 5 for unit measurements
Use Fig. 1b on page 5 for general measurements

INSTALLATION 7
INSTALLATION
1. WALL MOUNT INSTALLATION
a. Make sure all preparation steps are completed.
b. Determine your ceiling height to see if you need an extension.
i. Hood unit height = 12-1/4”
ii. Duct cover minimum height = 19”
iii. Duct cover maximum height = 35-1/2”
iv. (OPTIONAL) Extension duct cover height = 47”
c. Determine the location you want to install the range hood. (Fig. 2a)
d. Prepare back wall frame with cross wood support.
e. Mount the unit onto wall with mounting screws (not included)
f. Adjust the duct cover mounting bracket to your desired height.
g. Use a spirit level to ensure the balance of the hood is true.
h. (OPTIONAL) Use the conversion collar for 7” ducting.
i. Connect a 6” or 7” ducting to the collar of the hood.
j. Connect the exhaust piping to the outlet of the unit. (Fig. 2b)
k. Finish off by sealing the connection point with aluminum tape.
l. Slide the duct cover into the unit and adjust its height. (Fig. 2c)
m. Secure it with the (6) duct cover screws provided. (Fig. 2d)
2. EXTENSION DUCT COVER INSTALLATION
a. Replace the original upper duct cover piece with the extension.
b. Determine the desired height to mount the duct cover.
c. REPEAT “STEP F – M” from WALL MOUNT INSTALLATION section.

INSTALLATION
8
3. COLD WEATHER INSTALLATION (OPTIONAL)
a. Check with your local building codes to see if a CFM reducer is an
acceptable alternative to make-up air.
b. Remove the RA-60TBCFMR (CFM reducer) and inspect for any sign of
defect or damage. (ie. Cracks, broken flips)
c. AFTER COMPLETING Step A – G of Section 1 WALL MOUNT
INSTALLATION
d. Place the CFM reducer onto the outlet of the unit and seal the connection
point with aluminum tape. (Be sure it is secure with no opening or gaps)
e. REPEAT “STEP F – M” from WALL MOUNT INSTALLATION section.
4. DUCTLESS INSTALLATION
a. AFTER COMPLETING Step A – G of Section 1 WALL MOUNT
INSTALLATION
b. Remove the RA-60TBDK (ductless kit) and inspect for any sign of defect
or damage. (ie. dents, broken inlet)
c. Mount the ductless kit at the top of the ceiling using the screws provided.
d. Make sure the duct cover vent opening aligns with the air diverter. (Fig.
2e)
e. Connect a 6” or 7” ducting to the collar of the hood.
f. Connect the exhaust pipe to the outlet of the unit. (Fig. 2b)
g. Connect the exhaust pipe to the air diverter collar.
h. REPEAT “STEP K – M” from WALL MOUNT INSTALLATION section.
Installation diagram available on next page

9INSTALLATION DIAGRAM
INSTALLATION DIAGRAM
