Renaissance Cooking Systems Cedar Creek RFP-36LECO-NLED User manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
Warning: For Outdoor Use Only
INSTALLATION PRECAUTION:
This replace requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
MODELS
Natural Gas Propane Gas Description
RFP-36LECO-NLED RFP-36LECO-PLED 36” LED Linear Fireplace
RFP-48LECO-NLED RFP-48LECO-PLED 48” LED Linear Fireplace
RFP-60LECO-NLED RFP-60LECO-PLED 60” LED Linear Fireplace
RFP-72LECO-NLED RFP-72LECO-PLED 72” LED Linear Fireplace
Cedar Creek
Outdoor Gas Fireplace
Installation and Operating Instructions
LED MODEL
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MANTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
#20-024
Renaissance
Cooking Systems

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 2
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed area can kill you.
Never use this appliance in an enclosed space such as a camper,
tent, car or home.
WARNING
Do not store or use gasoline or other
ammable vapors and liquids in the vicinity of
this or other appliance.
An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING
Do not leave unattended during use.
Do not use for cooking.
Follow all gas leak procedures in this manual
prior to operation.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage, personal injury of loss of life
WARNING
If the information in this manual is not followed
exactly, a re or explosion may result causing
property damage, personal injury, or loss of
life.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or other
appliances.
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open ame.
3. If odor continues, leave the area
immediately.
4. After leaving the area, call your gas supplier
or re department.
DANGER
FIRE OR EXPLOSION
HAZARD
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH
GLASS UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns
from the hot viewing glass is provided with this
appliance and shall be installed for the
protection of children and other at-risk
individuals.
DANGER
CALIFORNIA PROPOSITION 65
WARNING
This product is designed to operate with one of the
following fuel sources: Liquid Propane or Natural Gas.
The fuel used to operate this product, and the products of
combustion of such fuel, can expose you to chemicals
including Benzene which is known to the State of
California to cause cancer, birth defects and other
reproductive harm and Carbon Monoxide which is known
to the State of California to cause birth defects or other
reproductive harm.
(For more information go to: www.p65Warnings.ca.gov.)

7-6-21 Page 3
Cedar Creek LED Outdoor Gas Fireplace
SAFETY
CERTIFICATION: These outdoor replaces are tested and
approved to ANSI Z21.97- 2017/CSA 2.41.standards by
PFS agency using listing #20-024. It should be installed
by a qualied installer in accordance with local and state
building codes using National Fuel Gas Code ANSI Z223.1/
NFPA54 or current CSA-B149.1 installation codes for Gas
Burning Appliances and Equipment in Canada.
DESCRIPTION:DESCRIPTION: These Outdoor replace models come These Outdoor replace models come
ready to operate with HI/LO capabilities once installation is ready to operate with HI/LO capabilities once installation is
complete. They use an electronic ignition that runs off of complete. They use an electronic ignition that runs off of
a 7.5DCV adapter. In addition, each replace is equipped a 7.5DCV adapter. In addition, each replace is equipped
with LED lighting as a standard feature. All models can with LED lighting as a standard feature. All models can
operate the LED lights with or without the replace operate the LED lights with or without the replace
operating. The LED lights operate from of a 12-volt adapter.operating. The LED lights operate from of a 12-volt adapter.
Use only approved media. All models are shipped as Use only approved media. All models are shipped as
Natural Gas but can be converted to Propane Gas by Natural Gas but can be converted to Propane Gas by
ordering an optional conversion kit. See page 32. ordering an optional conversion kit. See page 32.
NEVER obstruct the front opening(s) of the replace. NEVER obstruct the front opening(s) of the replace.
LOCAL CODES
Install and use replace with care. Follow all local codes.
In the absence of local codes, use the latest edition of the
National Fuel Gas Code ANSI Z223.1/ NFPA54.
All media (i.e. lava rock, lava stones, lava boulders and
re glass) have the potential of thermal spalling. This is a
process that may occur when media is wet and moisture
gets trapped inside of the material due to rapid temperature
differences. When this happens the media has the
potential to crack or “pop” outside the replace. Heavy
rains, high humidity and the presence of moisture can
contribute to this process.
1. This appliance is congured from the factory only as
Natural gas. It can be converted to LP gas.
2. Do not place Propane (LP) supply tanks inside any
unapproved structures. Locate propane tanks outdoors
if unsure.
3. This replace is to be used only outdoors in a well
ventilated space and shall not be used in a building,
garage, or any other enclosed area.
4. Do not use this replace as a wood burning replace.
Use only high temperature glass media approved for
use with this replace.
5. Do not use this replace to cook or burn paper or other
objects.
6. Do not use if exposed to or under water. Immediately
call a qualied service technician to inspect the
replace and replace any part of the control system
and any gas control which has been under water.
7. Turn replace OFF and let cool before servicing. Only
a qualied service person should perform service.
CAUTION:
Massachusetts Requirements
These appliances are approved for installation in the
US state of Massachusetts if the following additional
requirements are met:
• Un-vented Room Heaters shall be installed in
accordance with 527 CMR 30.
• Installation and repair must be done by a plumber
or gas tter li¬censed in the Commonwealth of
Massachusetts.
• The exible gas line connector used shall not exceed
36 inches (92 centimeters) in length.
• The individual manual shut-off must be a T-handle type
valve.
• Unvented appliances may NOT be installed in
bedrooms or bath¬rooms.
• A working smoke detector must be installed in the area
where vent-free appliances are installed.
• Seller of unvented propane or natural gas-red
supplemental room heaters shall provide to each
purchaser a copy of 527 CMR 30 upon sale of the unit.
ALWAYS USE CAUTION WHEN USING THE FIREPLACE
Extra caution should be taken when lighting a replace
when heavy rains, high humidity and moisture are present.
Light the replace and leave the area while the heat
dissipates any moisture out of the media. We strongly
recommend that during this drying out time that you monitor
the replace from a distance. This drying out period should
be no less than 30 minutes. Continue monitoring the ame
from a safe distance to ensure that all popping has ceased
before fully enjoying the re.

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 4
Certication, Description & Safety Information 3
Installation Precautions 5-7
Gas Line & Cross Ventilation Requirements 6-7
Hard Piping & High Elevation 7
Fireplace Specications 8
Gas Pipe Sizing Chart 9
Single-Sided Fireplace Application 10-12
Dimensions; Combustible Clearances; Mantel Clearances 11
Framing with Metal Studs 12
See-Through Fireplace Application 13-15
Dimensions; Combustible Clearances; Mantel Clearances 14
Framing with Metal Studs 15
LED Light Installation 16-20
Wiring Diagrams See pages: 19, 21, 22, 23
Final Preparation 24-28
Installing Pilot Covers in Burner Pan 24
Installation of Media in Burner Pan/Trough 25-26
Pilot Operation 25
Installation of Hood(s) 26
Windshield Installation 27
Flame Height 28
Operation 29
Lighting Instructions 29
Replacement Parts 30
Replacement Parts List 31
Gas Conversion (Natural Gas to LP Gas) 32-34
Fireplace Maintenance 35
Troubleshooting 36-37
Optional Accessories 38
Warranty 39
TABLE OF CONTENTS
Fuels used in gas red appliances, and the products of combustion such as fuels, contain
chemicals known to cause cancer, birth defects and/or other reproductive harm.
This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1
IT IS IMPORTANT TO READ THROUGH THE ENTIRE INSTALLATION MANUAL
BEFORE BEGINNING INSTALLATION OF THIS FIREPLACE!!
This replace ships from the factory as a single-sided replace.
An optional kit must be purchased to convert it into a see-through replace.
If you choose to install it as a see-through, ensure you use pages 14 & 15 for proper
specications. Carefully read through this manual to understand.

7-6-21 Page 5
Cedar Creek LED Outdoor Gas Fireplace
INSTALLATION PRECAUTIONS
1. These replaces are designed for outdoor use only. Not approved for any indoor use.
2. Determine which replace you are preparing to install, single-sided or see-through. (Refer to page 11 or 14).
3. This replace is not a “load bearing” replace. All nishing materials must be supported by the surrounding
structure and not rely on the replace itself.
4. Fireplaces create high temperatures, it is very important to have any combustibles at a safe distance. See pages 11
for a single sided installation or page 14 for see-through installation.
5. Fireplace should never be left unattended while in operation. It should always be a safe distance from all trees and
combustible landscape materials.
6. The replace must be installed on a at, level, stable, non-combustible surface. Exception: It is permissible
to place one layer of ½” cement board underneath the entire replace, then it may sit on a at, level, stable,
combustible surface. Drainage is critical to ensure that water does not damage gas valve and components.
Never install the replace below grade.
7. CAUTION: A minimum of 18 square inches of cross ventilation (per side) is required to keep the inside of the
enclosure dry. Install the supplied VENT-KIT-6x12SS approximately 3 to 4 inches from the oor centered on each end
of the replace (See Fig. 3, page 6).
8. Only non-combustible materials (i.e. metal studs and cement board) should come in direct contact with any part
of the replace. Underneath area should be non-combustible or a at level combustible surface according to the
clearances specied in this manual. Bend out nailing anges on ends of replace and secure to metal studs.
9. Hearth Extension: A hearth extension is not required with this replace. Any hearth extension used is for
appearance only and does not have to conform to a standard hearth extension installation requirements.
10. This replace is designed to have glass media covering the burner trough, so the burner tube is not visible.
Media is NOT provided and must be purchased separately. When installing media use minimum of ½” to ¾”
diameter Firegear Outdoors glass to ll the burner trough. After the burner trough is covered you are permitted to ll
the remaining area in the burner pan. DO NOT COVER THE IGNITION HOOD WITH ANY ROCK OR MEDIA. See
Figs. 34 - 36 on pages 25 and 26 for details.
11. Do not use media that will absorb moisture over time and will not release this moisture quickly. Moisture can boil in
this media and can rapidly break apart and cause property damage or personal injury.
12. Never leave any other combustible material on top of the replace. This could cause unsafe operation of this system
and damage to the component that will not be covered under our warranty.
13. It is recommended to wear gloves when moving the replace into position and watch for sharp edges when handling
the replace.
14. We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for proper
pipe sizing when exceeding 20-feet in length for replaces .
15. Follow the local code requirements for the gas type being used. This replace should be installed in accordance with
local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1
NFPA54 or CSA B149.1, Natural and Propane Installation Code in Canada.
16. This appliance must be electrically grounded in accordance with the local codes, or in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70; or the Canadian Electrical Code, CSA C22.1, if applicable.
17. Gas lines and ttings must be installed into the non-combustible structure. All gas connections must be leak tested
before installation of the replace. Leak detection is required before regular use of the replace.
18. LED LIGHTING: LED lighting must be installed before nishing materials are completed on this replace. Ensure
electricity is run before the replace is installed. See pages 16-23. Ensure you follow the local codes per your
installation.

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 6
IMPORTANT: It is permissible to reverse the burner pan in
the eld to enable a closer gas line connection if necessary.
BURNER PAN REMOVAL
Step 1: Remove the bottom end (it has 3 screws) from the
opposite end of the burner pan. See Fig. 2.
Step 2: Lift the bottom end up and out from both sides of
the burner pan area.
Step 3: Remove the four (4) screws (two on each end) of
the burner pan. They are located at the outer edge of the
burner pan, one each corner (See Fig. 2).
GAS LINE: The gas line must have a predetermined location to enable it to be installed. Fig. 1 shows one example of an
inlet gas line with a gas shut off at the replace. This allows a technician to shut the inlet gas supply OFF and remove the
burner for servicing. Ensure you follow the local and state gas codes per your installation.
RECOMMENDATION: Once the gas line is established it is recommended to remove the burner pan from the rebox
until the replace is in the nal stages and ready for the burner installation. Burner pan requires the removal of (4) screws
at each corner of burner pan lip in addition to the (3) screws shown in Fig. 2.
INSTALLATION PRECAUTIONS
FRAMING: After framing is complete, place the replace into position and secure it with the side nailing anges. Next
install cement board, securing it to the metal studs and replace. The framing provides for a ush t up to the opening of
the replace. DO NOT PROTRUDE INTO THE FIREPLACE OPENING WITH CEMENT BOARD.
Fig.1 Close up view of inlet gas connection with
shut-off valve.
VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE
Fireplaces are subjected to many outdoor elements such as
rain, snow, wind, heat or cold. A minimum of 18 square
inches of cross ventilation (2 sides) is required to keep
the components in good working order. Use Fig. 3 as a
guide.
Never ll the cavity under and around the valve box with
any material, this is air space necessary for ventilation.
CAUTION: BEFORE BEGINNING INSTALLATION CAREFULLY REMOVE THE
GLASS WINDSHIELD, PARTS BOX AND ANY PACKING MATERIALS FROM
FIREPLACE AND SET ASIDE FOR LATER USE.
GAS CONVERSION: The burner pan must be removed
from the replace to convert it to LP gas. See pages 32-34.
Gas Shut-o
Fig. 2 Removal of burner pan screws.
B
u
rner
Fireplace Side Wall
Remove 3 Screws
B
u
rn
er
p
a
n
B
o
t
to
m
En
d
Fig. 3 - Cross ventilation example using the Cross Ventilation
Kit, VENT-KIT-6x12, provided.
Note: Installation of two 18-square inch vents or one
36-square inch vent is required for ventilation of enclosures.
When two vents are used, they may be installed on one wall.
Install the bottom of the vent(s) within one foot of the oor
level. See local codes or, in the absence of local codes, with
the National Fuel Gas Code, ANSI Z223.1/NFPA 54 (USA) –
latest edition or CAN/CGA-B149.1 Natural gas and propane
installation code (Canada) – latest edition. Do not place
Propane (LP) supply tanks inside any structure or enclosure.
Locate propane tanks outdoors.

7-6-21 Page 7
Cedar Creek LED Outdoor Gas Fireplace
INSTALLATION PRECAUTIONS
HARD PIPING TO FIREPLACE WITHOUT GAS PROXIMITY
NOTE: We recommend using ¾” black iron pipe; however please refer to the NFPA54 (National Fuel Gas Code) for
proper pipe sizing when exceeding 20-feet in length for replaces rated above 100,000 BTU.
1. Turn OFF gas supply system. NOTE: All gas connections (except for brass to brass) require the following: Clean
pipe threads using either a wire brush or steel wool. Apply pipe sealant to the ttings before making any connection.
BE CAREFUL! Ensure all gas connections are snug, but do not over tighten!
2. Extend the gas supply using minimum of ¾” black iron pipe or an approved exible gas line from existing house
supply. This can be accomplished by teeing off or tapping into a gas line connection. Install necessary pipe for the
distance required and then install a manual shut-off valve at the exterior house wall. If pipe is to pass through a
foundation or house wall, make sure to re-seal the area around the pipe with weather sealant.
3. The primary gas shut-off (supplied) will require a ½” male ared tting to enable connection of the stainless steel ex
gas line supplied with the replace (See Fig. 1 page 6).
IMPORTANT
Installation of Natural or Liquid Propane Gas should be done by a qualied installer, service agency or gas supplier.
This appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than ½ “psig (3.5kPa)
WARNING: Proper clearances from combustible, construction materials must be maintained from all sides, top and
bottom of this appliance.
HIGH ELEVATION INSTALLATION
This appliance is listed for elevations from 0 to 4500 feet in Canada and the U.S. If elevation exceeds 4500 feet it may
be necessary to decrease the input rating by changing the existing burner orice to a smaller size. Input should be
reduced 4% for each 1000 feet beyond the 4500 feet above sea level. Check with your local gas utility for assistance in
determining the proper orice in your location. In some cases the heating value may already be reduced and downsizing
the orice may not be necessary.
PAY CLOSE ATTENTION TO THE FOLLOWING PAGES. THIS FIREPLACE IS SHIPPED AS A
SINGLE-SIDED FIREPLACE, HOWEVER YOU HAVE THE OPTION TO CONVERT IT INTO A
SEE-THROUGH FIREPLACE WITH AN OPTIONAL KIT. READ THE HEADERS CAREFULLY TO
ENSURE YOU ARE FOLLOWING THE CORRECT INSTALLATION.
The vents (VENT-KIT-6x12SS ) used for cross ventilation
should be installed at each end of the replace. Vents should
be placed 3-4” from the bottom of the replace and centered
side to side as shown in Fig. 3B.
Fig. 3B Vent location.
3-4”
Vent

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 8
FRAMING FIREPLACE
Disclaimer: Btu listings are based on 7.0”WC (1.74 kPa) for Natural Gas at inlet side of gas regulator. Flex line
sizing and proper gas pipe sizing can affect Btu’s. As a result, your Btu’s may vary slightly from Table 1 specications.
NOTE: These replaces come shipped as Natural Gas models only. There is an LP conversion kit available as an
accessory. Ensure you order the specic conversion kit for your model replace. Table 1 shows the applicable information
if converting to Liquid Propane (LP) gas. See page 32.
IMPORTANT: It is permissible to reverse the burner pan in the eld to enable a closer gas line connection if necessary.
SPECIFICATIONS
Fig. 4 The replace ships on a wooden skid. Remove the
screws as shown and lift replace off of skid.
Note: Number of screws vary with model size.
Table 1. Fireplace specications and conversion kits.
Models:
N = Natural Gas
P =Propane Gas
NG
Factory
Orice
NG Btu’s
High
NG Btu’s
Low
NG Low
Rate
Screw
LP
Conversion Kit
LP Factory
Orice
LP Low Rate
Screw
RFP-36LECO-NLED
RFP-36LECO-PLED
#41 31,000
(9.08 kW)
18,500
(5.42 kW)
#44 RFP-36LECO-LPK OAS-LP52 ECO-LSS-52
RFP-48LECO-NLED
RFP-48LECO-PLED
#32 43,500
(12.74 kW)
24,500
(5.42 kW)
#34 RFP-48LECO-LPK OAS-LP48 ECO-LSS-46
RFP-60LECO-NLED
RFP-60LECO-PLED
#30 50,000
(14.65 kW)
36,000
(7.18kW)
#27 RFP-60LECO-LPK OAS-LP44 ECO-LSS-42
RFP-72LECO-NLED
RFP-72LECO-PLED
#25 65,000
(19.00 kW)
42,000
(12.30 kW)
#18 RFP-72LECO-LPK OAS-LP42 ECO-LSS-35
Table 2 Gas Pressures
Pressure NG LP
Min. Inlet 5.0” WC (1.24kPa) 10.5” WC (2.61 kPa)
Max. Inlet 10.5” WC (2.61kPa) 13.0” WC (3.23 kPa)
Normal Inlet 7.0” WC (1.74 kPa) 11.0” WC (2.73 kPa)
Manifold 4.0”WC (.99 kPa) 10.0”WC (2.48 kPa)

7-6-21 Page 9
Cedar Creek LED Outdoor Gas Fireplace
GAS PIPE SIZING CHART
REFERENCE
GAS PIPE SIZING
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 275 567 1071 2205 3307 6221 10140 17990 35710
20 189 393 732 1496 2299 4331 7046 12510 25520
30 152 315 590 1212 1858 3465 5695 10110 20620
40 129 267 504 1039 1559 2992 4778 8481 17300
50 114 237 448 913 1417 2646 4343 7708 15730
60 103 217 409 834 1275 2394 3908 6936 14150
70 89 185 346 724 1086 2047 3329 5908 12050
80 78 162 307 630 976 1811 2991 5309 10830
90 69 146 275 567 866 1606 2654 4711 9613
100 63 132 252 511 787 1496 2412 4281 8736
125 54 112 209 439 665 1282 2083 3618 7382
150 48 100 185 390 590 1138 1808 3210 6549
175 43 90 168 353 534 1030 1637 2905 5927
200 40 83 155 325 491 947 1505 2671 5450
300 37 77 144 303 458 887 1404 2492 5084
NATURAL GAS : PIPE SIZING CHART
• Natural Gas (NG) flow is given in
thousands of BTU/hr. = 1cubic
foot of NG gas - 1000 BTU
• Nominal pressure at the burner
for Natural Gas is 3.5” of water
column. (Typical machine supply
5”-7”)
• Pipe length must include
additional length for all fittings.
Add approximately 5 feet of pipe
per fitting.
• Natural Gas Example: A machine
with a burner that requires
440,000 BTU would need a 1 -1/4”
pipe for a 20” long run.
LIQUID PROPANE : PIPE SIZING CHART
NOTE: The sizing charts above list the specific pipe sizes required for the amount of BTU’s for a new gas line installations. If you
are using an existing gas line you must take into consideration the existing gas line capacities to ensure you will have proper
pressure. This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel
Gas Code - current edition) for more details.
Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4”
10 108 230 387 793 1237 2259 3640 6434 -
20 75 160 280 569 877 1610 2613 5236 9521
30 61 129 224 471 719 1335 2165 4107 7859
40 52 110 196 401 635 1143 1867 3258 6795
50 46 98 177 364 560 1041 1680 2936 6142
60 42 89 159 336 513 957 1559 2684 5647
70 38 82 149 317 476 896 1447 2492 5250
80 36 76 140 239 443 840 1353 2315 4900
90 33 71 133 275 420 793 1288 2203 4667
100 32 68 126 266 411 775 1246 2128 4518
125 28 60 117 243 369 700 1143 1904 4065
150 25 54 105 215 327 625 1008 1689 3645
175 23 50 93 196 303 583 993 1554 3370
200 22 47 84 182 280 541 877 1437 3160
300 17 37 70 145 224 439 686 1139 2539
• Liquid Propane (LP) Gas flow is
given in thousands of BTU/hr. =
1cubic foot of LP gas - 2500 BTU.
• This chart refers to low pressure LP,
after regulation, Standard nominal
pressure at the burner for Liquid
Propane Gas is 11” of water column.
• Pipe length must include additional
length for all fittings. Add
approximately 5 feet of pipe per
fitting.
• LP Example: A machine with a
burner that requires 440,000 BTU
would need a 1” pipefor a 20’ long
run.
Table 3 Gas pipe sizing.

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 10

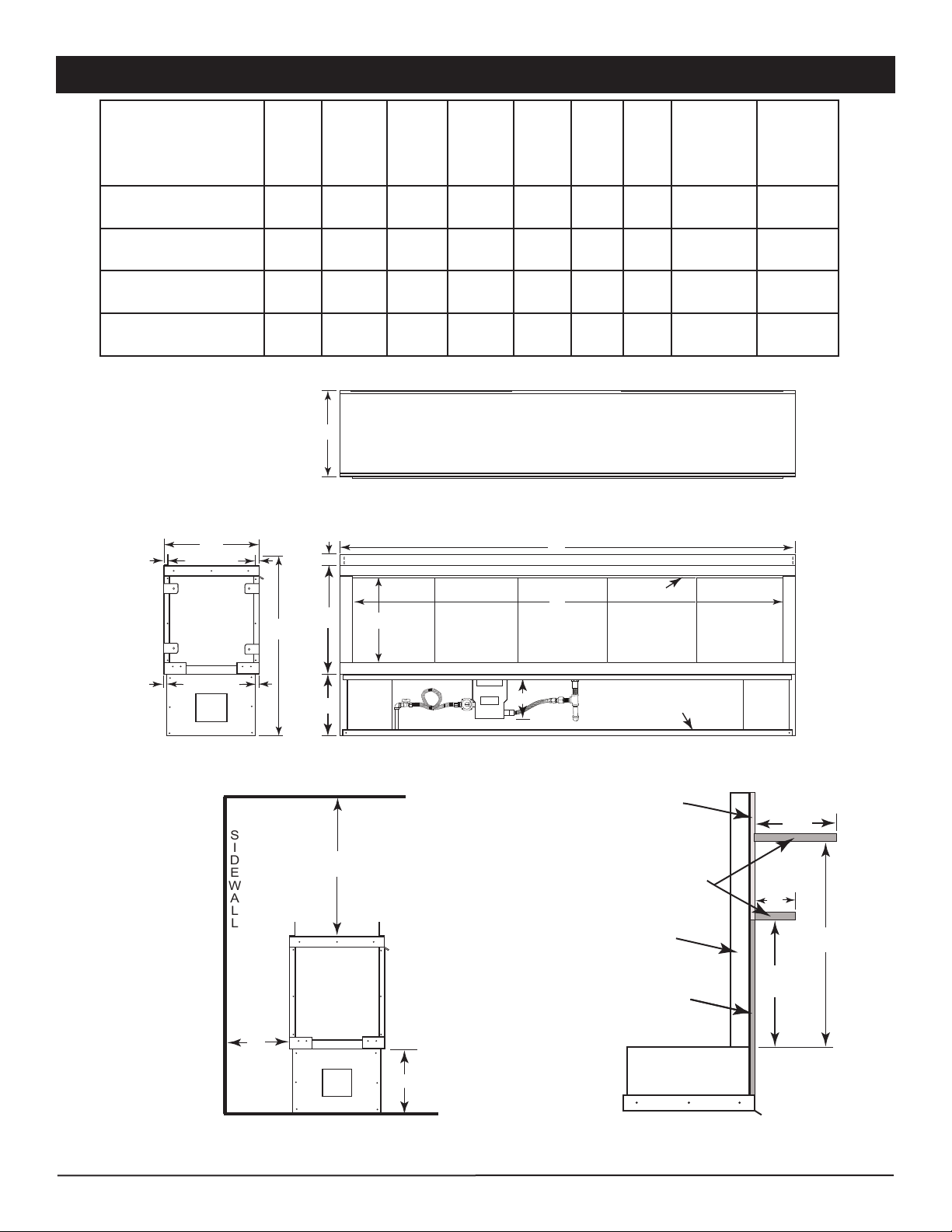

SINGLE-SIDED FIREPLACE
DIMENSIONS, FRAMING
AND CLEARANCES SECTION
PART NUMBER DESCRIPTION QTY.
77146 LED parts box (includes all parts in box) 1
77102 12VDC adapter for LED light operation 1
01-487 01-487 connector valve ½” 1
77151 Ignition screen 1
77150 Pilot hood 1
VENT-6X12SS 6x12 vent kit (includes 2- stainless vents;
12- washers, 12- nuts; 12- screws)
1
77110 LED 24” harness at appliance 1
RFP-77161 ECO OFP 10-foot module harness 1
RFP-77111 LED 10-foot controller harness 1
AF-4000ADP24-80V5 7.5VDC adapter for gas valve system 1
77117 RGB control box assembly 1
(36”) 73232 (48”) 74232
(60”) 75232 (72”) 76232
Windshield parts box 1
(36”) 73222 (48”) 74222
(60”) 75222 (72”) 76222
LED tray assembly - right 1
(36”) 73131 (48”) 74131
(60”) 75131 (72”) 76131
Hood (see page 26) 1
(36”) KB-36-73120
(48”) KB-48-74120
(60”) KB-60-75120
(72”) KB-72-76120
Windshield (see part # for specic sizes) 1
77145A Windshield Fastener Bag (includes 1- Left
LED glass clip (77157) 1- Right LED glass
clip (77156) 1- Left Std. glass clip (77155)
1- Right Std. glass clip (77154) &
7- hood screws (77129)
1
It is important to understand that when installing this outdoor appliance the
installation must follow ANSI standards as described below.
AN OUTDOOR SPACE IS DEFINED AS FOLLOWS PER ANSI Z21.97:
Outdoor spaces - An appliance is considered to be outdoors if installed with shelter no more inclusive
than:
• a) With walls on all sides, but with no over-head cover;
• b) Within a partial enclosure which includes an overhead cover and no more than two side walls.
These side walls may be parallel, as in a breezeway, or at right angles to each other; or
• c) Within a partial enclosure which includes an overhead cover and three sidewalls, as long as
30% or more of the horizontal periphery of the enclosure is permanently open.
This replace comes with two boxes prepackaged inside and outside the replace. Do
not discard any boxes unless noted to do so. Read the list below for the contents.

7-6-21 Page 11
Cedar Creek LED Outdoor Gas Fireplace
SINGLE-SIDED FIREPLACE DIMENSIONS & CLEARANCES
Table 4 Fireplace dimensions and clearances. Ensure you follow the proper clearances during installation.
Fig. 5 Fireplace dimensions; refer to Table 3.
Model:
N= Natural Gas
P= Propane Gas
A
Overall
Length
B
Inside
Opening
C
Overall
Height
D
Opening
Height
E
Overall
Depth
F
Leg
Height
G
Valve
Box
Depth
H
Clearance
To
Combustible
Side Wall
I
Clearance
To
Combustible
Ceiling
RFP-36LECO-NLED
RFP-36LECO-PLED
40” 36” 33½” 16” 16¼” 11½” 10¼” 6” 46 ½”
RFP-48LECO-NLED
RFP-48LECO-PLED
52” 48” 33½” 16” 16¼” 11½” 10¼” 6” 46 ½”
RFP-60LECO-NLED
RFP-60LECO-PLED
64” 60” 33½” 16” 16¼” 11½” 10¼” 6” 46 ½”
RFP-72LECO-NLED
RFP-72LECO-PLED
76” 72” 33½” 16” 16¼” 11½” 10¼” 6” 46 ½”
Fig. 6 Single-sided replace clearance to
combustibles (See Table 3) Fig. 7 Open front replace mantel clearances
FRONT VIEW
TOP VIEW
END VIEW
E
E
C
2”
20”
F
D
A
B
GBottom Finish Fin
Hood
½” Typ.
½” Typ.
I
H
END VIEW
SIDEWALL
CEILING
FLOOR
11½”
Back Front
END VIEW
12”
18”
TOP OF
FIREPLACE
6”
12”
Non-Combustible
Facing Material
Combustible
Material Permitted
Combustible
Shelf
Metal Studs

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 12
Model:
N = Natural Gas
P = Propane Gas
A
Width
B
Height
C
Depth
RFP-36LECO-NLED
RFP-36LECO-PLED
40 ½” 33 ¾” 15¾”
RFP-48LECO-NLED
RFP-48LECO-PLED
52 ½” 33¾” 15¾”
RFP-60LECO-NLED
RFP-60LECO-PLED
64 ½” 33 ¾” 15¾”
RFP-72LECO-NLED
RFP-72LECO-PLED
76 ½” 33 ¾” 15¾”
Fig. 8 Framing dimensions using all non-combustible materials for single-sided replace; refer to Table 4.
SINGLE-SIDED FRAMING DIMENSIONS WITH METAL STUDS
Table 5 Fireplace framing dimensions.
NOTE: This replace requires metal studs for framing. WOOD STUDS ARE NOT PERMITTED.
NOTE: This outdoor replace is not a “load bearing”
replace. All nishing materials must be supported
by the surrounding structure and not rely on the
replace itself.
Metal Studs Metal Studs
A
B
*Metal studs shown in gray.
Bottom Support Fin
Hood
C
Metal Studs
Metal Studs
Top view showing ½” lip using
non-combustible facing material at front face
(Front)
Nailing Flange

7-6-21 Page 13
Cedar Creek LED Outdoor Gas Fireplace
SEE-THROUGH FIREPLACE
DIMENSIONS, FRAMING
AND CLEARANCES SECTION
NOTE: Preparation for the LED lighting and the inlet gas line
must be planned before the replace is installed. See page 6,
Fig 1 for inlet gasline and page 16 for LED lighting.
It is important to understand that when installing this outdoor appliance the
installation must follow ANSI standards as described below.
AN OUTDOOR SPACE IS DEFINED AS FOLLOWS PER ANSI Z21.97:
Outdoor spaces - An appliance is considered to be outdoors if installed with shelter no
more inclusive than:
• a) With walls on all sides, but with no over-head cover;
• b) Within a partial enclosure which includes an overhead cover and no more than
two side walls. These side walls may be parallel, as in a breezeway, or at right an-
gles to each other; or
• c) Within a partial enclosure which includes an overhead cover and three sidewalls,
as long as 30% or more of the horizontal periphery of the enclosure is permanently
open.

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 14
END VIEW
18”
24”TYP.
TOP OF
FIREPLACE
6”
12”
Non-combustible
facing material
Combustible
material
Metal
Studs
6”
12”
Combustible Shelf
Combustible Shelf
Fig. 11 See-through replace mantel clearances
SEE-THROUGH FIREPLACE DIMENSIONS & CLEARANCES ONLY
Table 6 Fireplace dimensions and clearances.
Fig. 9 Fireplace dimensions; refer to Table 6
Model:
N = Natural Gas
P = Propane Gas
A
Overall
Length
B
Inside
Opening
C
Overall
Height
D
Opening
Height
E
Overall
Depth
F
Leg
Height
G
Valve
Box
Depth
H
Clearance
To
Combustible
Side Wall
I
Clearance
To
Combustible
Ceiling
RFP-36LECO-NLED
RFP-36LECO-PLED
40” 36” 33½” 16” 16” 11½” 10¼” 36” 46 ½”
RFP-48LECO-NLED
RFP-48LECO-PLED
52” 48” 33½” 16” 16” 11½” 10¼” 36” 46 ½”
RFP-60LECO-NLED
RFP-60LECO-PLED
64” 60” 33½” 16” 16” 11½” 10¼” 36” 46 ½”
RFP-72LECO-NLED
RFP-72LECO-PLED
76” 72” 33½” 16” 16” 11½” 10¼” 36” 46 ½”
Fig. 10 See-through replace clearance to
combustibles (See Table 6)
I
H
END VIEW
SIDEWALL
CEILING
FLOOR
11½”
Back Front
This replace ships from the factory as a single sided replace, but can converted it into a see-through replace. Order
the see-through kit to convert to a see through model. Your specic application, single sided verses see-through, will
determine how you install. Ensure you follow the proper clearances during installation.
FRONT VIEW
TOP VIEW
END VIEW
E
E
C
2”
20”
F
D
A
B
G
Bottom Finish Fin
Hood
½” Typ. 15 ¼”
½” Typ.

7-6-21 Page 15
Cedar Creek LED Outdoor Gas Fireplace
Model:
N = Natural Gas
P = Propane Gas
A
Width
B
Height
C
Depth
RFP-36LECO-NLED
RFP-36LECO-PLED
40 ½” 33 ¾” 15”
RFP-48LECO-NLED
RFP-48LECO-PLED
52 ½” 33¾” 15”
RFP-60LECO-NLED
RFP-60LECO-PLED
64 ½” 33 ¾” 15”
RFP-72LECO-NLED
RFP-72LECO-PLED
76 ½” 33 ¾” 15”
Fig. 12 Framing dimensions using all non-combustible materials for see-through replace; refer to Table 7.
SEE-THROUGH FRAMING DIMENSIONS WITH METAL STUDS
Table 7 Fireplace framing dimensions.
NOTE: This outdoor replace is not a “load bearing”
replace. All nishing materials must be supported
by the surrounding structure and not rely on the
replace itself.
Metal Studs
A
B
*Metal studs shown in gray.
Bottom Support Fin
Hood
C
Metal Studs
Metal Studs
Top view showing ½” lip using
non-combustible facing material at front face
(Front)
Metal Studs Nailing Flange
NOTE: This replace requires metal studs for framing. WOOD STUDS ARE NOT PERMITTED.

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 16
This replace is equipped with LED lighting.
Preparation for the LED lighting a must be planned
before the replace nish materials are installed. After
the replace is set in its nal location the LED lighting will
need to be installed and tested before nishing materials
are applied. You will need to provide the following:
(1) 120VAC GFCI outlet double gang junction box with a
weatherproof cover. Provides power to LED lights and gas
valve system. Follow local electrical codes for installation.
A RGB control box (with 10’ of wire) is provided with the
replace. It must be installed within the framing parameters
of the wire length. Note: Additional extension wires are
available in the Accessory section of this manual.
Step 1: Install the GFCI outlet double gang junction box
with a weatherproof cover on the opposite side of the inlet
gas supply.
Note: This is not a requirement; however, with the gang
box on the opposite side of inlet will create more room for
LED installation. Fig. 15 shows GFCI gang box installed.
Step 2: Find mounting location for the GFCI gang box. Fig.
14 shows at area underneath burner pan. Mount box
underneath the burner pan, below the square (cutout) hole
area. Fig. 15 shows the GFCI outlet double gang junction
box with a weatherproof cover mounted underneath the
replace.
Burner Pan
Support leg under replace
B
ot
t
o
m
s
u
p
p
o
r
t
n
GFCI Outlet installed in a double
outlet NEMA 3R enclosure
(Bring electrical up
from underneath
the replace)
Fig. 14 GFCI box location under replace
GFCI Outlet installed in a double
outlet NEMA 3R enclosure
Fig. 15 Show GFCI box mounted in replace
LED LIGHTING INSTALLATION
Fig. 13 Electrical placement.
36” Model = 13”
48“ Model = 18”
60“ Model = 24”
72” Model = 30”
5”
11½”
TYP
Electrical Area (GFCI)
The electric junction box (GFCI) with a weatherproof cover must be installed in
the shaded area shown below. Ensure the j-box is close to the oor area where
the replace is sitting and not touching the burnerpan.

7-6-21 Page 17
Cedar Creek LED Outdoor Gas Fireplace
Step 3: Locate the wire grommets inside the rebox. See
Fig. 16. Directly above them will be a series of metal
bridges to install the glass panel clips. Remove the glass
panel clips from the glass panel packaging. CAUTION:
The metal clips may have sharp edges, handle with care.
Peel the plastic coating from each glass panel clip
before installing. There will be (4) glass clips. The two
longest clips are use for the LED tray assembly and the
shorter glass clips will installed in front of the LED clips.
The LED clips (two longest clips) are installed rst, closest
to the burner tray. Note: There are two right side and two
left side clips supplied.
Install the LED glass clips by sliding them down through
the metal bridges as shown in Fig. 17. Install (1) clip on the
left and (1) clip on the right side of the inner replace side
panel. Note: If you are preparing a see-through replace
you will install a total of (8) glass clips, two for each open
side. The additional clips are supplied with the see-through
conversion kit.

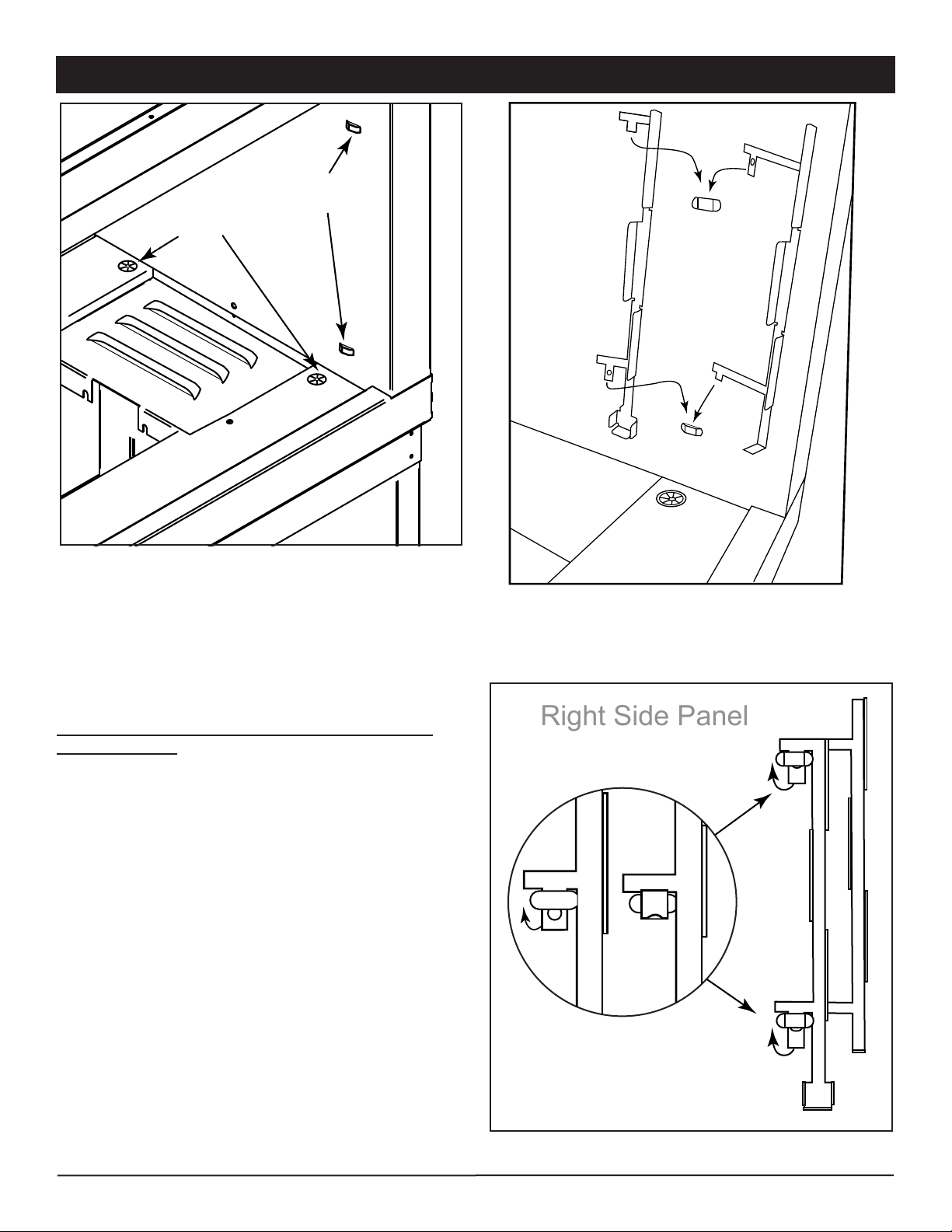

Fig. 17 Shows both glass clips being installed on
right side of replace
Wire Grommets
Metal Bridges
Fig. 16 Locating wire grommets
Step 4: After each LED glass clip is installed, use a at
blade screw and carefully bend the bottom tab out and
upward to lock it into position. Use a ngertip or pliers to
press the tab at against the metal bridge. See Fig. 18.
Fig. 18 Installing windshield clips
LED LIGHTING INSTALLATION
Step 1
Step 2
R
i
g
h
t
Fr
o
n
t G
l
a
s
s
C
li
p
R
igh
t
B
a
ck G
l
as
s
Cl
i
p
LED
Bend Lower Tabs Upward
to Lock Clip into Position
Locked
Tab
Loose
Tab
D
e
t
a
i
l
Right Side Panel

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 18
Step 6: Carefully push the LED channel connector through
the wire grommet. As you push it through the grommet sit
the LED channel into the bottom of the glass clip. Ensure
the other end of the channel is also sitting inside the other
retainer clip. See Figs. 20 & 21 as a reference. Note: If
you are installing into a see-through replace, install the
other LED light strip and channel the same direction.

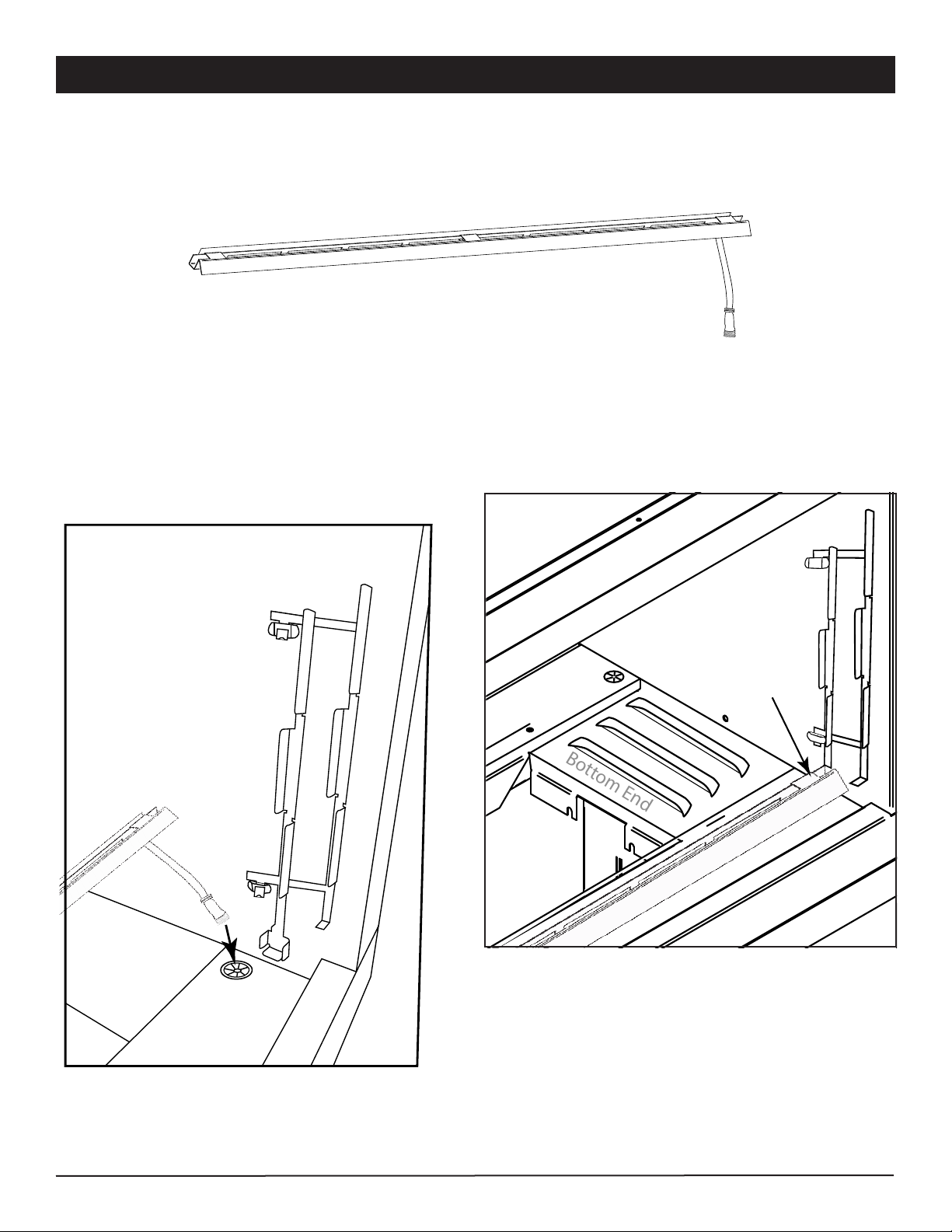

Fig. 20 Installing LED lights and channel
Fig. 21 LED installed in retainer clip inside replace
LED LIGHTING INSTALLATION
Step 5: Remove the LED right channel assembly from the carton (The front of the channel has a shield facing the front
with the LED wire hanging on the right side). See Figs. 19-21 for details. Note: If you are installing into a see-through
replace you will install both right and left channels assemblies.
Fig. 19 Shows LED right channel
Right Side of Fireplace
B
o
t
tom
En
d
LED Channel Assembly
Installed in retainer clip

7-6-21 Page 19
Cedar Creek LED Outdoor Gas Fireplace
Step 7: If needed, remove the screws from the “bottom
end” of the burner pan area to provide additional room
for wiring the LED lights. The “bottom end” lls the space
between the burner pan and the replace side panel. It
is held into place with three (3) screws. See Fig. 22. First
remove the two inside screws, then the screw securing the
side wall. Lift up the area where the two screws were and
push down where the single screw was, then lift the
bottom end out of the replace.
Step 8: Using Fig. 23 below, insert the LED channel
assembly female connector (protruding through the wire
grommets) to the LED male connector 77110. Note: The
male end of the LED connector will only insert into the
female connector in one direction. Once locked in
position, screw the threaded cap of the female connector
securely over the male connector.
Step 9: Attach 77110 to 77111 using the molex
connectors. After connecting the LED lights into the 77111
wire harness insert the 12-volt adapter 77102 with ¼”
terminals) into the (red & black wires) of LED wire
harness. Plug the 12-volt adapter into the 120VAC GFCI
box with weather proof cover. See Fig. 26, page 21.
Step 10: Re-install the “bottom end” if applicable.
LED LIGHTING INSTALLATION
Bottom End
1. Remove Screws
2. Lift up
3. Push down
V+
LED Lights
Male
Female
Female
Male
LED Lights
From
Fireplace
L
o
r
e
Inside Fireplace
LED Light Connection
12-volt adaptor;
6-foot long
#77102
24-inch LED Wire Harness
#77110
10-foot LED Controller Wire
Harness #77111
Connects to RGB Control
Assembly (dimmer and switches)
Female Male
Female
Male
Male
Female
Fig. 22 Removing bottom end
Fig. 23 LED wire connection

Cedar Creek LED Outdoor Gas Fireplace 7-6-21 Page 20
LED LIGHTING INSTALLATION
Step 11: Remove the RGB control box from the components parts carton. Find a suitable location within a close
proximity of the replace for convenience of operation and mount the control box upright and level as shown in Fig. 26,
page 21. Use Figs 24 & 25 for dimensional reference. The replace is supplied with 10-feet of wiring for the RGB control
box (switches and dimmer) installation. Note: If desired, you can purchase 10-feet wire extensions in the accessories
section that will enable you to move the RGB control box up to 50-feet away from the replace. CAUTION: Ensure all
switches are in the OFF position. “I” indicates ignite/ON and “O” indicates OFF. Learn button does not apply.
Step 12: Remove the four (4) outer screws from each corner inside the cover plate and lift off. See Fig. 24. This will
expose the mounting plate. See Fig. 25. CAUTION: Do not remove the two center screws from the cover plate. This will
release the entire switch box wiring from inside the junction box and make it difcult to reinstall.
Take note of the 8-PIN (77160) and 6-PIN (77111) wire connectors. These are labeled LED lights (6-PIN) and Control
Module (8-PIN) connections. These will be the nal connection to the replace and crucial to the operation.
Step 13: Find a desired location to mount the RGB control box. Cut a 6” wide x 5 ½” tall hole into the cement board. See
dotted line in Fig. 25. Mount the RGB control box. Note: The wires from the switches can be removed for easier
installation, if needed. Ensure to match the wires with the labels for each switch when reattaching.
Step 14: Remove the 8-PIN module wire harness (77161) from the components part box. Locate the 8-PIN male
connector from the valve box (under the replace) and connect it to the 8-PIN female end of the wire harness.
Connectors only attach one way; press together until it snap locks into place. See Fig. 26, page 21 for details.
Step 15: Feed the other end of the wire harness through the square access hole underneath the fireplace and pass the
GFCI box, outside the fireplace to the RGB control box and connect. Connectors only attach one way; press together
until it snap locks into place.
Step 16: Locate the two ¼” male terminals from the valve box and connect the AF-4000ADP24 adapter. Plug the 7.5VDC
adapter into the 120VAC GFCI box.
Step 17: Locate the 6-PIN wire harness (77111) for the LED lights and feed the wire harness up to the RGB
control box and attach. Connectors only attach one way; press together until it snap locks into place. See Fig. 26, pg 21.
Step 18: Plug 12-volt adapter (77120) into the 120VAC GFCI outlet double gang junction box described on page 16.
Step 19: Plug 77160 into 77161 to connect the control module to RGB control box then connect the AF-4000ADP48EXT
to the AF-4000ADP24 and plug it into the 120VAC GFCI outlet double gang junction box. See Fig. 26, pg 21 for reference.
Fig. 24 RGB control box with 8 ¾” x 8 ¾” cover plate.
RGB DIMMER
Cover Plate Surrounding Switch Plate
Remove screws to mount switch plate
Remove screws to mount switch plate
LED
ON/OFF
ON/OFF LOW
HIGH LEARN
CONT.
PILOT
RGB DIMMER
Mounting plate under switch cover
LED
ON/OFF
ON/OFF LOW
HIGH LEARN
CONT.
PILOT
5-5/8”
(143mm)
5-5/8”
(143mm)
Fig. 25 RGB control box mounting plate
