RENAISSANCE LINEAR 50 –RL50
INSTALLATION MANUAL
We recommend our products be installed and serviced by certified U.S. National
Fireplace Institute or Canadian Wood Energy Technology Transfer Inc. professionals
only.
Keep this manual for future reference.

2
NOTE TO THE INSTALLER
Dear Installer,
The Renaissance LINEAR 50 Fireplace is a member of the Renaissance family of luxury
fireplaces. It has a contemporary design with a 50" wide opening providing an
enormous linear viewing space.
Our engineers designed the LINEAR 50 to be easy to install, operate and maintain.
This manual includes vital fireplace and chimney system planning, preparation and
installation details. Read this manual prior to starting the installation to ensure all
requirements are met. For operation and maintenance guidelines, please refer to the
Owner's Manual, included with the Fireplace.
Make sure to give both manuals, installation and owner's, to the homeowner or to
leave them in a visible place.
Our team holds personal safety and protection with the highest regard, and we pride
ourselves with the quality of our work. We welcome comments and feedback
concerning the installation of the Renaissance LINEAR 50. Contact us by phone or
email.
Sincerely,
The Renaissance FireplacesTM Team
August 2015
Industrial Chimney Company Inc.
400 J.-F. Kennedy, St-Jerome,
Quebec, Canada, J7Y 4B7
Telephone: [phone]
Email: [e-mail]
www.icc-rsf.com

3
RENAISSANCE LINEAR 50 LISTING LABEL
TABLE OF CONTENTS
RENAISSANCE LINEAR 50 LISTING LABEL 4
IMPORTANT INSTALLATION SAFETY PRECAUTIONS 5
YES! WHAT TO DO 5
NO! WHAT NOT TO DO 5
COMBUSTIBLE VS NON-COMBUSTIBLE MATERIAL 5
PLANNING THE INSTALLATION 6
RECOMMENDATIONS 6
CHOOSING A LOCATION AND RESTRICTIONS 6
GENERAL SPECIFICATIONS 8
FIREPLACE SPECIFICATIONS 9
FRAMING OVERVIEW 9
NON-COMBUSTIBLE FRAMING OVERVIEW 11
CHIMNEY OVERVIEW 12
HEAT REDISTRIBUTION SYSTEM (HRS) OVERVIEW &OPTIONS 13
Standard HRS System (provided with the fireplace) 13
HRS Options 14
FIREPLACE INSTALLATION 14
INCLUDED WITH THE RENAISSANCE LINEAR 50 14
MOVING THE LINEAR 50 17
ACCESSING THE INSIDE OF THE FIREPLACE 17
ENGAGING THE GUILLOTINE SYSTEM 18
Firescreen Installation 18
Glass Door Installation 20
REDUCING THE FIREPLACE WEIGHT 21
MANDATORY INSTALLATIONS 22
MANDATORY -LEFT SIDE STANDOFFS 22
MANDATORY -BOTTOM STANDOFFS AND SPARK GUARD 23
Lifting The Fireplace Onto The Bottom Standoffs 24
MANDATORY –ANTI-TIP BRACKETS 24
MANDATORY CLEARANCES 25
FIREPLACE CLEARANCES 25
CEILING HEIGHT REQUIREMENTS 26
Reduced Ceiling Height 26
MANDATORY INSTALLATION -HEAT REDISTRIBUTION SYSTEM (HRS) 26
HRS Air Intakes (Bottom) 27
HRS Hot Air Outlets (Top) 27
Hot Air Outlet Installation 28
HEARTH EXTENSION REQUIREMENTS 29
OUTSIDE AIR INTAKE 31
CHIMNEY 32
CHIMNEY REQUIREMENTS 32
OFFSETTING THE CHIMNEY 33
THROUGH THE WALL OFFSET 33
OUTSIDE CHASE ENCLOSURE 34
CHIMNEY INSTALLATION 35
FINISHING 36
BAFFLE INSTALLATION 36
LINTEL INSTALLATION 36
FIREPLACE FACING 37
DECORATIVE FACING FINISH 38
MANTEL 38
FIREBOX LINING INSTALLATION 39
GLASS CLEANING 40
REPLACEMENT PARTS 40
30 YEAR LIMITED WARRANTY 41

4
RENAISSANCE LINEAR 50 LISTING LABEL
RENAISSANCE LINEAR 50 LISTING LABEL
The listing label is a thin steel plate attached to a cable, located inside the guillotine bay on
the far-right side. To access it, both the fire screen and the glass door must be open.
For proper operation of the glass door and screen, ensure the label is in its original location.
The listing label is permanently attached and should not be removed.

5
IMPORTANT INSTALLATION SAFETY PRECAUTIONS
IMPORTANT INSTALLATION SAFETY PRECAUTIONS
Carefully follow all instructions. Improper installation of this fireplace and chimney
system could result in a house fire. Detailed explanations are in the sections which
follow.
For information about local building code requirements or the need for a permit,
contact your local municipal jurisdiction or fire department.
YES! WHAT TO DO
1. DO read this entire manual before starting the
installation.
2. DO exercise caution when moving and positioning
the fireplace.
3. DO respect the mandatory installation sections.
4. DO inspect the fireplace, chimney, and
parts/components for damage prior to installation.
5. DO install all required parts and components as
instructed.
NO! WHAT NOT TO DO
6. DO NOT modify this fireplace or install parts or
components unapproved for use with this fireplace.
7. DO NOT install an unvented gas log set, gas lighter,
wood-burning fireplace insert or other products
unspecified for use with this fireplace.
8. DO NOT over fire this unit. Refer to operation
instructions in the Owner's Manual.
9. DO NOT allow combustible material within the
minimum clearance area of the fireplace and chimney
system.
10. DO NOT install non-combustible materials in the
required air flow spaces (e.g. do not install non-
combustible insulation inside a radiation shield).
11. DO NOT install an insert in this fireplace.
COMBUSTIBLE VS NON-COMBUSTIBLE MATERIAL
The National Fire Protection Association (NFPA) defines Non-Combustible Materials as
materials that if used as directed, will not ignite, burn, support combustion, or release
combustible vapors when subjected to heat or flame. Non-Combustible Materials have passed
the ASTM E136, Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at
750°C1.
Combustible Materials are thus any materials that did not pass the ASTM E136 test such as
anything surfaced or including wood, plant fibers, plywood, Oriented Strand Board (OSB),
1NFPA 211, Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances

6
PLANNING THE INSTALLATION
compressed paper, plastic and gypsum board (often called drywall or sheetrock)2which can
ignite and burn, whether it is flame-proofed or not, plastered or not plastered.
PLANNING THE INSTALLATION
RECOMMENDATIONS
Before beginning, we strongly recommend adequate planning of your installation, including
the chimney, the mandatory air grille locations and hearth protection, before beginning.
Refer to Figure 1 for an installation overview including critical components and warnings. The
planning process may involve your retail salesperson, installation personnel, outside
contractors and local building officials.
A building permit may be required. Check with your local authority to obtain the necessary
approvals before beginning. Close attention to detail and clear communication are important
to be sure that your Renaissance LINEAR 50 Fireplace is installed according to the
requirements in this manual and complies with local building codes.
IF THIS FIREPLACE IS NOT PROPERLY INSTALLED, A HOUSE FIRE
MAY RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION
INSTRUCTIONS AND CLEARANCE GUIDELINES.
CHOOSING A LOCATION AND RESTRICTIONS
When choosing a location for your fireplace, consideration should be given to best optimize
the performance of your chimney.
Optimal performance is achieved when a large portion of the chimney is within the building
envelope, centrally situated, allowing the chimney to terminate as close to the peak as
possible.
An insulated chase enclosure may be an acceptable alternative for the fireplace and chimney.
THERE ARE LOCATIONS WHERE THE FIREPLACE IS STRICTLY
PROHIBITED:
THE FIREPLACE MUST NOT BE INSTALLED OUTSIDE THE VAPOR
BARRIER OF THE HOME.
THE FIREPLACE MUST NOT BE INSTALLED OUTDOORS OR WITHIN
A THREE SEASON PORCH.
2Note that gypsum board, whether fire-rated or not is considered combustible.

7
PLANNING THE INSTALLATION
*Refer to text to determine the appropriate flashing

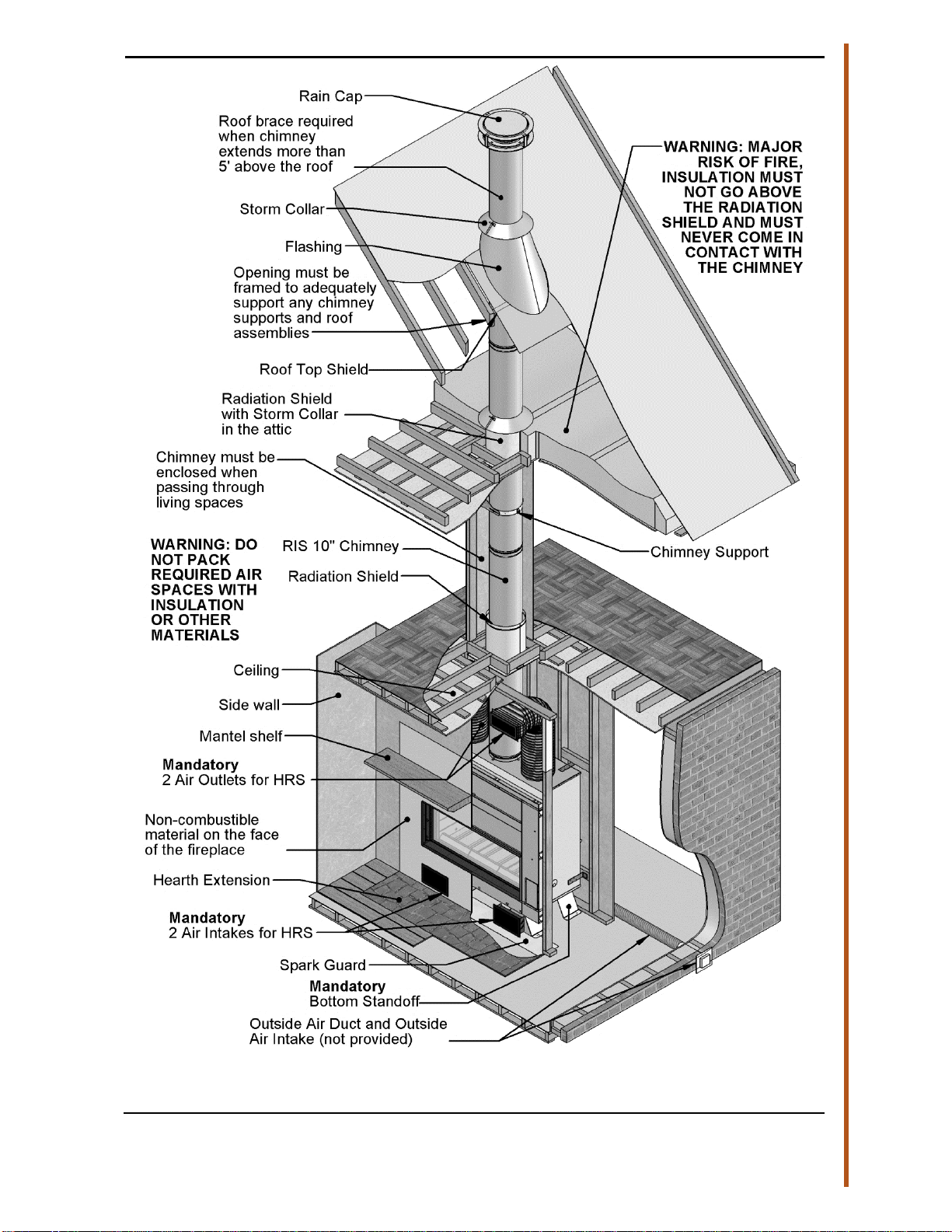

FIGURE 1 GENERAL INSTALLATION OVERVIEW
*

8
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
Under the 2015 U.S. EPA (Environmental Protection Agency) regulation, the Renaissance
LINEAR 50 is defined as a fireplace primarily for its decorative and aesthetic prominence
offering more than 500 square inches of pure fire viewing (710 square visible inches).
It comes fully equipped with a built-in guillotine glass door and a guillotine fire screen.
•Weight when crated is 1130 lb. Floor reinforcement may be required.
•Do not remove the fireplace from its skid until it is ready to be installed.
•This fireplace is designed to burn wood logs; vented gas logs sets may also be used.
For gas log installation instructions, visit www.renaissancefireplaces.com.
•Gas log lighters are not permitted because they will burn out prematurely.
WARNING
THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED GAS
LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO NOT INSTALL
AN UNVENTED GAS LOG SET INTO THIS FIREPLACE.

9
GENERAL SPECIFICATIONS
FIREPLACE SPECIFICATIONS

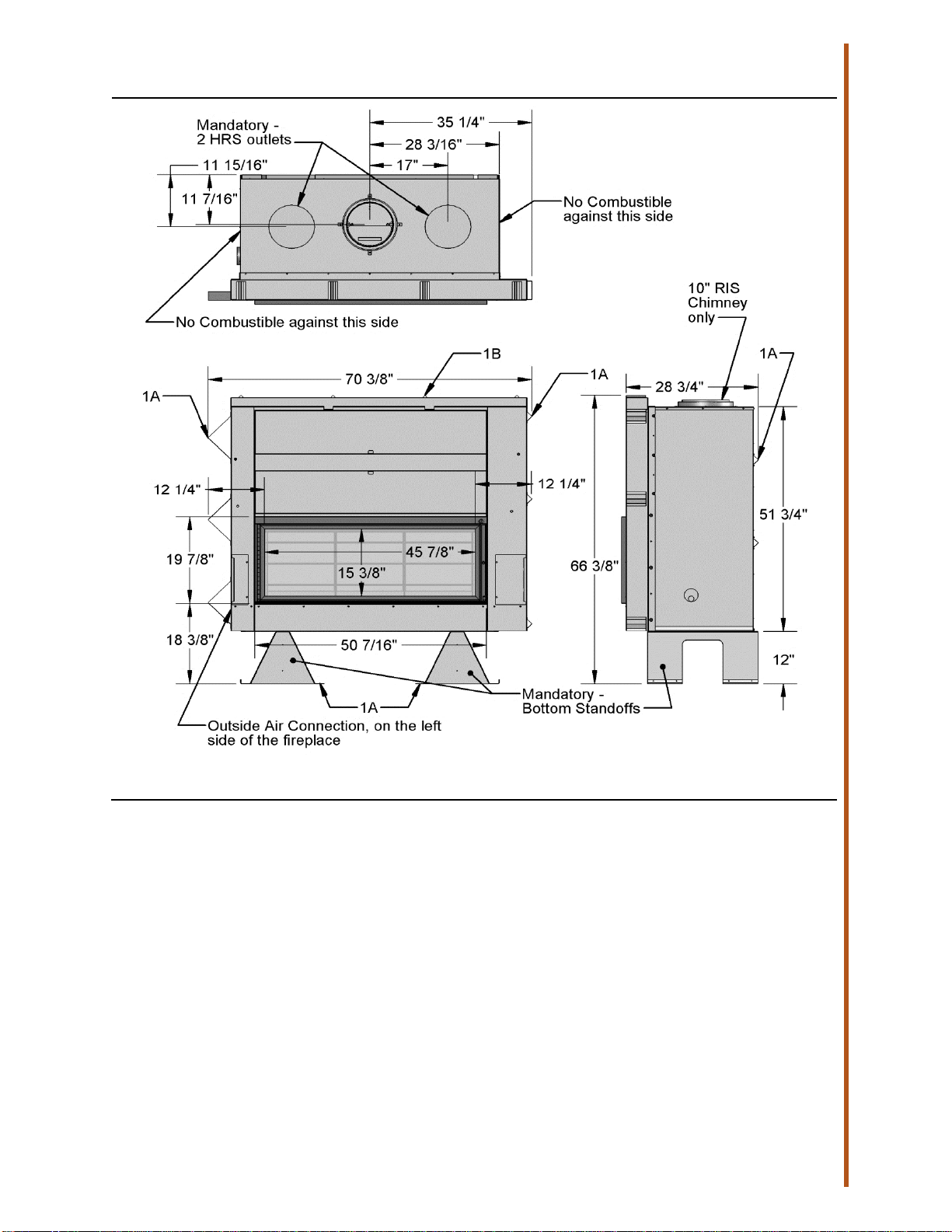

FIGURE 2 FIREPLACE DIMENSIONS
FRAMING OVERVIEW
Steel studs are required in some areas of this installation, see Figure 3.
Walls on all interior sides of the fireplace enclosure should be finished and flat. Insulation or
other materials should not be placed in required clearance spaces around the fireplace.

10
GENERAL SPECIFICATIONS
The minimal recommended framing dimensions do not take into consideration the space
required for the outside air connection and duct or the HRS Air Intakes because the location
for these and the space required are specific to your installation. Take the time to plan.
FIGURE 3 MINIMAL FRAMING DIMENSIONS
IMPORTANT: A NON-COMBUSTIBLE HEARTH EXTENSION IS
REQUIRED IN FRONT OF THIS FIREPLACE. REFER TO THE "HEARTH
EXTENSION REQUIREMENTS" SECTION OF THIS MANUAL FOR
MORE INFORMATION ON THE HEARTH EXTENSION AND ITS
REQUIREMENTS.
For duct clearance requirements, refer to the "Heat Redistribution system (HRS) Overview &
Options" in this manual.

11
GENERAL SPECIFICATIONS
For finishing specifications and allowable materials, refer to the "Fireplace Facing" section in
this manual.
NON-COMBUSTIBLE FRAMING OVERVIEW
For specifics about the Hot Air Duct clearances and which materials are permitted for framing
or finishing, refer to the “HRS Clearances" section in this manual.
For specifics about finishing the fireplace facing and which materials are permitted, refer to
the “Fireplace Facing" section in this manual.
FIGURE 4 NON-COMBUSTIBLE AND COMBUSTIBLE STRUCTURE AND SURFACE

12
GENERAL SPECIFICATIONS
CHIMNEY OVERVIEW
*Refer to text to determine the appropriate flashing
FIGURE 5 GENERAL CHIMNEY REQUIREMENTS
Flashing*
with
Storm Collar

13
GENERAL SPECIFICATIONS
TABLE 1 CHIMNEY SPECIFICATIONS
Chimney size and type
RIS 10" only
Minimum chimney height: from the top of the fireplace to the chimney cap
12'
(3,66 m)
Maximum chimney height from the top of the fireplace to the chimney cap
38'
(11,58m)
Maximum chimney height supported by the fireplace without additional
supports
12'
(3,66 m)
Minimum clearance between the exterior of the chimney and any
combustibles
2"
(51 mm)
Maximum number of offsets (2 elbows per offset)
2
HEAT REDISTRIBUTION SYSTEM (HRS) OVERVIEW & OPTIONS
The Heat Redistribution System (HRS) is mandatory and requires the installation of intakes
and outlets to allow ambient air in and warmed air out of the fireplace. Included with the
fireplace are two air intake grilles, two hot air outlets and two insulated flexible ducts with
the outlet grille adapters. We also offer different styles of grilles in option.
The HRS system relies on the natural draft of hot air rising and does not require a blower or
electricity.
FIGURE 6 HRS OVERVIEW
STANDARD HRS SYSTEM (PROVIDED WITH THE FIREPLACE)
•Two rectangular AIR INTAKE GRILLES (13 ½" x 8 3/8" with front frame) for installation
below the fireplace, in the bottom stand-off area.
•Two rectangular HOT AIR OUTLET GRILLES (13 ½" x 6") for installation above the
fireplace. The two Hot Air Outlet Grilles are connected to the top of the fireplace with
insulated ducts.
HRS
Air Intake
HRS
Hot Air Outlet

14
FIREPLACE INSTALLATION
HRS OPTIONS
•If you would prefer one long linear grille for the hot air outlet (above the fireplace) instead
of two rectangular outlet grilles, we offer the Long Linear Outlet Grille (EO-LLG-OUT).
Please refer to the installation instructions of the option for installation restrictions
compared to the hot air outlet grilles provided.
•You can also change the two rectangular intake grilles for one Long Linear Intake Grille
(EO-LLG-IN). Please refer to the installation instructions of the option for installation
restrictions compared to the rectangular grilles provided.
•Installations in an 8' ceiling require specific Air Outlet Grilles to ensure adequate heat is
vented from the fireplace. The Square Grilles for 8' Ceiling (EO-SG) includes two 13"
square grilles and two outlet grille adapters that are required when the ceiling is only at
8'. Please refer to the installation instructions of the option for installation restrictions
compared to the rectangular grilles provided.
Standard with the fireplace
Optional for 8' ceiling
Optional Linear Grills
Rectangular or long linear grilles, both intakes and outlets, MUST be installed
horizontally as shown.
FIGURE 7 HRS OPTIONS
FIREPLACE INSTALLATION
INCLUDED WITH THE RENAISSANCE LINEAR 50

15
FIREPLACE INSTALLATION
On the crate with the fireplace
Item
Description
Quantity
1
Renaissance LINEAR 50 Fireplace
1
2
Manual bag (see list for contents)
1
3
Hot air outlet ducts with pre-installed grille adapters
2
4
Chimney safety labels for each length of chimney in the attic
1
5
Hot air outlet grilles (6" x 13 ½")
2
6
Air intake grilles (8 3/8" x 13 ½")
2
7
Baffle support bracket
2
8
Metal baffle
1
9
Left side fireplace standoffs
3
10
Spark guard (74 ½" x 9 ¾")
1
11
Lintel –side finishing trim
2
12
Lintel –top finishing trim
1
13
Lintel –bottom finishing trim
1
14
Lifting handles
2
15
Pair of protective fireplace gloves
1
16
Anti-tip brackets
4
17
Bottom stand-offs
2
16
1
17

16
FIREPLACE INSTALLATION
In the bag with the manuals
Item
Description
Quantity
1
Removable door handle
1
2
Bottle of high temperature door grease
1
3
Collar for 5" outside air connection (if necessary)
1
4
Screw –self tapping 1" long hex head
16
5
Screw –self tapping 1/2" long hex head
12
6
Screw –sheetrock 1 ¼" long Philips head black
16
7
Washer –3/4" OD
6
8
Rivets
15
9
Door cover button –round black
2
10
Bag for manuals and small hardware
1
11
Owner's manual (English and French)
1
12
Installation manual (English and French)
1

17
FIREPLACE INSTALLATION
MOVING THE LINEAR 50
The LINEAR 50 weighs 1130 lb crated. Careful attention must be taken when moving the
fireplace with or without its shipping crate. Whenever possible move the fireplace while it is
still crated. We recommend using an Escalera or equivalent dolly to move the fireplace,
however, use caution when placing the dolly holding strap, see Figure 8. Misplacement of the
holding straps could result in damage to the guillotine system.
•NEVER lean the fireplace on its side; doing so may damage the guillotine system which
is wider than the rest of the fireplace.
•NEVER lift the fireplace by the front or by the guillotine door opening; always handle the
fireplace by its casing or by the lifting handles provided. See Figure 9.
To prepare the LINEAR 50, locate it as close as possible to its final installation position.
ACCESSING THE INSIDE OF THE FIREPLACE
Accessing the inside of the fireplace is recommended before final placement of the fireplace.
There are mandatory components inside the fireplace which are easier to install prior to final
positioning. Additionally, the weight of the fireplace can be greatly reduced for the final lift
into place onto its bottom standoffs if all the components and the refractory bricks are
removed from the firebox.
The upper strap must be level with the
reinforcement above the firebox opening.
The lower strap must be level with the metal
front step.
There are three lift positions for the two
lifting handles supplied.
The straps ship flat against the face of the
fireplace. Insert the Lifting Handle through
one of the strap openings and bend the
strap to face the other one.
FIGURE 8 ATTACHMENT STRAPS
FIGURE 9 LIFTING HANDLES

18
FIREPLACE INSTALLATION
ENGAGING THE GUILLOTINE SYSTEM
FIRESCREEN INSTALLATION
1. Remove the front finishing cover. Keep all screws for re-installation.
2. Remove the two rod end caps located on the back-left side of the unit. Do not
remove the rods at this point.

19
FIREPLACE INSTALLATION
3. Before removing the left blocking rods, gently pull down on the cable to lift the 10lb
counterweight. Then remove the left blocking rods and gently lower the counterweight
so that the cable is taut. Make certain that the cable is centered in both pulleys
and moves freely.
4. Check the movement of the fire screen by slowly moving it up and down. The cable
should remain centered on the pulleys.

20
FIREPLACE INSTALLATION
GLASS DOOR INSTALLATION
1. Remove the two rod end caps located on the
back-right side of the unit. Do not remove
the blocking rods at this point.
2. As with the firescreen, gently pull down on the cable to lift the 50lb counterweight.
Remove the right blocking rods and gently lower the counterweight so that the cable
is taut. Do not attempt to lift the door at this point and make certain that the
cable is centered in both pulleys.
3. The guillotine glass door is held closed by two transportation blocking brackets,
located at the bottom of the door on each side. Remove the ¼" hex head screws and
the blocking brackets.
