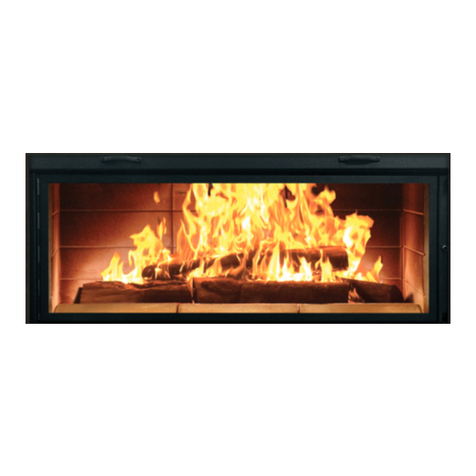

Renaissance Fireplaces LINEAR 50 User manual

RL50-INAN – 2016-05
LINEAR 50
INSTALLATION MANUAL
We strongly recommend that our products be
installed and serviced by professionals who are
certified by the National Fireplace Institute in
the U.S. or by Wood Energy Technology
Transfer Inc. in Canada.

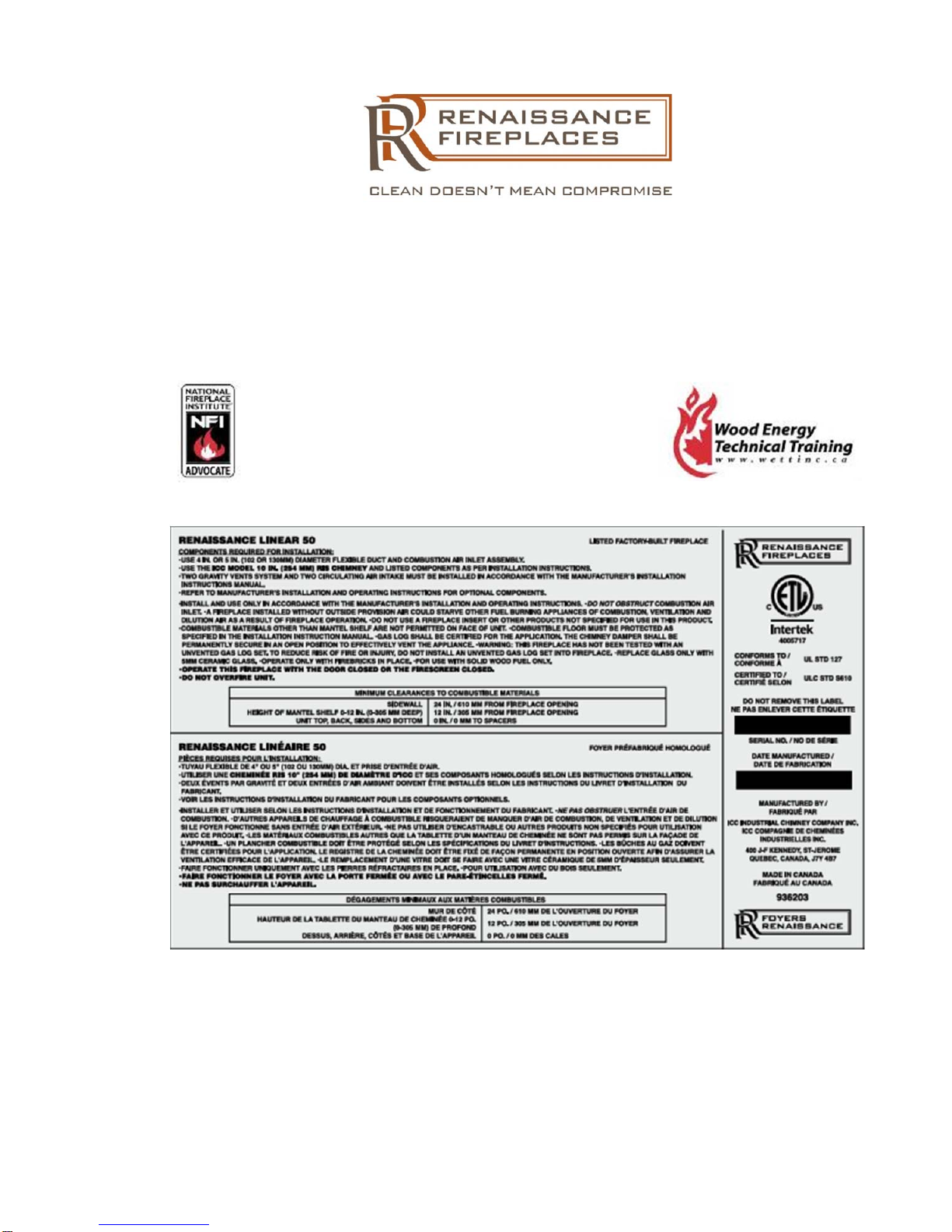

The listing label has been placed on a thin steel plate inside the guillotine bay on the far
right. Both the firescreen and the glass door must be open to access it. Make sure to
push it back as far as it goes inside so it does not impede proper movement of the glass
door and/or the firescreen.
Keep these instructions for future use.

TABLE OF CONTENTS
2
Dear Installer,
The Renaissance Linear 50 is a member of the Renaissance Fireplaces family of
ultra-high end fireplaces. The LINEAR 50 is unique in its design. The 50" wide
opening provides an enormous linear space to watch the fire. It combines
technology with elegance, allowing you to enjoy an open fire in a modern
fashion.
We have designed your new Renaissance LINEAR 50 to be easy to install,
operate, and maintain. It is critical for you to study this manual to be sure that
the installation is correct, and then also to be familiar with the guidelines for
operation and maintenance contained in the Owner’s Manual. Be sure to present
both manuals to the owner or leave them in a prominent place.
We at Renaissance Fireplaces™ appreciate the importance of careful work and
professional knowledge in installing this fireplace system exactly according to
the instructions.
Sincerely,
Renaissance FireplacesTM Team
August 2015
Industrial Chimney Company Inc.
400 J.-F. Kennedy, St-Jerome,
QC, Canada, J7Y 4B7
Telephone: [phone]
www.icc-rsf.com


IMPORTANT INSTALLATION SAFETY
PRECAUTIONS
3
TABLE OF CONTENTS
IMPORTANT INSTALLATION SAFETY PRECAUTIONS 4
DO'S AND DON'TS 4
Combustible vs Non-combustible Materials 4
GENERAL SPECIFICATIONS 5
OPTIONS 5
FIREPLACE 6
HEAT REDISTRIBUTION SYSTEM (HRS) 8
MANTEL 8
CHIMNEY 9
PLANNING THE INSTALLATION: 10
SELECTING A LOCATION IN THE HOUSE 13
Performance Considerations 13
Restrictions 13
FACTORS AFFECTING LOCATION IN A ROOM 13
Room Placement Options 13
Flooring Requirements 13
Ceiling Height 14
Fireplace Clearances 14
Mandatory Heat Redistribution System (HRS) 14
CHIMNEY 14
Location of The Chimney 14
Offsetting The Chimney 15
Going Through A Wall 15
Outside Chase Enclosure 16
Chimney Height 16
FIREPLACE INSTALLATION 18
UNPACKING YOUR LINEAR 50 18
MOVING THE LINEAR 50 19
INSTALLING THE LEFT SIDE STANDOFFS 20
INSTALLING THE BOTTOM STANDOFFS 20
LIFTING THE FIREPLACE 21
SECURING THE FIREPLACE 21
GLASS DOOR AND FIRESCREEN INSTALLATION 21
HEAT REDISTRIBUTION SYSTEM (HRS) INSTALLATION 23
HRS Air Intakes 23
HRS Air Outlets 23
OUTSIDE AIR DUCT 25
LINTEL INSTALLATION 26
CHIMNEY INSTALLATION 26
TO OFFSET THE CHIMNEY 27
Through the Wall Offset 28
FINISHING 28
FIREPLACE FACING 28
Installing The Cement Board Panels 28
Covering The Fireplace Facing 29
HEARTH EXTENSION 30
Raised Hearth Extension 31
MANTEL 32
FIREBOX LINING INSTALLATION 32
GLASS CLEANING 33
REPLACEMENT PARTS 33
WARRANTY 33

IMPORTANT INSTALLATION SAFETY
PRECAUTIONS
4
IMPORTANT INSTALLATION SAFETY
PRECAUTIONS
DO'S AND DON'TS
If this fireplace is not properly installed, a house fire could result. For issues of
safety and liability, follow the installation directions carefully. Contact your
local authority having jurisdiction (such as municipal building department or
fire department) regarding restrictions and installation requirements, and the
need to obtain a permit.
To ANYONE installing this fireplace: these DO's and DON’Ts are for proper performance
and safety of this fireplace system, as well as for your personal safety and protection.
Detailed explanations follow in this manual and in the Owner’s Manual.
1. DO read this entire manual and the Owner’s manual before installing this fireplace
system.
2. DO exercise caution in moving and placing the fireplace. See "Moving The LINEAR
50" on page 19 for detailed instructions.
3. DO inspect the fireplace, chimney, and parts/components for damage before
installation.
4. DO install all required parts/components as instructed in this manual.
5. DO be aware of differences in installation procedures and specifications for this
fireplace and other similar products.
6. DO NOT modify the fireplace and do not install any parts/components not
approved for use with this fireplace.
7. DO NOT install an unvented gas log set, gas lighter, wood burning fireplace insert
of other products not specified for use with or in this fireplace.
8. DO NOT over fire this unit in testing or demonstrating it. See Owner’s Manual for
details about proper operation.
9. DO NOT allow combustible materials closer to heat sources (fireplace and
chimney) than allowed in minimum clearance instructions.
10. DO NOT allow non-combustible materials such as insulation in required air spaces
(e.g. insulation contacting the chimney).
COMBUSTIBLE VS NON-COMBUSTIBLE MATERIALS
It is important to distinguish clearly between combustible and non-combustible
materials. National Fire Protection Association (NFPA) defines the differences:
Combustible Materials
Materials made of or surfaced with any of wood, plant fibers, plywood/OSB,
compressed paper, plastic, gypsum board (drywall/sheetrock)1
Any material that can ignite and burn, whether it is flame-proofed or not,
plastered or not

1Note that gypsum board, whether fire-rated or not is considered combustible.

GENERAL SPECIFICATIONS
5
Non-combustible Materials
Materials that, as used and under anticipated conditions, will not ignite, burn,
support combustion, or release combustible vapors when subjected to flame or
heat
Materials reported as passing ASTM E 136, Standard Test Method for Behavior of
Materials in a Vertical Tube Furnace at 750°C2.
GENERAL SPECIFICATIONS
The LINEAR 50 fireplace is a decorative fireplace that provides a magnificent view of the
fire. It is defined as a fireplace (primarily for aesthetics) under the 2015 EPA (United
States Environmental Protection Agency) regulation since it offers more than 500 square
inches of pure fire viewing (710 square inches are visible). Small amounts of firewood
can fill the firebox with large, beautiful flames in this exceptional fireplace.
OPTIONS
The LINEAR 50 comes fully equipped with a built-in guillotine glass door and a guillotine
firescreen.
The Heat Redistribution System is mandatory, and requires the installation of intakes
and outlets to allow ambient air in and warmed air out of the fireplace. Included with the
fireplace are two air intake grills, two hot air outlets and two insulated flexible duct with
the outlet grill adapters. We also offer different styles of grills in option:
If you would prefer one long linear grill for the hot air outlet (above the fireplace)
instead of two rectangular outlet grills, we offer the Long Linear Outlet Grill (EO-LLG-
OUT). Please refer to the installation instructions of the option for installation
restrictions compared to the hot air outlet grills provided.
You can also change the two rectangular intake grills for one Long Linear Intake Grill
(EO-LLG-IN). Please refer to the installation instructions of the option for installation
restrictions compared to the rectangular grills provided.
Installations in an 8' ceiling require specific Air Outlet Grills to ensure adequate heat
is vented from the fireplace. The Square Grills for 8' Ceiling (EO-SG) includes two
13" square grills and two outlet grill adapters that are required when the ceiling is
only at 8'. Please refer to the installation instructions of the option for installation
restrictions compared to the rectangular grills provided.
Vented gas logs sets are permitted, unvented gas log are not. Go online to the
Renaissance web site: www.renaissancefireplaces.com for more information.
WARNING: THIS FIREPLACE HAS NOT BEEN TESTED WITH AN
UNVENTED GAS LOG SET.TO REDUCE RISK OF FIRE OR
INJURY,DO NOT INSTALL AN UNVENTED GAS LOG SET
INTO THIS FIREPLACE.DO NOT INSTALL A GAS LIGHTER
BECAUSE THE HEAT PRODUCED BY THE FIREPLACE MAY
PERMANENTLY DAMAGE THE GAS LIGHTER.

2NFPA 211, Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances

GENERAL SPECIFICATIONS
6
FIREPLACE
The fireplace bottom standoffs are mandatory for all installations. They permit air flow
into the fireplace casing and MUST be installed regardless of whether the fireplace is
installed on combustible or non-combustible flooring or platforms. See section "Fireplace
Installation: Installing The Bottom Standoffs" for all the details regarding the
requirements to use the fireplace bottom standoffs.
F

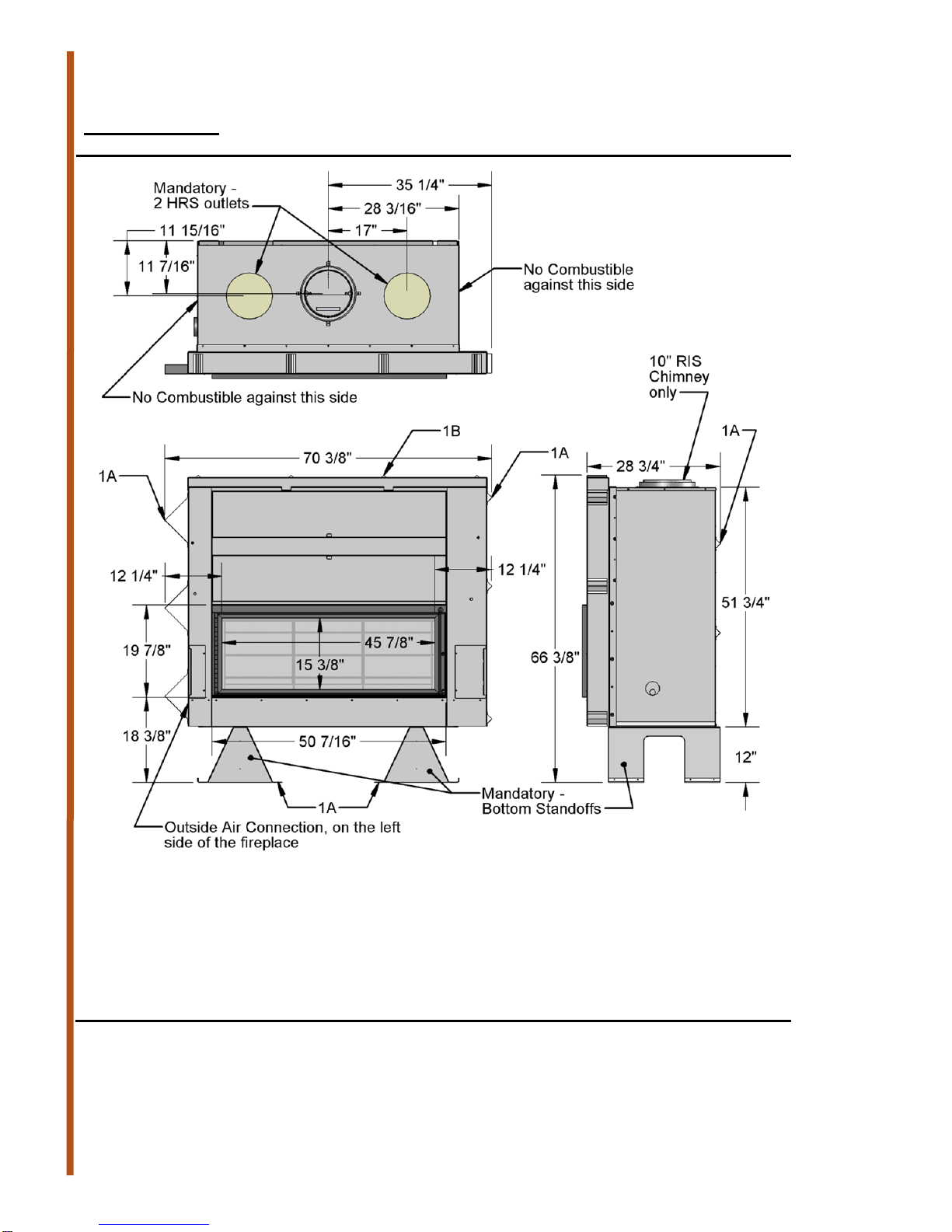

IGURE 1 F IREPLACE D IMENSIONS

GENERAL SPECIFICATIONS
7
T ABLE 1 F IREPLACE C LEARANCES AND S PECIFICATIONS Manual
Ref.
A
Distance to combustible material from side, back and
bottom standoffs. 0" (0 mm) Figure 1
B Framing against the top standoff. Non-combustible Figure 1
C
Minimum distance from the side of the fireplace opening to
a perpendicular side wall. 24" (610 mm) Figure 2
D
Minimum ceiling height: measured from the bottom of the
bottom standoff to the lowest point of the ceiling above the
fireplace. Applies both to the inside and outside of the
fireplace enclosure.
9' (2.7 m) Figure 3
E
Minimum depth of non-combustible hearth extension:
measured from the front of the fireplace. 20" (508 mm) Figure 2
F
Minimum width of non-combustible hearth extension,
centered on the fireplace opening. 74.5" (1.89 m) Figure 2
G Minimum width of the spark guard. 74.5" (1.89 m) Figure 2

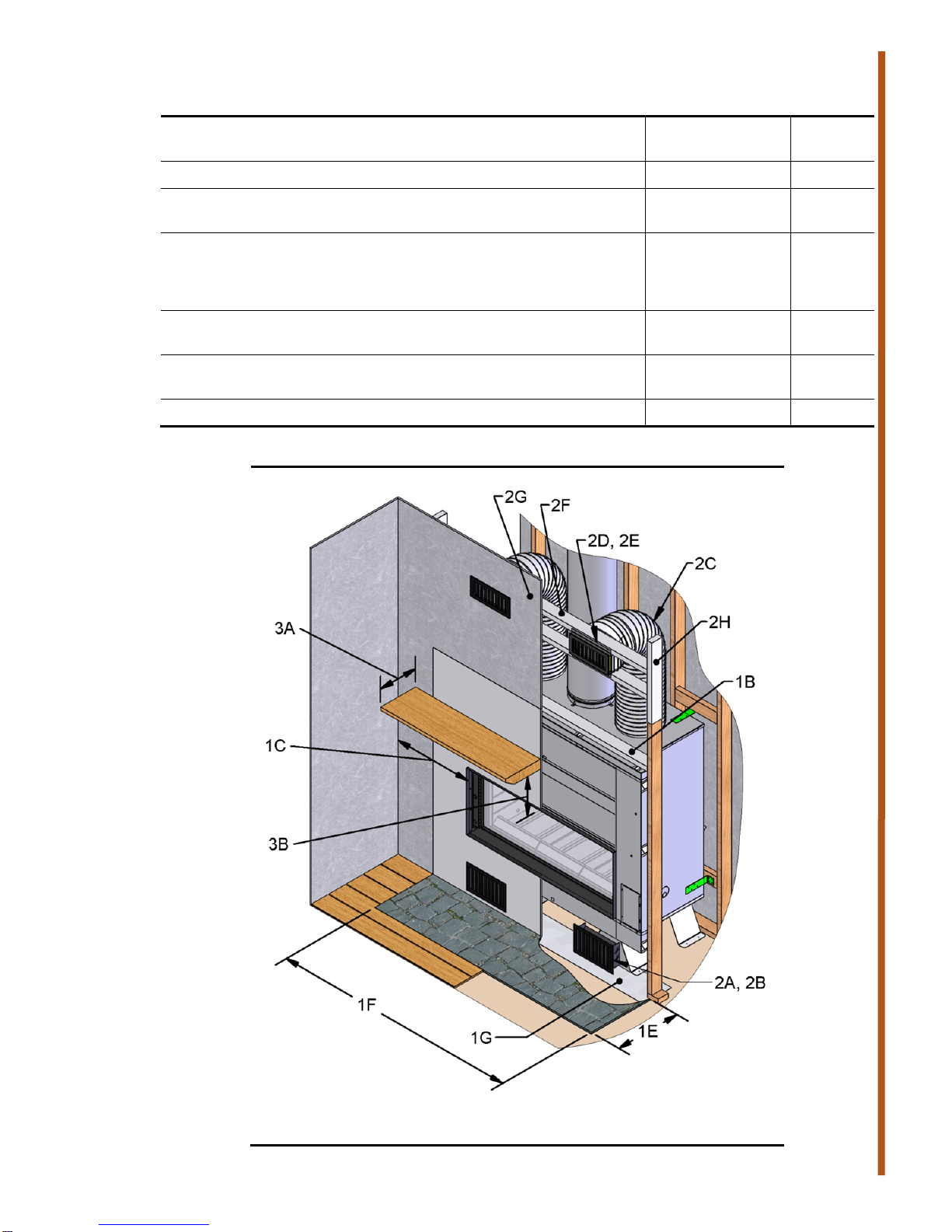

F IGURE 2 F IREPLACE , HRS AND M ANTEL C LEARANCES

GENERAL SPECIFICATIONS
8
HEAT REDISTRIBUTION SYSTEM (HRS)
T ABLE 2 H EAT R EDISTRIBUTION S YSTEM (HRS) C LEARANCES AND
S PECIFICATIONS Manual
Ref.
A Minimum height of the air intake grill above the floor. 1.5" (38 mm) Figure 2
B
Maximum height of the air intake grill above the floor when
the fireplace is sitting on the floor. Height can increase if
fireplace is raised. 18"
(457 mm) Figure 2
C
Minimum clearance between the outside of the hot air
outlet duct and any combustibles above, below or beside
the duct. 6"
(152 mm) Figure 2
D
Minimum clearance from the hot air outlet grill to the
ceiling: measured from the top of the outlet grill to the
ceiling above. 11"
(280 mm) Figure 2, Figure 14
E
Minimum height of the hot air outlet grill above the top of
the fireplace: measured from the bottom edge of the hot
air outlet grill to the top of the casing of the fireplace main
body.
26"
(660 mm)
Figure 2,
Figure 14
F Framing around the hot air outlet grills and their adapters. Non-combustible Figure 2, Figure 5,
Figure 14
G Wall surface surrounding the hot air outlet grills. Non-combustible Figure 2,
Figure 15
H
Minimum height of non-combustible framing for the hot air
outlets, centered on the hot air outlet grills. 22" (559 mm)
Figure 2,
Figure 5,
Figure 14
I
Maximum length of each outlet duct: measured from the
top of the fireplace to the outlet grill 15' (4.57 m)
MANTEL
T ABLE 3 M ANTEL C LEARANCES AND S PECIFICATIONS Manual
Ref.
A
Maximum depth of a combustible mantel shelf above the
fireplace opening. 12"
(305 mm) Figure 2
B
Minimum height of a combustible mantel shelf above the
top of the fireplace opening: measured from the lowest
point/bottom of the combustible mantel. 12"
(305 mm) Figure 2


GENERAL SPECIFICATIONS
9
CHIMNEY
This fireplace is certified for use with 10" ICC Model RIS chimney only. Please refer to
Figure 3 and Table 4 for chimney clearances and specifications with the LINEAR 50
fireplace.

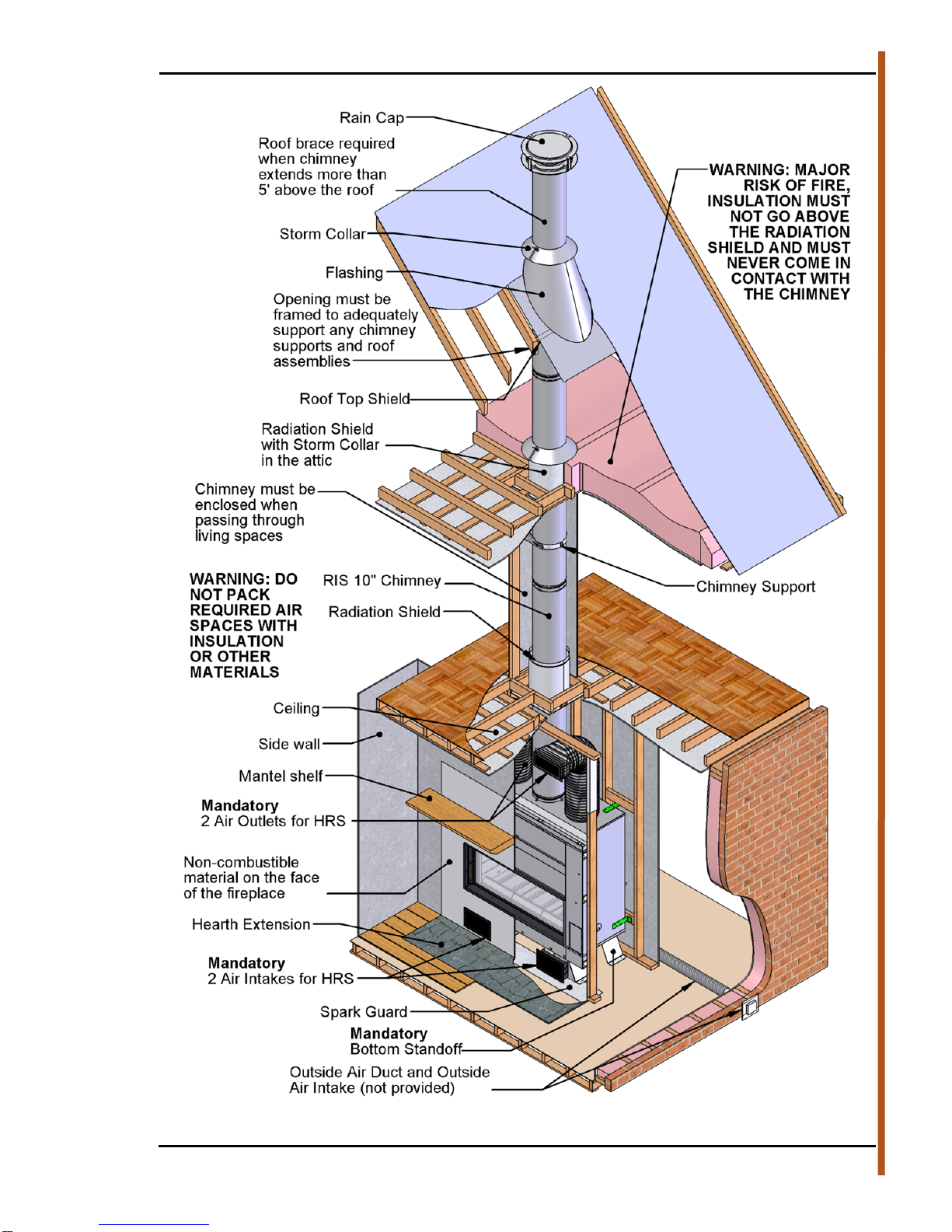

F IGURE 3 G ENERAL C HIMNEY R EQUIREMENTS

PLANNING THE INSTALLATION:
10
T ABLE 4 C HIMNEY C LEARANCES AND S PECIFICATIONS Manual
Ref.
A Chimney Size and type RIS 10" only Figure 4,
Figure 3
B
Minimum chimney height: minimum total chimney height
from the top of the fireplace to the rain cap without offsets. 12'
(3.66 m) Figure 3,
Table 7
C
Maximum chimney height: maximum total chimney height
from the top of the fireplace to the rain cap. 38'
(11.58 m) Figure 3
D Maximum chimney height supported by the fireplace 12' (3.66 m) Figure 3
E
Minimum clearance between the exterior of the chimney
and any combustibles 2"
(51 mm) Figure 3
PLANNING THE INSTALLATION:
FOLLOWING RECOMMENDATIONS AND
MEETING REQUIREMENTS
The planning process may involve a number of people, including sales, estimating, and
installing personnel, the local authority having jurisdiction (such as municipal building,
fire department, or fire prevention bureau officials, and, of course, the owners who
purchase the system. Close attention to detail and clear communication are important in
that process.
There are numerous factors and many details that are involved in choosing a suitable
location for the fireplace and chimney. Some of these factors are options and
recommendations for optimum performance and owner enjoyment. Others are strict
requirements that may be essential for acceptable performance and safety.
We introduce recommendations and requirements for planning factors here, but it may
be necessary to refer to the installation details in the Installation section that follows for
exact details that can affect planning decisions. We strongly recommend that you take
the time to plan your entire installation (fireplace, air duct systems, and chimney) before
beginning the actual installation (see Figure 4).

PLANNING THE INSTALLATION:
11
F IGURE 4 G ENERAL I NSTALLATION

PLANNING THE INSTALLATION:
12
The framing dimensions are larger than required for ease of installation.
The horizontal stud going across the top of the fireplace (at 67 3/8") MUST be a steel
stud whether the HRS outlets are installed above the fireplace or elsewhere.
All framing around the HRS outlets MUST be in steel studs whether they are installed
above the fireplace or elsewhere.

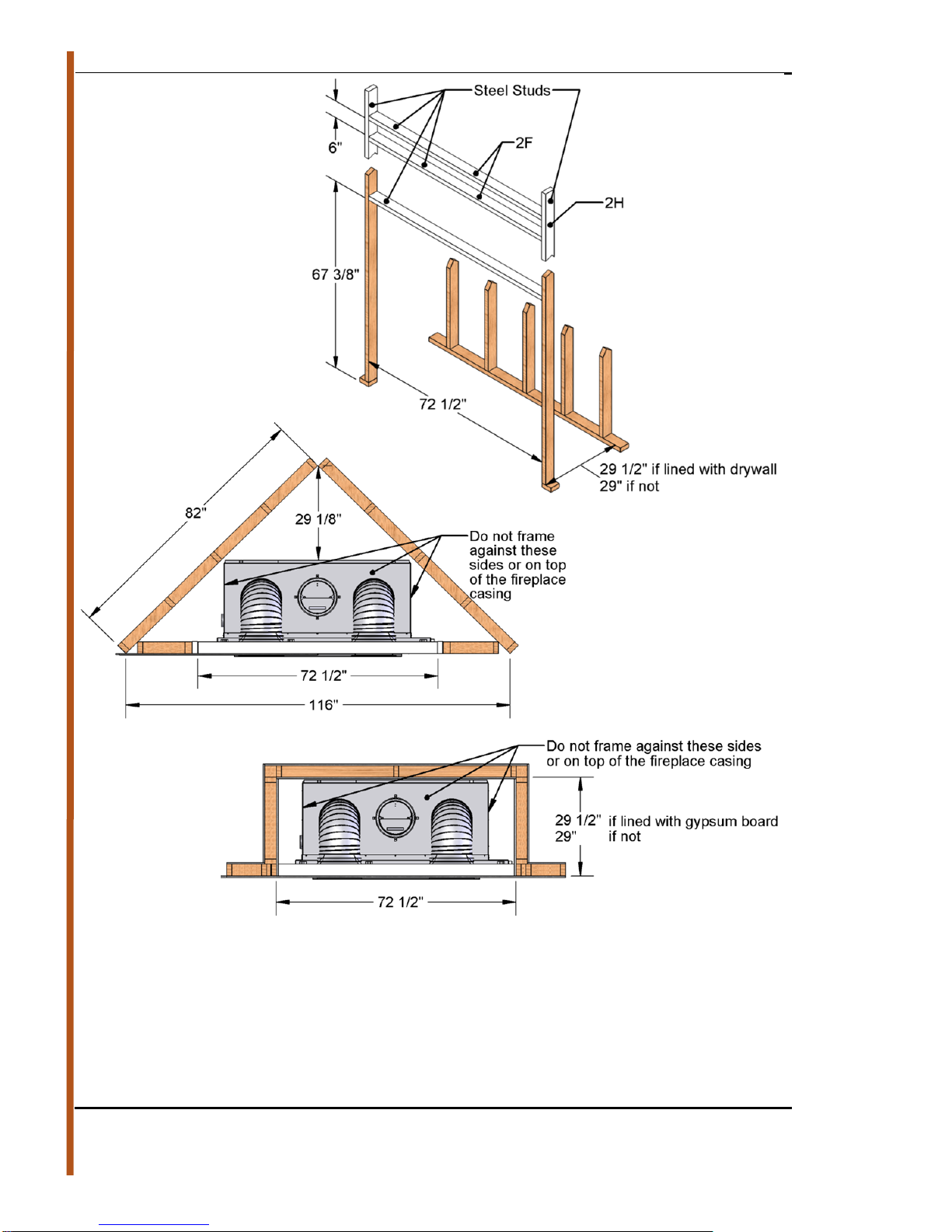

F
IGURE 5 F RAMING E XAMPLES

PLANNING THE INSTALLATION:
13
SELECTING A LOCATION IN THE HOUSE
PERFORMANCE CONSIDERATIONS
The room in the house where the fireplace may well be determined by its use by the
owners. If there are options, the performance of the venting system might be
considered:
Installation where as much of the chimney is within the building envelope (toward
the center of the house and with the termination close to the peak of the roof)
enhances draft.
Installation in an insulated chase enclosure may be an acceptable alternative for
locations where much of the chimney would be exposed to cold air.
RESTRICTIONS
There are a number of factors that may prevent installation in a particular room (see
"Factors Affecting Location in a Room" below), but there are also locations where the
installation of this fireplace is prohibited:
The LINEAR 50 must be installed within the vapor barrier of the home.
It cannot be installed outdoors, or on a three season porch.
FACTORS AFFECTING LOCATION IN A ROOM
With the selection of a particular room in the house, the focus turns to the specific
location within the chosen room. The desired location may be dictated by room
orientation, furniture arrangement, and other design, comfort, and utility factors. We
focus now on installation details that determine whether a chosen location is possible,
and what alternatives are available.
ROOM PLACEMENT OPTIONS
The LINEAR 50 can be installed in a number of ways in a room: along a wall, as a room
divider, across a corner. For each location, there are numerous factors that determine
what exactly is possible and where, which we introduce below and provide details for in
the "Fireplace Installation" and in the "Chimney Installation" Section.
FLOORING REQUIREMENTS
Before installing your LINEAR 50, make sure the floor surface and floor structure are
level and can sustain the weight of the complete fireplace and whatever finishing
material you will use to cover the facing of your fireplace.
You can install your fireplace at the floor level or build a platform to elevate it to the
desired height. Again, make sure the platform is built to sustain the weight of the
fireplace and the finishing material you will use to finish the facing of your fireplace.
You MUST install the fireplace onto the fireplace bottom standoff along with the bottom
casing provided with the fireplace, whether it is installed on combustible or non-
combustible flooring.
If it is installed on a typically framed combustible floor, you must reinforce the sub-floor
to help spread the load from the legs of the bottom standoff throughout the floor
structure to prevent sagging.

PLANNING THE INSTALLATION:
14
CEILING HEIGHT
The minimum ceiling height is measured from the base of the bottom standoffs to the
ceiling. This requirement applies to the ceiling above the fireplace in the enclosure and
the ceiling height in the room in front of the fireplace. Refer to Table 1 (D) for the
required height. This height can be reduced to 8’ with installation of the optional
Square Grills for 8’ Ceilings (EO-SG).
FIREPLACE CLEARANCES
See Figures 1 and 2 and Table 1 on pages 6, 7 and 7 for complete unit specifications and
clearances. Framing examples are provided in Figure 5. It is important to understand
and plan for other factors in addition to the clearances to the unit and the chimney:
No recessed shelves or cupboards can be in the area above the fireplace. This space
must be kept empty.
The enclosure walls can be framed with any suitable materials (2"x4" or 2"x6" studs,
plywood, gypsum board, etc.). Because of the high heat output potential of the
LINEAR 50, combustible materials must NOT go closer to the fireplace than the back
and sides' standoffs; refer to Figure 5.
MANDATORY HEAT REDISTRIBUTION SYSTEM (HRS)
As the firebox heats up, a significant amount of heat builds up in the space between the
firebox and the casing that surrounds it. In order to reduce temperatures in this area
and deliver more heat into the living space, the LINEAR 50 requires installation of a Heat
Redistribution System (HRS) which is provided.
The HRS consists of air intakes and air outlets which circulate room air through the
space between the casing and the firebox and then return the heated air to the room.
The HRS relies on natural draft and does not require a blower or electricity.
There are a number of options for locating the intakes and outlets of the system, as well
as important requirements. Proper planning and installation of this system are critical to
ensure the safety of the family and their home.
The instructions in this manual are for the HRS system included with the fireplace. If you
have purchased another of Renaissance Fireplaces certified grill options, follow the
instructions included with that option.
Refer to Table 2 for the HRS clearances and specifications with the LINEAR 50 fireplace.
CHIMNEY
LOCATION OF THE CHIMNEY
Note the location of roof and floor joists. Choose a location that does not require cutting
them if possible.
We recommend the chimney be installed in the interior of the building as it will provide
better performance than an exterior chimney. In areas with continuous temperatures
below 32°F (0°C) the use of an exterior chimney may result in operating problems such
as poor draft and excessive condensation of combustion products. If you do install an
exterior chimney we recommend that you install it within an insulated enclosure (see "
Outside Chase Enclosure" on page 16).
WARNING: THE CLEARANCE BETWEEN THE CHIMNEY AND
COMBUSTIBLE MATERIAL MUST BE 2" OR MORE.DO NOT
FILL THIS AREA WITH INSULATION.

PLANNING THE INSTALLATION:
15
O FFSETTING T HE C HIMNEY
An elbow may be installed directly on top of the fireplace if required. Refer to Table 5 for
the 10" RIS offset chart or to the RIS chimney installation manual which can also be
found at: www.icc-rsf.com/en/model-ris-offset-tables. Use the offset option if you need
to clear a joist or pass around a cupboard. See Figure 18 for example.
Adding offsets to the chimney will increase the minimum required chimney height. Refer
to Table 7 for specifics.
The maximum offset angle:
In USA: 30°;
In Canada: 45°.
The maximum number of elbows per system is four, resulting in two offsets and returns.
T
ABLE 5 10" RIS O FFSET
Length
between
elbows
15° Offset 30° Offset 45° Offset
Rise Offset Rise Offset Rise Offset
No length 11
7
/
8
" 1
5
/
8
" 14
1
/
8
" 3 ¾" 15
7
/
8
" 6
5
/
8
"
12" length 22 ¼" 4
3
/
8
" 23
3
/
8
" 9
1
/
8
" 23 ½" 14
1
/
8
"
24" length 33
7
/
8
" 7 ½" 33 ¾" 15
1
/
8
" 32" 22
5
/
8
"
48" length 57" 13
5
/
8
" 54
5
/
8
" 27
1
/
8
" 48
7
/
8
" 39
5
/
8
"
48" + 12" 67
3
/
8
" 16 ½" 63
7
/
8
" 32 ½" 56 ½" 47 ¼"
48" + 24" 79" 19 ½" 74 ¼" 38 ½" 65" 55 ¾"
48" + 24" + 12" 89
3
/
8
" 22
3
/
8
" 83
5
/
8
" 43
7
/
8
" 72
5
/
8
" 63
3
/
8
"
48" + 48" 102 ¼" 25 ¾" 95" 50 ½" 82" 72 ¾"
G OING T HROUGH A W ALL
If necessary, the chimney can go through a wall at an angle. You will need to use an
Insulated Angled Wall Radiation Shield (RM-10WRSI30 or RM-10RWSI45) to protect the
combustible wall structure from the heat of the chimney. See Table 6 for installation
dimensions and minimum ceiling height.


PLANNING THE INSTALLATION:
16
OUTSIDE CHASE ENCLOSURE
If the chimney runs up the outside of the house, we recommend that it be enclosed in a
chase structure. The chase should be constructed in such a way that it is an extension of
the home (see Figure 19). It should be well insulated between the footings and the floor
of the home to prevent heat loss. If the climate in your area is mild, insulate the chase
at least to the first firestop. If the climate in your area is very cold, insulate the chase to
the top to keep the chimney warmer, increase the draft, and reduce creosote buildup.
We also recommend insulating the ceiling of the chase just as if it were in the attic
space. This will prevent cold air from dropping down through the chase and into the
room where the fireplace is installed (see Figure 19).
Some local codes require that the walls be insulated, vapor sealed and sheathed with a
fire rated gypsum board (see Figure 19). We strongly recommend this procedure for all
installations to prevent cold drafts from originating in the fireplace enclosure. If you
follow this procedure, we recommend that you do not insulate the wall above the front
of the fireplace.
REMEMBER: CHECK LOCAL CODES CONCERNING INSTALLATION
REQUIREMENTS AND RESTRICTIONS IN YOUR AREA.
CHIMNEY HEIGHT
We recommend that the minimum height be increased by approximately 6" for every
1000' elevation above sea level. Every 15°, 30° or 45° offset (one pair of elbows) also
increases the minimum height. See Table 7 for more precise recommended flue heights.
TABLE 6THROUGH THE WALL INSTALLATION DIMENSIONS
30Offset Through the Wall 45Offset Through the Wall
US and Canada Canada Only
Minimum required
ceiling height 10' (3,05 m) 8' 6"
(2,59m)
Height of the
center of the hole
in the wall
7' 11"
(2,41 m) 7' ½" (2,13 m)
Minimum height of
the hole 47 ½" (1,19 m) 32 ¾" (812 mm)
Position of the hole Centered on the chimney coupling of the fireplace or on the
fireplace casing (not on the guillotine bay at the front)
Minimum width of
the hole 16" (406 mm)
These heights assume that the first elbow is directly on the fireplace as depicted in
Figure 20. If this is not the case, these heights have to be increase by the length of
chimney installed on the fireplace before the first elbow.
This minimum ceiling requirement is only for the chimney installation through a
wall. It does take into account other aspects that might require a higher minimum
ceiling height such as the HRS clearances.

PLANNING THE INSTALLATION:
17
For example, if you are living 6015' above sea level, your chimney should terminate at
least 15' from the top of the fireplace if it is a straight chimney or at least 18'6" if one
30° offset is used as shown in Table 7.
TABLE 7RECOMMENDED MINIMUM FLUE HEIGHT
Elevation (ft) Number of Offsets
Straight
Chimney 1 x 15° 2 x 15°
1 x 30° 2 x 30° 1 x 45° 2 x 45°
0 - 1000 minimum
12' 13' 14' 15' 18' 16' 20'
1001 - 2000 12'6" 13'6" 14'6" 15'6" 19' 16'6" 20'6"
2001 - 3000 13' 14' 15' 16' 19'6" 17' 21'6"
3001 - 4000 13'6" 14'6" 15'6" 17' 20' 18' 22'6"
4001 - 5000 14' 15' 16' 17'6" 21' 18'6" 23'
5001 - 6000 14'6" 15'6" 17' 18' 21'6" 19' 24'
6001 - 7000 15' 16' 17'6" 18'6" 22'6" 20' 25'
7001 - 8000 15'6" 16'6" 18' 19' 23' 20'6" 25'6"
8001 - 9000 16' 17' 18'6" 20' 24' 21' 26'6"
9001 - 10000 16'6" 17'6" 19' 20'6" 24'6" 22' 27'
Flue height is measured from the top of the fireplace to the top of the chimney before
installing the rain cap.
If you have two different offsets (two pairs of different elbows), simply use the column
for two offsets of the biggest pair of elbows at your elevation to get your Minimum
Flue Height.


FIREPLACE INSTALLATION
18
FIREPLACE INSTALLATION
WARNING: IF THIS FIREPLACE IS NOT PROPERLY INSTALLED,A
HOUSE FIRE CAN RESULT.FOR YOUR SAFETY,FOLLOW
THE INSTALLATION INSTRUCTIONS AND CLEARANCES.
DO NOT PACK REQUIRED AIR SPACES WITH INSULATION
OR OTHER MATERIALS.
UNPACKING YOUR LINEAR 50
Two transportation blocking brackets are in place to prevent the guillotine glass door
from moving during shipping. Do not attempt to move the guillotine glass door before
removing these transportation safety devices.
The fireplace crate includes all of the following:
(A) Fireplace in transportation configuration (approximately 950 lb)
(B) Four black lintels wrapped in paper
(C) Two bottom standoffs
(D) Three left side spacers
(E) Spark guard
(F) Four anti-tip stability brackets: attached to the top of the fireplace casing
(G) In the manual bag (attached to the side of the fireplace casing):
One bag with 16 large self-tapping
screws (1")

Two black round caps
One bag with 6 small self-tapping
screws (½")

One bag with 15 rivets
One bag with 6 small self-tapping
screws (½") and 6 flat washers

One bag with 16 black screws
(1¼")
A removable glass door handle

A 5" external air coupling
An owner's manual

High temperature grease
An installation manual
(H) Two air intake frames
(I) Two air outlet grills (¼" thick aluminum)
(J) Two outlet adapters (pre-installed in flexible duct)
(K) Two 10" diameter insulated flexible ducts
All these items will be referred to by the above letters throughout the installation
instructions of the fireplace itself.

FIREPLACE INSTALLATION
19
MOVING THE LINEAR 50
WARNING: THE FIREPLACE IS HEAVY.ALWAYS MAINTAIN CONTACT
WITH THE FIREPLACE WHEN MOVING IT TO PREVENT ANY
UNDUE TILTING.
The fireplace arrives with two transportation
handles, one on each side of the fireplace. They are
solidly attached and can be used to lift and
transport the fireplace without the pallet. Moving
straps or dollies can also be used. Always handle
the fireplace by its casing. The front of the fireplace,
or guillotine bay, cannot be used to lift the rest of
the fireplace. The LINEAR 50's main body weighs
950 lb. as shipped.
You can use an Escalera to move the fireplace. If
you do, make sure to position the attachment straps
at the locations shown in Figure 6. Do not put the
attachment straps anywhere else or you will
damage the guillotine system by doing so.
Be aware that once the LINEAR 50 is removed
from its pallet, leaning it on its side may
damage the guillotine bay that is wider than
the rest of the fireplace casing.
If needed, you can reduce the weight of the
fireplace by removing the refractory bricks and the
insulation panel (260 lb total) and/or by removing
the glass door (50 lb).
If you decided to remove the refractory bricks and
the insulation panel, first follow the steps to
complete the installation of the guillotine glass door
(see page 21) to allow you to open both the
firescreen and the guillotine glass door. You can then follow the refractory bricks
installation section (see page 32) in the reverse order to remove all the refractory bricks
and the insulation panel. Make sure to close the guillotine glass door and lock it in place
by reinstalling the two transportation blocking brackets (see Figure 7) at the bottom of
the guillotine frame. Make sure to also close the
firescreen.
If you decide to remove the glass door, make sure
that the guillotine frame is locked in its
transportation position by the two brackets (see
Figure 7).
The upper strap must be just at
the level of the reinforcement,
just above the firebox opening.
The lower strap must be at the
level of the metal front step.
F
IGURE 6 A TTACHMENT
STRAPS LOCATION
F IGURE 7 G UILLOTINE F RAME
T RANSPORTATION
B LOCKING B RACKETS

FIREPLACE INSTALLATION
20
WARNING: YOU WILL PERMANENTLY DAMAGE THE GUILLOTINE
SYSTEM IF YOU ATTEMPT TO REMOVE THE GLASS DOOR
WHILE THE GUILLOTINE SYSTEM IS UNLOCKED.
If you wish to remove the door, you must first open the
firescreen. To open the firescreen, follow the steps
starting on page 21. Once the firescreen is open, open
the glass door on its hinge by inserting the handle into
the bolts on the right side of the glass door and turning
counter-clockwise (see the Owner's manual). Either
have someone hold the glass door or place a cushion
under it to hold it open. Using a
5
/
32
" Allen key, remove
the four screws holding the hinge to the guillotine
frame. Start by the bottom and move your way up. Be
careful not to drop the glass door once you start
unscrewing the last screw.
INSTALLING THE LEFT SIDE
STANDOFFS
Three standoffs (D) need to be installed on the left side
of the guillotine bay. Align the pre-punched holes in the
standoffs and the side of the guillotine bay covers as
shown in Figure 8. Use the six small self-tapping screws
(G) provided.
INSTALLING THE BOTTOM
STANDOFFS
Ensure floor requirements are met. Refer to page 13.
1. Start by positioning the two bottom standoffs (C)
on the floor, centered in the framing and against
the back wall. Slide the spark guard (E) under the
front of the bottom standoffs as shown in Figure 9. Refer to the "
2. Hearth Extension" section on page 30 for additional information.
3. Using at least 1½" wood
screws (not provided) solidly
attach both bottom standoffs
to the floor. If possible, attach
the bottom standoff to the
floor joists below using 3"
wood screws (not provided).
4. Refer to "Lifting the Fireplace"
for assistance in raising the
fireplace above the bottom
standoffs. Install it on the
fireplace bottom standoffs
making sure that the base of
the fireplace is centered with
the bottom standoffs.
View of the left side
F IGURE 8 P OSITIONING
THE LEFT SIDE
STANDOFFS
F IGURE 9 P OSITIONING AND I NSTALLING THE
F IREPLACE B OTTOM S TANDOFF AND
C ASING
