Renaissance Fireplaces UPTOWN 600 User manual

RUP600-INAN –2019-05
RENAISSANCE UPTOWN 600
INSTALLATION MANUAL
We recommend our products be installed and serviced by certified U.S. National
Fireplace Institute or Canadian Wood Energy Technology Transfer Inc. professionals
only.
Keep this manual for future reference.

2
NOTE TO THE INSTALLER
Dear Installer,
The Renaissance UPTOWN 600 Fireplace is a member of the Renaissance family of
luxury fireplaces. The contemporary styling combines technology with elegance,
allowing you to enjoy an open fire in a modern fashion.
Our engineers designed your fireplace to be easy to install, operate and maintain.
This manual includes vital fireplace and chimney system planning, preparation and
installation details. Read this manual prior to starting the installation to ensure all
requirements are met. For operation and maintenance guidelines, please refer to the
Owner's Manual, included with the Fireplace.
Make sure to give both manuals, installation and owner's, to the homeowner or to
leave them in a visible place.
Our team holds personal safety and protection with the highest regard, and we pride
ourselves with the quality of our work. We welcome comments and feedback
concerning the installation of the Renaissance UPTOWN 600. Contact us by phone or
email.
Sincerely,
The Renaissance FireplacesTM Team
April 2019
Industrial Chimney Company Inc.
400 J.-F. Kennedy, St-Jerome,
Quebec, Canada, J7Y 4B7
Telephone: [phone]
Email: techni[email protected]
www.icc-rsf.com

3
RENAISSANCE UPTOWN 600 LISTING LABEL
TABLE OF CONTENTS
RENAISSANCE UPTOWN 600 LISTING LABEL 4
IMPORTANT INSTALLATION SAFETY PRECAUTIONS 5
YES! WHAT TO DO5
NO! WHAT NOT TO DO5
COMBUSTIBLE VS NON-COMBUSTIBLE MATERIAL 5
PLANNING THE INSTALLATION 6
RECOMMENDATIONS 6
CHOOSING A LOCATION AND RESTRICTIONS 6
GENERAL SPECIFICATIONS 8
MANDATORY FIREPLACE OPTIONS 8
FIREPLACE SPECIFICATIONS 9
FRAMING OVERVIEW 9
CHIMNEY OVERVIEW 13
HEAT REDISTRIBUTION SYSTEM (HRS) OVERVIEW 14
FIREPLACE ASSEMBLY 15
INCLUDED WITH THE RENAISSANCE UPTOWN 600 15
MOVING THE UPTOWN 600 16
ACCESSING THE INSIDE OF THE FIREPLACE 17
ENGAGING THE GUILLOTINE SYSTEM 18
REDUCING THE FIREPLACE WEIGHT 19
MANDATORY –ANTI-TIP BRACKETS 19
MANDATORY CLEARANCES 20
FIREPLACE CLEARANCES 20
HRS AIR INTAKES (BOTTOM) 21
HRS HOT AIR OUTLETS (TOP) 22
Hot Air Outlet Installation 23
HEARTH EXTENSION REQUIREMENTS 23
OUTSIDE AIR INTAKE 25
CHIMNEY 26
CHIMNEY REQUIREMENTS 26
OFFSETTING THE CHIMNEY 27
THROUGH THE WALL OFFSET 27
OUTSIDE CHASE ENCLOSURE 28
CHIMNEY INSTALLATION 28
MASONRY CHIMNEY 29
Using an Existing Masonry Chimney 30
Using a New Masonry chimney 30
FINISHING 31
FIREPLACE FACING 31
DECORATIVE FACING FINISH 32
MANTEL 32
FIREBOX LINING INSTALLATION 34
MANDATORY TRIM INSTALLATION 35
Straight Trim (for Heavier Masonry) EO-RUPST 35
Frame Trim (for Tile or Cement Board Finish) EO-RUPFT 36
GLASS CLEANING 37
REPLACEMENT PARTS 37
30 YEAR LIMITED WARRANTY 38

4
RENAISSANCE UPTOWN 600 LISTING LABEL
RENAISSANCE UPTOWN 600 LISTING LABEL
The listing label is affixed to the left side of the guillotine bay. To access it, open the fireplace
door in Maintenance Mode.
The listing label is permanently affixed and should not be removed.

5
IMPORTANT INSTALLATION SAFETY PRECAUTIONS
IMPORTANT INSTALLATION SAFETY PRECAUTIONS
Carefully follow all instructions. Improper installation of this fireplace and chimney
system could result in a house fire. Detailed explanations are in the sections which
follow.
For information about local building code requirements or the need for a permit,
contact your local municipal jurisdiction or fire department.
YES! WHAT TO DO
1. DO read this entire manual before starting the
installation.
2. DO exercise caution when moving and positioning the
fireplace.
3. DO respect the mandatory installation sections.
4. DO inspect the fireplace, chimney, and
parts/components for damage prior to installation.
5. DO install all required parts and components as
instructed.
NO! WHAT NOT TO DO
6. DO NOT modify this fireplace or install parts or
components unapproved for use with this fireplace.
7. DO NOT install an unvented gas log set, gas lighter,
wood-burning fireplace insert or other products unspecified
for use with this fireplace.
8. DO NOT over fire this unit. Refer to operation
instructions in the Owner's Manual.
9. DO NOT allow combustible material within the
minimum clearance area of the fireplace and chimney
system.
10. DO NOT install non-combustible materials in the
required air flow spaces (e.g. do not install non-combustible
insulation inside a radiation shield).
COMBUSTIBLE VS NON-COMBUSTIBLE MATERIAL
The National Fire Protection Association (NFPA) defines Non-Combustible Materials as
materials that if used as directed, will not ignite, burn, support combustion, or release
combustible vapors when subjected to heat or flame. Non-Combustible Materials have passed
the ASTM E136, Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at
750°C
1
.
Combustible Materials are thus any materials that did not pass the ASTM E136 test such as
anything surfaced or including wood, plant fibers, plywood, Oriented Strand Board (OSB),
compressed paper, plastic and gypsum board (often called drywall or sheetrock)
2
which can
ignite and burn, whether it is flame-proofed or not, plastered or not plastered.
1
NFPA 211, Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances
2
Note that gypsum board, whether fire-rated or not is considered combustible.

6
PLANNING THE INSTALLATION
PLANNING THE INSTALLATION
RECOMMENDATIONS
Before beginning we strongly recommend adequate planning of your installation, including
the chimney, the mandatory air grille locations and hearth protection.
Refer to Figure 1 for an installation overview including critical components and warnings. The
planning process may involve your retail salesperson, installation personnel, outside
contractors and local building officials.
A building permit may be required. Check with your local authority to obtain the necessary
approvals before beginning. Close attention to detail and clear communication are important
to be sure that your Renaissance UPTOWN 600 Fireplace is installed according to the
requirements in this manual and complies with local building codes.
IF THIS FIREPLACE IS NOT PROPERLY INSTALLED, A HOUSE FIRE
MAY RESULT. FOR YOUR SAFETY, FOLLOW THE INSTALLATION
INSTRUCTIONS AND CLEARANCE GUIDELINES.
CHOOSING A LOCATION AND RESTRICTIONS
When choosing a location for your fireplace, consideration should be given to best optimize
the performance of your chimney.
Optimal performance is achieved when a large portion of the chimney is within the building
envelope, centrally situated, allowing the chimney to terminate as close to the peak as
possible.
An insulated chase enclosure may be an acceptable alternative for the fireplace and chimney.
THERE ARE LOCATIONS WHERE THE FIREPLACE IS STRICTLY
PROHIBITED:
THE FIREPLACE MUST NOT BE INSTALLED OUTSIDE THE VAPOR
BARRIER OF THE HOME.
THE FIREPLACE MUST NOT BE INSTALLED OUTDOORS OR WITHIN
A THREE SEASON PORCH.

7
PLANNING THE INSTALLATION
FIGURE 1 GENERAL INSTALLATION OVERVIEW

8
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
Under the 2015 U.S. EPA (Environmental Protection Agency) regulation, the Renaissance
UPTOWN 600 is defined as a fireplace primarily for its decorative and aesthetic prominence
offering more than 500 square inches of pure fire viewing (584 visible square inches). It
comes fully equipped with a built-in guillotine glass door and a guillotine firescreen.
•Weight when crated is 705 lbs.
•Do not remove the fireplace from its skid until it is ready to be installed.
•This fireplace is designed to burn wood logs; vented gas logs sets may also be used.
For gas log installation instructions, visit www.renaissancefireplaces.com
•Gas log lighters are not permitted because they will burn out prematurely.
WARNING
THIS FIREPLACE HAS NOT BEEN TESTED WITH AN UNVENTED GAS
LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO NOT INSTALL AN
UNVENTED GAS LOG SET INTO THIS FIREPLACE.
MANDATORY FIREPLACE OPTIONS
A choice of trim is required to complete the installation and finishing of the Uptown 600.
Straight Trim (for heavier masonry) EO-RUPST
The Straight Trim projects straight out the front opening
of the fireplace by ¾” when installed. If the finishing
material is thick (e.g. brick, stone, etc.), it will provide a
finished edge to butt against.

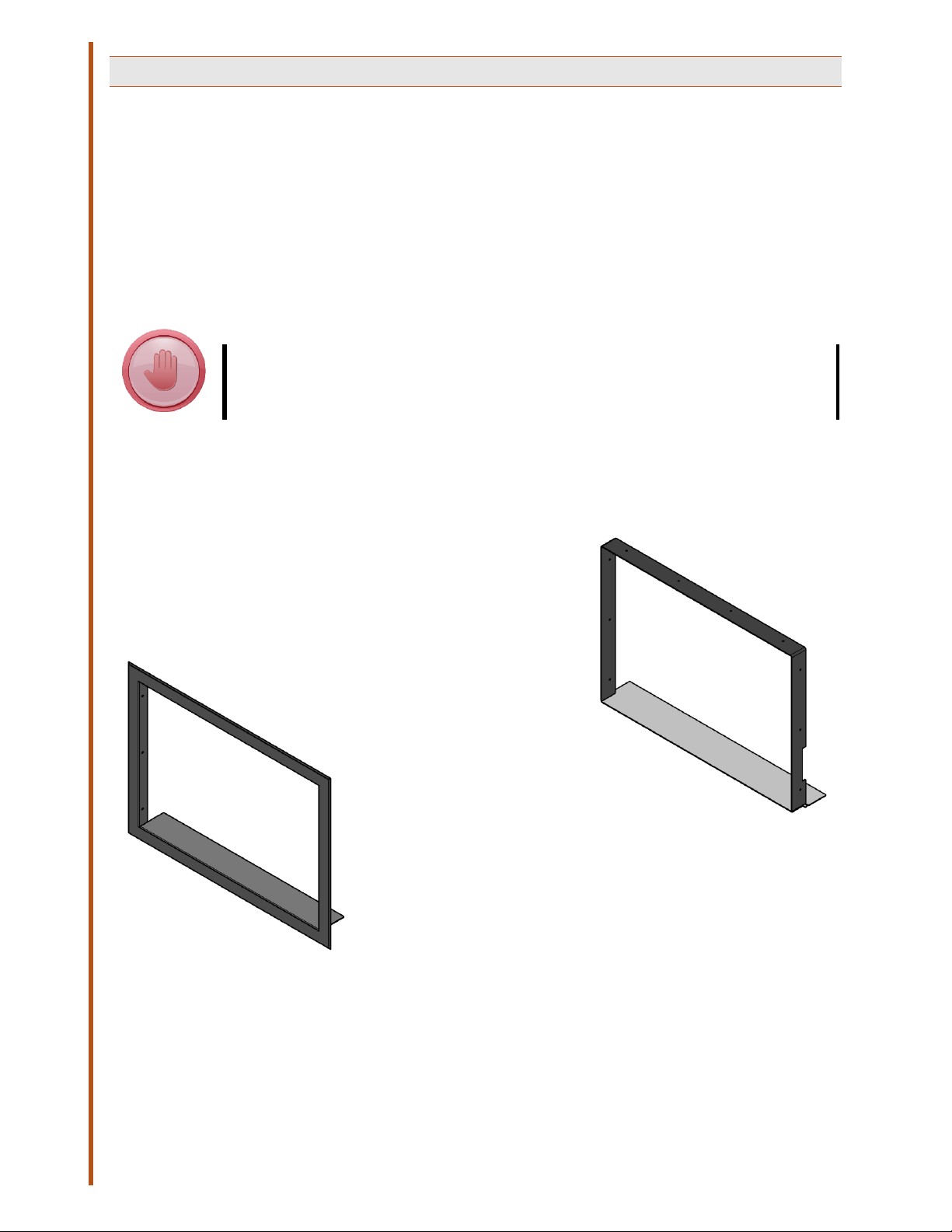

Frame Trim (for tile or cement board finish) EO-
RUPFT
The Frame Trim partially overlaps the wall and covers the
edge where the finishing meets the fireplace. It is ideal for
installations finished with thin materials (e.g. tile, cement
board, etc.).

9
GENERAL SPECIFICATIONS
FIREPLACE SPECIFICATIONS

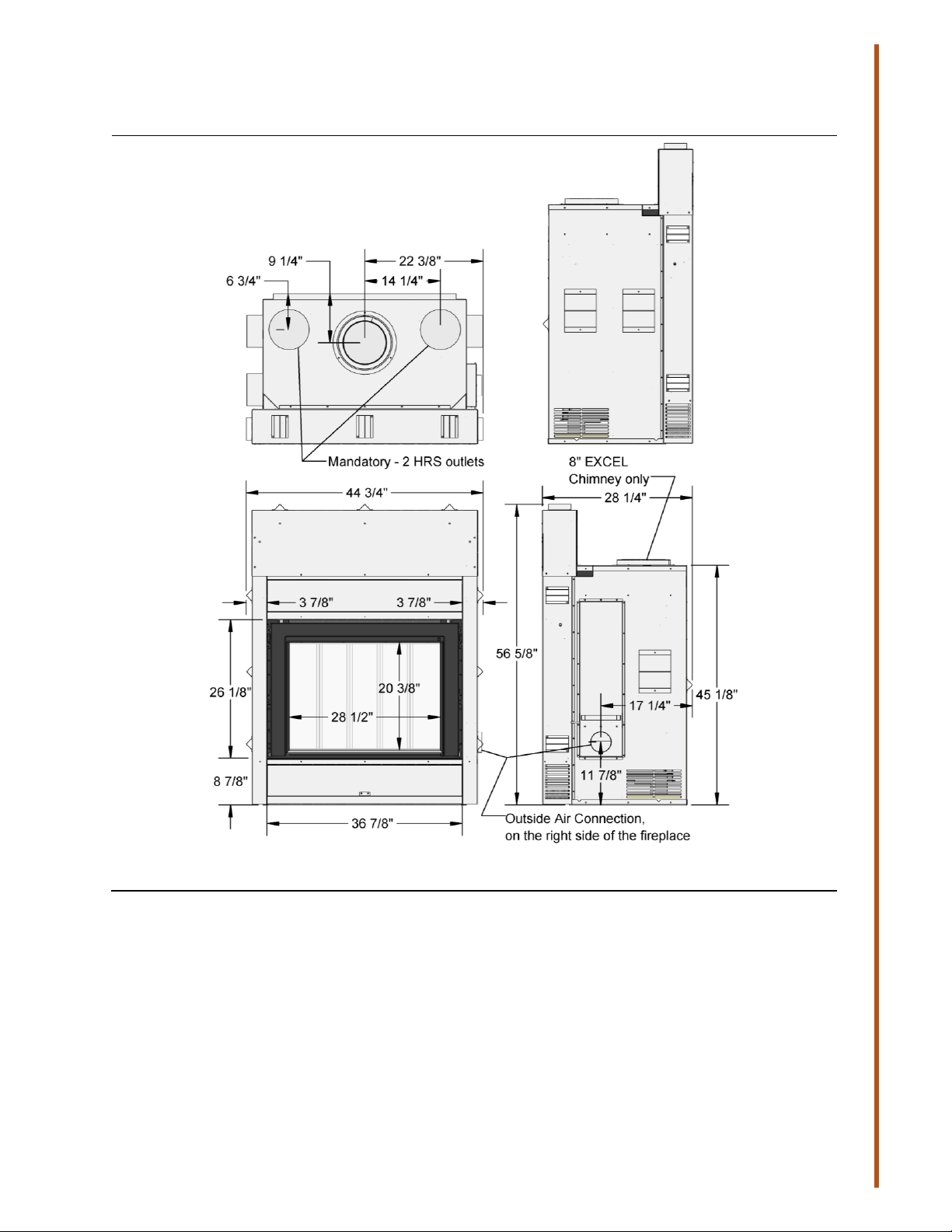

FIGURE 2 FIREPLACE DIMENSIONS
FRAMING OVERVIEW

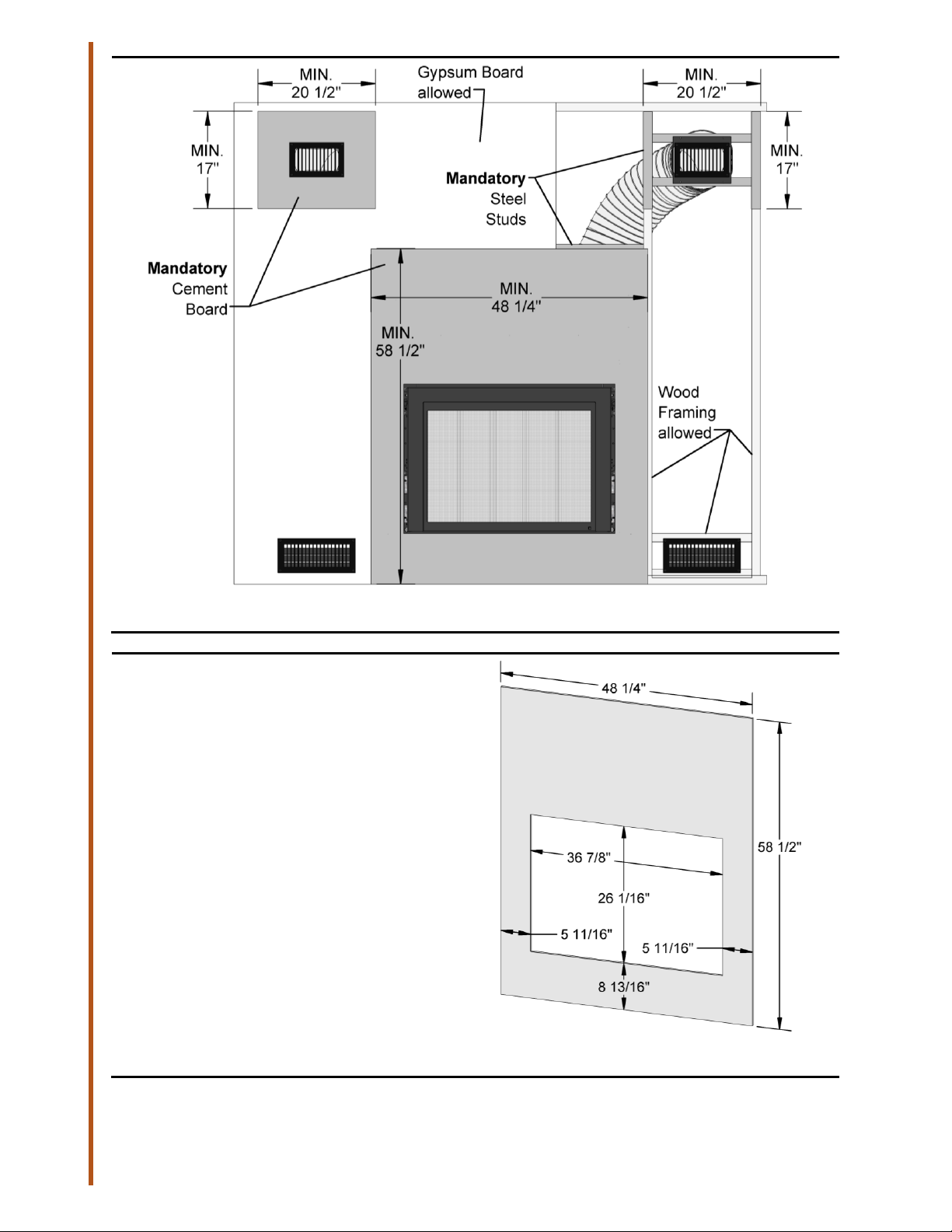

Steel studs are required in some areas of this installation, see Figure 5.
Walls on all interior sides of the fireplace enclosure should be finished and flat. Insulation or
other materials should not be placed in required clearance spaces around the fireplace.

10
GENERAL SPECIFICATIONS
The minimal recommended framing dimensions do not take into consideration the space
required for the outside air connection and duct or the HRS Air Intakes because the location
for these and the space required are specific to your installation. Take the time the plan.
FIGURE 3 MINIMAL FRAMING DIMENSIONS
IMPORTANT: A NON-COMBUSTIBLE HEARTH EXTENSION IS
REQUIRED IN FRONT OF THIS FIREPLACE. REFER TO THE "HEARTH
EXTENSION REQUIREMENTS" SECTION OF THIS MANUAL FOR MORE
INFORMATION ON THE HEARTH EXTENSION AND ITS
REQUIREMENTS.
For duct clearance requirements, refer to the "Heat Redistribution System (HRS) Overview"
in this manual.
For finishing specifications and allowable materials, refer to the “Fireplace Facing” section in
this manual.
46 3/4"
28 3/8"
84"
15"

11
GENERAL SPECIFICATIONS

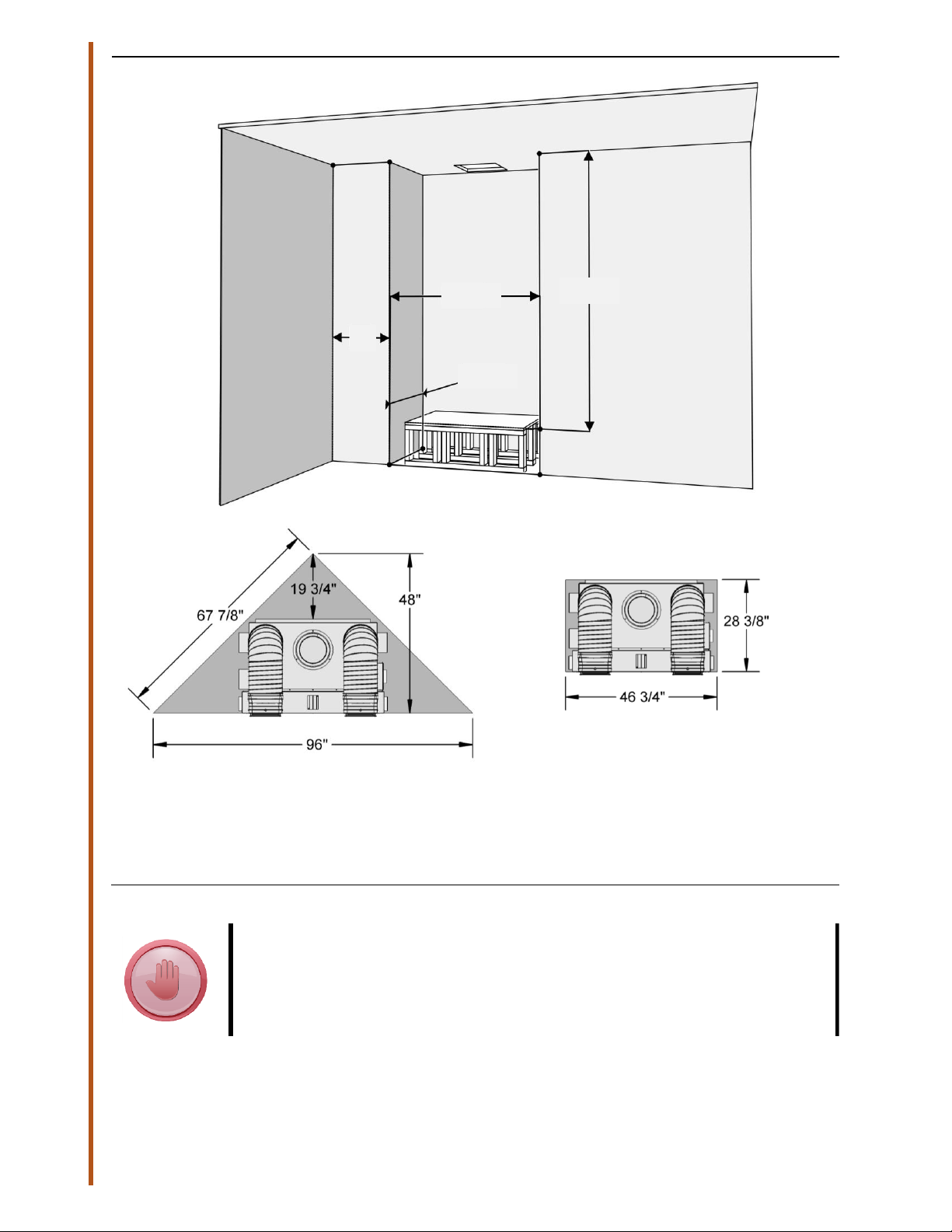

Minimal enclosure dimensions for HRS air intake grilles beside the fireplace.
The HRS intake grilles must not block the air vents on the sides of the fireplace casing.
Minimum enclosure dimensions for HRS air intake grilles beneath the fireplace.
The enclosure must be at least 4” wider than the platform to allow adequate air flow.
FIGURE 4 FRAMING DIMENSIONS WITH HRS DUCTS

12
GENERAL SPECIFICATIONS
FIGURE 5 NON-COMBUSTIBLE AND COMBUSTIBLE STRUCTURE AND SURFACE
For a cleaner, more stable facing, it is
recommended that the cement board
covering the fireplace facing is cut from a
single board rather than piecing together
multiple parts.
FIGURE 6 CEMENT BOARD ON FIREPLACE

13
GENERAL SPECIFICATIONS
CHIMNEY OVERVIEW

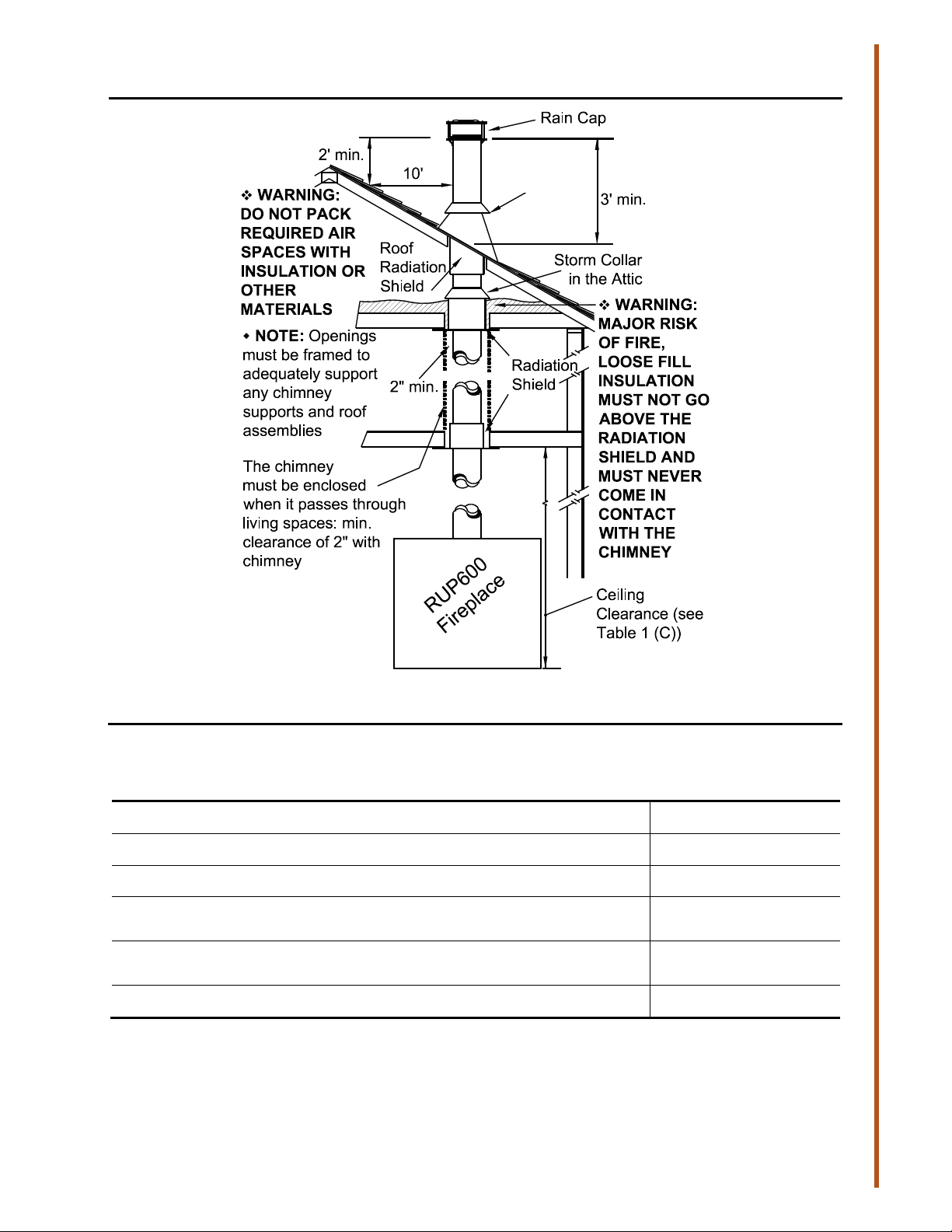

FIGURE 7 GENERAL CHIMNEY REQUIREMENTS
TABLE 1 CHIMNEY SPECIFICATIONS
Chimney size and type
EXCEL 8" only
Minimum chimney height: from the top of the fireplace to the chimney cap
12'
3,66 m
Maximum chimney height from the top of the fireplace to the chimney cap
40'
12,19 m
Maximum chimney height supported by the fireplace without additional
supports
16'
4,88 m
Minimum clearance between the exterior of the chimney and any
combustibles
2"
51 mm
Maximum number of offsets (2 elbows per offset)
2
Flashing with
Storm Collar

14
GENERAL SPECIFICATIONS
HEAT REDISTRIBUTION SYSTEM (HRS) OVERVIEW
The UPTOWN 600 fireplace generates a significant amount of heat. To reduce the heat which
accumulates between the fireplace and the surrounding chase, it is MANDATORY to install the
HRS System included with the fireplace.
The HRS system relies on the natural draft of hot air rising and does not require a blower or
electricity.

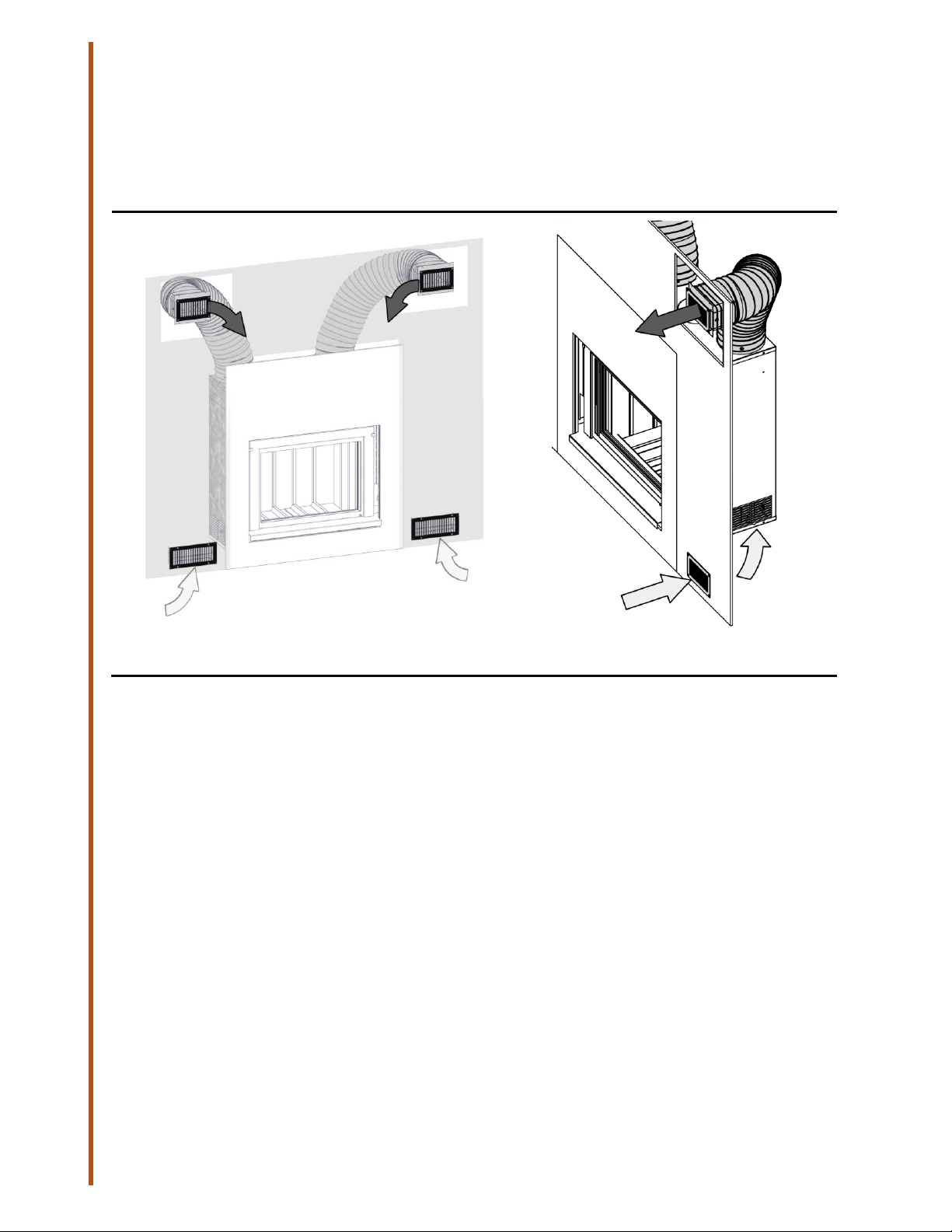

FIGURE 8 HRS OVERVIEW

15
FIREPLACE ASSEMBLY
FIREPLACE ASSEMBLY
INCLUDED WITH THE RENAISSANCE UPTOWN 600
On the crate with the fireplace
Item
Description
Quantity
1
UPTOWN 600 Fireplace
1
2
Outlet starter (installed on the fireplace)
2
3
Anti-tip brackets
2
4
Spark guard
1
5
Lifting straps (remove after using only)
4
6
HRS Air intakes
2
7
HRS Hot Air Outlets Grilles
2
8
Lifting handles
2
9
HRS Hot air ducts with an outlet grill adapter installed on each
2
10
Complimentary protective pair of gloves
1
11
Manual bag (see its list for content)
1

16
FIREPLACE ASSEMBLY
In the bag with the manuals
Item
Description
Quantity
1
Owner's manuals (English and French)
2
2
Installation manuals (English and French)
2
3
Removable door handle
1
4
Collar for 5" outside air connection (if necessary)
1
5
Black 1 ¼" screws
16
6
Self-tapping 1" hexagonal head screws
8
7
½" hexagonal split head screws
6
8
Flat washers
6
9
High temperature grease
1
10
Chimney safety labels for each length of chimney in the attic (see
accompanying explanation sheet)
1
MOVING THE UPTOWN 600
The UPTOWN 600 weighs 705 lb crated. Careful attention must be taken when moving the
fireplace with or without its shipping crate. Whenever possible move the fireplace while it is
still crated. We recommend using an Escalera or equivalent dolly to move the fireplace (see
Figure 9 for straps placement).
•NEVER lean the fireplace on its side; doing so may damage the guillotine bay which
is wider than the rest of the fireplace.
•NEVER lift the fireplace by the front or by the guillotine door opening; always handle
the fireplace by its casing or by the lifting handles provided. See Figure 10.
To prepare the UPTOWN 600, locate it as close as possible to its final installation position.

17
FIREPLACE ASSEMBLY
ACCESSING THE INSIDE OF THE FIREPLACE
Accessing the inside of the fireplace is recommended before final placement of the fireplace.
There are mandatory components inside the fireplace which are easier to install prior to final
positioning. Additionally, the weight of the fireplace can be greatly reduced if all these
components and the refractory bricks are removed from the firebox.
The upper strap must be level with the
reinforcement above the guillotine bay
opening.
The lower strap must be level with the metal
front step.
There are three lift positions for the two lifting
handles supplied.
The lifting straps ship flat against the sides of
the fireplace. Insert the Lifting Handle through
one of the strap openings and bend the strap
to face the other one.
The lifting straps MUST be removed from the
fireplace after using.

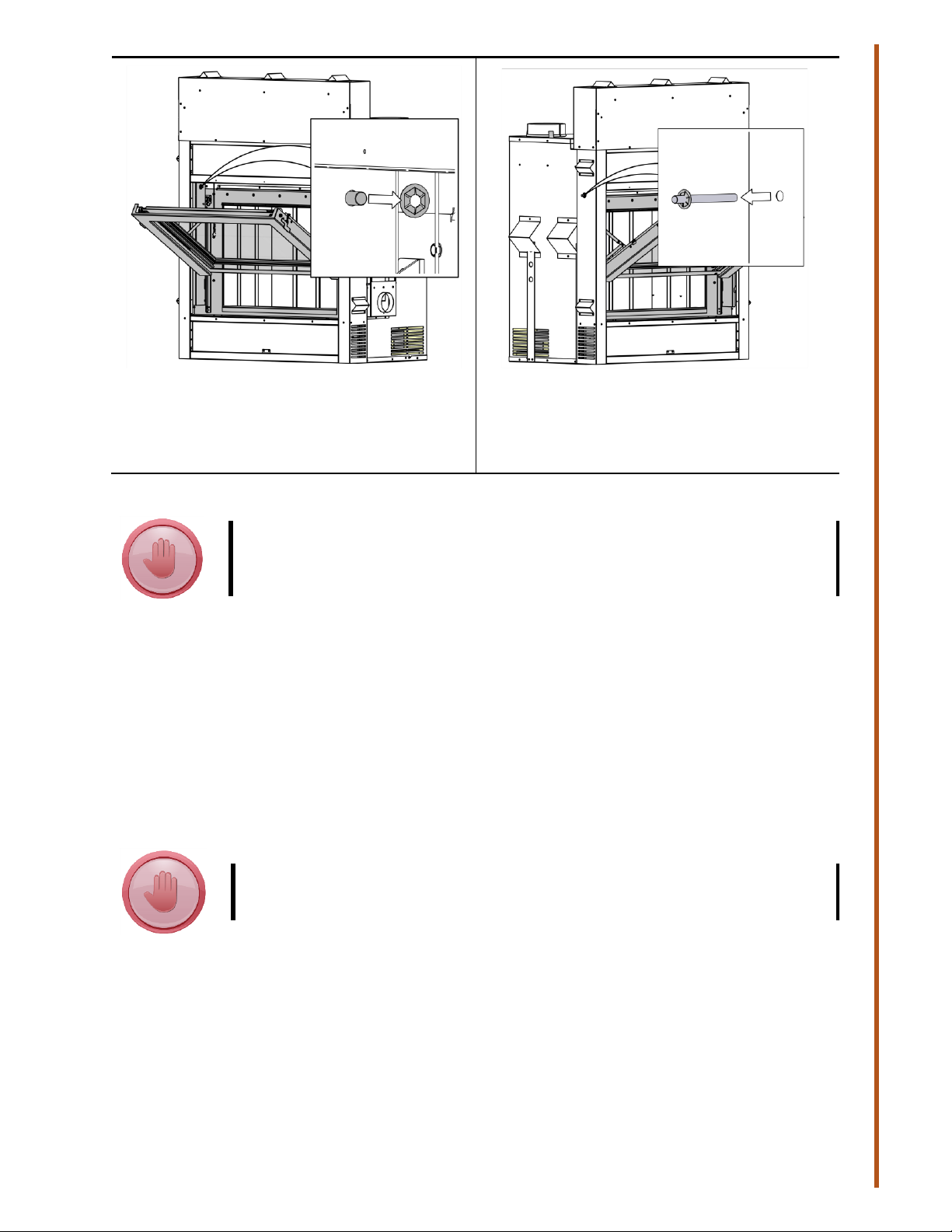

FIGURE 9 ATTACHMENT STRAPS
FIGURE 10 LIFTING HANDLES

18
FIREPLACE ASSEMBLY
ENGAGING THE GUILLOTINE SYSTEM
Both the firescreen and the glass door are ready to be use but they are secured for
transportation
3
.
Remove the ¼" hexagon head screw and the
hook at the bottom right of the firescreen.
The firescreen is now fully functional and can
be lifted to access the glass door.
Remove the two ¼" hexagon head screws
and hooks at the bottom of the glass door.
Screw holes will be covered once the
selected trim is installed.
Close the firescreen and
unlatch the guillotine
assembly on both sides.
Reach under the door and
lift slightly while pulling
gently downwards on the
top of the frame. The door
must be lifted at least 2"
before it will tilt open. It
weighs 21lbs.
Verify that the counterweight
cables are attached to the base
of the door. If they are not,
attach them as shown.
3
The following steps are also available as a video:
https://www.youtube.com/watch?v=ghpWX7vX9o4

19
FIREPLACE ASSEMBLY
Remove the retaining cap from the two
counterweight blocking rods on each side of
the guillotine bay.
Remove the two counterweight blocking
rods. You can pull slightly on the
counterweight cable to make the process
easier.
The guillotine door is now fully functional. Close and latch the door before proceeding.
WE RECOMMEND BOTH THE GUILLOTINE GLASS DOOR AND THE
FIRESCREEN REMAIN CLOSED WHILE COMPLETING THE FIREPLACE
AND CHIMNEY INSTALLATION.
REDUCING THE FIREPLACE WEIGHT
The refractory bricks (200 lb) can be removed to facilitate lifting and moving the fireplace.
The firescreen and guillotine door must be operational to remove the firebricks. The refractory
bricks and insulation panel are installed in the factory.
The bricks should be removed in the reverse installation order explained under the "Firebox
Lining installation" section on page 34. Be careful not to damage the firebox insulation.
THE FIREPLACE SHOULD NEVER BE USED WITHOUT THE FIREBOX
INSULATION AND REFRACTORY BRICKS PROPERLY INSTALLED.
MANDATORY –ANTI-TIP BRACKETS
The UPTOWN 600 fireplace MUST be securely fastened to the back wall. Two anti-tip brackets
have been provided. They are attached to the top of the fireplace. The brackets can be
removed and repositioned as needed to ensure they align with framing (see Figure 11). Use
four of the 1" self-tapping screws provided to attach each bracket to the fireplace. Use four
wood screws (not included) to secure each bracket to framing.

20
MANDATORY CLEARANCES
MANDATORY CLEARANCES
FIREPLACE CLEARANCES
Clearance to combustibles are critical to the safe operation of this fireplace.
FIGURE 12 FIREPLACE CLEARANCES (SEE TABLE 2)
FIGURE 11 ANTI-TIP BRACKET INSTALLATION
x8
x8
