Rennline ExactFit User manual

P/N PM01.05 11/10/2016
PG 1
ExactFit - Magnetic Phone Mount
FX 802-893-7311
PH 802.893.7366
EM [email protected]
Order Online: WWW.RENNLINE.COM
READ BEFORE INSTALLATION
The use of any Rennline product is the sole responsibility of the end user. Rennline Inc. accepts no responsibility for
warranty voids or damage resulting from the use of these products. Due to the varying location of wiring harnesses and
other components, carefully inspect any area prior to drilling. All Rennline products are intended for off road use only and
should be installed by a qualified automotive technician.
Cayenne 2011 -
1. Install the aluminum ball onto the metal bracket as shown using the supplied screw.
2. Determine what side of the PCM you will be installing your mount on and remove the corresponding air vent. To do
so, insert 2 screwdrivers into the 2 slots located on the inside of the vent on the left and right side, near the bottom. Pull
the screw drivers torward each other while pulling the bottom of the vent out with your hand. (Photo 1)
3. Remove the thin plastic ller strip located on the vent on side that contacts the PCM. You will not re-use this. (Photo 2)
4. Remove the 2 screws on the side of the PCM. (Photo 2)
5. Install the metal bracket using the factory screws removed in step 4. Make sure to push the bracket rmly towards the
PCM while tightening the screws. (Photo 3)
6. Re-install the air vent.
7. Remove the lock nut from the magnetic pad assembly, install the nut over the top of the aluminum ball with the threads
pointing out.
8. Snap the magnetic pad assembly over the aluminum ball and secure by tightening the lock nut.
9. Attach the metal plate to your phone case or phone. If you have a thick phone case, we recommend applying the metal
plate to the outside of the phone case for maximum magnetic pull.
10. Attach the phone to your mount.
11. Enjoy your new Rennline product.

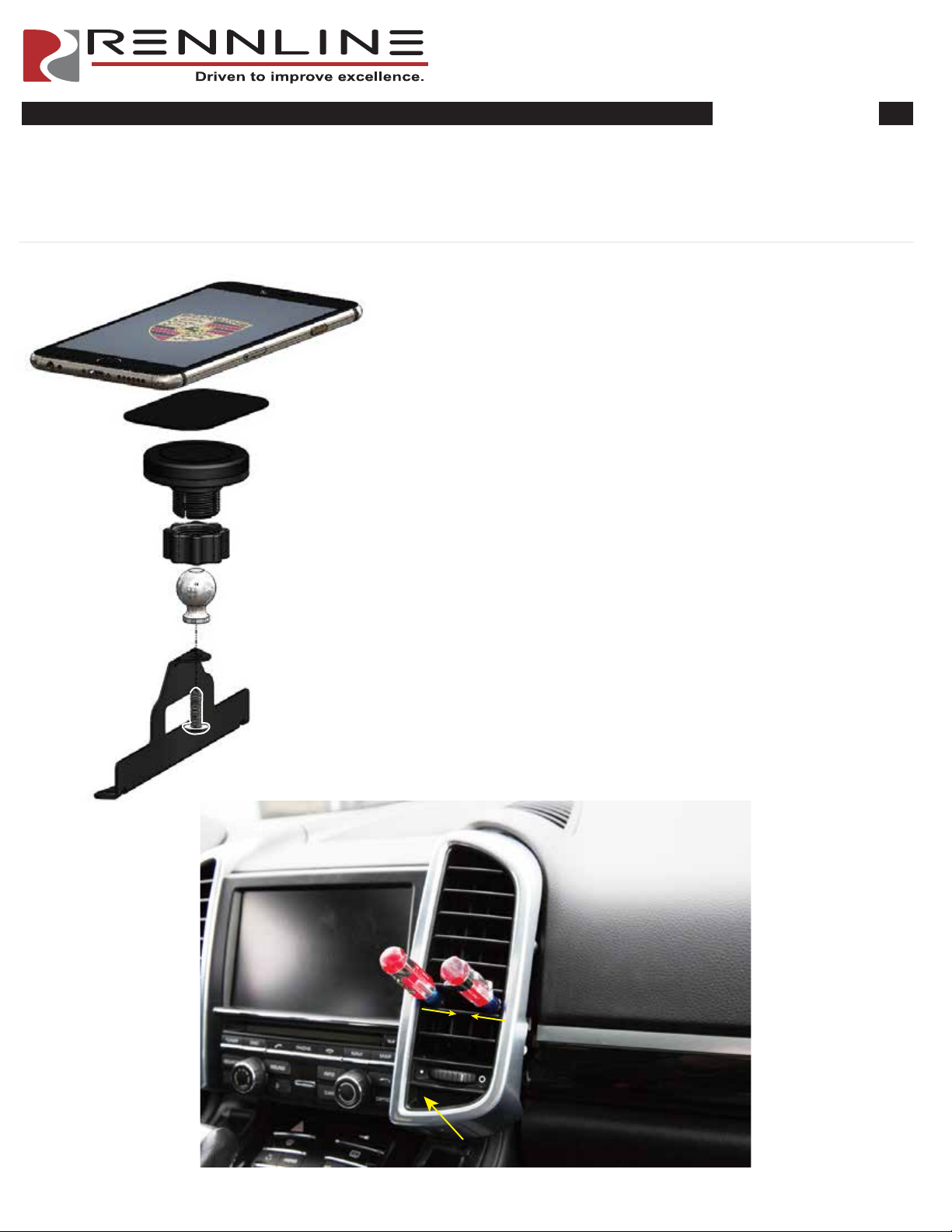

Photo 1
Part List:
(1) Mounting Bracket - P/N - PM05
(1) P/N - PM01
- Aluminum Ball
- Magnetic Pad Assembly
- Steel pads
(1) Black S/S Socket Head Screw - 10/32 x .5”- MC91255A265
Squeze
Pull

PG 2
P/N PM01.05 11/10/2016
Photo 2
Photo 3
Photo 4
Push
