1General Information
MDSM-7 installation requires wiring electric lines from vehicles. Please contact your local
distributor or authorized installers for installation. MOVON will hold no liability of any damage
occurred during installation proceeded by users, or unauthorized installers.
MDSM-7 is developed to give only warnings to drivers. The final decision to maneuver or
control shall be made by drivers themselves. Furthermore, MDSM-7 is not capable of providing
100% detection rate. Please ensure that keep eyes forward while driving rather than only
relying on MDSM-7.

6
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
2Product
2.1 Specification
Item
Description
Main Processor
ARM Cortex A7 Quad
Sub Processor
ARM Cortex M0 (for illuminator & Camera Control)
Camera
Effective
Pixels
720 X 480
View
Angle
42˚(D) 34˚(H) 26˚(V)
Video
Video Out
CVBS 1Vp-p 75Ω
Operating Temperature
-20~70˚C
Storage Temperature
-40~85˚C

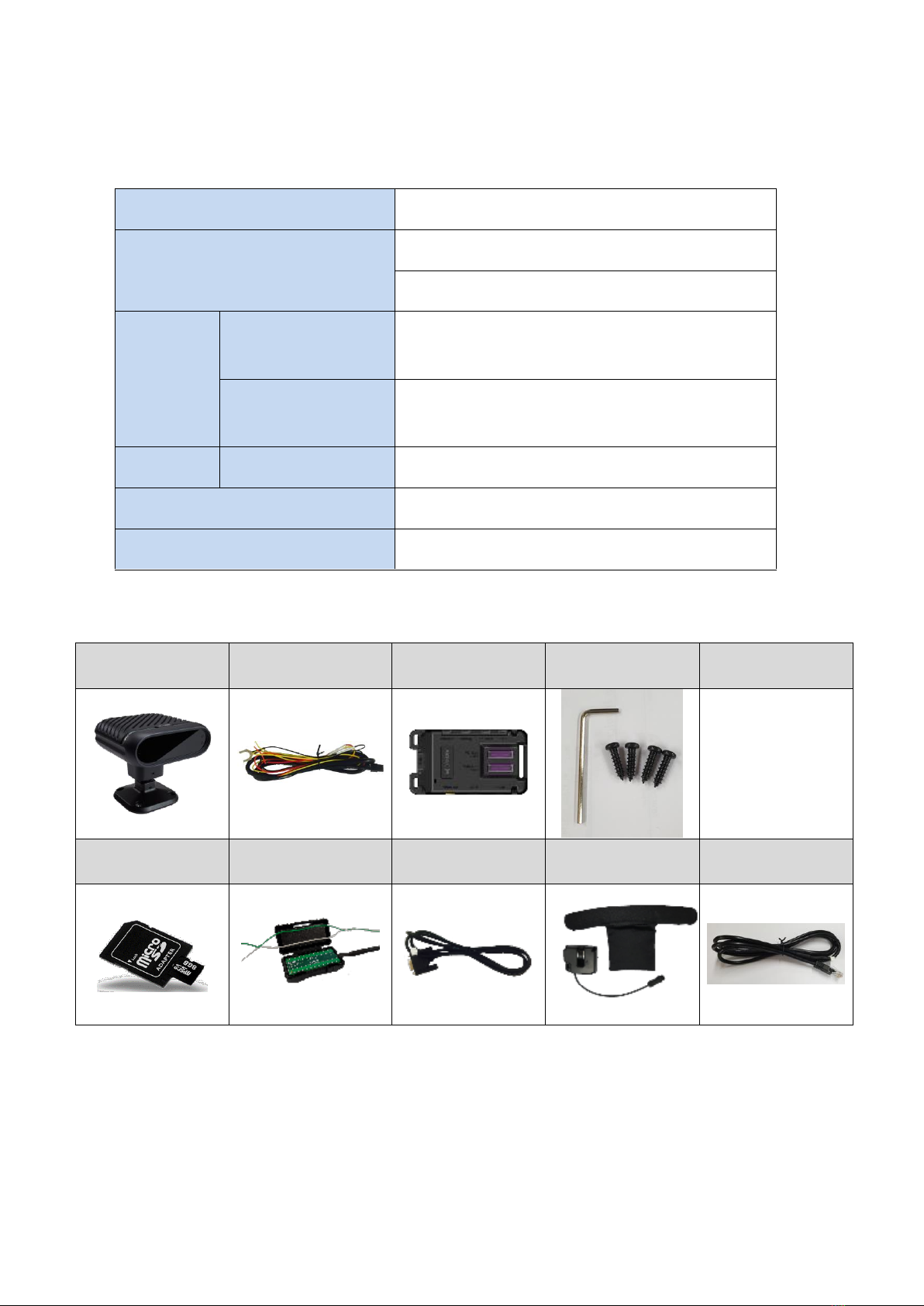

2.2 Product components
Main unit
Power cable 3P
PCI Box
Hexagon wrench
4 x Screws
Micro SD card
(Consumable)
Contactless
CAN Reader(Optional)
FMS Cable(RS-232)
(Optional)
Vibration unit
(Optional)
Ethernet cable
(Optional)

7
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
2.3 Parts description

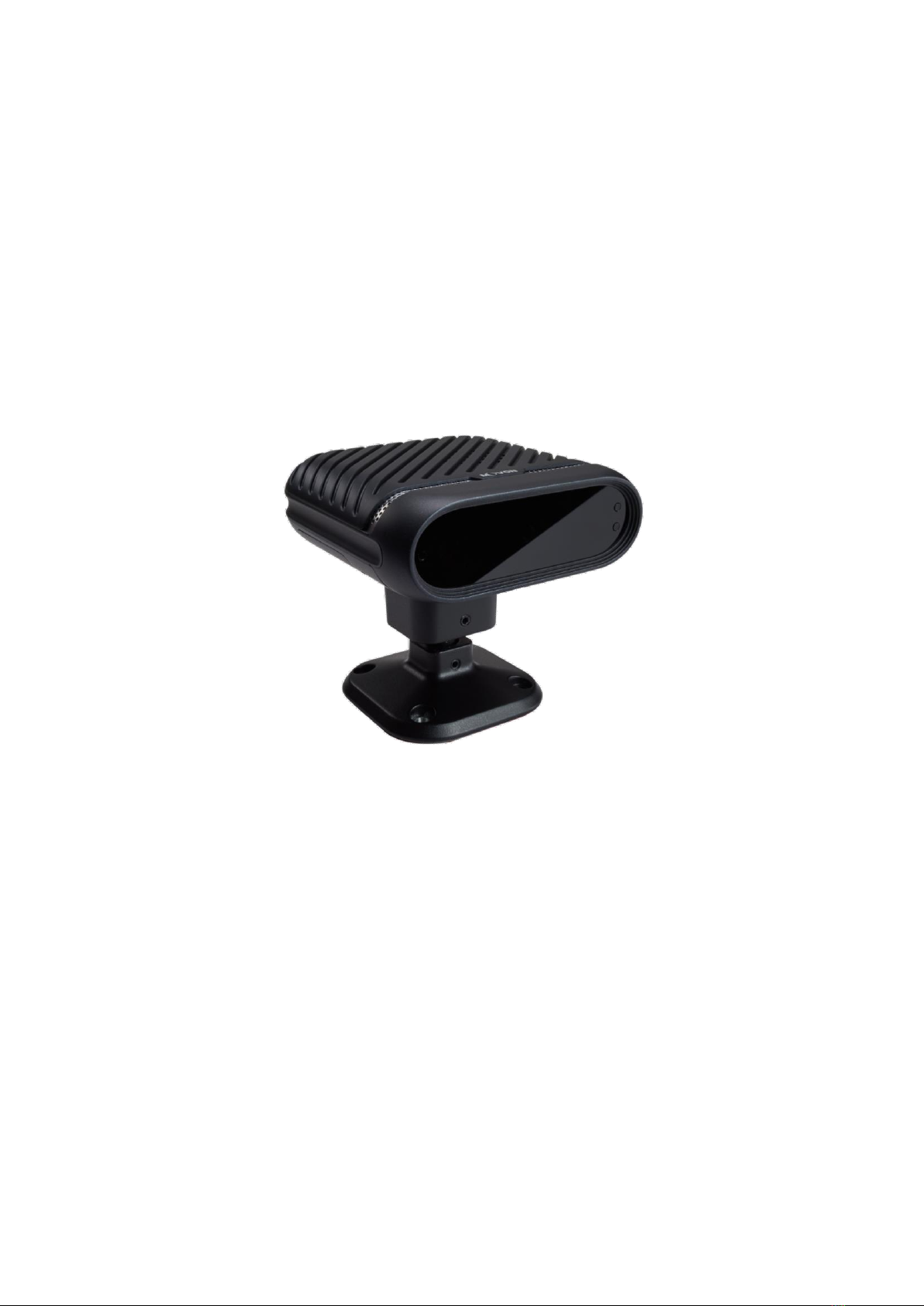

2.3.1 Main Unit

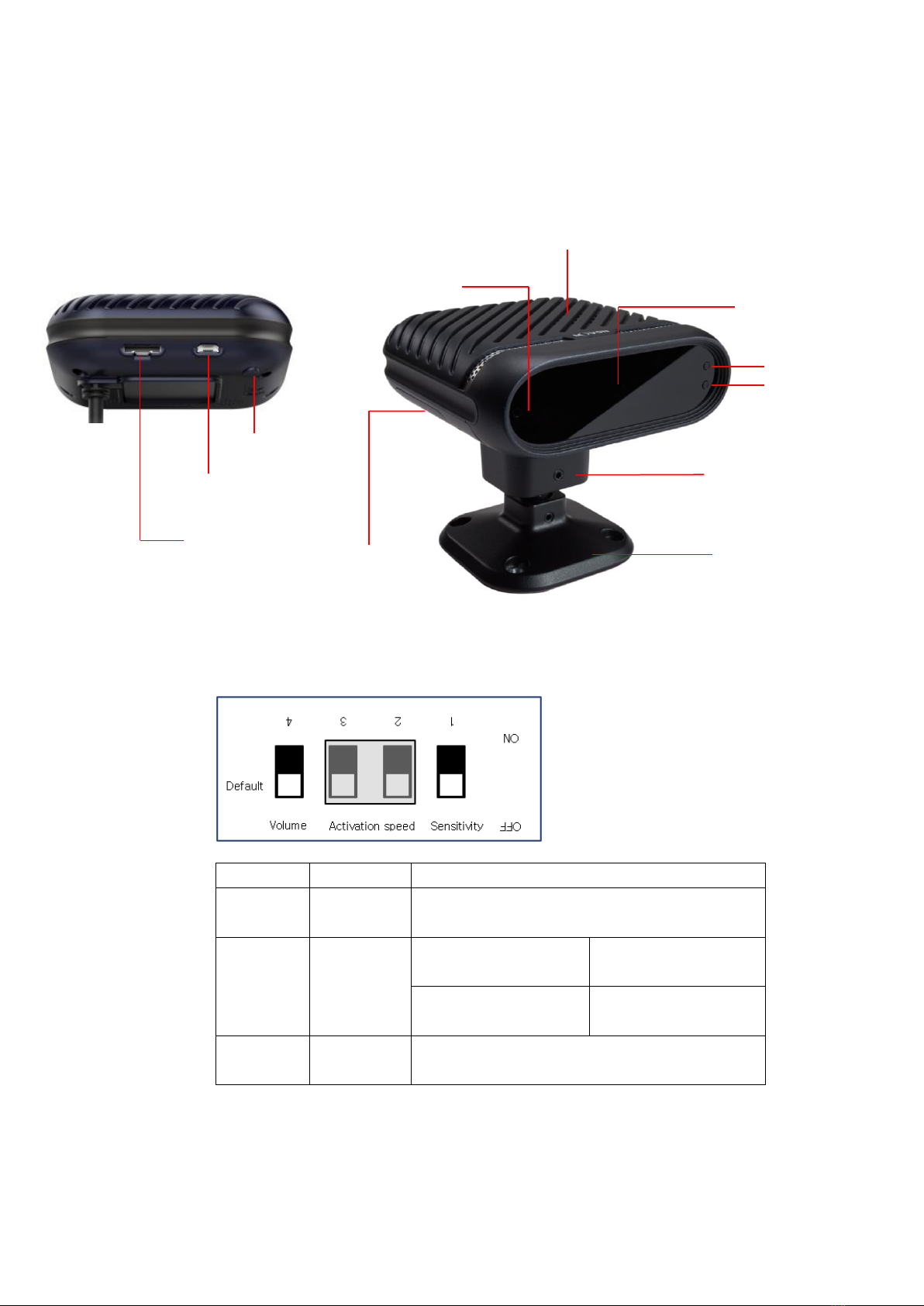

2.3.2 Dip Switch description
Settings
Switch
Description
Sensitivity
1
On: Level 3
Off: Level 2(Defualt)
Operating
speed
2-3
OFF –OFF (Default)
60kmh / 40mph
OFF - ON
40kmh / 25mph
ON - OFF
20kmh / 15mph
ON - ON
0kmh / 0mph
Volume
4
ON: Level 4
OFF: Level 2(Default)
5PIN connector
Ethernet Out Port
MFB button
Camera lens
LED 1
360°Rotation
(Wrench Hole)
Cradle
(Screw/ Tape)
Speaker
Dip Switch
SD Card Slot
Microphone
LED 2

8
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr

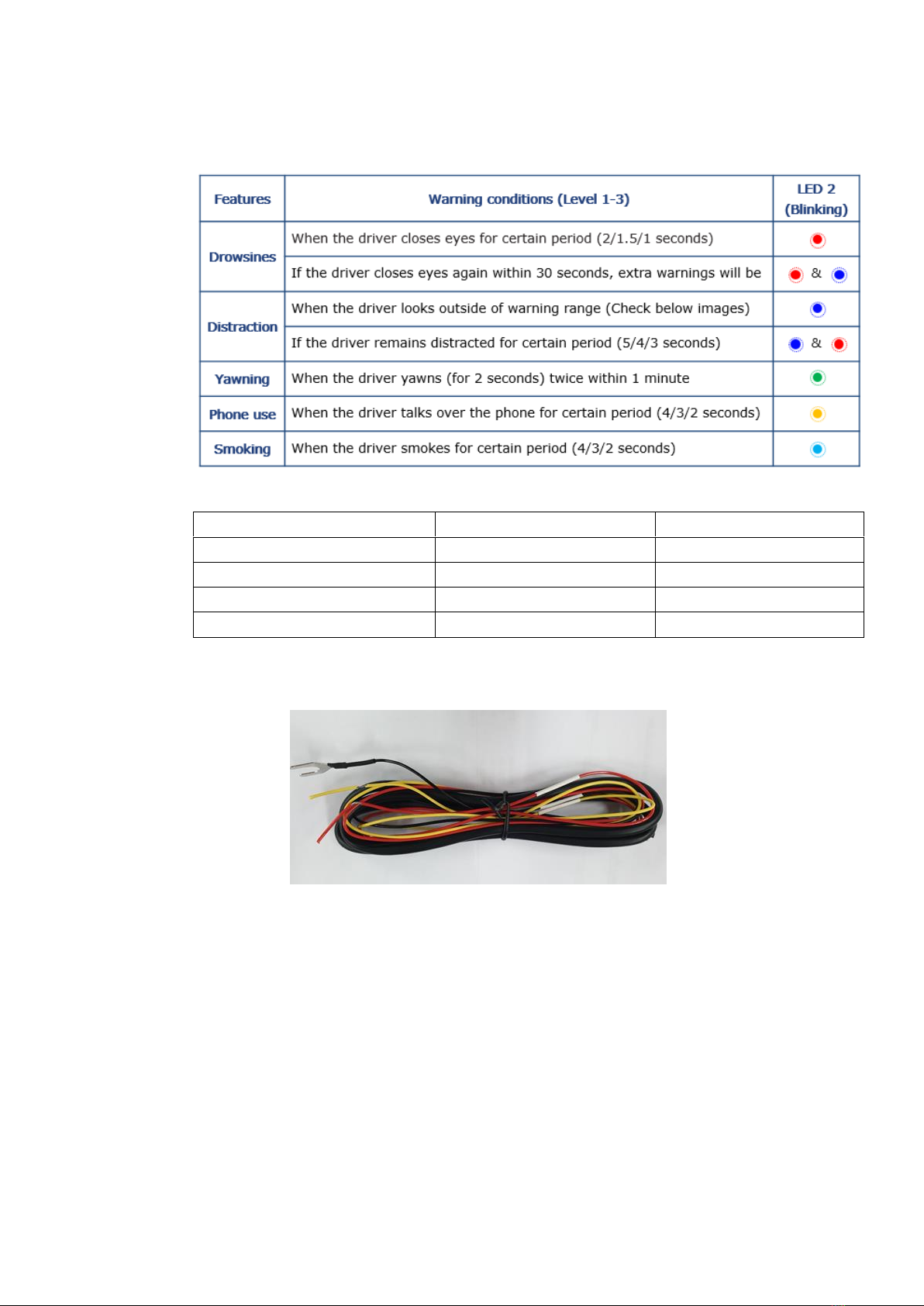

2.3.3 LED Description
①Warning status alarm
②Error Status
LED 1 (TOP Led)
LED 2 (Bottom LED)
Camera Error
Yellow
Red
GPS Error
Yellow
Blue
SD Card Error
Yellow
Green
CAN Communication Error
Yellow
Green
2.3.4 Power cable/3P

9
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
2.3.5 Peripheral Component Interconnect Box (PCI Box)
Peripheral Component Interconnect Box (PCI Box) is to connect the cables and
accessories.
PCI BOX LED status table
Color
status
Yellow
In case of wiring only constant power
Green
In case of wiring constant power and IGN power
2.3.6 Vibration unit (Optional)
* NOTE: Vibrator gender cable is necessary and also this function needs to be
enabled during calibration process.
2.3.7 Video Out Cable (Optional)
Video out cable is to transmit analog video to another device using RCA connector.
2.3.8 FMS Cable (Optional)
FMS cable is to transmit DSM event data to another FMS (Fleet Management
System) through RS-232.

10
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
2.3.9 Contactless CAN Reader(Optional)

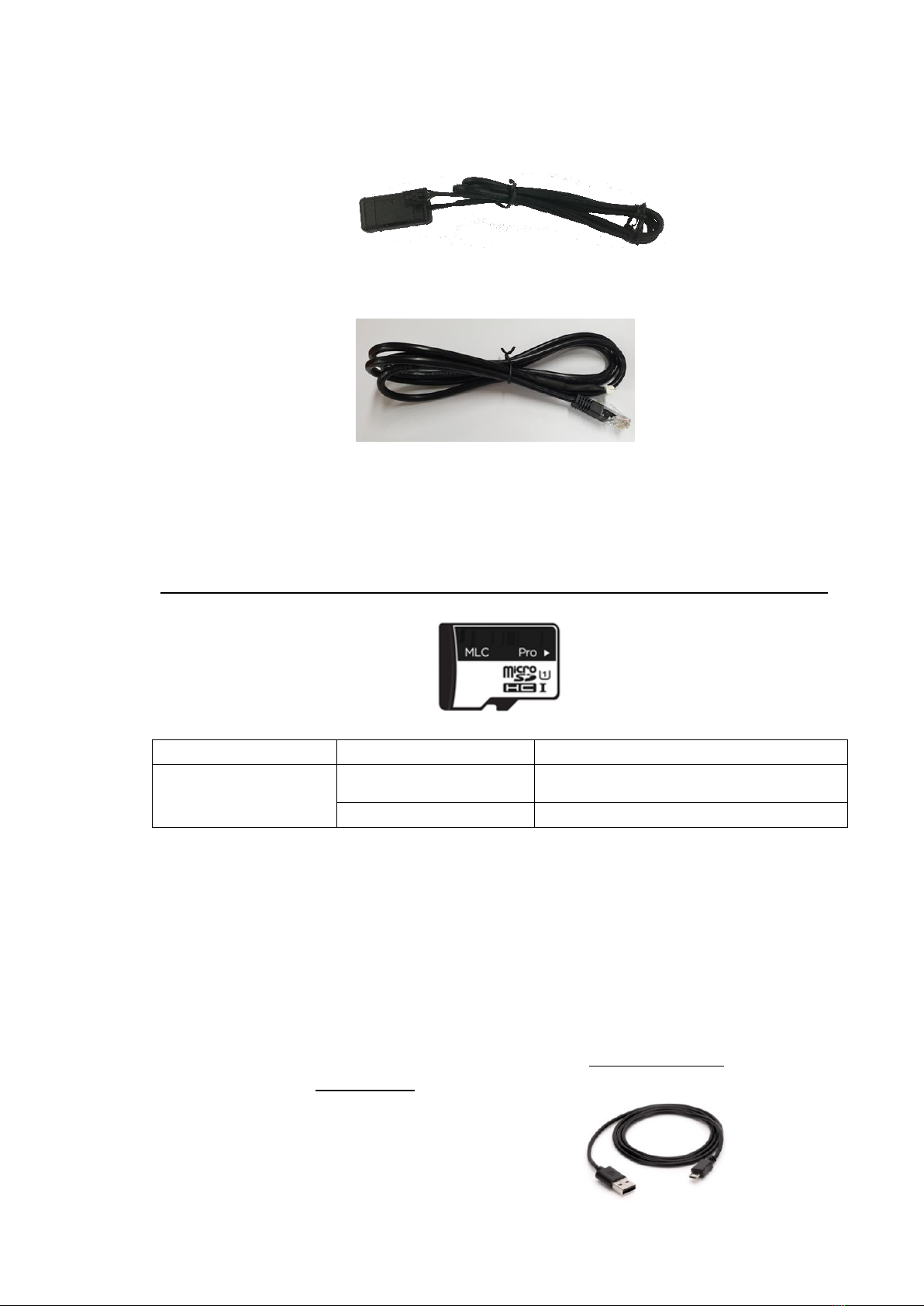

2.3.10 Ethernet cable(Optional)
: Transmit the video through Ethernet Port. (RJ45)
2.3.11 Micro SD Card (Consumable)
* Micro SD card is consumable product. Only first 3 months will be guaranteed. It is
recommended to format micro SD card regularly and replace it when it cannot be
recognized in MDAS.
** Micro SD card speed shall be above Class 10 and it is recommended to use MLC type.
File size
SD card storage
Max. Recording time(Normal mode)
20Mb
16G
Approx. 7 hours 20 minutes
32G
Approx. 14 hours 40 minutes
* Caution
Depending on your environment, actual recording duration and SD card lifespan may vary.
For stable performance, it is recommended that you format the memory card every 2-3
weeks. Formatting will delete all data in the card. If you want to keep the data, please
back up in advance. If MDAS fails to format the card more than twice, please try
formatting using PC. It may happen to some SD cards. When you extract the card, please
2.4 Micro 5 pin USB Cable (Optional for Calibration)
* NOTE: You can use a common USB cable that supports data transmission.
For calibration with Windows OS computers. Before the calibration, please install RNDIS
driver, first. (See Chapter 4.1)

11
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
3Installation
3.1 System Connection

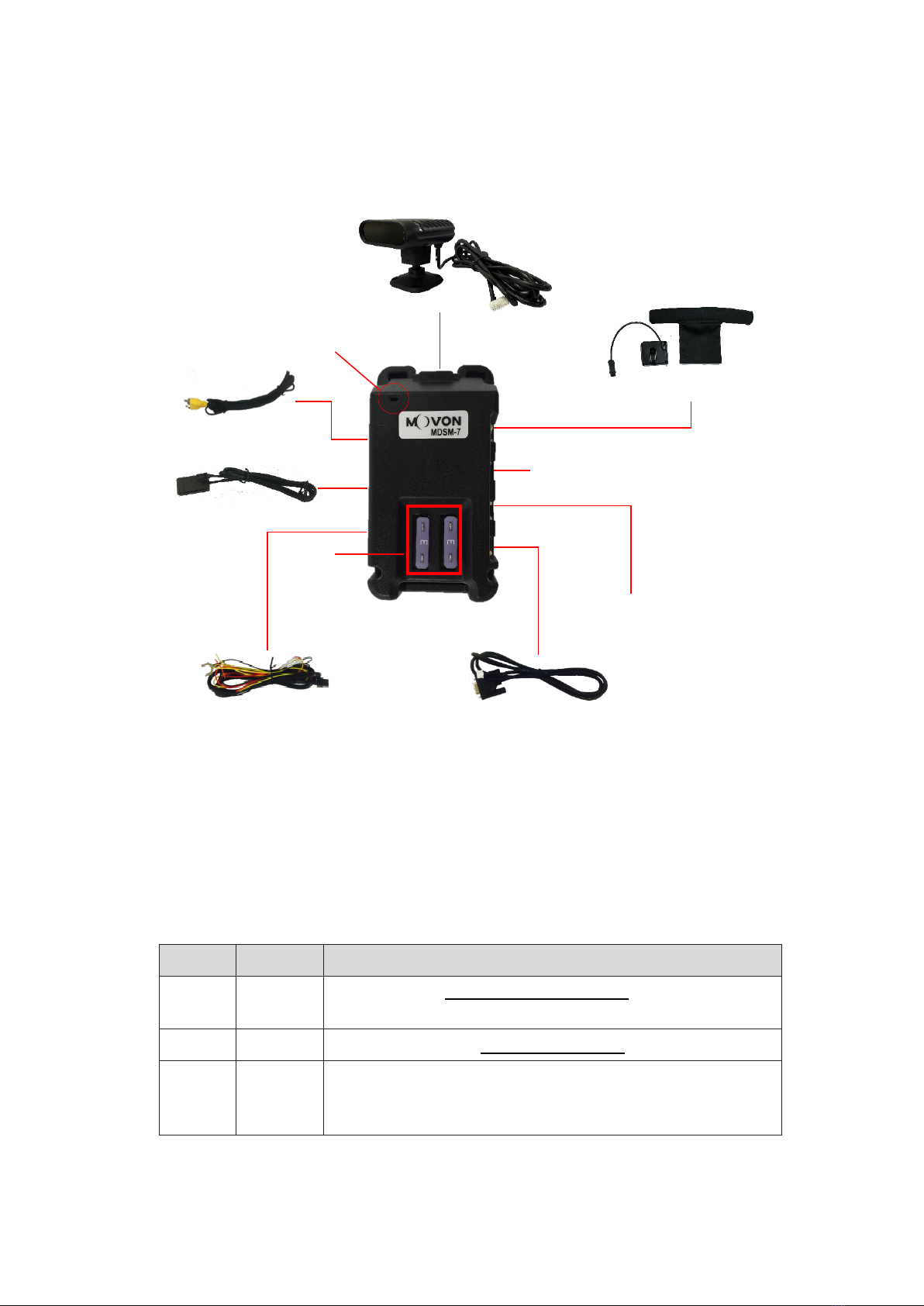

①Place MDSM-7 on the dashboard in the center of the driver according to the
instruction.
②Connect Main cable to the PCI box.
③Connect he power cable to PCI box and vehicle.
※Power cable to the vehicle.
Color
Label
Connection Description
Red
IGN
To ignition (ACC) power line
(Turns off when key is at OFF)
Yellow
Power
Battery power line
Black
GND
To ground source
* Please ensure that is connected properly to ground,
or it could damage the vehicle and MDSM-7.
Main 16P
LED
Vibration unit
Power cable
Video out RCA
Can reader
K-Line
FMS RS232
Fuse
Debugger
Main unit

12
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
* There are different ignition powers, it is recommended to use an ignition power
(IG1) that does not drop power shortly when the engine turns on
④After installation, do calibrate referring to Chapter 4.
3.2 MDSM-7 installation position

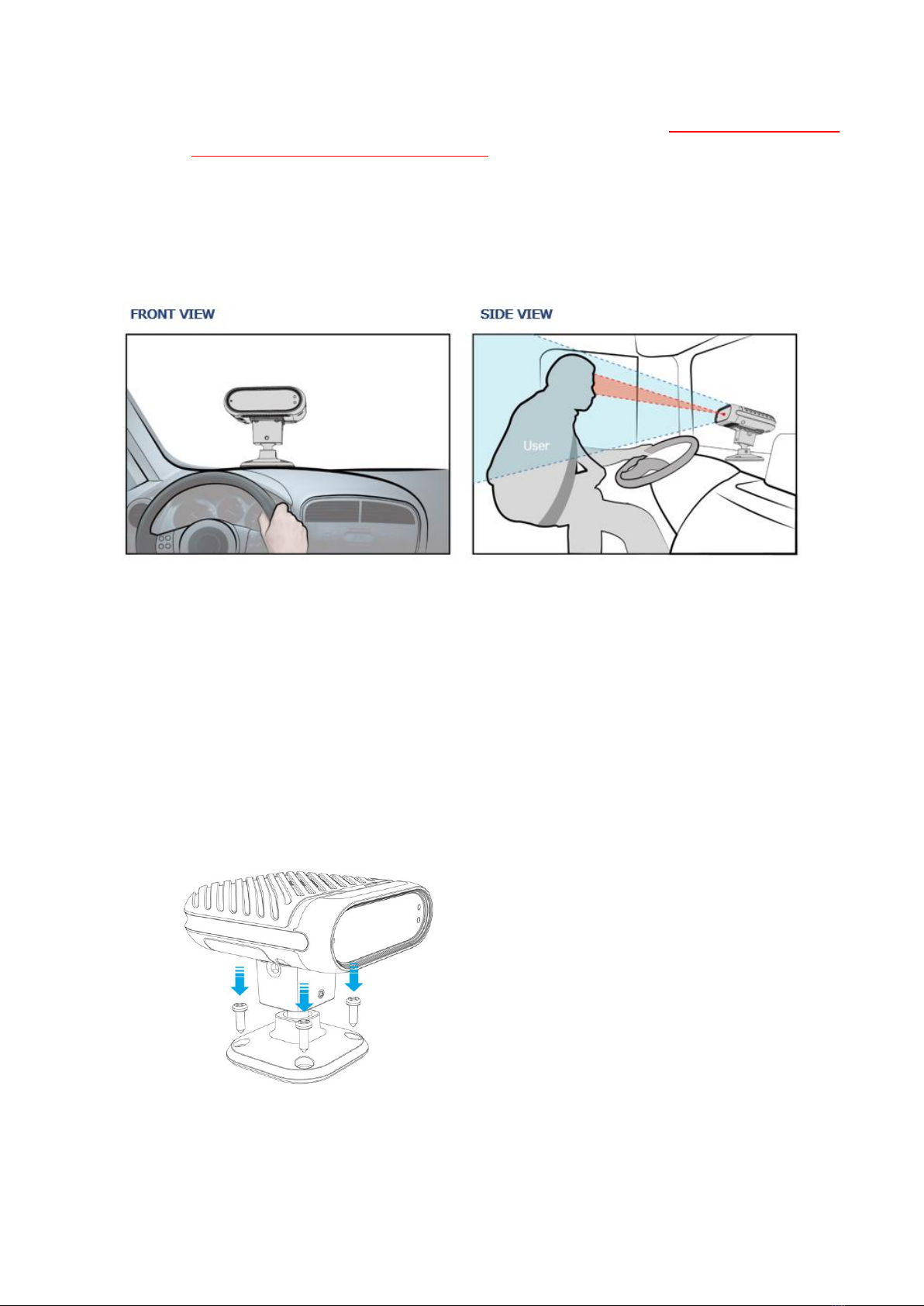

①Please place MDSM-7 in front of the driver for the best performance.
②Distance should be 90-100cm from the eyes of the driver to MDSM-7 camera.
③If MDSM-7 cannot be located in the center, you can move right and left side 15°.
④Please make sure the camera should be lower than driver’s eyes level. about 10-20°
⑤The camera should face the driver’s face directly and MDSM-7 should be fixed with
4pcs screws.
⑥After fixing cradle, installer has to adjust the camera pitch angle.
⑦After adjusting the camera's pitch angle, fix it using hexagon wrench.

13
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
4PC Calibration
4.1 Driver Setup (ONLY SUPPORTS WINDOWS OS)
* NOTE: Before you connect or start calibration, please install RNDIS driver first.
4.2 Calibration Setup
4.2.1 Access MDSM-7 Calibration page via PC
①Connect MDSM-7to PC using Micro USB cable with 5 pins.
②Power on MDSM-7. If you hear repeated beep sound, this means MDSM-7 is
properly connected to computer.

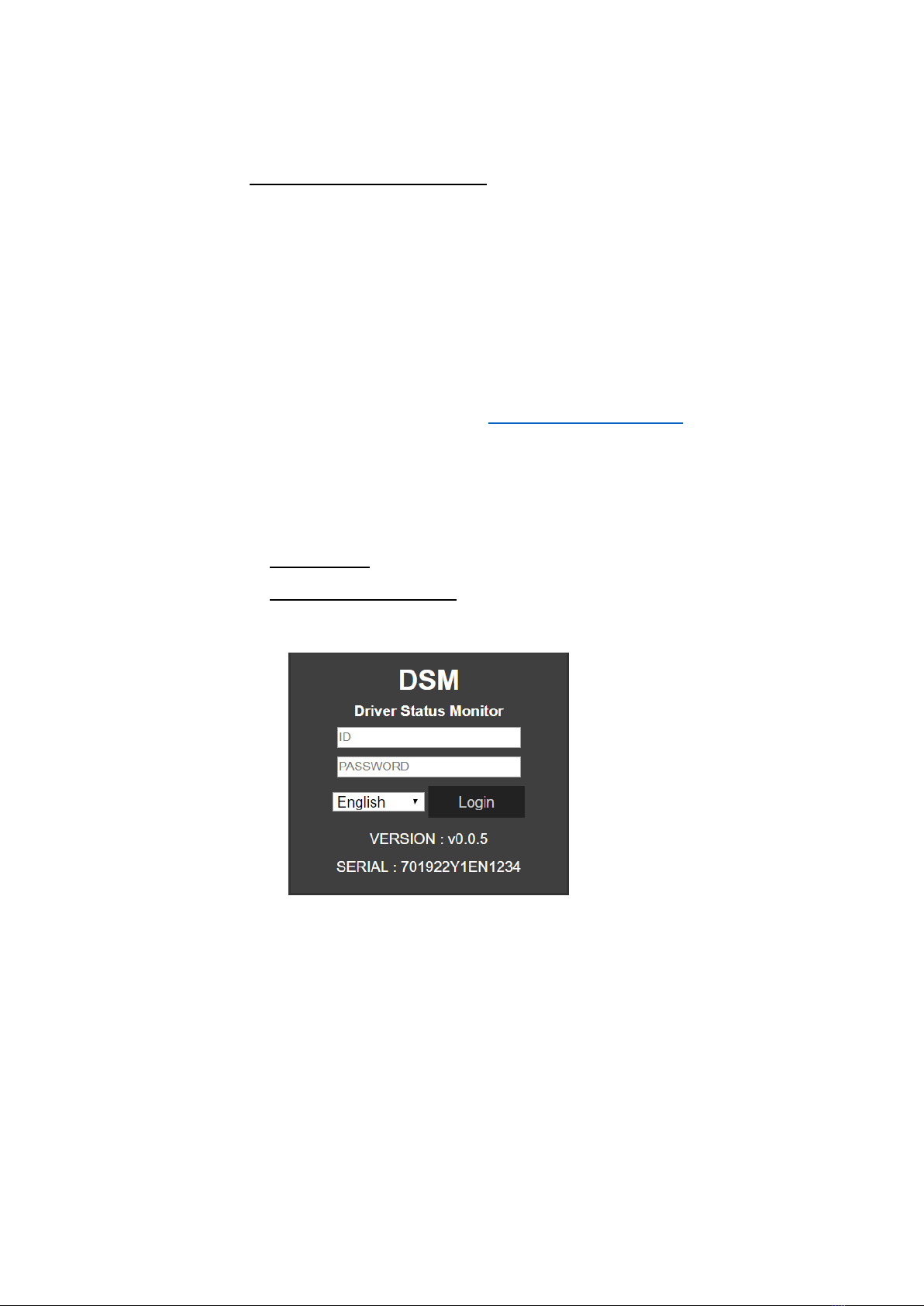

③Activate the browser and enter into http://20.0.0.1:18087/ to access MDSM-7
calibration page. Google Chrome is recommended.
④If you see the page below, please select language you want and sign in using
following information
‐ID: admin
‐Password: 1234

14
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
4.2.2 Calibration
4.2.2.1 Select Speed Type

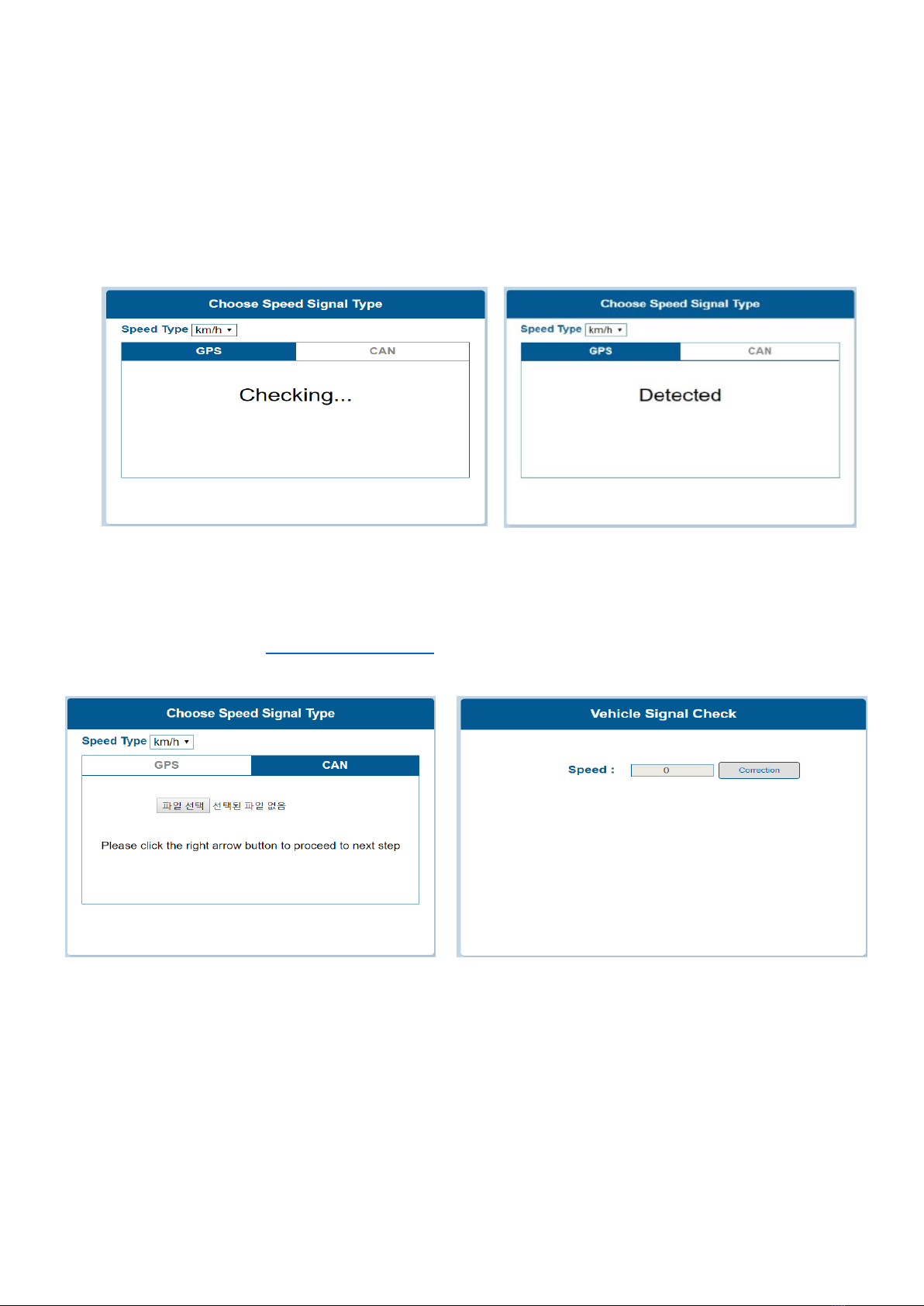

①GPS Speed setting
GPS antenna is embedded on MDSM-7. If GPS work correctly, detected is
shown. If GPS doesn’t work for 5 mins, Fail is shown.
②CAN Speed setting
MDSM-7 can get speed through CAN as well.
MDSM-7 only recognizes encrypted CAN data from our Database site;
http://info.mdas.co.kr
Please download can file from the DB and upload to system.
4.2.2.2 Verify Speed Signal
You can check the speed data is coming correct by test drive.
If there is a deviation, please use the following correction method.
Please click the “Correction”button when you drive at 40km/h (24mph). Then,
MDSM-7 will set new speed automatically.

15
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
4.2.2.3 Camera Setting
①Please center your face between the outer and inner box.
②Middle box should be located between outer & inner box by adjusting
camera angle and distance.
③Please wait 10 second to complete the camera setting as below and you
can listen the beep sound.
Note: The three rectangles should be centered as shown below.
④If the boxes are not arranged, please adjust the camera angles or distance
to fit your face into the boxes.

16
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
4.2.3 DSM Setup
①ON/OFF: Enable Drowsiness, Distraction, Phone, Smoking, Yawning.
②Sound Type: Select the preferred warning sound and you can check it with play
button.
③Vibration: Enable vitration function. (On / Off)
④Sensitivity: Set the sensitivity on a scale of 1 to 3. As the level gets higher, it
gets more sensitive. Yawning warning will generate when yawning for 2
seconds.
⑤Lock DIP switch on the unit: Please click it to lock the use of DIP switch at
camera.
⑥Volume Level: Control the warning sound level on a scale of 1 to 4.
⑦Activation Speed:
‐Set the Activation Speed 20, 40, 60Km/h, Warning will start when drive
faster than this speed.
‐In Test mode, you can test functions in 0Km.

17
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
4.2.4 DVR Setup
①Time: Set the date and time.
Please click the button, the time information on PC is saved
automatically
②Voice Recording: Enable Voice recording function (On / Off).
③Gravity sensor sensitivity: Set the sensitivity of event recording. Scales of 1 to
5 and the higher number is more sensitive.
④Enable Driving log with video (On / Off).
⑤Record Ratio: Set the Recording ratio (Continuous : G-sensor: DSM).
You can allocate the recording capacity of SD card from 0:0:10 ~ 10:0:0.
Mode
Description
File name
Folder
Continuous
Record continuously. Create
file every 1 miute in a loop
Date_Time
(20190601_063903_NOR)
NOR
G-sensor
Record when G-sensor detect
events for 30 seconds.
Date_Time
(20190601_063903_EVT)
EVT
DSM
Record when DSM events
detected for 30 seconds
Date_Time_DSM event type
(20190601_063903_DSM)
DSM

18
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
4.2.5 Miscellaneous Settings.
①Set the baudrate to transmit data through RS-232
(Off/ 9,600/57,600/19,200/115,200).
②Set Video out format (NTSC / PAL)
③Set the K-Line Baudrate(Off/ 9,600/57,600/19,200/115,200)

19
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
4.2.6 Calibration Complete
①Click “Complete”button to finish Calibration setup. Then MDSM-7 will be
rebooted automatically.
②Click “Export All Settings” button, if you want to download vehicleprofile.dat.
This vehicleprofile contains all the calibration settings you’ve set. With this file,
you can simply apply current settings to another vehicle.
* How to use ‘vehicleprofile’for MDSM-7.
A. Copy and paste vehicleprofile.dat into the micro SD card, formatted by
MDSM-7. Otherwise, MDSM-7 will automatically format the SD card.
B. Insert the micro SD card into MDSM-7 which you want to apply the
exported profile.
C. MDSM-7 will be rebooted automatically. Then, the profile will be applied
to MDSM-7.

20
MOVON Corporation. 6Fl., Hyunjuk Bldg., 7 Selleung-ro 94-gil, Gangam-Gu, Seoul, 06161 Korea
Tel: [phone] Fax: [phone] www.movon.co.kr
4.3 System Initialization
If you want to remove all data and return to a factory setting, click the “System
Initialization” menu
4.4 Firmware Update
①Select “Firmware Update” menu to upload the latest firmware.
②After uploading the file, click “Update Firmware” button below. It will
automatically reboot the system after finish the update.
