Renova movicart MCE 400 User manual

Renova srl –viale Rimembranze 93 –20099 Sesto San Giovanni - Italy –tel: [phone] –fax: [phone]
www.renova-srl.com –email: [email protected]
cart movers
MCE 400
MCE 400 E
movimentatore carrelli
MRE100/MRE100S
MRE200/MRE200S
operating instructions

2
This product complies with the Directive 2006/42/EC on machinery
© Copyright Renova Srl, 2013. All rights reserved.
MANMCEENA4V0421

3
index
introduction ……………………………………………………...…….……………….…….……
page 4
warning …………………………………………….….….………………….…….………………
page 4
general warnings ………………………………………….….…….…………………....……
page 4
assistance ………………………………………………………………………………………………
page 5
general instructions ………………………………………………………….………….………
page 5
initial content of the box…………………………………………………………..
page 5
appliance and components descriptions ………………….………….…..
page 5
packaging …………………………………….…….……………….……………………
page 6
serial number …………………………………………………………………………..
page 6
instructions for use ………………………………………………………………….……….……
page 6
battery status ……...…………………………………………………………………..
page 6
battery recharge ………............................................................…….
page 7
battery handling precautions ……………………………………………………
page 7
battery storage and disposal ……………………………………………………
page 7
malfunctions diagnosis………………………………………….……….…….…………………
page 8

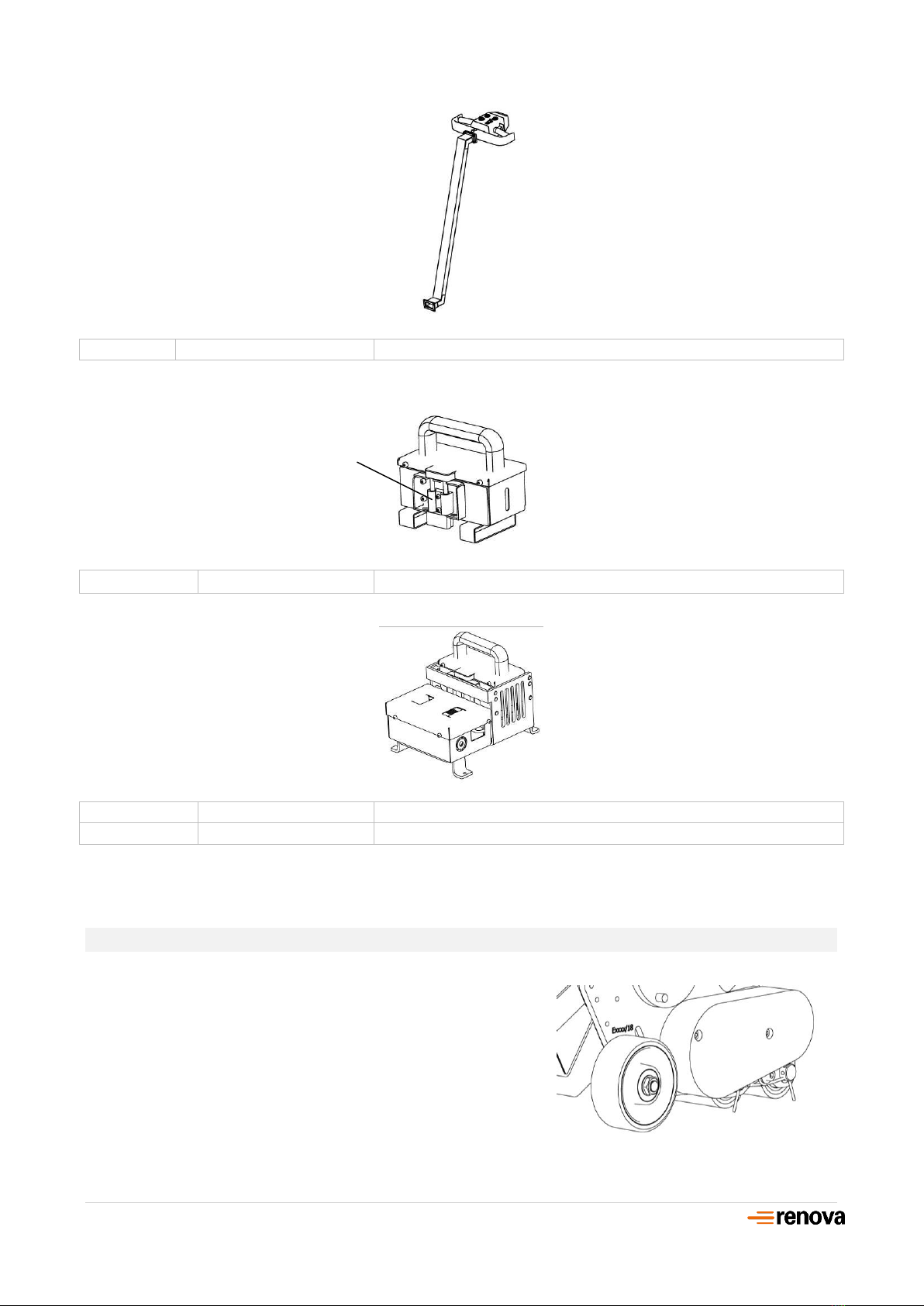

handle height regulation…………………………………………………………………………
page 8
components descriptions and codes ……………………………………….………………
page 9
spare parts request ……….…………………………………………………………
page 11
instruction for a proper use ...…………………………………………………………………
page 15
conformity statement…….……………………………………………………………………….
page 16

4
introduction
Dear Customer,
Thank you for purchasing Renova’s movicart –battery cart movers.
We also thank you for the preference you have reserved for this innovative product. We are certain it will satisfy you
with its technologically advanced solutions, its in-line and elegant design and its professional quality.
In this manual you will find our instructions for a proper use of this product and the necessary technical information,
as well as our advices, to ensure excellent performance over time.
All information contained in this manual have been collected respecting the rules in force, the current state of
knowledge of design and construction, our knowledge and our many years of experience.
The instruction manual was translated with all due care and attention. However, we do not accept liability for any
translation errors. The Italian version of this instruction manual is definitive.
The warranty does not apply in cases which occur as a result of the Customer’s violation of advice concerting
operation, incorrect use, improper application, negligence (including but not limited to improper maintenance and
storage), accidents, improper installation, modifications (included but not limited to the use of non-original parts or
accessories not authorized by Renova), improper adjustment or repair. All parts subject to normal wear are excluded
from the guarantee.
warning
CAREFULLY READ THE INSTRUCTIONS AND WARNINGS IN THIS MANUAL AND KEEP THEM FOR FURTHER
REFERENCE FOR ENTIRE PRODUCT LIFE. THEY SUPPLY IMPORTANT INSTRUCTIONS REGARDING OPERATIONS AND
SAFETY FOR INSTALLING, USING AND MAINTAINING THE PRODUCT.
PLEASE TAKE THE TIME TO READ AND UNDERSTAND THE INSTRUCTIONS COMPLETELY BEFORE THE INSTALLATION
AND USE OF THIS PRODUCT.
IN THE EVENT OF A POSSIBLE BREAKDOWN OF THE PRODUCT, THE OPERATOR SHOULD UNDERSTAND THE
MANUFACTURER’S INSTRUCTIONS AND BE AWARE OF THE DANGERS, BEFORE ANY CHECK INTERVENTION OR
RECOURSE OF RENOVA’S TECHNICAL ASSISTANCE.
general warnings
▪movicart is exclusively designed to move cart movers on wheels (2 fixed and 2 pivoting).
▪movicart must not be used to brake heavy loads which run toward the appliance.
▪The workplace must be kept proper of whatever object should be between the machine and the object to move.
▪The operator must always be aware that nothing or no one is in the way of the object to be displaced and that no
one could be endangered by the moving object.
▪Certain fundamental rules must be respected when using any kind of electrical appliance. More specifically:
- do not leave the appliance exposed to the weather (rain, sun, etc.)
- do not use the appliance next to flammable material
- do not let children or incapable persons use the appliance without supervision
▪A hearing protection must always be used.

5
assistance
Renova is worldwide present with Agents and Distributors.
Contact Renova support
[e-mail]
general instructions

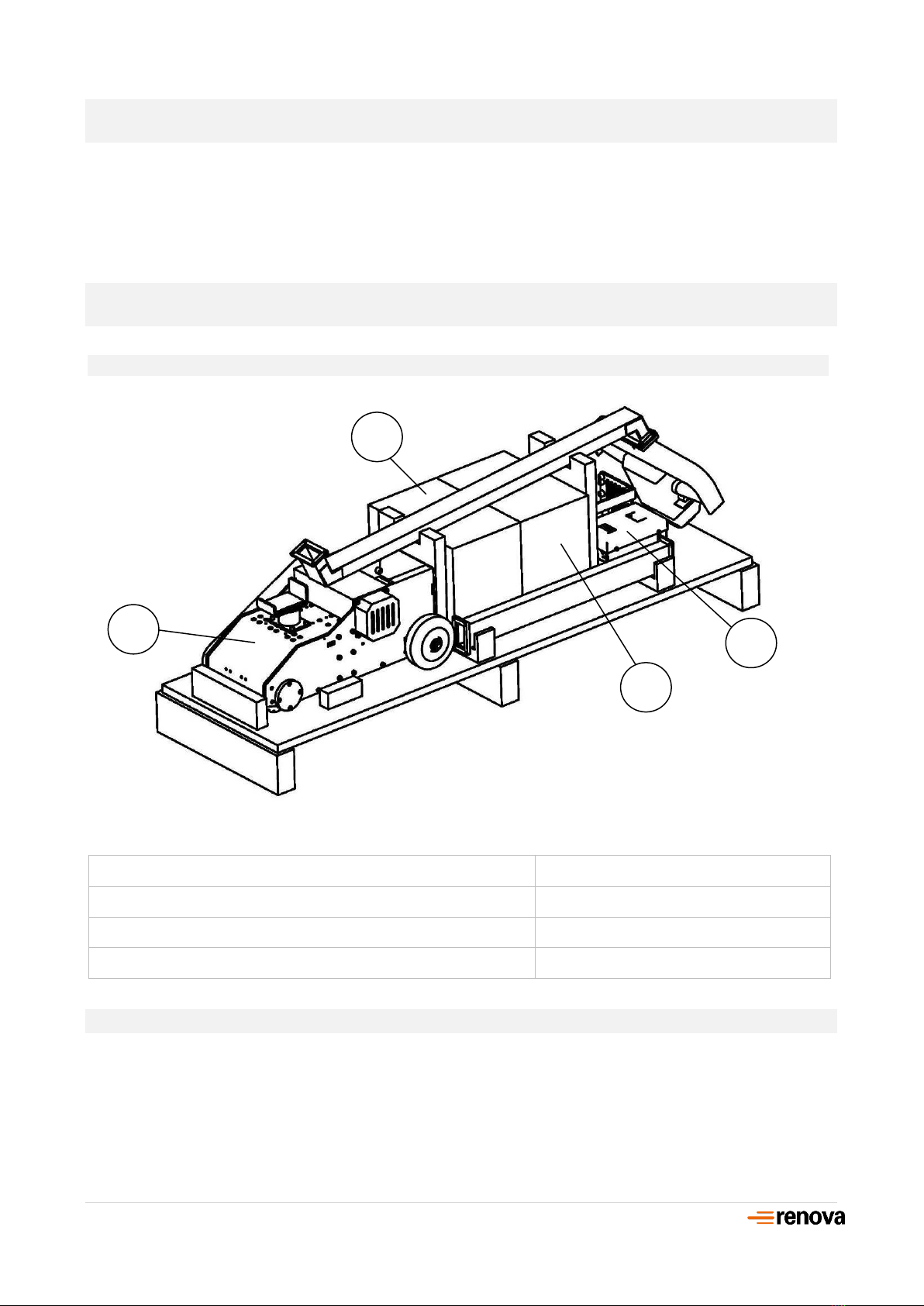

INITIAL CONTENT OF THE BOX
A movicart
x1
B batteries
x2 (optional)
C battery charger
x1
D shipment kit
x1
CONTENT DESCRIPTION
MOVICART –in the model as ordered, MCE400 or MCE400E.
BATTERIES - movicart (all models) is provided with a second battery (optional). The two batteries Plug & Play are
housed in the box near the movicart system and are ready to be used (battery < 30%).
BATTERY CHARGER - movicart is provided with the original battery charger.
SHIPMENT KIT –composed of battery connector.
A
B
D
C

6
PACKAGING
Please do not throw away the wood packaging of your movicart system as it might be useful for storage purposes,
when moving or, in case of damages, when the device must be sent back to Renova srl.

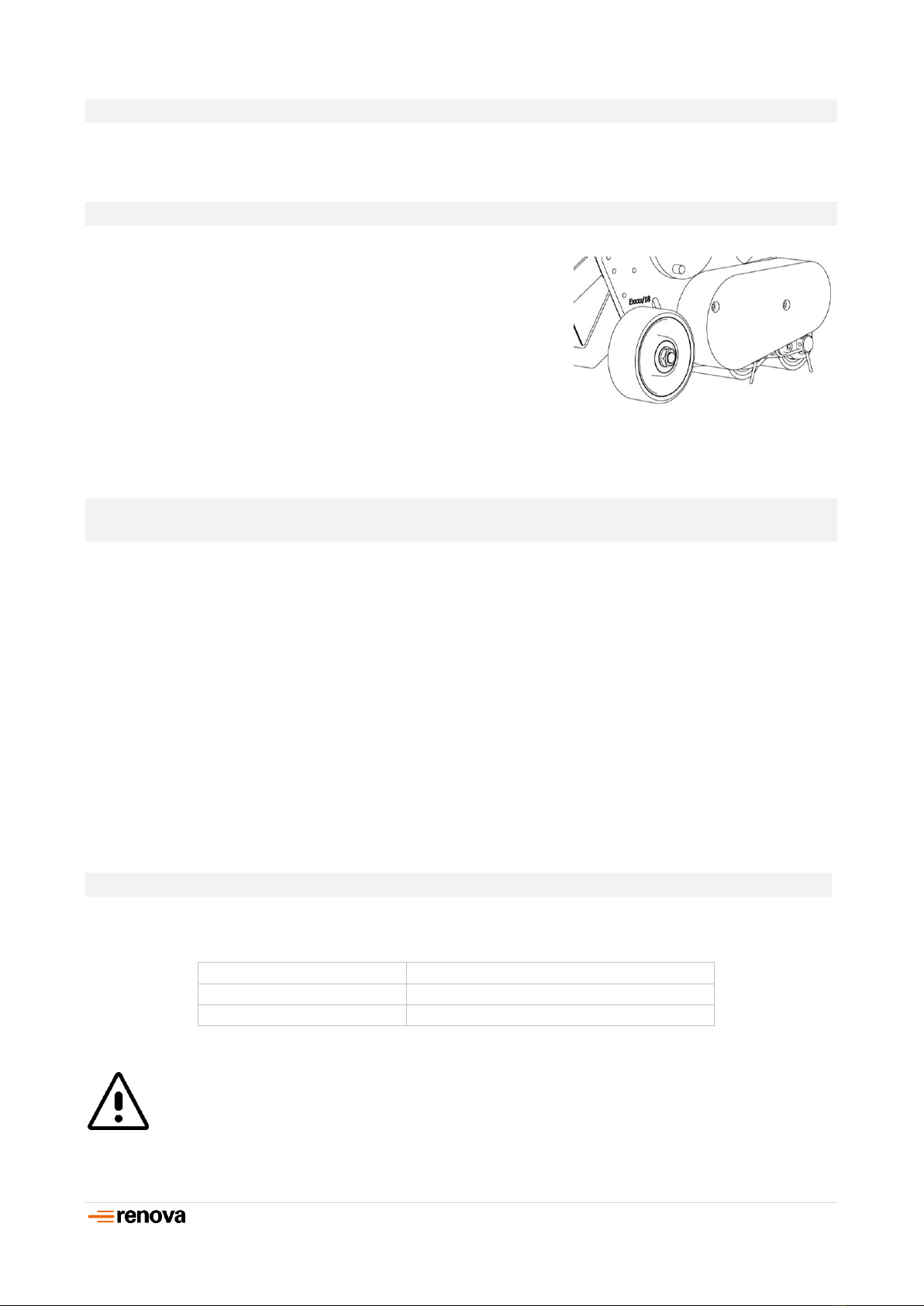

SERIAL NUMBER
Each movicart is provided with its serial number.
The serial number is stamped on the side plate of the movicart, above the
rear wheel.
Example in the picture on the right.
Please find the serial number also on the warranty sheet provided with
the movicart.
IMPORTANT:
Always communicate the serial number when requiring assistance or
spare parts for your movicart.
Instructions for use
▪Unpack the appliance and store the packaging material
▪After unpacking, make sure that the appliance is intact with no visible signs of damage caused by transport. If in
doubt, do not use the appliance and contact Renova srl
▪Place the movicart on a safe and flat surface that can support its weight
▪Assemble the handle by connecting the electric cables with those of the movicart previously.
▪Insert the battery into the special chassis. Previous recharge of the battery is not necessary
▪Push the switch into the ON position
▪At this point movicart can be used.
▪Push the switch into OFF position when the movicart is not running in order to preserve the battery charge
PLEASE NOTE:
Battery-powered movicart is equipped with reverse gear to allow you to drag the cart.
BATTERY STATUS

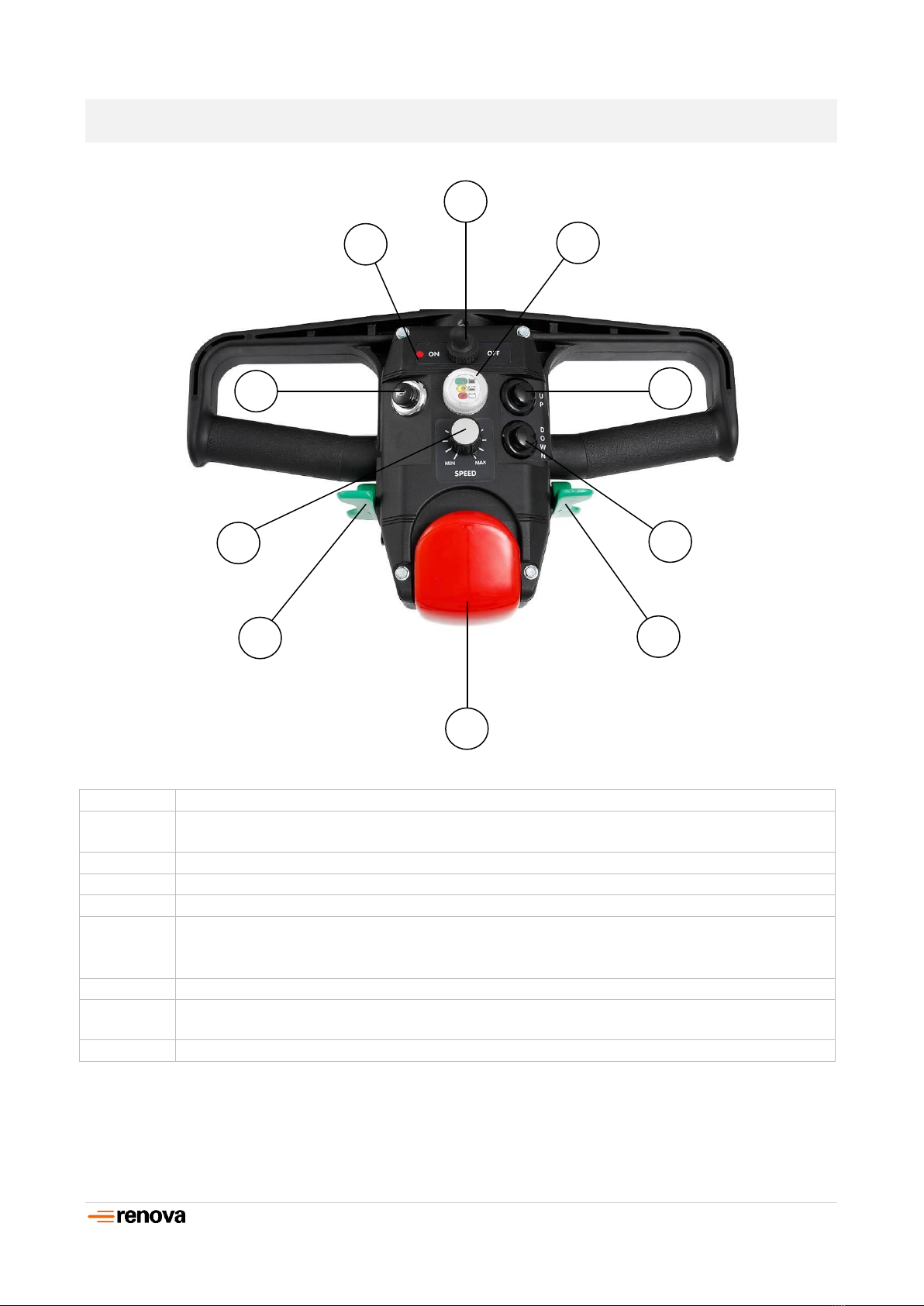

The status LEDs (see the picture at page 8):
GREEN LED
charged battery
YELLOW LED
50% battery charge (when active)
RED LED
discharged battery
ATTENTION!
Use the movicart only when GREEN and YELLOW LEDs. Do not use the movicart with RED battery status
LED to avoid any irreparably damage to the electronic unit and the battery. With RED battery status LED
recharging the battery is mandatory.

7

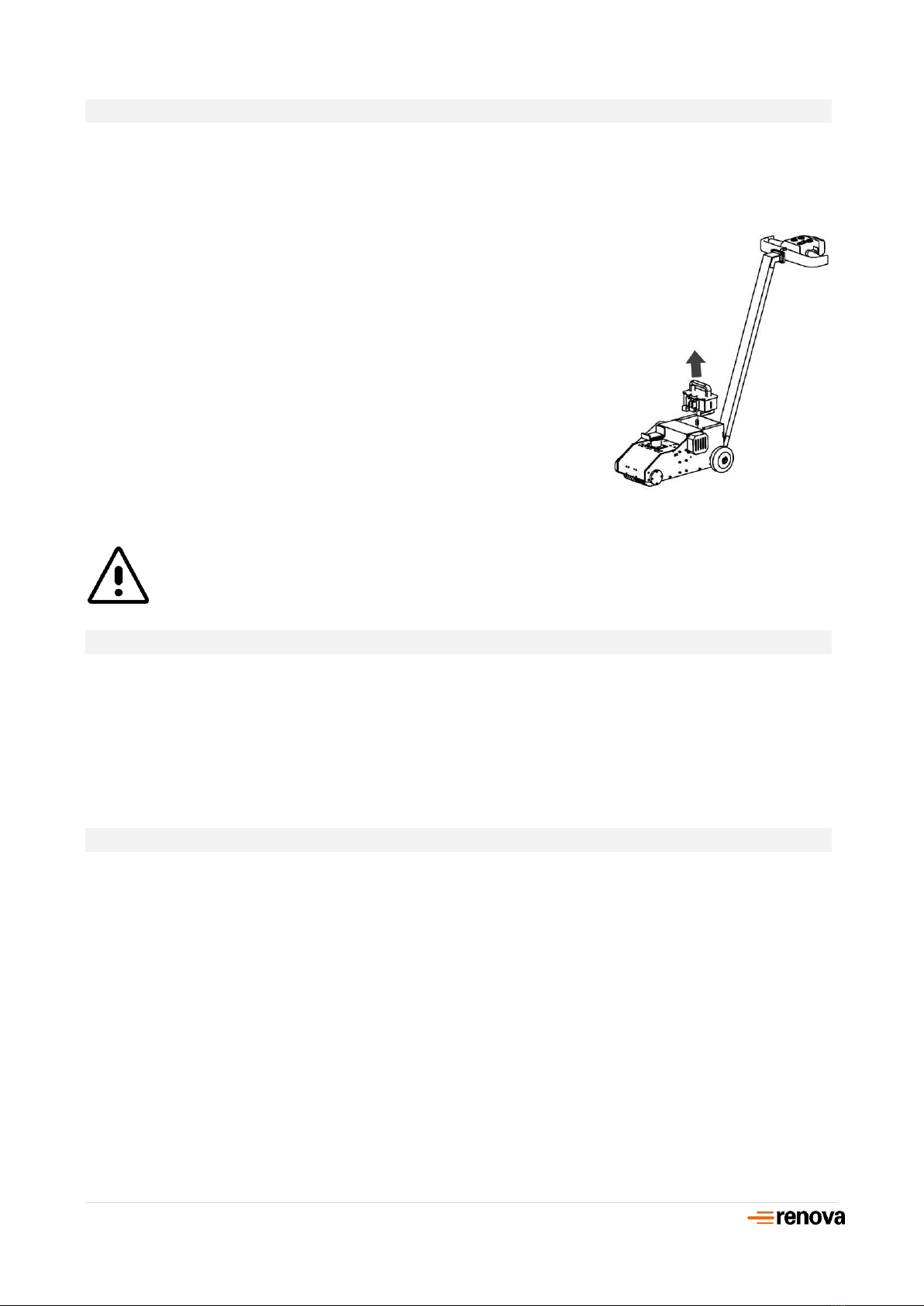

BATTERY RECHARGE
▪Push the switch into the OFF position.
▪Remove the battery from the chassis (as in the picture)
▪Insert the battery into the charger.
A green LED now lights up.
Insert the battery into the charger. A red LED on the battery charger now
turns on.
▪The estimated time of charging is about 4 hours (maximum time needed for
a full recharge of the battery). The battery is full recharged when the LED
will turn green.
▪Please leave the battery under charge for about 30 minutes to stabilize the
tension of the cells.
▪After recharging the battery remove the battery from the charger, then
unplug the charger from the mains supply. The red LED of the charger will
remain lit for a bit of time even if cable unplugged.
ATTENTION!
For the full recharge of the battery, please use the battery charger supplied with movicart. To not
damage the battery please do not use different battery chargers.
BATTERY HANDLING PRECAUTIONS
▪Do not dissemble, crush or puncture a battery
▪Do not dispose of a battery in fire
▪Do not immerse the unit in any liquid
▪Do not expose a battery to temperatures above 40°C (104°F) and below 5°C (41°F)
▪Do not use a damaged battery
▪Do not leave batteries unused for extended periods of time, either in the product or in storage
BATTERY STORAGE AND DISPOSAL
▪Store the batteries separately from the product
▪Store the batteries at temperatures between 15°C and 20°C (59°F and 68°F)
▪Always check and follow your applicable regulations before disposing of a battery

8

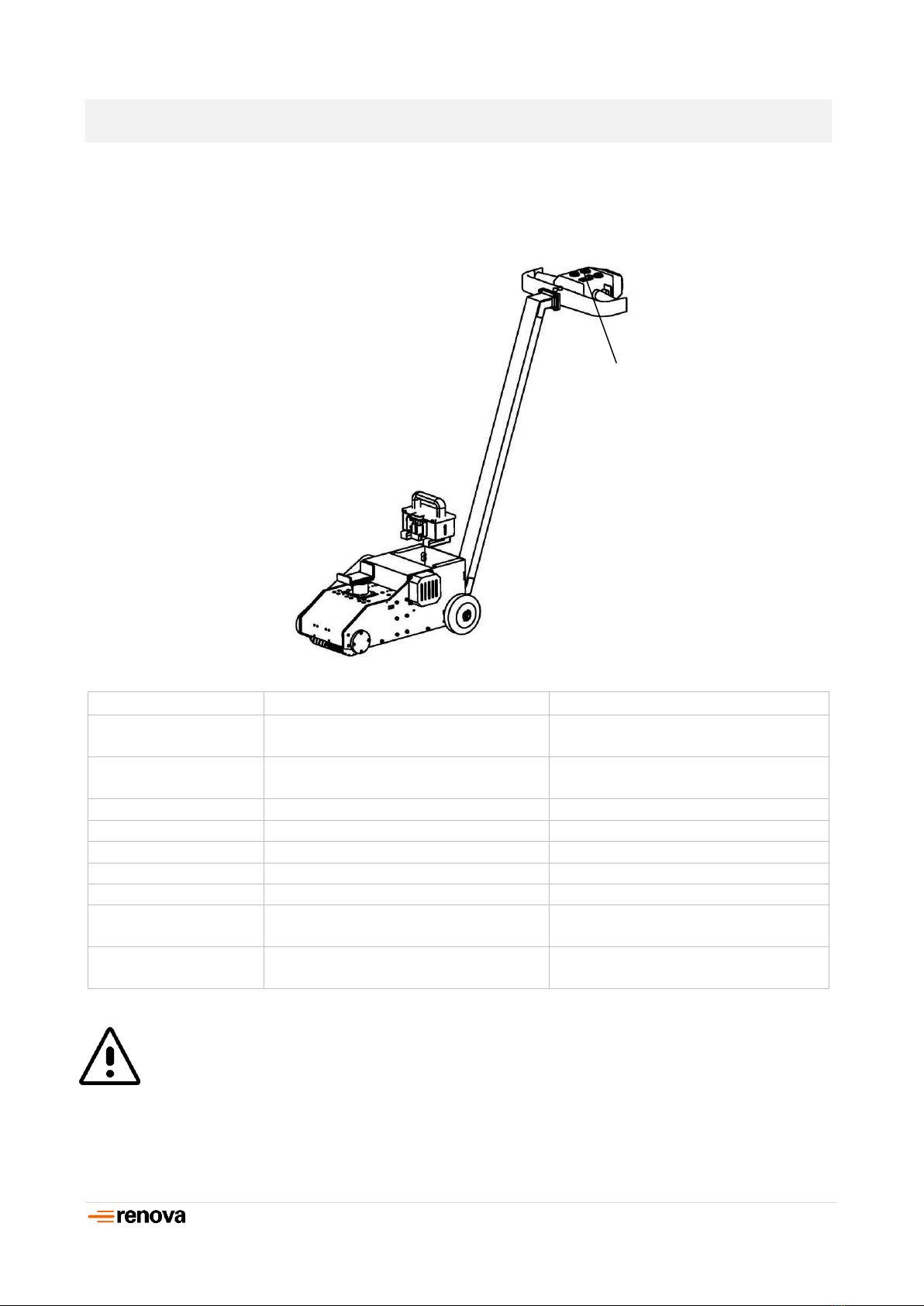

malfunctions diagnosis
In case of anomaly or not functioning of the movicart system, please count the number of flashes of the diagnosis
LED to identify the problem and solve it using the schedule below:
NUMBER OF FLASHES
DIAGNOSIS
SOLUTIONS/REMEDIES
1
Motor already powered at start
(forward gear)
Turn off/on with throttle in zero position
2
Motor already powered at start
(backward gear)
Turn off/on with throttle in zero position
3
Battery tension too low
Charge the battery
4
Battery tension too high
Use another battery and contact Renova
5
Throttle not at position zero at start
Turn off/on with throttle in zero position
6
Broken throttle (potentiometer)
Replace the throttle
7
Overheating
Cool the electronic board
8
Programming error eprom
Turn off/on.
If the problem persists, contact Renova
9
Error on control’s power
Turn off/on.
If the problem persists, contact Renova
ATTENTION!
If, by pressing the UP button, the lifter plate does not rise, press the DOWN button and drop the lifter
plate down to the lowest point. Later, press the UP button again to raise the lifter plate.
PLEASE NOTE:
Please see warranty conditions on the warranty sheet.
Diagnosis LED

9

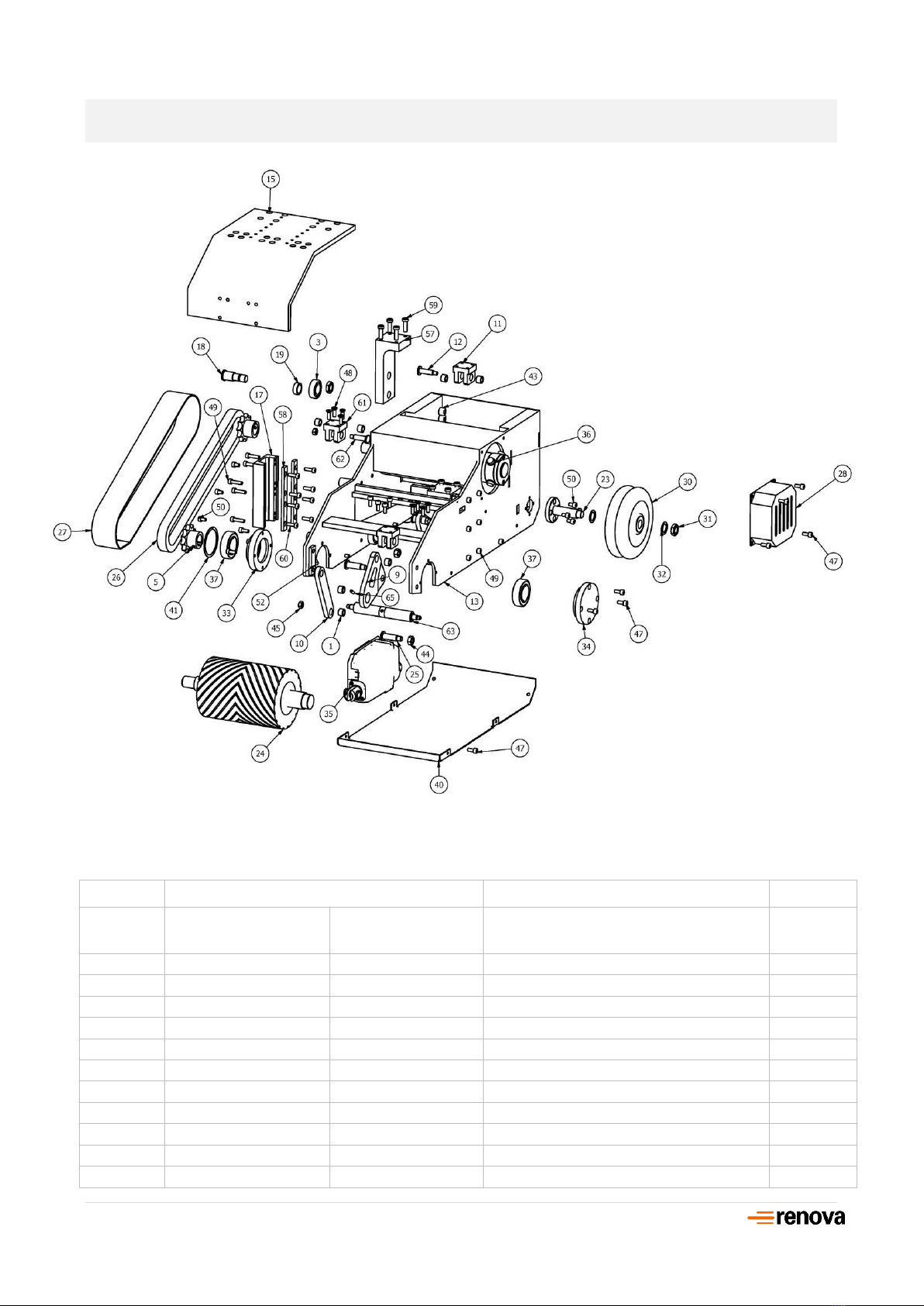

components descriptions and code
POSITION
CODES
DESCRIPTION
Q.TY
MCE400
MCE400E
1
B70-0011
B70-0011
sintered bronze bushing
11
3
C30-0033
C30-0033
radial ball bearing
4
5
I30-0004
I30-0004
sprocket chain
2
6
MREP0012
MREP0012
battery centering on MRE’s battery
1
7
E50-0001
E50-0001
anderson plug connector
1
9
MCEP0061
MCEP0061
triangular lever
1
10
MCEP0001
MCEP0001
upper connecting rod
2
11
MCEP0003
MCEP0003
triangle lever support
1
12
MCEP0063
MCEP0063
triangle lever axle
1
13
MCEP0052
MCEP0052
frame
1
15
MCEP0051
MCEP0051
plate lifter
1

10
17
MCEP0054
MCEP0054
bearing guide lifter
2
18
MCEP0056
MCEP0056
bearing axis lifter
4
19
MCEP0058
MCEP0058
bearing spacer lifter
4
23
MCEP0019
MCEP0019
rear wheel axle
2
24
MCEP0010
MCEP0010
rubber shaft
1
25
MCEP0020
MCEP0020
actuator axle
2
26
C10-0023
C10-0023
simple chain
1
27
MCEP0021
MCEP0021
cover chain
1
28
MCEP0022
MCEP0022
cover motor
1
30
R95-0004
R95-0004
rear wheel for movicart
2
31
D14-0002
D14-0002
low nut
6
32
R60-0001
R60-0001
washer
4
33
MREP0145
MREP0145
roller drive open flange
1
34
MVRP0024
MVRP0024
roller drive closed flange
1
35
A95-0008
A95-0008
actuator 24V DC
1
36
M65-0028
M65-0028
motor 24V DC
1
37
C30-0004
C30-0004
bearing
2
38
MREP0013
MREP0013
battery centering pin
2
39
S15-0038
S15-0042
electronic board
1
40
MCEP0064
MCEP0064
bottom cover
1
41
A70-0003
A70-0003
seeger
1
43
V50-00022
V50-00022
screw
12
44
D10-0005
D10-0005
nut
2
45
D10-0002
D10-0002
nut
5
47
V50-0007
V50-0007
screw
23
48
V53-0005
V53-0005
screw
8
49
V50-0054
V50-0054
screw
12
50
V50-0027
V50-0027
screw
11
52
L51-0006
L51-0006
rounded key
1
57
MCEP0053
MCEP0053
lifter bearing support
2
58
MCEP0055
MCEP0055
bearing guide cover
4
59
V51-0005
V51-0005
screw
8
60
V51-0008
V51-0008
screw
16
61
MCEP0059
MCEP0059
connecting rod support
2
62
MCEP0060
MCEP0060
connecting rod axle
2
63
MCEP0062
MCEP0062
triangular connecting rod axle
1
65
G38-0007
G38-0007
screw
1
66
MCEP0057
MCEP0057
electronic board support frame
1

11
67
MCEP0066
complete handle
KITBATTMCE
battery 24 V
KITCHRMCE220
charger 220V 50-60 Hz SCHUKO PLUG
KITCHRMCE110
charger 110V 50-60 Hz 3 PIN US PLUG
SPARE PARTS REQUEST
Please always communicate the serial number of your movicart when
requiring spare parts together with the code of the spare parts needed.
Each movicart is provided with its serial number.
Please find the serial number of your movicart stamped on the
movicart frame, above the rear wheel.
Example in the picture on the right.
Please find the serial number also on the warranty sheet provided with

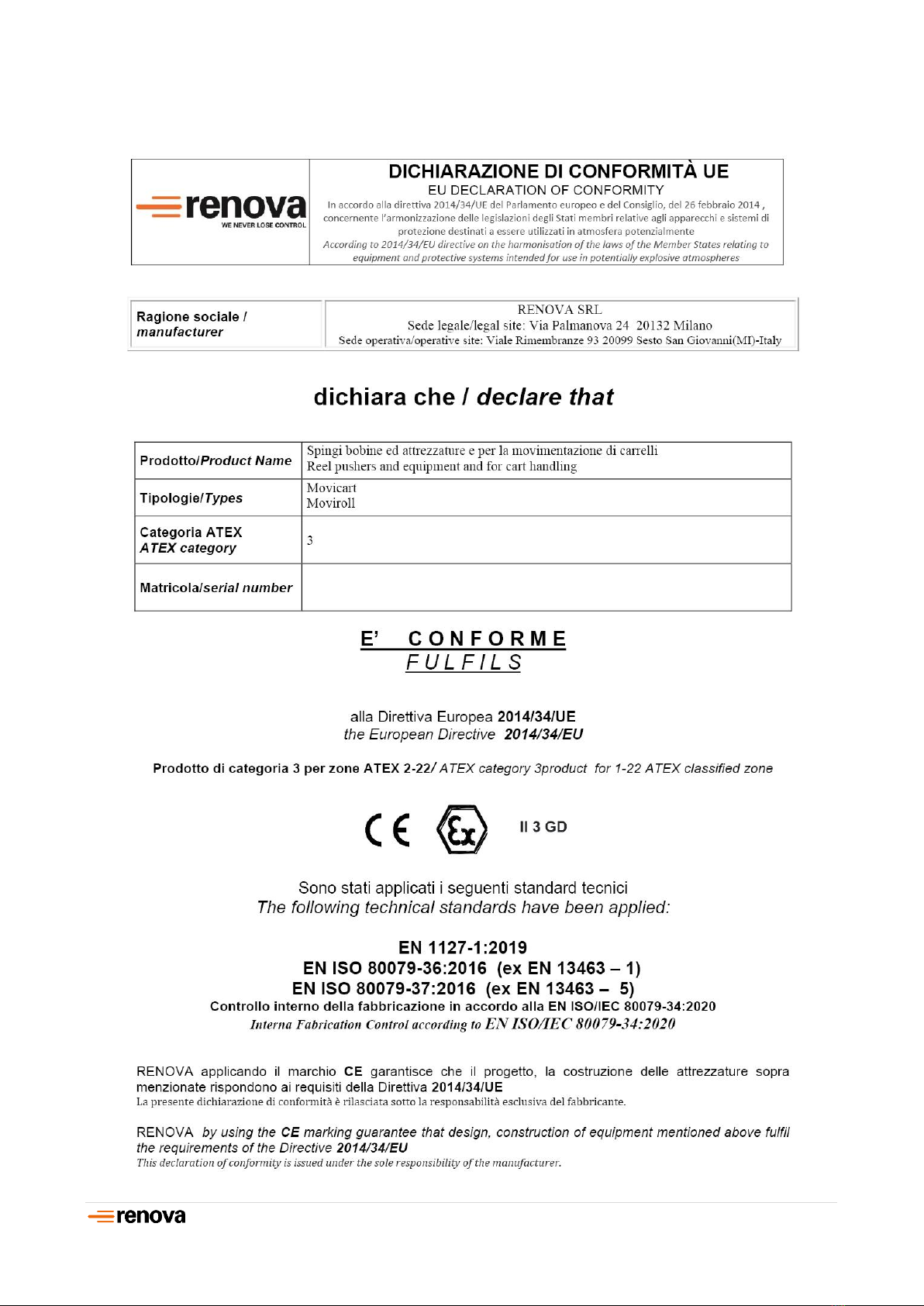

the movicart and on the Declaration of Conformity in this manual
Plug discharger -
movicart

12
control panel
1
Power ON/OFF
2
Power on red LED and diagnosis function.
If it lights up intermittently, count the flashes and read the corresponding anomaly to page 8.
3
Battery charge status indicator
4
Control button for raising the lifter plate
5
Control button for lowering the lifter plate
6
Butterfly throttle
Pushing the top of the lever, the Movicart moves forward (forward gear)
Pushing the bottom of the lever, the Movicart moves backward (reverse gear)
7
Emergency stop belly button with anti-crushing safety function for the operator
8
Potentiometer that fixes the maximum speed of the engine (the speed is then adjusted by the
operator with the throttle as in point 6)
9
Acoustic horn button
1
2
3
8
7
6
6
5
4
9

13
optionals and accessories
The wide range of available options for movicart allows it to be used with various types of carts, both in
terms of tube sizes of the structure to be handled, and height above the ground of the frame itself.
If a hole is available on the structure, movicart has, among its options, a pin coupling that allows the
movement of different cart types with particular structures that cannot be coupled with the standard
options.
The combination of the numerous accessories allows the interfacing with most of the existing carts.
However, Renova is always available to solve customer problems by creating customized accessories.

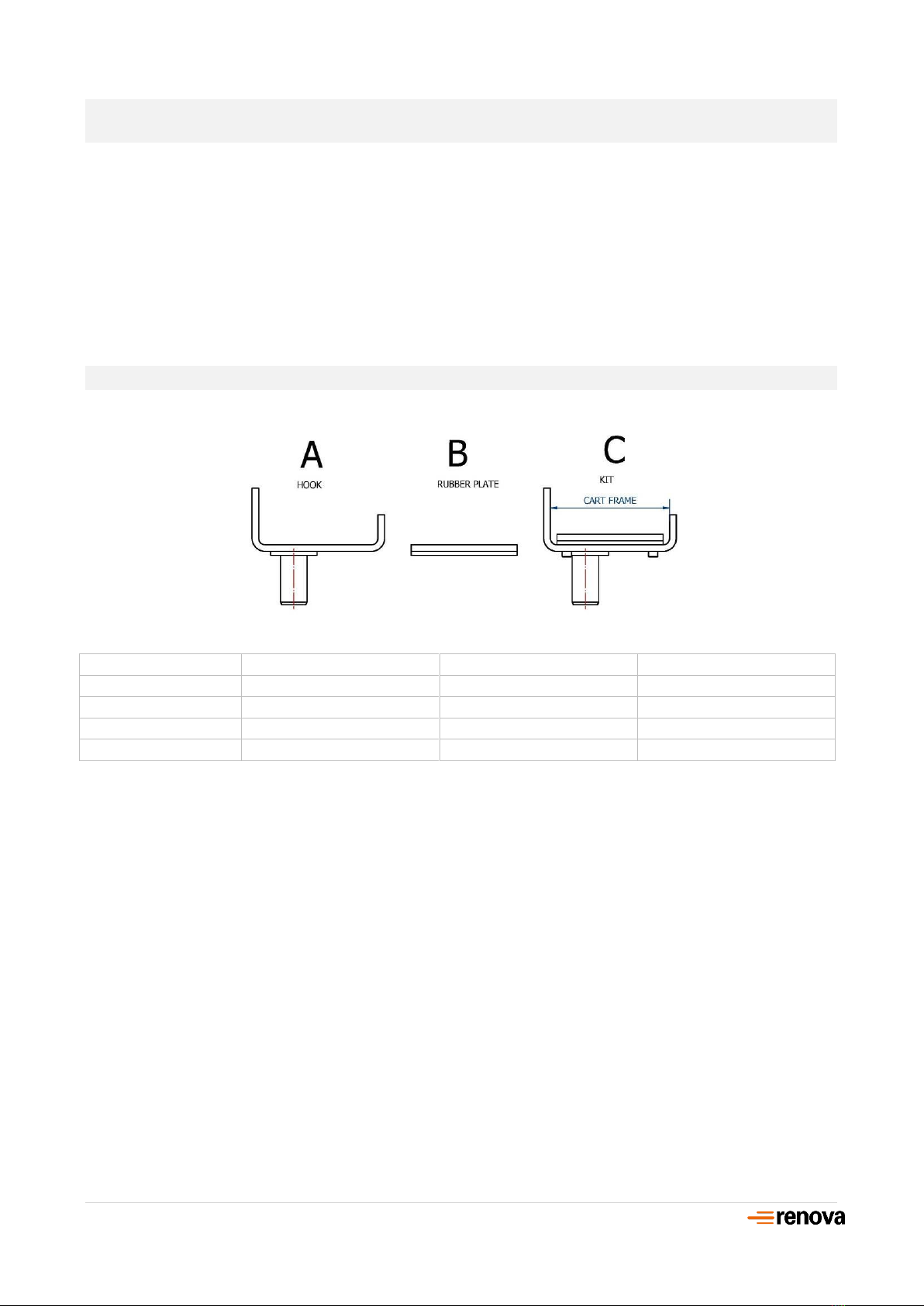

CART GRIPPERS
CART FRAME (mm)
A
B
C
30-50
MCEP0068
MCEP0077
MCEP0087
50-80
MCEP0070
MCEP0080
MCEP0088
80-120
MCEP0072
MCEP0083
MCEP0089
120-150
MCEP0074
MCEP0086
MCEP0090

14

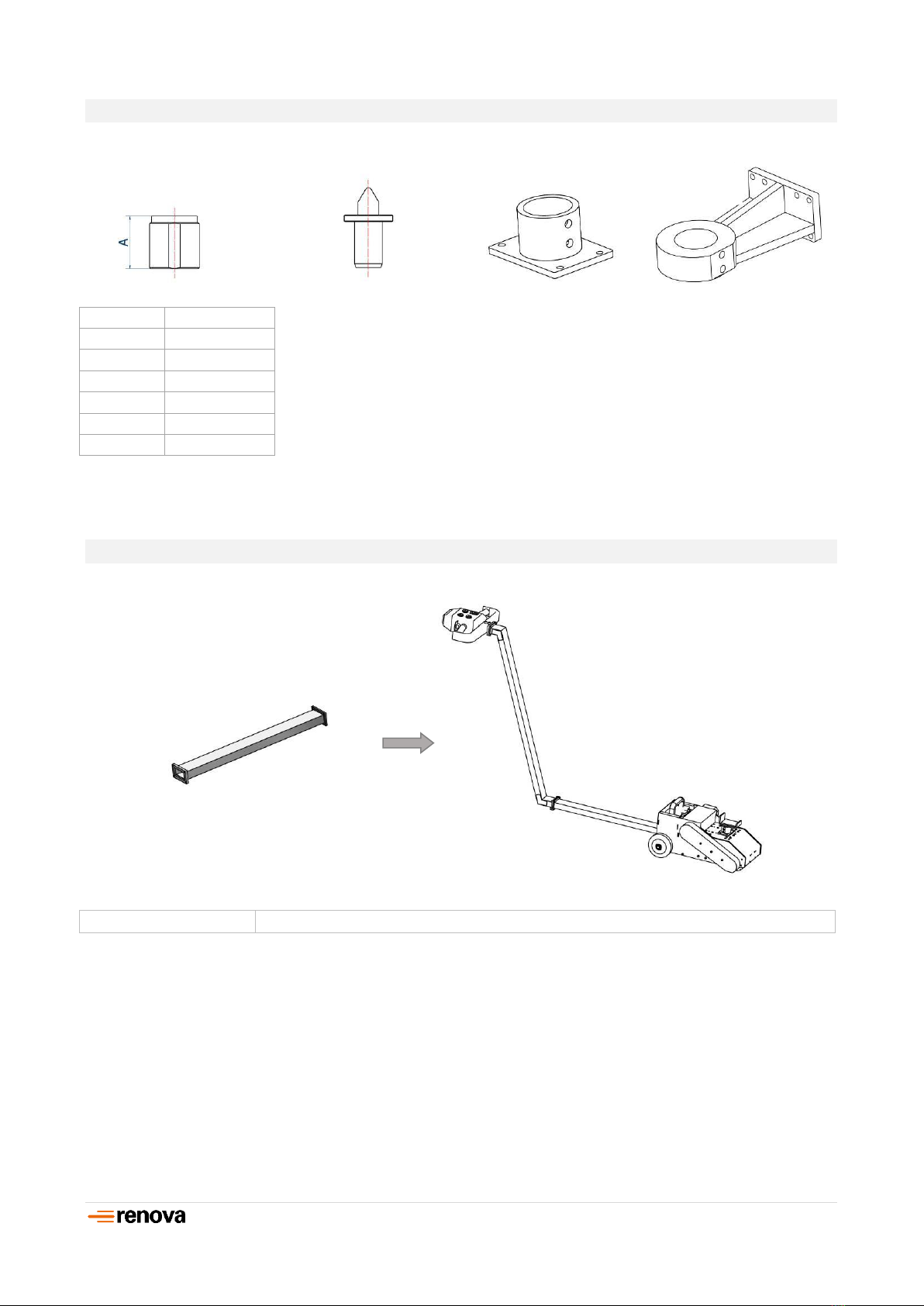

BUSHINGS
A (mm)
CODE
MCEP0102
MCEP0016
MCEP0065
(only for MCE 400)
40
MCEP0096
75
MCEP0097
110
MCEP0098
145
MCEP0099
180
MCEP0100
215
MCEP0101
HANDLE EXTENSION
MCEP0104
Handle extension, 610 mm
To use the handle extension, it is necessary to disassemble the handle and disconnect the cables between the handle
and the movicart.
After that, connect the extension cables with those of the movicart and fix with the 4 screws the extension cable to
the movicart.
Repeat the operation on the other side of the extension cable, connecting the cables to the handle previously
disassembled until obtaining the same configuration as the image above.

15
instructions for a proper use
Movicart has been designed for handling most of the carts on the market, equipped with two fixed wheels and two
pivoting wheels.
The operating conditions require that the floor, on which the carts are moved, must be smooth, free from steps,
holes, rails, and all kinds of fixed and non-fixed obstacles that may prevent its free movement.
After having installed the appropriate coupling type to that cart, bring movicart to the correct position with the
forward/reverse commands. Later, with the UP/DOWN buttons, hook the cart to secure it to the movicart, which is
now ready to perform its function.
The lifter plate supporting the coupling for the cart must be regulated in height using the UP and DOWN buttons in
order to guarantee a sufficient push on the dragging roller to exercise the roller traction and, therefore, the movicart
movement with the hooked cart.
If pressing the accelerator the hooked cart doesn’t move, but the movicart slips, just press the UP button a little bit
more (without the cart wheels lifting off the ground) until the movicart starts to move and drag the cart.
ATTENTION!
Pay attention not to lift the cart wheels that must always be in contact with the ground. Raising the
movicart lifter until the cart wheels are detached from the ground can cause irreversible damage to the
movicart itself.
Movicart is equipped with an emergency stop belly button safety system that safeguards the operator, in case he
should get trapped between a fixed obstacle (e.g. a wall) and the movicart itself, by blocking the cart movement and
reversing its direction instantly.
Movicart is also equipped with an acoustic warning device with push-button control at the Operator’s discretion.
The bidirectional wheels of the movicart allows it to move in two directions simultaneously during its operation. In
this phase the operator must be aware that the translation speed has to be reduced to avoid jamming or overturning
of the movicart.
In order to optimise the choice of the most suitable speed for the working phase, movicart is equipped with a
maximum speed regulator that, in combination with the accelerator, which is controlled by the operator, finds the
ideal speed for the handling of that cart type.

16

17

18

19
NOTES

Renova srl –viale Rimembranze 93 –20099 Sesto San Giovanni - Italy –tel: [phone] –fax: [phone]
www.renova-srl.com –email: [email protected]
