RENPHO RP-AP001S User manual
RP-AP001S USER MANUAL
READ AND SAVE THESE INSTRUCTIONS
model: RP-AP001S
Contents
2. Safety Information…………………………………………03
1. Specifications ………………………………………………01
3. Product Structure …………………………………………05
4. Control Panel………………………………………………06
5. Before First Use……………………………………………07
6. Using the Appliance ………………………………………09
7. RENPHO Smart App Setup ………………………………11
8. Connect with Alexa ………………………………………27
9. Connect with Google Home ……………………………30
10. Cleaning……………………………………………………33
11. Filter Replacement ………………………………………36
12. Troubleshooting ………………………………………….39
13. Warranty Information………………………………………41
What’s Included
Your RENPHO Air Purifier box includes
1 x RENPHO Air Purifier(Filters Pre-Installed)
1 x User Manual
Specifications
Power Supply
Rated Power
Effective Range
Operating Conditions
Noise Level
Standby Power
Clean Air Delivery
Rate (CADR)
≤ 54dB
135 CFM (230 m³/h)
< 0.5W
≤ 301 ft² (≤ 28m²)
Temperature: 23°F~108°F(-5°C~42°C)
50 W
AC 120V 60Hz
1
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
FCC ID: 2AUO3-RPAP001S
FCC CAUTION
2
● Do not let water or any other liquid or flammable detergent enter the
appliance to avoid electric shock and/or a fire hazard.
● Do not clean the appliance with water or any other liquid or a (flammable)
detergent to avoid electric shock and/or a fire hazard.
● Check if the voltage indicated on the bottom of the appliance corresponds to
the local mains voltage before you connect the appliance.
● If the mains cord is damaged, you must have it replaced by distributor, or a
service center authorized by distributor or similarly qualified persons in order to
avoid a hazard.
● Do not use the appliance if the plug, the mains cord or the appliance itself is
damaged.
● This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
● Children should be supervised to ensure that they do not play with the
appliance.
● Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in
front of the air inlet.
● This appliance is not a substitute for proper ventilation, regular vacuum
cleaning or use of an extractor hood or fan while cooking.
● If the wall socket used to power the appliance has poor connections, the plug
of the appliance becomes hot. Make sure you plug the appliance into a
properly connected wall socket.
● Always place and use the appliance on a dry, stable, level and horizontal
surface.
● Leave at least 40cm free space behind and on both sides of the appliance
and leave at least 40cm free space above the appliance.
Safety Information
Danger
IMPORTANT: Please read and comply with all of the instructions and
warnings provided in this manual before using the product. Failure to comply with
the instructions and warnings provided herein may result in inaccurate results
and/or damage to the product itself.
Warning
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television recep-
tion, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
FCC ID: 2AUO3-RPAP001S
3
● Do not place anything on top of the appliance and do not sit on the appliance.
● Do not place the appliance directly below an air conditioner to prevent conden
sation from dripping onto the appliance.
● Make sure all filters are properly installed before you switch on the appliance.
● Only use the original filters specially intended for this appliance. Do not use
any other filters.
● Avoid knocking against the appliance (the air inlet and outlet in particular) with
hard objects.
● Always lift or move the appliance by the handle at the back of the appliance.
● Do not insert your fingers or objects into the air outlet.
● Do not use this appliance when you have used indoor smoke-type insect
repellents or in places with oily residues, burning incense or chemical fumes.
● Do not use the appliance near gas appliances, heating devices or fireplaces.
● Always unplug the appliance after use and before you clean it.
● Do not use the appliance in a room with major temperature changes, as this
may cause condensation inside the appliance.
● The appliance is only intended for household use under normal operating
conditions.
● Do not use the appliance in wet surroundings or in surroundings with high
ambient temperatures, such as the bathroom, toilet or kitchen.
● The appliance does not remove carbon monoxide (CO) or radon (Rn). It
cannot be used as a safety device in case of accidents with combustion
processes and hazardous chemicals.
● To prevent radio interference, the appliance should be kept at least 2 meters
away from any device that uses radio waves.
4
Thank you for purchasing the RENPHO Air Purifier. Before using, please read this
manual carefully.
● Do not place anything on top of the appliance and do not sit on the appliance.
● Do not place the appliance directly below an air conditioner to prevent conden
sation from dripping onto the appliance.
● Make sure all filters are properly installed before you switch on the appliance.
● Only use the original filters specially intended for this appliance. Do not use
any other filters.
● Avoid knocking against the appliance (the air inlet and outlet in particular) with
hard objects.
● Always lift or move the appliance by the handle at the back of the appliance.
● Do not insert your fingers or objects into the air outlet.
● Do not use this appliance when you have used indoor smoke-type insect
repellents or in places with oily residues, burning incense or chemical fumes.
● Do not use the appliance near gas appliances, heating devices or fireplaces.
● Always unplug the appliance after use and before you clean it.
● Do not use the appliance in a room with major temperature changes, as this
may cause condensation inside the appliance.
● The appliance is only intended for household use under normal operating
conditions.
● Do not use the appliance in wet surroundings or in surroundings with high
ambient temperatures, such as the bathroom, toilet or kitchen.
● The appliance does not remove carbon monoxide (CO) or radon (Rn). It
cannot be used as a safety device in case of accidents with combustion
processes and hazardous chemicals.
● To prevent radio interference, the appliance should be kept at least 2 meters
away from any device that uses radio waves.

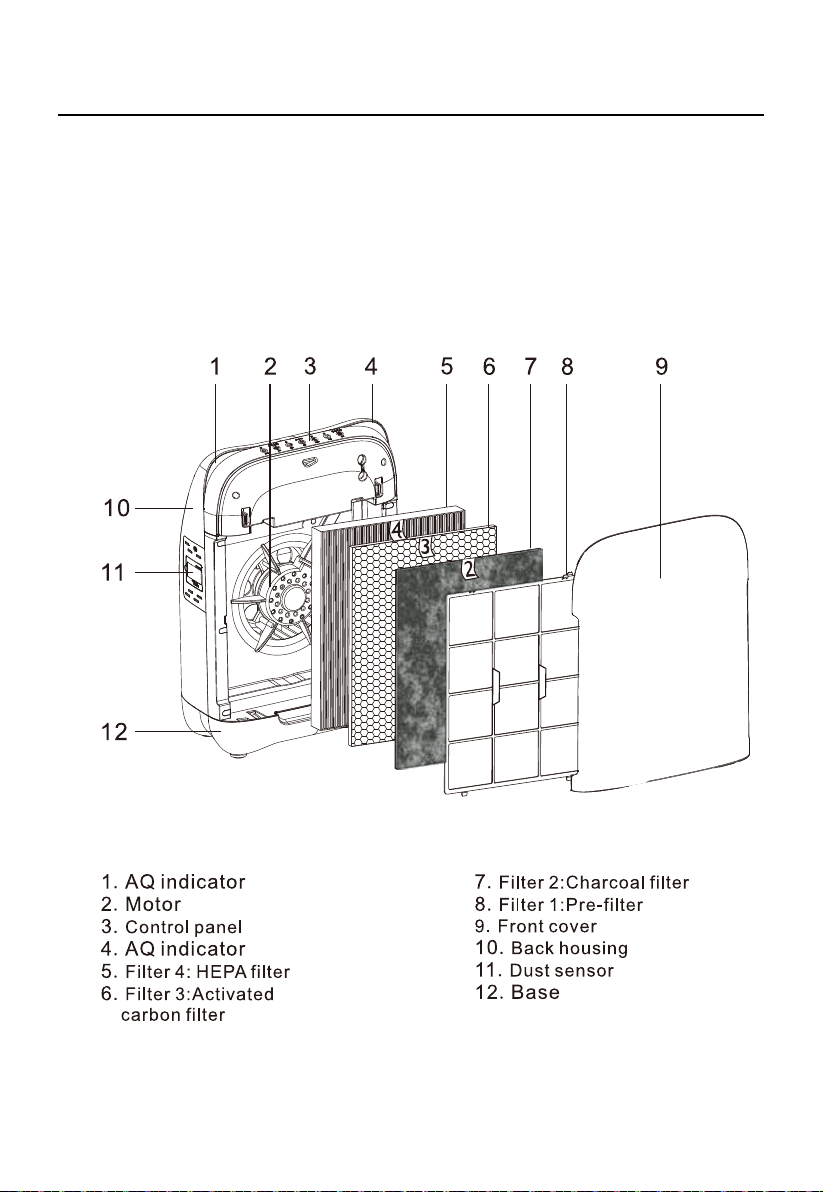

Product Structure
5
Control Panel
• Turns the air purifier on or off.
On/Off Button
• Cycles through fan speeds:
low, medium, and high.
• The fan speed cannot be
changed during Auto or
Sleep Modes.
Fan Speed Button
• Turns Sleep Mode on or off .
(See page 7)
Sleep Mode Button
• Sets or cancels a timer .
(See page 7)
Timer Button
• Sets or cancels to lock
mode. (See page 7)
Lock Button
• Turns air quality indicator on
or off. (See page 7)
AQ (Air Quality Indicator)
• Indicates the filters need to
be cleaned or replaced (see
page 7).
Filter Button （Filter
replacement indicator）
WiFi Indicator
WiFi Indicator Status
is off
blinks 2
times per second
is on and
not blinking
blinks 1
time per 3
seconds
Air purifier is not configured
with the RENPHO Smart
app. To configure, see page
11 .
Air purifier is in Default
Configuration Mode (see
page 11 ).
Configuration with the
RENPHO Smart app is
complete.
Air purifier is in AP
Configuration Mode.
(see page 15 )
6
The appliance comes with all filters fitted inside, but you have to remove the packag-
ing of the filters before you can use the appliance. Remove all filters, unpack them
and place them back into the appliance as described below.
Tip:Place the appliance against a wall for more stability when you remove
or insert filters.
Note:Make sure you insert the filters in the correct position.
1. Place your fingers in the recesses of the side
cover and gently pull the top part of the front
cover towards you . Then lift the hooks at the
bottom of the cover out of the bottom of the
appliance.
2. Remove all the filters from the appliance.
3. Remove all packaging material from the filters.
Before First Use
7
4. Put filter 4(HEPA filter), filter 3(Activated carbon filter), filter 2(Charcoal filter),
filter 1(Pre-filter) back into the appliance. For more detail, see section "Filter
replacement".
Tip:Place the appliance against a wall for more stability when you remove
or insert filters.
Note:Make sure you insert the filters in the correct position.
Note: Make sure that the side with the tag is pointing towards you
(Filter 4、3、2).
5. To reattach the front cover, insert the bottom
hooks into the bottom of the appliance first .
Then push the front cover against the body of the
appliance.
8
4. Put filter 4(HEPA filter), filter 3(Activated carbon filter), filter 2(Charcoal filter),
filter 1(Pre-filter) back into the appliance. For more detail, see section "Filter
replacement". 1. Put the plug in the wall socket
All lights will turn on once and you hear a beep. Then the lights go out again.
3. AQ(Air Quality)
Built-in air quality sensor can detect air quality, after switching on the appliance,
it will show the quality of the air automatically through the different colors.
4. Filter replacement lights
The 4 filters:
1. Washable Pre-filter
2. Charcoal filter
3. Activated carbon filter
4. HEPA filter with anti-bacterial peptide
When the light on the filters indicator flashes, it means
that corresponding filters need to be cleaned or replaced.
5. Fan speed adjustment and Auto Mode
2. Press the on/off button to switch on the appliance.
Using the Appliance
Filter
AQ indicator color Air quality level
Blue Good
Yellow Fair
Red Bad
AQ indicator
The fan speed light indicates at which fan speed the appliance is operating.
Press Speed button to adjust 1~3(refers to low, medium, high) fan speed
level. Press the Speed button again to enter Auto mode and the fan speed will
be automatically adjust according to AQI level as shown below:
The power light and FAN SPEED 1 (lowest) light will turn on.
9
6. Setting timer
7. Sleep mode
To exit Auto mode, just press the Speed button. The appliance will return to
manual control at fan speed 1and the Auto mode light turns off.
Tips : When the appliance is switched on, the fan speed is at the low level.
Friendly reminder:Auto mode is more convenient, effective, and energy efficient.
Note: If you want to go back to the Fan Speed mode or Auto mode, simply
press the Speed or Auto button.
AQI indicator
Color Blue
Fan Speed Speed 1 Speed 2 Speed 3
Yellow Red
Using the appliance in Sleep mode makes it operates quietly.
Press button to activate the sleep mode, press button again to switch off.
8. Keylock mode
1) Press button for 3 seconds to activate Keylock mode to lock all
buttons; useful if your house has a young child.
2) To cancel keylock mode, just press and hold button for 3 seconds.
When the appliance is switched on, press button to start the timer
function.
You can set auto shutoff to 2h, 4h or 8h by pressing the button , after this
time, your appliance will switch off automatically.
To cancel the Timer function, just press button repeatedly until the light
turns off.
10
1) Press button for 3 seconds to activate Keylock mode to lock all
buttons; useful if your house has a young child.
2) To cancel keylock mode, just press and hold button for 3 seconds.
RENPHO Smart App Setup
Note: Due to continuing updates and improvements, the RENPHO Smart app
may appear slightly different.
Note: Make sure your phone is connected to a secure 2.4GHz WiFi network.
The air purifier can only be set up on a secure 2.4GHz network.
Note: You must create your own RENPHO Smart account to use third-party
services and products, such as the Amazon Echo and Google Home. These will
not work with the guest account. With a RENPHO Smart account, you can also
allow your family and friends to use your air purifier.
Note: For iPad download, please choose filters-support-iPhone only.
Download APP
Configuration in Default Mode (Recommended)
1. Search and download "RENPHO Smart" app from Apple App Store / Google Play
or scan the QR code below and follow the instruction to download the app.
Set up your air purifier with the RENPHO Smart app.
2. Open the RENPHO Smart app. To create a new account, tap Register.If you
already have an account, tap Login.
iOS/Android
RENPHO Smart
RENPHO Smart
11
Note: Due to continuing updates and improvements, the RENPHO Smart app
may appear slightly different.
Note: Make sure your phone is connected to a secure 2.4GHz WiFi network.
The air purifier can only be set up on a secure 2.4GHz network.
1. Search and download "RENPHO Smart" app from Apple App Store / Google Play
or scan the QR code below and follow the instruction to download the app.
2. Open the RENPHO Smart app. To create a new account, tap Register.If you
already have an account, tap Login.

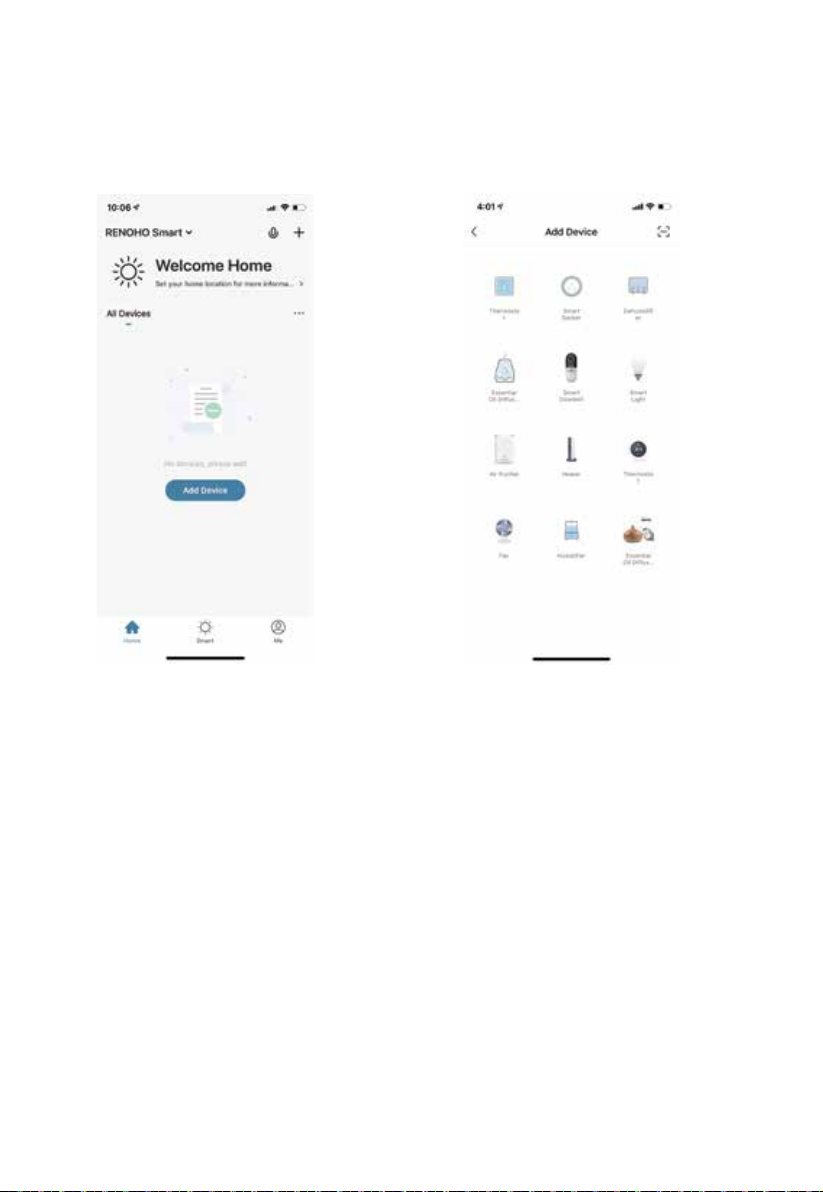

1. Tap the Add Device button to add
your air purifier.
3. Plug in your air purifier.
4. Check Light Status.
The WiFi indicator light should be rapidly blinking blue (2 blink per second),
indicating that your air purifier is in default configuration mode.
2. Tap Air Purifier.
A. If the LED indicator light is rapidly blinking, tap Next.
B. If the LED indicator light is not rapidly blinking, tap Help; Press "Lock" + "AQ"
buttons and hold for 5 seconds until the WiFi light starts rapidly blinking.(2 blink per
second). Then tap OK.
12
4. Check Light Status.
The WiFi indicator light should be rapidly blinking blue (2 blink per second),
indicating that your air purifier is in default configuration mode.
A. If the LED indicator light is rapidly blinking, tap Next.
B. If the LED indicator light is not rapidly blinking, tap Help; Press "Lock" + "AQ"
buttons and hold for 5 seconds until the WiFi light starts rapidly blinking.(2 blink per
second). Then tap OK.
A
B
5. Follow the in-app instructions to connect to WiFi.
13
6. Wait for the app to connect. This may take up to 90 seconds.
7. You’ve completed setup! Give your air
purifier a unique name, or simply use
the default name.
8. If you can’t connect, try Again in
AP configuration mode.
14

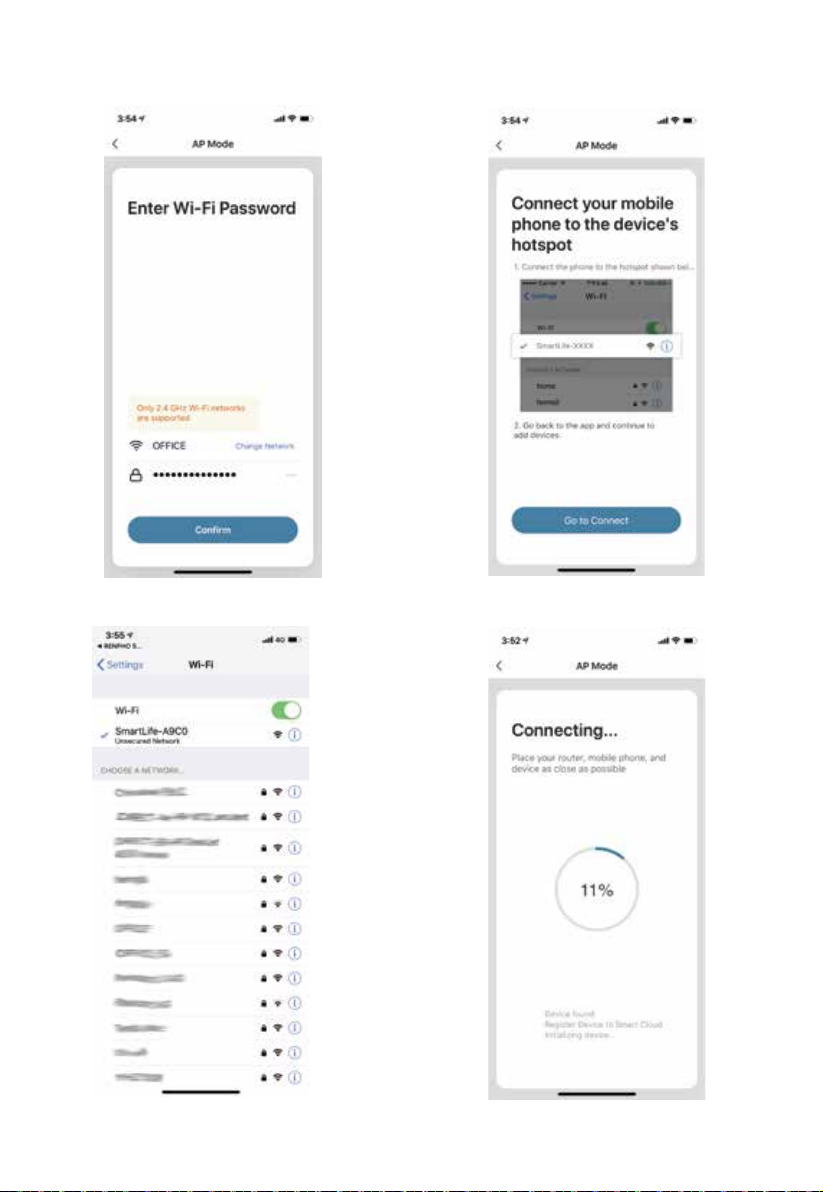

Configuration in AP Mode
If Default Configuration Mode fails to connect your Air Purifier to your WiFi, you can
use AP (Access Point) Mode. You can choose this mode at the beginning of setup.
1. Power off after 10s and then power on the device.
2. Tap the Add Device button, then tap AP Mode.
3. Check to see if the WiFi light is slowly blinking (1 time every 3s). And tap Next.
15
4.Follow the in-app instructions to connect to WiFi.
16

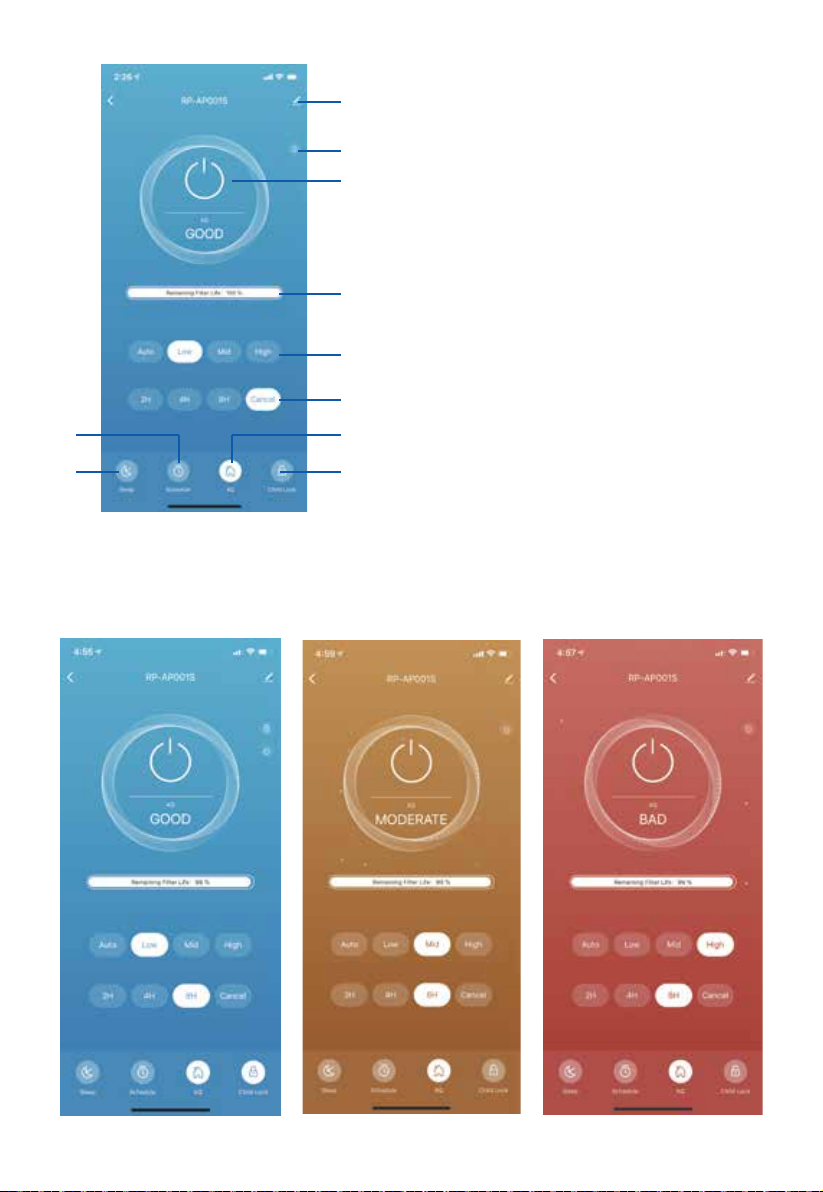

Using the App
From the “ My Home ” screen, tap to turn the air purifier on and off.
17
A. Tap to turn the air purifier on or off.
B. Tap Low, Mid, High or Auto to select the fan speed.
C. Tap to set or cancel a timer.
D. Tap Sleep to turn Sleep Mode on or off.
E. Tap Schedule to create or cancel a schedule (see
page 19 ).
F. Tap AQ to turn the Air Quality Indicator on or off .
G. Tap Child Lock to set or cancel the lock mode.
H. Tap to see Device Settings (see page 22 ).
I. Display the Air Quality Indicator is on.
J. Tap Remaining Filter Life to see filter options and
details (see page 20 ).
The color of the main screen will change according to the air quality.
Air Quality Indicator
A
H
I
J
E
D
B
C
F
G
18
Table of contents
