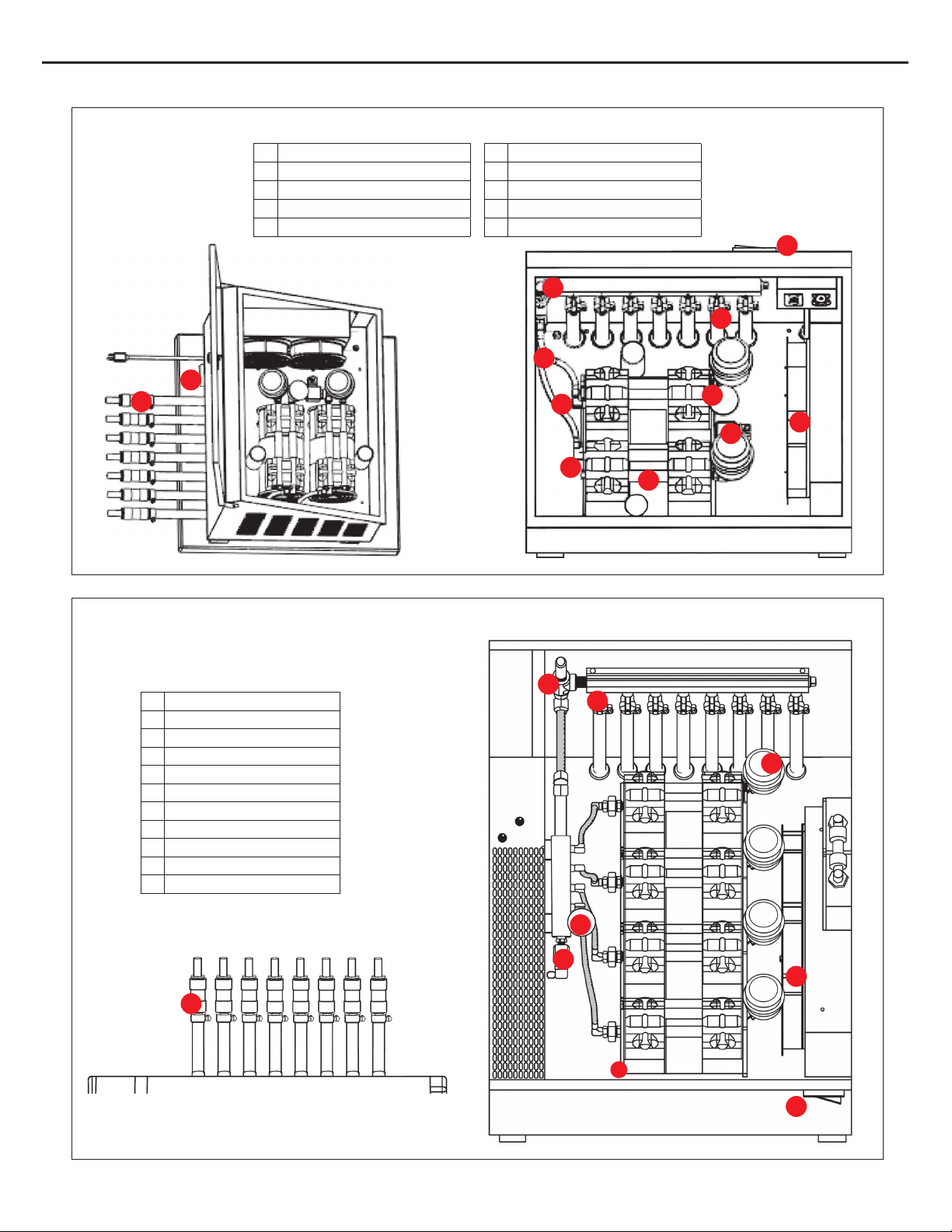

Compressor Diagram
Troubleshooting Guide
Maintenance Log
Parts List
220V-240V Aeration
Owner’s Manual
Outside the US and Canada
1.844.432.4303
vertexaquaticsolutions.com | [e-mail]
Hours of Operation: M-F, 8am-5pm EST
© Vertex Aquatic Solutions

1.844.432.4303
vertexaquaticsolutions.com
[e-mail]
M-F, 8am-5pm EST
© Vertex Aquatic Solutions
2
CHECK MATERIALS UPON DELIVERY
FOR PRODUCT DAMAGED IN DELIVERY
The aeration system was properly packed and accepted by the freight carrier for shipment. It is therefore their
responsibility to deliver the system in perfect condition.
FOR APPARENT DAMAGE OR LOSS
If the equipment or containers indicate DAMAGE IN TRANSIT, such goods should be refused or not accepted until
the transportation company’s agent has noted such on the freight bill. A copy of such bill will be given to you, noting
the nature and extent of the damage. If any part of shipment is LOST IN TRANSIT, have the shortage noted on the
freight bill by agent.
FOR CONCEALED DAMAGE
If damage is discovered, that was not apparent upon delivery, notify the transportation company immediately
to inspect damaged equipment. The inspector will be required to provide a “CONCEALED BAD ORDER” report.
Inspections must be requested within 15 days of delivery. Do not move damaged goods from original point of
delivery. Retain all original packing and containers for inspection. File a “FULL VALUE REPLACEMENT” claim against
the transportation company.
SYSTEM MATERIALS LIST
Verify that you received the following:
♦QuietAir™ Compressor Cabinet with Poly Plastic Mounting Pad: the cabinet houses the compressor(s), inlet
lter/mufer assembly, air outlet hose, and ventilation fan.
♦Compressor with Valve Manifold or remote valve box manifold: Make sure you recieved the correct type.
♦AirStations™: Check to make sure you have the correct type and quantity based upon your order. Please refer
to your invoice or packing slip for reference.
♦Tubing: Check to make sure you have the correct type and quantity of tubing based on your order along with
the parts for installation.
CONGRATULATIONS!
You have purchased the most efcient and cost-effective aquatic aeration system available on the market
today. The professionals at Vertex Aquatic Solutions, a Rentokil Company have been developing total lake
management techniques for over 30 years. With regular maintenance, your new Vertex system will provide
your waterbody with the oxygen it needs for years to come.

3
Owner's Manual
WARNING/ATTENTION
Installing this aeration system in any of the following ways will void your 3 year compressor system warranty.
L'installation de ce système d'aération sans appliquer les recommandations suivantes annulera votre garantie 3
ans sur le compresseur.
Installing the cabinet inside a box, shed or other enclosure that traps the cabinet exhaust heat and rapidly
overheats the compressor and motor. Installation de l'armoire dans une boîte, un hangar ou tout autre dispositif
de pièges à chaleur de l'armoire d'échappement et rapidement surchauffer le compresseur et le moteur.
Providing undersized electrical supply wires that can’t maintain required voltage when compressor is running
under load causes high electrical resistance, severe compressor vibration and premature motor failure and
compressor head damage. Lignes électriques plus petits qui ne peuvent pas maintenir les volts nécessaire
lorsque le compresseur est en marche sous charge des causes de haute résistance électrique, les vibrations de
l'échec du moteur du compresseur et de graves dommages prématurés à la tête du compresseur.
Painting the cabinet exterior elevates interior cabinet temperatures and damages the motor and compressor.
Peindre l'extérieur de l’armoire système va augmenter sa température intérieure et entrainer des dommages au
moteur et compresseur.
Installing a cabinet in a very low elevation where ooding may occur. Water entering the cabinet will destroy
the motor, compressor, cabinet fan(s) and GFCI receptacle. Ne pas installer l'armoire système dans une zone
basse où les inondations peuvent se produire. L'eau endommagera le moteur, le compresseur, le compartiment
du ventilateur (s) et du réceptacle GFCI.
Installing the cabinet is an unusually dirty environment. Excessive airborne dirt, sand or grit entering the
cabinet will damage the motor and compressor. Installer l'armoire système dans une zone très sale (excès de
matières en suspension dans l’air, sable, gravier) dans endommagera le moteur et le compresseur.
Call your dealer or Vertex Aquatic Solutions for help resolving installation problems. Appelez votre revendeur
ou l'eau Caractéristiques de Vertex pour des problèmes aide à l'installation.
PRODUCT WARRANTY
Vertex Aquatic Solutions will repair or replace any defective part within the compressor cabinet for a period of
3 years from date of receipt. The AirStation™ diffuser assembly will be warranted for a period of 5 years and
BottomLine™ tubing will be warranted for a period of 15 years. Air lters and compressor maintenance kits are
wearable parts and not covered under this warranty.
The customer is responsible for return shipping of any goods for warranty inspection by Vertex Aquatic Solutions.
After inspection, if the product shows manufacturing defect, Vertex will repair or replace it at no cost to the
customer. Should inspection indicate non-warranty failure (incorrect voltage, faulty installation procedures,
vandalism, customer negligence, etc.) warranty will be voided. Painting the cabinet will cause the internal
components to overheat and void the warranty. Water intrusion will also void the warranty.
The warranty period for all warranty work is equal to the remaining time period of the original new equipment
warranty. Warranty claims are based on the date you notify your dealer or Vertex Aquatic Solutions at 844-432-
4303. All claims must be made to Vertex Aquatic Solutions or an Authorized Vertex Dealer.
NOTE: Vertex reserves the right to change this information without notice, and makes no warranty, express or
implied, with respect to this information. Vertex shall not be liable for any loss or damage, including consequential
or special damages, resulting from the use of this information, even if loss or damage is caused by Vertex
negligence or other fault.

4
Vertex Aquatic Solutions
SAFETY NOTES
Please read the following instructions carefully before installing and operating your aeration system. Failure to
follow the recommendations in this section may result in personal injury or rescinding of the machine warranty
agreement.
WARNING/ATTENTION
♦Risk of electric shock - this pump is supplied with a grounding conductor and grounding-type attachment plug.
To reduce risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type
receptacle. Risque d'électrocution – Cette pompe est équipée d’un câble d’alimentation en 220V comprenant
un l de terre et d’une prise de courant équipée d’une prise de terre. La prise doit être branchée sur une
alimentation correctement installée et reliée à la terre suivant la réglementation en vigueur.
♦An improper connection to the aerator grounding conductor can result in electrical shock. Une connexion
incorrecte du conducteur de terre à l'aérateur peut entraîner un choc électrique.
♦The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or
lack of experience or knowledge, unless they have been given supervision or instruction. L'appareil ne doit pas
être utilisé par des enfants ou des personnes qui n'ont pas le physique, la capacité sensorielle ou mentale, ou
de l'expérience ou de connaissance, sauf si elles ont la surveillance ou d'instructions.
♦Children being supervised are not to play with the appliance. Les enfants sont encadrés ne sont pas à jouer
avec l'appareil.
ELECTRIC INSTALLATION INSTRUCTIONS
♦Contract a licensed electrical contractor
♦The unit is built as a cord-connected product only
♦The unit is rated for 230V Single Phase
♦The unit does not provide a GFCI receptacle
♦The complete circuit must be protected by a 2-pole 20 amp GFCI breaker rated for 230V
♦ Unit must be plugged into an electrical approved receptacle having 6-20R conguration
♦Receptacle must be 20A resistive and protected by a weatherproof cover
♦Use an adequate wire gauge from breaker to receptacle to prevent a voltage drop at the connection

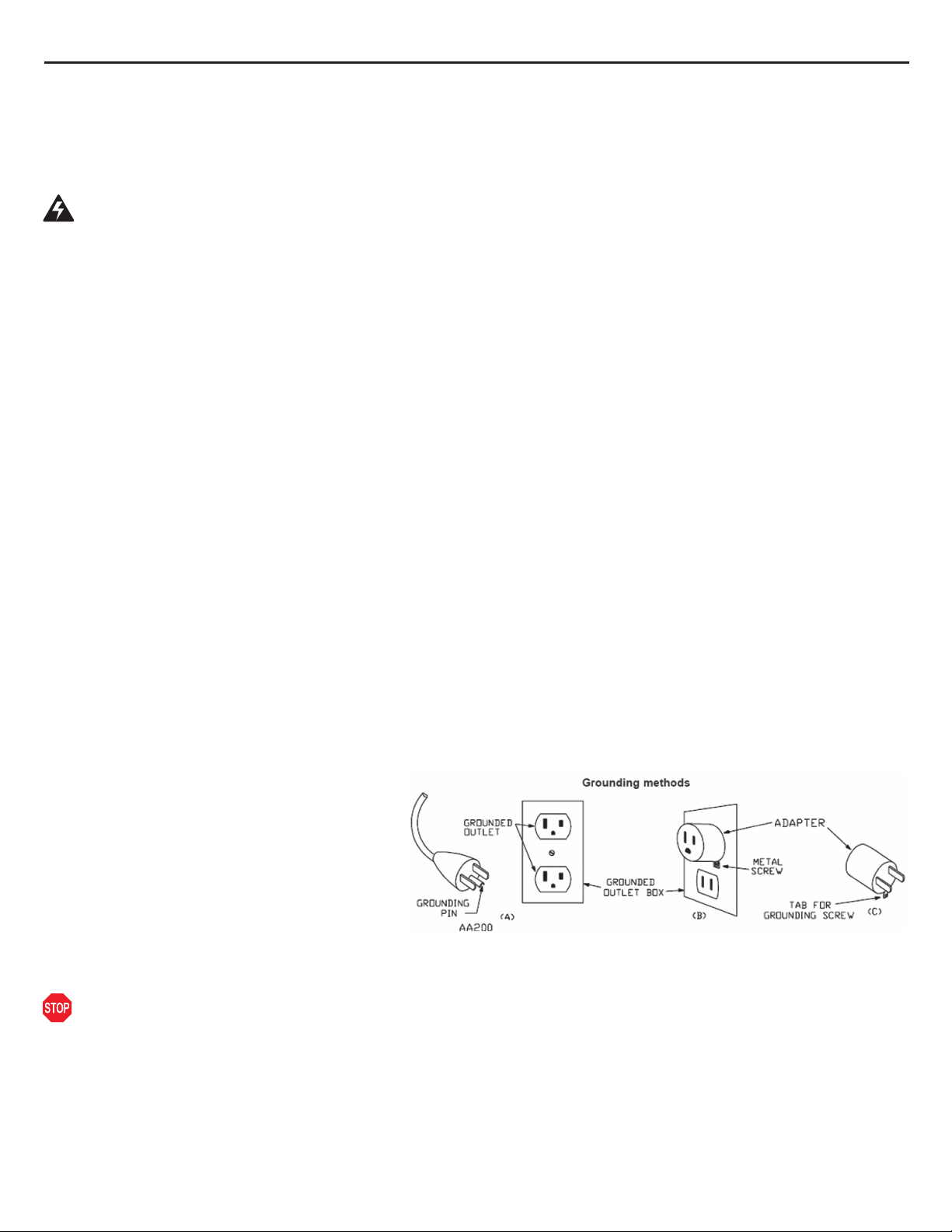

GROUNDING INSTRUCTIONS
This product must be grounded. In the event of
an electrical short circuit, grounding reduces
the risk of electric shock by providing an escape
wire for the electric current. This product is
equipped with a cord having a grounding wire
with an appropriate grounding plug. The plug
must be plugged into an outlet that is properly
installed and grounded in accordance with all
local codes and ordinances.
WARNING/ATTENTION
Improper installation of the grounding plug is able to result in a risk of electric shock. When repair or replacement
of the cord or plug is required, do not connect the grounding wire to either at blade terminal. The wire with
insulation having an outer surface that is green with or without yellow stripes is the grounding wire. Une installation
incorrecte de la prise de terre peut provoquer un choc électrique. Lorsque la réparation ou le remplacement du
cordon ou la che est nécessaire, ne pas connecter le l de terre à la borne à lame plate. Le l avec isolation ayant
une surface extérieure qui est verte, avec ou sans rayures jaunes, est le l de terre.

DANGER
THIN ICE
5
Owner's Manual
♦ Always connect the cabinet to a properly grounded outlet. If in doubt, have the outlet checked by a qualied
electrician.
♦Never use an extension cord between the cabinet power cord and an electrical outlet.
♦Do not allow anything to rest on the power cord.
♦Do not place the cabinet where people may step or trip on the power cord.
♦Follow all warnings and instructions that are marked on or supplied with the aeration system.
♦Never override or “cheat” electrical or mechanical interlock devices.
♦Always locate the cabinet on a solid support with adequate strength for the weight of the unit.
♦ Install the cabinet at a distance and location safe from standing water or ooding per National Electric Code
682 and all local codes.
♦Locate the cabinet away from irrigation sprinklers.
♦Never push objects of any kind into the slots in the covers, as they may touch dangerous voltage points or short
out parts that could result in a risk of re or electrical shock.
♦ Never attempt any maintenance function that is not specied in the user manual.
♦Never remove any covers or guards that require a tool for removal, unless you are instructed to do so. Ensure
that you read all Warnings and Cautions, and follow each step in the instructions exactly as they are written.
♦ Never attempt any activity that is not specied in the user manual, or that is not specically directed by an
authorized Vertex representative.
♦Never operate the system if unusual noises or odors are detected. Turn system off at disconnect switch and call
Vertex to correct any problems.
♦ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
♦Before performing any maintenance and troubleshooting, disconnect the electricity by turning off disconnect
switch or unplug the unit.
♦When in or around water, wear a Coast Guard approved life jacket and follow all water safety guidelines.
♦Refer to these instructions as needed in order to ensure the safe operation of the aerator.
WARNING/ATTENTION
Drowning warning: Operating in freezing conditions on an ice-covered lake will cause large open water areas to
remain at the boil sites. The ice thickness around these open areas will be much thinner than the ice over the rest
of the lake. Injury or fatality may result from falling through the ice. Vertex strongly recommends that
this danger of thin ice around the boil area be clearly posted at frequent intervals. Owner assumes
all responsibility for operating Vertex aeration systems during winter months. Noyade attention:
exploitation dans des conditions de congélation sur un couvert de glace du lac causera de grandes
zones d'eau libre de rester sur les sites ébullition. L'épaisseur de la glace autour de ces zones
ouvertes seront beaucoup plus mince que la glace sur le reste du lac. Blessure ou décès peuvent résulter de la
chute à travers la glace. Vertex recommande fortement que ce danger de glace mince autour de la zone ébullition
être clairement afchés à intervalles fréquents. Propriétaire assume toute la responsabilité pour le fonctionnement
des systèmes d'aération Vertex pendant les mois d'hiver.

Wood form
1" (2.5 cm)
3" (8 cm)
6
Vertex Aquatic Solutions
CABINET INSTALLATION GUIDELINES
♦ Your cabinet was shipped with a plastic mounting pad attached. You may use this pad for the nal installation
and/or use a cement pad in areas where vandalism is a potential problem.
♦For proper cooling, cabinet must have a minimum clearance of any obstruction of 1’ (one foot) around the unit’s
perimeter.
♦ To use the plastic pad: clear the ground of any rocks, sticks and debris that will prevent the pad from sitting at.
You may need to use a shovel to level the ground to achieve this. Check the nal placement with a level.
♦To minimize compressor noise, place cabinet directly on the ground, surrounded by landscaping.
NOTE: Place the pad so that the air lines leaving the cabinet face the lake.
♦Using this method, the cabinet installation is now complete.
IF A CEMENT PAD IS REQUIRED
♦A wooden form must be built to pour a pad. Place the cabinet and plastic pad on the
ground in the location that you want it.
♦Dig out around the pad using the pad as an outline, Dig the hole 3" (8 cm) deep. Insert
your form into the hole leaving at least 1" (2.5 cm) of wood form above the ground level
when complete.
♦Mix the concrete and pour it up to the top of the form. Using a trowel, skim the top for a
nice nish. The concrete should set within 48 hours, colder climates may take longer.
♦Once the concrete has cured, simply
take the cabinet and plastic mounting
pad and place them on top of the
cement pad. Drill four holes, one in
each corner of the plastic pad using a
masonry drill bit.
♦Insert a wedge anchor through the plastic pad and into the cement. Using the nut and washer supplied with the
anchor kit (purchased separately), fasten the plastic pad to the cement pad you made.

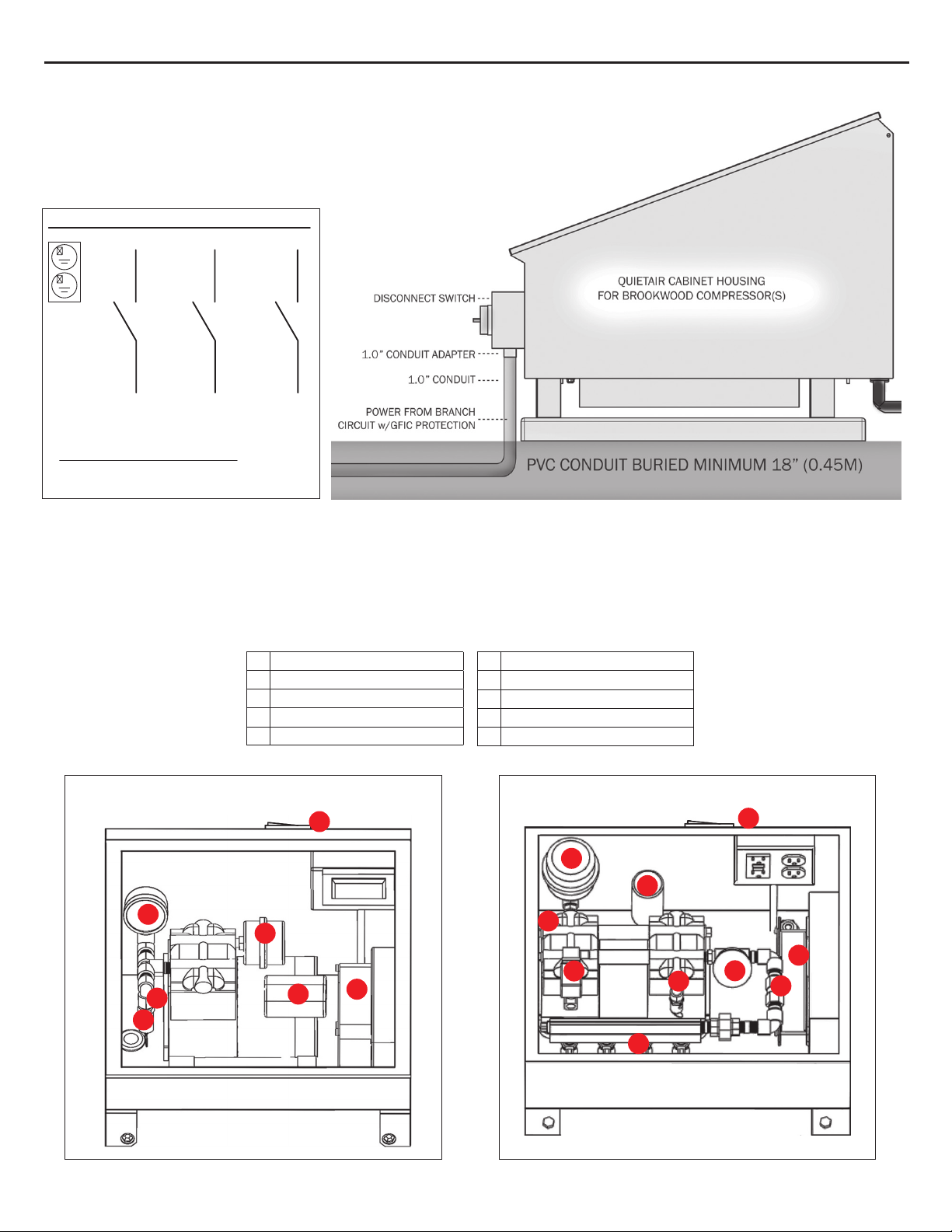

♦Contract a licensed electrical contractor to bring 115, single phase electrical supply to the cabinet and install a
weatherproof receptacle.
AIRSTATION INSTALLATION
Correct placement is critical: the ability of the system to affect your waterway depends on the position of the
diffuser. It should be placed in the deepest areas of the water body. To make installation easier you should know
where you intend to place the diffuser before starting the installation process.
WARNING/ATTENTION
When in or around water always wear an approved life jacket and follow all water safety guidelines. Lorsque
dans ou autour de l'eau toujours porter un gilet de sauvetage approuvé et suivez toutes les consignes de sécurité
de l'eau.
Materials for set-up: the AirStation, Waterproof PVC glue or a screw driver and hose clamp, a utility knife, and
enough rope to reach the lake bottom and back: 10' (3.0 m) depth = 20' (6.1 m) rope).
♦Once you have returned to shore, attach the open end of the supply tubing to the hose coming out of the
compressor cabinet via the barbed tting.
♦Secure and tighten stainless steel clamps to both supply tubing and compressor hose.
♦Trench and bury supply tubing runs from compressor cabinet to water’s edge.

Follow the start-up
procedures on page 8
DO NOT USE TEFLON TAPE! Screw diffuser
discs onto riser pipes, do not cross thread.
DO NOT OVER TIGHTEN DISK.
1
Assemble all the materials you will need on
the boat - see list above. Pick up airstation by
black base only.
2
Uncoil supply tubing along the shore, making
sure tubing is not twisted or tangled. Leave 4'
tubing on shore and secure one end of the tub-
ing so that it doesn't follow you into the water.
3
Thread rope through the two holes on the base
until the rope is evenly distributed. If Airstation
may be moved later on, tie one end of rope to
the unit and, after it settles, tie the other end
to a buoy or decoy on the surface of the water.
6
Holding both ends of the rope in your hand,
lower the diffuser assembly into the water.
Once unit is on lake bottom, release one end
of the rope and pull rope into the boat.
7
Head out with the other end of the tubing.
Make sure the propeller and tubing do not get
tangled up.
4
At the drop site, connect the tubing to the
barbed tting. Use PVC cement and let dry
(recommended method), or...
5a
Connect the tubing to the barbed tting with a
stainless steel hose clamp.
5b
OR
1a
Fill the base up with river rock or gravel. Do not
use sand. After filling, pick up at base only.
1c
DO NOT USE TEFLON TAPE! Screw diffuser
discs onto riser pipes, do not cross thread. DO
NOT OVER TIGHTEN DISK.
1b
Insert the plug and the airline hose adapter
7
Owner's Manual
AIRSTATION INSTALLATION - Following these steps to prevent inverting.
Self-sinking start at 1
XL4 or XL5 AirStations follow 1a-1c

8
Vertex Aquatic Solutions
AIRSTATION™ BALANCING
Once the installation of a multiple AirStation system has been completed, proper balancing of the AirStations is
required to ensure that they all get an equal amount of air. The control valves for each AirStation are located inside
the cabinet, unless a Remote Valve Box System (VBS) was installed. In the instance that a VBS was installed, the
control valves will be inside the valve box, buried to ground level, down by the shoreline.
♦Close all blue AirStation valves except the one with the longest (or deepest) run of tubing.
♦ With this one valve wide open, partially open the valve that controls the air ow to the AirStation with the
second longest (or second deepest) run of tubing.
♦Continue this process of adjusting the second valve until a boil is noticed above this AirStation.
♦Leave the valve in this position and move on to the next valve and repeat the process.
♦Continue working your way from the longest (or deepest) to the shortest (or most shallow) run of tubing.
♦Once there is air to all of the AirStations, check to be sure all boils are approximately the same size.
♦If they are not, make small adjustments as necessary to even them out.
♦At this point, we suggest making indicator marks with a permanent marker from the valve handle to the valve
body to assist you in rebalancing the system in the future.
♦The overall goal when adjusting the valves is to balance the AirStation at the lowest possible pressure. The
lower the system pressure the higher the total air ow.
WARNING/ATTENTION
If the system has been installed in an established pond and you are attempting to balance the AirStations during
the rst day of operation, make certain that this procedure takes as little time as possible. Si vous installez un
système dans un ancien étang, et que vous essayez d'équilibrer les AirStation ™ lors de la première journée
d'opération, assurez-vous que cette procédure prendra le moins de temps possible.
♦Under 30 minutes is preferred. Moins de 30 minutes si possible.
♦See “System Start-up Procedures” section for details. Voir "Procédures du système de départ" pour plus de
détails.
FIRST TIME AND SPRING START-UP PROCEDURE
Aeration systems circulate the lake's entire water column. The aeration system will circulate deep, poor quality
water that accumulates over time upward to the lake’s surface introducing harmful gasses into the previously
healthy upper regions of the water column. This movement of water can temporarily affect aquatic life and could
result in a sh kill.
NOTE: These start-up procedures are a general guideline. If you should have any questions and/or concerns,
contact Vertex Aquatic Solutions at 844-432-4303 for technical assistance.
To prevent a sh kill, Vertex has established the following start-up procedures, this should take 7 days:
♦Turn on system and operate for 30 minutes.
♦Turn off system for remainder of the day.
♦Restart the system the next day and operate for 60 minutes. Turn off system for the remainder of day.
♦Each day double the operating time from the previous day until the system is running continuously.

MAINTENANCE/CLEANING INSTRUCTIONS
WARNING/ATTENTION
♦Disconnect unit from electrical supply circuit at disconnect switch before opening. Débranchez le cabinet du
circuit d'alimentation en utilisant l'interrupteur de déconnexion avant l'ouverture
♦Always use parts that are supplied or approved by Vertex. Use of other parts may result in poor performance
and could create a hazardous situation and void the warranty. Toujours utiliser des pièces qui sont fournis ou
approuvés par Vertex. Utilisez d'autres pièces peut entraîner de mauvaises performances et pourrait créer une
situation dangereuse et annuler la garantie.
♦Do not use oil, acid or corrosive cleaners. Follow instructions in manual for the appropriate cleaning methods.
N'utilisez pas de nettoyants à l'huile, acides ou corrosifs.. Suivez les instructions dans le manuel pour les
méthodes de nettoyage approprié.
♦ Refer servicing to a qualied electrician under the following conditions. Conez l'entretien à un électricien
qualié dans les conditions suivantes:
♦When the power cord is damaged or frayed. Lorsque le cordon d'alimentation est endommagé ou efloché
♦When compressor fan, outlet or other electrical components need service. Ventilateur du compresseur, de
sortie ou d'autres composants électriques besoin de service
♦If the cabinet is producing unusual noises or odors. Si le coffret est produisant des bruits ou des odeurs
inhabituels
Vertex aeration systems are designed for low-maintenance and typically only require minimal scheduled
maintenance. Periodic cleaning and/or replacement of the compressor air lter, piston cup, and “Flexing” of the
AirStation™ is required.
Remember to keep cabinet air inlets and outlets free of debris and weed growth to allow normal ventilation. If size
and appearance of any surface boil has decreased from initial installation, perform one or both of the following
maintenance procedures.
GENERAL CABINET CLEANING
♦Disconnect unit from electrical supply circuit at disconnect switch prior to opening
♦Using a portable vacuum or rag, remove debris, grass clippings and dirt from inside cabinet
♦Remove objects blocking the cabinet intake vents
♦Remove objects blocking the fan exhaust vent
♦Lubricate the locking mechanism
♦Lubricate cabinet hinges
♦Open the valves that were previously closed.
♦Close the lid and turn on the system for two minutes
♦Return all valves to their original, balanced positions by aligning the marks you made on the valve bodies before
starting the procedure.
9
Owner's Manual

AIR FILTER CLEANING/REPLACEMENT
Air lter cleaning or replacement: Remove compressor air intake lter and wash with soap and water or replace.
This should be done 2-4 times per year. Never re-install a wet or damp lter.
On the inside of the cabinet lid or the outside back cover of this Owner’s Manual, you will nd a Vertex parts list
that provides you the necessary parts information for ordering replacement parts. Call Vertex at 844-432-4303
with your 4 digit system warranty number or serial number off of the silver ETL sticker, found inside the cabinet.
Vertex can also supply you with the necessary replacement parts information.
PISTON CUP REPLACEMENT
Under normal year-round, continuous use, the compressor piston cups typically last 12-36 months depending
upon the environmental conditions. As the piston cups wear out, you’ll notice a drop in air ow (despite air lter
replacement) resulting in smaller surface boils.
CABINET COOLING FAN REPLACEMENT
Cooling fans provide critical cooling for the cabinet components. If the cooling fans fail, cabinet temperatures will
drastically increase and damage the compressor system.
For systems that run continuously, we recommend replacing the cooling fans every two or three years during
compressor maintenance.
DISK FLEX-CLEANING PROCEDURES
Routine maintenance of the AirStation™ disks is recommended once per year. This procedure is known as disk
exing. Over time organic matter and algae can settle on the AirStations™ and inhibit the release of micro-bubbles,
in turn reducing the effectiveness of the AirStation™.
Disk exing helps unclog the pores in the membranes, reduces back pressure on the compressor(s), and restores
the performance of the AirStation™.
Disk exing is very easy and is done from the cabinet valve manifold or valve box manifold location.
Open the cabinet and make a line with a permanent marker on each valve body and handle that line up with each
other in the valve’s present position. This will help re-balance the system once you nish ex cleaning the disks.

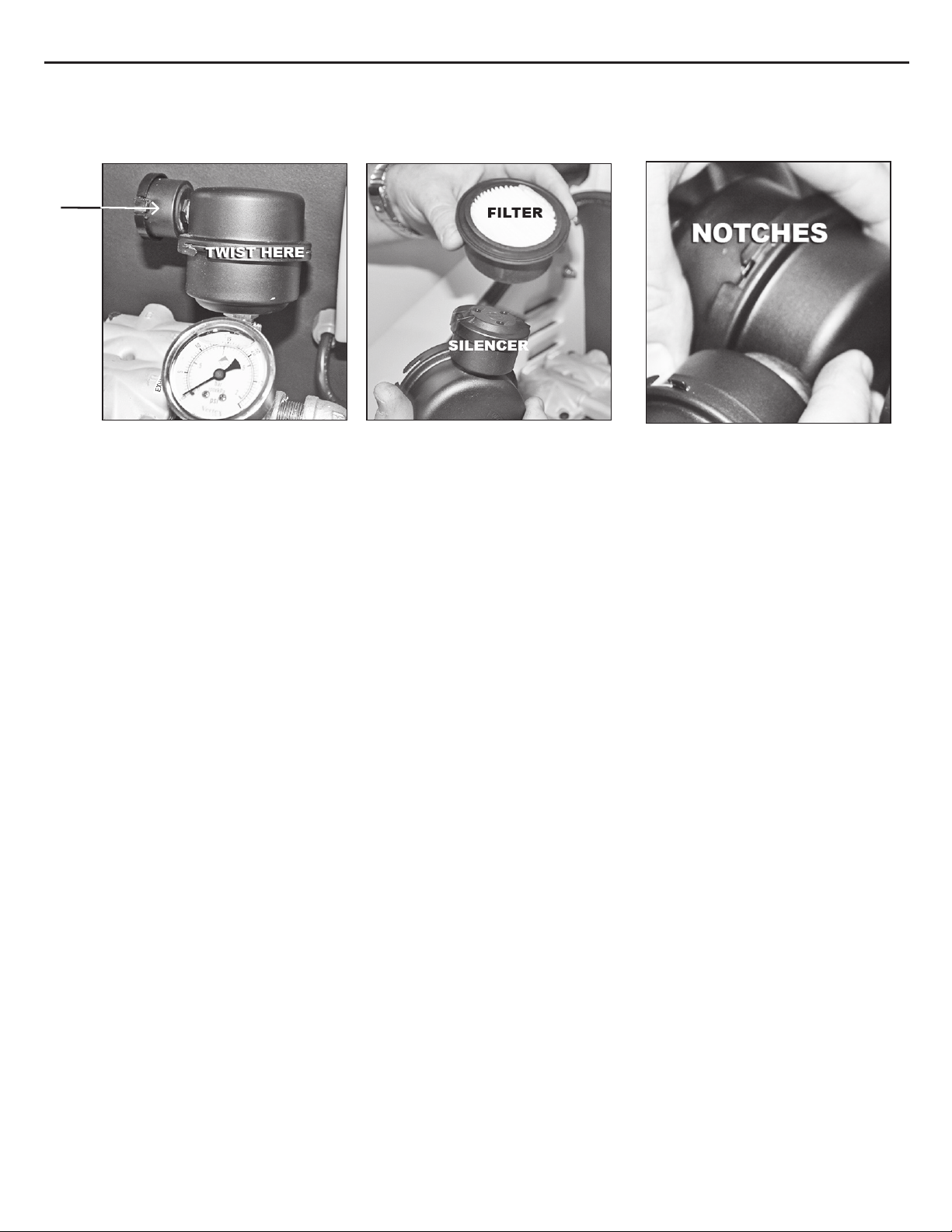

No
Filter
Twist to unlock
air lter
1Remove old air lter
Insert new air lter
2Line up the notches
Twist to lock
3
10
Vertex Aquatic Solutions

♦Turn off the power or unplug the system.
♦ Close some of the valves, allowing the airow to be directed to a couple of airstations at a time.
♦Close the lid and turn on the system for two minutes.
♦ Turn off the power and unplug the cabinet and close the valves that were just exed.
♦ Close different valves and proceed in the same manner until all of the airstations have been exed.
♦If you have not yet balanced the AirStations, or cannot read your indicator marks, see the “AirStation™
Balancing” section. The Disk Flex Cleaning procedure is now complete.
OPERATING THE SYSTEM IN THE WINTER
Vertex Aeration Systems are designed to operate year-round in cold climates with these important precautions. If
you choose to run the aeration through the winter:
WARNING/ATTENTION
Drowning warning: Operating in freezing conditions on an ice-covered lake will cause large open
water areas to remain at the boil sites. The ice thickness around these open areas will be much
thinner than the ice over the rest of the lake. Injury or fatality may result from falling through the ice.
Vertex strongly recommends that this danger of thin ice around the boil area be clearly posted at
frequent intervals. Owner assumes all responsibility for operating Vertex aeration systems during winter months.
Noyade attention: exploitation dans des conditions de congélation sur un couvert de glace du lac causera de
grandes zones d'eau libre de rester sur les sites ébullition. L'épaisseur de la glace autour de ces zones ouvertes
seront beaucoup plus mince que la glace sur le reste du lac. Blessure ou décès peuvent résulter de la chute à
travers la glace. Vertex recommande fortement que ce danger de glace mince autour de la zone ébullition être
clairement afchés à intervalles fréquents. Propriétaire assume toute la responsabilité pour le fonctionnement des
systèmes d'aération Vertex pendant les mois d'hiver.
To prevent risk of freezing the entire water column, AirStations™ should be moved to a shallower portion of the
waterway (typically one-half the depth of original placement) and operated there until warmer temperatures return,
this will allow warmer water to remain in the lower regions of the waterway and prevent water column freezing.
The airline tubing on shore and the compressor hose must be insulated between the cabinet and the ground. Also,
the tubing must enter the water below the winter ice depth.
If you choose to turn off the system for the winter:
♦Unplug the system; no other preparation is required.*
♦In the spring, when the system is restarted, air lines may still contain ice inside the line.
♦One cup of denatured alcohol added to each frozen line will melt the ice enough to allow the compressor to
push air through the line until heat generated by the compressor melts the remaining ice.
♦ Follow the rst time and spring start-up procedures.
*It is recommended that all maintenence be done prior to restarting in the spring
DANGER
THIN ICE
11
Owner's Manual

1/ L
1
3/ L2 5/ L3
2/ T1 4/ T2 6/ T3
Instructions:
From Power Supply Connect L1 to Terminal 2/ T1
From Power Supply Connect L2 to Terminal 4/ T2
Terminals 6/ T3 and 5/ L3 are Voided
Connect Ground to Ground Terminal
Terminals 1/ L1 and 3/ L2 Supply Cabinet Components
Disconnect Switch Wiring Schematic
AAIRSTATION VALVES
BCABINET FAN AND GUARD
CCAPACITOR
DCHECK VALVE
ECOMPRESSOR FAN/GUARD
FINTAKE FILTER/MUFFLER
GPRESSURE RELEASE VALVE
HSOLENOID VALVE
IPRESSURE GAUGE
JDISCONNECT SWITCH
12
Vertex Aquatic Solutions
QA1 Cabinet
B
C
E
F
G
I
J
QA2 Cabinet
A
B
C
D
E
F
G
HI
J

13
Owner's Manual
QA3 Cabinet
AAIRSTATION VALVES
BCABINET FAN AND GUARD
CCAPACITOR
DCHECK VALVE
ECOMPRESSOR FAN/GUARD
FINTAKE FILTER/MUFFLER
GPRESSURE RELEASE VALVE
HSOLENOID VALVE
IPRESSURE GAUGE
JDISCONNECT SWITCH
D
J
A
B
C
D
E
F
GH
I
J
LargeLake Cabinets
AAIRSTATION VALVES
BDUAL RECEPTACLE BOXES
CPRESSURE GAUGE
DCHECK VALVE
ECOMPRESSOR FAN/GUARD
FINTAKE FILTER/MUFFLER
GSOLENOID VALVE
HSAFETY POP-OFF VALVE
ICABINET FRAME
JCOOLING FANS
KDISCONNECT SWITCH
D
A
C
E
F
G
H
J
K

Vertex Aquatic Solutions
TROUBLESHOOTING GUIDE
ISSUE CHECK LIKELY CAUSE CORRECTION
No bubbles at ANY
AirStations. Compressor not
running, but cabinet fan is.
Unplug system. Check compressor
capacitor wiring for frays or poor
connections.
Loose or damages wiring.. Contact Vertex or dealer for instructions.
No capacitor wiring issues can be seen. Bad capacitor. Contact Vertex or dealer for repair/
replacement.
Capacitor has been replaced. Compressor is bad.
No bubbles at ANY
AirStations. Compressor
and cabinet fan both
running.
No air leaks are audible in cabinet.
Compressor running louder and possible
excessive vibration.
Compressor mufer lter is dirty/clogged
or silencer tube in mufer cap is blocked.
Clean or replace lter. NEVER re-install
a wet lter. Remove debris clogging
silencer tube in mufer cap if blocked.
Compressor operating normally or
making unusual noises. Exhibits reduced
pressure/air ow.
Compressor needs piston rebuild kit and
possibly new mufer lter.
Contact Vertex or local dealer with
specications for rebuild kit. Keep
mufer lter clean.
No bubbles some, maybe
all AirStations. Compressor
and cabinet fan are
running.
Check for leaks at all connections in
line and in cabinet. If none are audible,
carefully spray SMALL amount of soapy
water onto connections and look for
bubbles.
Vibration loosened connection, or
cracked tting.
Tighten loose connection or replace
cracked tting as necessary.
No bubbles at some
AirStations, most likely all.
Compressor and cabinet fan
are running.
Obvious air leak from solenoid valve. Bad solenoid valve. Call Vertex or dealer for repair/
replacement.
No bubbles at some,
but not ALL AirStations.
Compressor and cabinet fan
are running.
All valves in cabinet are wide open. Improper "balancing" of AirStations. See "AirStation Balancing" section for
instructions to balance AirStations.
Valves in cabinet are "balanced" and no
leaks are evident.
Compressor is losing compression and
needs piston rebuild kit.
Contact Vertex or dealer with compressor
specications for rebuild kit. Keep
mufer lter clean.
Large rolling bubbles
instead of ne bubbles at
surface above one or more
AirStations.
Inspect each AirStation for malfunction. Diffuser membrane damaged, or
AirStation tting broken.
Call Vertex or dealer for repair/
replacement.
Air coming out of pressure
relief valve.
High pressure reading on gauge. Inspect
AirStations and tubing for clogging.
All valves closed too much. Rebalance air ow to AirStations.
AirStations partially blocked up.
Regular disc exing not performed.
Flex discs 2 times per year to help avoid
clogging.
Low pressure reading on gauge.
AirStations
not clogged.
Bad pressure relief valve. Contact Vertex or local dealer for repair/
replacement.
Compressor stops working
for periods of time, then
restarts.
Inspect fan for proper function. Compressor overheating due to bad fan.
Contact Vertex or local dealer for fan
replacement. Leave top of cabinet open
for cooling if possible, otherwise unplug
system until fan is replaced.
Compressor shakes
erratically and makes load
noises.
Check for low voltage while compressor is
running under load.
Undersized gauge of supply wires
to circuit or cabinet is plugged into
extension cord - voids your warranty.
Voltage must be checked while the
compressor is running at pressure.
If gauge of circuit wiring is incorrect, have
electrician replace. NEVER use extension
cord to operate system.
Clogged mufer or blocked silencer tube
in mufer cap.
Mufer lter needs replacement, or
silencer tube blocked in mufer cap.
Clean or replace lter. NEVER re-install
a wet lter. Remove debris clogging
silencer tube in mufer cap if blocked.

MAINTENANCE SCHEDULE
WARNING/ATTENTION
To prevent severe shock or electrocution, always turn the power OFF at the service panel before working with
electricity. Pour éviter un choc sévère ou d'électrocution, toujours couper l'alimentation au panneau de service
avant de travailler avec l'électricité.
Date: Maintenance Performed:
Date: Maintenance Performed:
Date: Maintenance Performed:
Date: Maintenance Performed:
Date: Maintenance Performed:
Date: Maintenance Performed:
Date: Maintenance Performed:
Date: Maintenance Performed:
Date: Maintenance Performed:
15
Owner's Manual

1.844.432.4303
vertexaquaticsolutions.com | [e-mail]
Hours of Operation: M-F, 8am-5pm EST
© Vertex Aquatic Solutions
