KrosFlo® TFF System –Auxiliary Scale
The KrosFlo ® TFF System –Auxiliary Scale assembly and operation may vary based on application.
The instructions below are for general use. For questions about specific application set up or
customization, please contact your local Repligen representative.

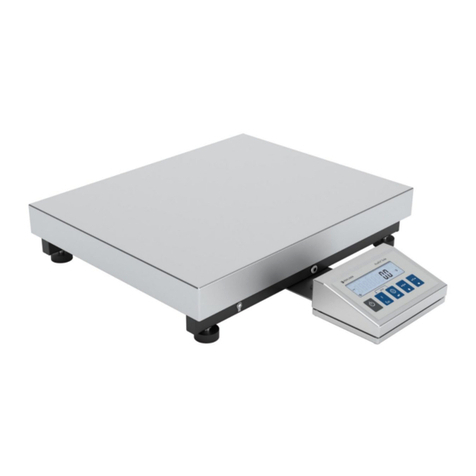

Figure 1. KrosFlo® TFF System –Auxiliary Scale components
1. Display and operations keypad
2. Weighing pan
1. General precautions
•Remove the contents from the packaging. If a part is missing, contact Repligen for
replacement
•Prior to the first use, carefully read this User Guide. Use the device only as intended
•Scales to be decommissioned must be decommissioned in accordance with valid legal
regulations
2. KrosFlo® TFF System –Auxiliary Scale
Table 1. KrosFlo® TFF System –Auxiliary Scale parts
Part description
Quantity
ACSS-20K scale
1
Weighing pan
1
Solid rubber foot
3
Rubber foot with spring
1
3’ Interface cable
1
Figure 2. Auxiliary scale parts
1. ACSS-20K scale400-15001-000 Rev.
2. Weighing pan
3. Rubber foot with spring
4. Solid rubber foot
5. 3’ Interface cable
1
2
3
4
5
1
2

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
8 repligen.com 420-14871-001 Rev. 00
1. Place the balance on a solid surface to ensure stability. Operate the balance in a room where
the temperature ranges between 10 - 40o C (50 - 104o F).
2. The balance must be positioned away from heat sources, magnetic fields, vibrations, and air
drafts to receive stable and repeatable results. Balance is to not be used for explosive
materials.
2.1 System assembly
1. Check the grounding spring located in the rubber foot with spring. The spring must jut
slightly out of the hole.
Figure 3. Grounding spring check
2. Install the rubber foot with spring into any freely selected opening. Install 3 x solid rubber
feet in remaining openings.
Figure 4. Rubber feet installation
3. Install the weighing pan.

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
9 repligen.com 420-14871-001 Rev. 00
Figure 5. Weighing pan installation
4. Level the scale by turning the feet and monitoring the leveling vial in the rear of the unit.
Continue to adjust the feet until the air bubble takes the central position.
Figure 6. Leveling the scale
5. Prior to switching the balance on, let it reach room temperature (estimated stabilization
time: 1 - 8 hours).
6. Connect the adapter cable (DB9-M) to the rear of the scale. During this process there should
be no load on the weighing pan.
Figure 7. Interface cable to scale connection
7. Connect the adapter cable (DB9-F) to the auxiliary component octopus cable.

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
10 repligen.com 420-14871-001 Rev. 00
Figure 8. Interface cable to octopus cable
2.2 Operating instructions
2.2.1 Operational panel
Figure 9. Auxiliary scale keypad
Table 2. Auxiliary scale keys
Key
Function
Press to switch the weighing device on/off –hold the key for about 1 second
Function key, press to change the working mode
Press to send the weighing result to a printer or a computer
Press to zero the scale
Press to tare the scale

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
11 repligen.com 420-14871-001 Rev. 00
2.2.2 Operating the auxiliary scale
Table 3. Auxiliary scale menu
Function group number
Function group name
Description
P1
CAL
User calibration
P2
rEAd
Readout parameters
P2
Func
Working modes
P4
Conn
Communication
P5
ducE
Peripheral devices
P6
Prnt
Printouts
P7
Othr
Operation-related functions
P8
InFo
Scale information
P9
Unit
Units
In order to navigate the auxiliary scales menu, utilize the keypad.
Table 4. Auxiliary scale menu navigation
Key
Description
+
Press to enter the main menu
+
Press to:
•Enter tare manually
•Enter tare from tare database
•Change value by 1 digit up
•Scroll the menu up
+
Press to view date/time
Press to:
•Scroll the menu down
•Change current parameter value
Press to enter given submenu. Press to modify given parameter
Press to confirm modification
Press to:
•Exit, function remains unmodified
•Move one menu level up

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
12 repligen.com 420-14871-001 Rev. 00
3. Weighing
3.1 Good weighing practice
To assure long-term operation and correct mass measurement, follow the rules presented below:
Table 5. Good weighing practices
3.2 Zeroing
1. To zero mass indication press key, during this process the weighing pan must be
empty.
2. With the zeroing of the scale, the pictograms and are displayed. The scale can only
be zeroed when the indication is stable.
3. Indication can be zeroed only within ±2% range of the maximum capacity. If the zeroed
value is greater than ±2% of the maximum capacity, then the scale displays message <Err2>,
and short sound signal is heard.
3.3 Taring
1. To determine the net weight value, load the weighing pan with a package. Wait for the
stable indication, , and press key.
2. The zero indication and the following pictograms are displayed: Net and .
3. The scale has now been tared. Upon loading, net mass is displayed.
Recommendation
Load the weighing pan steadily avoiding mechanical shocks
Place weighed loads centrally on the weighing pan (eccentricity
errors are specified by EN 45501 standard, point 3.6.2.)
Do not apply concentrated force (total load in one point)
Avoid side loading, in particular side shocks
NO
YES
YES
NO
NO
YES
NO
NO

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
13 repligen.com 420-14871-001 Rev. 00
4. Taring can be carried out repeatedly within the whole weighing range. Do not exceed the
maximum capacity, i.e. sum of tare weight value and load weight value must be lower than
the maximum capacity value.
5. Upon unloading, the sum of tared masses with a minus sign is displayed. To return to zero
point press key.
3.3.1 Entering tare value manually
1. Press and keys combination, tare value edit box is displayed.
2. Enter tare value. To do so press to set digit value (0 - 9) and to select digit to be
edited.
3. Press key to confirm, the scale returns to the weighing mode, modified tare value with
‘-‘ sign is displayed.
4. You can enter tare value at any time during the weighing operation.
3.4 Units
<P9.Unit> parameter group enables change of start unit and temporary unit. The units can be
changed during weighing or during other working modes operation. ‘Parts Counting’ and ‘Percent
Weighing’ modes are exceptions.
3.4.1 Start unit
1. Enter <P9.Unit/9.1.UnSt> submenu.
2. Press key, available units are displayed successively one by one. Available units are:
g (gram), kg (kilogram), ct (carat), lb (pound).
3. Select start unit and press key. To return to home screen press key.
4. Upon restart, the scale runs with the set start unit.
3.4.2 Temporary unit
Temporary unit runs from the moment it is set to the scale shut-down and restart.
1. Enter <P9.Unit/9.2.Unin> submenu.
2. Press key, available units are displayed successively one by one. Available units:
g (gram), kg (kilogram), ct (carat), lb (pound).
3. Select start unit and press key. To return to home screen press key.
4. Calibration
In order to ensure the highest weighing accuracy, it is recommended to periodically introduce
corrective factor of indications to scale memory. This factor is a known reference weight which is
used to perform a calibration of the scale.
Calibration is recommended to be carried out when:
1. Prior to weighing.
2. If long breaks between successive measuring series occurs.
3. If the ambient temperature has changed dynamically.
4. If the scale has been relocated.

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
14 repligen.com 420-14871-001 Rev. 00
4.1 External calibration
External calibration must be carried out using an external calibration weight of class F2.
1. Enter <P1.CAL / 1.1.CA-E> submenu, the text <UnLoAd> will be displayed.
2. Remove any load from the weighing pan and press key.
3. Mass of the empty weighing pan is determined; this is signaled with display of dash <- >.
4. Text <LoAd> is displayed along with required mass value, <20000g>.
5. Load the required mass value, press key.
6. Weigh mass is determined; this is signaled with display of dash <- >. Once complete, text
<UnLoAd> will be displayed.
7. Remove mass from weighing pan, scale returns to <P1.CAL / 1.1.CA-E> submenu.
4.2 User calibration
User calibration must be carried out using an external calibration weight of class F2. The calibration
weight value is specified by sure and must be of a mass equal or greater than 30% of maximum
capacity.
1. Enter <P1.CAL / 1.2.CA-u> submenu, edit box for declaring weight mass is displayed (the
mass value must be ≥30% of the maximum capacity value).
2. Enter weight mass value and press key, the text <UnLoAd> will be displayed.
3. Remove any load from the weighing pan and press key.
4. Mass of the empty weighing pan is determined; this is signaled with display of dash <- >.
5. Text <LoAd> is displayed along with user inputted mass value, i.e. <10000g>.
6. Load the required mass value, press key.
7. Weigh mass is determined; this is signaled with display of dash <- >. Once complete, text
<UnLoAd> will be displayed.
8. Remove mass from weighing pan, scale returns to <P1.CAL / 1.2.CA-u> submenu.
4.3 Calibration report
The calibration report is automatically printed (using scale-connected printer) at the end of each
calibration process. To declare report content, go to <P6.1.CrEP> submenu.
5. Scale parameters
Scale parameters are set to adjust the weighing device to ambient conditions (filters) or individual
needs (autozero, on/off, tare values memory). These parameters are to be found in <P2.rEAd>
submenu.
5.1 Filter
1. Enter <P2.rEAd / 2.1.Fil> submenu.
2. Press key, filter values are displayed successively one by one, where: 1- Fast, 2-
Average, 3–Slow.
3. Set respective value and press key to confirm, next go to the home screen.
Note: The higher filter value, the longer the indication takes to stabilize.

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
15 repligen.com 420-14871-001 Rev. 00
5.2 Value release
Enter this parameter to adjust rate of stabilization of the measurement result. Depending on the
selected option, weighing time is either shorter or longer.
1. Enter <P2.rEAd / 2.2.APPr> submenu.
2. Press key, filter values are displayed successively one by one, where: F_P –Fast and
Reliable, PrEc - Reliable, FASt –Fast.
3. Set respective value and press key to confirm, next go to the home screen.
5.3 Ambient conditions
Parameter relating to ambient and environmental conditions of the workstation. Enter this
parameter and set 'nStAb' value if the ambient conditions are unfavorable (air drafts, vibrations).
4. Enter <P2.rEAd / 2.3.Enut> submenu.
5. Press key, filter values are displayed successively one by one, where: nStAb –unstable,
StAb –stable.
6. Set respective value and press key to confirm, next go to the home screen.
5.4 Autozero function
‘Autozero’ function has been designed to enable automatic control of zero indication. This
guarantees precise weighing results. There are, however, some cases where this function can be a
negative factor in the measuring process, e.g. very slow loading of the weighing pan (load adding,
e.g. pouring, filling). In such case, it is recommended to disable the function.
1. Enter <P2.rEAd / 2.4.Aut> submenu.
2. Press key, filter values are displayed successively one by one, where: YES –Function
enabled, no –Function disabled.
3. Set respective value and press key to confirm, next go to the home screen.
5.5 Tare entering mode
The tare is entered using and keys combination. There are two enter modes.
1. Enter <P2.rEAd / 2.6.ttr> submenu.
2. Press key, filter values are displayed successively one by one: tArEH -to enter tare
value manually, tArnn –to enter tare value that is stored in scale memory.
3. Set respective value by using and keys.
4. Press key to confirm, next go to the home screen.
5.6 Tare value memory
It is possible to store 10 tare values in scale memory.
5.6.1 Entering tare value to scale memory
1. Enter <P2.rEAd / 2.7.tArn> submenu, name of tare no. 1 from tare database is displayed
(<tArE 0>), to select a different record press key.

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
16 repligen.com 420-14871-001 Rev. 00
2. Select respective entry and press key, tare value edit box is displayed.
3. Enter tare value, to do this press to select digit to be edited and to set digit value
(0 - 9).
4. Press key to confirm, <tArE 0> is displayed.
5. Press to return to home screen.
5.6.2 Selecting tare value from the scale memory
1. Enter <P2.rEAd / 2.7.tArn> submenu, name of tare no. 1 from tare database is displayed
(<tArE 0>), to select a different record press key.
2. To select a tare value press key.
3. The set tare value is displayed on the screen with a minus sign, Net symbol is shown in the
upper-left corner of the screen.
Note: the tare value acquired from the weighing device memory is not remembered upon the
weighing device restart.
5.7 Last digit
Function designed to disable display of the last weighing indication digit, this results with less
accurate measurement.
1. Enter <P2.rEAd / 2.8.LdiG> submenu.
2. Press key, filter values are displayed successively one by one, where: ALAS –Last digit
always on, nEur –Last digit always off, and uuSt –Last digit on only when the weighing
indications is stable.
3. Set respective value and press key to confirm, next go to the home screen.
6. Communication
Communication between the scale and peripheral devices is established via the following ports:
RS232 (1), USB type A, USB type B. To set the ports go to <P4.Conn> submenu.
6.1 RS232 (1) port settings
1. Enter <P4.Conn / 4.1.rS1> submenu.
2. Submenu <4.1.1.bAd> sets the baud rate. Press key, and rates are displayed
successively one by one: 2400, 4800, 9600, 19200, 38400, 57600, 115200 bit/s.
3. Submenu <4.1.1.bAd> sets the baud rate. Press key, and rates are displayed
successively one by one: 2400, 4800, 9600, 19200, 38400, 57600, 115200 bit/s.
4. Set respective value and press key to confirm, next go to the home screen.
6.2 USB (A) port
USB port of type A is intended for:
•Operator’s parameters export/import

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
17 repligen.com 420-14871-001 Rev. 00
•Weighing reports export
•Connecting scale to printer
6.3 USB (B) port
USB port of type B is intended for connecting the scale to a computer in order to make connection of
scale to computer, it is necessary to install virtual COM port on the computer.
7. Peripheral devices
<P5.ducE> menu contains list of devices connecting with the scale.
7.1 Computer
<5.1.PC> submenu allows to:
•Select port to which the computer is connected
•Enable/disable continuous transmission
•Set frequency of printouts for continuous transmission
7.1.1 Port
1. Enter <P5.1.PC / 5.1.1.Prt> submenu.
2. Press key, port options are displayed successively, where: nonE –none, rS1 –RS232
(1), USbb –USB type B.
3. Set respective value and press key to confirm, next go to the home screen.
7.1.2 Continuous transmission
1. Enter <P5.1.PC / 5.1.2.Cnt> submenu.
2. Press key, transmission options are displayed successively, where: nonE –Continuous
transmission disabled, CntA –Continuous transmission in basic unit, Cntb –Continuous
transmission in current/temporary unit.
3. Set respective value and press key to confirm, next go to the home screen.
7.1.3 Printout interval for continuous transmission
Parameter to set frequency of printout for continuous transmission. Printout interval is set in
seconds, with 0.1 [s] accuracy within 0.1 [s] –3600 [s] range.
1. Enter <P5.1.PC / 5.1.3.Int> submenu.
2. Enter transmission rate, to do this press to select digit to be edited and to set
digit value (0 - 9).
3. Set respective value and press key to confirm, next go to the home screen.
7.1.4 Printer
<5.2.Prtr> submenu allows to:
•Select port to which the printer is connected

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
18 repligen.com 420-14871-001 Rev. 00
7.1.5 Port
1. Enter <P5.2.Prtr / 5.2.1.Prt> submenu.
2. Press key, options are displayed successively, where: nonE –No port selected, rS1 –
RS232 (1), USbA –USB type A which a printer can be connected, and USbb –USB type B
which a computer can be connected.
3. Set respective value and press key to confirm, next go to the home screen.
7.2 Additional display
<5.3.AdSP> submenu allows to:
•Select port to which the additional display is connected
7.2.1 Port
1. Enter <P5.3.AdSP / 5.3.1.Prt> submenu.
2. Press key, options are displayed successively, where: nonE –No port selected, rS1 –
RS232 (1).
3. Set respective value and press key to confirm, next go to the home screen.
8. Printouts
8.1 Calibration report
<P6.1.CrEP> is a group of parameters allowing to declare variables that are to be printed on the
calibration report printout. Each variable allows for accessibility attribute: YES –print, no –do not
print. Calibration report is automatically generated at the end of each calibration process.
Table 6. Calibration report variable list
Submenu
Name
Description
6.1.1.
CtP
Calibration type
6.1.2.
dAt
Calibration date
6.1.3.
tin
Calibration time
6.1.4.
Idb
Scale serial number
6.1.5.
CdF
Difference between mass of a calibration weight measured during the last
calibration and mass of the currently measured calibration weight
6.1.6.
dSh
Dashed line separating printout data and signature fields
6.1.7.
SiG
An area for the signature of an operator carrying out the calibration

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
19 repligen.com 420-14871-001 Rev. 00
Figure 10. Calibration report example
8.2 GLP printout
<P6.2.GLP> is a group of parameters allowing to declare variables that are to be printed on a
weighing printout. Each variable allows for accessibility attribute: YES –print, no –do not print.
Table 7. GLP weighing printout variable list
Submenu
Name
Description
6.2.1.
dAt
Weighing date
6.2.2.
tin
Weighing time
6.2.3.
n
Net weight value of performed weighing in a basic measuring unit
6.2.4.
t
Tare weight value in a current unit
6.2.5.
b
Gross weight value in a current unit
6.2.6.
CrS
Current weighing result (net weight) in a current unit
6.2.7.
CrP
The last adjustment report generated in accordance with settings declared for the
adjustment report printout
Figure 11. GLP printout example
9. Miscellaneous parameters
<P7.Othr> is a group of parameters enabling to customize scale operation.
9.1 Backlight
Parameter allowing to change display brightness, the brightness can be changed within 0% - 100%
range.
1. Enter <P7.Othr / 7.1.bLbt> submenu.
2. Press key, options are displayed successively, where: nonE –Backlight off, 10 –Display
brightness low limit value in [%], and 100 –Display brightness high limit value in [%] .
3. Set respective value and press key to confirm, next go to the home screen.

KrosFlo® TFF System –Auxiliary Scale ACSS-20K
User Guide
20 repligen.com 420-14871-001 Rev. 00
9.2 ‘Beep’ sound
Parameter allowing to enable/disable sound signal informing the operator about pressing panel
key(s).
1. Enter <P7.Othr / 7.2.bEEP> submenu.
2. Press key, options are displayed successively, where: no –sound signal disabled, YES –
sound signal enabled.
3. Set respective value and press key to confirm, next go to the home screen.
9.3 Automatic shutdown
Parameter allowing to set time interval, in [min], after which the weighing device shuts down
automatically. If the indication is stable during the declared time interval, the device is shut down.
Shutdown function is inactive, and the device cannot be turned off if any process is started or if you
operate the menu.
1. Enter <P7.Othr / 7.3.t1> submenu.
2. Press key, options are displayed successively, where: nonE –Function disabled, 1, 2, 3,
5, 10.
3. Set respective value and press key to confirm, next go to the home screen.
9.4 Date and time
Parameter allowing to set current date and time and to specify date and time format.
Enter <P7.Othr> submenu and change the settings as desired. Refer to the below table:
Table 8. GLP date and time printout variable list
Submenu
Description
<7.4.SdAt>
Enter this parameter to set current date, where the date format is
YYYY.MM.DD*
<7.5.Stnn>
Enter this parameter to set current time, where the time format is 24H**
<7.6.FdAt>
Enter this parameter to set date format. Available values: 1 - DD.MM.YYYY,
2 - MM.DD.YYYY, 3 - YYYY.MM.DD* (set by default), 4 - YYYY.DD.MM
<7.7.Ftin>
Enter this parameter to set time format. Values: 24H** (set by default),
12H**
* Date format: Y –year, M –month, D –day.
** Time format: 12H –12-hour format, 24H –24-hour format.
9.5 Default user settings
Parameter allowing to restore default operator settings.
1. Enter <P7.Othr / 7.8.dFL> submenu, text <Cont?> is displayed (Continue?).
2. Press key to confirm. The process of restoring default settings starts, this is signaled
with display of ‘dash’, <- >.
3. Upon process completion, <7.8.dFLu> submenu is displayed. Return to the home screen.
