Repotec Powerline 85M User manual

User’s Manual
Powerline 85M
Wireless-G Extender

Index
FCC Part 68..............................................................................................................................................................2
FCC Part 15..............................................................................................................................................................3
Chapter 1 Introduction..............................................................................................................................................4
1.1 Overview ...........................................................................................................................................4
1.2 Features............................................................................................................................................4
1.3 System Requirements.......................................................................................................................5
Chapter 2 Installation................................................................................................................................................6
2.1 Checklist............................................................................................................................................6
2.2 The Front LEDs.................................................................................................................................7
2.3 The Rear Ports..................................................................................................................................7
2.4 The Bottom Port................................................................................................................................8
Chapter 3 Configuration............................................................................................................................................9
3.1 Determine your connection settings..................................................................................................9
3.2 Connecting the Powerline Extender to your network........................................................................9
3.3 Configuring with Web Browser..........................................................................................................9
3.3.1 LAN Interface Configuration.........................................................................................................11
3.4.1 Wireless Settings......................................................................................................................... 12
3.4.2 Wireless Security......................................................................................................................... 13
3.4.3 Wireless Advance........................................................................................................................ 14
3.4.4 Wireless MAC ACL...................................................................................................................... 15
3.5.1 System Setup.............................................................................................................................. 16
3.6.1 TCP/IP Settings for Windows Operating System........................................................................ 17
Chapter 4. Powerline Networking Utility................................................................................................................ 24
4.1 Configuration Utility Setup.............................................................................................................. 24
4.1.1 Installation of the Utility............................................................................................................... 24
4.2 Windows Configuration Utility ........................................................................................................ 25
4.3 User Interface................................................................................................................................. 26
4.3.1 Main Screen................................................................................................................................ 26
4.3.2 Privacy Screen............................................................................................................................ 30
4.4 Diagnostics Screen ........................................................................................................................ 31
4.4.1 About Screen............................................................................................................................... 33
4.4.2 Preferences................................................................................................................................. 33
4.5 Troubleshooting.............................................................................................................................. 34
4.5.1 When the remote Powerline devices can not connect or access? ............................................. 34
Appendix A Glossary.............................................................................................................................................. 36
Appendix B Cabling / Connection.......................................................................................................................... 43
1

FCC Part 68
This equipment complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains
the FCC Registration Number and Ringer Equivalence Number (REN) for this equipment. You must provide this
information to the telephone company upon request.
The REN is useful to determine the quantity of devices you may connect to the telephone line and still have those
entire devices ring when your number is called. In most, but not all areas, the sum of the REN of all devices
connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to
your line, as determined by the REN, you should contact your local telephone company to determine the
maximum REN for your calling area.
If the modem causes harm to the telephone network, the telephone company may discontinue your service
temporarily.
If possible, they will notify you in advance. But if advance notice isn't practical, you will be notified as soon as
possible.
You will be advised of your right to file a complaint with the FCC.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could
affect the proper operation of your equipment. If they do, you will be notified in advance to give you an opportunity
to maintain uninterrupted telephone service.
If you experience trouble with this modem, please contact your dealer for repair/warranty information. The
telephone company may ask you to disconnect this equipment from the network until the problem has been
corrected or you are sure that the equipment is not malfunctioning.
This equipment may not be used on coin service provided by the telephone company. Connection to party lines is
subject to state tariffs.
2

FCC Part 15
The modem generates and uses radio frequency energy. If it is not installed and used properly in strict
accordance with the user's manual, it may cause interference with radio and television reception. The modem has
been tested and found to comply with the limits for Class B computing devices in accordance with the
specifications in Subpart B, Part 15 of the FCC regulations. These specifications are designed to provide
reasonable protection against such interference in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. FCC regulations require that shielded interface cables be
used with your modem.
If interference does occur, we suggest the following measures be taken to rectify the problem:
1) Move the receiving antenna.
2) Move the modem away from the radio or TV.
3) Plug the modem into a different electrical outlet.
4) Discuss the problem with a qualified radio / TV technician.
CAUTION:
Changes or modifications not expressly approved by the party responsible for compliance to the FCC Rules could
void the user's authority to operate this equipment.
Cable connections:
All equipment connected to this modem must use shielded cable as the interconnection means.
Notes:
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that may cause undesired
operation.
3

Chapter 1 Introduction
Congratulations on your purchase of an Instant Powerline 85M Wireless Extender. The Powerline Extender is the
perfect option to connect a small group of PCs or small wireless clients. Integrated Wireless to Powerline
networks, the device can extend large coverage and less dead space for your home network.
1.1 Overview
Integrated with 4 10/100M ports, it will very easy to use as a switch, and combine the wireless and Powerline
function inside. Using Powerline and wireless benefit, you can connect the pc to internet in anywhere of your
home..
1.2 Features
zInternet Access
‧TCP/IP, UDP, ICMP, ARP, RARP, Static IP assignment
zStandard
‧IEEE 802.3, 802.3u Ethernet standards
‧HomePlug 1.0
‧IEEE 802.11b and 802.11g Wireless standards
zQoS
‧Prioritized random access, contention-free access and segment bursting
‧CSMA/CA with prioritization and ARQ for reliable delivery of Ethernet packets via Packet
Encapsulation Security Features
zPowerline Modulation
‧OFDM (Orthogonal Frequency Division Multiplexing) with patented signal processing
techniques for high data reliability in noisy media conditions
‧Supports QAM 256/64/16, DQPSK, DBPSK and ROBO modulation schemes
zSecurity
‧Provide 56-bit DES link encryption for Powerline network
zWireless Features
‧Support 802.11b/g Wireless Access Point
‧Support 128-Bit and 64-Bit WEP encryption , 802.1x, WPA, WPA2
zOther
‧High-Speed Powerline adapter with Ethernet interface for fast data transfer over the
existing household power supply
‧The high-speed transfer rates of 85Mbps even make it possible to transmit video in DVD quality
‧No need new wires and use at any power socket with up to ranges of 200 meters
4

zHTTP Web-Based Management
‧Firmware upgrade by UI
‧Password protected access
1.3 System Requirements
1) Personal computer (PC)
2) Pentium II 233 MHz processor minimum
3) 32 MB RAM minimum
4) 20 MB of free disk space minimum
5) Ethernet Network Interface Controller (NIC) RJ45 Port
6) Internet Browser
5

Chapter 2 Installation
This chapter offers information about installing your router. If you are not familiar with the hardware or software
parameters presented here, please consult your service provider for the values needed.
2.1 Checklist
Check the shipping box carefully to ensure that the contents include the items you ordered. If any of the items are
missing or damaged, contact your local distributor. The contents of your carton may vary depending on your
service provider.
Contents description
1) Powerline Router for home/office use
2) Powerline Router Installation and Operation Guide (this publication)
3) Power Cord
4) Ethernet cable Ethernet category 5 twisted pair cable (6 ft)

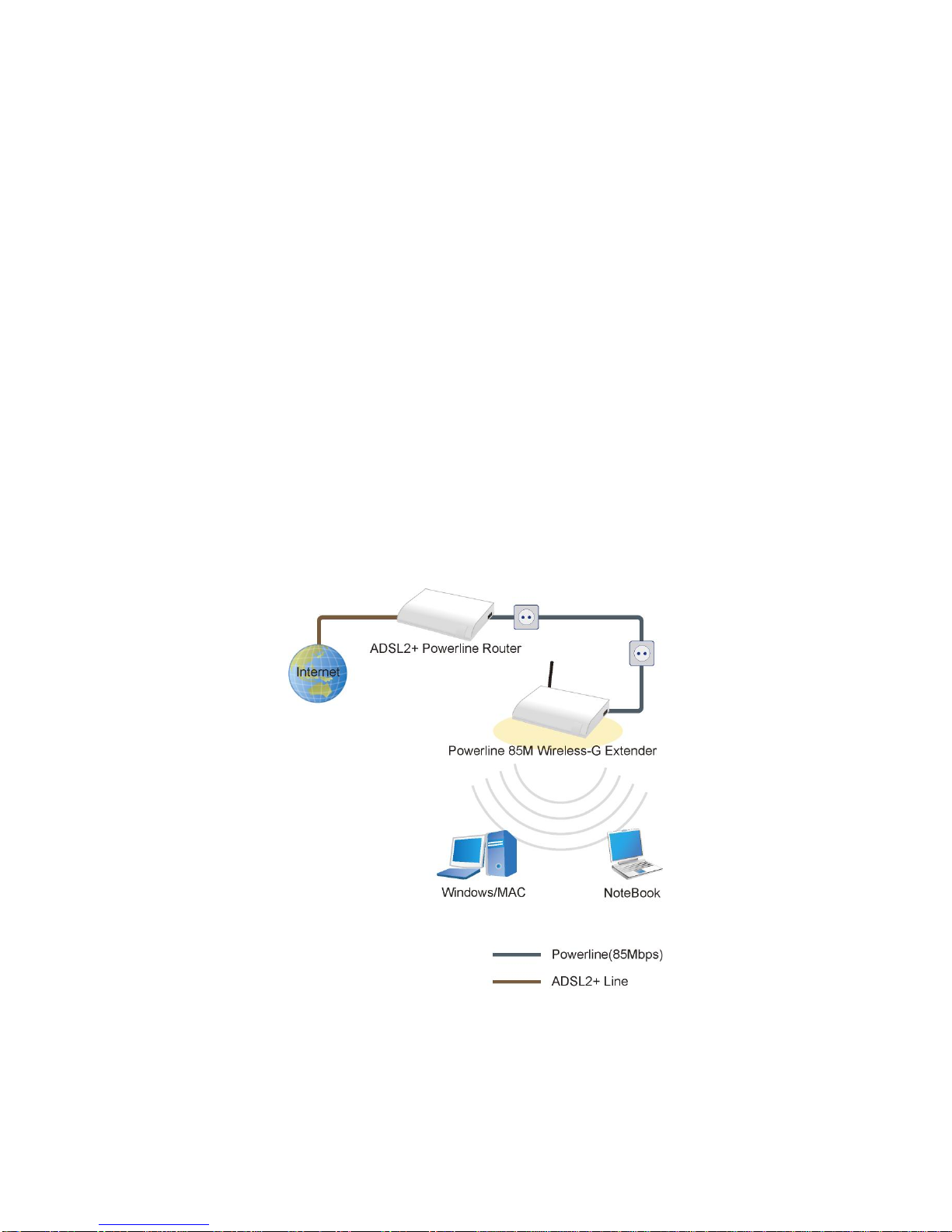

Application for this device
6

2.2 The Front LEDs
LED State Description
POWER ON Press the button to power one the router.
OP Flashing The router running well.
PL Flashing When the device detect other Powerline devices
ON Link
Flashing TX or RX activity
LAN
1-4 OFF
No Link
These four LAN (Local Area Network) ports are where you will connect networked
devices, such as PCs, print servers remote hard drives, and anything else you want to
put on your network.
ON Wireless On
Flashing Data transfer between AP and wireless clients
WLAN
OFF No link.
2.3 The Rear Ports
7

Connector Description
POWER Connect to power cord.
LAN (1-4) Router is successfully connected to a device through the corresponding port (1, 2, 3 or 4).
If the LED is flashing, the Router is actively sending or receiving data over that port.
Antenna There are two kind of connecter, fixed or R/SMA connecter.
2.4 The Bottom Port
Connector Description
Reset Switch The reset button, the router restore default settings when press until reboot.
8

Chapter 3 Configuration
3.1 Determine your connection settings
Before you configure the router; you need to know the connection information supplied by your service provider.
3.2 Connecting the Powerline Extender to your network
Unlike a simple hub or switch, the setup of the Powerline Extender consists of more than simply plugging
everything together.
3.3 Configuring with Web Browser
It is advisable to change the administrator password to safeguard the security of your network.
To configure the router, open your browser, type 'http://192.168.16.168' into the address bar and click 'Go' to get
to the login page. Save this address in your Favorites for future reference.

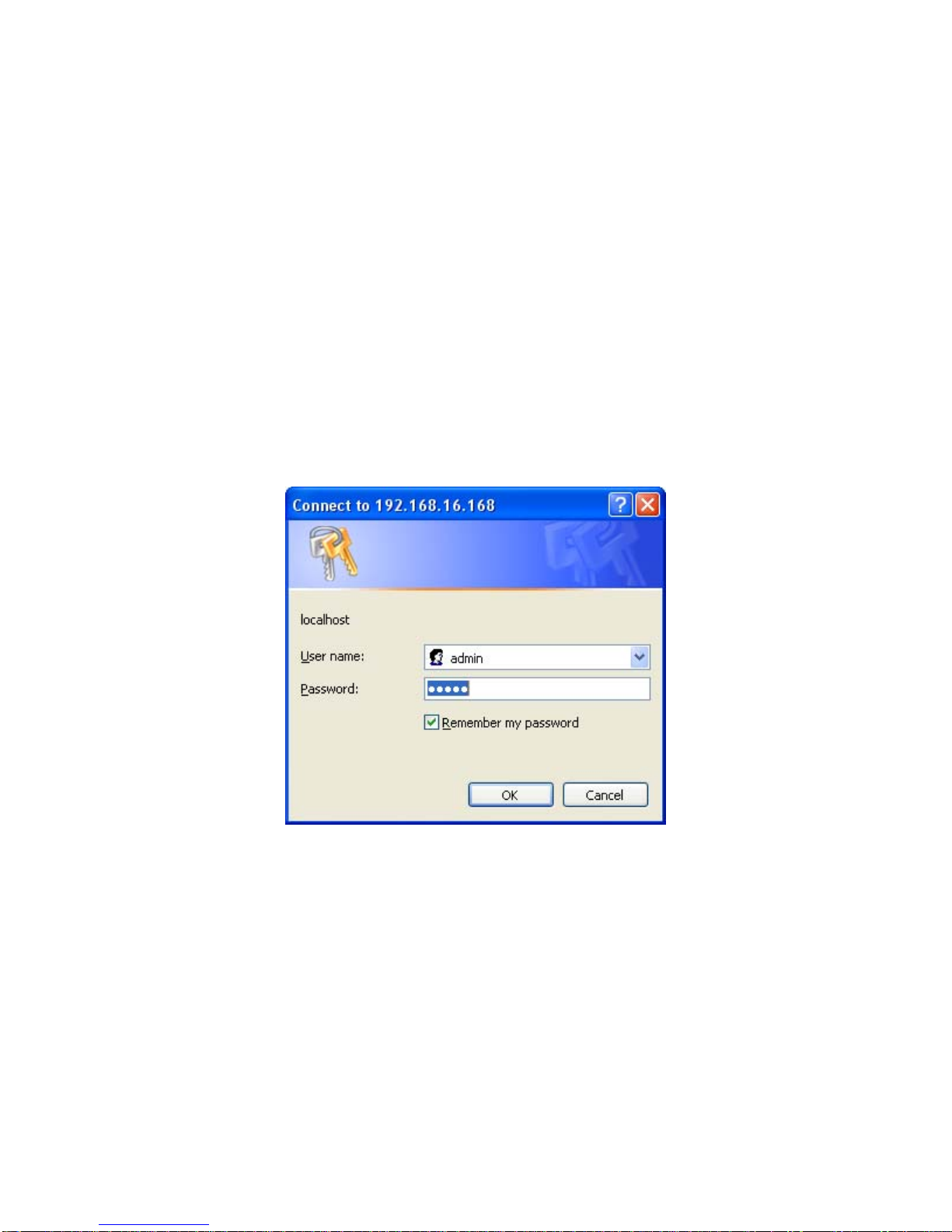

At the Password prompt, the User name is 'admin' and the password is ’admin’. You can change these later if
you wish. Click 'OK' to login.
9

You can use "Quick Setup" to setup the device, and choose the connect mode you prefer.
10

3.3.1 LAN Interface Configuration
You can set static IP address at here..
11

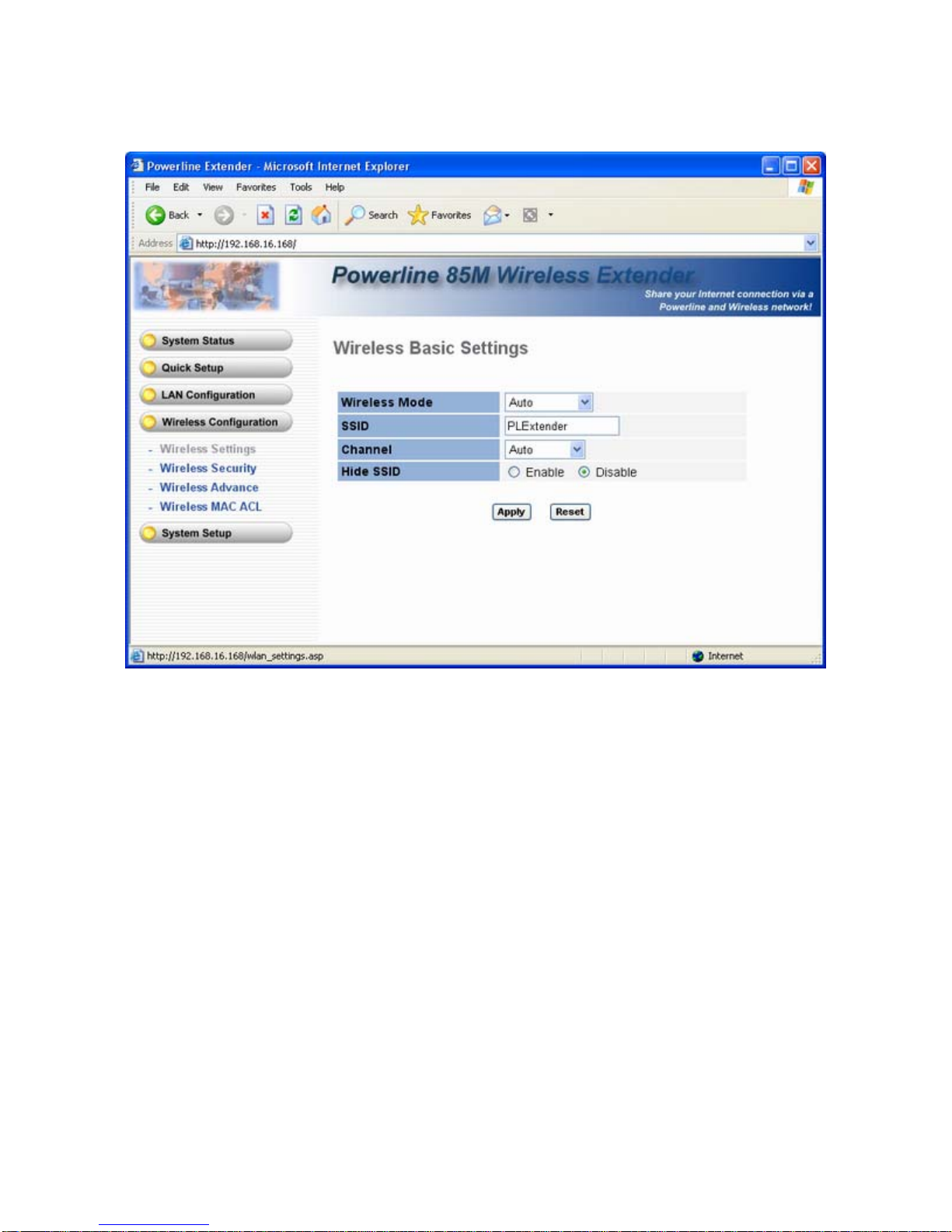

3.4.1 Wireless Settings
Wireless Mode
Support Auto, 802.11b only, 802.11g only, Disable modes.
SSID
The identifier set for the wireless network. You can change the SSID. Only devices with the same SSID can
interconnect.
Channel ID
The channel number is used for wireless network. The channel setting of the wireless devices within a network
should be the same.
12

3.4.2 Wireless Security
The Authentication type supports “Open system”, “Shared key”, “WPA-PSK”, “WPA2-PSK” and
"WPA-PSK/WPA2-PSK".
13

3.4.3 Wireless Advance
You can change some wireless advanced parameters at this page. Keep the setting as the default if you are not
the professional user.
14

3.4.4 Wireless MAC ACL
You can set which wireless client’s MAC addresses is allowed or rejected to link to the router via wireless. For
advanced security issue, you can enable this function.
15

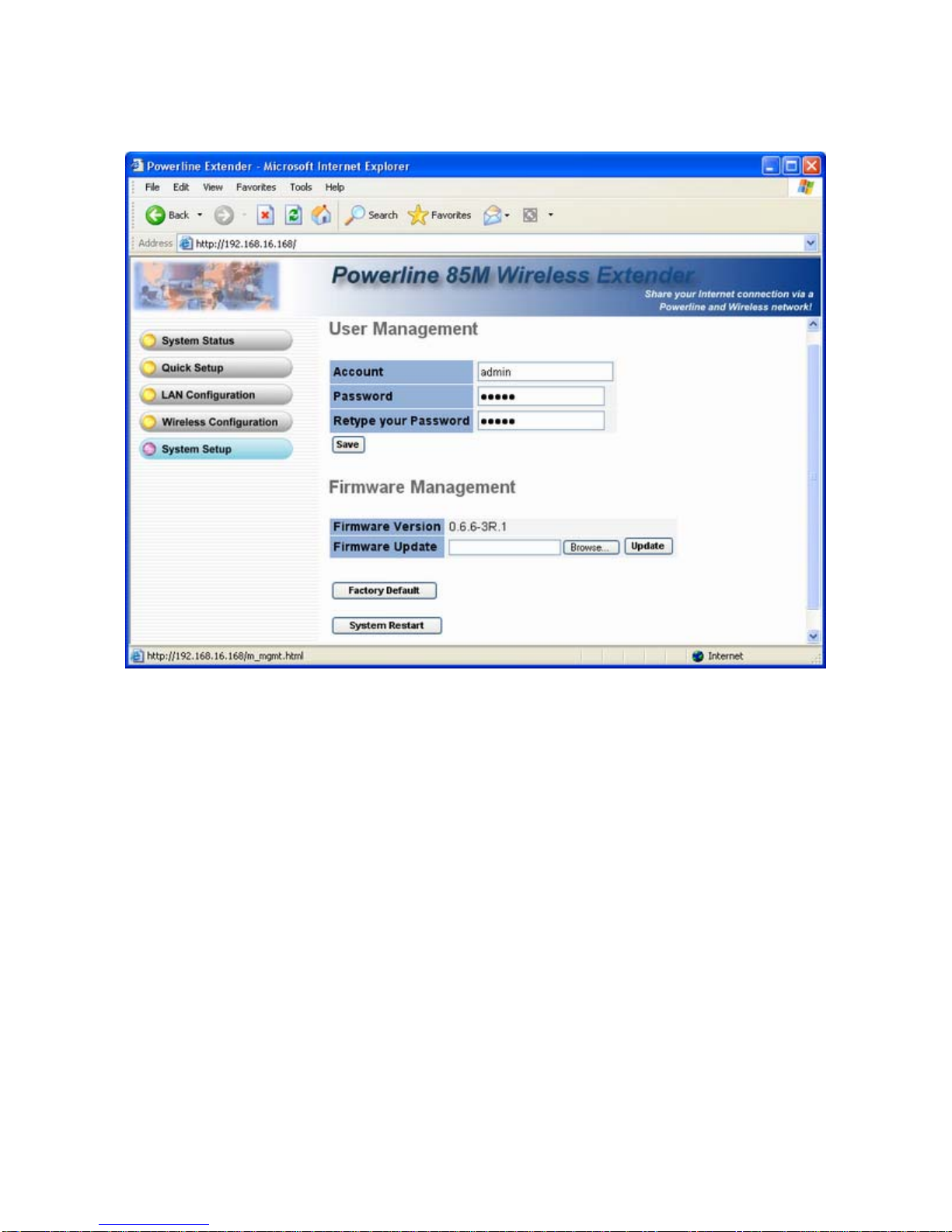

3.5.1 System Setup
1) The user account can rename or password can reset here.
2) You can upgrade the new firmware here while you download the latest firmware via our website. Click browser
to choose the new firmware and press the Update button to start.
3) To retrieve the factory default settings please press the factory default button.
4) Press System Restart button to restart the device.
16

3.6.1 TCP/IP Settings for Windows Operating System

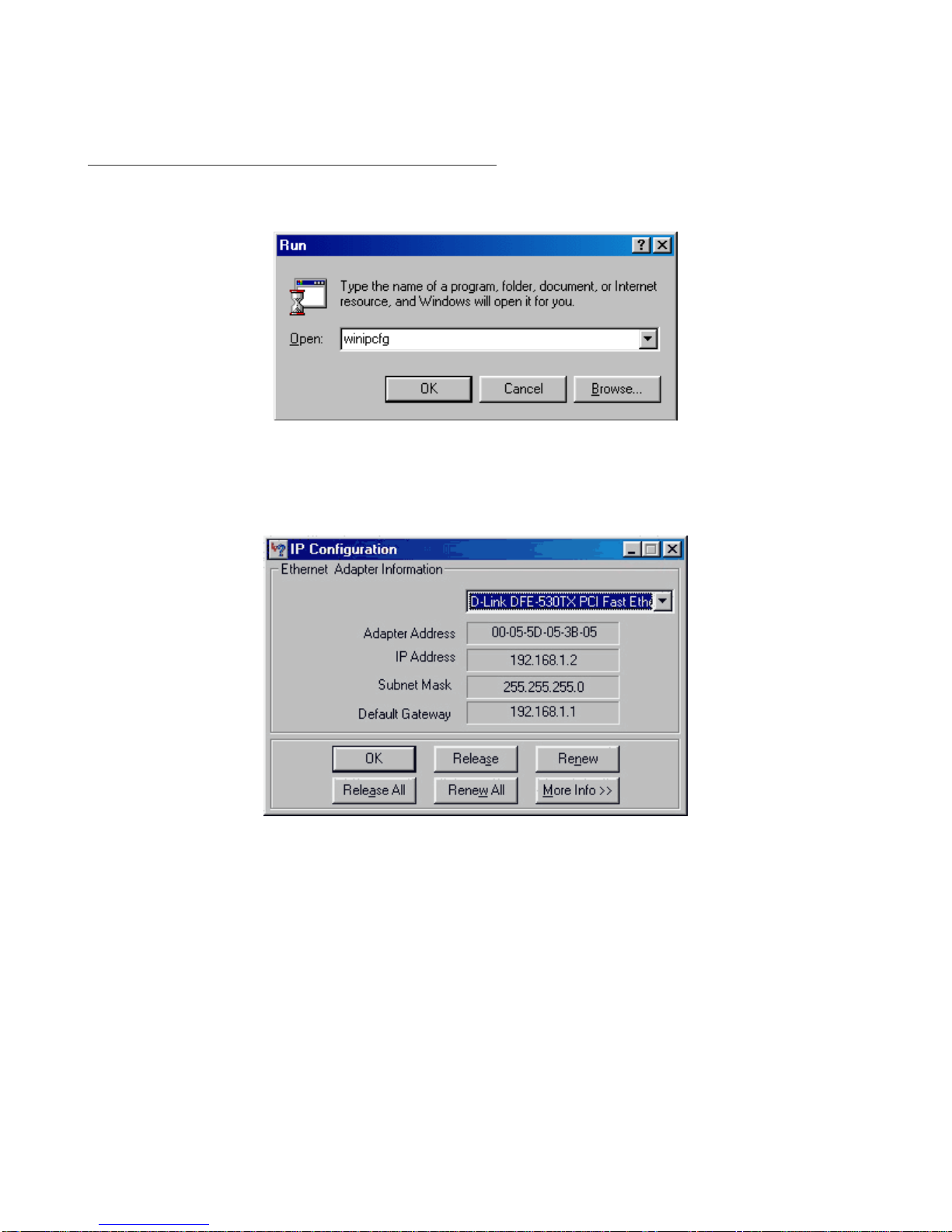

1. How can I find my IPAddress in Windows 95, 98, or Me?
‧Click on Start, then click on Run.
‧The Run Dialogue Box will appear. Type winipcfg in the window as shown then click OK
‧The IP Configuration window will appear, displaying your Ethernet Adapter Information.
‧Select your adapter from the drop down menu.
‧If you do not see your adapter in the drop down menu, your adapter is not properly installed.
‧After selecting your adapter, it will display your IPAddress, subnet mask, and default router.
‧Click OK to close the IP Configuration window.
17

2. How can I find my IPAddress in Windows 2000/XP?
‧Click on Start and select Run.
‧Type cmd then click OK.
‧From the Command Prompt, enter ipconfig. It will return your IPAddress, subnet mask, and default
router.
‧Type exit to close the command prompt.
‧Make sure you take note of your computer´s Default Router IPAddress. The Default Router is the IP
Address of the router. By default, it should be 192.168.0.1
18

3. How can I assign a Static IPAddress in Windows 98/Me?
‧From the desktop, right-click on the Network Neighborhood icon (Win ME - My Network Places) and
select Properties.
‧Highlight TCP/IP and click the Properties button. If you have more than 1 adapter, then there will be a
TCP/IP “Binding” for each adapter. Highlight TCP/IP > (your network adapter) and then click Properties.
19
