Resident Audio MONITOR M5 User manual

!
/ 111
WWW.RESIDENTAUDIO.COM
"
USER MANUAL MONITOR M5

!
/ 112
CONTENTS:
"
"
1. Instruction 03
2. The Product 04
2.1. Front Panel 04
2.2. Rear Panel 04
2.3. Rear Panel Chart 05
2.4. Description Rear Panel 06
3. Connection Process 07
3.1. Power Connection Process 07
3.2. Input Connection Process 07
4. Installation Process 08
4.1 Aligning Process 08
5. Technical Specications 09
6. How To Clean The Product 10
7. Safety Instructions 10
8. Declaration of Conformity 11
CONTENT
RESIDENT AUDIO M5
RESIDENT AUDIO COPYRIGHT © 2014
WWW.RESIDENTAUDIO.COM

"
"
"
"
1. INSTRUCTION
"
The professional Resident Audio “Monitor M5“ near-eld Studio Monitor speakers allow you to listen music
through a special Fiberglass Composite woofer material we specially made.
It features an extremely fat low-frequency response and an unprecedented punch in the lower mid-range.
Because of the excellent usage of the Fiberglass custom woofer technology we are able to break up
resonances, resulting in outstanding dynamic behavior and impeccable sound characteristics. The system
consists on a 3/4“ soft silk dome tweeter and 5 1⁄4" Fiberglass composite woofer.
The M-Series is designed to fully replicate the natural details of the source material. Multiple input
connections are integrated into the speaker and allow any system conguration.
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
/ 113
INSTRUCTIONS
RESIDENT AUDIO M5
RESIDENT AUDIO COPYRIGHT © 2014
WWW.RESIDENTAUDIO.COM

"
"
"
"
"
2.1 THE FRONT SIDE
"
The front side of the MONITOR M5 contains the following:
"
•3/4“ soft silk dome tweeter
"
•5 1⁄4" Fiberglass composite woofer
"
•status LED (switches from Blue to Red between 22 and 30 minutes after stopped the usage)
"
"
"
"

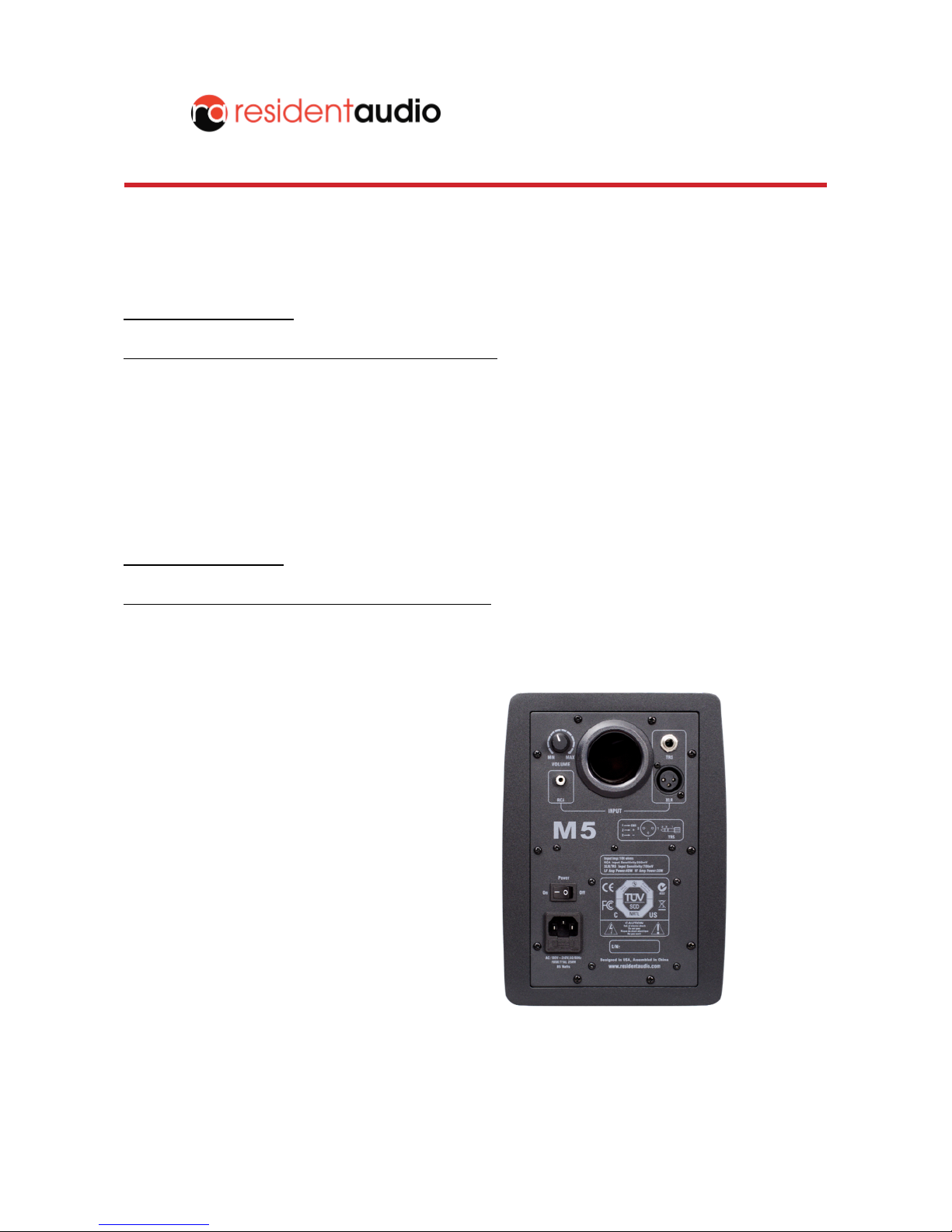

2.2 THE REAR SIDE
"
The rear side of the MONITOR M5 contains the following:
"
•Input section
"
•Power section
"
•Specic Control section
"
•Caution section
"
•Specic product code
"
"
"
"
"
"
"
"
"
"
"
"
"
"
/ 114
THE PRODUCT
RESIDENT AUDIO M5
RESIDENT AUDIO COPYRIGHT © 2014
WWW.RESIDENTAUDIO.COM

"
"
""
"
""
"
"
"
"
"
"
"
"
""
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
/ 115
RESIDENT AUDIO COPYRIGHT © 2014
WWW.RESIDENTAUDIO.COM
THE PRODUCT
RESIDENT AUDIO M5
1. XLR INPUT
5. VOLUME KNOB
3. RCA INPUT
6. POWER SWITCH
7. POWER CORD RECEPTABLE
8. BAR CODE LABEL
4. VENT PORT
"
2. TRS INPUT
2.3 REAR PANEL CHART

"
"
"
"
"

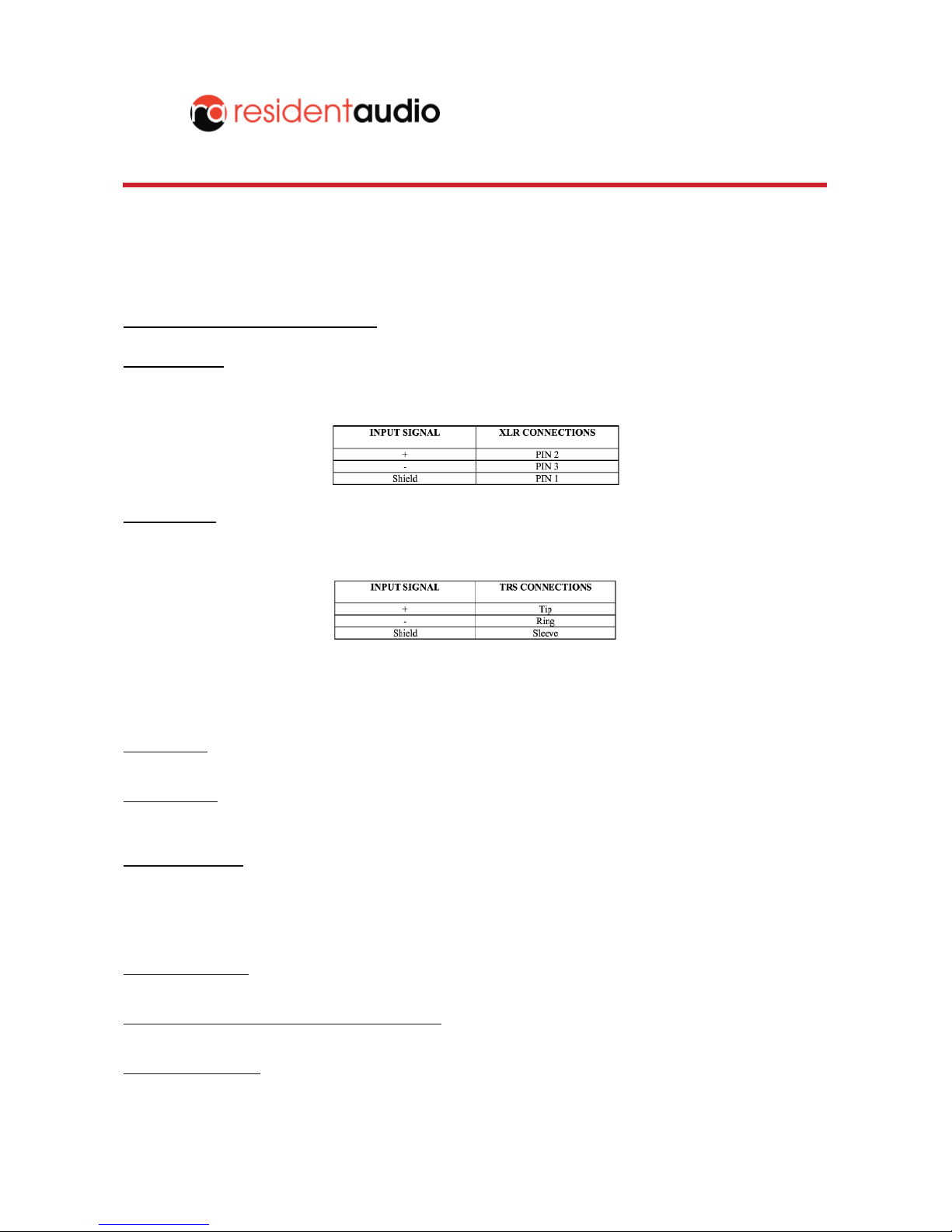

2.4 DESCRIPTION REAR PANEL
"
1. XLR INPUT
Accepts balanced XLR input signals. The signal of the XLR input is mixed with the TRS input signal via a balanced input amplier. The
XLR input is wired like this:
2. TRS INPUT
Accepts TRS input signals, either balanced or unbalanced. Use a 3-conductor TRS plug for balanced connections. The TRS input is wired
like this:
Unbalanced wiring works with either a 2- or 3-conductor TRS connector. With a 2-conductor TRS plug (a.k.a. TS plug) the minus signal
input is automatically grounded. With a 3-conductor TRS plug wired unbalanced the minus pin can be left open or grounded. We
recommend that you ground the unused input. The TRS input and the XLR input are summed together via a balanced input amplier. So,
either may be used as an input or both may be mixed together. The input specications apply to both inputs.
"
3. RCA Input
Accepts RCA input signals.
"
4. VENT PORT
The M8 is a vented box speaker system with a vent port on the rear panel. Don’ t block the vent port (e. g. by placing the speaker too
close to a wall) as this could change the overall sound.
"
5. VOLUME KNOB
Sets the proper input level from the sound source. The left and right speakers should be set up identically. Please refer to the illustration
on the right to chose the input level which best suits your sound source.
Further information can be found in the manual of the signal source connected to the speaker inputs. -10 dBV or +4 dBu are the most
common output levels of semi-professional and professional audio equipment. For example, if the output reference level of your sound
source is -10 dBV, you should not set the volume control knob higher than -10 dBV for maximum power.
"
6. POWER SWITCH
Push this switch to turn the M8 on/off.
"
7. POWER RECEPTABLE WITH EXTERNAL FUSE
Connect the detachable 3-circuit line cord to this receptacle and to a suitable power outlet.
"
8. BAR CODE LABEL
This label displays the product serial number bar code.
/ 116
RESIDENT AUDIO COPYRIGHT © 2014
WWW.RESIDENTAUDIO.COM
THE PRODUCT
RESIDENT AUDIO M5

"
"
"
"
"
3.1 POWER CONNECTION PROCESS
"
Set up your pair of MONITOR M5 speakers on a suitable surface.
Please make sure the power switch is turned off.
"
Please follow the following steps:
"
1. Choose the included power connector cable and plug into the power connector socket on the rear side of
the MONITOR M5
"
2. Take the other side of the power connector cable and plug it into an AC outlet
"
3. Turn the power switch on the back of the MONITOR M5 to the “ON” Position
"
"
"
"
3.2 INPUT CONNECTION PROCESS
"
MONITOR M5 will accept the following cable types;
Unbalanced RCA, Balanced 1/4" TRS or Balanced XLR.
"
Please follow the following steps:
"
1. Take your chosen audio connector cable and plug it into the specic audio
connector socket on the rear side of the MONITOR M5 input section
"
2. Make sure that your sound source has the volume turned down
"
3. Take the other side of the chosen audio connector cable from step 1 and plug it
into your sound source
"
"
"
"
"
/ 117
CONNECTION PROCESS
RESIDENT AUDIO M5
RESIDENT AUDIO COPYRIGHT © 2014
WWW.RESIDENTAUDIO.COM

"
"
"
"
"

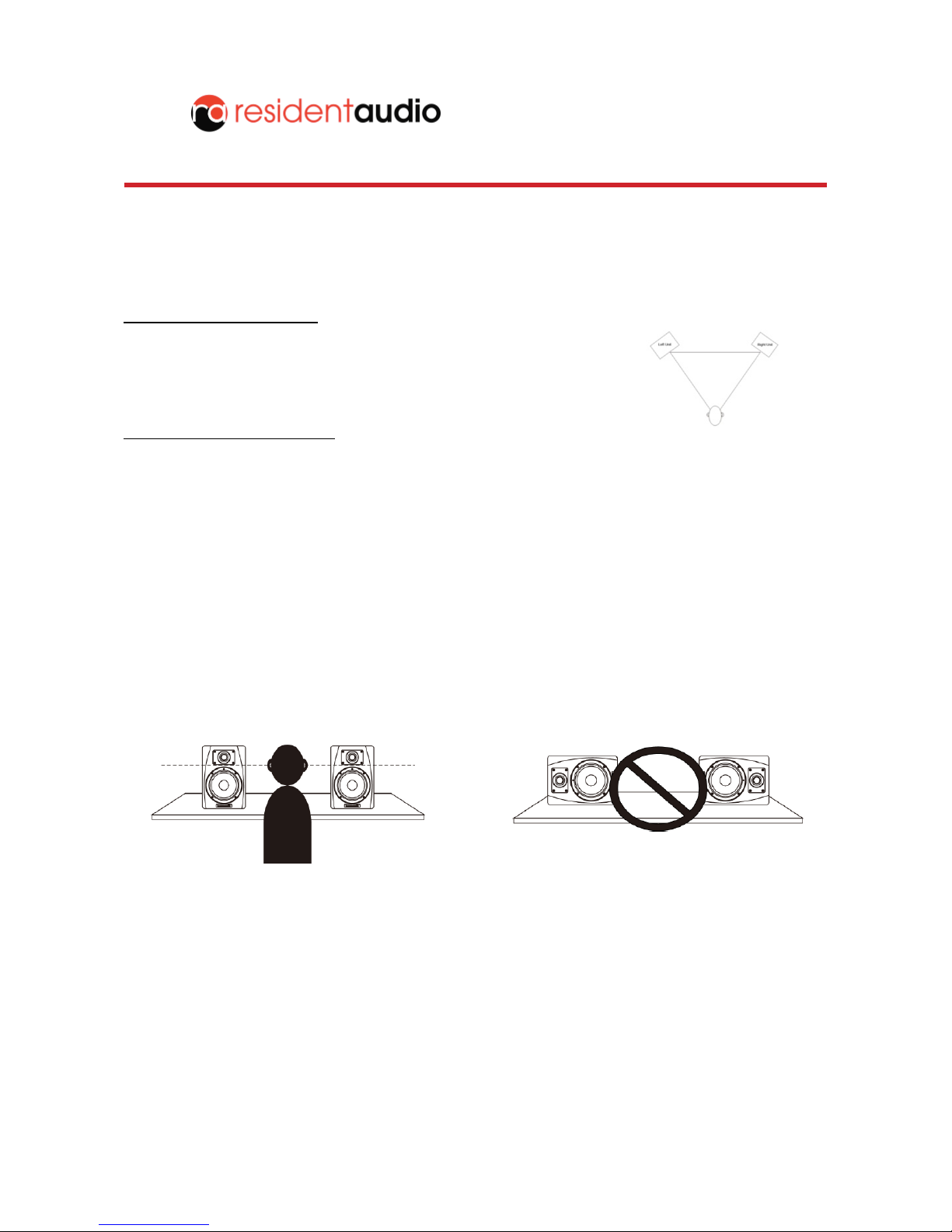

4.1 ALIGNING PROCESS
To receive the best response of the MONITOR M5 speakers it is necessary to
align them correctly.
Please make sure that no other objects are in front of the speakers.
"
Please follow the following steps:
"
1. Align both speakers in the form of a triangle to the listener
"
2. Pay attention to use a reasonable ground for the speakers
"
3. The center of the speaker unit is recommended to be on the same height with the listener`s ears
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
/ 118
INSTALLATION PROCESS
RESIDENT AUDIO M5
RESIDENT AUDIO COPYRIGHT © 2014
WWW.RESIDENTAUDIO.COM

"
"
"
"
"
"
5. TECHNICAL SPECIFICATIONS
"
"
"
"
Conguration: 2-Way
System type: Active Studio Monitor
Low-Frequency: 5¼" Fiberglass composite woofer
High-Frequency: 3/4" soft silk dome tweeter
Frequency Response: 45Hz -30kHz
Max Peak SPL: 104 dB
Amplier Class: Class A-B
Power Output: 70W
High Frequency: 30W
Low Frequency: 40W
Input Impedance (Ohms): 10 K Ohm balanced
Indicators: On(blue)/Standby(red)
Input Connectors: - Unbalanced RCA
- Balanced 1/4" TRS
- Balanced XLR
Enclosure Construction: MDF
Finish: Black vinyl wrap
Port Conguration: Rear round port
Dimensions (D x W x H): 7.8" (199mm) x 7.1" (181mm) x 9.9" (251mm)
Weight: 3.6 Kg / 7.9 lbs
"
/ 119
TECHNICAL SPECIFICATIONS
RESIDENT AUDIO M5
RESIDENT AUDIO COPYRIGHT © 2014
WWW.RESIDENTAUDIO.COM

"
"
"
"
6. HOW TO CLEAN THE PRODUCT
"
If you need to clean the unit, wipe it gently with a soft dry cloth. Do not use benzene, paint thinner, ethyl
alcohol or other chemical agents to clean the unit as they could damage the surface or cause fading.
"
"
"
7. SAFETY INSTRUCTIONS
"
1. Read the whole instruction manual
2. Keep these instructions
3. Heed all warnings
!
4. Follow all instructions
"
5. Do not use the product near water
6. Clean the product only with a soft dry cloth
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat
9. Do not defeat the safety purpose of the polarized or grounding-type plug
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus
11. Only use attachments/accessories specied by the manufacturer
12. Unplug this apparatus during lightning storms or when unused for long periods of time
13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
"
"
/ 1110
SAFETY INSTRUCTIONS
RESIDENT AUDIO M5
RESIDENT AUDIO COPYRIGHT © 2014
WWW.RESIDENTAUDIO.COM

"
"
"
8. Declaration of Conformity (for the European Union)
"
The product described in this manual is manufactured in China by Resident Audio LLC. The product is
labelled with the CE mark and conforms to the protection requirements of the European Electromagnetic
Compatibility Standards and Directives. The product is designed and constructed such that electromagnetic
interferences generated do not exceed levels allowing radio and telecommunications equipment and other
equipment to operate as intended, and, the product has an adequate level of intrinsic immunity to
electromagnetic interferences to enable operation as specied and intended.
The product is marketed as M5 studio monitoring speaker.
With reference to regulations in the directives 73/23/EEC, 89/336/EEC, the equipment listed above is
covered by this certicate and labelled with the CE mark and conforms to the following standards:
EN60065 Safety requirements for mains operated electronic and related apparatus for household and similar
general use.
EN55103-1 & EN55103-2 Product family standard for audio, video, audio-visual and entertainment lighting
control apparatus for professional use.
"
