Resolve Fitness R1 Sled Treadmill User manual

6040.2-100219
R1 Sled Treadmill

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
STOP. Contact customer service if you have any questions
regarding assembly or proper operation of the machine.
Email us at:
[e-mail]
Or call us at:
1-844-641-7923
Hours:
8:00 am to 5:00 pm (PST)
Monday thru Friday

1
TABLE OF CONTENT
SERVICE ----------------------------------------------------------------------
2
LABEL PLACEMENT -------------------------------------------------------
3
IMPORTANT SAFETY GUIDELINES ----------------------------------
4
OVERVIEW DRAWING ----------------------------------------------------
6
PARTS LIST ------------------------------------------------------------------
7
HARDWARE & TOOL LIST-----------------------------------------------
9
ASSEMBLY -------------------------------------------------------------------
10
CONSOLE ------------------------------------------------------------------
22
ADJUSTMENTS ------------------------------------------------------------
25
TRANSPORTING & STORAGE ----------------------------------------
26
MAINTENANCE & TROUBLESHOOTING --------------------------
27
WARRANTY ------------------------------------------------------------------
28
PARTS REQUEST FORM ------------------------------------------------
29

2
SERVICE
IMPORTANT: FOR NORTH AMERICA ONLY
For damaged or defective product, questions, replacement parts or any other service
support, please contact our customer service department by the below methods:
For The Best Service, please Email:
[e-mail]
Response Time: 1-2 Business Days
Emailing us with the information above will be the best method to receive a response
during peak business hours
Website:
www.paradigmhw.com
Toll-Free:
1-844-641-7923
(8:00 AM - 5:00 PM Pacific Standard Time, Monday thru Friday)
Response time may vary via calling
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
For damaged or defective product please contact our customer service before returning
to the store.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748, USA

3
LABEL PLACEMENT

4
IMPORTANT SAFETY GUIDELINES
Basic precautions should always be followed, including the following safety
instructions when using this treadmill: Read all instructions before using this treadmill.
NOTE: Failure to follow these instructions may lead to personal injury and
cause damage to the treadmill.
WARNING: To reduce the risk of burns, fire, electric shock or injury to any persons,
please read the following:
Use this appliance only for its intended use as described in this manual. Do
not use attachments not recommended by the manufacturer.
Never operate this treadmill if it is not
working properly. If it has been dropped or damaged.
Do not attempt any maintenance or adjustments other than those described in
this manual. Should any problems arise, discontinue use and consult Customer Service.
Never operate the appliance with the air openings blocked. Keep the air
openings free of lint, hair, and the like.
Do not use the treadmill outdoors.
Keep children and pets away from the equipment while in use.
This machine is designed for adults only.
This appliance is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Keep Dry - do not operate in a wet or moist condition.

Keep children under the age of 13 away from this machine.
Formatted: Indent: Left: -0", Hanging:
0.38", First line: 0 ch, Bulleted + Level: 1 +
Aligned at: 0" + Tab after: 0.33" + Indent at:
0.33"
Formatted: Indent: Left: -0", Hanging:
0.38", Bulleted + Level: 1 + Aligned at: 0" +
Tab after: 0.33" + Indent at: 0.33"
Formatted: Indent: Left: -0", Hanging:
0.38", First line: 0 ch, Bulleted + Level: 1 +
Aligned at: 0" + Tab after: 0.33" + Indent at:
0.33"
Formatted: Indent: Left: -0", Hanging:
0.38", Widow/Orphan control
Formatted: Font: (Default) Arial
Formatted: List Paragraph, Indent: Left: -0",
Hanging: 0.38"
Formatted: Indent: Left: -0", Hanging:
0.38", No bullets or numbering,
Widow/Orphan control

5
IMPORTANT SAFETY GUIDELINES
Keep Dry - do not operate in a wet or moist condition. Save these
instructions.
Do not operate the treadmill near a blanket. Excessive heating can occur and
cause fire, electrical shock, or injury to user.
Keep electrical cord away from heated surfaces.
Never insert any object into any opening.
Keep the treadmill on a solid, level surface with the minimum safety area
clearance of 2000mm x 1000mm of the treadmill. Be sure the area around
the treadmill remains clear during use and has adequate clearance.
This treadmill is for household use only.
Only one person should be on the treadmill while in use.
Wear comfortable and suitable clothing when using the treadmill. Do not use
the treadmill barefoot, in only socks or in sandals, always wear athletic shoes. Never wear
loose clothing because it could run the risk of getting caught in the treadmill.
Always hold on to the handrails while using the treadmill.
Always make sure the storage latch is in place when folding and moving the
treadmill.
Do not leave children who are under 13 years old unsupervised near or on the
treadmill.
To disconnect, turn all controls to the off position, then remove plug from
outlet.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning
use of the appliance by a person responsible for their safety. Children
should
be supervised to ensure that they do not play with the appliance.
Pull up the Safety Tether Key for emergency stop. Reinstall the Safety
Tether
Key onto the Computer Console. Press the START/STOP button to
begin
exercise again.
DO NOT EXCEED THE RECOMMENDED MAXIMUM WEIGHT AND HEIGHT
Maximum Weight Capacity is 400 lbs / 181kgs.

This treadmill is designed for WALKING only.
Formatted: Indent: Left: -0", Hanging:
0.38", No bullets or numbering,
Widow/Orphan control
Formatted: Indent: Left: 0.38"
Formatted: Indent: Left: 0.38"
Formatted: Indent: Left: -0", Hanging:
0.38", First line: 0 ch, Bulleted + Level: 1 +
Aligned at: 0" + Tab after: 0.33" + Indent at:
0.33"
Formatted: Indent: Left: -0", Hanging:
0.38", Bulleted + Level: 1 + Aligned at: 0" +
Tab after: 0.33" + Indent at: 0.33"
Formatted: Indent: Left: 0.38"
Formatted: Indent: Left: -0", Hanging:
0.38", First line: 0 ch, Bulleted + Level: 1 +
Aligned at: 0" + Tab after: 0.33" + Indent at:
0.33"
Formatted: Font: 15 pt
Formatted: Indent: Left: 0.38", First line: 2
ch
Formatted: Font: 15 pt, Font color: Auto
Formatted: Indent: Left: 0.38", First line: 2
ch
Formatted: Font: 15 pt
Formatted: Font: Times New Roman, Font
color: Auto
Formatted: Indent: Left: -0", Hanging:
0.38", Line spacing: single, No bullets or
numbering, No widow/orphan control
Formatted: Font: 15 pt, Font color: Auto
Formatted: Font: 15 pt, Font color: Auto
Formatted: No bullets or numbering
Formatted: Font: 15 pt

6
CAUTION: Risk of Injury to Persons –To Avoid Injury, use extreme caution
when stepping onto or off of moving the running belt. Read Instruction
Manual Before Using.

Formatted: Font: 15 pt
Formatted: Font: 15 pt
Formatted: Normal, No bullets or numbering

7
IMPORTANT SAFETY GUIDELINES
WARNING: Before beginning any exercise program consult your physician. This is
especially important for the persons who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. We assume no responsibility
for personal injury or property damage sustained by or through the use of this product. Do not
operate this exercise equipment without properly fitted guards, as the moving parts can present
risk of serious injury to young children.
CAUTION:Read all instructions carefully before operating this product. Retain this
Owner’s Manual for future reference.
SAVE THESE INSTRUCTIONS
Formatted: Normal, Indent: First line: 0",
Left 0 ch, Right 0 ch

8
OVERVIEW DRAWING

9
PARTS LIST
No.
Description
Qty
No.
Description
Qty
1
Main Frame
1
39
Screw M6*15L
5
2
Adjustable Foot Pad
2
40
Flat Washer M6*16*1.5
5
3
Running Deck
1
41
Spring Washer M6
1
4
Screw M8*125*45L
8
42
Break Spin Ring
2
5
Nylon Nut M8
10
43
Break Spin Ring Shaft
2
6
Flat Washer M10*38*3.0t
1
44
Break Spin Ring
1
7
Front Running Belt Roller
1
45
Flat Washer M8*23*2.0T
1
8
Rear Running Belt Roller
1
46
Screw M8*55L
1
9
Screw M10*90L
2
47
Lower Cable Mounting
1
10
Flat Washer M10*21*2.0t
2
48
Middle Cable Mounting
1
11
Nylon Nut M10
2
49
Transporting Wheel
2
12
Bearing
2
50
Screw M5*10L
6
13
ScrewM12*35L
4
51
Screw M6*1.0*12L
15
14
Flat Washer M12*24*2.5t
4
52
Screw M10*25L
8
15
C-Clip C25
46
53
Screw M8*16L
44
16
Running Belt
1
54
Screw M6*12L
4
17
Mesh Mounting
1
55
Screw M5*12L
6
18
Stainless Screw M5*8L
8
56
Flat Washer M8*16*2.0
18
19
Flywheel
1
57
Front Lower Cable
1
20
Blade
1
58
Rear Lower Cable
1
21
Screw M10*25L
1
59
Guiding Wheel L
1
22
Belt Pin 6*6*30L
1
60
Guiding Wheel R
1
23
Mesh
1
61
Wheel Shaft
2
24
U shape clip
6
62
Screw M8*65L
2
25
Stainless Screw M4*12L
6
63
Rubber Pad
2
26
Pulley
1
64
Screw M6*1.0*12L
8
27
Magnet
2
65
Left Upright Post ( T )
1
28
Flat Washer rM8*30*3.0t
1
66
Right Upright Post ( T )
1
29
Screw M8*25L
1
67
Middle Sensor Cable
1
30
Keyway 6*6*18
1
68
Spin Shaft
4
31
Lower Sensor Cable
1
69
Tension
1
32
Sensor Mounting
1
70
Screw M5*0.8*12L
5
33
Stainless Screw M4*12L
15
71
Gear
1
34
Magnet set L
1
72
Screw M4*5
1
35
Magnet set R
1
73
Left Side Handlebar
1
36
Break Mounting
1
74
Right Side Handlebar
1
37
Lower Magnet Set
1
75
Front Lower Console Bar
1
38
Screw M6*35L
5
76
Front Upper Handlebar
1
Formatted: Font color: Auto
Formatted: Font color: Auto
Formatted: Font color: Auto

10
PARTS LIST
No.
Description
Qty
No.
Description
Qty
77
Upper Sensor Cable
1
91
Right Rear Handlebar Cover 2
1
78
Console
1
92
Lower Left Rear Cover
1
80
Plastic Mesh Cover
1
93
Lower Right Rear Cover
1
81
Motor cover - top
1
94
Rear Rail Plug LeftCover
1
82
Sticker
1
95
CoverRear Rail Plug Right
1
83
Motor cover - up
1
96
Step On Cover
2
84
Screw M5*16L
4
97
Upright Cap L
1
85
Screw M4*16L
14
98
Upright Cap R
1
86
Motor cover - Left
1
99
Flat Washer M4*12*1.0
4
87
Magnet Bracket Cover
1
100
Left upright post cover - lower
1
88
Left Rear Handlebar Cover 1
1
101
Left upright post inside cover -
lower
1
89
Left Rear Handlebar Cover 2
1
102
Right upright post cover - lower
1
90
Right Rear Handlebar Cover 1
1
103
Right upright post inside cover -
lower
1

11
HARDWARE & TOOLS PACK
4mm Allen Wrench
1 PC
8mm Allen Wrench
1 PC
6mm Allen Wrench
1 PC
5mm Allen Wrench
1 PC
Double Wrench
1 PC
(50) Screw M5x10L
2PCS
(51) Screw M6x12L
4PCS
(55) Screw M5x12L
6PCS
(52) Screw M10x25L
8PCS
(54) Screw M6x12L
4PCS
(53) Screw M8x16L
44PCS
(56) Flat Washer M10
8PCS
Screwdriver
1 PC
Silicone Oil
1 PC

12
ASSEMBLY
Step 1
1a. Installing the Right Upright Post: Attach the Middle Cable Mounting Bracket (48) onto the
Main Frame (1) and tighten with two Screws (50) using the Screwdriver provided. See Fig. A.
1b. Installing the Right Upright Post: Lift up the Right Upright Post (66) and SLOWLY slide it
onto the Main Frame (1). Tighten the Right Upright Post (66) with four Screws (53) and four Flat
Washers (56) using the 6mm Allen Wrench provided.
(50) Phillips Screw
2 PCS
Hardware:
Screwdriver
1 PC
Tool:
6mm Allen Wrench
1 PC
(53) Screw
4 PCS
(56) Flat Washer
4 PCS
This Treadmill weights more than 44 lbs., two people are
required for the assembly of this treadmill.
WARNING: Part 66 and
Part 1 are connected by
part 48 when pulled out of
the box. Do NOT pull the
piece apart from each
other.

13
ASSEMBLY
Step 2

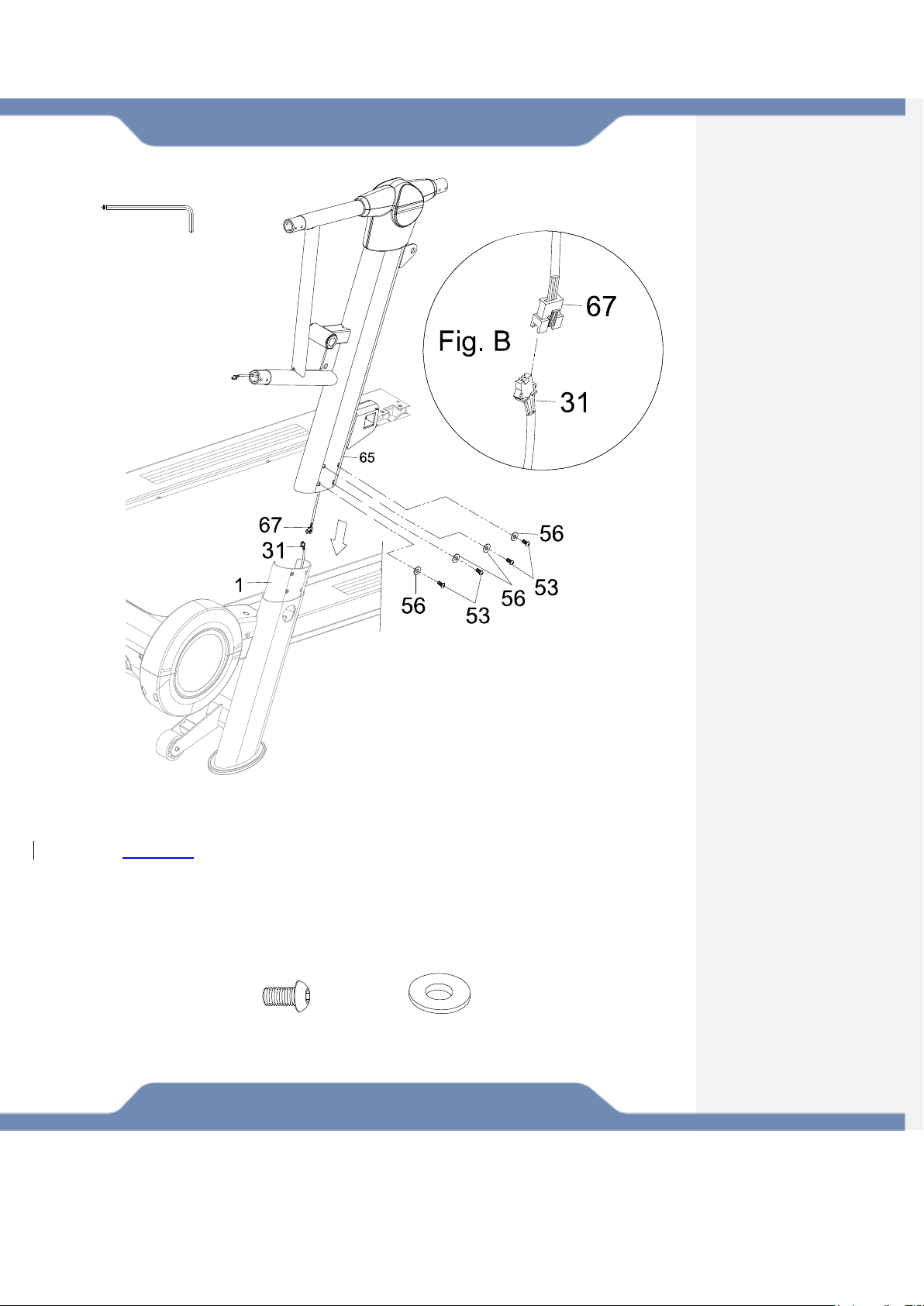

2a. Connecting the Sensor Cable: Connect the Lower Sensor Cable (31) to the Middle Sensor
Cable (67). See Fig. B
2b. Installing the Left Upright Post: SLOWLY slide the Left Upright Post (65) onto the Main
Frame (1). Tighten the Left Upright Post (65) with four Screws (53) and four Flat Washers (56)
using the 6mm Allen Wrench provided.
6mm Allen Wrench
1 PC
Tool:
(53) Screw
4 PCS
(56) Flat Washer
4 PCS
Hardware:

14
ASSEMBLY
Step 3
3a. Installing the Right Right Rear HandlebarSide Handlebar: Attach the Right Right RearSide
Handlebar (74) onto the Right Upright Post (66) and the Main Frame (1). Tighten the Right
Right Rear HandlebarSide Handlebar (74) to the Right Upright Post (66) with four six Screws
(53) using the 6mm Allen Wrench provided.
Tighten the Right Right Rear HandlebarSide Handlebar (74) to the Main Frame (1) with four Hex
Bolts (52) using the Double Wrench provided.
6mm Allen Wrench
1 PC
Tool:
Double Wrench
1 PC
(52) Hex Bolt
4 PCS
(53) Screw
6 PCS
Hardware:

15
ASSEMBLY
Step 4

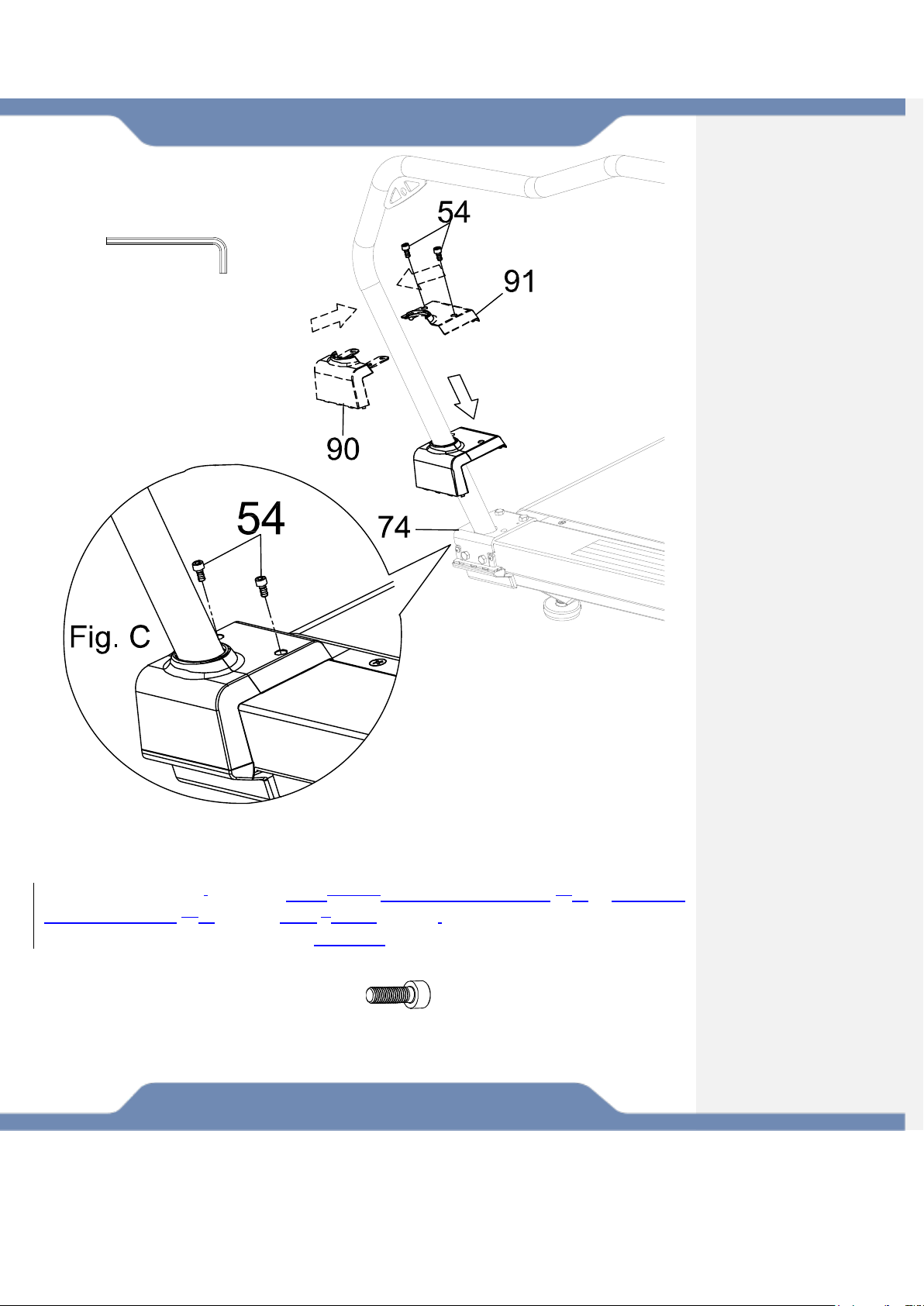

4a. Installing the Cover : Attach the Right Covers Rear Handlebar Cover 1 (9190) & Right Rear
Handlebar Cover 2 (9091)onto the Right HSide Handlebar (74) and tighten with two Screws (54)
using the 5mm Allen Wrench provided. See Fig. C
5mm Allen Wrench
1 PC
Tool:
Hardware:
(54) Screw
2 PCS

16
ASSEMBLY
Step 5

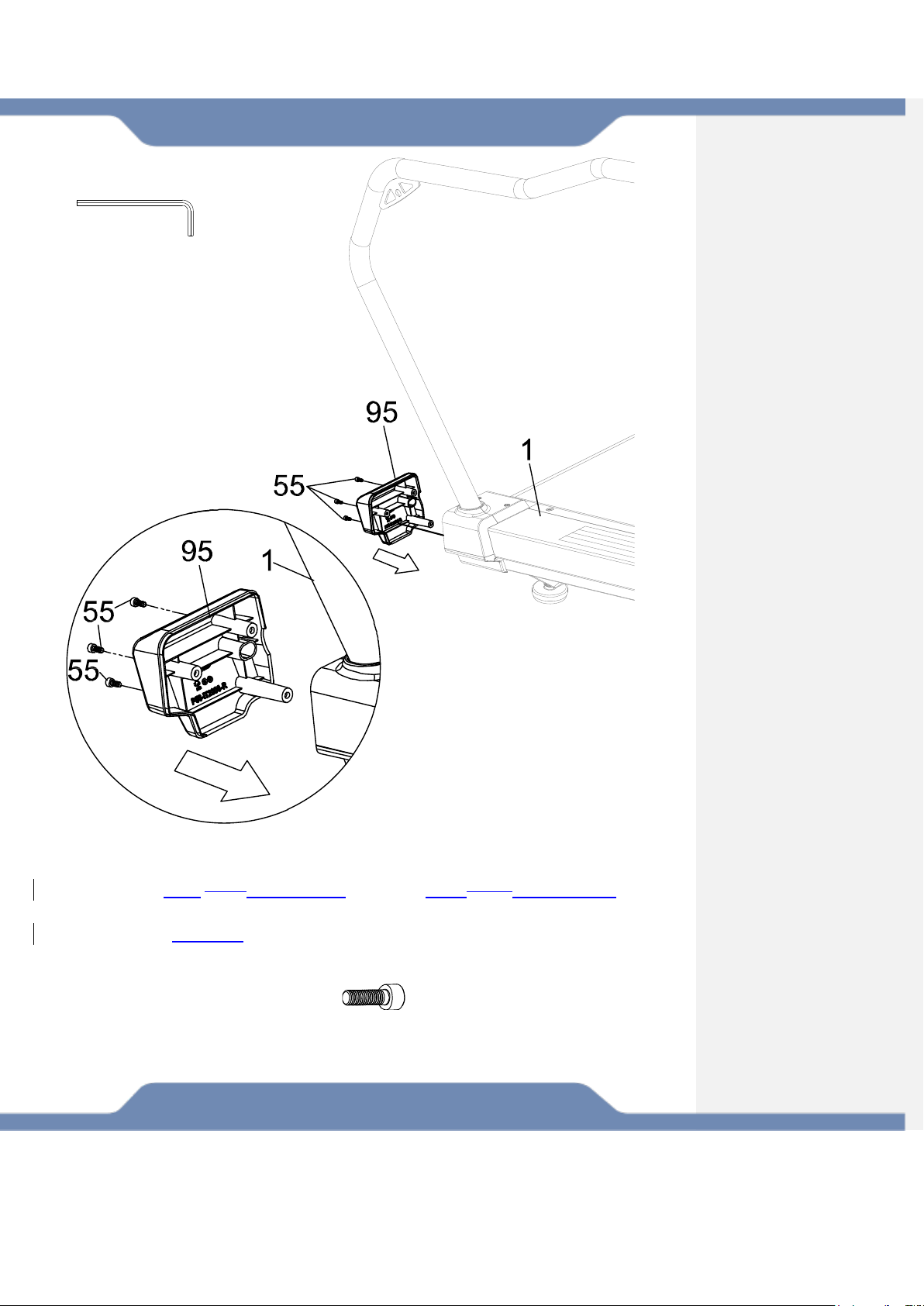

5a. Installing the Right CoverRear Rail Plug: Attach the Right Cover Rear Rail Plug (95) onto
the rear of Right side of the Main Frame (1). Tighten with three Screws (55) using the 4mm Allen
Wrench provided. See Fig. D
4mm Allen Wrench
1 PC
Tool:
(55) Screw
3 PCS
Hardware:
Fig. D

17
ASSEMBLY
Step 6
6a. Installing the Left Right Rear HandlebarSide Handlebar: Attach the Left Right RearSide
Handlebar (73) onto the Left Upright Post (65) and the Main Frame (1). Tighten the Left Right
Rear HandlebarSide Handlebar (73) to the Left Upright Post (65) with four six Screws (53) using
the 6mm Allen Wrench provided.
Tighten the Left Right Rear HandlebarSide Handlebar (73) to the Main Frame (1) with four Hex
Bolts (52) using the Double Wrench provided.
6mm Allen Wrench
1 PC
Tool:
Double Wrench
1 PC
(52) Hex Bolt
4 PCS
(53) Screw
4 6 PCS
Hardware:

18
ASSEMBLY
Step 7

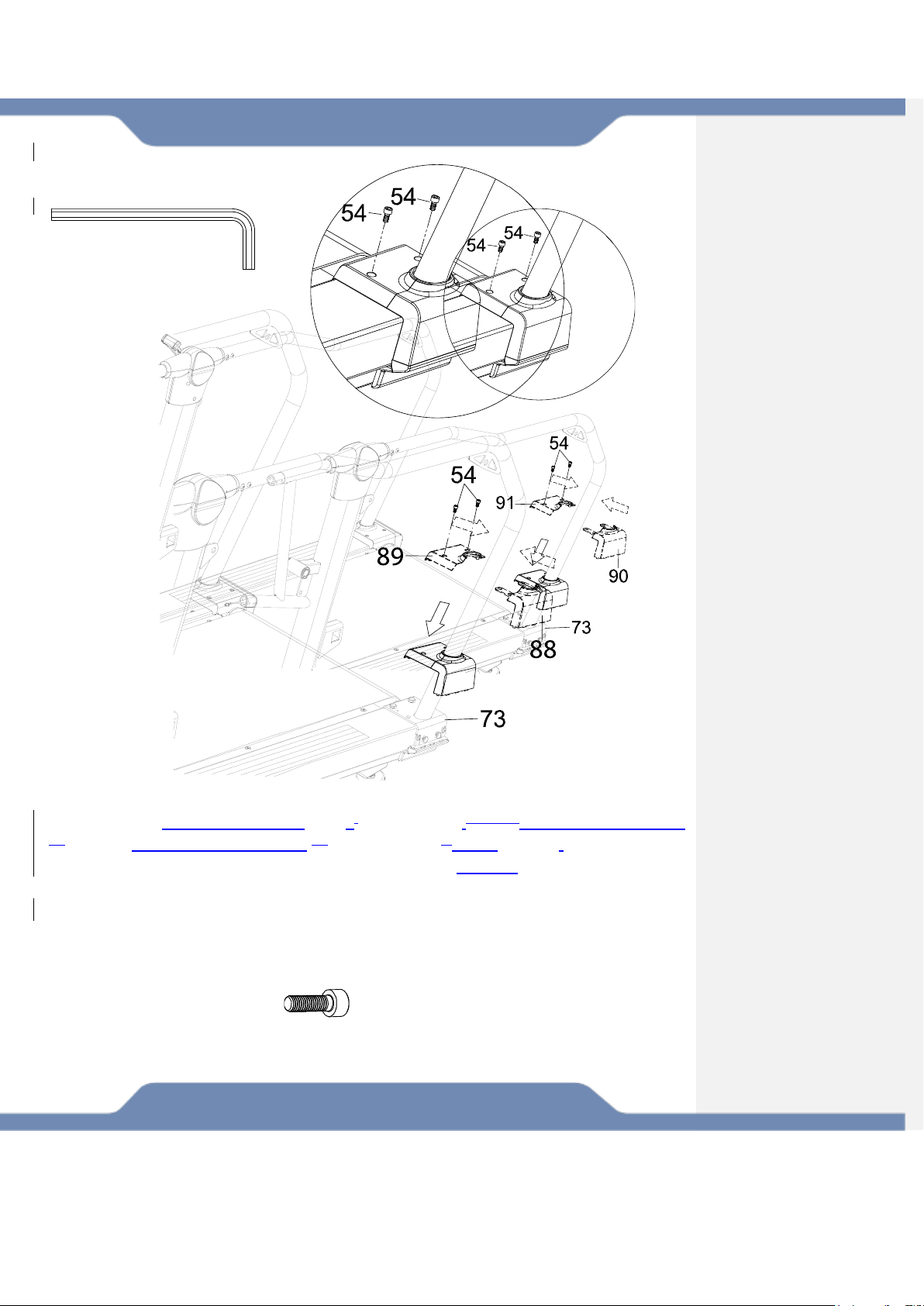

7a. Installing the Left Rear Handlebar Covers : Attach the Left Covers Rear Handlebar Cover 1
(9188) & Left Rear Handlebar Cover 2 (9089)onto the Left HSide Handlebar (73) and tighten
with two Screws (54) using the 5mm Allen Wrench provided. See Fig. E
Fig. E
Hardware:
(54) Screw
2 PCS
5mm Allen Wrench
1 PC
Tool:
