Retsch BB100 User manual

Retsch GmbH, Rheinische Str. 36, 42781 Haan, Germany Doc. No. E98.052.9999
O p e r a t i n g I n s t r u c t i o n s 
B B 1 0 0 J a w C r u s h e r

26.10.1998  Retsch GmbH 2 Doc. No .E98.052.9999
Information on these operating instructions
The present operating instructions for the Model BB 100 jaw
crusher provide all the required information on the topics
mentioned in the table of contents.
These guidelines are provided for the use of the group(s)
specified in each chapter and will ensure safe operation of the
BB 100, for the purpose for which it was intended. Familiarity
with the pertinent chapters is a prerequisite for confident,
proper utilization by the various persons who will be dealing
with the machine.
The present technical manual is designed for use both as a
reference work and as a learning guide. Each of the individual
chapters is a self-contained unit.
These operating instructions contain no information on repairs.
If repairs should ever become necessary, kindly get in touch
with your supplier or contact directly the Retsch GmbH.

26.10.1998  Retsch GmbH 3 Doc. No .E98.052.9999
Information on these operating instructions ............................2
Safety ....................................................................................4
Safety notes........................................................................4
Warnings ...........................................................................5
Repairs..............................................................................5
Confirmation......................................................................5
Technical specifications.........................................................6
Utilization as per the intended purpose ...................................6
Gap width adjustment range .................................................6
Throughput rate and ultimate fineness....................................6
Receiver drawer nominal volume...........................................6
Noise emissions..................................................................6
Electrical protection classes ..................................................6
Rated power.......................................................................6
Noise emissions..................................................................7
Equipment dimensions (approximate).....................................7
Footprint...........................................................................7
Shipping and installation........................................................8
Packing .............................................................................8
Shipping ............................................................................8
Intermediate storage ............................................................8
Standard equipment.............................................................8
Requirements for the installation site......................................9
Installation.........................................................................9
Electrical connection ...........................................................9
Operation..............................................................................10
Control elements and their use ..............................................10

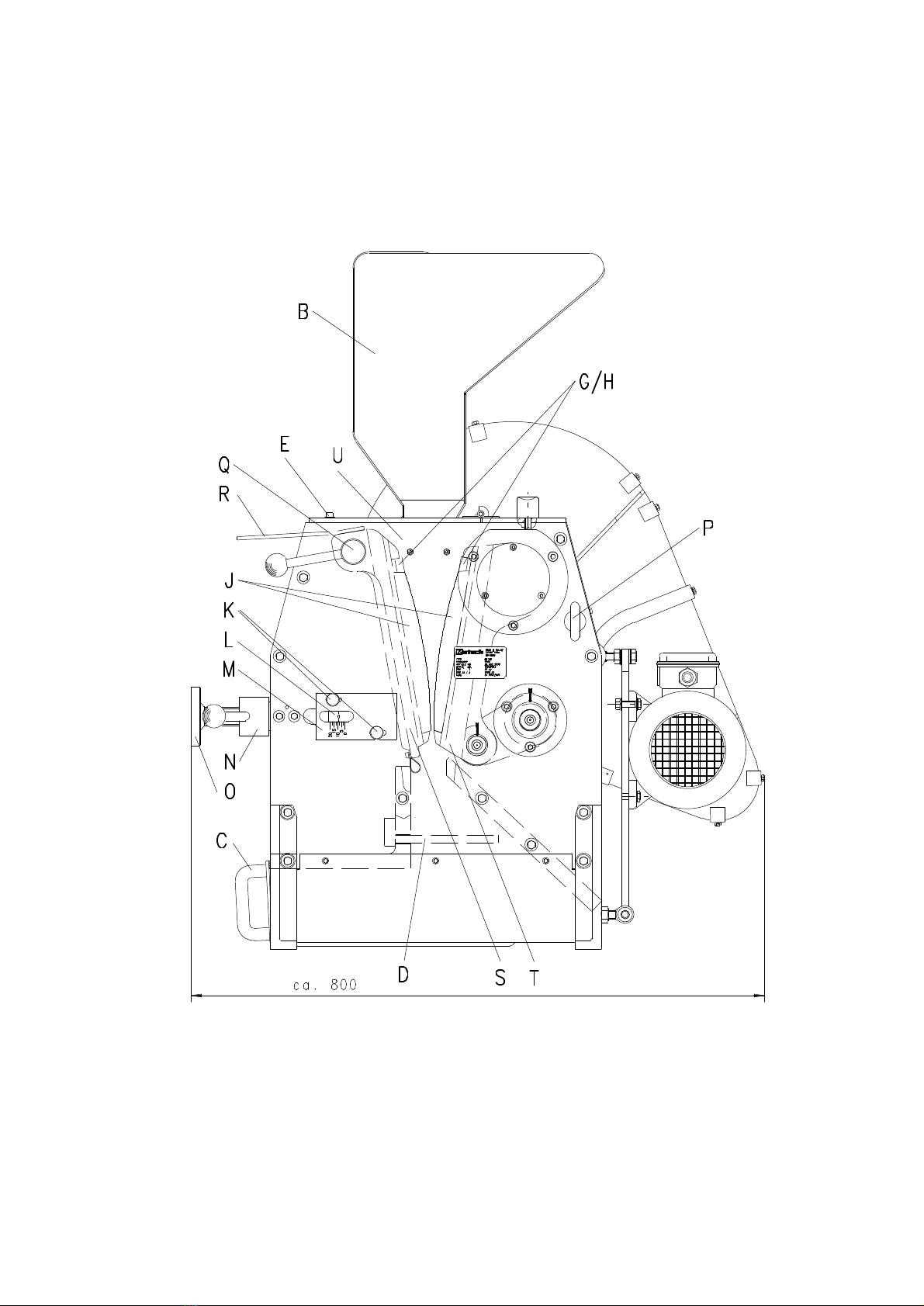

Schematic view of the operating controls , part 1: ...........10
Control elements and their use ..............................................11

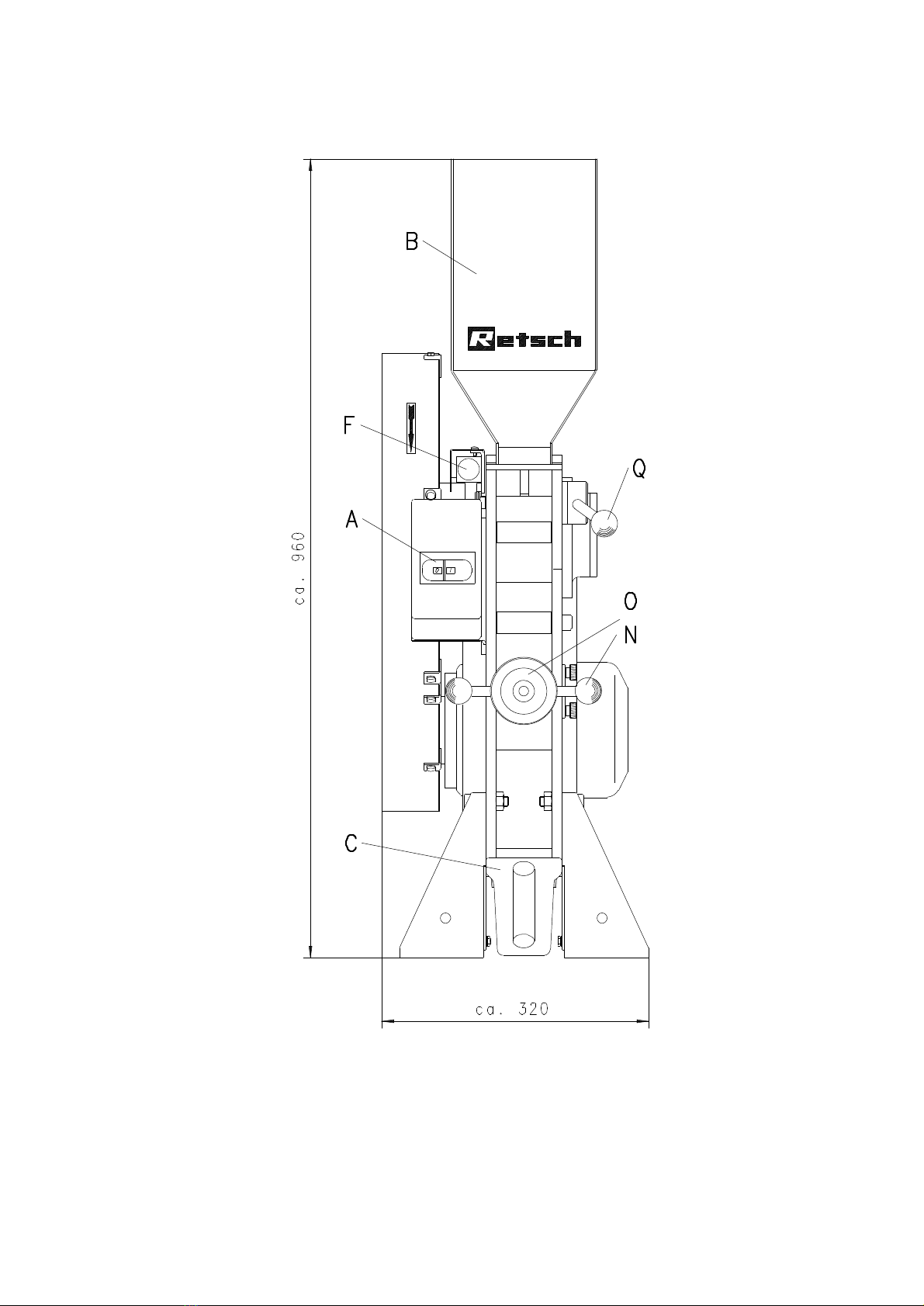

Schematic view of the operating controls, part 2: ............11
The operating controls and their functions ..............................12
Summary table ..........................................................12
Starting the BB 100 .............................................................13
Stopping the BB 100............................................................13

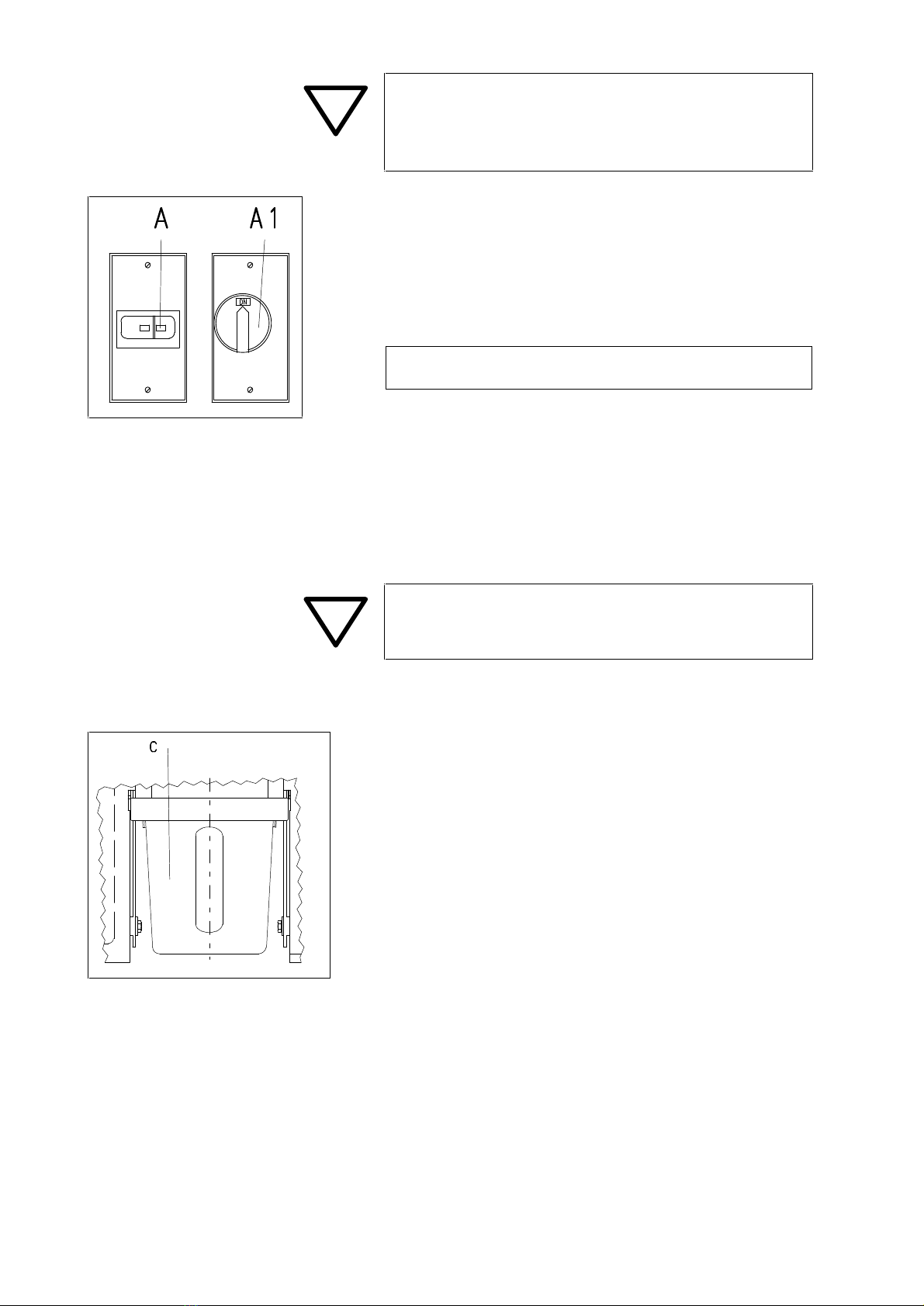

Empty the receiver drawer....................................................13

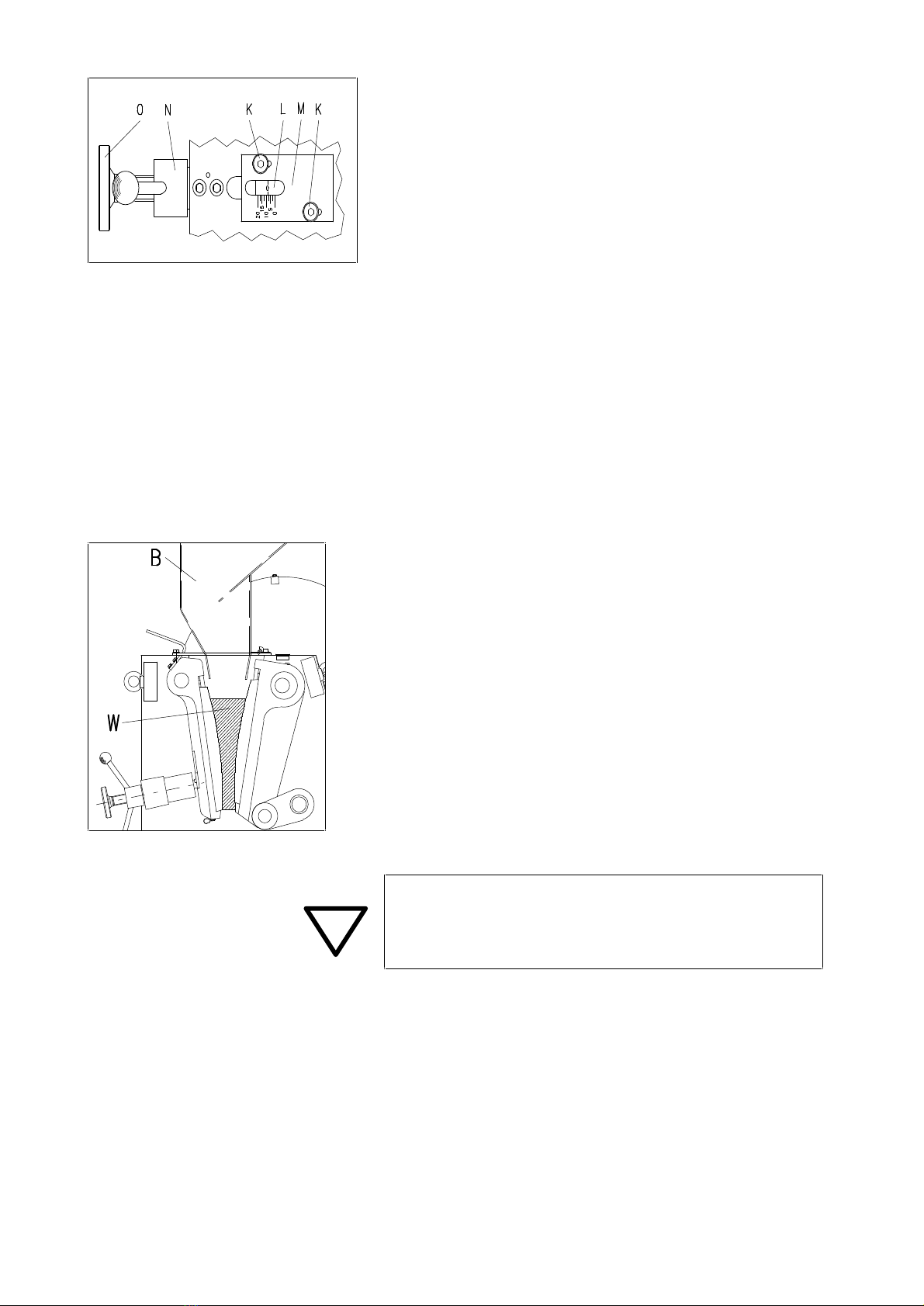

Adjust the gap width............................................................14
Adjusting the zero setting for the gap width.............................14
Fill product to be crushed ....................................................14
Working instructions..............................................................15
General .............................................................................15
Grain size of feedstock product.............................................15
Properties of the product being crushed..................................15
Fill volume ........................................................................15
General .................................................................................16
Cleaning ............................................................................16
Maintenance.......................................................................17
Functional inspections .........................................................17
Replacing the breaker jaws....................................................18
Copyright ..........................................................................18
Modifications .....................................................................18
Safety instructions (table)......................................................19
Warranty Conditions ..............................................................20

26.10.1998  Retsch GmbH 4 Doc. No .E98.052.9999
Safety
Target group: Anyone who deals with the machine in any
capacity whatsoever.
The BB 100 is a modern, high-performance product
manufactured by the Retsch GmbH, incorporating state-of-the-
art engineering. It is entirely safe in operation, provided that the
operator is familiar with the present technical manual and uses
the machine for the purpose for which it was intended
Safety notes
You as the owner/operator must ensure that the persons
entrusted with the use of the BB 100:
 have read and understand all the regulations given in the section
dealing with safety,
 have made themselves familiar with all the operating instructions
and rules for the particular target group, prior to commencing
any work,
 have complete, immediate and unrestricted access to the technical
literature for this machine.
 New personnel shall have been familiarized with the safe and
correct use of the BB 100, prior to beginning the work, by way of
instruction given by a qualified person and/or on the basis of the
present technical manual.
 Incorrect operation can result in personal injury and property
damage. You are responsible for your own safety and for that of
your employees.
 Ensure that no unauthorized persons have access to the BB 100.
For your own protection, have your workers certify in writing
the fact that they have received instruction in the operation of
the BB 100. A suggestion for a printed form which can be used
for this purpose will be found at the end of the chapter on
safety.
!
We reject herewith any and all claims in conjunction with per-
sonal injury or property damage resulting from failure to ob-
serve the following safety instructions.

26.10.1998  Retsch GmbH 5 Doc. No .E98.052.9999
Warnings
The following symbols are used to identify specific hazard po-
tentials:
!
Personal injury
Property damage
Repairs
These operating instructions do not include any repair instruc-
tions. In the interest of your own safety, have repairs made
exclusively by the Retsch GmbH or an authorized representative
(service technician).
In this case, please notify the following:
Local Retsch representative
Your supplier
The Retsch GmbH
Your address for service:
_____________________________
_____________________________
_____________________________
_____________________________
Confirmation
I have familiarized myself with the foreword to the operating in-
structions and the chapter on safety.
_______________________________________
Owner/operator signature
_______________________________________
Service technician's signature

26.10.1998  Retsch GmbH 6 Doc. No .E98.052.9999
Technical specifications
Machine designation: BB 100
Utilization as per the intended purpose
This unit is not designed as a production machine, but as as
laboratory device intended for 8 hours single shift operation.
The BB 100 is suitable for reducing substances of medium to
extreme hardness and for brittle and tough materials.
The ultimate fineness can be as little as 1 mm and, depending
on the material being processed, may be even less.
Maximum recommended grain size for feedstock product is 50
mm.
The following is a list of some of the materials which can be
crushed using the BB 100:
Bakelite // bauxite // concrete // dolomite // ores // feldspar
// granite // graywacke // glass // limestone // gravel // coal
// coke // corundum // quartz // salts // refractory clay //
slag // silicates // silicon // sintered materials // cement
clinker, etc.
Do not make any modifications to the machine and use only RETSCH
approved spares and accessories.
Failure to comply will invalidate the CE declaration and
guarantee.
Gap width adjustment range
From 0 to about 20 mm using a threaded spindle
Throughput rate and ultimate fineness
The performance data, throughput rate and ultimate degree of
fineness are functions of the fracture properties and the
hardness of the product being crushed and the gap width
selected. These values can only be determined empirically.
Receiver drawer nominal volume
approx. 2000 ml
Noise emissions
Noise level at a distance of 1 m:
approx. 63 dB (A) when idling
approx. 93 dB (A) when crushing marble chips measuring
3030 mm at gap width of 10 mm.
Electrical protection classes
IP 54 for motor and overload switch
IP 65 for limit switch
Rated power
750 watts

26.10.1998  Retsch GmbH 7 Doc. No .E98.052.9999
Noise emissions
Noise measurements according to DIN 45635-31-01-KL3
Characteristic noise values are dependent on the fracturing properties of
the product beeing ground.
Examples:
Workplace-related emission value LpAeq = 84 dB(A)
Operating conditions:
Sample material: marble, grain size 40 - 50 mm
Adjusted gap width: < 1 mm
Final grain size: < 5 mm
Filling ratio of grinding chamber: approx. 65 %
or
Sound power level LWA = 104 db(A)
Workplace-related emission value LpAeq = 90 dB(A)
Operating conditions:
Sample material: marble, grain size 40 - 50 mm
Adjusted gap width: < 1 mm
Final grain size: < 5 mm
Filling ratio of grinding chamber: approx. 65 %
Equipment dimensions (approximate)
Height: approx. 960 mm Width: approx. 320 mm
Depth: approx. 800 mm Weight: approx. 137 kg net
Footprint
320 mm x 800 mm; no safety clearances required!

26.10.1998  Retsch GmbH 8 Doc. No .E98.052.9999
Shipping and installation
Target groups: Owner, freight forwarder, operators
Packing
The type of packaging used has been selected in accordance
with the shipping mode. It complies with generally accepted
packaging guidelines
Please retain the packaging for the duration of the
guarantee period since, in case of a claim, returning in
unsuitable packaging can jeopardize your guarantee
entitlements.
Shipping
In preparation for shipping the BB 100, attach lifting tackle only
at the eye bolts provided for this purpose.
Refer to the section on operating controls and operation.
The BB 100 shall not be subjected to impact or vibration
during transportation; it shall not be thrown. The
electronic and mechanical components could otherwise be
damaged.
Temperature fluctuations
In case of wide temperature fluctuations (during shipment
by air, for instance) the BB 100 will have to be protected
against condensation; the electronic components could
otherwise be damaged.
Intermediate storage
Also ensure that the BB 100 is stored in a dry place.
Standard equipment
 BB 100
 1 receiver drawer, 1 grease gun (in the receiver drawer)
 1 copy of the operating instructions
Check to ensure that the shipment is complete and includes any
accessories you have ordered separately.
Verify that the BB 100 operates correctly (see in this regard the
chapter on operation).
Notify the forwarder and Retsch GmbH immediately (with-
in 24 hours) if the shipment is incomplete or damaged.
Under certain circumstances compensation cannot be paid
for claims which are lodged later.

26.10.1998  Retsch GmbH 9 Doc. No .E98.052.9999
Requirements for the installation site
Ambient temperature:
5°C to 40°C
When the ambient temperature exceeds or falls below that
specified, the electronic and mechanical components may
be damaged, and performance data changed to an unknown
extent.
Humidity:
Maximum relative humidity 80% at temperatures up to 31°C;
linear decline down to 50% relative humidity at 40°C.
At higher humidity, the electronic and mechanical
components may be damaged, and performance data
changed to an unknown extent.
Installation site –altitude
max. 2000 m above mean sea level

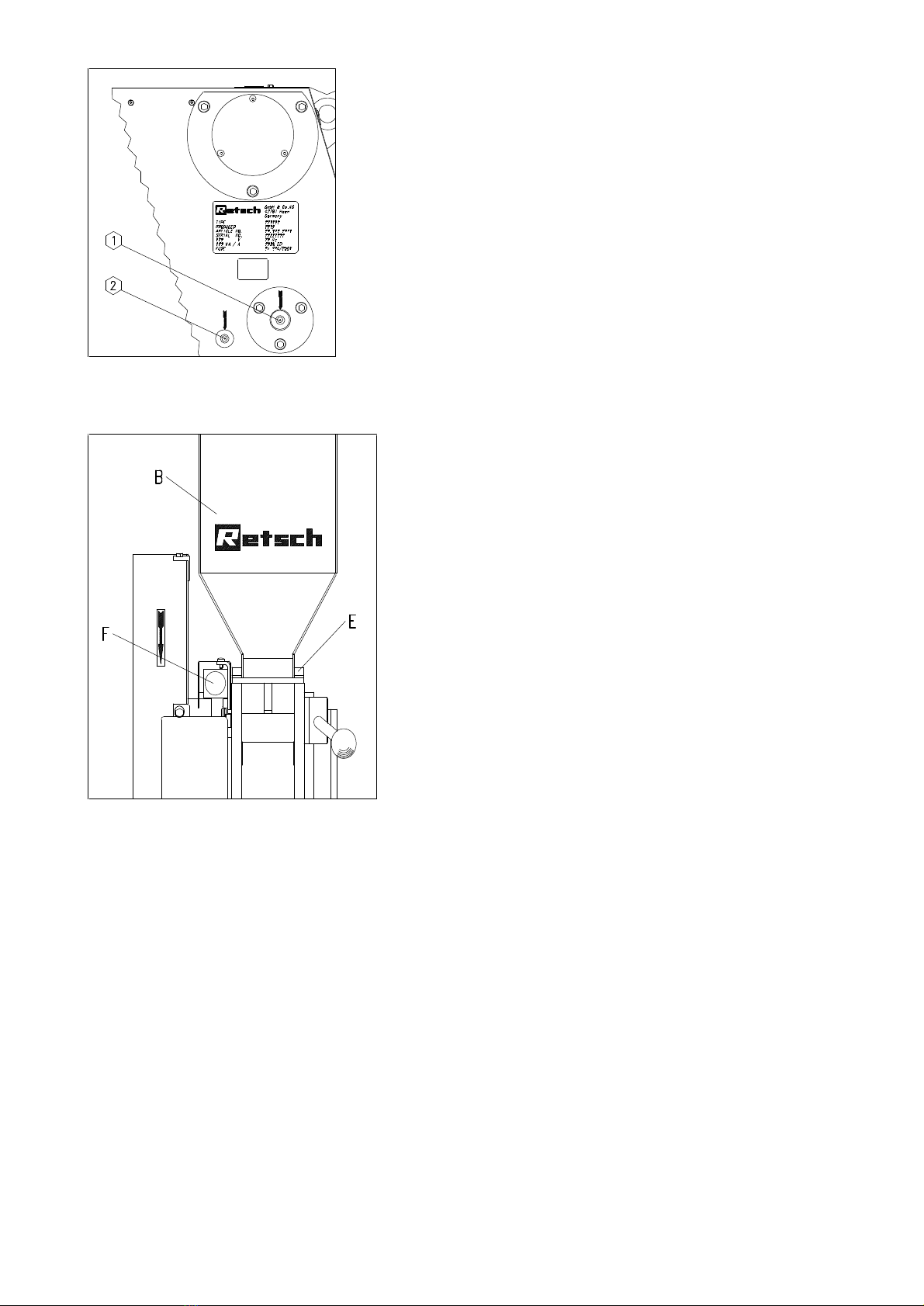

Fig. 1
Installation
Set up the BB 100 only on a solid, level surface. The jaw crusher
should be anchored to provide sufficient protection against tipping;
use the holes in the feet of the BB 100 for this purpose; see Fig. 1.
The vibrations transmitted to the environment by the free mass
moments in the BB 100 will be only barely perceptible.
Electrical connection
 Refer to the data plate for information on the voltage and
frequency at which the BB 100 is to be operated.
 Ensure that the values shown there correspond to those for the
local power supply.
 Use the supplied power cord to connect the BB 100 to the
power supply.
 When connecting the power cord to the power source, be sure
that the supply circuit is fused in accordance with local codes.
!
The BB 100 will not exhibit the degree of protection against
tipping prescribed in EN 61010 unless it is anchored to the
floor.
Components could be damaged.
Hazard of crushing arms and feet.
Failure to observe the values on the data plate can cause
damage to the electrical or the mechanical components or
both.

26.10.1998  Retsch GmbH 10 Doc. No .E98.052.9999
Operation
Target group: Operators
Control elements and their use

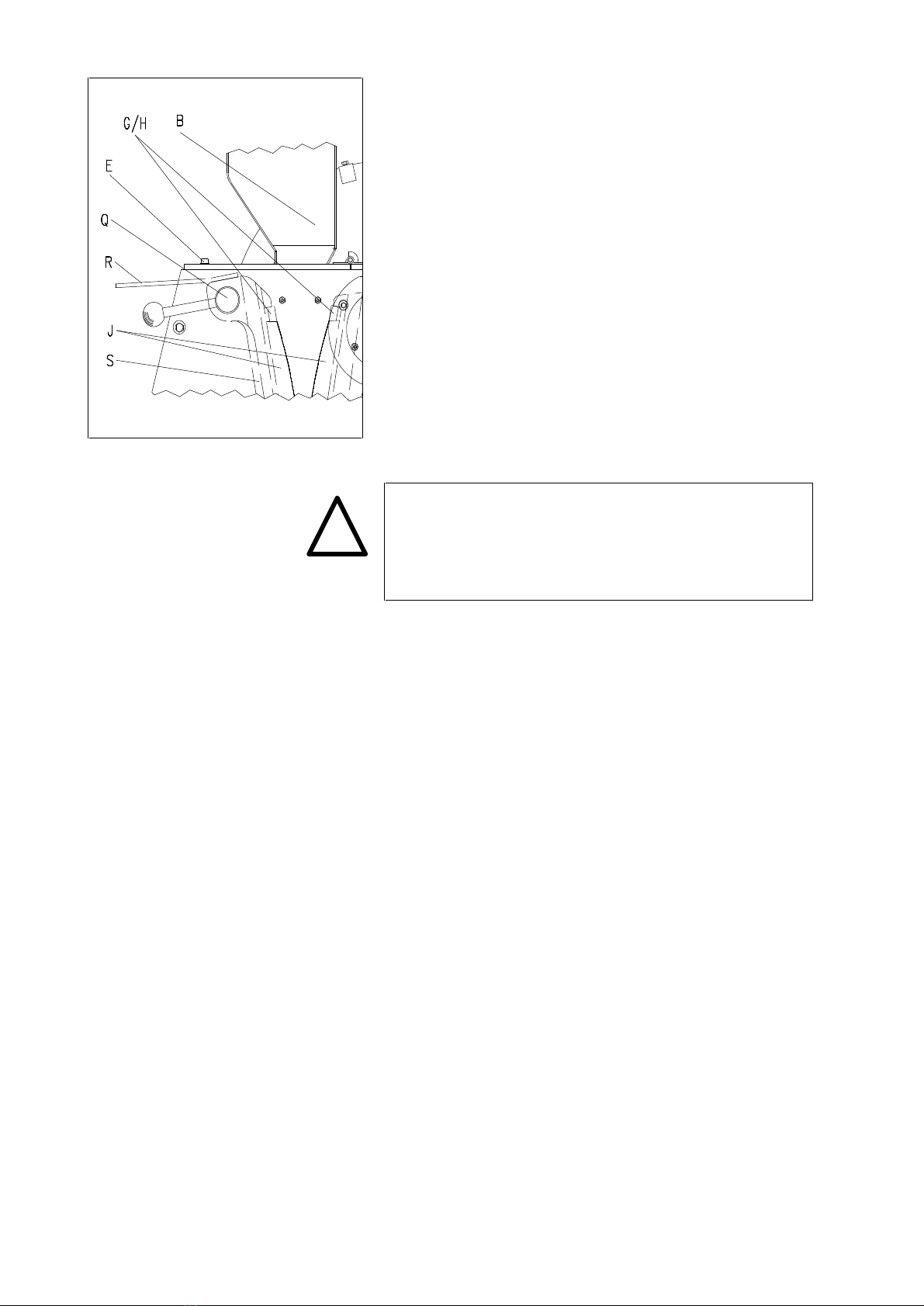

Schematic view of the operating controls , part 1:
Side view
