Revo RH16NVR1 User manual

Network
Video
Recorder
Quick Guide
RH16NVR1

2
Safety Precautions
Important Safeguards
1. Read Instructions
All the safety and operating instructions should be read before the
appliance is operated.
2. Retain Instructions
The safety and operating instructions should be retained for future
reference.
3. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not use
liquid aerosol cleaners. Use a damp soft cloth for cleaning.
4. Attachments
Never add any attachments and/or equipment without the approval of the
manufacturer as such additions may result in the risk of fire, electric shock
or other personal injury.
5. Water and/or Moisture
Do not use this equipment near water or in contact with water.
6. Ventilation
Place this equipment only in an upright position. This equipment has an
open-frame Switching Mode Power Supply (SMPS), which can cause a
fire or electric shock if anything is inserted through the ventilation holes on
the side of the equipment.
7. Accessories
Do not place this equipment on an unstable cart, stand or table. The
equipment may fall, causing serious injury to a child or adult, and serious
damage to the equipment. Wall or shelf mounting should follow the
manufacturer’s instructions, and should use a mounting kit approved by
the manufacturer.
This equipment and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the equipment
and cart combination to overturn.
8. Power Sources
This equipment should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power,
please consult your equipment dealer or local power company.
9. Power Cords
Operator or installer must remove power and TNT connections before
handling the equipment.
10. Lightning
For added protection for this equipment during a lightning storm, or when
it is left unattended and unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable system. This will
prevent damage to the equipment due to lightning and power-line surges.
11. Overloading
Do not overload wall outlets and extension cords as this can result in the
risk of fire or electric shock.
12. Objects and Liquids
Never push objects of any kind through openings of this equipment as
they may touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
equipment.
13. Servicing
Do not attempt to service this equipment yourself. Refer all servicing to
qualified service personnel.
14. Damage requiring Service
Unplug this equipment from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
A. When the power-supply cord or the plug has been damaged.
B. If liquid is spilled, or objects have fallen into the equipment.
C. If the equipment has been exposed to rain or water.
D. If the equipment does not operate normally by following the operating
instructions, adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the equipment to its normal operation.
E. If the equipment has been dropped, or the cabinet damaged.
F. When the equipment exhibits a distinct change in performance - this
indicates a need for service.
15. Replacement Parts
When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or that have the
same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards.
16. Safety Check
Upon completion of any service or repairs to this equipment, ask the
service technician to perform safety checks to determine that the
equipment is in proper operating condition.
17. Field Installation
This installation should be made by a qualified service person and should
conform to all local codes.
18. Correct Batteries
Warning: Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
19. Tmra
A manufacturer’s maximum recommended ambient temperature (Tmra)
for the equipment must be specified so that the customer and installer
may determine a suitable maximum operating environment for the
equipment.
20. Elevated Operating Ambient Temperature
If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an
environment compatible with the manufacturer’s maximum rated ambient
temperature (Tmra).
21. Reduced Air Flow
Installation of the equipment in the rack should be such that the
amount of airflow required for safe operation of the equipment is not
compromised.
22. Mechanical Loading
Mounting of the equipment in the rack should be such that a hazardous
condition is not caused by uneven mechanical loading.
23. Circuit Overloading
Consideration should be given to connection of the equipment to
supply circuit and the effect that overloading of circuits might have on
over current protection and supply wiring. Appropriate consideration
of equipment nameplate ratings should be used when addressing this
concern.
24. Reliable Earthing (Grounding)
Reliable grounding of rack mounted equipment should be maintained.
Particular attention should be given to supply connections other than
direct connections to the branch circuit (e.g., use of power strips).

3
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
FCC Compliance Statement
THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15
OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE
EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY
ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO
RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE, IN WHICH
CASE USERS WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT THEIR OWN EXPENSE.
WARNING : CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT. THIS CLASS OF DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN
INTERFERENCE CAUSING EQUIPMENT REGULATIONS.
WEEE (Waste Electrical & Electronic Equipment)
Correct Disposal of This Product
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where
and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be
mixed with other commercial wastes for disposal.
Copyright
© 2013 REVO
REVO reserves all rights concerning this operation manual.
Use or duplication of this operation manual in part or whole without the prior consent of REVO is strictly prohibited.
Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
This product contains software built partially on open-source content. Codes for the corresponding open-source content are available for download. For
more information, refer to the software CD (OpenSourceGuide\OpenSourceGuide.pdf) or the open source guide accompanying this operation manual.

4
Accessories
Upon unpackaging the product, check the contents inside to ensure that all the following accessories are included.
Item
Network Video Recorder Power Cable / DC Adapter (12V, 48V) Quick Guide
Operation Manual and REVO Remote Pro
Program CD Optical USB Mouse IR Remote Control
Assembly Screws for Adding Hard Disk Drives SATA2 Cables
Overview
Front Panel
12
1USB Ports 2LEDs
For more details on USB ports and LEDs of the front panel, refer to the operation manual.
Rear Panel
1
34 5 68
7
!
9 0
2
1Factory Reset Button 2Audio Out Port 3VGA Out Port 4HDMI Out Port
5Video In / PoE Ports 6Network Port 7Video In / Ext. Port 8Alarm Connection Ports
9RS232 Port 012V Power In Port !48V Power In Port
For more details on rear panel connections, refer to the operation manual.

5
Connections on the Rear Panel
DirectIP™ Switch
12V Power
Speaker
VGA Monitor
HDMI Monitor
Sensor
Gigabit PoE Switch
Keyboard
48V Power
Alarm
POS
REVO Remote Pro
Remote Monitoring
Camera
Camera
Network

6
Remote Control
@
!#
$%
^ (
&
) b a
c
d e f
*
3
12
4 5
6
78 9 0
1ID Button 2Panic Button
3Camera Buttons 4Status Button
5Layout Button 6PTZ Control Buttons
7Register Mode Button 8Thumbnail Button
9Calendar Button 0Keylock Button
!Setup Button @Freeze Button
#Log Button $Enter Button
%Arrow Buttons ^Alarm Button
&Sequence Button *Zoom Button
(PTZ Button )View Button
aSave Button bMenu Button
cPlayback Buttons dBookmark Button
eClip Copy Button fMute Button
For more details on remote control buttons, refer to the operation manual.
Getting Started
Setup Wizard
• Setup Wizard only appears during initial booting.
To use Wizard after initial booting, go to the system
menu and select General > Wizard.
• For more details on Setup Wizard, refer to the
operation manual.
1 Select a system language.
Quick Setup Wizard
●Start the Quick Setup Wizard
●Date/Time Setup
The new date and time
settings will only be
applied after clicking
Next.
●Record Method
Setup
●Record Video
Quality Setup
Higher recording quality
uses up more disk
space.
●Finish the Quick Setup Wizard

7
Network Setup Wizard
●Start the Network Setup Wizard
●Internet
Connection
●LAN Setup
This test must be
performed before
proceeding to the next
step.
●EZLink Setup
Enter the NVR name
registered on the
DVRNS server in the
Device Name field,
and click the Check to
check its availability.
●Finish the Network Setup Wizard
Camera Registration
Once Network Setup Wizard is complete, the system will
automatically enter Camera Registration mode and scan
for cameras connected to the NVR.
1
3
4
2
5
1Camera Scan
Button 2Camera View Buttons
3Camera List Area 4Video Display Area
5Apply/Cancel
Buttons
Camera Scan Button
Use this button to scan for and register cameras.
Pressing the Scan button displays the following
submenu:
●Rescan: Scan for DirectIP™ cameras that were not
scanned automatically.
●Go To Camera: Moves the focus automatically to the
camera using MAC address of camera in the camera
list.
●Auto Detection: Activated in Live mode. Automatically
notifies the user of unregistered DirectIP™ camera
connections.
Camera View Buttons
●ALIGNMENT Button: Realigns camera screens
displayed on the video display area in the order of
Video In port connections.
●RESET Button: Refreshes the video display area
and the camera list.
Camera List Area
Following options can be accessed by right-clicking on a
camera list entry:
●Add/Remove Camera: Adds or removes the selected
camera. The Add Camera option is inactive if the
camera has already been added to the screen.
●Authentication: Enter the necessary camera login
info. This option is inactive for DirectIP™ cameras
because they do not require logins.
Video Display Area
Left-click on the video display area to toggle between split
screen and single screen modes.
Drag the camera screens around to rearrange them.

8
Apply/Cancel Buttons
While in Camera Registration mode, select Apply to
register all changes.
Select Cancel to exit Camera Registration mode without
applying the changes.
It is not possible to register a camera that has already
been registered to a different NVR.

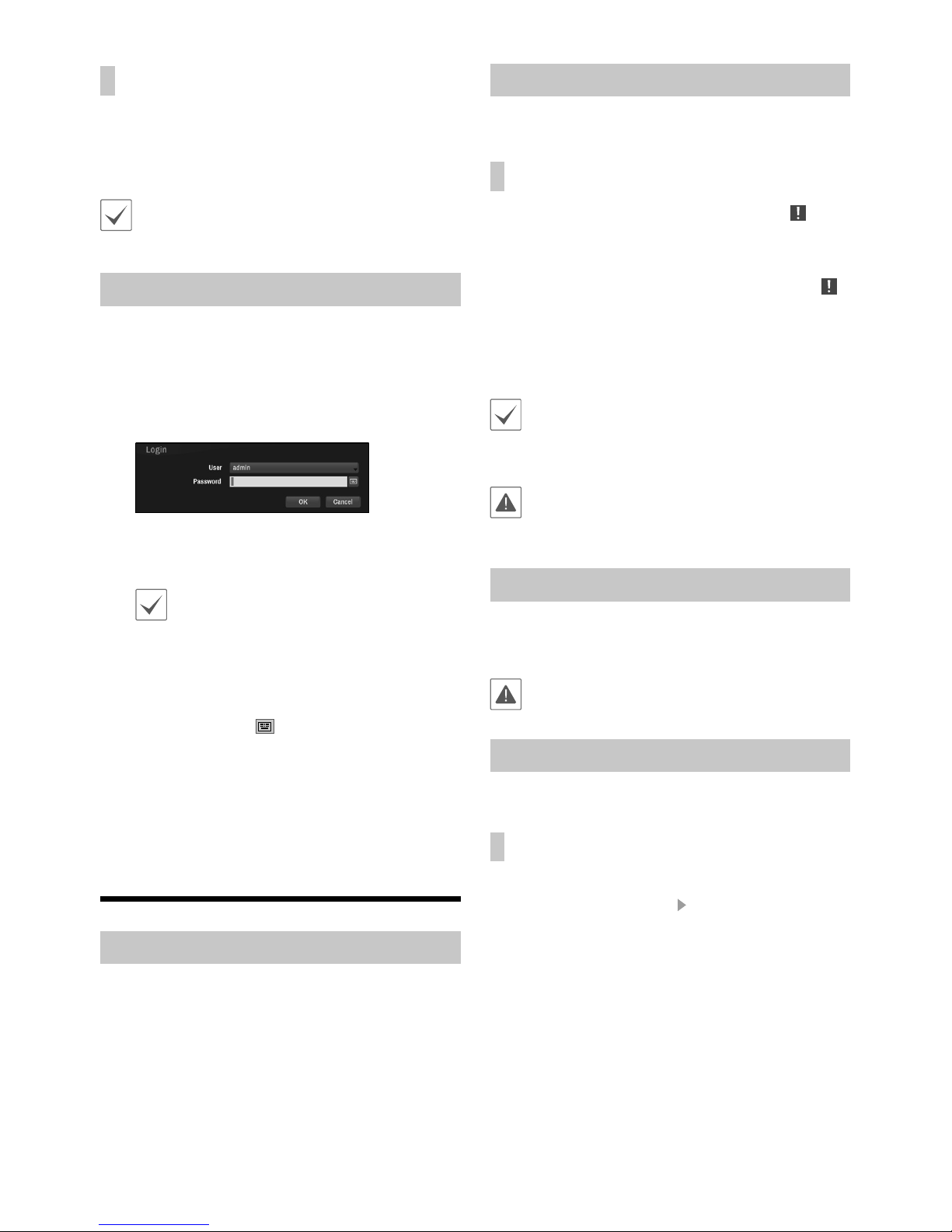

Login
Configuring the NVR's settings and accessing its
searching and other functions require an authorized user
login.
1 While in Live mode, right-click on the mouse and
select Login and either press the SETUP button on
the remote control.
2 Select a user, enter the password, and then select
OK.
• There is no default password for the admin
account. Select "admin" and then "OK"
without entering a password to log in.
• Leaving the admin account unassigned with a
password poses a security risk. Please assign
a password at your earliest convenience.
A warning message will continue to be
displayed until a password is assigned.
• Click on the button next to the password
field using the mouse. This will bring up a
virtual keyboard you can use to assign a
password.
3 To log out, right-click on the mouse and select
Logout.
Basic Feature
Live Mode
Once Camera Registration is complete, the system will
enter Live Mode.
Press the Setup button while in Live mode to bring up the
Live menu on the right edge of the screen. Press Setup
once more to hide the menu. Use the Arrow buttons on
the remote control to select the menu options.
Video Recording
Records the live video.
Refer to the Operation Manual for more information.
Panic Recording
Select Live or Search menu's Panic Recording icon
or press the Panic Recording button on the remote
control to commence panic recording on all registered
cameras.
To stop Panic Recording, select the Panic Recording
icon or press the Panic Recording button again. If the
Panic Recording Time option under Record Setup
> General has been configured, Panic Recording will
automatically terminate after the specified duration of time
has elapsed.
• Panic Recording takes place irrespective of any
recording schedule set up by the user.
• Panic Recording video profile from Record Setup –
General applies to all Panic Recording videos.
Panic Recording will not take place if recording
mode is not set to Recycle and the HDD has
reached 100% of its capacity.
Audio Recording
If the Record Audio option under Record Setup >
General has been enabled the camera will record audio
along with video.
Check your local laws and regulations on making
audio recordings.
Video Recording Playback
You can play back video recordings by using a mouse or
remote control.
All Channel Playback
1 Press the Menu button while in Live mode.
2 Select the Search Mode icon and then select
Time-Lapse Search or Event Log Search.
3 The selected search mode will be initiated.

9
REVO Remote
REVO Remote is a program that allows you to view and
search video from remote locations over the Internet
and can be accessed on a regular web browser such as
Internet Explorer.
System requirements for running REVO Remote are as
follows:
Recommended
OS
Microsoft®Windows®XP (Service Pack
3), Microsoft®Windows®Vista (Service
Pack 1), Microsoft®Windows® 7 (Home
Premium, Professional, Ultimate) or
Microsoft®Windows®8 (Pro, Enterprise)
CPU Intel Pentium IV 2.4GHz or above
(Core 2 Duo E4600 recommended)
RAM 1GB or more
VGA 128MB or more (1280x1024, 24bpp or above)
Internet Explorer
Ver. 7.0 or above (32-Bit)
• REVO Remote only works with Microsoft Internet
Explorer and will NOT work with other browsers.
• REVO Remote does not work in Microsoft®
Windows®8 metro UI.
Setup REVO Remote
1 Launch Internet Explorer and then enter the
following information in the address bar.
– http://IP Address:Port Number (NVR system’s
IP address and REVO Remote port number
configured under Network > General (Default Value:
12088))
– Or http://www.revodvr.com/NVR name (The NVR
name registered on the DVRNS server)
Contact your network administrator for the IP
address of the NVR you wish to connect to and the
REVO Remote port number.
2 When prompted with the REVO Remote login
window, select REMOTE WATCH or REMOTE
SEARCH as the desired mode. Enter the ID and
password and click LOGIN to sign in using the
selected mode. If connecting by entering www.
revodvr.com, enter the NVR’s IP address in the Device
Address field. Selecting the Use DVRNS option on
the login window allows you to enter the NVR name
registered to the DVRNS server instead of its IP
address. You will be prompted to enter the DVRNS
server’s address and port number under Setup.
REVO Remote Pro Program
System Requirements
Recommended Minimum
OS
Microsoft®Windows®7
x86 (64bit) (Home Premium,
Professional, Ultimate)
Microsoft®Windows®8
(pro, Enterprise)
Microsoft®Windows®XP
Home SP3
CPU Intel CoreTM i5-2550
3.30GHz or better
Intel CoreTM 2 Duo E7200
2.53GHz or better
RAM 2GB or more 1.5GB or more
VGA
ATI RadeonTM HD 3650 or
NVIDIA GeForce 8400GS or
better (1280x1024, 32bpp or
better), multiple monitors
ATI RadeonTM HD 2400 or
NVIDIA GeForce FX5500 or
better (1024x768, 24bpp or
better)
HDD 6GB or more of available
space
1GB or more of available
space
LAN Gigabit Ethernet or better 10/100 Mbps Ethernet or
better
• REVO Remote Pro program runs on 32-bit OS.
• On 64-bit versions of Microsoft®Windows®Vista
or later, REVO Remote Pro installs and runs in
32-bit compatibility mode.
Installation
Prior to installing the software, click on to the Windows
Start menu, open Control Panel, click on Power
Management, and set options for Turn off monitor and
Turn off hard disks as Never.
1 Please enter the software installation CD into the PC.
2 Browse to the Setup folder in the CD and run
setup.exe.
On Microsoft®Windows®Vista or User
Account Control window may pop-up.
Click Allow and follow the instructions in
the installation window to proceed with the
installation.

10
3 When the installation window appears, click Next.
4 Select an installation path for the program, and click
Next.
5 When the install confirmation window appears, click
Next.
NET Framework and Visual C++ Runtime
Libraries will be installed automatically, and it
may take a few minutes. If NET Framework
and Visual C++ Runtime Libraries are already
installed on the system, this step will be
skipped automatically.
6 When the Installation Completed window appears,
click Close and finish the installation.
Start Program
When REVO Remote Pro software is installed, REVO
Remote Pro and REVO Remote Pro Run as
administrator shortcut icons will be created on the
desktop. Run REVO Remote Pro software by double-
clicking on REVO Remote Pro or REVO Remote Pro
Run as administrator shortcut icon. If a removable
eSATA HDD or SD (SDHC) memory card are connected
to the REVO Remote Pro system, you must double-click
on REVO Remote Pro Run as administrator.
Login
This program does not have a password set by default.
Leaving the admin account unassigned with a password
poses a security risk. Please assign a password at your
earliest convenience.
Once the program is running, you must login.
Enter a User ID and Password.
●Remember my ID on this computer: Remembers
the ID used to login.
●Restore last Live sessions: Restores the previous
Live session on the current Live panel.
• Default User ID is "admin" without a password.
• You can change User ID and Password in the User
menu.
Device Registration
To use the functions provided by REVO Remote Pro, you
must first register a device and add the device to a device
group.
1 Select System > Setup > Device in the menu at
the top of the screen.
2 On the Site panel, click on All Devices, then click
on the button at the bottom of the Site List
panel on the right. A Device Scan window will
appear on the screen.
3 After selecting a scan mode, click on Start Scan
button and the scan results will be displayed on the
list.
4 Click Add Devices at the bottom of the Device
Scan window.
5 When user authentication window appears, enter
the User ID and Password set up on each device,
and then select OK for remote access.

11
6 Click Device Group on the Sites panel and click
at the bottom. Add Device Group window will
appear.
●Name: Enter a name for the device group.
●Location: Select an location for the subject
device group.
When you select a device from the device List on
the left, it will be added to the Selected Device
List on the right. Click OK to register the device
group.
7 Make sure that the device has been added to the
device group correctly. Click Device Group on the
Sites panel and click on next to Device Group.
When you click on a registered device group, a list
of devices added the selected device group will be
displayed on the right.
To modify a device group that has been registered,
select a device group and click on the bottom
of the Sites panel. Modify Device Group window
will appear. You can modify the selected device
group from this window.
Live Video Mode
1 In the Site List, make sure that the device has been
added to the device group.
2 In the panel tabs, click the Live tab. In the Site list,
select a zone you wish to connect to. Then, drag &
drop the selected site on the Live screen using your
mouse. The live video of the selected site will be
displayed on the screen.
Recorded Video Playback
1 In the Site List, make sure that the device has been
added to the device group.
2 In the panel tabs, click on the Play tab. In the Site
list, select a site you wish to connect to. Then, drag
& drop the selected site on the playback screen
using your mouse.
The recorded video of the selected
site will be displayed on the screen.
REVO Mobile
This service requires heavy data traffic, and using a
Wi-Fi connection is recommended. Using wireless
internet (3G, LTE) may result in excessive data
charges.
Android OS device
1 Open the Play Store(Google Play) on your Android
device.
2 In Play Store (Google Play), enter REVO Mobile in
the search field.
3 Install REVO Mobile program and open it.
4 The start-up menu appears when pressing the Menu
button on your mobile device.
5 Register the device by pressing Add Remote
Host and entering the device (network camera)
information.
●General: Enter a name of the device to be used
in REVO Mobile.
●Connection Info
– Use DVRNS: Select the check box. Deselect the
checkbox if DVRNS is not enabled on the device.
If the device is using an additional DVRNS
server, press Settings in the start-up menu and
enter the DVRNS server information. (Default
site: revodvr.com, Default port number: 10088).
For more details, contact your DVRNS server
administrator.

12
– Address, Watch Port: Enter the device name
used to register the device to DVRNS. If DVRNS
feature is not enabled on the device, deselect
DVRNS checkbox and enter the device’s IP
address. For port number, using the default value
is recommended.
●Accounts: Enter the User ID and Password used
to login to the device. (Default value of User ID:
admin, No default value of password)
iOS device
1 Open the App Store on your device.
2 Enter REVO Mobile in the search filed of the App
Store.
3 Install REVO Mobile program and open it.
4 Register the device by pressing + button and
entering the device (NVR) information.
●General: Enter a name of the device to be used
in REVO Mobile app.
●Connection Info: Turn Use DVRNS ON and
enter the device name used to register the device
to the DVRNS. If DVRNS feature is not enabled on
the device, turn Use DVRNS OFF and enter the
device’s IP address. For port number, using the
default value is recommended.
●Accounts: Enter the User ID and Password used
to login to the device. (Default value of User ID:
admin, No default value of password).
Specifications
These product specifications may change without prior
notice.
General
Exterior Dimensions
(W x H x D) 300mm x 61mm x 231mm
Weight (Main Unit) 2.3kg (with 2HDDs)
Weight (Packaging)
4.5kg (with 2HDDs)
Packaging Dimensions
(W x H x D) 460mm x 113mm x 360mm
Working Temperature 5°C – 40°C
Operating Humidity 0% – 90%
Power DC12V, 2.0A (NVR)
DC48V, 1.4A (PSE)
Power Consumption Max. 25W (NVR)
Max. 65W (PSE)
Certifications FCC, CE
Video
Video In 16 Network Camera
(Video In Port : 9)
Monitor Out HDMI: 1 HDMI
VGA: 1 DB15
Video Resolution 1920 x 1200, 1920 x 1080, 1680 x 1050,
1600 x 1200
Recording Speed (IPS)
240ips @ Full HD
Playback Speed (IPS) 120ips @ Full HD
I/O
Alarm In 4 TTL, NC/NO programmable,
2.4V (NC) or 0.3V (NO) threshold, 5VDC
Alarm Out 1 relay output, 2A@125VAC,
1A@30VDC (NO)
Internal Buzzer 80dB at 10cm
Network Connection 10Mbps/100Mbps/1Gbps Ethernet
Audio In Network Audio In
Audio Out 1 line Audio Out, RCA
Text In POS Interface, ATM Interface
Connector
Video In
Ethernet: 9 ports
Camera Power Out
Ethernet: 8 ports
Monitor Out HDMI: 1 HDMI
VGA: 1 DB15
Audio Out 1 RCA connector
Alarm Terminal block
Ethernet Port 1 RJ-45
RS232 Serial Port Terminal block, text insertion (POS/ATM)
IR Remote Control Port
Remote Control
USB Ports 2 x USB 2.0 (5V, less than 0.5A)
Storage
Internal Storage 2 SATA2 bays
Backup Device USB Storage Device (USB HDD, USB
Memory, etc.)
Ver. 1.0
