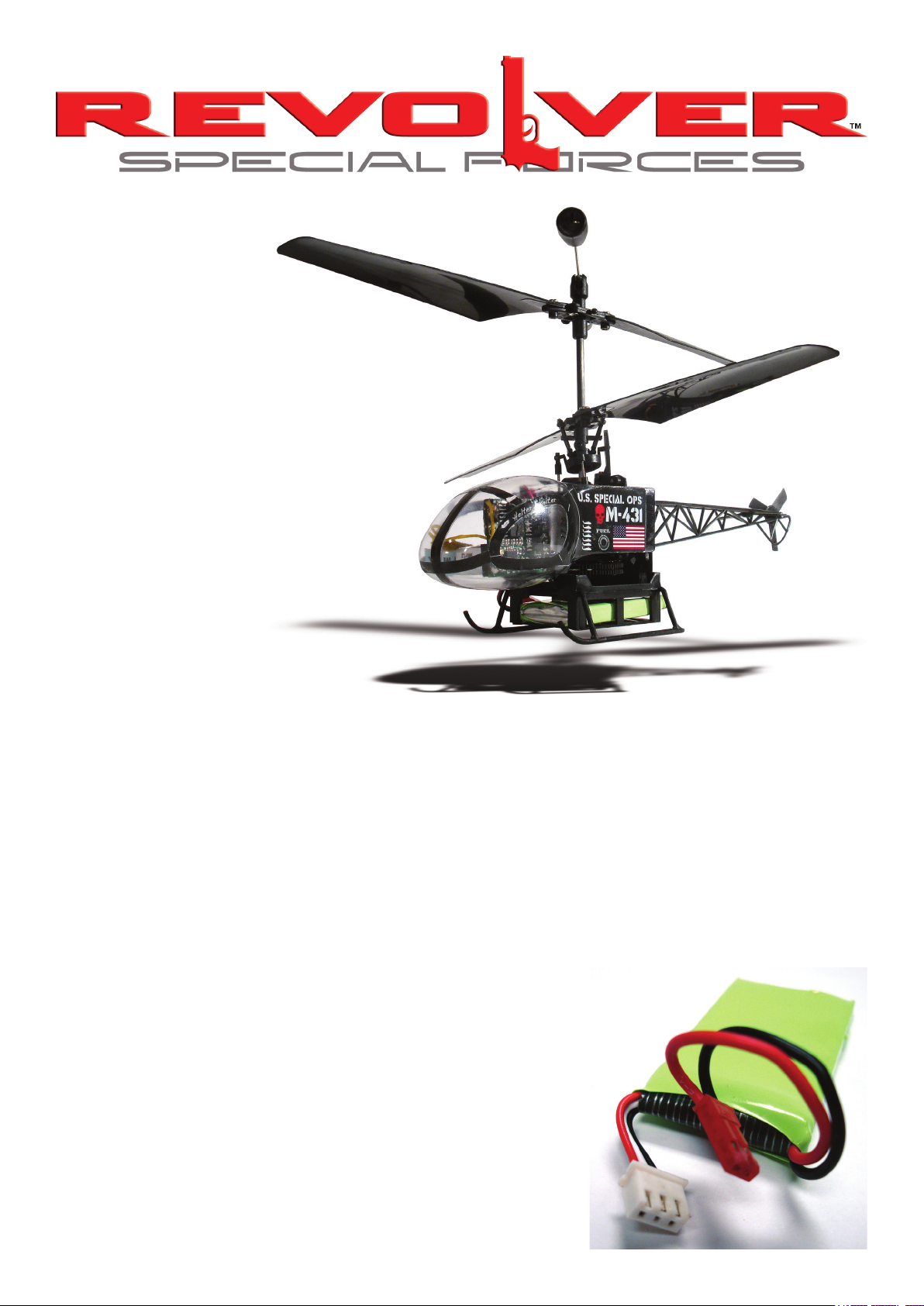

REVOLVER TRI38000 User manual

WARNING! THIS HELICOPTER USES A LI-PO
(Lithium Polymer) BATTERY PACK AND ALL
BATTERY WARNINGS AND BATTERY CARE
INSTRUCTIONS MUST BE READ BEFORE
USE.
Read these instructions and follow them in regards to safely
charging your Li-Po battery pack. The user will take the full
responsibility for using and the results of using this battery pack.
Trinity Products Inc. your point of purchase and any dealer/
distributor of this battery will assume no responsibility for the
use or misuse of this product and any damages or injuries that
may occur.
Li-Po (Lithium-Polymer) batteries are designed to out perform
Ni-Cd and Ni-MH batteries in the areas of weight, voltage and
capacity, but greater care must be taken to insure safe use in
regards to your vehicle, person and surroundings.
The nature of Li-Po batteries is the capacity and performance
gains comes at a cost in the areas of safety and maintenance.
Used correctly your Li-Po battery pack will prove to be safe and
reliable.
The Li-Po technology requires special chargers and different
ways of charging and caring for your battery pack than you
have been accustomed to with Ni-Cd and Ni-MH. More care is
required with Li-Po especially during charging and storing.
WARNING!
Li-Po batteries are unlike Ni-Cd and Ni-MH and cannot be
charged, used, treated or stored in the same manner. The
nature of the Li-Po battery pack is that the failure to follow the
care and handling instructions provided can result in severe
permanent damage to the battery pack, its surroundings, your
person and it can even start a re.
CHARGING:
• Your Trinity Li-PRO battery pack has both a RED power
plug and a WHITE charging plug. The RED plug is used for
powering your vehicle. The White plug is used for charging the
pack battery.
•Never leave
battery pack
unattended at
any time during
charging. You must
always charge
your battery pack
in a reproof
location, which
could be a metal
container like a
pail, pot or bucket
of sand. Always
keep “ABC” type
lithium approved
re extinguisher
SPECIFICATIONS:
•Upper Rotor Diameter: 260 mm
•Lower Rotor Diameter: 260 mm
•Overall Length: 300 mm
•Drive: 2 high torque electric motors
•Battery: 7.4V 350mAh Li-Po battery
•Flying Weight: 80g w/battery
•Transmitter: TRIB1071
FEATURES:
Coaxial structure effectively offers
stable ight and easy operation.
The combination of prompt servos
and 2 high torque motors ensures
various ight courses.
Adjustable servo extent and the
sensitivity of built-in gyro in the 3-in-
1 receiving circuit lets you make ne
adjustments for perfect ight.
The hi-capacity 7.4V 350mAh
Lithimum Polymer battery pack on a
fully charged cycle will offer 8 to 10
minute ight.
TRI38000

present.
• Charge only with a Li-Po compatible charger that has a
constant current/constant voltage (cc/cv) circuit, your enclosed
Trinity charger has these specications.
Never use a charger designed for Ni-Cd/Ni-MH. This will result
in catastrophic failure of the battery that can result in serious re
and personal injury. Charging the battery pack with any charger
other then the one supplied will void any warranty on the battery
packs and can result in a catastrophic failure of the battery
and cause damage to the battery, its surroundings, and cause
personal injury.
• Never charge battery while in your helicopter. A hot battery
pack could ignite foam, plastic or wood.
• Do not charge at currents greater then the battery packs 1C
rating. A higher setting may cause re. Your Trinity balanced
charger will automatically charge your battery at the correct
rate.
• Do not trickle charge your Li-Po batteries. Your Trinity charger
has no trickle mode and stops charging when the battery
becomes fully charged.
• Always use a Li-Po compatible charger that automatically
detects the number of cells. Your Li-Po pack has 2 cells. The
balancing plug will only t in the 3 cell port of your charger.
• Do not allow battery temperature to exceed 140˚F /60˚C while
charging. Batteries, which exceed these temperatures more
then likely, have become damaged and can possibly catch re.
Always inspect any battery pack than may have become over
heated and if you suspect damage do not reuse.
• Discontinue charging immediately if you see any smoke or
swelling of the battery pack. This could cause the battery pack
to rupture and leak. The chemicals used in Li-Po battery packs
on exposure to the air may cause the chemicals to ignite.
Disconnect battery and leave in a safe reproof location for 60
minutes.

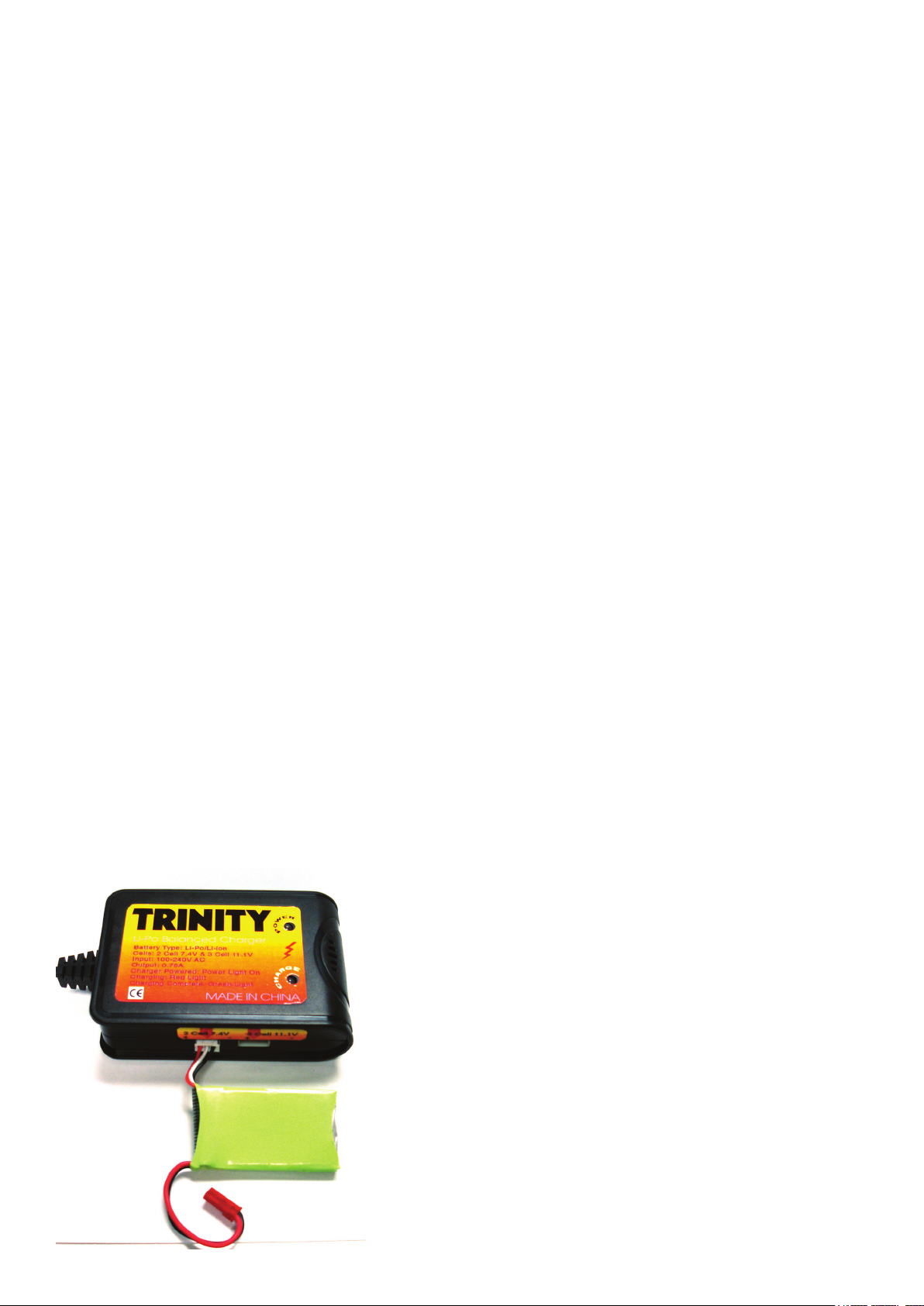

• Your Trinity Reference Li-PRO™ battery pack has a balanced
charger input. This is to be used only with a balance charger
like the (Trinity TRI22004) charger. This type of charger
balances the cells making your battery more stable and higher
performing.
• Monitor battery pack through out entire charge cycle. Do not
leave unattended.
•The small balance charger plug is used only for balance
charging. Do not fast charge through this connection.
USING & DISCHARGING:
• Make sure you stop running as soon as helicopter slows down.
With a Li-Po battery you never want to drain the battery all
the way down. Your helicopter will no longer produce lift when
battery voltage drops to point you should stop using battery.
Unplug battery pack and store it in safe area.
• Do not discharge the batteries with current exceeding
their specied maximum continuous discharge current (C),
otherwise, it will cause the batteries to overheat and result in
battery deterioration, burst, balloon or may even cause re or
explosion.
•Stop using or charging the battery immediately whenever
a battery becomes damaged, gives off an odor, becomes
discolored or deformed, starts to balloon or swell up, leaks,
its temperature reaches over 160˚F (71˚C) or anything else
abnormal occurs, disconnect the battery and observe it in a safe
re proof place.
•Never discharge Li-Po battery below the Lowest Discharge
Voltage, as it may cause irreversible damage that will
deteriorate the battery performance and cycle life. Stop using
battery as soon as vehicle slows.
• Discharge only in reproof area.
DAMAGED BATTERIES:
•Because of the nature of Li-Po technology batteries subjected
to crash damage are much more dangerous then Ni-Cd or Ni-
MH cells. The battery may appear to have no physical damage
however there could be a delayed chemical reaction which
could cause the battery to smolder, smoke and catch re even
an hour after subjected to a crash. After a crash remove battery
and place in reproof location for observation. Leave for 24
hours for safety.
•Inspect battery packs for even the smallest crack, split,
puncture or any damage to wires or connectors.
•Cells may get hot. DO NOT ALLOW the batteries electrolyte to
get in eyes or on your skin. Wash affected areas immediately.
If splashed in eyes ush with large amounts of water for 15
minutes and seek medical attention immediately.
STORAGE:
•For long-term storage charge battery fully and discharge to 50
to 60% capacity.
•Always store batteries in reproof container. Never in
helicopter.
•Store battery at room temperature in cool shaded area.
•Store battery in temperature between 40 to 75˚F.
•Store battery out of direct sunlight and away from any liquids.
Do not let battery get wet.
•Never transport batteries in your pit box or helicopter. Always

transport in reproof container.
•Make sure all plugs and connectors are covered to prevent
accidental shorting.
•Never leave your Li-Po battery pack in your full size automobile
as temperatures can easily exceed 120˚F damaging your
battery.
HANDLING:
•Never charge or discharge your Li-Po battery pack around
combustible materials.
•Never carry battery pack in pocket of clothing.
•Never store batteries near heat or open ame.
•Never allow battery to come in contact with water. If battery
becomes wet wipe off immediately with rag.
•Never solder to battery pack. Soldering to Li-Po cells has to be
done by professional Li-Po battery assemblers under controlled
conditions.
•Never assemble Li-Po battery with any other Li-Po or other
type of battery pack.
•Never disassemble, alter, modify, puncture, mechanical shock,
crash and/or short the battery, it may cause leakage, smoke
emissions, ignition, explosion and even re, which may result in
personal injury and property damage.
•Never charge without “ABC type” Lithium approved re
extinguisher readily available in case of re.
•Keep all metallic objects away form battery pack. Shorting
battery pack can cause re and personal injury.
•If battery pack becomes overheated immediately put battery in
reproof container or location until battery pack cools.
•Always make sure there is adequate ventilation around battery
pack while charging, discharging and during storage.
•Never store battery in R/C vehicle.
FIRST AID:
•Do not allow the battery packs electrolyte make contact with
eyes or skin. If this happens was affected areas with soap and
water immediately. If electrolyte comes in contact with eyes,
ush with large amounts of water for approximately 15 minutes
and seek medical attention immediately.
•If your battery leaks electrolyte, vapors or smokes do not
inhale the leaked material or fumes. Leave the area and allow
battery pack to cool and vapors to dissipate. Remove spilled
liquid with absorbent material and wash area thoroughly with
soap and water.
DISPOSAL:
•Li-Po batteries are environmentally friendly and do not need to
be recycled like Ni-Cd. Although there is no recycling required
Li-Po batteries need special care before disposing of them.
•Do not throw batteries directly in trash. There are measures
you must take to dispose of damaged and undamaged battery
packs. Throwing batteries directly in trash can result in re.
Trinity Products Inc. assumes no liability for the use
or misuse of this product. By purchasing this battery
the consumer/buyer/user assumes all liability and will
take the full responsibility for using and the results of
using this battery pack.
Trinity Products Inc. your point of purchase and any
dealer/distributor of this battery their employees or
owners will assume no responsibility for the use or
misuse of this product and any damages or injuries
to property or person that may occur from its use.
If the above terms are not agreed to please return this
battery pack to the place of purchase.
TRINITY PRODUCTS INC
47 COLONIAL DRIVE
PISCATAWAY, NJ 08854
732-562-1234
www.teamtrinity.com
TOOLS NEEDED:
Your Revolver helicopter comes completely ready to ready to race
except for 8 transmitter batteries. We recommend the following tools for
keeping your Revolver running well.
Philips miniture screwdrivers
CA type glue.
When working on your Revolver never use an electric screwdriver as
you risk stripping out the plastic parts.
WHAT’S NEEDED TO GET STARTED:
8 “AA” batteries for the transmitter.
WARNING:
The is not a toy. It is a complex combination of electronics, mechanics
and aerodynamics.
Children under 16 years old are strictly forbidden from ying the
helicopter with out adult supervision.
Always y in a clear area. Never y around other people or areas where
you may cause damage by crashing your helicopter.
Keep clear of rotor blades at all times.
When your helicopter is ying, anything that causes the rotor blades to
stop spinning will result in the helicopter crashing which could cause
damage to the battery pack and the helicopter itself.
Before ying your helicopter, please spread the upper and lower blades
and make sure the left and right blades are in line.
Notice: Please let the motors cool 10 minutes between ights,
otherwise, the motors of your helicopter will take a high risk of burning
out or may be damage.
Do Not allow any of the electrical components get wet. Do not y in the
rain or near water as water will damage the electronics, motors and
battery pack.
You should complete a successful range check of your radio equipment
prior to each new day of ying, or prior to the rst ight of a new or
repaired model.
If the helicopter gets dirty, dont use any solvents to clean it. Solvents will

damage the plastic and composite parts.
Always turn on the transmitter before plugging in the ight battery and
always unplug the ight battery before turning off the transmitter.
Never cut the receiver antenna shorter or you could lose control of the
helicopter during ight.
When ying the helicopter, please make sure that the transmitter
antenna is completely extended and is pointed up toward the sky, not
down toward the ground.
1234
Antenna
Throttle trim
Right stick/Rudder
Power switch
Aileron trim
See Fig.1
Elevatortrim
Left stick/Throttle
Rudder trim
Crystal jack
Fig.1
Antenna
Elevator trim
Right stick/Rudder
Power switch
Aileron trim
See Fig.1
Throttle trim
Left stick/Throttle
Rudder trim
Crystal jack
Cover of the
battery box
Charge jack
Mode
Mode
Transmitter Features
•4-Channel Transmitter features:
•The panel is easy to operate with multistage indication.
•Ergonomic design, easy to hold and operate.
•Switches are available for various servos. It can perform the ight actions such as
ascending, descending, forward, backward, left, right and so on.
•4 channel micro-processor encoder, PPM modulation. requires 8 “AA”s for power.
Control Identication and Function:
MODE 1
1. Left stick/Rudder. It controls your helicopter forward, left, and right. Push up to y
your helicopter forward, pull down to y backward, push leftward to y left, and push
rightward to y right.
2. Right stick/Throttle. It controls your helicopter ascending, descending, left moving
and right moving. Push up to ascend your helicopter; pull down to descend, push left
to move your helicopter left, and push right to move right.
MODE 2
1. Left stick/Rudder. It controls your helicopter forward, left, and right. Push up to y
your helicopter forward, pull down to y backward, push left to y left, and push right to
y right.
2. Right stick/Throttle. It controls your helicopter ascending, descending, left moving
and right moving. Push up to ascend your helicopter; pull down to descend, push left
to move your helicopter left, and push rightto move right.
3. Elevator trim. It controls and modies your helicopter forward and backward. Push
up to y forward, and pull down to y backward.
4. Rudder trim. The trim controls and modies your helicopter left and right.Move the
trim left to y left, and move right to y right.
5. Throttle trim. The trim controls and modies your helicopter to ascend and
descend.Push up the trim to ascend, and pull down to descend.
6. Aileron trim. The trim controls your helicopter left and right. Push the trim left and y
left, and push the trim right and y right.
7. Power switch. Turns on or off the power of the transmitter. Push up the switch to
turn on the power, and push down to turn off.
8. Antenna. Transmits the signals.
9. Crystal jack. It facilitates to alter the frequency by changing the crystal oscillator.
10. Charge jack. Charge the battery back if rechargable battery pack is used. Not
included.
11. Battery box. Please note the polarities while inserting the batteries.
Switch Identication(Fig.1)
1. Flybar paddle. Reverses the aileron servo direction.
2. Elevator. Reverses the elevator servo direction.
3. Throttle. Reverses the throttle stick direction.
4.Tail Rotor Blade. Reverses the rudder stick direction.

Receiver Identication (Fig.2)
1. CH1, connects to the aileron servo.
2. CH2, connects to the elevator servo.
3. MAIN Mo, connects to the driver motor.
4. TAIL Mo, connects to the tail motor.
5. Battery, connects the battery pack.
6. Sensitive, gyro sensitivity knob. Adjust the sensitivity
according to the hunting effect of the helicopter while ying.
Clockwise tune the knob to increase the sensitivity and
counterclockwise tune to drcrease the sensitivity., connect
the battery pack.
7. LED, LED indicates the receiving status. Quick ash
means the signal is being received; LED on means the
signal has been received; slow ash means the signal
failed to be received.
Swashplate Adjustment
1. Swashplate check. Pull down the throttle stick and
throttle trim to the lowest position, and put the elevator trim
and eileron trim in the neutral position. Check whether the
swashplate is in a horizontal level.
2. Swashplate adjustment. If the swashplate is not in a
horizontal level, adjust via the following two steps: servo
and servo bellcrank adjustmentRe-connect the battery
cable to the motor again and await the servo reposition.
After the reposition is ready, adjust the angle between the
servo bellcrank and servo linkage rod at 90 degrees (Fig.
3). Servo linkage rod adjustment. Adjust the servo linkage
rod to parallel to swashplate bottom level.

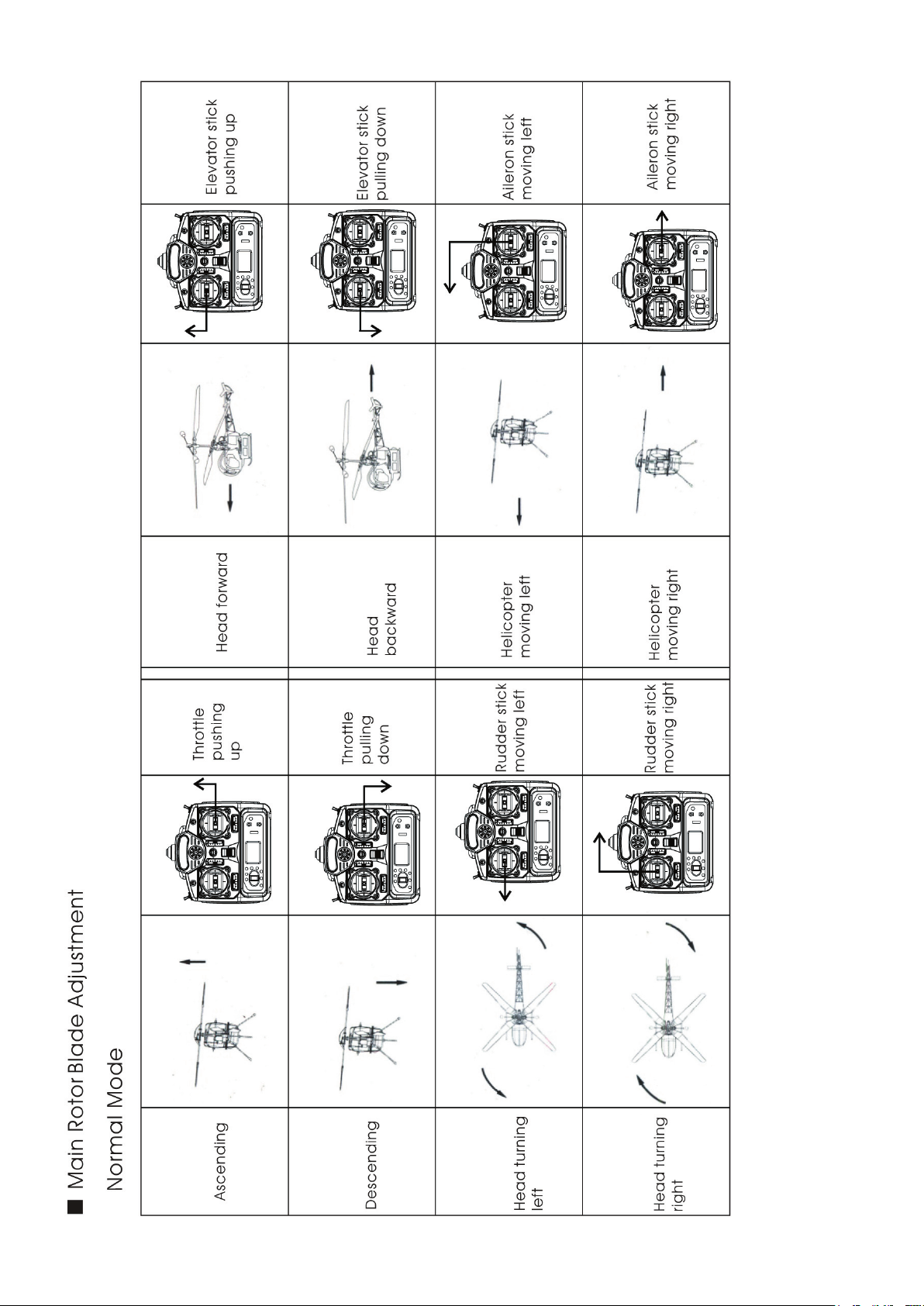

Main Rotor Blade Adjustment
1. Main rotor blade inspection.(1) Inspect whether the
xing screws of the main rotor blade are too tight or
loose.Extreme tightness or loosing of the blades will result
in instable ight. (2)Inspect the blade tracking problem.
Blade tracking will lead to instable ight.
2. Main rotor blade adjustment.(1) Keep the xing
screw of the main rotor blades not too tight or too loose.
(2)Lengthen or shorten the short ball linkage if the blade
tracking is exibited (Fig.4)

will be held for 60 days. The sender will be notied on return shipping
charges via e-mail or parcel post within 3 days. After 60 days the parts
will be discarded.
You may contact us for warranty or technical support through our e-mail
tech support address: [e-mail].
All e-mail is usually answered within 24 hours.
Limitations of Liability, Trinity Products Inc. makes no other warranties
expressed or implied. Trinity shall not be held liable for any damages to
property or person resulting in the use of this product or any accesso-
ries required to use this product.
In the act of purchasing, using or operating this helicopter, the user ac-
cepts all resulting liability. In no case shall Trinity’s liability exceed the
purchase price of the vehicle.
Trinity Products Inc. assumes no liability for the use or misuse of
this product. By purchasing this helicopter with Li-Po battery the
consumer/buyer/user assumes all liability and will take the full re-
sponsibility for using this product.
Trinity Products Inc. your point of purchase and any dealer/
distributor of this battery their employees or owners will assume
no responsibility for the use or misuse of this product and any
damages or injuries to property or person that may occur from its
use.
If the above terms are not agreed to please return this product to
the place of purchase.
TRINITY PRODUCTS INC
47 COLONIAL DRIVE
PISCATAWAY, NJ 08854
732-562-1234
www.teamtrinity.com
WARRANTY INFORMATION
Your Revolver helicopter is covered only for defects at the time of manu-
facture. Trinity has no control over usage of this helicopter or the skill of
the operator once they leave the dealer, therefore Trinity can only offer
a warranty against all manufacturer’s defects in materials, workman-
ship, and assembly at point of sale (before use). No warranties are
expressed or implied that cover damage caused by what is considered
normal use, or cover or imply how long any motor, battery or electronic
component will last before requiring replacement.
Any and all warranty coverage will not cover replacement of any part
or component damaged by crashing, neglect, abuse or improper or un-
reasonable use. This includes but is not limited to damage from crash-
ing, improper adjustment of electronics, chemical and/or water damage,
excessive moisture,improper or no maintenance, or user modications
which compromise the integrity of components.
Trinity does not pay nor refund shipping on any component sent to Trin-
ity for warranty.
All Revolver warranty issues are handled directly by Trinity Products Inc.
in Piscataway, NJ.
All warranty claims must be accompanied by original receipt UPC bar
code from the side of the box and a Warranty Authorization number.
This number is obtained by contacting Trinity at the e-mail address list-
ed below.
Trinity reserves the right to make the nal determination of the warranty
status of any component or part.
Any component sent in for warranty without the proper information
