RGBLE UT-130FHD-TR User manual

Stock Code 873117 en.rgble.com 400-1661-021
P/N: U00301
HDMI 130M
HDBT Extender with HDMI Loop out
UT-130FHD-TR
User Manual
VER 1.0

Stock Code 873117 en.rgble.com 400-1661-021 1/ 9
P/N: U00301
Thank you for purchasing RGBLE product
For optimum performance and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
Table of Contents
1. Introduction............................................................................................................. 2
2. Features.................................................................................................................. 2
3. Package Contents................................................................................................... 2
4. Operation Controls and Functions.......................................................................... 3
4.1. Panel introduction........................................................................................... 3

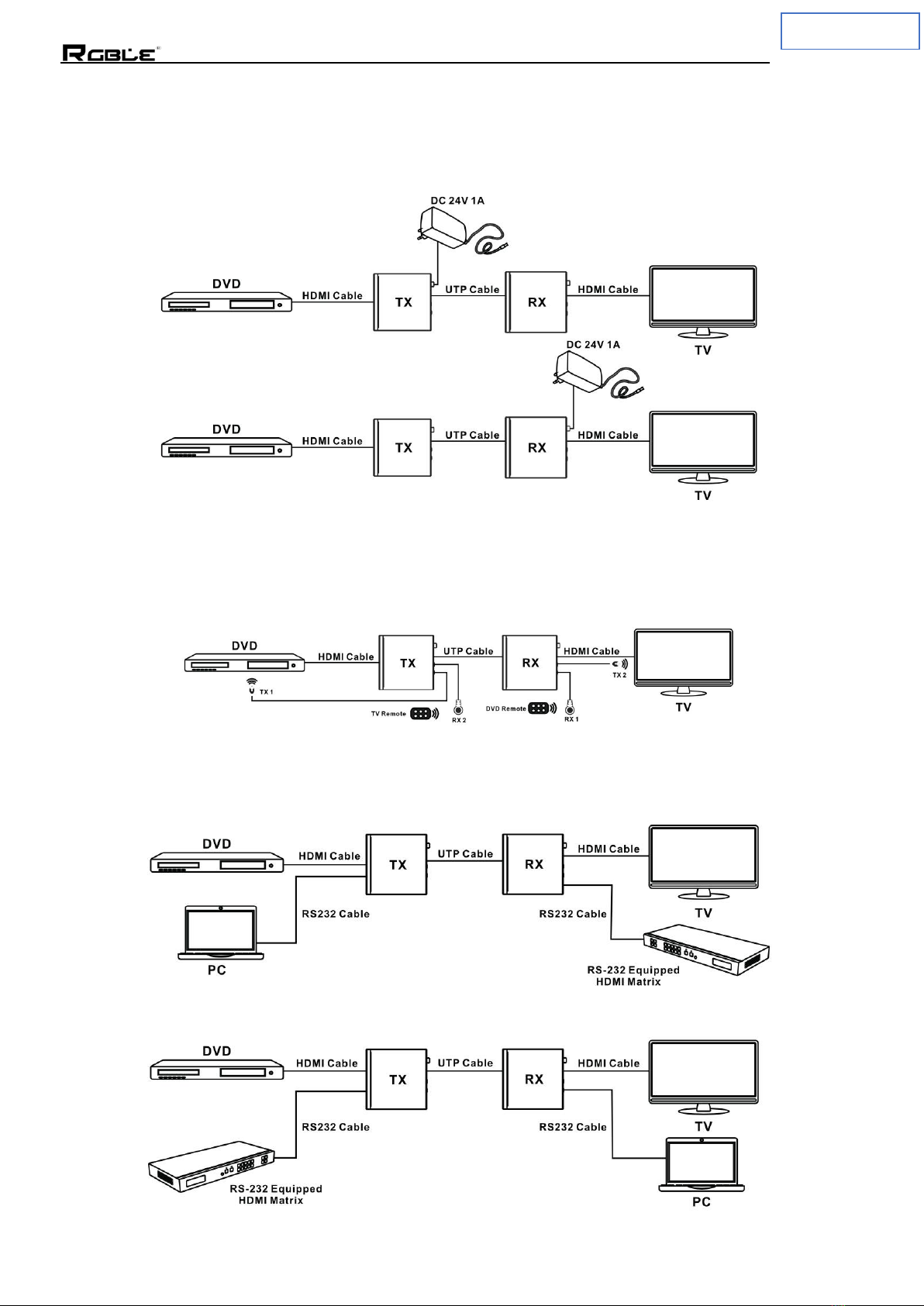

4.2. Connection diagram....................................................................................... 5
5. Specifications.......................................................................................................... 6

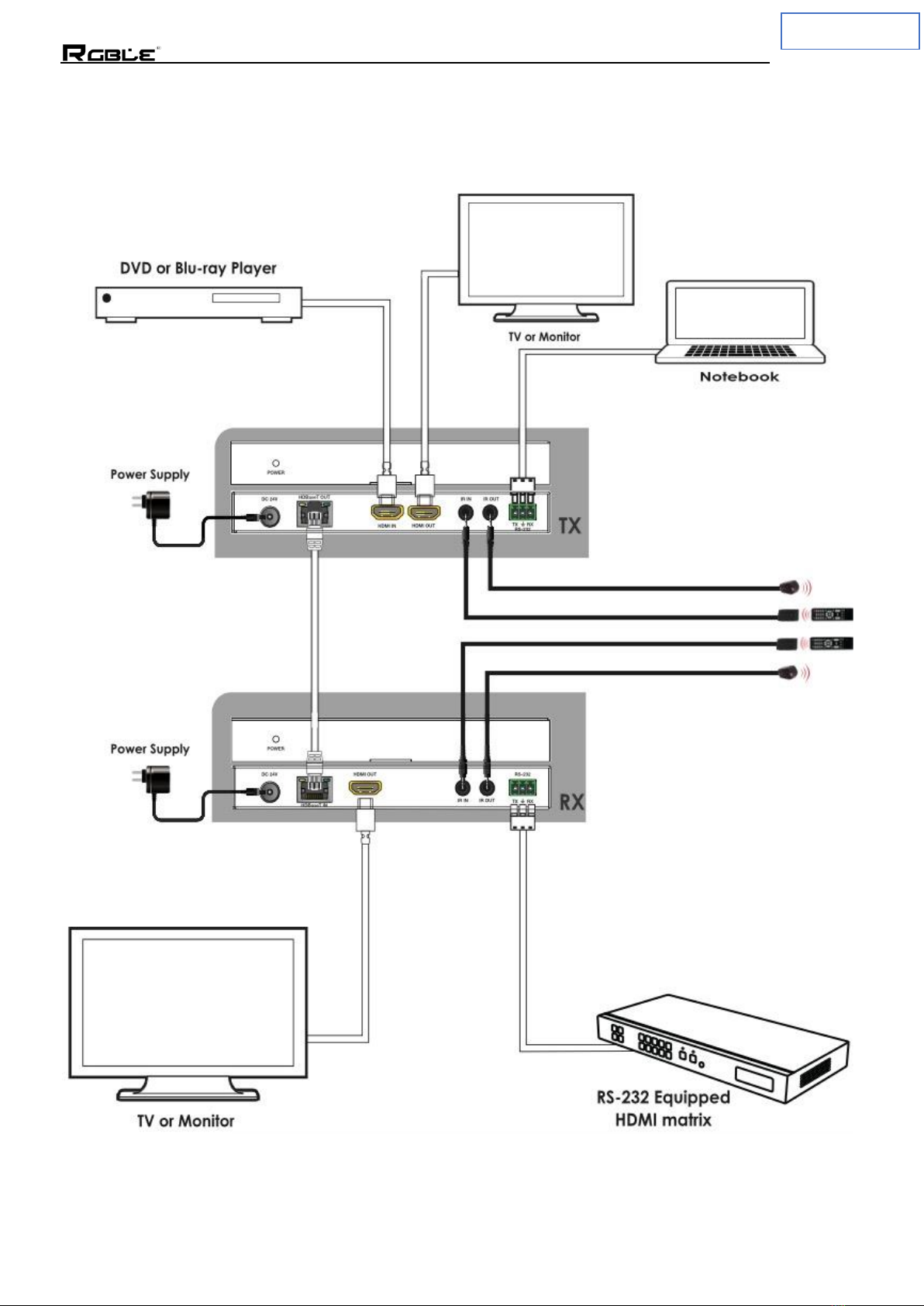

6. Connection Diagram............................................................................................... 7
Safety instructions................................................................................................... 8
Notice...................................................................................................................... 9

Stock Code 873117 en.rgble.com 400-1661-021 2/ 9
P/N: U00301
HDMI 130M HDBT Extender with Loop out
1. Introduction
The RGBLE UT-130FHD-TR HDMI HDBT Extender with HDMI Loop out can extend HDMI
signal over 427 feet/130 meters to an HDMI compatible display via single Cat5e/6 cable. It also
supports bi-directional Infrared control signal and RS-232 transmission together with HDMI
signal, it can allow you to easily control your DVD player at TV side or control your TV at the
DVD player side when using this extender.
2. Features
⚫HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant.
⚫Video resolutions up to 1080p@60Hz (YUV4:4:4).
⚫HDMI High Bit Rate (HBR) audio pass through.
⚫130 meters transmission distance over CAT6 cable.
⚫POC (Power over Cable), either TX or RX is powered by one 24V@1A power supply.
See item 4.2 Connection diagram description 1
⚫Bi-directional infrared control signal transmission.
See item 4.2 Connection diagram description 2
⚫Bi-directional RS-232 signal transmission.
See item 4.2 Connection diagram description 3
3. Package Contents
Qty
Item
1
HDMI Extender Transmitter
1
HDMI Extender Receiver
1
Wideband IR Emitter cable
1
Wideband IR Receiver cable
1
24V/1A Power Adaptor
2
Phoenix terminals (male)
4
Mounting Ears
1
User Manual

Stock Code 873117 en.rgble.com 400-1661-021 3/ 9
P/N: U00301
4. Operation Controls and Functions
4.1 Panel introduction

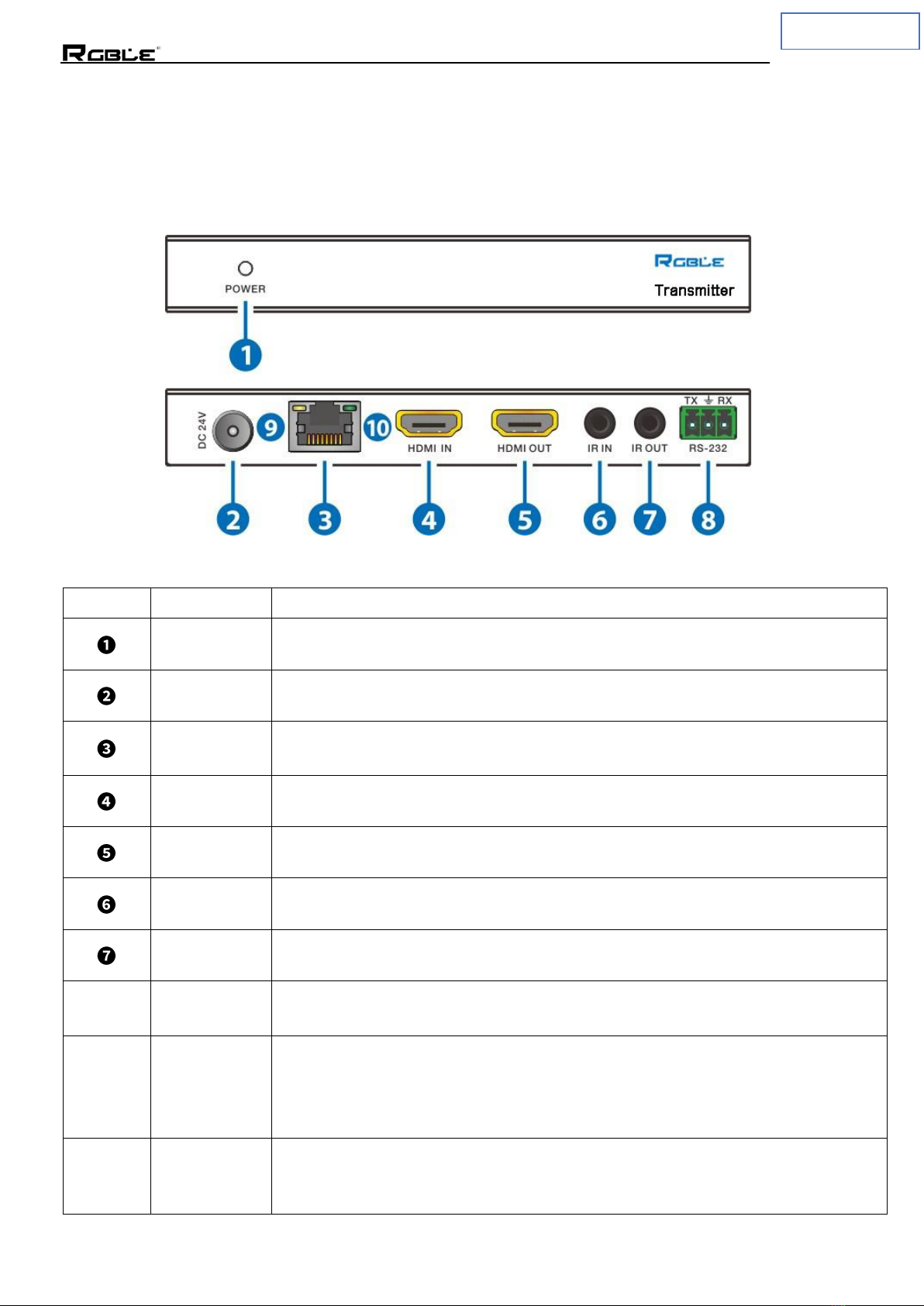

Transmitter Panel ports
Number
Name
Function descriptions
POWER
System power indicator.
DC 24V
Connect 24V/1A adaptor to AC wall outlet for power supply.
HDBT Out
Standard HDBT output port. Connect HDBT receiver with a UTP cable
following the standard of IEEE-568B.
HDMI IN
Connect to HDMI source device such as Blu- ray or PS4 player.
HDMI OUT
Connect to HDTV or monitor HDMI input port.
IR IN
Channel 2 IR Receiver. Connect to an IR receiver cable.
IR OUT
Channel 1 IR Transmitter. Connect to an IR emitter cable.
➑
RS-232
Phoenix jack provide serial port control from two-way transmission
between transmitter and receiver.
➒
Connection
Signal
Indicator
Lamp
Illuminate: The Transmitter and Receiver are in good connections
status.
Flashing: The Transmitter and Receiver are in poor connections status.
Dark: The Transmitter and Receiver are not connected.
➓
Data Signal
Indicator
Lamp
Illuminate: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal.

Stock Code 873117 en.rgble.com 400-1661-021 4/ 9
P/N: U00301
Receiver Panel ports
Number
Name
Function descriptions
POWER
System power indicator.
DC 24V
Connect 24V/1A adaptor to AC wall outlet for power supply.
HDBT IN
Standard HDBT input port. Connect HDBT Transmitter with a
UTP cable following the standard of IEEE-568B.
HDMI OUT
Connect to HDTV or monitor HDMI input port.
IR IN
Channel 1 IR Receiver. Connect to an IR receiver cable
IR OUT
Channel 2 IR Transmitter. Connect to an IR emitter cable.
RS-232
Phoenix jack provide serial port control from two-way
transmission between transmitter and receiver.
➑
Connection
Signal Indicator
Lamp
Illuminate: The Transmitter and Receiver are in good
connections status.
Flashing: The Transmitter and Receiver are in poor connections
status.
Dark: The Transmitter and Receiver are not connected.
➒
Data Signal
Indicator Lamp
Illuminate: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal.
