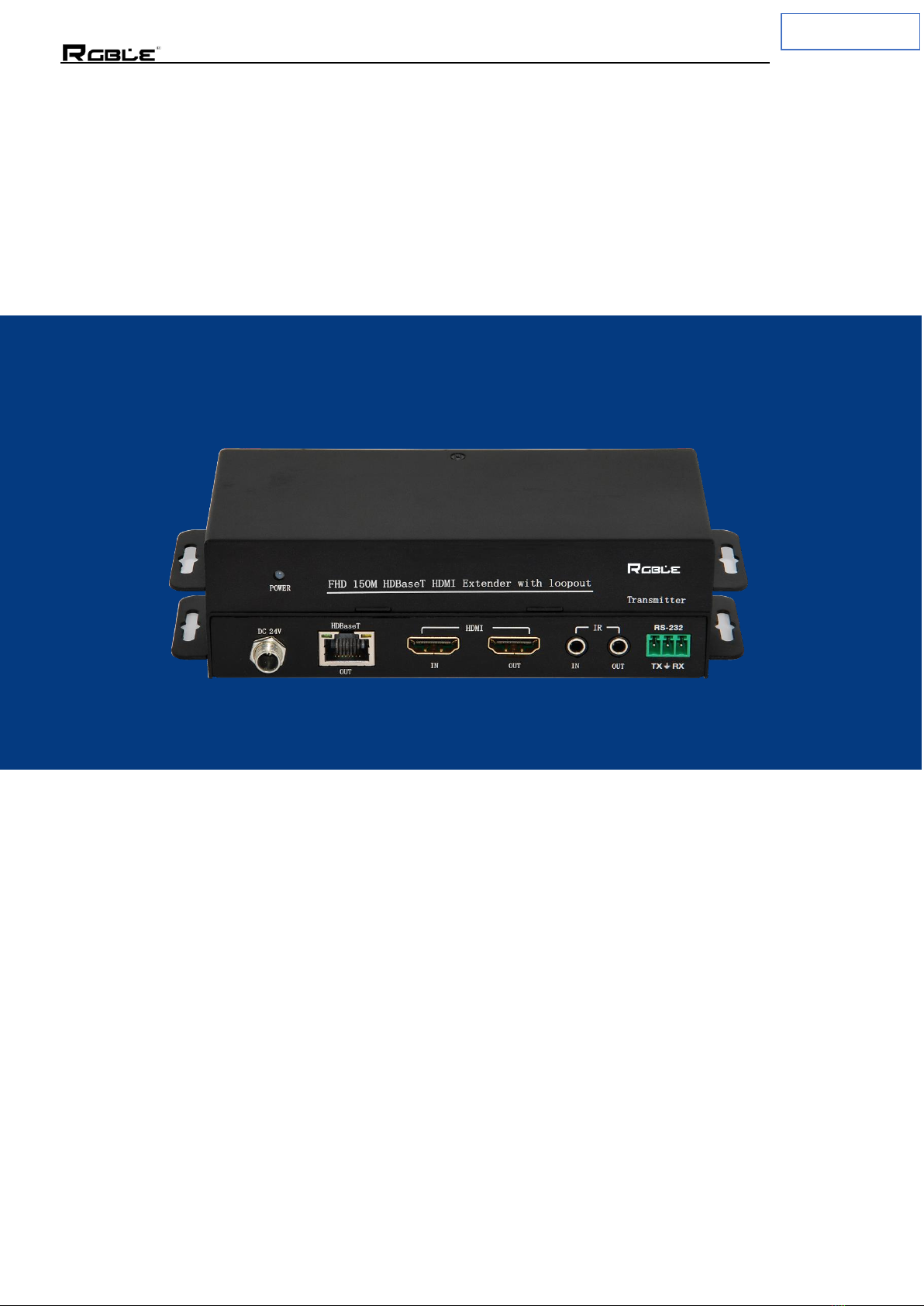

HDMI 150M HDBT Extender with Loop out
1. Introduction
The RGBLE UT-150FHD-TR HDMI HDBT Extender with HDMI Loop out can extend HDMI
signal over 500 feet/150 meters to an HDMI compatible display via single Cat5e/6 cable. It also
supports bi-directional Infrared control signal and RS-232 transmission together with HDMI
signal, it can allow you to easily control your DVD player at TV side or control your TV at the
DVD player side when using this extender.
2. Features
⚫HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant.
⚫Video resolutions up to 1080p@60Hz (YUV4:4:4).
⚫HDMI High Bit Rate (HBR) audio pass through.
⚫150 meters transmission distance over CAT6 cable.
⚫POC (Power over Cable), either TX or RX is powered by one 24V@1A power supply.
See item 4.2 Connection diagram description 1
⚫Bi-directional infrared control signal transmission.
See item 4.2 Connection diagram description 2
⚫Bi-directional RS-232 signal transmission.
See item 4.2 Connection diagram description 3
3. Package Contents
Qty
Item
1
HDMI Extender Transmitter
1
HDMI Extender Receiver
1
Wideband IR Emitter cable
1
Wideband IR Receiver cable
1
24V/1A Power Adaptor
2
Phoenix terminals (male)
4
Mounting Ears
1
User Manual

Stock Code 873117 en.rgble.com 400-1661-021 3/ 9
P/N: U00301
4. Operation Controls and Functions
4.1 Panel introduction

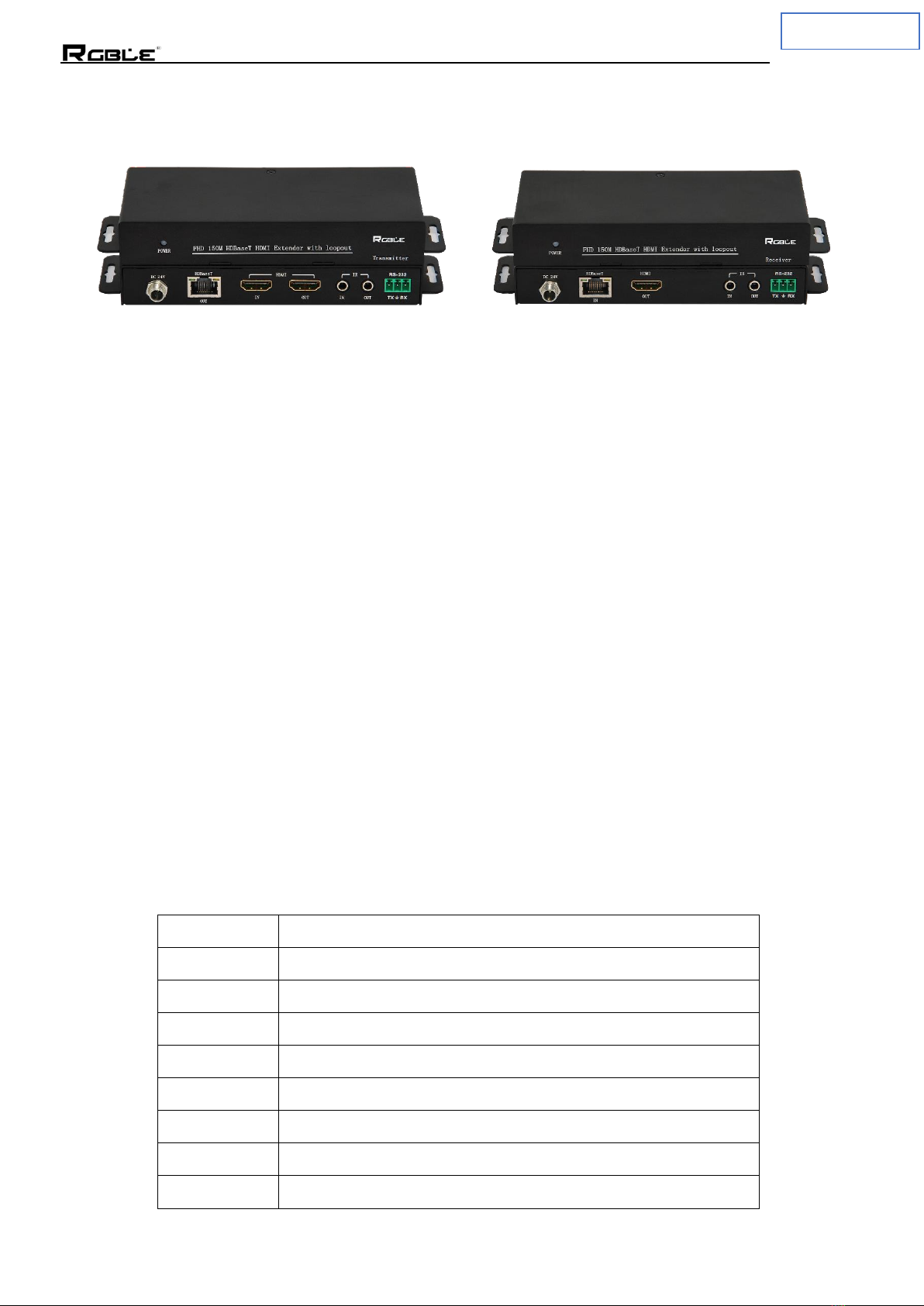

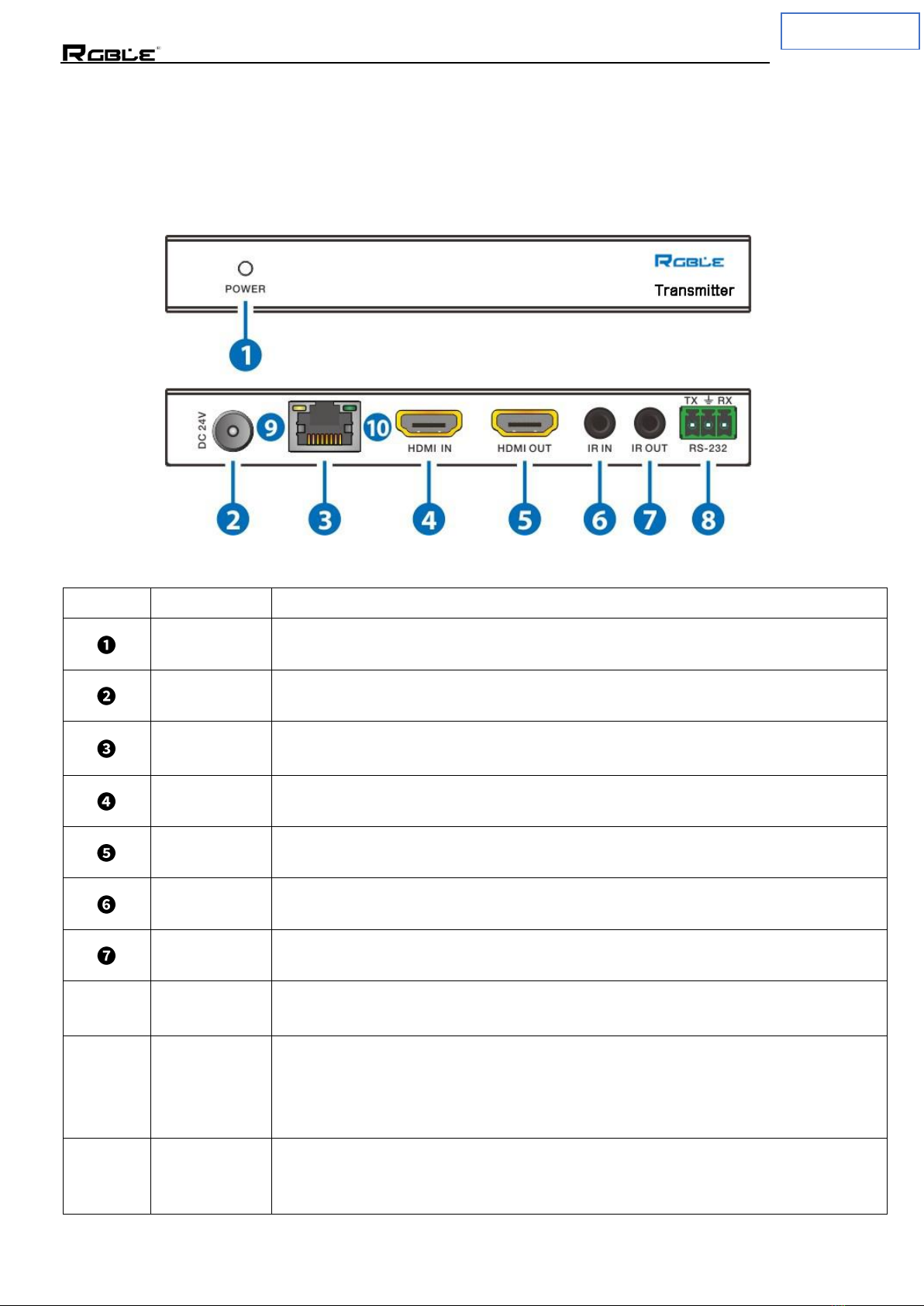

Transmitter Panel ports
Number
Name
Function descriptions
POWER
System power indicator.
DC 24V
Connect 24V/1A adaptor to AC wall outlet for power supply.
HDBT Out
Standard HDBT output port. Connect HDBT receiver with a UTP cable
following the standard of IEEE-568B.
HDMI IN
Connect to HDMI source device such as Blu- ray or PS4 player.
HDMI OUT
Connect to HDTV or monitor HDMI input port.
IR IN
Channel 2 IR Receiver. Connect to an IR receiver cable.
IR OUT
Channel 1 IR Transmitter. Connect to an IR emitter cable.
➑
RS-232
Phoenix jack provide serial port control from two-way transmission
between transmitter and receiver.
➒
Connection
Signal
Indicator
Lamp
Illuminate: The Transmitter and Receiver are in good connections
status.
Flashing: The Transmitter and Receiver are in poor connections status.
Dark: The Transmitter and Receiver are not connected.
➓
Data Signal
Indicator
Lamp
Illuminate: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal.

Stock Code 873117 en.rgble.com 400-1661-021 4/ 9
P/N: U00301

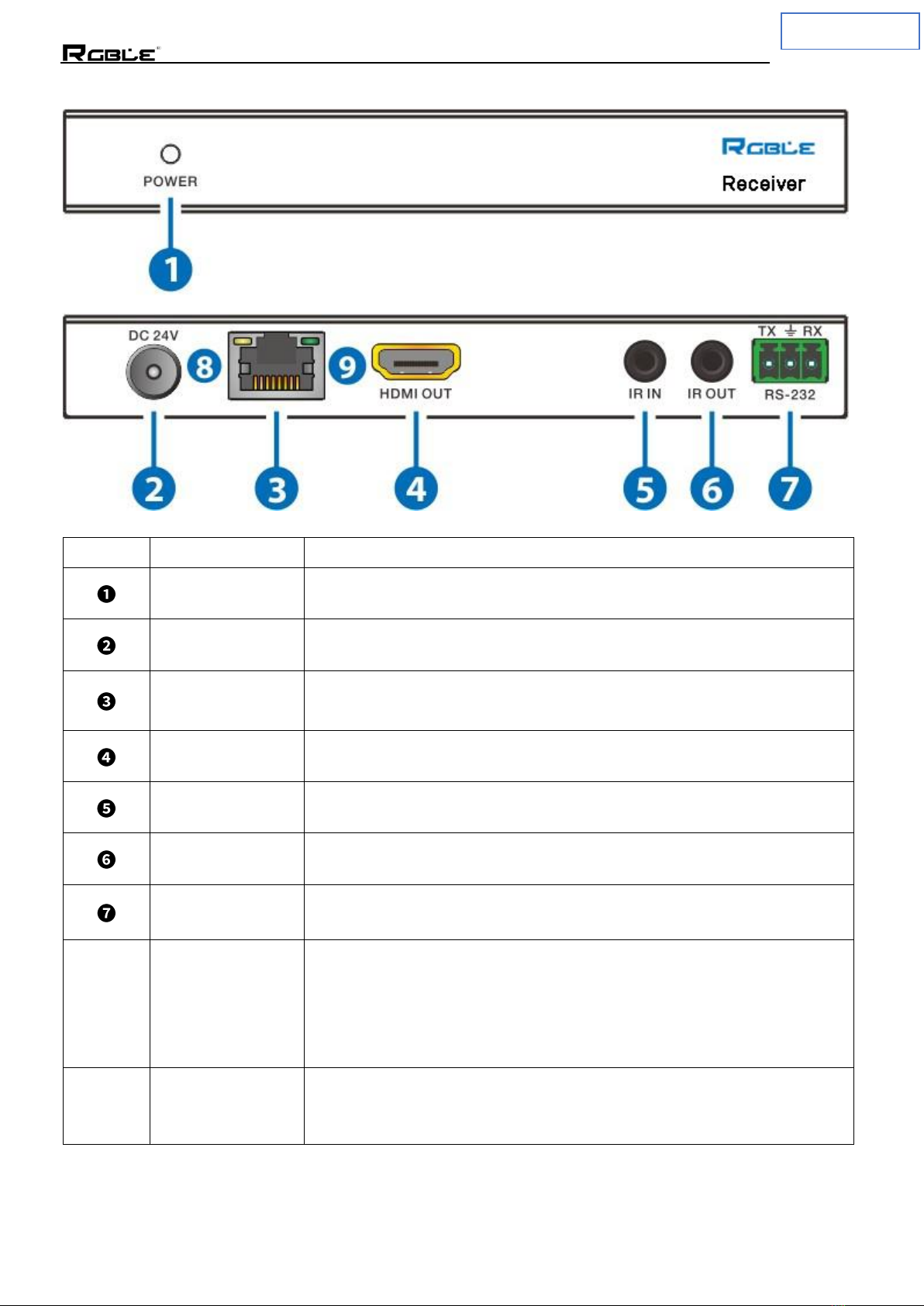

Receiver Panel ports
Number
Name
Function descriptions
POWER
System power indicator.
DC 24V
Connect 24V/1A adaptor to AC wall outlet for power supply.
HDBT IN
Standard HDBT input port. Connect HDBT Transmitter with a
UTP cable following the standard of IEEE-568B.
HDMI OUT
Connect to HDTV or monitor HDMI input port.
IR IN
Channel 1 IR Receiver. Connect to an IR receiver cable
IR OUT
Channel 2 IR Transmitter. Connect to an IR emitter cable.
RS-232
Phoenix jack provide serial port control from two-way
transmission between transmitter and receiver.
➑
Connection
Signal Indicator
Lamp
Illuminate: The Transmitter and Receiver are in good
connections status.
Flashing: The Transmitter and Receiver are in poor connections
status.
Dark: The Transmitter and Receiver are not connected.
➒
Data Signal
Indicator Lamp
Illuminate: HDMI signal with HDCP.
Flashing: HDMI signal without HDCP.
Dark: No HDMI signal.

Stock Code 873117 en.rgble.com 400-1661-021 5/ 9
P/N: U00301
4.2 Connection diagram
Description 1：POC (Power over Cable) Application Example
Description 2：Bidirectional Infrared control Application Example
Description 3：Bidirectional RS-232 control Application Example

Stock Code 873117 en.rgble.com 400-1661-021 6/ 9
P/N: U00301
5. Specifications
Brand Name
RGBLE
Model Number
UT-150FHD-TR
Technical
HDMI Compliance
HDMI 1.4
HDCP Compliance
HDCP 1.4
Video Bandwidth
165MHz
Video Resolutions
Up to1080P @60Hz YUV4:4:4 RGB4:4:4
Color Space
RGB, YUV4:4:4, YUV 4:2:2
Color Depth
8-bit
HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby
True HD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection
Human body model —
±8kV (air-gap discharge)
±4kV (contact discharge)
Connections
Transmitter
UT-HS-T
Inputs:1*HDMI Type A [19-pin female]
1*IR INPUT [3.5mm Stereo Mini-jack]
1*RS232 [Phoenix jack]
Outputs:1*HDBT Out [RJ45]
1*HDMI Type A [19-pin female]
1*IR OUTPUT [3.5mm Stereo Mini-jack]
Receiver
UT-HS-R
Inputs:1*HD BaseT in [RJ45]
1*IR INPUT [3.5mm Stereo Mini-jack]
Outputs:1*HDMI Type A [19-pin female]
1*IR OUTPUT [3.5mm Stereo Mini-jack]
1*RS232 [Phoenix jack]
General
Housing
Aluminum alloy
Color
Black
Dimensions
140mm [W] x 65mm [D] x 22mm [H]
Weight
240g
Power Supply
Input: AC100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/3C certified)
Power Consumption
6W
Operation Temperature
32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)

Stock Code 873117 en.rgble.com 400-1661-021 7/ 9
P/N: U00301

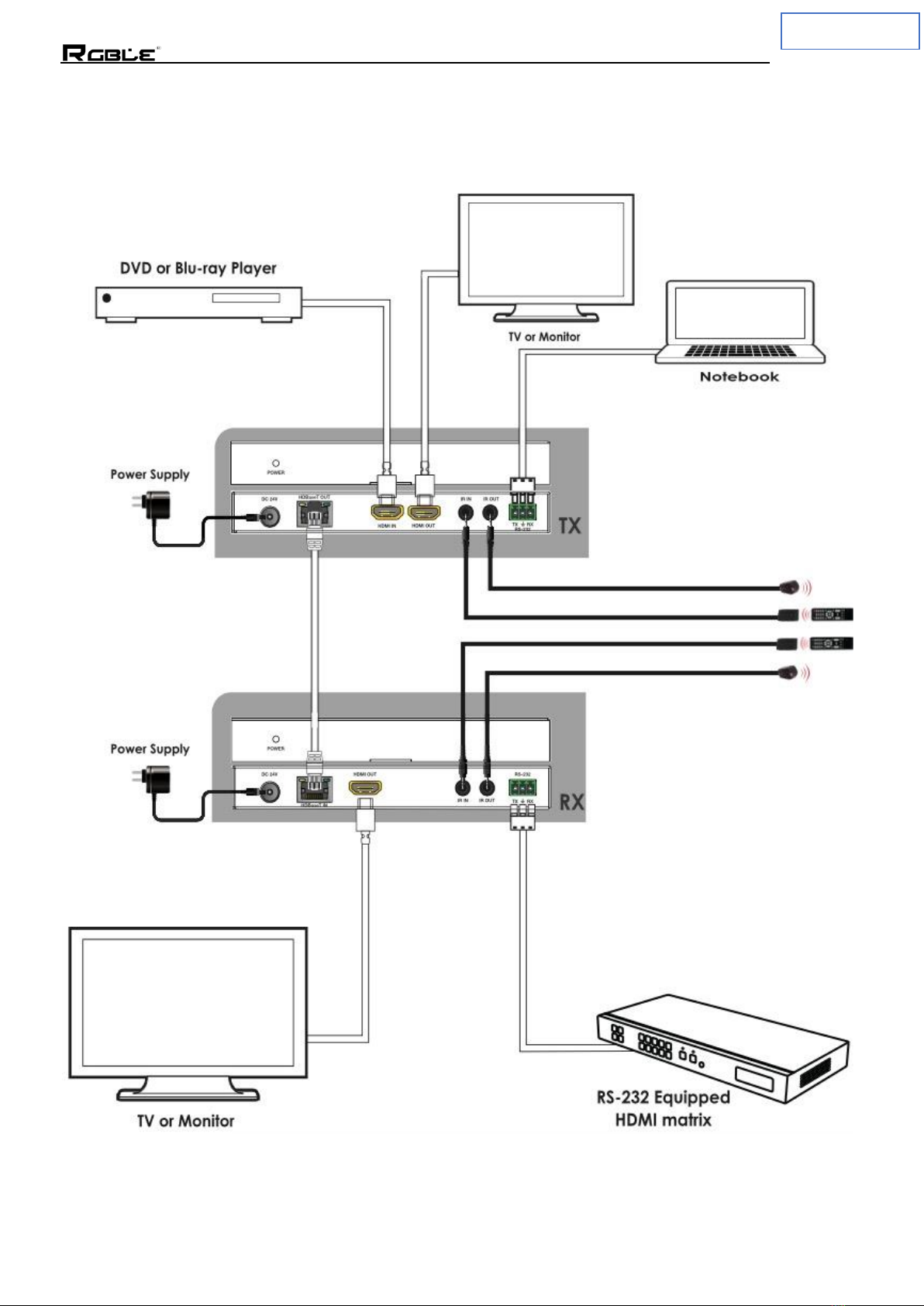

6. Connection Diagram

Stock Code 873117 en.rgble.com 400-1661-021 8/ 9
P/N: U00301
Safety instructions
These symbols on the device tells user and others that it could bring about risk of harmful or
property damage. In order to you can use this device safety and correctly. We have analyzed
the meaning about these symbols. Please understand these symbols correctly when you read
the manual. Then you can use the device correctly and safety.
The FC is electronic products certification mark.
The product contains some metal components. Please protect the
environment.
Through the EU conference and the EU council 2002/95/ EC
command.
The product has reached the EU command safety requirements. User
can use securely.
This is a class A product. In life environment. this product will lead to
radio interference when you use it. In this moment, you need take
measures to interference.
The uninsulated dangerous voltage can cause people suffering from
electric shocks in the product when you use it.
Attention: In order to avoid electric shock. Please do not open the lid.
Please contact with the professional staff.
Information instructions
It is list some contents about operation and setting unsuccessful, and
some correlation notice information.

Stock Code 873117 en.rgble.com 400-1661-021 9/ 9
P/N: U00301
Notice
To ensure that the device use reliably and personal safely. Please abide by following items
when install, useful and maintain.
Notice when the installation
➢Do not use this product at the following place: the place has ash, lamp base, electrical
conductivity dust ， corrosive gas and flammability gas etc.
➢The screw hole is processing and wiring, the metal filing and wire head do not fall into aspirail.
Because it may lead to fire, malfunction or mis operation etc.
➢The product has finished installation. To ensure has not foreign matter on vent. Otherwise it
may lead to fire, malfunction or mis operation when operating has not heat dissipation well.
Notice when the wiring:
➢When the product is installing or wiring before the power supply must turn off. Otherwise it
may lead to electric shock or the device damage.
➢This product connects the grounding conductor through power line. To avoid electric shock,
the grounding conductor must connect grounding.
➢When it has finished wiring, you should
clear foreign matter. Please cover the terminal plate well before power on to avoid electric
shock.
Notice when the operational and maintenance:
➢Do not touch the terminal when connecting thepower supply. Otherwise it may lead to electric
shock or mis operation.
➢After turn off the power supply to clear and
terminal screw. It will lead to electric shock when connecting the power supply.
➢Do not remove the device to avoid damage
electrical components
➢Be sure to read this manual. After make sure safe to make change the program, operation
and stop operation.
Notice when the products scrap:
➢The electrolytic capacitor on the circuit board burn lead to explode.
➢Please classified collection and disposal. Do not get to household garbage.
➢Please classified disposal or according to the environmental regulations to disposal.
