RGBLE MHD-51M User manual

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5x1 4K60
Presentation Switcher
with Control and Video Processing
User Manual
VER 1.1

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
Thank you for purchasing RGBLE product
For optimum performance and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the service life of your equipment.
Table of Contents
1. Introduction............................................................................................................................2
2. Features ................................................................................................................................ 2
3. Package Contents .................................................................................................................2
4. Specifications ........................................................................................................................3
5. Operation Controls and Functions.........................................................................................4
5.1 Front Panel ..................................................................................................................4
5.2 Rear Panel ...................................................................................................................4
5.3 OSD MENU.................................................................................................................. 5
5.4 Remote Control &IR Operations ................................................................................12
5.5 Auto-Switching function.............................................................................................. 13
5.6 VGA/YPbPr/CVBS input............................................................................................. 13
5.7 Connection of Microphone .........................................................................................13
5.8 Operations of RS-232 Control....................................................................................15
5.9 Web GUI Control........................................................................................................ 20
6. HDBT Receiver.................................................................................................................... 22
7. Connection Diagram............................................................................................................ 23
8. Product Images ................................................................................................................... 23

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
1. Introduction
The 5x1 4K60 Presentation Switcher supports 5 inputs including 3 HDMI ports, 1
VGA(YPbPr/CVBS) and 1 DisplayPort, scaling to HDMI and HDBT outputs (Mirrored). It offers
flexibility application of audio which includes unbalance audio, MIC In and line out. The audio
processor offers auto-mixer and auto-gain control to mix or reduce background audio in order
to enhance major audio source. The system could be controlled and configured easily via
Telnet, Web GUI, IR remote and RS-232. This switcher is a suitable solution for presentation
purpose at classroom and conference room.
2. Features
HDMI 2.0b, HDCP 2.2 compliant
3xHDMI, 1xVGA (YPbPr/CVBS), 1xDisplayPort, 1xMIC In, 4xunbalance audio input
HDMI and HDBT(70M) outputs (Mirrored)
HDMI/DP video resolutions up to 4K2K@60Hz (4:4:4),4K2K@30Hz, 1080p@120Hz
VGA resolutions up to 1920x1200@60Hz
Output resolutions up to 4K2K@30Hz
Support automatic and manual switching modes
Supports EDID management
Supports pass-through of PCM 2CH
Touch Panel button, Web GUI, IR remote, Desk Plate and RS-232 control
3. Package Contents
1x5x1 4K60 Presentation Switcher
1 x HDBT Receiver
2 x Mounting ears
1 x Remote Control Unit
2 x IR Receiver Cable (with carrier wave)
2 x IR Emitter Cable
1x 24V/1A Power Adapter
1 x 3RCA(Female) to D-SUB(Male) Cable
1 x User Manual

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
DP Compliance
DisplayPort 1.2a
HDCP
Compliance
HDCP 2.2 and HDCP 1.4
Video Input
Resolutions
HDMI/DisplayPort: up to 4K2K@50/60Hz(4:4:4)
CVBS: PAL/NTSC3.58/NTSC4.43/SECAM/PAL M/PAL N
YPBPR: 480i to1080p
VGA: 640x480/60 to1920x1200/60
HDMI/HDBT
Output
Resolutions
4K2K/30,4K2K/25,1920x1080p60, 1920x1080p50,
1280x720p/60, 1280x720p/50, 1024x768/60,1280x800/60,
1360x768/60,1400x1050/60,1680x1050/60, 1920x1200/60
Audio Formats
LPCM 2.0CH
ESD Protection
Human body model —±8kV (air-gap discharge) & ±4kV
(contact discharge)
Connections
Input ports
3x HDMI Type A [19-pin female]
1x Display Port [female]
1x VGA [female]
1 x MIC input [3-pin phoenix port]
5x Stereo inputs [3-pin phoenix port]
Output ports
1x HDMI Output Type A [19-pin female]
1x HDBT Out [RJ45]
1x Stereo Output [3-pin phoenix port]
Control interfaces
1x IR in [3.5mm mini jack]
1x IR out [3.5mm mini jack]
1x CONTACT IN [6-pin phoenix port]
1x RS-232 [3-pin phoenix port
1x Web GUI [RJ45]
1x USB Type A [5-pin female]
Mechanical
Housing
Metal
Color
Black
Dimensions
150mm [W] x 220mm [D] x 44mm [H]
Weight
1250 [g]
Power Supply
DC 24V/1A Adaptor (US/EU standards, CE/FCC/UL certified)
Power
Consumption
9W [Main unit]
18W [Main unit + HDBT Receiver]
Operation
Temperature
32 - 104°F / 0 - 40°C
Storage
temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5. Operation Controls and Functions
5.1 Front Panel
Power button and indicator:
When this device is switched to the standby mode by pressing power button, the indicator will
illuminate red. When switching to power on mode, the indicator will illuminate blue.
IR Window:
Receiving IR signal from remote control.
Input Source buttons:
Press these buttons for source selection. The active source will be illuminated to corresponding
indicators on the front panel.
Operation buttons:
Pressing “OK/MENU” button enters the OSD immediately. Then the user can navigate using
the 4-way arrow buttons. A new OSD setting is confirmed by pressing “OK/MENU” button.
Pressing "EXIT/AUTO" will exit OSD when OSD is displayed. Press "EXIT/AUTO" for 5
seconds to auto switch on/off. When the button LED light on, means auto switch on.
Pressing “MIC-/+” buttoned creases or increases MIC volume. Press “VOL+/- “button to
increase or decrease “Master volume”.
Pressing “MIC-“and “MIC+” buttons simultaneously will reset the switcher HDMI/HDBT output
resolution to 720P/60.
Pressing “VOL- “and “VOL+” buttons simultaneously will lock/unlock the front panel; these
two button LED will light on when the front panel is lock on.
5.2 Rear Panel
Control ports:
LAN: This port is the link for Web GUI control; connect to an active Ethernet link with an RJ45
terminated cable.
RS-232: Serial control port, 3P captive screw connector, connects with a control device (such as a
computer) to control the switcher or other device connected with the HDBT receiver.
IR IN: Connects with IR receiver cable (with carrier wave), to receive IR signals sent by the IR
remote or remote controller of other input/output device.
IR OUT: Connects with IR emitter cable used for controlling the local source device or the switcher.
CONTACT IN: This input control reserving for direct source input selection. Connect ground pin
(mark as on panel) with following pin number for individual source selection.

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
Pin number
Source
Pin 1
HDMI1
Pin 2
HDMI2
Pin 3
HDMI3
Pin 4
Display Port
Pin 5
VGA/YPbPr/CVBS
Audio Ports:
OUT: The audio comes from the input audio corresponding to the selected video
source and mixed with MIC audio. Connects with amplifier for audio source
broadcasting.
EXT1/EXT2/EXT3/EXT4/EXT5: Select the external analog audio on OSD/Web GUI
and insert the audio to HDMI1/2/3/DP/VGA video source then output to display and
analog audio output port. The VGA Source select the EXT5 as default audio input.
MIC IN: Plug microphone in for audio source output.

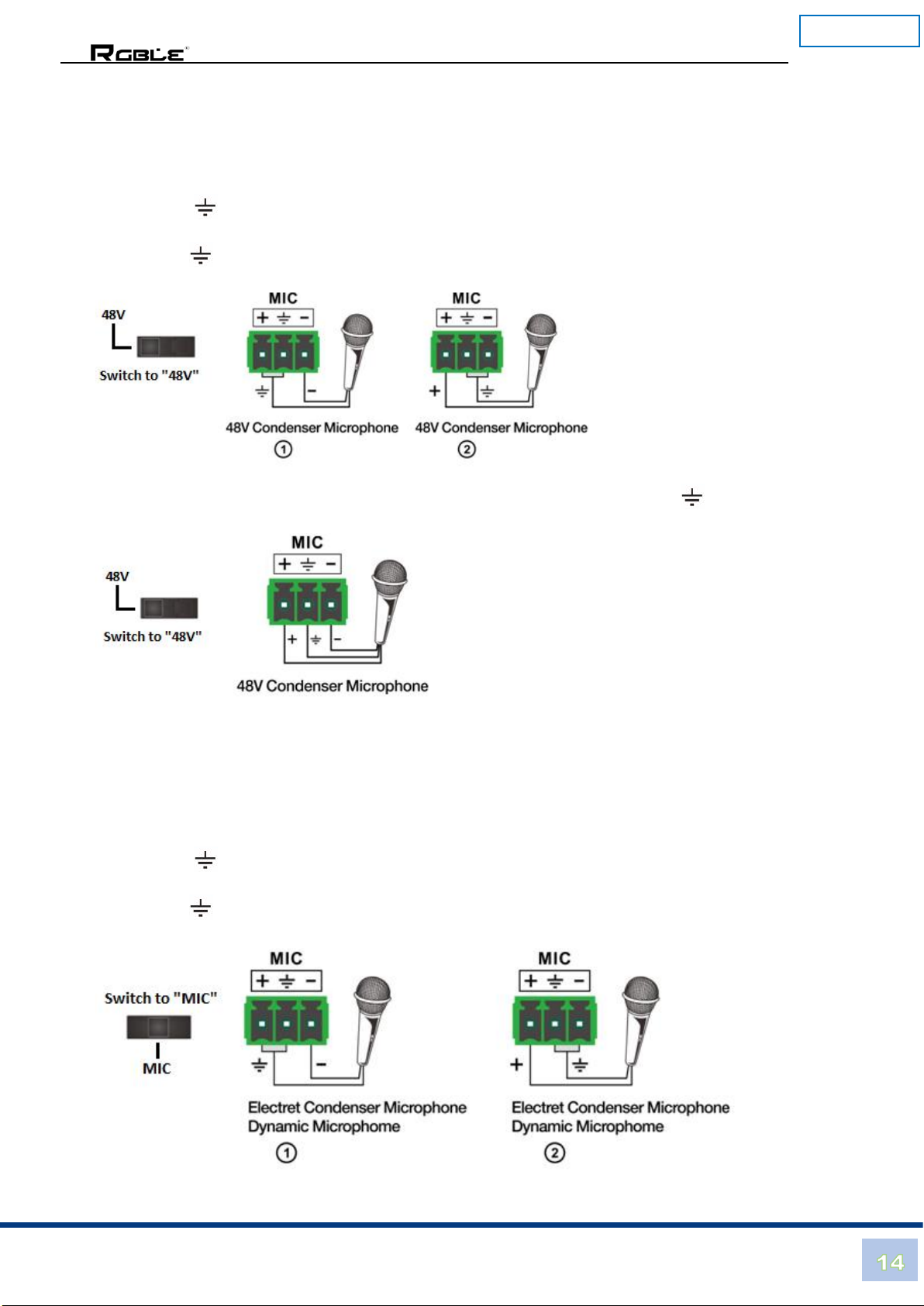

48V/MIC/Line:
48V phantom power mode (connects with phantom condenser microphone), MIC mode
(connects with dynamic microphone and electrets condenser microphone) and LINE
mode (connects with wireless microphone or line audio input).
Output Ports
HDBT Out: Connects with compatible Receiver for video and / or audio output. Support 24V
POC function.
HDMI Out: Connect to an HDMI display or AV Receiver for video and/or audio output.
Input Ports
These video input ports include 3 HDMI inputs, 1 Display Port input &1 VGA input. VGA port
support VGA, YPbPr and CVBS format. Factory default is VGA format.
USB Port
USB port connects with USB flash disk or other storage that contains the software update file to
update the system firmware.
Power:
Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet.
5.3 OSD MENU
The switcher provides a powerful OSD operation menu. Press MENU button on IR remote to enter in OSD
menu, the users can change some settings through the OSD menu.

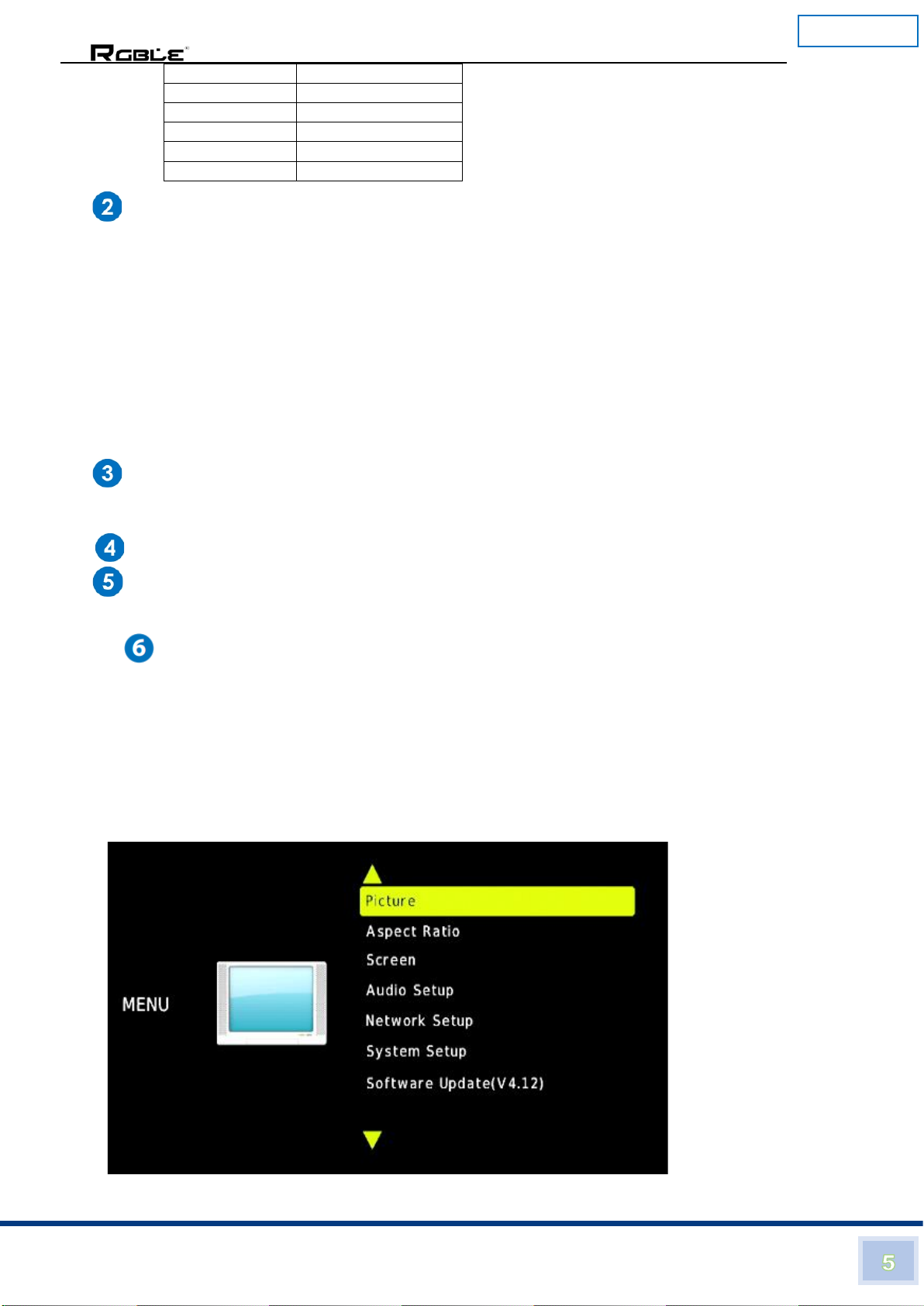

5.3.1 Main MENU
The Main MENU includes Picture mode, Aspect ratio, Screen, EDID switch, Audio setting,
network and Software update options.

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5.3.2 Picture
The picture MENU adjusts the picture quality.
Contrast 0-100 (default 50),
Brightness 0-100 (default 50),
Color 0-60 (default 30),
Sharpness 0-20 (default 10),
Tint 0-100 (default 50, for CVBS NTSC format only)
5.3.3. Aspect Ratio
The user can adjust picture output aspect ratio to 4:3, 16:9 or 16:10.
5.3.4 Screen
The screen MENU adjusts for VGA input only. The user can adjust horizontal, vertical position, clock and
phase.

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5.3.5 EDID
The EDID MENU adjusts for HDMI and Display port inputs only.
EDID1.4
4K2K30, PCM 2.0
EDID2.0
4K2K60, PCM 2.0
EDID From HDMI
EDID copy from local HDMI port
EDID From HDBT
EDID copy from HDBT Receiver HDMI port
EDID AUTO
Auto compare HDMI and HDBT Receiver HDMI port EDID
5.3.6 Audio Setup
The Audio Setting MENU select between Embedded or External analog audio to choose the desired audio
output port for HDMI and DP input ports. Select MIC mixer mode: ON, AUTO, OFF.
MIC mixer on: The switcher will mix the source audio and MIC audio to the audio output (HDMI, HDBT,
Audio output port).
MIC mixer auto: The switcher will reduce the source audio volume automatic when it detects the MIC
audio input.
MIC mixer off: The switcher will mute the MIC input audio.

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5.3.7 Network setup
The network MENU will display the IP address.

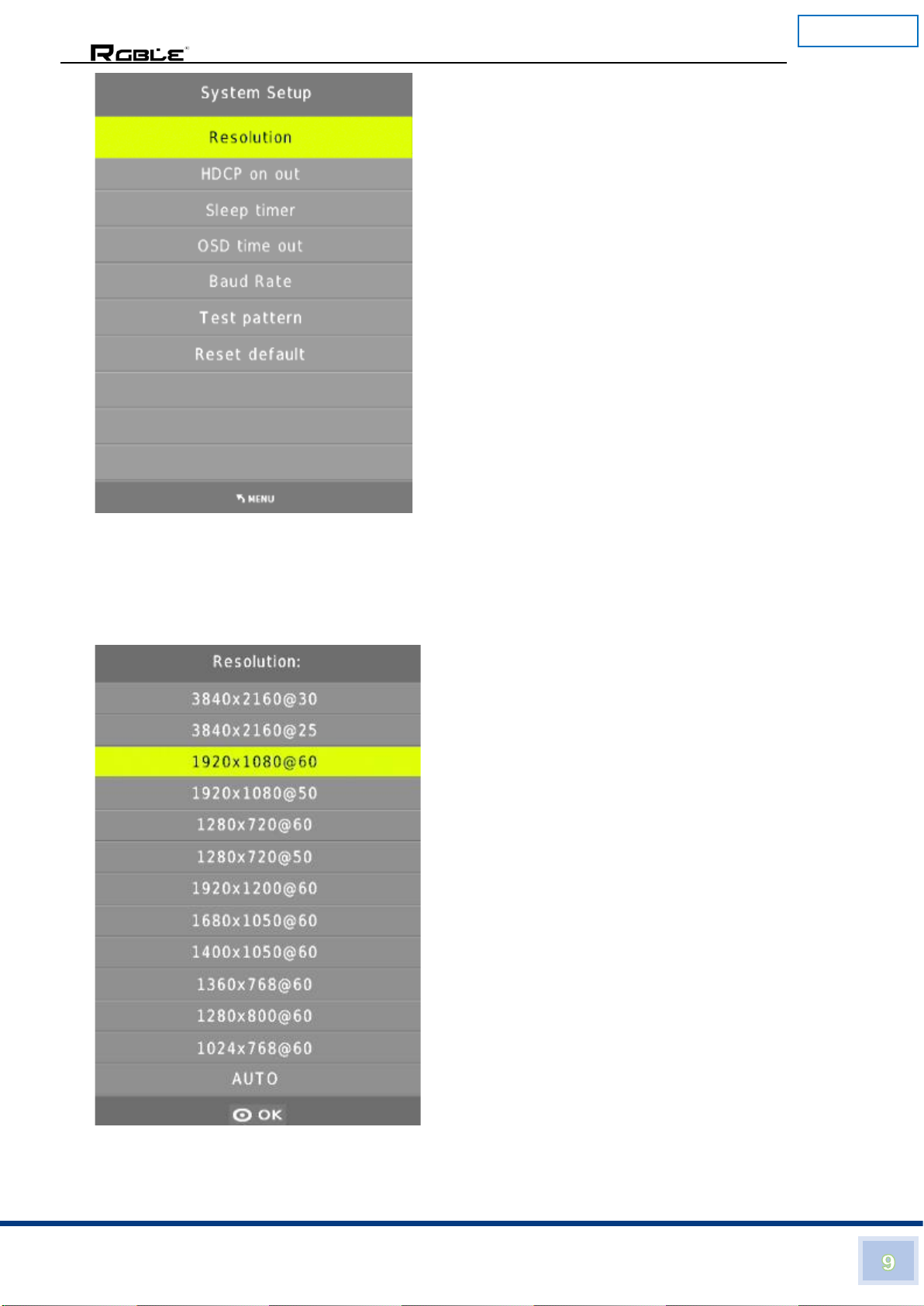

5.3.8 System Setup
The system setup menu includes output resolution, output hdcp, sleep timer, OSD time out, RS-232 Baud
Rate. Test Pattern and Factory reset items.

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5.3.8.1 Resolution
The switcher HDMI output resolutions support multiple modes. Through the system setup menu or press
the “RES” button on the IR remote, the resolution menu will be displayed. The user can select suitable
resolution for HDTV or monitor. Auto means that the HDMI resolutions based on the EDID information
read from the display device.

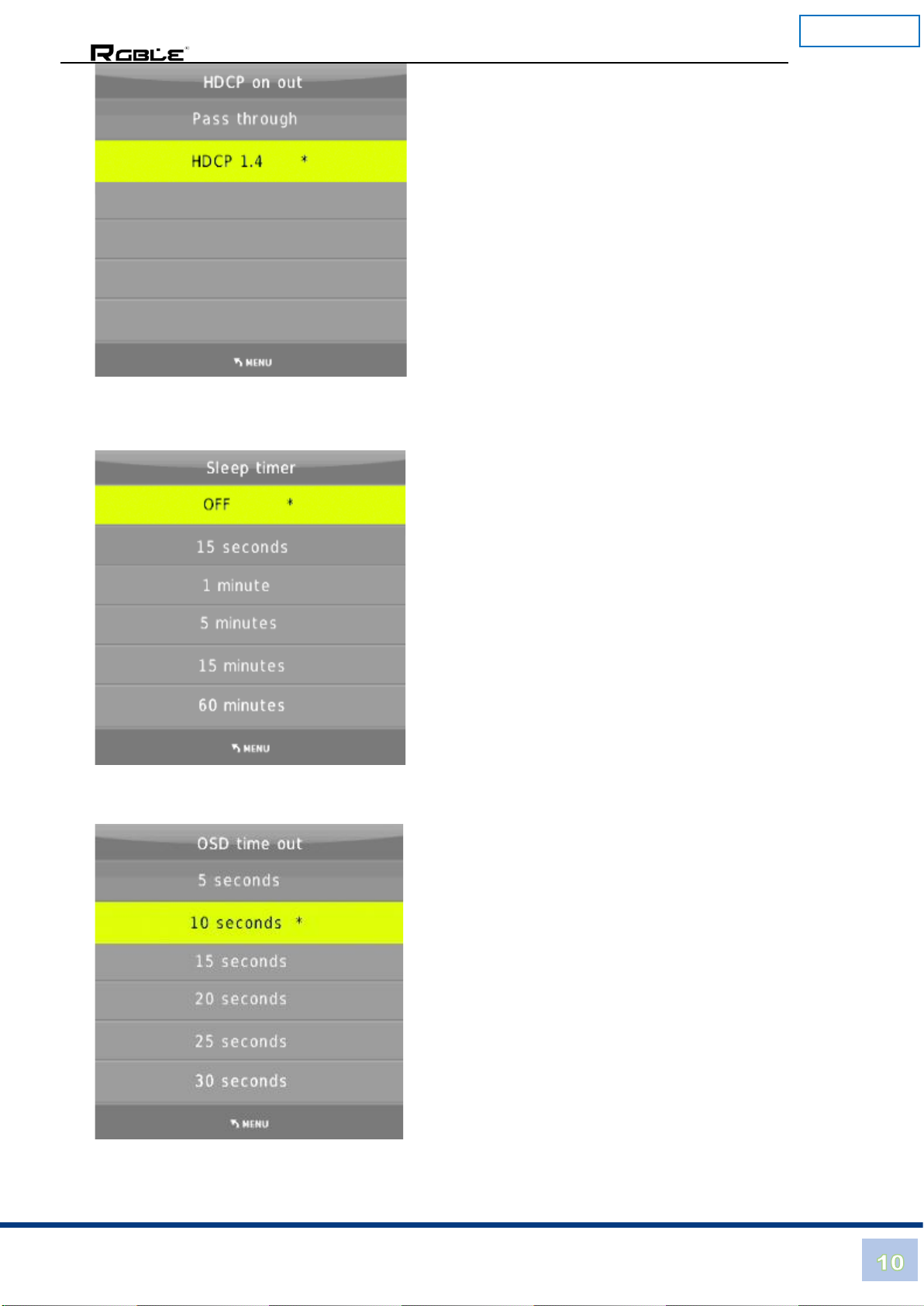

5.3.8.2 HDCP on out
Set the HDMI and HDBT port output HDCP status. Pass through means the output HDCP is follow the
selected input source HDCP status. HDCP1.4 means the output HDCP will fix to HDCP1.4 status.

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5.3.8.3 Sleep timer
Set the switcher sleep timer (the time for switcher detect input source no signal to standby mode). The
default timer is set to OFF.
5.3.8.4 OSD time out
Set the OSD display time, default time is set to 10 seconds.
5.3.8.5 Baud Rate
Set the switcher RS-232 control port baud rate, the default value is set to 115200 bit/s.

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5.3.8.6 Test pattern
Set the output test pattern type.
5.3.8.7 Reset default
Select Reset default -->YES enters to factory reset. The switcher will reset to factory default setting. (e.g.:
HDMI1 input, audio mixer on, Output resolution set to 1920x1080 @60Hz, Baud rate set to 115200 bit/s
etc.)
5.3.9 Software update
The switcher supports software updates via USB flash disk. The procedure is as follows:
1) Copy the file “MERGE.bin” to the root directory of a USB flash disk. (Make sure the file is copied to the
root directory. The “MERGE.bin” file is provided/authorized by our engineering department or from our
website)
2) Plug the USB flash disk to the switcher USB port on its rear panel.
3) Press the MENU -->software update-->YES enters to start the update. The OSD will display the update
process.

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5.4 Remote Control &IR Operations
5.4.1 Remote Control
①Press this button to power on the switcher or set it to standby mode.
②ADJ: Press this button for operate VGA input auto adjustment
function;
③INPUT: Press these buttons for select the input sources.
④RES: Press this button to select HDMI output resolution. (Press and
hold 5 seconds or more, the HDMI output resolution will reset to
720p60Hz.)
⑤Menu operation buttons:
MENU: press to enter in OSD menu.
EXIT: press to exit OSD menu.
OK: confirm button.
UP/DWON/LEFT/RIGHT buttons: OSD value setting.
⑥VOLUME: Control master audio volume buttons.
⑦MIC: Control MIC input audio volume buttons.
5.4.2 IR operations
As IR signal can be transmitted bi-directionally between the switcher and the HDBT receiver, it is able to
use the IR remote to control the switcher or HDMI source devices.
1) Control far-end device locally
To control the switcher or remote display device by using corresponding remote controller.
2) Control local device from remote
To control the switcher or local source device by using the corresponding remote controller.
3) IR (20KHz---60KHz) cable introduction

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5.5 Auto-Switching function
The switcher has auto-switching and manual-switching modes. When the user selects auto-switching mode,
it will follow the following principles:
5.5.1. New input principle
Once a new input signal is detected, the switcher will switch to this new signal automatically.
5.5.2. Power rebooting principle
The switcher offers the function to remember the signal last used before power off. Once rebooted, it will
automatically enter auto-switching mode, and then detect all inputs and memorize their connection status
for future reboots. If the last used input signal is still available, then it will choose that signal. If not, it will
detect all input signals with priority on HDMI1->HDMI2->HDMI3->DP->VGA (YPbPr/CVBS).
5.5.3. Signal removing principle
Once the current signal is removed, the switcher will detect all input signals with priority on
HDMI1->HDMI2->HDMI3->DP->VGA (YPbPr/CVBS). It will transfer the first signal detected to the output.
Notice: Auto-switching function works only when there is a new input signal or if an input signal is removed.
5.6 VGA/YPbPr/CVBS input
The VGA input port is a multiple format port. It supports VGA/YPbPr/CVBS input signal. The switcher will
auto detect the input signal type and format. The user can use the convert cable for YPbPr or CVBS signal
input.
5.7 Connection of Microphone
The switcher provides one 2-level microphone input to accommodate different microphone input modes,
including 48V phantom power mode, MIC mode and Line Mode.

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
5.7.1 48V mode
When switched to “48V” (It has a good frequency characteristic, high input impedance and high sensitivity
in this mode), the MIC input will provide a 48V phantom power. This is only used for 48V condenser
microphones.
1) Unbalanced connection:
“+” and “ ” connect to ground, and “-” connects to signal.
“-” and “ ” connect to ground, and “+” connects to signal.
2) Balanced Connections: “+” connects to positive, “-” connects to negative and “ ” to ground.
5.7.2 MIC mode
When switched to “MIC” (It has a low frequency characteristic, and wide frequency response in this mode),
the microphone input is used for connecting dynamic microphones and electrets condenser microphone.
There are two different connections:
1) Unbalanced connection:
“+” and “ ” connect to ground, and “-” connects to signal.
“-” and “ ” connect to ground, and “+” connects to signal.
2) Balanced connection: “+” connects to positive, “-” connects to negative and

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
“ ”connects to ground.
5.7.3 Line mode
When switched to “LINE” (It has a low frequency characteristic, and wide frequency
response in this mode), the microphone input is used for connecting line audio or wireless
microphones. There are two different connections:
1) Unbalanced connection:
“+” and “ ” connect to ground, and “-” connects to signal.
“-” and “ ” connect to ground, and “+” connects to signal.
2) Balanced connection: “+” connects to positive, “-” connects to negative and
“ ”connects to ground.
5.8 Operations of RS-232 Control
As RS-232 can be transmitted bi-directionally between the switcher and the HDBT receiver, it is able to
control a third-party RS-232 device locally or control the compact switcher bi-directionally.
1) Control the Switcher or 3rd Party Device from Local

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
2) Control the Switcher or 3rd Party Device from remote Receiver
3) RS-232 Controller
Please connect the switcher with input devices and output device needed, then connect it with a
computer that is installed with RS-232 control software (attention: the switcher RS-232 port settings
must same with the software settings, e.g.: baud rate, data bits, parity, stop bits). Double-click the
software (Hercules) icon to run this software on your computer. The interface of the control software is
showed as below:

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
4) RS232 Communication Commands
Item
Command
Description
0
help!
Display all communication commands
1
s factory reset!
Return to factory reset setting
2
r version!
Read current FW version
3
xyz!
Upgrade the switcher FW
4
r power!
Read the switcher power on/off status
5
s power on!
Power on the switcher
6
s power off!
Power off the switcher
7
r lock!
Read the switcher panel lock status
8
s lock on!
Lock on the panel control
9
s lock off!
Lock off the panel control
10
s beep on!
Enable the switcher Beep
11
s beep off!
Disable the switcher Beep
12
r source!
Read current input source
13
s source 1!
Switch HDMI1 input (1: HDMI1,2: HDMI2,
3: HDMI3,4: DisplayPort,5: VGA/YPBPR/C-VIDEO)
14
r auto switch!
Read auto switch function status
15
s auto switch mode 1!
Enable auto switch function (1: Last connected source mode,2: First
connected source mode, 3: Priority source mode)
16
s auto switch off!
Disable auto switch function
17
r output!
Read output resolution
18
s output 1!
Setup output resolution at 3840x2160@30Hz
(1:3840x2160@30Hz,2:3840x2160@25Hz,
3:1920x1080@60Hz,4:1920x1080@50Hz,
5:1280x720@60Hz,6:1280x720@50Hz,
7:1920x1200@60Hz,8:1680x1050@60Hz,
9.1400x1050@60Hz,10.1360x768@60Hz,
11.1280x800@60Hz,12.1024x768@60Hz,
13. Out display EDID native resolution
19
r hdcp!
Read HDMI/HDBT output hdcp enable status
20
s hdcp bypass!
Set HDMI/HDBT output to hdcp pass through mode
21
s hdcp 1.4!
Set HDMI/HDBT output to hdcp1.4 version
22
r contrast!
Read picture contrast status
23
s contrast 0!
Setup picture contrast 0(range:0-100)
24
r brightness!
Read picture brightness status
25
s brightness 0!
Setup picture brightness 0(range:0-100)
26
r color!
Read picture color status
27
s color 0!
Setup picture color 0(range:0-60)
28
r sharpness!
Read picture sharpness status
29
s sharpness 0!
Setup picture sharpness 0(range:0-20)

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
30
r tint!
Read picture tint status
31
s tint!
Setup picture tint 0(range:0-100, for CVBS
NTSC format only)
32
r aspect ratio!
Read current input source output picture aspect ratio
33
s aspect ratio 1!
Setup current input source output picture aspect ratio at 16:9(1: 16:9 ,
2: 4:3, 3:16:10 )
34
r h size!
Read current input source output horizontal over scan value
35
s h size X!
Set output horizontal over scan to (100+X) % (the default X value is 0
and the range is -10~10, the value is set for current input source. )
36
r v size!
Read current input source output vertical over scan value
37
s v size X!
Set output vertical over scan to (100+X) % (the default X value is 0 and
the range is -10~10, the value is set for current input source.)
38
r edid!
Read switcher input port EDID status
39
s edid 1!
Setup input port EDID at HDMI1.4 standard
(1: EDID1.4,2: EDID2.0,3: EDID copy HDMI
4: EDID copy HDBT,5: EDID AUTO)
40
s vga auto!
Enable VGA auto adjust function
41
r vga hpos!
Read VGA horizonal position
42
s vga hpos up!
Setup VGA horizonal position up
43
s vga hpos up!
Setup VGA horizonal position down
44
r vga vpos!
Read VGA vertical position
45
s vga vpos up!
Setup VGA vertical position up
46
s vga vpos down!
Setup VGA vertical position down
47
r vga clock!
Read VGA input ADC sampling clock value
48
s vga clock up!
Increase VGA input ADC sampling clock value
49
s vga clock down!
Decrease VGA input ADC sampling clock value
50
r vga phase!
Read VGA picture phase
51
s vga phase up!
Setup VGA picture phase up
52
s vga phase down!
Setup VGA picture phase down
53
r mixer!
Read MIC mixer status
54
s mixer on!
Setup mic mixer on
55
s mixer off!
Setup mic mixer off
56
s mixer auto!
Setup mic mixer auto
57
s auto vol!
Set source audio volume when set to mixer auto mode
58
r auto vol!
Read source audio volume when set to mixer auto mode
59
r fade in time!
Read source audio fade in time when set to mixer auto mode
60
s fade in time 1000!
Setup source audio fade in time when set to mixer auto mode. (The
fade in time range is 0~5000ms.)

Stock Code 873117 en.rgble.com 400-1661-021
P/N: S00302
61
r fade out time!
Read source audio fade out time when set to mixer auto mode
62
s fade out time 1000!
Setup source audio fade out time when set to mixer auto mode (The
fade out time range is 0~5000ms.)
63
r out vol!
Read output audio volume
64
s out vol 0!
Setup output audio volume 0(0~32)
65
s out vol up 1!
Increase output audio volume 1 level
66
s out vol down 1!
Decrease output audio volume 1 level
67
r mic vol!
Read mic volume
68
s mic vol 0!
Setup mic volume 0(0~32)
69
s mic vol up 1!
Increase mic input audio volume 1 level
70
s mic vol down 1!
Decrease mic input audio volume 1 level
71
s mic mute on!
Mute mic input audio
72
s mic mute off!
Un-mute mic input audio
73
s audio mute on!
Mute source input audio
74
s audio mute off!
Un-mute source input audio
75
s mute on!
Mute source and mic input audio
76
s mute off!
Un-mute source and mic input audio
77
r hdmi1 audio!
Read HDMI1 audio source
78
s hdmi1 auido 0!
Choose audio source as HDMI1 audio input
(0: Emb,1: Ext1,2: Ext2,3: Ext3,4: Ext4,5: Ext5)
79
r hdmi2 audio!
Read HDMI2 audio source
80
s hdmi2 auido 0!
Choose audio source as HDMI2 audio input
(0: Emb,1: Ext1,2: Ext2,3: Ext3,4: Ext4,5: Ext5)
81
r hdmi3 audio!
Read HDMI3 audio source
82
s hdmi3 auido 0!
Choose audio source as HDMI3 audio input
(0: Emb,1: Ext1,2: Ext2,3: Ext3,4: Ext4,5: Ext5)
83
r dp audio!
Read DisplayPort audio source
84
s dp audio 0!
Choose audio source as DisplayPort audio input
(0: Emb,1: Ext1,2: Ext2,3: Ext3,4: Ext4,5: Ext5)
85
r vga audio!
Read DisplayPort audio source
86
s vga audio 1!
Choose audio source as VGA audio input
(1: Ext1,2: Ext2,3: Ext3,4: Ext4,5: Ext5)
87
r ip mode!
Read IP mode
88
s ip mode 1!
Setup IP mode at Static (1: Static,2: DHCP)
89
r ip addr!
Read IP address
90
s ip addr 192.168.1.255!
Setup IP address at 192.168.1.255
