RGC HydraPaks HH1358C User manual

HH1358C/HV1658C/HV1858C
HYDRAPAK INSTRUCTIONS
REIMANN & GEORGER CORPORATION
CONSTRUCTION PRODUCTS BUFFALO, NY
P/N 6122020 01/12/2017

TABLE OF CONTENTS
CHAPTER TITLE PAGE
1 SAFETY ........................................................................................................................................1
1.1 Introduction ....................................................................................................................................1
1.2 Safety Definitions...........................................................................................................................1
1.3 HydraPak Safety Labels..................................................................................................................1
1.4 HydraPak Safety Rules...................................................................................................................1
2 SPECIFICATIONS ......................................................................................................................3
2.1 Technical Data................................................................................................................................3
2.2 Recommended Hydraulic Oil..........................................................................................................3
2.3 Nameplate and Serial Number Tag.................................................................................................4
3 OPERATION................................................................................................................................5
3.1 Before Operating the HydraPak......................................................................................................5
3.1.1 Checking the Engine.......................................................................................................................5
3.1.2 Checking the Hydraulic System......................................................................................................5
3.2 Starting and Operating the HydraPak .............................................................................................6
3.3 Stopping the HydraPak...................................................................................................................7
4 INSPECTION AND MAINTENANCE ......................................................................................8
4.1 General Maintenance Rules............................................................................................................8
4.2 Hydraulic System Inspection and Maintenance..............................................................................8
4.3 Electrical Inspection and Maintenance...........................................................................................9
4.4 Engine Inspection and Maintenance ...............................................................................................9
4.5 Maintenance Schedule...................................................................................................................10
5 TROUBLESHOOTING..............................................................................................................11
6 PARTS LIST................................................................................................................................15
LIST OF FIGURES
FIGURE DESCRIPTION PAGE
2-1 Typical HydraPak Product Nameplate.............................................................................................4

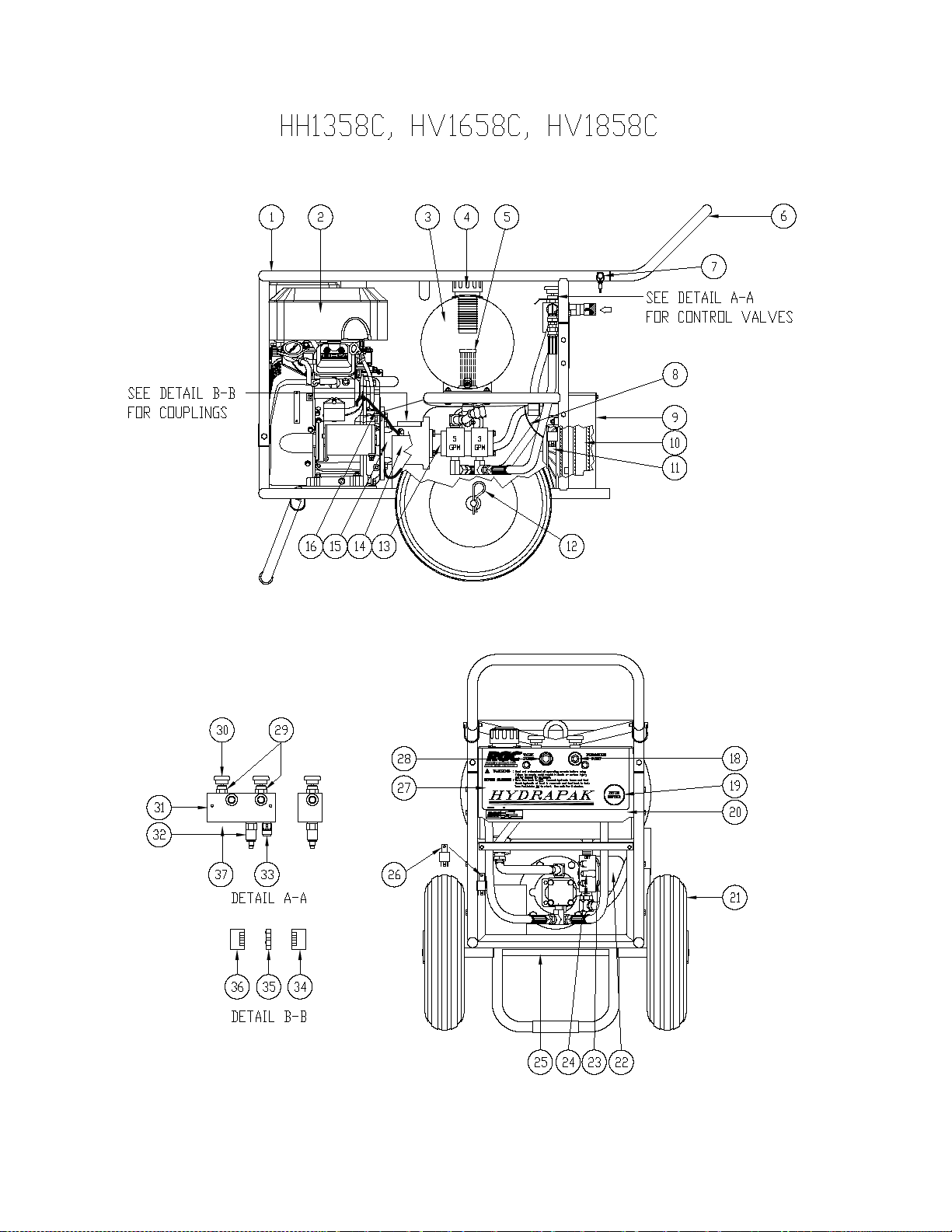

6-1 HH1358, HV1658, and HV1858 Assembly Drawing .....................................................................16
RGC CONSTRUCTION PRODUCTS PHONE: [phone]

PRE-OPERATIVE CHECKLIST
This checklist must be checked prior to each use of the HydraPak. This checklist is to be used as a guideline in conjunction with
the maintenance and inspection procedures outlined in this manual. The HydraPak and related equipment must be thoroughly
inspected prior to each use by a trained person. A trained person is one who has read and thoroughly understands this instruction
manual and related equipment manuals and, through training and experience, has shown knowledge regarding the safe operational
procedures. If you do not have such a person in your organization, please contact Reimann & Georger Corporation or its
distributors and they will assist you in providing such a “trained person.” Do not permit any person who is not fully trained to
operate this HydraPak or the associated hydraulic tool. It is recommended that this checklist be maintained as a permanent record.
Ensure construction area is secured from all unauthorized personnel.
All crew members at the construction site must be wearing personal protective equipment as defined by their employer.
Ensure HydraPak has been properly maintained.
Ensure flammable storage is at least ten feet from HydraPak.
Ensure hydraulic heat exchanger is clean and free of obstructions.
Ensure HydraPak is located in a well ventilated area.
Ensure HydraPak is positioned to minimize the amount of construction dust and debris it receives.
Ensure engine oil level is full.
Ensure fluid level in hydraulic reservoir is one inch from top.
Ensure the shipping cap has been replaced with the provided chrome filler/breather cap.
Ensure hydraulic hoses are properly connected and in good condition.
Ensure the flow control knob is in the OFF position before starting the HydraPak.

1 SAFETY
1.1 INTRODUCTION
Your Reimann & Georger Corporation HH1358, HV1658, and HV1858 HydraPaks have been engineered to provide
performance, long term economics and safety advantages that no other type can match. However, even a well-designed and
well-built hydraulic power unit can malfunction or become hazardous in the hands of an inexperienced and/or untrained
user. Therefore, read this manual and related equipment manuals thoroughly before operating your HydraPak to provide
maximum safety for all operating personnel, and to get the maximum benefit from your equipment.
1.2 SAFETY DEFINITIONS
A safety message alerts you to potential hazards that could injure you or others or cause property damage. The safety
messages or signal words for product safety signs are DANGER, WARNING, and CAUTION. Each safety message is
preceded by a safety alert symbol and is defined as follows:
DANGER: Indicates an imminently hazardous situation which, if not avoided, will cause death or serious injury. This
safety message is limited to the most extreme situations.
WARNING: Indicates potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It
may also be used to alert against unsafe practices and property-damage-only accidents.
1.3 HYDRAPAK SAFETY LABELS
These labels warn you of potential hazards that could cause injury. Read them carefully. If a label comes off or becomes
illegible, contact Reimann & Georger Corporation for replacement information.
1.4 HYDRAPAK SAFETY RULES
1. Operators must be thoroughly trained before operating the HydraPak and associated equipment. A trained person is
one who has read and thoroughly understands this instruction manual and related equipment manuals and, through
training and experience, has shown knowledge regarding the safe operational procedures.
2. Follow the Pre-Operative Checklist before using the equipment.
3. Do not use a HydraPak or associated equipment that shows any signs of damage.
4. Never use the HydraPak in an explosive atmosphere and/or near combustible material that could be ignited by a spark.
5. Work area is to be kept clear of unauthorized personnel at all times. Place barricades or secure the area in such a
manner that no personnel can be injured.
6. Use all personal protective equipment as defined by the employer.
7. Keep all clothing and all body parts clear of moving parts.
8. Always connect the return (tank) hose connections before the supply (pressure) connections.
9. Never exceed the flow or pressure for which the hydraulic equipment is rated.
10. Use an approved fuel container in a well-ventilated area when refueling. Move fuel container at least ten feet from
fueling point before starting.
11. Operate the HydraPak in a well-ventilated area.
12. Do not touch a hot muffler, or engine.
1

13. Do not adjust the HydraPak while it is running.
14. Never adjust or service the associated hydraulic equipment during operation or while connected to the HydraPak.
15. Know how to stop the HydraPak quickly in case of emergency.
16. Allow engine to cool two minutes before refueling.
17. Never disconnect hydraulic hoses or fittings while the HydraPak is running.
18. At end of operation, secure the HydraPak and the associated hydraulic equipment to prevent unauthorized use. Never
assume you will find the equipment in the same condition in which you left it.
19. Only trained personnel are authorized to do repairs.
20. Do not use the HydraPak or associated hydraulic equipment when you are tired or fatigued.
21. Do not operate the HydraPak or associated hydraulic equipment when under the influence of drugs, alcohol, or
medication.
2

2 SPECIFICATIONS
2.1 TECHNICAL DATA
Model No.: HH1358 HV1658 HV1858
Engine: 13 hp Honda 16 hp Vanguard 18 hp Vanguard
V-Twin V-Twin
Number of cylinders 1 2 2
Oil Type >40F SAE 10W-30 SAE 30W SAE 30W
Oil Type <0F SAE 5W-30 SAE 10W-30 SAE 10W-30
Oil Capacity 37 oz. 56 oz. w/ filter 56 oz. w/ filter
Fuel Capacity 7 qt. 9 qt. 9 qt.
Fuel Consumption @ 3600 RPM 0.8 gph 0.9 gph 0.9 gph
Weight: 240 lbs. 280 lbs. 290 lbs.
Hydraulic System: Open Center
Operating Pressure (maximum) 2250 psi
Back Pressure <100 PSI @ 8 GPM
Reservoir 6 U.S. gallons—
shipping cap and vented fill cap provided
Cooling Capacity 16,000 BTU/HR
Pump Type Positive Displacement Gear
Flow Settings 5 or 8 GPM
Couplings 1/2” HTMA Flush Face
Filter 10 micron
Suction Screen 10 mesh
Filler/Breather 100 mesh
Electrical:
Charging System 12-14V/10 AMP 12-14V/16 AMP 12-14V/16 AMP
regulated to battery regulated to battery regulated to battery
Battery Type 12V/15 Plate/400 CCA
Fuse Automotive Ignition 5 AMP
Blade Type Fan 25 AMP
Standard Features:
Hour meter Yes Yes Yes
Electronic governor No No Yes
Tires:
Size 4.80 x 8
Inflation 30 psi
Axle 5/8” diameter
2.2 RECOMMENDED HYDRAULIC OIL
Many types of compatible hydraulic oil are available through your local dealer/distributor. As an original equipment
manufacturer, RGC uses a Grade ISO VG 32 hydraulic oil.
Extreme weather conditions or operating environments may require using a different viscosity oil or fluid type than what is
provided. If you have any question concerning the type of oil suitable for HH1358 / HV1658 / HV1858 operation, please
consult your local supplier or Reimann & Georger Corporation for details.
3

2.3 NAMEPLATE AND SERIAL NUMBER TAG
It is important to identify your HydraPak completely and accurately whenever ordering spare parts or requesting assistance
in service. The HydraPak has a product nameplate that shows the model and serial numbers as shown in Figure 2-1.
Record the model and serial numbers for future reference.
Figure 2-1.
Typical HydraPak Product Nameplate
MODEL
SERIAL NUMBER
CONSTRUCTION
MODEL
SERIAL NO.
4

3OPERATION
3.1 BEFORE OPERATING THE HYDRAPAK
WARNING:
ONLY TRAINED PERSONNEL SHALL OPERATE THIS EQUIPMENT. A TRAINED PERSON
IS ONE WHO HAS READ AND THOROUGHLY UNDERSTANDS THIS INSTRUCTION
MANUAL AND RELATED EQUIPMENT MANUALS AND, THROUGH TRAINING AND
EXPERIENCE, HAS SHOWN KNOWLEDGE REGARDING THE SAFE OPERATIONAL
PROCEDURES.
WARNING:
FOLLOW THE PRE-OPERATIVE CHECKLIST IN THE FRONT OF THIS MANUAL BEFORE
OPERATING.
CAUTION:
USE THE HYDRAPAK WITH OPEN CENTER TOOLS ONLY.
1. Thoroughly read the engine and associated hydraulic equipment instruction manuals for complete safety, operating and
maintenance information before operating.
2. Obey all the safety labels provided on your hydraulic tool and HydraPak. These labels warn you of potential hazards
that can cause death or serious injury. If a label comes off or becomes hard to read, contact Reimann & Georger
Corporation for replacement information.
3. Construction area is to be kept clear of unauthorized personnel. Place barricades or secure the area in such a manner
that no personnel can be injured.
4. Position the HydraPak to minimize the amount of construction debris and dust it receives.
3.1.1 Checking the Engine
1. Check engine oil level. Refer to Section 2.1 for the type and amount of oil to add.
2. Check the engine cylinder fins, air cleaner, and air intake screen for dirt or obstructions. Clean as required.
3. Fill the fuel tank with an approved fuel container in a well ventilated area. Make sure the gas caps on the HydraPak
and fuel container are properly tightened. Move fuel container at least ten feet from HydraPak before starting the
engine.
4. For high altitude operation, a carburetor jet kit is required. Consult your local supplier or Reimann & Georger
Corporation for details.
3.1.2 Checking the Hydraulic System
1. Check hydraulic reservoir as follows.
a. Replace the shipping cap with the chrome filler/breather cap provided.
b. Fluid level should be one inch from the top of tank.
2. Before making any hydraulic connections, inspect all hydraulic lines, fittings and hoses for leaks and risks of rupture as
follows:
5

a. Inspect each hydraulic line, fitting, and hose for breaks, cracks, worn spots, bulges, chemical attack, kinks or any
other damage. Never try to stop any detected leak with any body parts. Do not put your face close to suspected
leaks. Hold a piece of cardboard close to suspected leaks and then inspect the cardboard for signs of hydraulic oil.
b. Replace a damaged line, fitting or hose immediately. Never repair the part.
WARNING:
LIQUID UNDER HIGH PRESSURE CAN PIERCE THE SKIN, CAUSING DEATH OR SERIOUS
INJURY. IN CASE OF INJURY, GET IMMEDIATE MEDICAL ATTENTION.
3. The HydraPak uses flush-face quick-release couplings that are durable and easy to clean. Wipe the mating surfaces of
the couplings with a clean rag prior to making connection. They are always fitted such that the male coupling gives oil
and the female coupling receives oil.
a. Connect the return (tank) line from the HydraPak tank port to the return port of the hydraulic tool.
b. Then connect the pressure line from the hydraulic tool pressure port to the right (pressure) port on the HydraPak.
c. When making connections, do not over stretch the hoses or bend them at a sharp angle.
WARNING:
ENSURE HYDRAULIC HOSES ARE PROPERLY CONNECTED AND IN GOOD CONDITION.
3.2 STARTING AND OPERATING THE HYDRAPAK
1. Ensure the flow control knob is in the OFF position before starting.
2. Move the engine choke control to start or choke position.
3. Open fuel shut-off valve
4. Put the throttle in the middle position when starting the engine.
CAUTION:
DO NOT OPERATE THE HYDRAPAK WITH THE BATTERY DISCONNECTED.
5. Start the engine by turning the ignition key clockwise to the START position. Repeat if necessary using short starting
cycles (15 sec./min.). If using the pull start, the ignition key must be turned clockwise to the first or “run” position.
6. After starting the engine, open the choke slowly towards the “run” position until engine runs smoothly. Opening the
choke fully requires an engine warm-up period of several seconds to several minutes, depending on the temperature.
7. Use the 5/8 knob to select an output of either 5 or 8 GPM in accordance with your hydraulic tool instruction manual.
Do not exceed the recommended flow and pressure for the hydraulic tool in use.
8. Turn the flow control knob to the ON position to operate the tool.
WARNING:
WHEN OPERATING THE HYDRAPAK, OBSERVE ALL SAFETY PRECAUTIONS DESCRIBED
IN THE HYDRAPAK, ENGINE AND HYDRAULIC TOOL INSTRUCTION MANUALS.
FAILURE TO COMPLY COULD RESULT IN DEATH, SERIOUS INJURY AND/OR
EQUIPMENT DAMAGE.
9. Do NOT attempt to make any equipment adjustments during operation.
6

3.3 STOPPING THE HYDRAPAK
At the end of operation, secure the equipment to prevent unauthorized use. Never assume you will find the equipment in the
same condition that you left it. Proceed as follows:
1. Let the HydraPak run at idle for about five (5) minutes to cool hydraulic oil and components, or for ten (10) minutes
under severe operating conditions.
2. Turn the flow control knob to the OFF position.
3. Turn the key counter-clockwise to OFF. When the ignition key is in the OFF position, no electrical power is available
to operate the fan or any accessories.
CAUTION:
ENSURE THE IGNITION KEY IS TURNED OFF TO PREVENT POWER DRAINAGE FROM
THE BATTERY.
4. Turn the fuel valve on engine OFF.
CAUTION:
ENSURE THE FUEL VALVE IS TURNED OFF BEFORE TRANSPORTING THE HYDRAPAK.
7

4INSPECTION AND MAINTENANCE
4.1 GENERAL MAINTENANCE RULES
1. Proper maintenance of the HydraPak and related hydraulic equipment consists of adhering to all the guidelines given in
this chapter and in the Pre-Operative Checklist in the front of this manual. Proper maintenance is required to maintain
the system in good condition, which is defined as each part being free of damage or functional defects.
2. Review and follow all the safety rules given in Chapter 1 before attempting any maintenance.
3. Only authorized personnel should be allowed in the maintenance area. Authorized personnel are the trained people as
defined below and their supervision.
4. Repairs must be made only by trained personnel. A trained person is one who has read and thoroughly understands this
instruction manual and related equipment manuals and, through training and experience, has shown knowledge
regarding the safe operational procedures.
5. All authorized maintenance personnel must wear the appropriate personal protective equipment as defined by their
employer.
WARNING:
SHUT DOWN THE HYDRAPAK BEFORE DOING ANY MAINTENANCE OR REPAIRS.
PREVENT ACCIDENTAL STARTUP BY REMOVING THE SPARK PLUG WIRE AND
DISCONNECTING THE NEGATIVE WIRE FROM THE BATTERY TERMINAL.
WARNING:
DO NOT ADJUST OR REMOVE HYDRAULIC COMPONENTS, LINES, OR FITTINGS WHILE
THE HYDRAPAK IS RUNNING OR WHENEVER THE HYDRAULIC FLUID IS HOT.
WARNING:
LIQUID UNDER HIGH PRESSURE CAN PIERCE THE SKIN, CAUSING DEATH OR SERIOUS
INJURY. IN CASE OF INJURY, GET IMMEDIATE MEDICAL ATTENTION.
4.2 HYDRAULIC SYSTEM INSPECTION AND MAINTENANCE
1. Check to see that the hydraulic fluid is clean, and change oil and filter at recommended intervals to extend the life of
the HydraPak. Refer to the maintenance summary in Section 4.5.
2. Clean debris from heat exchanger daily.
3. Before making any hydraulic connections, inspect all hydraulic lines, fittings and hoses for leaks and risks of rupture as
follows:
a. Inspect each hydraulic line, fitting, and hose for breaks, cracks, worn spots, bulges, chemical attack, kinks or any
other damage. Never try to stop any detected leak with any body parts. Do not put your face close to suspected
leaks. Hold a piece of cardboard close to suspected leaks and then inspect the cardboard for signs of hydraulic oil.
b. Replace a damaged line, fitting or hose immediately. Never repair the part.
4. The HydraPak uses flush-face quick-release couplings that are durable and easy to clean. Wipe the mating surfaces of
the couplings with a clean rag prior to making connection. They are always fitted such that the male coupling gives oil
and the female coupling receives oil.
8

4.3 ELECTRICAL INSPECTION AND MAINTENANCE
The electrical system requires the following visual inspections before each use of the HydraPak:
1. Fuses must be secured in their holders.
2. All terminal connections must be intact.
3. Ensure that battery terminal bolts/nuts are tight.
4. Battery fluid level should be full to within 1/8 inch from bottom of vent well neck.
5. If the battery charge is insufficient to start the engine, recharge the battery with a 12-volt charger at a rate of 5-30
amp/hour. Rapid charging reduces the life expectancy of any battery. If an overnight charge is possible, proceed with
the recommended rate.
6. Ensure the fan blade is clean and free to rotate.
4.4 ENGINE INSPECTION AND MAINTENANCE
1. The following rules must be observed when doing engine maintenance:
a. Do not check for a spark with the spark plug removed. Use an approved tester.
b. Do not crank the engine with the spark plug removed.
c. Do not operate the engine without a muffler.
d. Do not the start engine with the air cleaner or air cleaner cover removed.
2. Check fuel lines and fittings frequently for cracks or leaks. Replace if necessary.
3. Clean the air cleaner daily. Do not use petroleum solvents (such as kerosene) or pressurized air for this purpose.
Replace if very dirty or damaged.
4. Check oil level daily. If oil level is between ADD and FULL mark on dipstick, but a low oil pressure engine shutdown
occurs, do not try to use the HydraPak before contacting an authorized service representative. If oil level is below the
ADD mark on dipstick, add oil to bring level to the FULL mark before starting the engine.
9

4.5 MAINTENANCE SCHEDULE
The following table summarizes the type and frequency of maintenance required. Follow the manufacturer’s instructions for
proper lubrication and detailed maintenance. For repairs, contact the nearest authorized service center.
TYPE OF MAINTENANCE
SERVICE FREQUENCY
Check and clean obstruction from air intake at recoil starter screen
Daily
Check and clean obstruction from heat exchanger*
Daily
Check fuel level in gas tank—add if required
Daily
Check engine oil level—add if required
Daily
Check that reservoir oil level is within one inch below filler cap—add if required
Daily
Check that hydraulic oil is clean
Daily
Wash air filter pre-cleaner
25 hrs.
Change engine oil after first 8 hrs. **
50 hrs.
Check battery electrolyte—add if necessary
50 hrs.
Check air cleaner filter—replace if necessary
100 hrs.
Check and clean obstructions from cooling fins and external surfaces
100 hrs.
Replace engine oil filter
100 hrs.
Check, clean, and replace spark plug
100 hrs.
Have cylinder head removed and cleaned (leaded fuel)
100 hrs.
Have cylinder head removed and cleaned (unleaded fuel)
200 hrs.
Replace reservoir filter and oil after first 50 hrs. ***
250 hrs.
Clean suction screen in reservoir
250 hrs.
Check coupling spider
250 hrs.
Grease wheel bearings
500 hrs.
Check ignition timing
500 hrs.
Check fuel filter in line
500 hrs.
Check valves and tappet clearance
500 hrs.
Lightly oil throttle cable
500 hrs.
* The hydraulic heat exchanger must always be kept clean and free of obstructions. Check it daily before operating and
frequently during use. If debris builds up on the screen during operation, remove debris as soon as it is safely possible.
CAUTION:
AN OBSTRUCTED HEAT EXCHANGER WILL CAUSE THE HYDRAULIC SYSTEM AND
ENGINE OIL TO OVERHEAT AND FAIL PREMATURELY.
** Change every 25 hours if engine is operated under heavy load or in high ambient temperatures.
*** Change more often under heavy duty, high temperature, or high altitude applications. When draining the oil, clean
filler/breather cap and replace if damaged
10

5TROUBLESHOOTING
The following chart is intended to assist with troubleshooting the HH1358, HV1658, and HV1858 HydraPaks. While not
all inclusive, the chart outlines the most common causes of a problem and the recommended course of action.
The troubleshooting guide for the associated hydraulic tool is in the manual specifically for this equipment.
CAUTION:
IF THE PROBLEM WITH THE ENGINE IS NOT CERTAIN, ALWAYS FOLLOW THE
MANUFACTURER’S WARRANTY POLICY BEFORE ANY OTHER REPAIR OR
MAINTENANCE IS ATTEMPTED.
SYMPTOM CAUSE AND CORRECTIVE ACTION
HydraPak won’t operate hydraulic tool—engine
operating normally.
Low fluid level in reservoir—fill to required level.
No hydraulic oil pressure caused by:
a. Flow knob off—if the flow is shut off, there can be no
pressure.
b. HydraPak pressure relief setting of 2250 psi is too low for
the hydraulic tool being used—check hydraulic tool
requirement.
c. Air in fluid—inspect for oil leaks and repair to correct.
d. No work being done—open center tools only produce
pressure under load.
No hydraulic oil flow caused by:
a. Flow control knob off—turn to ON position and select either
5 or 8 GPM as described in Chapter 3.
b. Hose disconnected—check hose connections.
c. Coupling key sheared—inspect and replace.
d. Damaged pump—inspect and replace.
Flow restriction caused by:
a. Kinked or damaged hose
b. Pinched or damage steel line
c. Poor connection in either a hose or steel line.
Coupling between engine and pump damaged—replace the following
items as required:
a. Coupling spider worn out
b. Pump or engine key sheared.
Pump or motor defective—contact the nearest authorized service
center.
HydraPak is operating hydraulic tool slowly or
erratically—engine operating normally.
Hydraulic tool is being overloaded when working on the construction
medium—check hydraulic tool specifications and reduce load on tool
as required.
Low fluid level in reservoir—fill to required level.
11

HydraPak is operating hydraulic tool slowly or
erratically—engine operating normally
(continued).
One or more of the following flow restrictions:
a. Hose kinked or damaged
b. System filter clogged—fluid going through bypass.
c. Suction filter clogged—fluid going through bypass.
d. Steel line pinched or damaged.
e. Heat exchanger clogged.
Erratic pressure caused by:
a. Contamination in fluid—drain fluid, then inspect and replace
filters and fluid.
b. Air in fluid—inspect for oil leaks and repair to correct.
Oil viscosity too heavy for cold climate—contact your local supplier
or Reimann & Georger Corporation for information.
Pump or motor damaged or worn—contact your nearest authorized
service center.
System relief valve malfunctioning:
a. Stuck partially open
b. Has broken spring.
HydraPak pressure relief setting of 2250 psi is too low for the
hydraulic tool being used—check tool pressure requirement.
Extension hoses too long:
a. Hoses over 50 feet long add sufficient friction to the
hydraulic system to slow down the hydraulic tool slightly.
b. Where possible, use as few quick disconnects as possible.
c. An increase in system pressure may be required to
compensate for long hose runs. Consult your local supplier
or Reimann & Georger Corporation for information.
Hydraulic oil flow set too low—select 8 gpm on the 5-8 gpm knob.
Hydraulic tool is overspeeding
Flow is set too high—select 5 gpm on the flow control knob.
System overheats—engine operating normally.
Low fluid level in reservoir—fill to required level.
Air in fluid—inspect for oil leaks and repair to correct.
Severe operating conditions caused by:
a. Extremely high ambient temperature-- use a higher viscosity
hydraulic oil. Consult your local supplier or Reimann &
Georger Corporation for details.
b. Extended duty cycle—operate HydraPak intermittently to
provide cooling periods
12

System overheats—engine operating normally.
(continued)
Heat exchanger not functioning efficiently because:
a. Air intake or internal parts of heat exchanger clogged/dirty—
clear debris as required.
b. Fan is not running—see detailed troubleshooting guide
below.
Fan is not running because:
a. Battery was disconnected during a pull start—turn ignition
switch to ON position to start fan.
b. Fan connection unplugged—check and secure all fan plug
connections at fan motor, fan relay, and at any fan override
switch on control panel.
c. Blown fuse on fan circuit or ignition—replace with specified
fuse.
d. Defective relay—replace.
e. No battery in HydraPak or battery is dead—fan requires a
charged 12 volt battery to operate.
Oil is foaming.
Low fluid level in reservoir—fill to required level.
Water in oil.
Pump shaft seal worn out causing air to be drawn into pump.
Air leak in suction line.
Improper type of hydraulic oil--as an original equipment
manufacturer, RGC uses a Grade ISO VG 32 hydraulic oil. If you
have any questions concerning the type of oil you should use for your
HydraPak, consult your local supplier or RGC for details.
Pump leaks.
Plugged reservoir filler/breather.
Shipping cap installed—use chrome filler/breather cap supplied.
Shaft seal worn on pump.
Cracked inlet/outlet fitting.
Hour meter is malfunctioning on HH1358 or
HV1858 models.
Low battery level—recharge battery.
Loose or broken connection—repair or replace as required.
Electrical problem with meter— contact your local supplier or
Reimann & Georger Corporation for information.
Engine does not start
Low oil pressure wire is not disconnected during a pull start—
disconnect the wire during a pull start and then reconnect after the
engine starts.
Battery connection when using starter key—check for loose terminal
connection(s).
Flow control knob is not OFF—turn to OFF position.
Engine starts, then stalls almost immediately.
Flow control knob is not OFF—turn to OFF position.
13

Engine running roughly.
Engine out of adjustment—tune engine after consulting engine
manufacturer.
Engine stalls when load is applied.
Defective actuator on HV1858 electronic governor is failing to move
throttle lever—replace actuator as described in the engine manual.
Engine fails to return to idle after a load is
removed.
Defective actuator on HV1858 electronic governor is failing to move
throttle lever—replace actuator as described in the engine manual.
Engine races uncontrollably at full throttle.
Defective control module on HV1858 electronic governor is
triggering actuator to move throttle to wide open position—replace
module as described in the engine manual.
Engine frozen.
No oil in crankcase—service at engine manufacturer service center or
replace engine with equivalent.
Problem with split frame reassembly
Misalignment of top/bottom halves—align and assemble using grease
to lube four frame telescoping sleeves, then secure with appropriate
hardware.
14

6PARTS LIST
The following parts list applies to the HH1358C, HV1658C and HV1858C HydraPaks only. Each item number on this parts list can be
matched with the item number shown on the Figure 6-1 assembly drawing.
Item Number
Part Number
Quantity
Description
1
2546004
1
MAIN FRAME
2
0555326
1
ENGINE 13 HP HONDA (HH1358)
2
5570568
1
ENGINE 16 HP VANGUARD (HV1658)
2
5513447
1
ENGINE 18 HP VANGUARD (HV1858)
5507742
1
MUFFLER (HV1858 ONLY)
3
2510872
1
RESERVOIR ASSEMBLY
4
6000921
1
FILLER BREATHER CAP
5
6000908
1
SUCTION STRAINER ASSEMBLY
6
2546006
1
FRAME FORMED HANDLE
7
5800138
4
CLEVIS PIN ROUNDED SNAP
8
5401548
1
WIRE HARNESS HONDA (HH1358)
8
5411512
1
WIRE HARNESS VANGUARD (HV1658)
8
5414518
1
WIRE HARNESS VANGUARD (HV1858)
9
2514302
1
HEAT EXCHANGER ASSEMBLY
10
6000855
1
HEAT EXCHANGER CORE
11
5401513
1
FAN 10”
12
5800387
2
COTTER HAIR PIN
13
2505558
1
HYDRAULIC PUMP 5/8 GPM REPLACEMENT KIT
6950558
1
HYDRAULIC PUMP 5/8 GPM
14
5400861
1
BATTERY
5401564
1
BATTERY STRAP
15
6910454
1
PUMP BRACKET (HV1658 + HV1858)
15
6900454
1
PUMP BRACKET (HH1358)
6901502
1
PUMP BRACKET COVER
16
5493623
1
POSITIVE BATTERY WIRE
18
6001885
1
COUPLING 1/2” MALE
19
5701571
1
HOUR METER
20
2514380
1
CONTROL PANEL
21
7600871
2
TIRE AND RIM ASSEMBLY
22
6004723
1
HYDRAULIC FILTER ELEMENT
24
6004722
1
HYDRAULIC FILTER HEAD
25
2504743
1
AXLE
26
5401511
1
FAN RELAY
27
6205683
1
CONTROL PANEL DECAL
28
6001886
1
COUPLING 1/2” FEMALE SAE
29
6085401
2
FLOW CARTRIDGE W/ KNOB
30
2510854
2
FLOW KNOB (ONLY)
31
6000854
1
MANIFOLD
32
6015310
1
RELIEF VALVE
33
5401549
1
LOW PRESSURE SWITCH (HH1358)
34
6700873
1
COUPLING HALF 1/2“ – PUMP
35
6700907
1
COUPLING INSERT
36
6700906
1
COUPLING HALF 1” - ENGINE
37
6001553
1
HIGH PRESSURE SENSOR (HV1858)
15

Figure 6-1.
HH1358C, HV1658C, and HV1858C Assembly Drawing
16

LIMITED PRODUCT WARRANTY
Reimann & Georger Corporation
Hoisting and Construction Products
A. LIMITED WARRANTY
Reimann & Georger Corporation (the “Manufacturer”) warrants to the original purchaser (the “Buyer”) that all Reimann &
Georger Hoisting and Construction products shall be free of defects in material and workmanship for a period of one (1)
year from date of original purchase.
B. MANUFACTURER’S OBLIGATIONS
The Manufacturer’s sole obligation under this Limited Warranty is the repair or, at the Manufacturer’s discretion, the
replacement of parts found to be defective. Parts and equipment must have authorization from the Manufacturer prior to
return to the Manufacturer or repair by an authorized service person. Costs of transportation and other expenses
connected with replacing or repairing parts are not covered under this Limited Warranty.
C. PARTS MANUFACTURED BY OTHERS
This Limited Warranty does not cover any parts manufactured by others. Such parts are subject to the warranty, if any, of
their respective manufacturers, and are to be repaired only by a respective authorized service person for such parts. The
Manufacturer shall have no obligation to undertake repairs of parts manufactured by others.
D. NO SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES
IN NO EVENT SHALL THE MANUFACTURER BE LIABLE TO THE BUYER OR ANY OTHER PERSON
FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL LOSSES OR DAMAGES
CONNECTED WITH THE USE OF THE PRODUCT UNDER THIS LIMITED WARRANTY. SUCH
DAMAGES FOR WHICH THE MANUFACTURER SHALL NOT BE RESPONSIBLE INCLUDE, BUT ARE
NOT LIMITED TO, LOST TIME AND CONVENIENCE, LOSS OF USE OF THE PRODUCT, THE COST OF A
PRODUCT RENTAL, COSTS OF GASOLINE, TELEPHONE, TRAVEL, OR LODGING, THE LOSS OF
PERSONAL OR COMMERCIAL PROPERTY, AND THE LOSS OF REVENUE.
E. NO LIABILITY IN EXCESS OF PURCHASE PRICE
IN NO EVENT SHALL THE MANUFACTURER’S OBLIGATIONS UNDER THIS LIMITED WARRANTY
EXCEED THE PURCHASE PRICE OF THE PRODUCT.
F. NO EXTENSION OF STATUTE OF LIMITATIONS
ANY REPAIRS PERFORMED UNDER THIS WARRANTY SHALL NOT IN ANY WAY EXTEND THE
STATUTES OF LIMITATIONS FOR CLAIMS UNDER THIS LIMITED WARRANTY.
G. WAIVER OF OTHER WARRANTIES
THE EXPRESS WARRANTIES SET FORTH IN THIS LIMITED WARRANTY ARE IN LIEU OF AND
EXCLUDE ANY AND ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
H. PROCEDURE FOR WARRANTY PERFORMANCE
If the product fails to perform to the Manufacturer’s specifications, the Buyer must provide the Manufacturer with the
applicable model and serial numbers, the date of purchase, and the nature of the problem.
9912
