Rheem TRITON GHE80SU-130A User manual

Quick Start Guide
®
PEEL HERE
TO OPEN
2COLD WATER
CONNECTIONS
3HOT WATER
CONNECTIONS
ELECTRIC
CONNECTION
GAS
CONNECTION
AIR
INTAKE
EXHAUST
BEFORE
YOU BEGIN
Gather required additional tools
Multi Meter Manometer
Combustion
Analyzer
(optional)
SCAN CODE
for additional information
and videos

A Successful Install STARTS HERE
LOCATE EXHAUST TEE
& NEUTRALIZER
The exhaust tee and neutralizer
are shipped with the water heater
in a separate box and need to be
connected for proper operation.
GAS CONNECTION
Step 2, Connect the Gas Line
For best performance:
• Ensure that all gas connections, regulator(s), and meter are sized properly
for the BTU/h rating (See Installation Manual for charts)
• Regulator should be a minimum of 8' from the water heater
If installing more than one water heater, make sure each water heater
has a regulator
• Check all connections and fittings for leaks
2
PREPARE THERMAL
EXPANSION TANK
Make sure the thermal expansion
tank is properly sized for the
application and pressurized to
the building static water pressure.
INSPECT SHIPMENT
Check for any damage
that may have
occurred during
shipping or handling.
WATER CONNECTIONS
Step 1, Connect the Inlet and Outlet
Five water inlet and outlet connections at the
top, side and bottom for easy piping
• Two 2" Water Connection Ports on Front
• Two 2" Water Connection Ports on Back
• One 1-1/2" Water Connection Port on Top
1
BACK
BACK
x3
x2
TOP
INSTALLER TIP
• Remember to fill
water heater
before startup
3
Short Sweep
90º Elbow
10'
Straight Equivalent
8'
Straight Equivalent
Standard Sweep
90º Elbow
5'
Straight Equivalent
Long Radius Sweep
90º Elbow
2.5'
Straight Equivalent
Standard
45º Elbow
Direct Vent
Vertical Vent
Horizontal Intake
Direct Vent
Horizontal Vent
Vertical Intake
VENTING
Step 3, Hook Up the Intake and Exhaust
For optimum performance, proper venting
is essential.
Here are a few tips for installation:
• Calculate total equivalent feet.
90° and 45° elbows reduce the equivalent
vent length by the these values
• Ensure that vent runs are sloped
(1/4" per foot rise recommended)
• Install condensate drain / loop for air intake
• Rheem recommends long sweep elbows when possible

INSTALLER TIPS

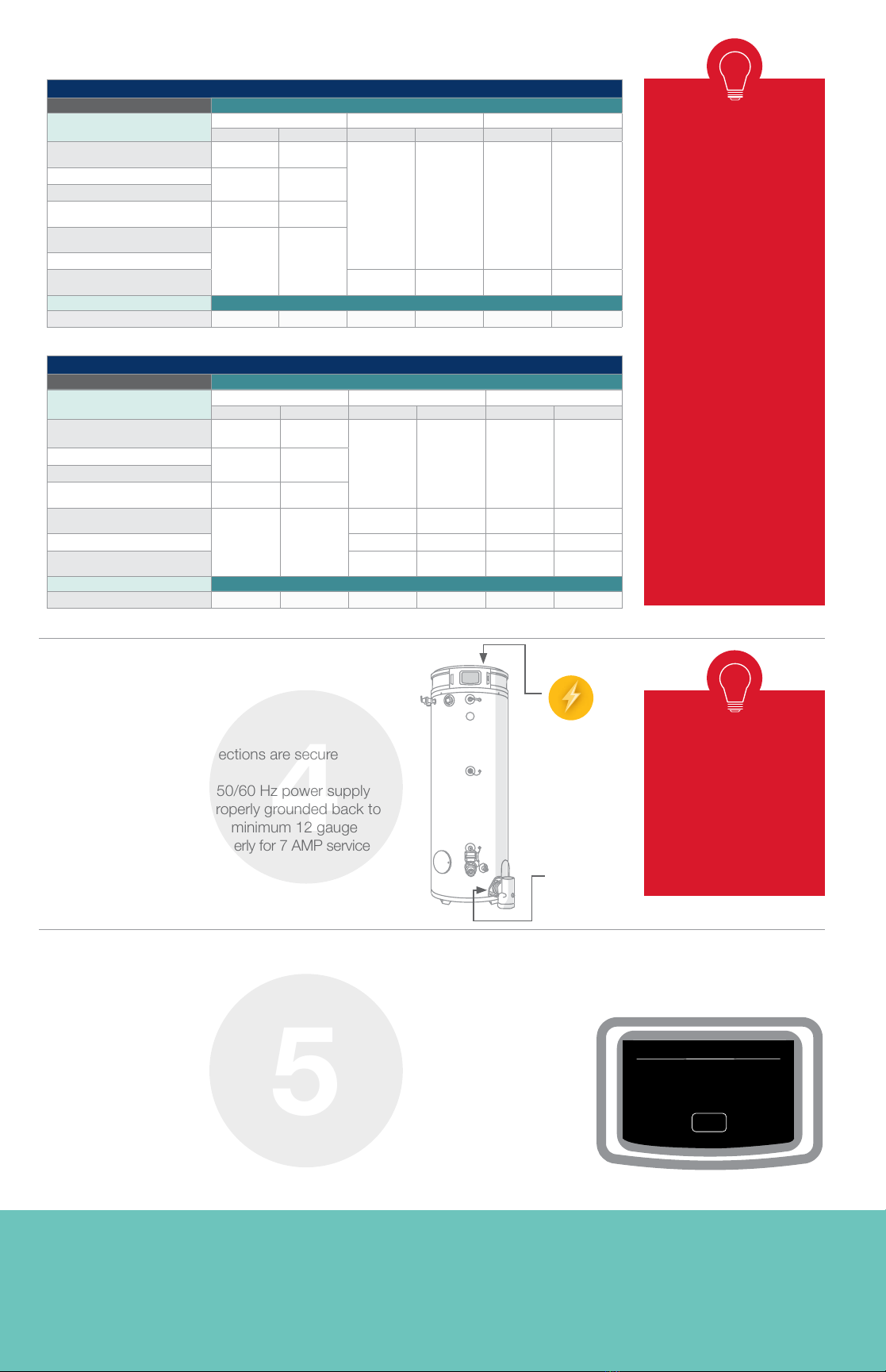

MINIMUM AND MAXIMUM VENT LENGTHS
POWER VENT Max Vent Length (Eq. Ft.) Rigid Pipe Diameter
INLET MODELS 2" (5 CM) 3" (8 CM) 4" (10 CM)
Inlet Outlet Inlet Outlet Inlet Outlet
GHE80SU-130(A)
GHE80SU-160(A) 1 (0.31 m) 20 (6.1 m)
1 (0.31 m) 135 (41.1 m) 1 (0.31 m) 185 (56.4 m)
GHE80SU-200(A)
N/A N/A
GHE80SU-300(A)
GHE100SU-130(A)
GHE100SU-160(A) 1 (0.31 m) 20 (6.1 m)
GHE100SU-200(A)
GHE100SU-250(A)
N/A N/A
GHE100SU-300(A)
GHE100SU-350(A)
GHE100SU-400(A) 1 (0.31 m) 65 (19.8 m) 1 (0.31 m) 100 (30.5 m)
Min Vent Length (Eq. Ft.) Rigid Pipe Diameter
All applicable models 1 (0.31 m) 15 (4.6 m) 1 (0.31 m) 15 (4.6 m) 1 (0.31 m) 15 (4.6 m)
All venting lengths shown are for up to 8000 ft altitude. See the Use and Care Manual for models with altitudes above, and/or inlet/outlet specs for models with 6" vent lengths.
MINIMUM AND MAXIMUM VENT LENGTHS
POWER DIRECT VENT Max Vent Length (Eq. Ft.) Rigid Pipe Diameter
INLET MODELS 2" (5 CM) 3" (8 CM) 4" (10 CM)
Inlet Outlet Inlet Outlet Inlet Outlet
GHE80SU-130(A)
GHE80SU-160(A) 20 (6.1 m) 20 (6.1 m)
60 (18.3 m) 75 (22.9 m) 120 (36.6 m) 135 (41.1 m)
GHE80SU-200(A)
N/A N/A
GHE80SU-300(A)
GHE100SU-130(A)
GHE100SU-160(A) 20 (6.1 m) 20 (6.1 m)
GHE100SU-200(A)
GHE100SU-250(A)
N/A N/A
65 (19.8 m) 75 (22.9 m) 120 (36.6 m) 135 (41.1 m)
GHE100SU-300(A) 65 (19.8 m) 75 (22.9 m) 120 (36.6 m) 135 (41.1 m)
GHE100SU-350(A)
GHE100SU-400(A) 50 (15.2 m) 65 (19.8 m) 70 (21.4 m) 85 (25.9 m)
Min Vent Length (Eq. Ft.) Rigid Pipe Diameter
All applicable models 5 (1.5 m) 15 (15.2 m) 5 (1.5 m) 15 (15.2 m) 5 (1.5 m) 15 (15.2 m)
All venting lengths shown are for up to 2000 ft altitude. See the Use and Care Manual for models with altitudes above, and/or inlet/outlet specs for models with 6" vent lengths.
Get the unit’s Model and Serial Numbers ready and contact us:
US 1.800.432.8373 / Canada 1.800.268.6966
Be sure to have your Model and Serial Numbers before calling
customer service (located on the water heater’s Rating Label)
Welcome to the Setup Wizard
This setup wizard will prompt the user to:
Continue
* Set the Time and Date
* Set Schedules for Hours of Operation
* Connect to the Wi-Fi Network
5
FINAL STEPS
Step 5, Complete the Setup
Once power is applied to the water heater and the ‘On’ button is pressed,
the LCD will automatically begin the Startup Wizard:
1. Set the Time and Date
2. Schedule Hours of Operation for the business – Enables Triton to save
energy and money when the business is not operating
3. Connect to WiFi – Enables users to receive leak and diagnostic alerts,
usage reports and more
Follow the on-screen instructions to complete setup.
• Remember that the
condensate trap is part
of the exhaust tee and
does not require
extra plumbing
• Recommended
minimum 3" vertical
drop for every 4 ft. of
horizontal run
• Plumb the condensate
line for the proper size
and run to avoid air
bubbles, which can
prevent drainage
VENTING (con't)
ELECTRIC CONNECTION
Step 4, Connect the Electrical
To ensure proper ignition:
• Ensure all electrical connections are secure
• Use correct polarity
• Connect to a 120VAC – 50/60 Hz power supply
• Ensure water heater is properly grounded back to
the main breaker box with minimum 12 gauge
• Ensure breaker is sized properly for 7 AMP service
per water heater
4
INSTALLER TIPS
• Connect the yellow wires
from the water heater to the
exhaust pressure switch
• Connect the white wires
from the heater to the flue
temperature sensor
CUSTOMER SERVICE
Have Questions,
Need Help Troubleshooting?
Switch
Connection
FORM NO. RH-130T • 06/19 • WP
