RHINO TW60 User manual

©2005 Alamo Group Inc.
TW60
TW72
Published 05/05 Effective Serial No. TW60-14790 through Current Part NO. 00759048
Effective Serial No. TW72-24620 through Current
OPERATOR’S MANUAL
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]
ROTARY MOWER
This Operator's Manual is an integral part of the safe operation of this machine and must
be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety
and Operation Instructions contained in this manual before operating the equipment. C01-
Cover
$0.00

To the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded
operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has
designed this implement to be used with all its safety equipment properly attached to minimize the chance of acci-
dents.
BEFORE YOU START!! Read the safety messages on the implement and shown in your manual. Observe the
rules of safety and common sense!
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration
Form in full and return it to within 30 Days. Make certain the Serial Number of the Machine is recorded on the War-
ranty Card and on the Warranty Form that you retain

In order to reduce accidents and enhance the safe operation of mowers, Alamo Group Ag Division, in
cooperation with other industry manufacturers has developed the AEM/FEMA Industrial and Agricul-
tural Mower Safety Practices video and guide book.
The video will familiarize and instruct mower-tractor operators in safe practices when using industrial
and agricultural mowing equipment. It is important that Every Mower Operator be educated in the oper-
ation of their mowing equipment and be able to recognize the potential hazards that can occur while oper-
ating a mower. This video, along with the mower operator’s manual and the warning messages on the
mower, will significantly assist in this important education.
Your Authorized Alamo Ag Dealer may have shown this video and presented you a DVD Video when you
purchased your mower. If you or any mower operator have not seen this video, Watch the Video, Read
this Operator’s Manual, and Complete the Video Guidebook before operating your new mower. If you
do not understand any of the instructions included in the video or operator’s manual or if you have any
questions concerning safety of operation, contact your supervisor, dealer or Alamo Group Ag.
If you would like a VHS video tape of the video, please email AEMV[email protected] or Fax
AEM VHS Video at [phone] or mail in a completed copy of the form on the back of this page to
AEM VHS Video 1502 E Walnut Street, Seguin, TX 78155. and request the VHS video version. Please
include your name, mailing address, mower model and serial number.
Every operator should be trained for each piece of equipment (Tractor and Mower), understand the
intended use, and the potential hazards before operating the equipment.

Alamo Group Ag. Division is willing to provide
one (1) AEM Mower Safety Practices Video
Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video
DVD Format – AEM/FEMA Mower Operator Safety Video
Mower Operator’s Manual
AEM Mower Operator’s Safety Manual
Requester Name Phone:
Requester Address:
City
State
Zip Code
Mower Model: Serial Number:
Date Purchased: Dealer Salesperson:
Dealership Name: Dealership Location:
Mail to:
AEM Video Services
1502 E Walnut street
Seguin, TX 78155
Or Fax to:
[phone]
Or Email to:
AEMV[email protected]

Table of Contents
SAFETY SECTION.......................................................................................... 1-1
General Safety Instructions and Practices..........................................................................................................1-2
Operator Safety Instructions and Practices ........................................................................................................1-3
Equipment Operation Safety Instructions and Practices.....................................................................................1-5
Connecting or Disconnecting Implement Safety Instructions and Practices..................................................... 1-11
Transporting Safety Instructions and Practices ................................................................................................ 1-12
Maintenance and Service Safety Instructions and Practices ............................................................................1-14
Storage and Parking Safety Instructions and Practices .................................................................................... 1-16
Concluding Safety Instructions and Practices...................................................................................................1-16
Decal Location ..................................................................................................................................................1-17
Decal Description..............................................................................................................................................1-19
INTRODUCTION SECTION ............................................................................ 2-1
Attention Owner/Operator ...................................................................................................................................2-4
ASSEMBLY SECTION .................................................................................... 3-1
A-Frame Assembly (Figure Asm-0001)............................................................................................................... 3-2
Tailwheel Assembly (Figure Asm-0002) .............................................................................................................3-3
Front and Rear Deflectors (Standard Equipment) and Chain Guards (Optional Equipment at Extra Cost)........3-3
Chainguards (Optional Equipment at Extra Cost)...............................................................................................3-5
Driveline Attachment -(Figure Asm-0008)...........................................................................................................3-6
Check Chains - Extra Equipment - for Lift-Models (Figure Asm-0011) ...............................................................3-7
Offset Adapter Hitch - Extra Equipment (Figure Asm-0010) ...............................................................................3-8
OPERATION SECTION .................................................................................. 4-1
Standard Equipment and Specifications .............................................................................................................4-3
OPERATOR REQUIREMENTS ..........................................................................................................................4-4
TRACTOR REQUIREMENTS.............................................................................................................................4-5
ROPS and SEAT BELT4-5
Tractor Safety Devices4-5
Tractor Horsepower4-6
3-Point Hitch4-6
Front End Weight4-6
Power Take Off (PTO)4-7
GETTING ON AND OFF THE TRACTOR ..........................................................................................................4-7
Boarding the Tractor4-8
Dismounting the Tractor4-8
STARTING THE TRACTOR ...............................................................................................................................4-9
CONNECTING THE MOWER TO THE TRACTOR ............................................................................................4-9
SETTING THE MOWER ................................................................................................................................... 4-10
Setting Mower Height4-11
Setting Deck Pitch4-12
DRIVELINE ATTACHMENT ............................................................................................................................. 4-12
Driveline Length Check4-13
PRE-OPERATION INSPECTION AND SERVICE............................................................................................4-14

Tractor Pre-Operation Inspection/Service4-15
Mower Pre-Operation Inspection/Service4-16
Cutting Component Inspection4-19
DRIVING THE TRACTOR AND IMPLEMENT..................................................................................................4-20
Starting the Tractor4-21
Brake and Differential Lock Setting4-21
Raising the Mower4-22
Driving the Tractor and Mower4-22
Crossing Ditches and Steep Inclines4-23
OPERATING THE TRACTOR AND IMPLEMENT............................................................................................4-24
Foreign Debris Hazards4-25
Bystanders/Passersby Precautions4-25
Engaging the Power Take Off (PTO)4-26
PTO RPM and Ground Speed4-27
Operating the Mower4-27
Shutting Down the Implement4-31
DISCONNECTING THE MOWER FROM THE TRACTOR ..............................................................................4-31
MOWER STORAGE ......................................................................................................................................... 4-33
TRANSPORTING THE TRACTOR AND IMPLEMENT .................................................................................... 4-33
Transporting on Public Roadways4-34
Hauling the Tractor and Implement4-36
TROUBLESHOOTING GUIDE .........................................................................................................................4-38
MAINTENANCE SECTION ............................................................................. 5-1
Lubrication ..........................................................................................................................................................5-2
DRIVELINE LUBRICATION................................................................................................................................5-3
GEARBOX ..........................................................................................................................................................5-4
TAIL WHEEL ASSEMBLY .................................................................................................................................. 5-4
BLADE SERVICING ...........................................................................................................................................5-5
BLADE SHARPENING .......................................................................................................................................5-5
BLADE REMOVAL..............................................................................................................................................5-6
BLADE CARRIER REMOVAL ............................................................................................................................ 5-6
BLADE CARRIER INSTALLATION ....................................................................................................................5-6
SLIP CLUTCH..................................................................................................................................................... 5-6
SEASONAL CLUTCH MAINTENANCE .............................................................................................................. 5-7

Safety Section 1-1
© 2005 Alamo Group Inc.
SAFETY SECTION

SAFETY
SE5 05/05 Safety Section 1-2
© 2005 Alamo Group Inc.
SAFETY

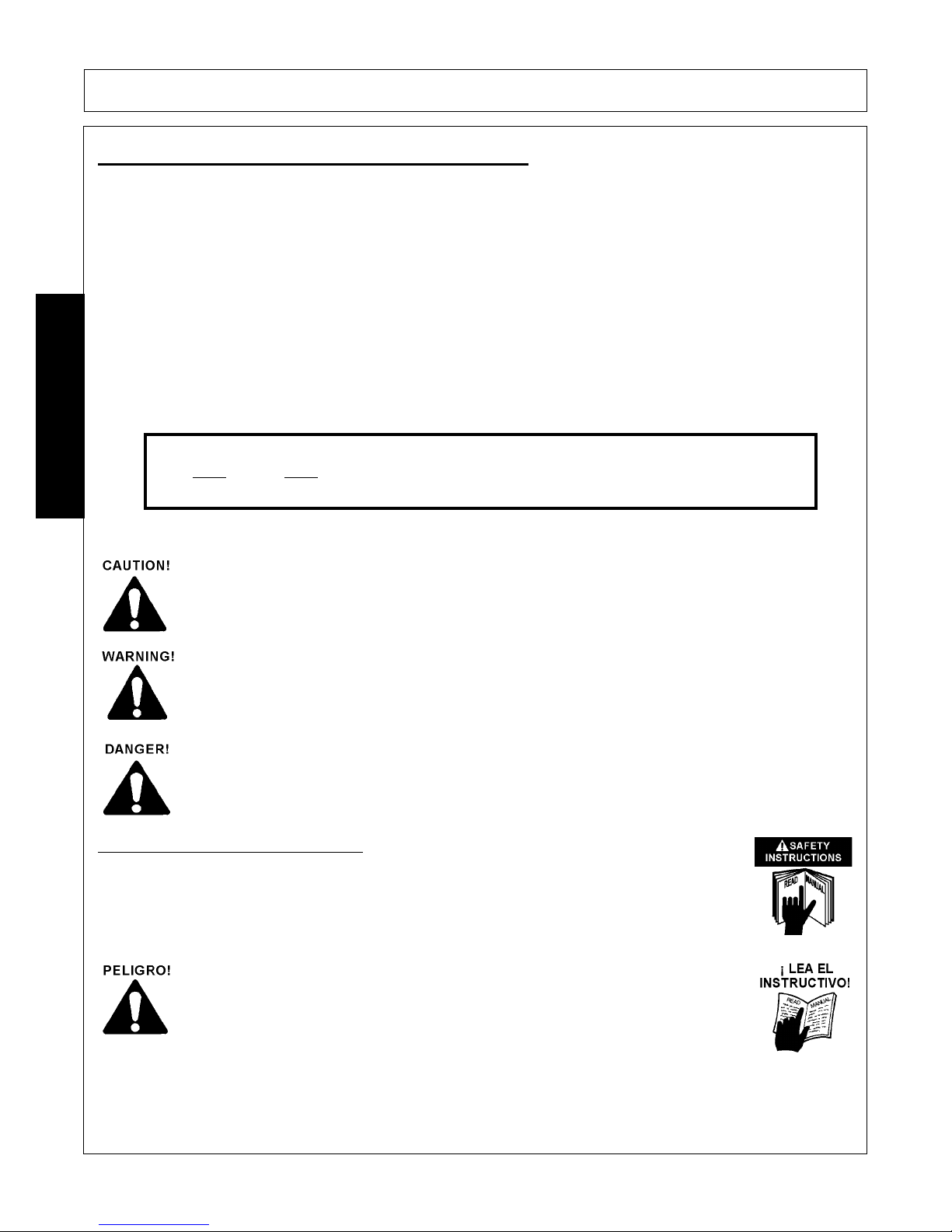

General Safety Instructions and Practices
A safe and careful operator is the best operator. Safety is of primary importance to the manufacturer and
should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your
surroundings, and observing certain precautions. The first section of this manual includes a list of Safety
Messages that, if followed, will help protect the operator and bystanders from injury or death. Read and
understand these Safety Messages before assembling, operating or servicing this Implement. This
equipment should only be operated by those persons who have read the Manual, who are responsible and
trained, and who know how to do so safely and responsibly.
The Safety Alert Symbol combined with a Signal Word, as seen below, is used throughout this manual and on
decals which are attached to the equipment. The Safety Alert Symbol means: “ATTENTION! BECOME
ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal Word are intended to warn the owner/
operator of impending hazards and the degree of possible injury faced when operating this equipment.
The lowest level of Safety Message; warns of possible injury. Decals located on the Equipment
with this Signal Word are Black and Yellow
Serious injury or possible death! Decals are Black and Orange.
Imminent death/critical injury. Decals are Red and White. (SG-1)
Practice all usual and customary safe working precautions and above all---remember safety is
up to YOU. Only YOU can prevent serious injury or death from unsafe practices.
READ, UNDERSTAND, and FOLLOW the following Safety Messages. Serious injury or
death may occur unless care is taken to follow the warnings and instructions stated in the
Safety Messages. Always use good common sense to avoid hazards. (SG-2)
Si no lee ingles, pida ayuda a alguien que si lo lea para que le traduzca las
medidas de seguridad. (SG-3)

SAFETY
SE5 05/05 Safety Section 1-3
© 2005 Alamo Group Inc.
SAFETY
Operator Safety Instructions and Practices
Engine Exhaust, some of its constituents, and certain vehicle components contain or emit
chemicals known to the state of California to cause cancer and birth defects or other reproductive
harm. (SG-30)
The rotating parts of this machine continue to rotate even after the PTO has been turned off. The
operator should remain in his seat for 60 seconds after the brake has been set, the PTO
disengaged, the tractor turned off, and all evidence of rotation has ceased. (S3PT-10)
“Wait a minute...Save a life!”
Never crawl under a raised Implement supported solely by the Tractor 3-Point hitch. Release of
the control lever or mechanical failure will result in the Implement falling and possible injury or
death. Always securely block up the Implement before crawling underneath to perform repairs
and service. (S3PT-19)
N
ever opera
t
e
th
e
T
rac
t
or or
I
mp
l
emen
t
un
til
you
h
ave rea
d
an
d
comp
l
e
t
e
l
y
understand this Manual, the Tractor Operator’s Manual, and each of the Safety
Messages found in the Manual or on the Tractor and Implement. Learn how to
stop the tractor engine suddenly in an emergency. Never allow inexperienced
or untrained personnel too operate the Tractor and Implement without
supervision. Make sure the operator has fully read and understood the manuals
prior to operation. (SG-4)
The operator and all support personnel should wear hard hats, sa
f
ety shoes,
safety glasses, and proper hearing protection at all times for protection from
injury including injury from items thrown by the equipment. (SG-16)
PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PERMANENT
HEARING LOSS! Tractors with or without an Implement attached can often be
noisy enough to cause permanent hearing loss. We recommend that you
always wear hearing protection if the noise in the Operator’s position exceeds
80db. Noise over 85db over an extended period of time will cause severe
hearing loss. Noise over 90db adjacent to the Operator over an extended
period of time will cause permanent or total hearing loss. NOTE: Hearing loss
from loud noise [from tractors, chain saws, radios, and other such sources close
to the ear] is cumulative over a lifetime without hope of natural recovery. (SG-I7)

SAFETY
SE5 05/05 Safety Section 1-4
© 2005 Alamo Group Inc.
SAFETY
Al
ways rea
d
care
f
u
ll
y an
d
comp
l
y
f
u
ll
y w
ith
th
e manu
f
ac
t
urers
i
ns
t
ruc
ti
ons w
h
en
handling oil, solvents, cleansers, and any other chemical agent. (SG-22)
KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement and
possible serious injury or death. (SG-24)
Never allow children to play on or around Tractor or Implement. Children can slip or fall off the
Equipment and be injured or killed. Children can cause the Implement to shift or fall crushing
themselves or others. (SG-25)
NEVER use drugs or alcohol immediately before or while operating the Tractor
and Implement. Drugs and alcohol will affect an operator’s alertness and
coordination and therefore affect the operator’s ability to operate the equipment
safely. Before operating the Tractor or Implement, an operator on prescription
or over-the-counter medication must consult a medical professional regarding
any side effects of the medication that would hinder their ability to operate the
Equipment safely. NEVER knowingly allow anyone to operate this equipment
when their alertness or coordination is impaired. Serious injury or death to the
operator or others could result if the operator is under the influence of drugs or
alcohol. (SG-27)
P
ro
l
onge
d
opera
ti
on may cause opera
t
or
b
ore
d
om an
d
f
a
ti
gue a
ff
ec
ti
ng sa
f
e opera
ti
on.
T
a
k
e
scheduled work breaks to help prevent these potentially impaired operating conditions. Never
operate the Implement and Tractor in a fatigued or bored mental state which impairs proper and
safe operation. (SG-32)
U
se ex
t
reme cau
ti
on w
h
en ge
tti
ng on
t
o
th
e
I
mp
l
emen
t
t
o per
f
orm repa
i
rs, ma
i
n
t
enance an
d
w
h
en
removing accumulated material. Only stand on solid flat surfaces to ensure good footing. Use a
ladder or raised stand to access high spots which cannot be reached from gound level. Slipping
and falling can cause serious injury or death. (SG-33)
Avoid contact with hot surfaces including hydraulic oil tanks, pumps, motors, valves and hose
connections. Relieve hydraulic pressure before performing maintenance or repairs. Use gloves
and eye protection when servicing hot components. Contact with a hot surface or fluid can cause
serious injury from burns or scalding. (SG-34)
