RHINO FM84 User manual

Servis-Rhino
1502 E. Walnut
Seguin, Texas 78155
830-372-3080 © 2004Alamo Group Inc.
Rotary Mower
FM84
Published08/01 Effective S/N 10001 -Current Part No. 00775250C
OPERATOR'S MANUAL
This Operator's Manual is an integral part of the safe operation
of this machine and must be maintained with the unit at all
times. READ, UNDERSTAND, and FOLLOW the Safety and
Operation Instructions contained in this manual before
operating the equipment.
$0.00

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsarepotentiallyhazardous. Thereisnosubstituteforacautious,safe-minded
operatorwhorecognizesthepotentialhazardsandfollowsreasonablesafetypractices. Themanufacturerhas
designedthisimplement tobeusedwithallitssafetyequipmentproperlyattachedtominimizethechanceof
accidents.
BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
and on the Warranty Form that you retain. The use of "will-fit" parts will void your warranty and can cause catastrophic
failure with possible injury or death.

In order to reduce accidents and enhance the safe operation of mowers, Alamo GroupAg Division, in
cooperationwithotherindustrymanufacturershasdevelopedtheAEM/FEMAIndustrialandAgricultural
MowerSafety Practicesvideo andguide book.
Thevideowillfamiliarizeandinstructmower-tractoroperatorsinsafepracticeswhenusing industrialand
agriculturalmowingequipment. ItisimportantthatEveryMowerOperatorbeeducatedintheoperationof
theirmowing equipment and be ableto recognize the potential hazardsthat can occur while operatinga
mower. Thisvideo,alongwiththemoweroperator’s manual andthewarningmessagesonthemower,will
significantlyassistinthisimportanteducation.
YourAuthorizedAlamoAgDealermayhaveshownthis video andpresentedyouaDVDVideowhen you
purchasedyour mower. If you or any mower operatorhave notseen thisvideo, WatchtheVideo,Read
thisOperator’sManual,andCompletethe VideoGuidebook beforeoperatingyour new mower. If you
do not understand any of the instructions included in the video or operator’s manual or if you have any
questionsconcerning safetyof operation,contact yoursupervisor,dealer orAlamoGroupAg.
IfyouwouldlikeaVHSvideotapeofthevideo,pleaseemailAEMV[email protected]orFaxAEM
VHSVideo at [phone] or mail in a completed copy of the form on the back of this pagetoAEM
VHSVideo1502EWalnutStreet,Seguin,TX78155.and request theVHS videoversion. Pleaseinclude
yourname,mailingaddress,mowermodelandserialnumber.
Everyoperatorshouldbetrainedforeachpieceofequipment(TractorandMower),understandtheintended
use,andthepotential hazardsbeforeoperatingthe equipment.
Safety Training
MakestheDifference


BE SAFE!


BEALERT!
 
 
 BE ALIVE!


BE TRAINED
beforeoperating
theMower!

Alamo Group Ag. Division is willing to provide
one (1) AEM Mower Safety Practices Video
Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video
DVD Format – AEM/FEMA Mower Operator Safety Video
Mower Operator’s Manual
AEM Mower Operator’s Safety Manual
RequesterName: Phone:
RequesterAddress:
City
State
Zip Code
MowerModel: Serial Number:
Date Purchased: DealerSalesperson:
DealershipName: Dealership Location:
Mailto: AEM Video Services
1502 E Walnut street
Seguin, TX 78155
Or Fax to: [phone]
OrEmail to: AEMV[email protected]

TABLE OF CONTENTS
SAFETYSECTION ......................................................................................................................................... 1-1
SafetyInformation ..........................................................................................................................................1-2
DecalLocation.............................................................................................................................................. 1-11

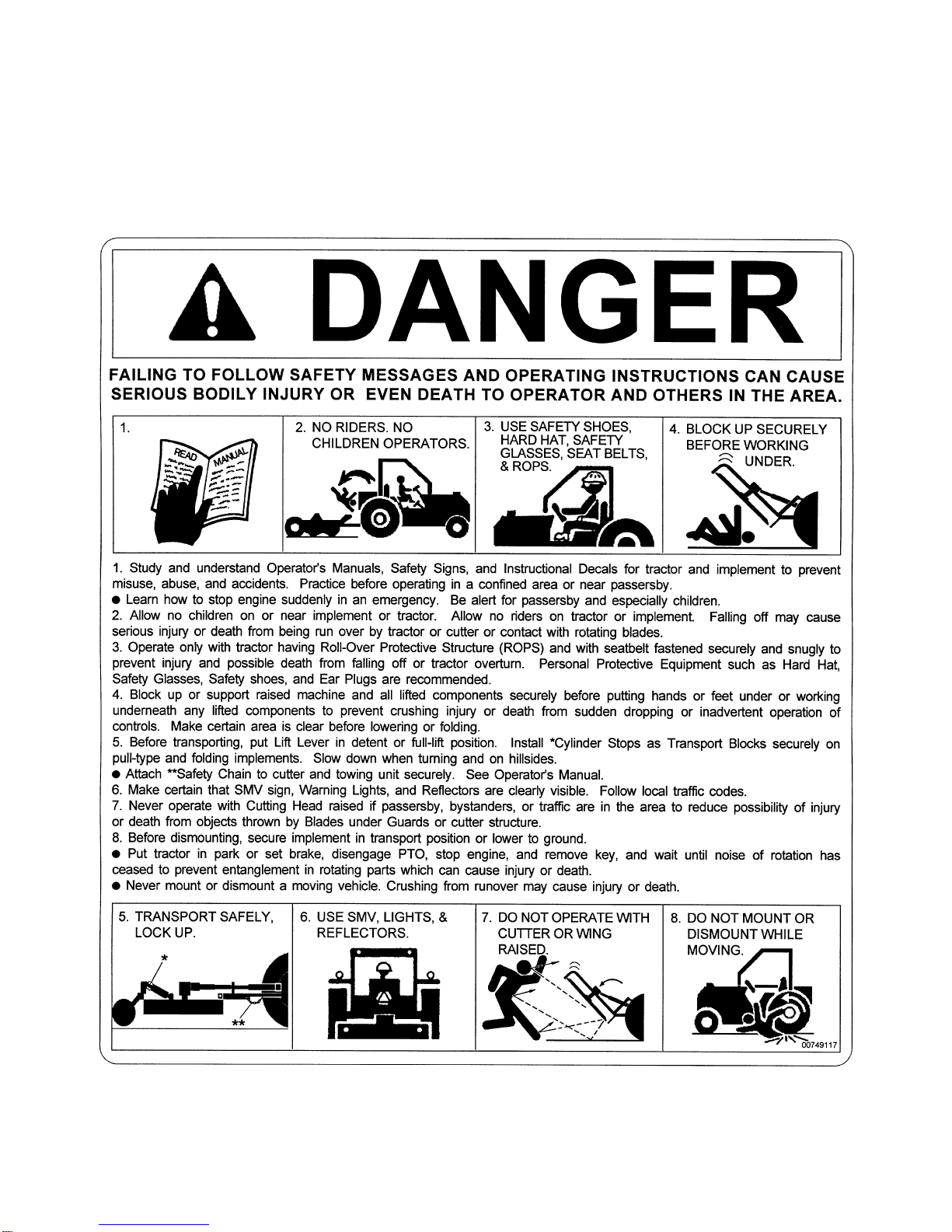

SafetyDecals ............................................................................................................................................... 1-12
Federal Laws & Regulations ................................................................................................................1-15
INTRODUCTIONSECTION ............................................................................................................................ 2-1
ASSEMBLYSECTION ...................................................................................................................................3-1
A-FrameAttachment.......................................................................................................................................3-2
CasterWheelAttachments .............................................................................................................................3-3
DrivelineAttachment ....................................................................................................................................... 3-4
OPERATIONSECTION .................................................................................................................................. 4-1
TractorPreparation ......................................................................................................................................... 4-2
AttachingMowertoTractor............................................................................................................................. 4-2
CuttingHeight ................................................................................................................................................. 4-3
DetachingandStoring..................................................................................................................................... 4-5
DrivelineLengthCheck.................................................................................................................................... 4-5
Troubleshooting .............................................................................................................................................. 4-7
MAINTENANCESECTION.............................................................................................................................. 5-1
LubricationInformation...................................................................................................................................5-2
Gearbox ..........................................................................................................................................................5-3
GaugeWheelAssemblies...............................................................................................................................5-3
DrivelineLubrication.......................................................................................................................................5-4
BladeSpindleLubrication ...............................................................................................................................5-4
BladeServicing ..............................................................................................................................................5-5
BladeSharpening ...........................................................................................................................................5-5
BladeRemovalandInstallation........................................................................................................................5-5
BeltAdjustmentProcedure .............................................................................................................................5-6
BeltRemoval/Installation .................................................................................................................................5-6
Storage...........................................................................................................................................................5-7
TorqueSettings ..............................................................................................................................................5-7
Blade Spindle Service Instructions .................................................................................................................5-8
RHINOandServis areregisteredtrademarks ofAlamoGroupInc.
.

Safety Section 1-1
SAFETY
SECTION

Safety Section 1-2
FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
A safe and careful operator is the best operator. Safety is of primary importance to the
manufacturer and should be to the owner/operator. Most accidents can be avoided by being
awareofyourequipment,yoursurroundings,andobservingcertainprecautions. Thefirstsection
ofthismanual includes a list of Safety Messages that,iffollowed, will help protect the operator
and bystanders from injury or death. Read and understand these Safety Messages before
assembling,operating orservicing thisimplement. This equipmentshouldonly beoperated by
thosepersons whohave readthe Manual,who areresponsibleandtrained,and whoknow how
todo so safelyandresponsibly.
TheSafetyAlert Symbol combined with a SignalWord,as seen below, is used throughoutthis
manual and on decals which are attached to the equipment. The Safety Alert Symbol means:
“ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal
Wordareintendedtowarntheowner/operatorofimpendinghazardsandthedegreeofpossible
injuryfacedwhenoperatingthisequipment..
CAUTION! ThelowestlevelofSafetyMessage;warnsofpossibleinjury. Decals
locatedontheEquipmentwiththisSignalWordareBlackandYellow.
WARNING! Serious injury or possible death! Decals are Black and Orange.
DANGER! Imminentdeath/criticalinjury. DecalsareRedandWhite.(SG-1)
Practice all usual and customary safe working precautions and
above all---remember safety is up to YOU. Only YOU can prevent
serious injury or death from unsafe practices.
READ, UNDERSTAND, and FOLLOW the following Safety
Messages. Serious injury or death may occur unless care is
taken to follow the warnings and instructions stated in the Safety
Messages. Always use good common sense to avoid hazards.
(SG-2)
Si no lee Ingles, pida ayuda a alguien que
si lo lea para que le traduzca las medidas
de seguridad. (SG-3)
PELIGRO! ¡LEAEL
INSTRUCTIVO!

Safety Section 1-3FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY
DANGER! Never operate the Tractor or Implement until you have read and
completelyunderstand this Manual,the Tractor Operator’s Manual,
andeachoftheSafetyMessagesfoundintheManualorontheTractor
and Implement. Learn how to stop the tractor engine suddenly in an
emergency. Never allow inexperienced or untrained personnel too
operate the Tractor and Implement without supervision. Makesure
the operator has fully read and understood the manuals prior to
operation. (SG-4)
WARNING! Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in
such a way as to be clearly visible and legible. When transporting the
EquipmentusetheTractorflashingwarninglightsandfollowalllocaltraffic
regulations.(SG-6)
WARNING! OperatethisEquipmentonlywithaTractorequippedwithanapproved
roll-over-protectivesystem(ROPS). Alwayswearseatbelts. Serious
injuryorevendeathcouldresultfromfallingoffthetractor--particularly
duringaturnoverwhentheoperatorcouldbepinnedundertheROPS.
(SG-7)
WARNING! DonotmodifyoralterthisImplement. Donotpermitanyonetomodify
or alter this Implement, any of its components or any Implement
function. (SG-8)
DANGER! BEFOREleavingthetractorseat,alwaysengagethebrakeand/orsetthe
tractortransmissioninparkinggear,disengagethePTO,stoptheengine,
removethekey,andwaitforallmovingpartstostop. Placethetractorshift
lever into a low range or parking gear to prevent the tractor from rolling.
Never dismount a Tractor that is moving or while the engine is running.
Operate the Tractor controls from the tractor seat only.
(SG-9)
DANGER! NeverallowchildrenorotherpersonstorideontheTractororImplement.
Falling off can result in serious injury or death. (SG-10)
DANGER! Neverallowchildren to operate orride on the TractororImplement.
(SGM-11)
WARNING! DonotmounttheTractorwhilethetractorismoving. MounttheTractor
only when the Tractor and all moving parts are completely stopped.
(SG-12)
WARNING! Alwaysmaintainthesafetydecalsingoodreadablecondition.Ifthedecals
are missing, damaged, or unreadable, obtain and install replacement
decals immediately. (SG-5)

Safety Section 1-4
FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
DANGER! Start tractor only when properly seated in the Tractor seat. Starting a
tractor in gear can result in injury or death. Read the Tractor operators
manual for proper starting instructions. (SG-13)
DANGER! NeverworkundertheImplement,theframework,oranyliftedcomponent
unlesstheImplementissecurelysupportedorblockeduptoprevent
suddenorinadvertentfallingwhichcouldcauseseriousinjuryoreven
death. (SG-14)
WARNING! Theoperatorandallsupportpersonnelshouldwearhardhats,safety
shoes, safety glasses, and proper hearing protection at all times for
protection from injury including injury from items thrown by the
equipment. (SG-16)
SAFETY
DANGER! Do not operate this Equipment with hydraulic oil leaking. Oil is
expensiveanditspresencecouldpresentahazard. Donotcheckfor
leakswithyourhand! Useapieceofheavypaperorcardboard. High-
pressureoilstreamsfrombreaksinthelinecouldpenetratetheskin
and cause tissue damage including gangrene. If oil does penetrate
the skin, have the injury treated immediately by a physician
knowledgeable and skilled in this procedure. (SG-15)
CAUTION! PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE
PERMANENT HEARING LOSS! Tractors with or without an
Implement attached can often be noisy enough to cause permanent
hearing loss. We recommend that you always wear hearing
protection if the noise in the Operator’s position exceeds 80db.
Noise over 85db over an extended period of time will cause severe
hearing loss. Noise over 90db adjacent to the Operator over an
extended period of time will cause permanent or total hearing loss.
Note: Hearing loss from loud noise [from tractors, chain saws,
radios, and other such sources close to the ear] is cumulative over a
lifetime without hope of natural recovery. (SG-I7)

Safety Section 1-5FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
WARNING! Transport only at safe speeds. Serious accidents and injuries can result
from operating this equipment at unsafe speeds. Understand the Tractor
and Implement and how it handles before transporting on streets and
highways. MakesuretheTractorsteeringandbrakesareingoodcondition
andoperateproperly.
BeforetransportingtheTractorandImplement,determinethesafetransport
speeds for you and the equipment. Make sure you abide by the
followingrules:
Beawareof the operating conditions. Donotoperate the Tractor withweak
or faulty brakes. When operating down a hill or on wet or rain slick roads,
the braking distance increases: use extreme care and reduce your speed.
When operating in traffic always use the Tractor’s flashing warning lights
andreduceyourspeed. Beawareoftrafficaroundyouandwatchoutforthe
other guy. (SG-19)
Test the equipment at a slow speed in turns. Increase the speed
through the turn only after you determine that it is safe to operate
at a higher speed. Use extreme care and reduce your speed when
turning sharply to prevent the tractor and implement from turning
over. Determine the maximum safe turning speed for you and this
equipmentbeforeoperatingonroadsorunevenground.
Only transport the Tractor and Implement at the speeds that you
have determined are safe and which allow you to properly control the
equipment.
Test the tractor at a slow speed and increase the speed slowly.
Apply the Brakes smoothly to determine the stopping
characteristicsof the Tractorand Implement.
As you increase the speed of the Tractor the stopping distance
increases. Determine the maximum safe transport speed for
you and this Equipment.
2.
1.
3.
WARNING! Neverattempttolubricate,adjust,orremovematerialfromtheImplement
while it is in motion or while tractor engine is running. Make sure the
tractorengineisoff before working ontheImplement.
(SG-20)
WARNING! Periodically inspect all moving parts for wear and replace when neces-
sary with authorized service parts. Look for loose fasteners, worn or
brokenparts,andleakyorloose fittings. Make sure all pins havecotter
pins and washers. Serious injury may occur from not maintaining this
machine in good working order. (SG-21)
WARNING! Alwaysreadcarefullyandcomplyfullywiththemanufacturersinstructions
whenhandlingoil,solvents,cleansers,andany other chemicalagent.(SG-22)
SAFETY

Safety Section 1-6
FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
WARNING! Mow only in conditions where you have clear visibility in daylight or with
adequate artificial lighting. Never mow in darkness or foggy conditions
whereyoucannotclearlyseeatleast100yardsinfrontandtothesidesof
the tractor and mower. Make sure that you can clearly see and identify
passersby,steepslopes,ditches,drop-offs,overheadobstructions,power
lines,debrisandforeign objects. Ifyouareunabletoclearlysee thistype
ofitemsdiscontinuemowing. (SGM-1)
DANGER! NEVER use drugs or alcohol immediately before or while operating the
Tractor and Implement. Drugs and alcohol will affect an operator’s
alertness and coordination and therefore affect the operator’s ability to
operate the equipment safely. Before operating the Tractor or
Implement,an operator on prescription orover-the-counter medication
must consult a medical professional regarding any side effects of the
medication that would hinder their ability to operate the Equipment
safely. NEVER knowingly allow anyone to operate this equipment
when their alertness or coordination is impaired. Serious injury or
death to the operator or others could result if the operator is under the
influence of drugs or alcohol. (SG-27)
DANGER! Thereareobviousandhiddenpotentialhazardsintheoperationofthis
Mower. REMEMBER! This machine is often operated in heavy brush
and in heavy weeds. The Blades of this Mower can throw objects if
shieldsarenot properlyinstalledandmaintained. Seriousinjuryoreven
death may occur unless care is taken to insure the safety of the
operator, bystanders, or passersby in the area. Do not operate this
machinewithanyoneintheimmediatearea. Stopmowingifanyoneis
within 100 yards of mower. (SGM-2)
SAFETY
DANGER! KEEP AWAY FROM ROTATING ELEMENTS to prevent entanglement
andpossible serious injury or death. (SG-24)
DANGER! NeverallowchildrentoplayonoraroundTractororImplement. Children
can slip or fall off the Equipment and be injured or killed. Children can
cause the Implement to shift or fall crushing themselves or others. (SG-25)
DANGER! Never run the tractor engine in a closed building or without adequate
ventilation. The exhaust fumes can be hazardous to your health.
(SG-23)
WARNING! Do not exceed the rated PTO speed for the Implement. Excessive PTO
speedscancauseImplementdrivelineorbladefailuresresultinginserious
injury or death. (SG-26)
DANGER! OperatetheTractorand/orImplementcontrolsonlywhileproperlyseatedin
theTractorseatwiththeseatbeltsecurelyfastenedaroundyou. Inadvertent
movementoftheTractororImplementmaycauseseriousinjuryordeath.
(SG-29)

Safety Section 1-7FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
WARNING! Many varied objects, such as wire, cable, rope, or chains, can become
entangledintheoperatingpartsofthemowerhead. Theseitemscould
thenswingoutsidethehousingatgreatervelocitiesthantheblades. Such
a situation is extremely hazardous and could result in serious injury or
even death. Inspect the cutting area for such objects before mowing.
Remove any like object from the site. Never allow the cutting blades to
contact such items. (SGM-6)
WARNING! Mowatthespeedthatyoucansafelyoperateandcontrolthetractorand
mower. Safemowingspeeddependsonterrainconditionandgrasstype,
density,andheightofcut. Normalgroundspeedrangeisfrom0to5mph.
Use slow mowing speeds when operating on or near steep slopes,
ditches,drop-offs,overheadobstructions,powerlines,orwhendebrisand
foreign objects are to be avoided. (SGM-7)
SAFETY
DANGER! AllSafetyShields,GuardsandSafetydevicesincluding
(butnotlimitedto)-theDeflectors,ChainGuards,Steel
Guards, Gearbox Shields, PTO integral shields , and
Retractable Door Shields should be used and main-
tained in good working condition. All safety devices
should be inspected carefully at least daily for missing
orbrokencomponents. Missing,broken,or wornitems
must be replaced at once to reduce the possibility of
injury or death from thrown objects, entanglement, or
blade contact. (SGM-3)
DANGER! Therotatingpartsofthismachinehavebeendesignedandtestedfor
ruggeduse. However,theblades couldfailuponimpactwithheavy,
solidobjectssuchasmetalguardrailsandconcretestructures. Such
impact could cause the broken objects to be thrown outward at very
highvelocities. Toreducethepossibilityofpropertydamage,serious
injury, or even death, never allow the cutting blades to contact such
obstacles. (SGM-4)
WARNING! Extremecareshouldbetakenwhenoperatingnearlooseobjectssuch
as gravel, rocks, wire, and other debris. Inspect the area before
mowing. Foreignobjectsshouldberemovedfromthesitetoprevent
machinedamageand/orbodilyinjuryorevendeath. Anyobjectsthat
cannotberemovedmustbeclearlymarkedandcarefullyavoidedby
the operator. Stop mowing immediately if blades strike a foreign
object. Repair all damage and make certain rotor or blade carrier is
balancedbeforeresumingmowing.(SGM-5)
WARNING! Avoidmowinginreversedirectionwhenpossible. Checktomakesure
there are no persons behind the mower and use extreme care when
mowinginreverse. Mowonlyataslowgroundspeedwhereyoucansafely
operateandcontrolthetractorandmower. Nevermowanarea thatyou
havenotinspected and removed debrisorforeign material. (SGM-8)
WARNING! Donotputhandsorfeetundermowerdecks. BladeContactcanresult
seriousinjuryorevendeath. Stayawayuntilallmotionhas stoppedand
the decks are securely blocked up. (SGM-9)

Safety Section 1-8
FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
WARNING! Be particularly careful when transporting the Implement with the Tractor.
Turn curves or go up hills only at a low speed and using a gradual
steering angle. Rear mounted implements move the center of gravity to
the rear and remove weight from the front wheels. Make certain, by
adding front ballast, that at least 20% of the tractor’s weight is on the
front wheels to prevent rearing up, loss of steering control or Tractor tip-
over. Slow down on rough or uneven surfaces to prevent loss of
steering control which could result in property damage or possible injury.
Do not transport unless 3-Point lift lever is fully raised and in the latched
transport position. Dropping implement in transport can cause serious
damage to the tractor and/or Implement and possibly cause the operator
or others to be injured or killed. (S3PT-2)
SAFETY
DANGER! Always disconnect the main PTO Driveline from the Tractor before
performing service on the Mower. Never work on the Mower with the
tractor PTO driveline connected and running. Blades or Drivelines could
turn without warning and cause immediate entanglement, injury or death.
(SRM-3)
WARNING! Do not let the Blades turn when the Mower Deck is raised for any
reason, including clearance or for turning. Raising the Mower
deck exposes the Cutting Blades which creates a potentially
serious hazard and could cause serious injury or even death from
objects thrown from the Blades. (SRM-7)
DANGER! Replacebentorbrokenbladewithnewblades. NEVERATTEMPTTO
STRAIGHTEN OR WELD ON BLADES SINCE THIS WILL LIKELY
CRACK OR OTHERWISE DAMAGE THE BLADE WITH
SUBSEQUENTFAILUREANDPOSSIBLESERIOUSINJURYFROM
THROWN BLADES. (SGM-10)
DANGER! Rotary Mowers are capable under adverse
conditions of throwing objects for great distances
(100 yards or more) and causing serious injury or
death. Follow safety messages carefully
-Frontand RearDeflectors, orChain Guards, or Bands are installed
and in good, workable condition;
-Mower sections or Wings are running close to and parallel to the
ground without exposed Blades;
-Passersby are outside the existing thrown-object zone;
-All areas have been thoroughly inspected and all foreign material
such as rocks, cans, glass, andgeneraldebrishasbeenremoved.
NOTE: Wherethere are grass and weeds high enough to hidedebris
that could be struck by the blades, the area should be: inspected
and large debris removed, mowed at an intermediate height, in-
spectedcloselywithanyremaining debris being removed, andmowed
again at desired final height. (This will also reduce power requiredto
mow, reduce wear and tear on the Mower drivetrain, spread cut
material better, eliminate streaking, and make the final cut more
uniform.) (SRM-1)
STOPMOWING IF PASSERSBY ARE WITHIN 100YARDSUNLESS:

Safety Section 1-9FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
WARNING! The rotating parts of this machine continue to rotate even after the PTO
has been turned off. The operator should remain in his seat for 60
seconds after the brake has been set, the PTO disengaged, the tractor
turned off, and all evidence of rotation has ceased. (3PT-10)
“Wait a minute...Save a life!”
SAFETY
WARNING! NeverleaveTractorandImplementedunattendedwhiletheimplementis
in the lifted position. Accidental operation of lifting lever or a hydraulic
failure maycausesuddendropofunitwith injuryordeathbycrushing.
To properly park the implement when disconnecting it from the tractor,
lowerthestandandputtheretainingpinsecurelyinplace,orputasecure
supportundertheA-Frame. Lowertheimplementcarefullytotheground.
Do not put hands or feet under lifted components. (SPT-1)
DANGER! Make sure the PTO shield, integral driveline shields, and input shields
are is installed when using PTO-driven equipment. Always replace any
shield if it is damaged or missing. (S3PT-8)
DANGER! ThisImplementiswiderthantheTractor. Becarefulwhenoperating
ortransportingthisequipmenttopreventtheImplementfromrunning
into or striking sign posts, guard rails, concrete abutments or other
solidobjects. SuchanimpactcouldcausetheImplementandTractor
topivotviolentlyresultinginlossofsteeringcontrol,seriousinjury,or
evendeath. NeverallowtheImplementtocontactobstacles. (S3PT-12)
DANGER! Thereareobviousandhiddenpotentialhazardsintheoperationofthis
Mower. REMEMBER! Thismachineisoftenoperatedin weedsand
inheavygrass. TheBladesofthisMowercanthrowobjectsifshields
arenot properlyinstalledandmaintained. Seriousinjuryorevendeath
may occur unless care is taken to insure the safety of the operator,
bystanders, or passersby in the area. Do not operate this machine
with anyone in the immediate area. Stop mowing if anyone is within
100 yards of mower. (SFM-1)
DANGER! AllSafetyShields,GuardsandSafetydevicesincluding
(but not limited to) - the Discharge Deflectors, Steel
Guards,GearboxShields,BeltShileds,andPTOShields
shouldbeusedandmaintainedingoodworkingcondition.
Allsafetydevicesshouldbeinspectedcarefullyatleast
daily for missing or broken components. Missing,
broken, or worn items must be replaced at once to
reduce the possibility of injury or death from thrown
objects, entanglement, or blade contact. (SFM-2)
WARNING! Relieve hydraulic pressure prior to doing any maintenance or repair work
on the Implement. Place the Implement on the ground or securely
blocked up, disengage the PTO, and turn off the tractor engine. Push
and pull the Remote Cylinder lever in and out several times prior to
starting any maintenance or repair work. (S3PT-9)

Safety Section 1-10
FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
PARTSINFORMATION
Servis-Rhinomowersusebalancedandmatchedsystemcomponentsforbladecarriers,blades,cuttershafts,
knives,knifehangers,rollers,drivetraincomponents,andbearings. ThesepartsaremadeandtestedtoServis-
Rhino specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of
“will fit” parts may reduce mower performance, void warranties, and present a safety hazard. Use genuine
Servis-Rhinomower partsfor economy and safety. (SPRM-1)
SEEYOURSERVIS-RHINODEALER
InadditiontothedesignandconfigurationofthisImplement,includingSafetySignsand Safety Equipment, hazard
control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of
personnel involved in the operation, transport, maintenance, and storage of the machine. Refer also to Safety
Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment Manuals.
Pay close attention to the Safety Signs affixed to the Tractor and Equipment. (SG-18)
DANGER! RotaryMowersare capable under adverseconditions
of throwing objects for great distances (100yardsor
more) and causing serious injury or death. Follow
safety messages carefully
-Mower Deck Shielding, and Discharge Deflector are installed
and in good, working condition;
-Mower section is running close to and parallel with the ground
without exposed Blades;
-Passersby are outside the existing thrown-object zone;
-All areas have been thoroughly inspected and all foreign material
such as rocks, cans, glass, andgeneraldebrishasbeenremoved.
NOTE: Wherethere are grass and weeds high enough to hidedebris
that could be struck by the blades, the area should be: inspected
and large debris removed, mowed at an intermediate height, in-
spectedcloselywithanyremaining debris being removed, andmowed
again at desired final height. (This will also reduce power requiredto
mow, reduce wear and tear on the Mower drivetrain, spread cut
material better, eliminate streaking, and make the final cut more
uniform.) (SFM-3)
STOP MOWINGIFPASSERSBYARE WITHIN 100YARDS UNLESS:
DANGER! ThisImplementiswiderthantheTractor. Becarefulwhenoperating
ortransportingthisequipmenttopreventtheImplementfromrunning
into or striking sign posts, guard rails, concrete abutments or other
solidobjects. SuchanimpactcouldcausetheImplementandTractor
topivotviolentlyresultinginlossofsteeringcontrol,seriousinjury,or
evendeath. NeverallowtheImplementtocontactobstacles. (S3PT-12)
SAFETY
DANGER! Replacebentorbrokenbladewithnewblades. NEVERATTEMPTTOSTRAIGHTENORWELD
ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE
WITHSUBSEQUENTFAILUREANDPOSSIBLESERIOUSINJURYFROMTHROWNBLADES.
(SGM-10)

Safety Section 1-11FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY DECAL LOCATION
10
ITEM PARTNO. QTY LEVEL DESCRIPTION
1 00725746 1 PELIGRO TranslateSafetyMaterial
2 00749117 1 DANGER Multi-Hazard
3 00755742 1 KEEP AWAY CuttingBlades/ThrownObjects
4 00756004 ((1)) DANGER D/LShieldMissing-DoNotOperate
4A 00775933 2 WARNING GuardMissing
5 00756005 ((1)) DANGER RotatingDriveline/Entanglement
6 00756494 1 DANGER DrivelineHazards
6A 00769737 1 DANGER Blades/ThrownObjects
7 00758194 2 WARNING V-Belt Pinch Point
8 00760657 1 IMPORTANT GenuineRhinoParts
8A 00773723 1 PELIGRO RotatingDrivelineTranslation
9 D103 1 WARNING 540RPM
10 03200347 * REFLECTOR SMV
11 00755691 1 INSTRUC Lube, Blade Bolt
12 00763977 1 INSTRUC NoticetoOwner
13 99101 6 LOGONAME RhinoName(2x7-3/8)
14 00775249 1 NAME FM84Name
15 nfs 1 SERIALPLATE FM Serial Plate
16 2738332 2 REFLECT RedReflectors
17 00776481 1 INSTRUCT OperatorsManualInside
18 00776031 1 Canister,Operators Manual
19 00775250C 1 OperatorsManual
20 10058000 3 Bolt
21 00017000 3 Lockwasher
22 00024100 3 Flatwasher
23 02959924 3 Locknut
*FurnishedbyTractorManufacturer
(())InstalledbyD/LManufacturer
3
2
13
6
7
1
12 13
14
3
13
4
13
8
4A
11
9
515
4A
8A
16
16
6A
17 18
19
2021
22
23
17
NOTE: Rhino supplies safety decals on this product to promote safe operation. Damage to the
decalsmay occur whileinshipping, use, orreconditioning.Rhinocares aboutthesafetyof its customers,
operators,and bystanders, and will replacethe safety decals on thisproduct in the field, freeof charge
(Some shipping and handling charges may apply). Contact your Rhino dealer to order replacement
decals.

Safety Section 1-12
FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY DECALS
1-00725746
4-00756004
5-00756005
6-00756494
7-00758194
9-D103
2 - 00749117 - Not Shown
(See Inside Front Cover of Manual)
13-99101 8-00760657
R8/23/00

Safety Section 1-13FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
11-00755691
12-00763977
14-00775249
FM84
SAFETY DECALS
4A-00775933
R8/23/00

Safety Section 1-14
FM84 08/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY DECALS
8A-00773723
6A-00773723
3 - 00769736
3A-00755742
17-00776481
