Ricatech RMC100 User manual

USER MANUAL
GEBRUIKERSHANDLEIDING
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
MANUALE D’USO
RMC100 5in1MUSICCENTER

WARNING :
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. DO NOT REMOVE COVER.
PILOT LAMPS SOLDERED IN PLACE. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
English
“Ventilation not being impeded.”
“Do not exposed to dripping or splashing and that no objects lled with liquids, such
as vases, shall be placed on the apparatus.”
Specication
FREQUENCY : FM 88 -108 MHz
: AM 530 - 1600 KHz
USB 2.0 PORT : Full Speed 512MB - 4GB (Support FAT16, FAT32)
SD CARD SLOT : 512MB – 4GB
POWER SOURCE : AC 230V-50Hz
ANTENNA : External antenna for FM
: Built-in ferrite bar for AM
POWER CONSUMPTION : 18W
SPEAKER SIZE : 2 x 3” 4 ohm Dynamic type
REMOTE CONTROL : A Cell battery is tted -
Replacement Lithium Battery required :
1 x 3V CR2025
* DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
The lighting ash with arrow-
head symbol, within an
equilateral triangle, is intend-
ed to alert user to the pres-
ence of uninsulated
“dangerous voltage” within the
product’s enclosure that may
be of sufcient magnitude to
constitute risk of electric
shock to persons.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER -
SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within
an equilateral triangle is in-
tended to alert user to the
presence of important
operating and maintenance
(servicing) instruction in the
literature accompanying
the appliance.
RRIISSKK OOFF EELLEECCTTRRIICC SSHHOOCCKK
DDOO NNOOTT OOPPEENN
CAUTION

IMPORTANT SAFEGUARDS FOR AUDIO PRODUCTS
PLEASE READ CAREFULLY THE FOLLOWING IMPORTANT SAFEGUARDS THAT ARE
APPLICABLE TO YOUR EQUIPMENT.
1. Read Instructions - All the safety and operating instructions should be read before
the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for
future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Water and Moisture - The appliance should not be used near water-for example, near
a bathtub,washbowl,kitchen sink,laundry tub, in a wet basement, or near a
swim ming pool and the like.
6. Carts and Stands - The appliance should be used only with a cart or stand that is
recommended by the manufacturer.
6A.An appliance and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the appliance and cart
combination to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling
only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or position does
not interfere with-its proper ventilation.For example, the appliance should not be
situated on a bed, sofa, rug,or similar surface that may block the ventilation
openings or, placed in a built-in installation, such as a bookcase or cabinet that may
impede the ow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources such as
radiators,heat registers, stoves,or other appliances (including ampliers) that
produce heat.
10.Power Sources - The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance.
11.Grounding or Polarization - Precautions should be taken so that the grounding or
polarization means of an appliance is not impeded.
12.Power - Cord Protection - Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, and the point where they exit from the
appliance.
13.Cleaning - The appliance should be cleaned only as recommended by the
manufacturer.
14.Antenna -This product is designed for use with the antenna attached and should not
be connected to any other external antennas.
15.Non-use Periods - The power cord of the appliance should be unplugged from the
outlet when left unused for a long period of time.
16.Object and Liquid Entry - Care should be taken so objects do not fall and liquids
are not spilled into the enclosure through openings
17.Damage Requiring Service - The appliance should be serviced by qualied service
personnel when:
A. The power-supply cord of the plug has been damaged;or
B. Objects have fallen, or liquid has been spilled into the appliance;or
C. The appliance has been exposed to rain, or
D. The appliance does not appear to operate normally or exhibits a marked change inperformance, or
E. The appliance has been dropped, or the enclosure damaged.
18.Servicing - The user should not attempt to service the appliance beyond that described
in the operating instructions. All other servicing should be referred to qualied service personnel.

Location of parts
DIAL SCALE PLATE
STOP/SD/USB
TUNING KNOB
REC/ERASE
PLAY/PAUSE
OPEN/CLOSE
ON-OFF SWITCH /
VOLUME CONTROL
LCD DISPLAY
RADIO\CD\ PHONO SWITCH
AM\FM\FM.ST SWITCH
CD DRAWER
SPEAKERS
SENSOR
USBSD
SD CARD
USB PO RT
REC/
ERASE
SD/USB
STOP/SD/USB
PLAY/PAUSE
BACKWARD SKI P
0-9
REC/ERAS E PROG/REPEA T
FORWARD SKIP
OPEN/CLOSE

Location of parts
TONE ARM
TURNTABLE
SPINDLE
SPINDLE ADAPTOR FOR 45 RPM RECORDS
CUE LEVER
SPEED CONTROL SWITCH
TONE ARM REST
EXTERNAL SPEAKER JACK
INTERNAL/EXTERNAL
SPEAKER SWITCH(INT./EXT.)
EARPHONE JACK
SUBWOOFER
OUTPUT JACK
EXTERNAL FM ANTENNA
AC POWER PLUG

Unpacking
1. Remove packing materials from unit.
NOTE: Save all packing materials until you are completely satised all parts of
the unit are operating satisfactorily and just in case the unit should need
service in the future.
2. Make sure you have located the Remote Control before storing the packaging.
3. Remove the plastic bag covering the unit.
4. Remove the plastic safety cover from the AC 3-pin plug.
5. Remove the tie from the AC cord and untie the Wire Antenna on the back of the unit.
6. Lift up the Record Player Lid and remove the Polystyrene shipping material from the turntable.
7. Remove the black tie-wire from the Tone arm.
8. Remove the white protective needle cover by gently pulling it towards the front of the unit.
Stylus
A universal Sapphire Stylus is supplied and tted to the Tone Arm, this is suitable for playing records
of all 3 speeds (331/3/45/78rpm). A replacement universal stylus and a separate stylus for playing
78rpm records are available direct from the Manufacturer and some Dealers.
Removing/Retting the Stylus
To remove the Stylus from the Tone Arm, hold the Tone Arm
head steady while grabbing the plastic Stylus Holder with
two ngers - then gently pull the complete red stylus holder
straight towards you and off the silver cartridge, as shown
in the diagram.To re-t the Stylus, hold the sides of the red
plastic stylus holder, ensuring the Needle is facing downwards.
Gently push the back of the stylus holder at a slight angle against
the silver cartridge at the end of the TONE ARM until you are sure
it is securely tted. Ret the white protective needle cover, if so required.
Notes
· Always handle the Stylus with care as the Sapphire needle tip is easily damaged.
· When transporting the turntable it is advisable to re-t the white protective needle cover and the
Tone Arm Hold-down Clip until the unit is going to be used again.
· When removing or re-tting the Stylus, always be careful not to put too much pressure on the Stylus
Holder and the Tone Arm silver cartridge to avoid any possible damage to them.
Power source
This unit is operated by 230V AC Mains.
NOTES:
a) ESD remark: In case of a malfunction due to electrostatic discharge, you may need to re-set the
product to resume normal operation (re-connection to the power source may be required).
b) Electrical Fast Transient (Burst) : In case of a malfunction due to electrical fast transient (Burst),
just reset the product to resume normal operation (re-connection to the power source may be
required).
TURN
PUSH

Set up
Unwind the AC Power Cord at the back of the unit and insert the 3-pin plug into a 230V AC Power
socket.
Radio operation
1. Untie the FM WIRE ANTENNA and allow it to hang down in a straight line for optimum FM
reception. Do no connect the FM antenna to an outside antenna.
2. Switch the unit on by turning the power ON-OFF SWITCH/VOLUME CONTROL to the ON position
and turn the Sound. Volume to mid-range position.
3. Set the Function switch to RADIO mode.
4. Slide the Band switch to the desired band – AM (= MW) or FM or FM.ST*.
5. Select the desired radio station by rotating the TUNING KNOB.
6. Adjust the Volume again if necessary.
NOTE: *If FM Stereo reception is not good, it may be better to switch to FM Mono.
Antenna
For FM reception, the unit has an FM WIRE ANTENNA on the rear of the unit.
Move the wire until Radio reception is clear and with no interference. If you have trouble tuning in an
FM station, re-position the wire FM antenna for best reception.
CAUTION: The external FM ANTENNA must not be connected to an outside antenna.
For AM (= MW) reception, the unit is provided with a directional built-in ferrite antenna.
Rotate the set to nd the position in which the best reception is obtained.
Turntable operation
Preparing to use the Turntable
1. Lift up the Record Player Lid, untwist and remove the black tie-wrap securing the TONE ARM.
2. Remove any packing materials.
3. Remove the white protective NEEDLE COVER by gently pulling it off the red stylus holder towards
the front of the unit. Keep this safe and re-t to the stylus in case the unit needs transporting to a
different location.
4. Release the TONE ARM HOLD-DOWN CLIP by gently pushing this to the right. This will unlock the
tone arm from its ARM REST. Re-lock the hold-down clip when moving the unit to another location.
Playing a record
1. Switch the unit ON by turning the power ON-OFF SWITCH/VOLUME CONTROL switch to the ON
position.
2. Turn the VOLUME control to mid-range position.
3. Slide the FUNCTION Switch to PHONO mode.
4. Set the SPEED CONTROL SWITCH to the correct speed (331/3, 45 or 78 rpm) required for the
selected record.
5. Use the CUE LEVER to raise the tone arm off its rest. Move the tone arm gently to the right until a
‘click’ is heard, the turntable should start rotating.
6. Move the Tone Arm towards the record and use the cue lever to lower it onto the point where you
want the record to start playing.
7. At the end of the record, the TONE ARM will stop automatically. Lift the Tone Arm and return it
manually to the TONE ARM REST.

Accessory supplied
Spindle Adaptor for 45 rpm records
To play a 45rpm record with the centre clip missing, remove the adaptor from
the record player deck by placing thumb & forenger in the recesses and
pulling it upwards, then place it on the Turntable
Spindle. The record can then be placed on the turntable.
CD Player operation
Playing a CD
1. Switch the unit ON by turning the power ON-OFF SWITCH/VOLUME CONTROL switch to the ON
position and turn the Sound Volume to mid-range position.
2. Slide the FUNCTION Switch to CD mode.
3. Press CD OPEN / CLOSE / to open the CD Compartment.
4. Insert a pre-recorded compact disc with the printed side facing up. Press CD OPEN / CLOSE /
again to close the compartment, “ READ “ is displayed as the CD player scans the contents of the
disc.
CD
5. Track no. 1 will start playing back automatically after the CD Player has nished reading the
contents of the disc.
6. Press FORWARD SKIP / or BACKWARD SKIP / once or repeatedly until the desired track
number appears on the display.
CD
ESP CD
7. Press or the “ STOP/SD/USB “ key (marked with a red dot) to stop playback.
8. Press or the “ PLAY/PAUSE “ key (marked with a green dot) to resume play or pause the music.
MP3-CD Disc Playback – by Remote Control
1. Insert an MP3-CD format disc. Press CD OPEN / CLOSE / again to close the compartment. “
READ “ is displayed as the CD Player scans the contents of the disc.
CD
2. Track no. 1 in the Root Folder (Folder 1) will start playing back automatically after the MP3-CD disc
contents has been read.
CD
ESP MP3
3. Press FORWARD SKIP / or BACKWARD SKIP / once or repeatedly until the desired track \
number appears on the display.
4. Press STOP / to stop playback.
CD
5. In Stop mode, press and hold the PLAY/PAUSE key / to select the MP3 folder.
NOTE: In Stop Mode: For faster skipping forward or backward of 10 tracks at a time,
press and hold the FORWARD
SKIP / or BACKWARD SKIP / button. This stops when the button is released.

USB & SD Card operation
SD Card Operation:
1. Switch the unit ON by turning the power ON-OFF SWITCH/VOLUME CONTROL switch to the ON
position.
2. Turn the VOLUME control to mid-range position.
3. Slide the FUNCTION Switch to “ CD “ mode.
4. In “ STOP “ mode Press and hold STOP / for over half a second – this will switch from CD>SD .
If no Card has been detected, “ NO CARD “ will show on the Display.
CARD
5. Insert an SD Card with pre-recorded MP3 music (not supplied) into the card slot. “READ” is then
displayed as the system scans the contents of the SD Card.
CARD
6. Track no. 1 of the Root folder (Folder 1) will play back automatically after reading the SD card
contents.
7. Press the FORWARD SKIP / or BACKWARD SKIP / once or repeatedly until the desired
track number appears on the display. Release the button – the track will start playing automatically.
8. Press STOP / to stop playback and press PLAY/PAUSE/ to resume play.
9. To pause the music, press PLAY/PAUSE / , press it again to resume play.
USB Operation :
1. Switch the unit ON by turning the power ON-OFF SWITCH/VOLUME CONTROL switch to the
ON position.
2. Turn the VOLUME control to mid-range position.
3. Slide the FUNCTION Switch to CD mode.
4. In “ STOP “ mode Press and hold STOP / for over half a second – this will switch from CD>SD .
5. In Stop mode, press STOP / and hold the key for over half a second - this will switch from
SD>USB. If no USB has been detected, “NO USB” will show on the Display.
USB
6. Plug-in a USB mass storage device. “ READ “ is displayed as the system scans the contents of the
USB device.
USB
7. Track no. 1 of root folder (Folder 1) will be played back automatically after the USB device contents
has been read.
USB
MP3
8. Press the FORWARD SKIP / or BACKWARD SKIP / once or repeatedly until the desired
track number appears on the display. Release the button - the track will start playing automatically.
9. Press STOP / to stop playback and press PLAY/PAUSE/ to resume play.
10.To pause the music, press PLAY/PAUSE / , press it again to resume play.
NOTES:
· The USB Port does not support connection with a USB Extension Cable.
· It is not designed for direct communication with a computer.
· It is not guarantee that all USB memory devices (or SD cards) will work on this audio system
IMPORTANT:
Do not disconnect the USB device during USB mode, as this may damage the external device or its
les. Please power off rst or select another Mode before safely disconnecting the USB device.

USB Specication
Interface:
- USB 2.0 Full speed, HOST (USB HUB is not supported) Corresponding Flash memory
- Compatible with MPEG Audio 1, 2, 2.5
- Compatible with Layer 1, 2, 3
- Compatible with Bit rate: 128 – 320 Kbps
- Subfolder nest : 8 levels
- Number of track / titles max 999
- Support ID3 tag V2.0
Programming tracks
Up to 20 tracks can be programmed to play tracks on an Audio or MP3-CD, USB Device or SD Card
in the desired sequence.

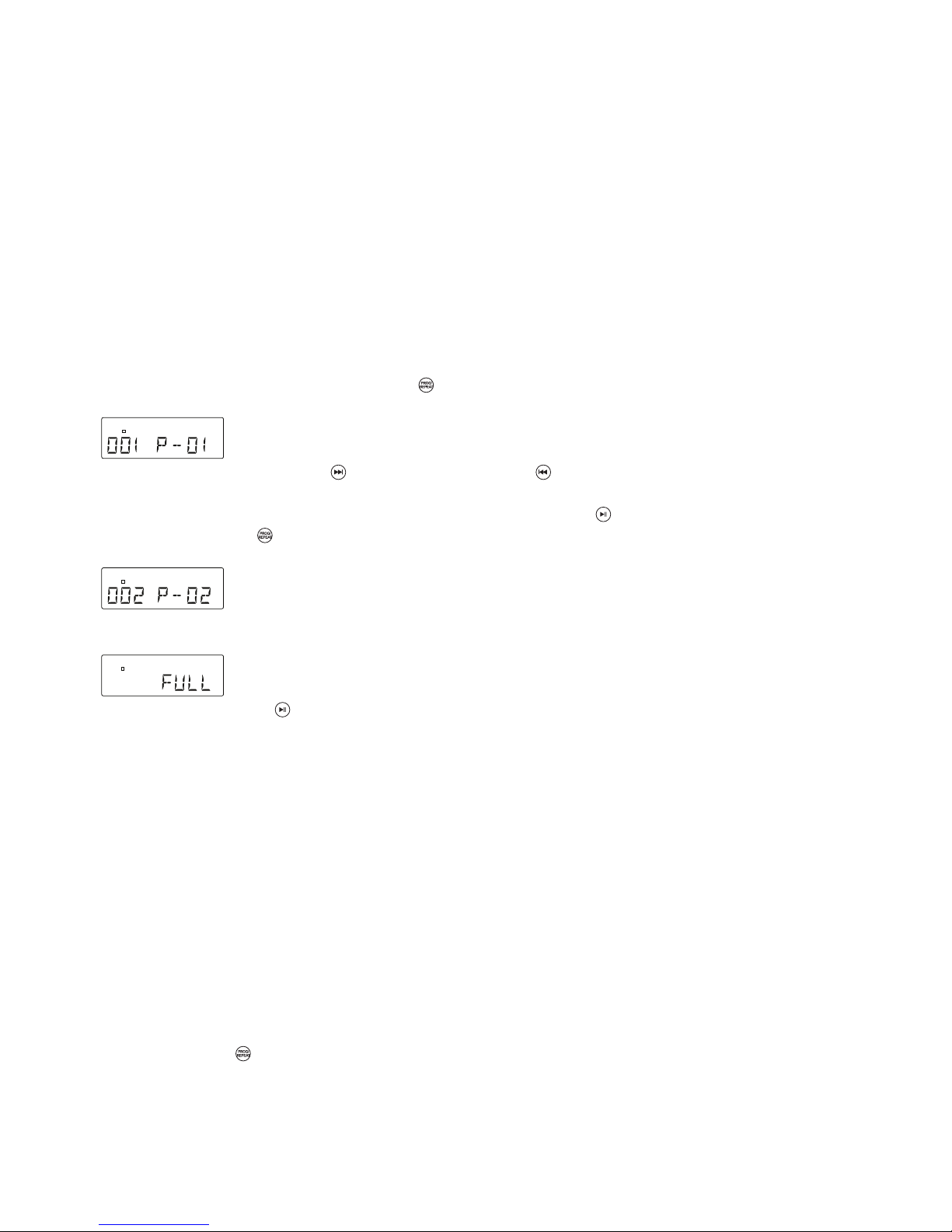

1. In “ STOP “ position, press PROGRAM / to start programming - “P” and P0-01 will start ashing
on the display.
CD
P
2. Press the FORWARD SKIP / or BACKWARD SKIP / buttons once or repeatedly until the
desired track number appears on the display.
3. For MP3 Programming: press and hold the PLAY/PAUSE key / to select the desired album.
4. Press PROGRAM / to conrm, the display shows the stored track number and the next store
position.
CD
P
5. Repeat steps 2-3 to select and store all desired tracks. “ FULL “ is displayed if you attempt to
program more than 20 tracks.
PCD
6. Press PLAY/PAUSE / to play the programmed tracks.
Erasing the Program
You can erase the contents of the memory as follows :
- In Stop position: Press “ STOP “ once, or
- During Playback: Press “ STOP “ twice, or
- Turn the ON-OFF Switch/Volume Control to OFF, or
- Select another sound source/function, or
- Press the CD OPEN/CLOSE button to open the CD door.(at CD mode)
Play mode
Repeat Play Mode for CD-DA or MP3 Playback
1. Press REPEAT / on the Remote Control while in Play mode.
2. The default Play Mode function is OFF.
3. For CD-DA playback there is a choice of 2 Play Modes: “REPEAT 1” / “REPEAT ALL”
4. For MP3 Playback there is a choice of 3 Play Modes: “REPEAT 1” / “REPEAT FOLDER” /
“REPEAT ALL”.

MP3 Recording
Recording from CD to USB / SD
The system is capable of converting (encoding) a whole Audio CD into MP3 format and copy/record
this to a USB mass storage device (e.g. a Flash Drive) or SD card (not supplied). It can also copy a
single MP3 track to/from a USB device or SD card.
1. In CD playback mode, press REC / to start ripping (recording) to USB/SD card
(the default is USB if both devices are detected), playback will stop and skip back to the beginning
of the current track, the system will scan the contents of the USB/SD Card and create a folder to
store the MP3 Tracks in. Resume CD playback and ripping will start from that moment. “ USB ” or “
CARD “ will start ashing, depending on the device selected.
2. Press STOP / to exit CD ripping.
MP3 CD/USB/SD Copying
1. In MP3-CD, USB or SD Card playback mode, press REC / to start MP3 copying from MP3-CD
to USB or SD card, USB to SD Card and SD Card to USB. Playback will stop and the system will
scan the contents of the USB or SD card and create a folder to store the MP3 tracks in.
2. “ REC “ will show on the display.
3. “ COPY ” will be displayed.
4. Either “USB” or “CARD” will start ashing, MP3 copying starts, the process will stop when copying
has nished.
5. The current MP3 track will play back from the beginning.
Recording from Phono to SD / USB
The system is capable of converting an audio signal from PHONO input (record player) into MP3
format and store it on a USB mass storage device or SD card (the default is USB if both devices are
detected). Prepare for playing a record, as described previously.
1. Slide the FUNCTION button to PHONO mode, place a record on the turntable and start playing it.
2. Press REC / to start ripping(recording), the system will scan the contents of the USB or SD card
and create a folder to store the MP3 tracks.
3. “ REC ” and “ TO” are displayed on the LCD for about 15 seconds, “ USB “ starts ashing.
4. Either “ USB ” or “ CARD ” starts ashing as Recording begins.
5. Press STOP / to exit PHONO Recording mode.
Deleting MP3 tracks
The system can delete previously recorded MP3 or existing les on either USB device or SD Card.
1. In USB or SD card playback mode, press and hold REC / for 2 seconds, the currently playing track
is stopped and will be deleted.
2. “ DELETE “ is displayed.

Fitting optional external speakers
1. There is the option of connecting external speakers to this unit
(not supplied).
2. The speaker jacks to connect external speakers to
are located on the back of the unit. Along with
the speaker jacks there is a switch marked
“ INT./EXT.” When using external speakers,
this switch must be switched to the “ EXT.” position.
This turns off the internal speakers in the unit
and redirects the power to the External Speakers.
3. If you decide not to use External Speakers, make
sure the switch is set to “ INT.”
Subwoofer socket
The subwoofer socket enables you to attach a separate powered Subwoofer (not supplied) which will
enhance bass response. Please contact your retailer for suitable subwoofer models.
Earphone jack operation
Insert the earphones (not supplied) into the 3.5mm diameter
EARPHONE JACK on the rear of the unit.
Please note that when listening through earphones, the sound
from the built-in speakers is cut off.
The sound from all speakers is cut off.
RED
BLACK
RED
BLACK
METAL CONDUCTOR
Speaker jack

STEP 1
Use a screwdriver to remove the black
iron C-clipand lift the turntable off the
phonograph mechanism.
STEP 2
Retrieve the dropped black rubberband
and replace it around the column on the
bottom of the turntable, then pull it out
gently without overstretching and book
the band around the small column point
at the edge of the turntable, as shown
in the diagram.
STEP 3
To x the turntable back onto the phonograph
mechanism, make sure the column point is
positioned over the correct place on the
phonograph mechanism, while placing the
axis of the turntable in the hole on the
phonograph mechanism, asshown in the
diagram.
STEP 4
Gently turn the turntable until a ‘plop’-sound
is heard, which indicates the repositioning of
the rubber band. Replace the C-clip to
secure the turntable.
lron binder
Small column point
Rubber band
Re-attaching the turntable drive belt
The turntable drive belt is factory tted - use these instructions only if the turntable fails to revolve ….
Compact disc care
To remove a disc from its storage case, press down on the centre of the case and lift the disc out,
holding it carefully by the edges. Fingerprints and dust should be carefully wiped off the disc’s
recorded surface with a soft cloth. Unlike conventional vinyl or Shellac records, compact discs have
no grooves to collect dust and microscopic debris, so a gentle wipe with a soft clean cloth should
remove most particles. Wipe in a straight line from the inside to the outside of the disc. Small dust
particles and light stains will have absolutely no effect on sound reproduction quality. Clean the disc
periodically with a soft, lint-free, dry cloth. Never use detergents or abrasive cleaners to clean the
disc. If necessary, use a CD cleaning kit. Never afx labels to the surface of compact discs or write on
them, except very gently with specialist CD-R Pens.

Trouble shooting
There is no power
· Make sure the unit is plugged in correctly.
· Make sure the unit is switched on by the ON/OFF POWER SWITCH.
There is no sound
· Check to make sure the power is turned on.
· Check the volume level by turning the On/Off Power Switch/Volume Control.
· Check you did not leave any Headphones plugged in – this will cut all sound form the speakers.
· Make sure the INT./EXT. switch on the back of the radio is switched to INT.
(Unless you are using external speakers, in which case it should be on EXT.)
The Turntable does not work
· Make sure the unit is set to Phono mode by sliding the Function switch.
· Try moving the Tone arm to the right until you hear a click - the turntable should start rotating.
· Make sure the Turntable Drive Belt has not come off. To replace the belt, see separate Instructions
and diagrams.
The Tone Arm will not move
· The black tie-wrap has not been removed from the Tone Arm.
· The Tone Arm hold down clip has not been released.
· Make sure you lift the Tone Arm with the Cue Lever and then move it manually over the edge of the
record – then lower it with the Cue Lever. Caution: Do not force it down onto the record without
using the Cue Lever.
The Tone Arm slides across the Record
· Make sure the protective needle cover is removed.
· Make sure the Stylus has not been damaged – replace if necessary.
· Your record may be one of the newer types with micro grooves and may need a different stylus to
play successfully.
Any of the older style records should not have this problem.
Turntable – the sound is low when playing a record
· Try removing and retting the stylus.
· Turn up the volume.
I have recorded a Record but it does not display any Folder/Artist/Title or Song Information
· Vinyl records have no digital information, so no MP3 song information will be stored on the USB
device or card. However, if required, MP3 tracks can be transferred to, viewed and named on a
computer.
I have recorded a CD but it does not display any Folder/Artist/Title or Song Information
· If this information was not already on the original Disc, this will not show on the recorded disc either.
The CD does not play
· Check to make sure the CD is inserted correctly (label side facing up).
· Make sure the Function switch is set to CD and a CD is in the tray.
· Make sure the CD is not blank.
· Check that the surface of the CD is clean. See separate Instructions on CD Care.

The CD does not play
· Check to make sure the CD is inserted correctly (label side facing up).
· Make sure the Function switch is set to CD and a CD is in the tray.
· Make sure the CD is not blank.
· Check that the surface of the CD is clean. See separate Instructions on CD Care.
USB /SD Card - no music is playing when PLAY/PAUSE is pressed
· Make sure there are MP3 music les stored on the USB Device/Flash Drive / SD Card.
· Check the USB Device/Flash Drive / SD Card is not larger than 4GB as the limit of this unit is up to
4GB max.
· Try resetting the USB by powering off.
· Check if the les on the device/card are perhaps in WMA format. This unit does not play WMA
format, only MP3 format.
· Not all makes of USB device/SD Card are compatible with this unit – this is not a malfunction of the
unit.
Cannot Record Music on the USB /SD Card
· Make sure the USB/SD Card is not full.
· Make sure the lock switch on the SD card is in the unlocked position.
· It may be the device/card is not compatible or of the correct size (up to 4GB max.) –
not all available USB/SD devices are guaranteed to work with this unit due to the way they are
manufactured.
The recorded MP3 Music does not have the same sound quality as the original CD
· The sound quality of an MP3 disc varies from that of a pre-recorded Audio Compact Disc, due to the
quality and method of recording and the difference in format.
The Remote is not working
· Replace the battery. See Specications for type of battery required.
· Remove any obstacles in the path of the Infra Red Remote and the Remote Sensor next to the LCD
Display, so the remote signal has a straight path to it.

Customer support
You can contact the Ricatech customer service when you have a question or a problem with your
Ricatech product. You can contact us by telephone and email.
Email
For customer support by email, please sent a email to
[email protected] Please make sure that you mention the model number and serial number of
the product, mention your name & address and describe your question or problem clearly.
Telephone
For customer support by telephone, please dial [phone]. One of our service staff will be ready
to serve you. For full procedure please visit the website of Ricatech at: www.ricatech.com
Hereby, Ricatech B.V. declares that this turntable is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Ricatech B.V.
Cornusbaan 1
2908 KB Capelle a/d IJssel
The Netherlands

Specication
*SPECIFICATIES EN UITERLIJK KUNNEN WORDEN GEWIJZIGD ZONDER
KENNISGEVING.
WAARSCHUWING :
STEL HET APPARAAT NIET BLOOT AAN REGEN OF VOCHT OM GEVAAR VOOR BRAND
OF EEN ELEKTRISCHE SCHOK TE VOORKOMEN. DE BEHUIZING NIET VERWIJDEREN.
CONTROLELAMPJES ZIJN OP HET APPARAAT GESOLDEERD. GEEN DOOR DE
GEBRUIKER TE ONDERHOUDEN ONDERDELEN AAN DE BINNENKANT. LAAT
ONDERHOUD OVER AAN GEKWALIFICEERD ONDERHOUDS PERSONEEL.
Nederlands
“Ventilatie niet belemmeren.”
“Niet blootstellen aan druipende of spattende vloeistoffen en geen voorwerpen met
vloeistoffen, zoals vazen, op het apparaat plaatsen.”
Het symbool van de bliksemits
met pijlkop, in een gelijk
zijdige driehoek, is bedoeld om
de gebruiker attent te maken op
de aanwezigheid van niet-geï-
soleerde “gevaarlijke spanning” in
de behuizing van het product die
zo hoog kan zijn dat ze gevaar
voor een elektrische schok
betekent voor personen.
OPGELET: OM HET GEVAAR VOOR
EEN ELEKTRISCHE SCHOK TE
VERMINDEREN, BEHUIZING (OF
ACHTERKANT) NIET VERWIJDEREN.
GEEN DOOR DE GEBRUIKER TE
ONDERHOUDEN ONDERDELEN AAN
DE BINNENKANT. LAAT ONDERHOUD
OVER AAN GEKWALIFICEERD
ONDERHOUDS- PERSONEEL.
Het uitroepteken in een
gelijkzijdige driehoek is be-
doeld om de gebruiker attent
te maken op de aanwezigheid
van een belangrijke instructie
voor bediening en onderhoud
(service) in de documentatie
bij het apparaat.
RRIISSKK OOFF EELLEECCTTRRIICC SSHHOOCCKK
DDOO NNOOTT OOPPEENN
CAUTION
FREQUENTIE
USB-POORT 2.0
SD-KAARTSLEUF
VOEDINGSBRON
ANTENNE
STROOMVERBRUIK
AFMETINGEN LUIDSPREKER
AFSTANDSBEDIENING
: FM 88 -108 MHz
AM 530 - 1600 KHz
: Full Speed 512 MB - 4 GB
(ondersteunt FAT16, FAT32)
: 512 MB - 4 GB
: AC 230 V-50 Hz
: Externe antenne voor FM
Ingebouwde ferrietstaaf voor AM
: 18 W
: 2 x 3” 4 ohm dynamisch type
: A-celbatterij is voorzien -
Lithium-vervangingsbatterij vereist:
1 x 3 V CR2025

BELANGRIJKE VOORZORGSMAATREGELEN VOOR AUDIOPRODUCTEN
LEES AANDACHTIG DE VOLGENDE BELANGRIJKE VOORZORGSMAATREGELEN DIE VAN
TOEPASSING ZIJN OP UW APPARATUUR.
1. Instructies lezen - Alle veiligheids - en bedieningsinstructies moeten worden gelezen voordat het
apparaat wordt gebruikt.
2. Instructies bewaren - De veiligheids- en bedieningsinstructies moeten worden
bewaard voor raadpleging in de toekomst.
3. Aandacht besteden aan waarschuwingen - Alle waarschuwingen op het apparaat
en in de bedieningsinstructies moeten in acht worden genomen.
4. Instructies opvolgen - Alle bedienings- en gebruiksinstructies moeten worden
opgevolgd.
5. Water en vocht - Het apparaat mag niet worden gebruikt in de buurt van water, bijvoorbeeld nabij
een badkuip, wasbak, gootsteen, wastobbe, in een vochtige kelder of nabij een zwembad en
dergelijke.
6A. Karretjes en staanders - Het apparaat mag alleen worden gebruikt met een karretje of staander
aanbevolen door de fabrikant.
6A.Een apparaat op een karretje moet voorzichtig worden verplaatst. Bruusk stoppen, overmatige
kracht en oneffen oppervlakken kunnen het karretje met apparaat doen omkantelen.
7. Wand- of plafondbevestiging - Het apparaat mag aan een wand of plafond alleen worden
bevestigd volgens de aanbevelingen van de fabrikant.
8. Ventilatie - De plaats en de stand van het apparaat mogen correcte ventilatie niet belemmeren.
Het apparaat mag bijvoorbeeld niet op een bed, sofa, vloerkleed of dergelijk oppervlak worden
geplaatst aangezien de ventilatieopeningen kunnen worden geblokkeerd; en evenmin in een
ingebouwde installatie zoals een boekenrek of kast aangezien de luchtstroom door de
ventilatieopeningen kan worden belemmerd.
9. Warmte - Het apparaat moet verwijderd zijn van warmtebronnen zoals radiators, warmteregisters,
kachels of andere toestellen (inclusief versterkers) die warmte produceren.
10. Voedingsbronnen - Het apparaat mag alleen worden aangesloten op een voeding van het type
beschreven in de bedieningsinstructies of aangegeven op het apparaat.
11. Aarding of polarisatie - Er moeten voorzorgsmaatregelen worden genomen zodat de middelen
voor aarding of polarisatie van een apparaat niet worden belemmerd.
12. Voeding - Netsnoerbescherming – Netsnoeren moeten zodanig worden geleid dat de kans om
erop te trappen of ze te knellen met voorwerpen die erop of ertegen staan minimaal is, met
bijzondere aandacht voor netsnoeren aan stekkers en op de plaats waar ze het apparaat verlaten.
13. Reiniging - Het apparaat mag alleen worden gereinigd volgens de aanbevelingen van de
fabrikant.
14. Dit product is ontworpen voor gebruik met de bevestigde antenne en mag niet worden
aangesloten op andere externe antennes.
15. Perioden van niet gebruik - Het netsnoer van het apparaat moet uit het stopcontact worden
getrokken wanneer het apparaat lange tijd niet wordt gebruikt.
16. Voorwerpen en vloeistoffen in het apparaat - U dient voorzichtig te zijn dan er geen
voorwerpen vallen of vloeistoffen worden gemorst in de behuizing via openingen
17. Schade die onderhoud vereist - Het apparaat moet door gekwaliceerd onderhoudspersoneel
worden onderhouden wanneer:
A. Het netsnoer van de stekker beschadigd is; of
B. Voorwerpen zijn gevallen of vloeistoffen zijn gemorst in het apparaat; of
C. Het apparaat werd blootgesteld aan regen; of
D. Het apparaat niet normaal lijkt te werken of de prestaties opvallend zijn gewijzigd; of
E. Het apparaat is gevallen, of de behuizing beschadigd is.
18.Onderhoud - De gebruiker mag niet proberen onderhoud van het apparaat uit te voeren behalve
het onderhoud beschreven in de bedieningsinstructies. Alle andere onderhoudswerkzaamheden
moeten worden uitgevoerd door gekwaliceerd onderhoudspersoneel.

PLAATS VAN ONDERDELEN
USBSD
REC/
ERASE
SD/USB
LUIDSPREKERS
AM/FM/AF STEMSCHAAL
AAN/UIT SCHAKELAAR AFSTEMKNOP
VOLUMEREGELAAR OPNEMEN/WISSEN
AFSPELEN/PAUZEREN
LCD-SCHERM
CD LADER
SD-KAART
STOP/SD/USB
AFSPELEN/PAUZEREN OPENEN/SLUITEN
TERUG SPOELEN VOORUIT SPOELEN
0-9
OPNEMEN/WISSEN PROGRAMMEREN/HERHALEN
USB-POORT
OPENEN/SLUITEN
STOP/SD/USB
RADIO\CD\
PHONO-SCHAKELAAR

PLAATS VAN ONDERDELEN
SPILADAPTER VOOR 45-TOERENPLATEN
DRAAITAFEL
SUBWOOFER
UITGANGS
AANSLUITING
OORTELEFOON-
AANSLUITING
EXTERNE FM-
ANTENNE
WISSELSTROOM-
STEKKER
TOONARM
TOONARMHENDEL
TOERENTALREGELAAR
TOONARMSTEUN
AANSLUITING VOOR EXTERNE LUIDSPREKER
SCHAKELAAR INGEBOUWDE/EXTERNE
LUIDSPREKER(INT./EXT.)
SPIL
