Riccar Pizzazz User manual

1
Owner’s Manual
With Full Size Nozzle

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the
instructions, or for uses other than those for which it
was intended.
To reduce the risk of fire, electric shock or injury:
• Do not leave appliance when plugged in.
Unplug from outlet when not in use and
before servicing.
• WARNING: ELECTRIC SHOCK COULD
OCCUR IF USED OUTDOORS OR ON
WET SURFACES.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If
appliance is not working as it should, has
been dropped, damaged, left outdoors,
or dropped into water, return it to your
Authorized Retailer for service.
• Do not pull or carry by cord, use cord as
a handle, close a door on the cord, or pull
cord around sharp edges or corners. Do
not run appliance over cord. Keep cord
away from heated surfaces.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Hold plug when rewinding the power cord
to prevent the cord from whipping.
• Do not handle plug or appliance with
wet hands.
• Do not put any object into openings. Do
not use with any opening blocked; keep
free of dust, lint, hair and anything that
may reduce air flow.
• Keep hair, loose clothing, ngers and all
parts of body away from openings and
moving parts.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches or
hot ashes.
• Do not use without vacuum bag in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up ammable or
combustible liquids such as gasoline or
use in areas where they may be present.
• Do not attempt to service the unit while
appliance is plugged in.
• Do not use vacuum to pick up water or
any wet materials.
SAVE THESE INSTRUCTIONS.
WARNING:

Contents
Safety Precautions 4
Replacing Vacuum Bag and Filters 5
Description and Operation 6-8
Using the Full Size Power Nozzle 9-10
Maintenance and Care 11-12
Troubleshooting Guide 13
Owner’s Information 14
Warranty 15

4
Safety Precautions
This vacuum cleaner should be used for normal, dry household dust and dirt. The manufacturer
cannot be held responsible for any damage caused by use or operation of the vacuum contrary
to these instructions. If the vacuum is wrongly operated for a purpose other than that for which
it is intended, no liability can be accepted for any possible damage.
• Do not vacuum areas which contain moisture or water, flammable matter, needles, pins,
razor blades, matches, cigarettes, etc., since they may damage the vacuum or vacuum bag.
• When rewinding the power cord, hold the plug before pressing the cord rewind button to
prevent the cord from whipping.
• Make sure a vacuum bag and filters are always in place.
• This product is equipped with a polarized alternating current line plug (a plug having one
blade wider than the other). This plug fits into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact an electrician to replace the obsolete outlet. Do not defeat
the safety purpose of the polarized plug.

5
Replacing Vacuum Bag and Filters
Replacing the vacuum bag
Change the vacuum bag when the indicator is RED or
suction power is weak. The dust cover will not close without
a bag in the unit or if the bag is not properly installed.
1. Pull the bag holder straight out to access the bag.
2. Push the latch on the underside of the holder to release
the bag collar.
3. Remove and discard the used bag.
NOTE: The Performance HEPA™ bag cannot be reused.
4. Secure the new bag with the bag collar holder latch. Slide
the tab on the bag holder into the slot on the front of the
bag compartment.
Replacing the secondary filter
1. Open the bag compartment and locate the
filter behind the vacuum bag. For better
access to the secondary filter, remove the
bag holder and bag.
2. Slide filter holder up and out.
3. Remove the used filter and replace it with
a new filter.
4. Slide the filter holder back in place and
replace the bag holder and bag.
Replacing the HEPA filter
1. Locate the HEPA filter inside the bag
compartment near the door hinge.
2. Press the black tab to remove the used filter
and snap in a new filter.
NOTE: The HEPA filter cannot be
washed and reused.
See page 12 for maintenance recommendations.

6
Description and Operation
Storage
• Insert the tab on the neck of the wand into
either groove on canister body to store
the wand.
Hose Adapter
• To separate the hose
from the canister body,
press the buttons on
the hose adaptor and
pull it away from the
canister.
3-n-1 Tool
• The single tool
conveniently converts
from a premium
dusting brush to a
deluxe upholstery tool
to a crevice tool.
Handle
3-n-1 Tool
Power Nozzle
On/Off Switch
Handle
Release
Button
Bare Floor Tool with
Microfiber Pad
• To clean and polish
tile, hard wood and
linoleum floors.

7
Dusting
Brush
Upholstery
Tool
Crevice
Tool
Power Control
Cleaning Tools Cord RewindOn/Off Switch
Full Bag Indicator
• If the red indicator appears:
- Change the vacuum bag
- If the vacuum bag is
not full, but the full bag
indicator is red, check
the hose for a clog.
• When cleaning with a tool
(dusting brush, upholstery
tool or crevice tool), the red
indicator may appear. In this
case, continue cleaning.

8
Description Continued
Power Nozzle
Handle Release Pedal
Jam Indicator Warning Light
Power Nozzle
Telescopic Wand
On/Off Switch
Xenon Headlight
Telescopic Wand
Handle
Wand Extension Grip (to extend wand)
Wand Release Collar
Height Indicator Window
Height Adjustment Pedal
Handle
Soft Furniture Guard
Wand Release Collar
Wand Release Button
Wand Extension Grip (to extend wand)

9

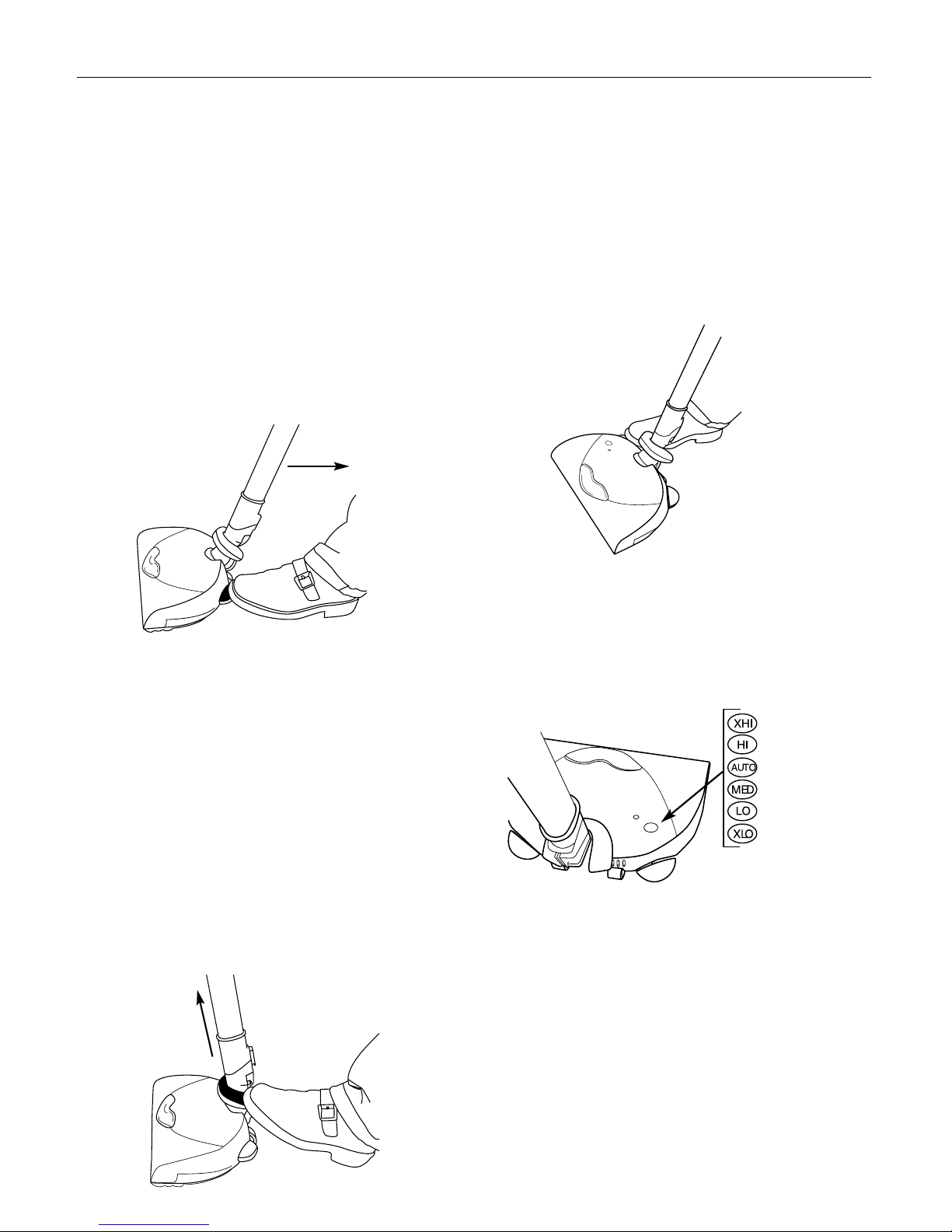

Turning On the Power Nozzle
The power nozzle can only be turned on
if the canister is also turned on (canister
on / off switch is located on the main body).
The power nozzle on / off switch is located
on the handle. Simply press the switch
forward to engage the power nozzle.
Using the Power Nozzle
After turning on the canister and power
nozzle, lower the wand by pressing the left
pedal on the back side of the power nozzle.
Removing and Inserting the Wand
Removing the wand from the power nozzle
allows you to use cleaning tools for baseboard
or above-the-floor cleaning. To do this, first
turn the power nozzle and canister off. Then,
press the wand release collar pictured below
and pull the wand out.
To reinsert the wand into the power nozzle,
simply press the wand back into the neck of
the power nozzle. The wand will then “click”
into place.
Carpet Height Adjustment
Your power nozzle has six different settings
to clean a variety of carpet types and floor
surfaces. To adjust the carpet height setting
of the power nozzle, press the right pedal
located on the back of the power nozzle.
Each press of this pedal will adjust the height
to the next carpet height position.
To determine which setting you are currently
on, look through the height indicator window
on the top of the unit. You will see one of the
six settings detailed below:
Setting: Intended Use:
1. XHI Very plush carpet
2. HI Plush carpet
3. Auto General carpet thickness
or bare floors
4. MED Medium pile carpet
5. LO Low pile carpet
6. XLO Indoor/Outdoor carpet
Using the Full Size Power Nozzle

10
Using the Full Size Power Nozzle
Carpet Height Adjustment Tips: When using
the power nozzle, start on the “Auto” setting.
If pushing the power nozzle feels difficult, then
adjust to a higher setting. If the power nozzle
feels very easy to push, you may want to lower
the power nozzle for more effective cleaning.
The “Auto” setting is the recommended setting
for hard floor surfaces (i.e. tile, vinyl, wood).
Warning Light
Your power nozzle is equipped with a circuit
breaker safety system that protects it from a
jammed situation. Common items that cause
jammed brushrolls include socks, excessive
threads, corners of area rugs, etc. The warning
indicator light on top of the unit will change from
green to red should this condition occur.
If the circuit breaker trips:
• Turn off the vacuum cleaner and power nozzle
then unplug the power cord.
• Remove the object preventing the brushroll
from turning.
• Locate the circuit breaker switch on the back
of the power nozzle and press it to reset the
breaker. When the unit is turned back on, the
warning light should be green.
If the breaker trips again, repeat these steps
again to correct the problem. If this does not
correct the problem, contact your Authorized
Riccar Retailer for further assistance.

11
Removing the Brushroll
IMPORTANT: Before performing any
maintenance on the power nozzle, always
unplug the vacuum cleaner and disconnect
the wand.
Your brushroll may need to be removed
at times, to cut threads that have become
tangled around the brushroll or to replace the
belt (see “Replacing the Power Nozzle Belt”).
To remove the brushroll, turn the unit over
and take off the metal bottom plate by first
unscrewing the two bottom plate screws
located by the rear wheels.
Remove the belt cover guard and pull the
brushroll out.
To reinstall the brushroll, reinsert the brushroll
back into the unit (make sure the belt is
attached properly). Next, insert the belt
cover guard. Then, place the metal bottom
plate back onto the unit (insert the front end
of the bottom plate first). Re-insert the two
bottom plate screws and secure.
Replacing the Power Nozzle Belt
IMPORTANT: Before performing any
maintenance work on the power nozzle,
always unplug the vacuum cleaner and
disconnect the wand.
To replace the power nozzle belt, you must
first remove the brushroll (see “Removing
the Brushroll”). Then locate and discard
broken belt.
To install new belt, locate the power nozzle
motor pulley and loop the belt around it.
Place the other end of the belt around the
brushroll making sure the belt is seated in the
“belt groove” of the brushroll.
Maintenance and Care

12
Maintenance and Care
Replacing the Power Nozzle Belt Cont.
Insert the brushroll back into the brushroll tray
and place the belt guard back into position).
Place the metal bottom plate onto the unit (insert
the front end of the bottom plate first). Re-insert
the two bottom screws and secure.
Replacing the Bulb
IMPORTANT: Before performing any maintenance
work on the power nozzle, always unplug the
vacuum cleaner and disconnect the wand.
Turn the power nozzle over and remove the
bottom plate by first unscrewing the two bottom
plate screws located by the rear wheels.
Remove the two top cover screws. Turn the
power nozzle back over, push the neck flat, and
remove the top cover.
Simply pull the bulb out (no twisting) and reinsert
a factory-authorized bulb. Place the top cover
back on the unit, turn the machine over and
re-insert the two top cover screws. Reinstall the
bottom plate.

13
Please check each item below if you have trouble with your vacuum.
Unplug the vacuum from the power supply before servicing.
Problem Check Point Possible Solution
Suction power is weak. Vacuum bag If vacuum bag is
full, replace it.
Wand or hose If clogged or blocked,
remove the object.
The vacuum does not work. Is the hose adapter inserted Insert it completely.
into the suction opening of the
vacuum completely?
When the vacuum bag is full Turn the vacuum off and
or any of the accessories are unplug the vacuum.
blocked, the over-heating Check the vacuum
protection for the motor bag and accessories
is activated. and remove any
blockages. The
vacuum can be turned
on again after approximately
20 minutes.
Power cord does not rewind. Power cord Pull the power cord out a
little and press the cord
rewind button again.
Power cord won’t pull out of Power cord Do not pull it out by force.
the vacuum. Rewind it a little by
pressing the cord rewind
button and try pulling it
out again.
Model: ZAZZ.FSN
Rating: 120V/60Hz
Amps: 12
Specifications
Troubleshooting Guide

14
Owner’s Information (keep this for your records)
The model and serial number of this product may be found on the bottom of the unit. You
should note the model and serial number of your vacuum in the spaces provided below, and
retain this book as a permanent record of your purchase.
Date of purchase __________________________________________________
Serial number __________________________________________________
Model number __________________________________________________
Purchased from:
Store name __________________________________________________
Address __________________________________________________
City, State, Zip __________________________________________________
Telephone __________________________________________________
For Best Performance:
• Keep your canister clean and in good operating condition.
• Change vacuum bags once a month or when the bag is 2/3 full to maximize
cleaning performance.
• Always use genuine vacuum bags and replacement parts. Use of other products may
result in poor cleaning performance, potential vacuum cleaner damage and may void
vacuum warranty. Genuine products are designed for maximum cleaning performance.
• Have your canister checked periodically by your Authorized Riccar Retailer.
• Use only Authorized Riccar Retailers for parts or service.
• Store your canister carefully in a dry area.
• For optimum cleaning performance and safety, follow your owner’s manual instructions.

15
Warranty
What is Covered:
This warranty covers any defects in material and workmanship in your new
Riccar vacuum and applies exclusively to the original purchaser.
How Long Coverage Lasts:
Warranty coverage for the Riccar Pizzazz canister lasts two years. Household
models used commercially are only warranted for 90 days.
What is Not Covered:
• Damage to the vacuum which occurs from neglect, abuse, alterations,
accident, misuse or improper maintenance.
• Normal replacement items: lters, belts and disposable bags.
What Riccar Will Do:
This warranty provides, at no cost to you, all labor and parts to place this
vacuum in correct operating condition during the warranted period.
How to Get Service:
Warranty service can only be obtained by presenting the vacuum to an
Authorized Riccar Retailer. A proof-of-purchase and product serial number
will be required before service is rendered. To locate your nearest Riccar
Retailer, please call 1-888-6-RICCAR or visit the Riccar website at
www.riccar.com.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER
WARRANTIES WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED,
(INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE). THIS WARRANTY DISCLAIMS LIABILITY FOR
INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
How State Law Applies:
This warranty gives you specic legal rights, and you may also have other
rights which vary from state to state.

16
www.riccar.com
LROM-ZAZZ.FSN©2012 Tacony Corporation
