Owner’s Manual
R25P, R25D
& R25S

Getting Started
Important Safety Instructions 2
Polarization Instructions 3
Description of the Vacuums 4-7
Assembling the Vacuum
Attaching the Handle 8
Unwinding the Power Cord 8
Storing the Vacuum 8
Operation
Reclining the Handle 9-10
Vacuuming Carpet and Area Rugs 9-10
Bare Floor Cleaning 9-10
Brushroll Auto Shutoff Feature 9-10
Vacuuming Under Furniture 11
Carrying the Vacuum 11
Attachment Cleaning
Wand Cleaning 12
Cleaning Tools 13
Adjusting the Suction Power for Tool Cleaning 14
Disconnecting the Hose 14
Maintenance and Care
When to Replace The Vacuum Bag 15
Replacing the Vacuum Bag 16
Replacing the Filters 17
Jammed Brushroll 18
Dirt Sensing Display 18
Cleaning the Dirt Sensor Eye 18
Belt Protection Breaker Reset 19
Thermal Motor Protection 19
Lifetime Belt 20
Annual Checkup 20
Power Cord Care 20
Problem Solving Guide
Troubleshooting 21
How to Contact Your Authorized Vacuum Retailer 21
Key Replacement Parts 21
For Best Performance 21
Warranty 22
CONTENTS

2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions
should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE. FOR HOUSEHOLD USE ONLY.
IMPORTANT:
The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the
instructions, or for uses other than those for which it was intended.
WARNING: To reduce the risk of fire, electric shock, damage or injury:
• Do not leave appliance when plugged in.
Unplug from outlet when not in use
and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close
attention is necessary when used by
or near children.
• Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
• Do not use with a damaged cord or
plug. If appliance is not working as it
should, has been dropped, damaged,
left outdoors, or dropped into water,
return it to an Authorized Vacuum
Retailer for service.
• Do not pull or carry by the cord, use
the cord as a handle, close a door on
the cord, or pull the cord around sharp
edges or corners. Do not run appliance
over the cord. Keep the cord away
from heated surfaces.
• Do not unplug by pulling on the cord. To
unplug, grasp the plug, not the cord.
• Do not use the pet hair remover tool on
pets.
• Do not handle the plug or appliance
with wet hands.
• Do not put any object into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair and anything
that may reduce air flow.
• Keep hair, loose clothing, fingers and all
parts of the body away from openings
and moving parts.
• Do not pick up anything that is burning
or smoking, such as cigarettes, matches
or hot ashes.
• Do not use without a vacuum bag and/or
filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids such as gasoline
or use in areas where they may be
present.
• Do not attempt to service the unit while
appliance is plugged in.
SAVE THESE INSTRUCTIONS

3

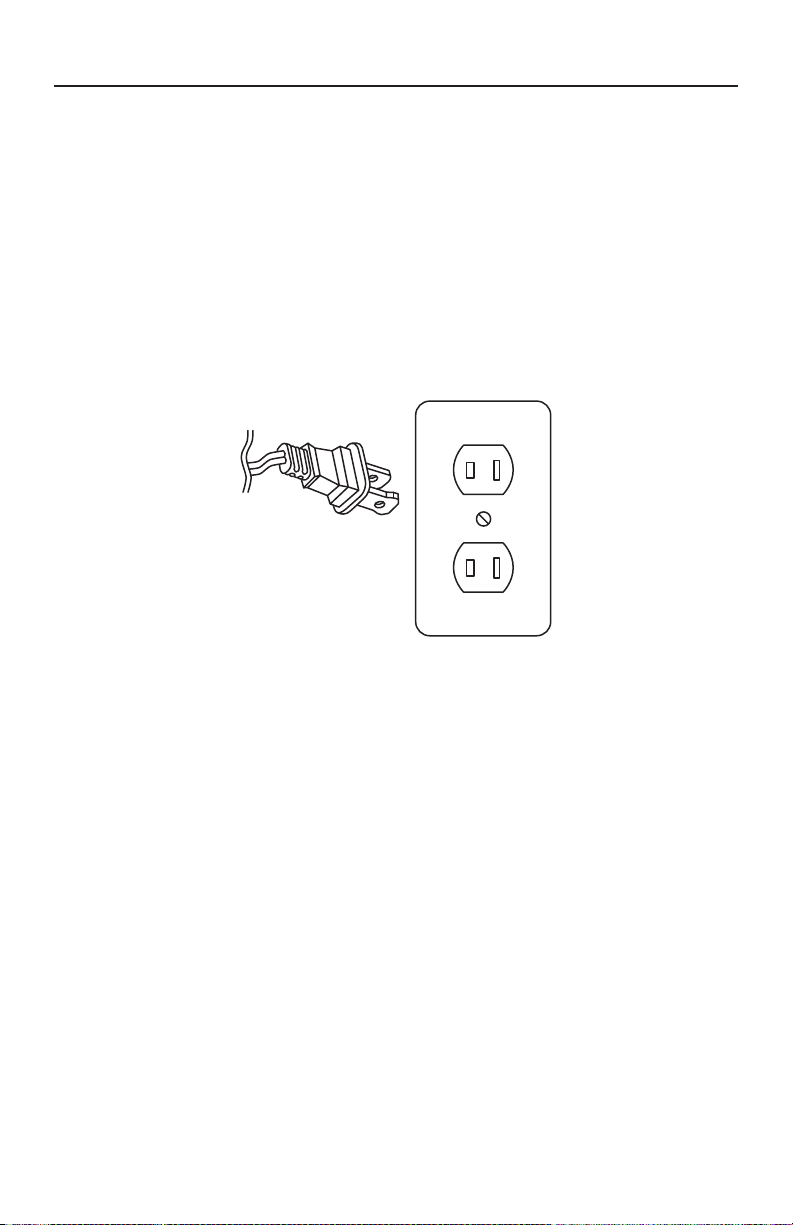

Power Cord, 2-Wire Polarized Cord
To reduce the risk of electric shock, this product is equipped with a polarized
alternating current line plug (a plug having one blade wider than the other). This
plug will fit into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact a qualified electrician to replace the obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
POLARIZATION INSTRUCTIONS

4
12
3
6
10
7
9
14
13 24
4
16
17
15
20
12
19
18
21
8
22
23

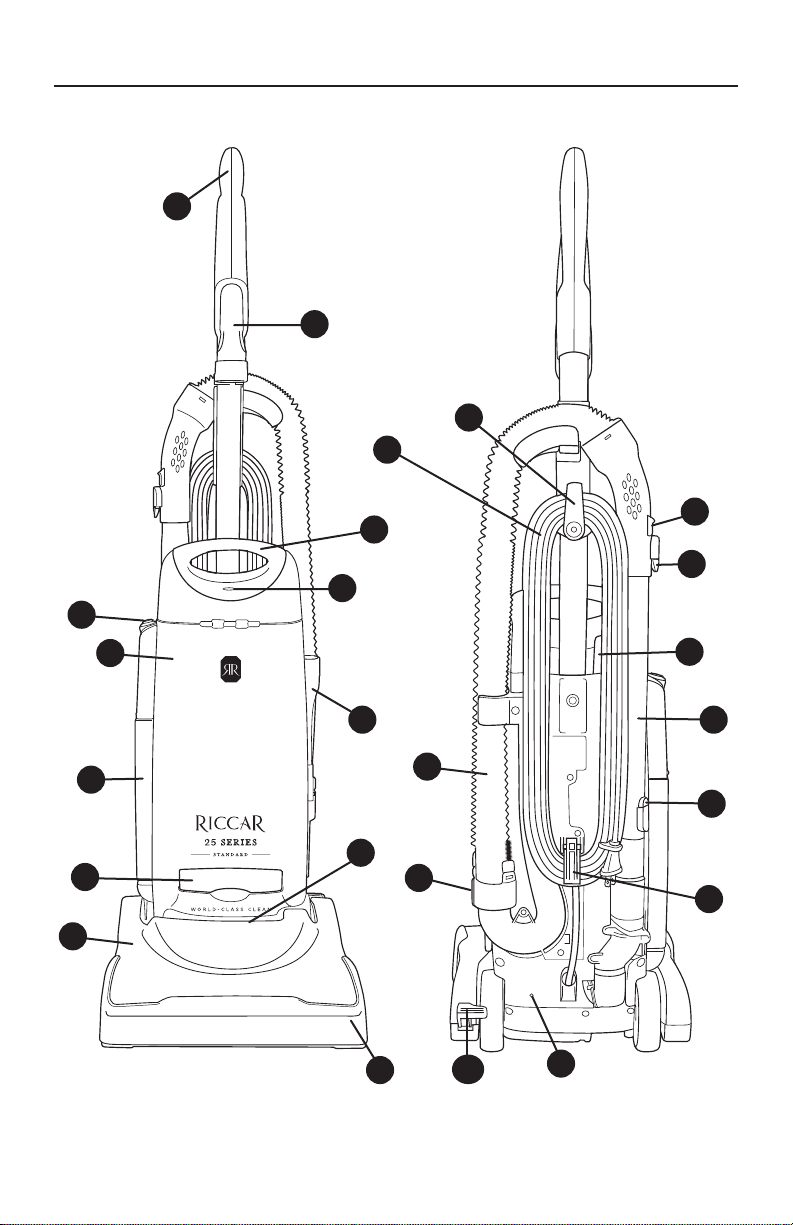

DESCRIPTION OF THE VACUUM
5
25
11
R25P & R25D Models

5
1 ComfortGrip™ Handle
2 On/Off Switch
3 Carpet/Hardwood Floor Button
4 Dusting Brush/Upholstery Tool
5 Power Cord
6 Carrying Handle
7 Full Bag/Clog Indicator Light
8 Crevice Tool
9 Bag Compartment
10 Post Filter
11 Secondary Filter
12 Vacuum Nozzle
13 LED Headlights/Brushroll Jam Indicator Lights
13 Dirt Sensor Lights (R25P only)
14 Furniture Guard
15 Quick Release Cord Hook
16 Suction Relief Valve
17 Wand Release Button
18 Bag Compartment Button
19 Telescopic Wand
20 Stretch Hose
21 Wand Extension Button
22 Hose Disconnect Cuff
23 Thermal Reset Button
24 Handle Release Pedal
25 Lower Cord Hook
DESCRIPTION OF THE VACUUM
R25P & R25D Models

6
1
4
9
7
8
12
10
22
2
5
14
15
13
21
11
17
16
18
19
6
20
24
23
DESCRIPTION OF THE VACUUM
3
R25S Model

7
1 Molded Handle Grip
2 Dusting Brush/Upholstery Tool
3 Power Cord
4 Carrying Handle
5 Full Bag/Clog Indicator
6 Crevice Tool
7 On/Off Switch
8 Bag compartment
9 Post Filter
10 Secondary Filter
11 Vacuum Nozzle
12 Furniture Guard
13 Quick Release Cord Hook
14 Suction Relief Valve
15 Wand Release Button
16 Bag Compartment Button
17 Telescopic Wand
18 Wand Extension Button
19 Lower Cord Hook
20 Hose Disconnect Cuff
21 Stretch Hose
22 Handle Release Pedal
23 Thermal Reset Button
24 Belt Protection Breaker Reset Button
DESCRIPTION OF THE VACUUM
R25S Model

8
ASSEMBLING THE VACUUM
Attaching the Handle to the Vacuum
NOTE: Do not plug in the vacuum until
it is completely assembled.
The vacuum cleaner and the handle are
packed separately and require assembly.
• Remove the handle screw located
on the back of the vacuum (Fig. 1).
Insert the handle downward into the
body of the vacuum. Insert screw
and tighten.
• Thread the cord through the two
cord guides on the back of the
vacuum (Fig. 2). Model R25S only.
• Secure the cord under the cord
guide above upper cord hook (Fig. 3).

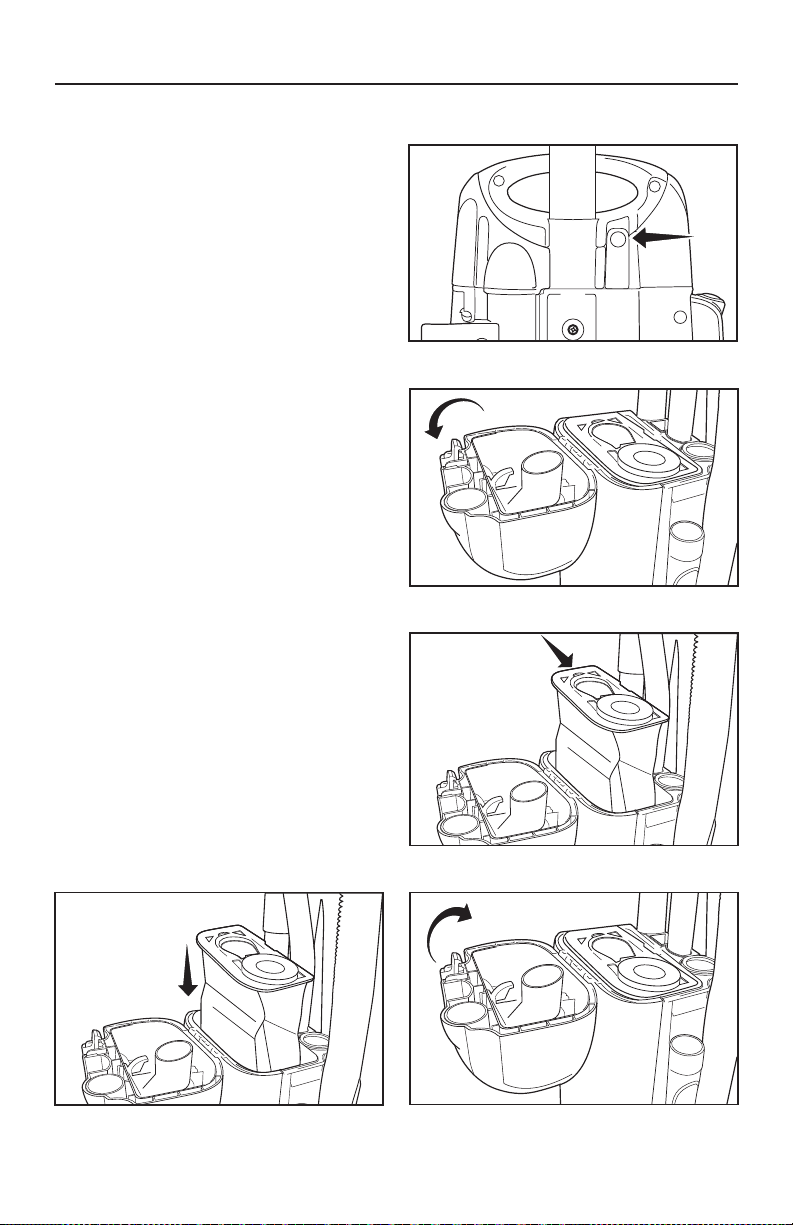

• Open the bag compartment cover by
pressing the bag compartment button
on the back of the vacuum to ensure a
vacuum bag is in place.
Unwinding the Power Cord
• The Quick Release Upper Cord Hook
rotates to allow for quick access to the
power cord. Turn the upper cord hook
downward and you can quickly drop
the power cord to the floor without
unwinding it from the cord hooks (Fig. 4).
• Your vacuum is now ready for use.
Storing the Vacuum
• When storing the vacuum cleaner, turn
the Quick Release Upper Cord Hook
to the upright position and wrap the
power cord around the upper cord
storage hook (Fig. 4) and the spring-
activated lower cord hook (Fig. 5).
Fasten the plug to the wrapped cord
using the channel on the plug.
Fig. 2
Fig. 1
Fig. 5
Fig. 4
Fig. 3

9
OPERATION
Reclining the Handle
Press the Handle Release Pedal with your
foot to recline the handle (Fig. 1).
Vacuuming Carpet
For carpet cleaning, recline the handle
and push the On/Off Switch to the “On”
position. The Brushroll Mode Button will
illuminate green indicating the brushroll
is in the carpet cleaning “High” setting
(Fig. 2).
NOTE: For vacuuming plush or very thick
carpet, open the Suction Relief Valve on
the hose handle to reduce the suction
power (see Page 14).
Vacuuming Area Rugs
Recline the handle and push the On/
Off switch to the “On” position. Push
the Brushroll Mode Button once so
it is flashing indicating the brushroll is
in “Low Setting” for cleaning delicate
rugs, wool and silk carpet (Fig. 3).
Vacuuming Bare Floors
Recline the handle and push the On/Off
switch to the “On” position. Push the
Brushroll Mode Button twice so it is
no longer illuminated indicating the
brushroll is “Off” for cleaning bare floors
(i.e. tile, wood, vinyl) (Fig. 4).
Brushroll Auto Shut-Off Feature
When the vacuum is turned on in carpet
and rug mode and in the upright position,
the brushroll will stop spinning to
reduce the possibility of damaging
flooring surfaces. The brushroll will spin
when the handle is reclined.
Always turn the vacuum cleaner off before
unplugging it from the electrical outlet.
Fig. 3
Area Rug Cleaning
Press
Green
Light
Flashes
Fig. 2
Carpet Cleaning
Press
Green
Light On
Fig. 4
Bare Floor Cleaning
Green
Light Off
Press
Fig. 1
R25P & R25D Models

10
OPERATION
Reclining the Handle
Press the Handle Release Pedal with your
foot to recline the handle (Fig. 1).
Vacuuming Carpet
For carpet cleaning, recline the handle
and push the On/Off Switch to the
Carpet position (Fig. 1).
Vacuuming Rugs and Bare
Floors
Recline the handle and push the On/Off
switch to the Floors position (Fig. 2).
Brushroll Auto Shut-Off Feature
When the vacuum is turned on in carpet
mode and in the upright position, the
brushroll will stop spinning to reduce
the possibility of damaging flooring
surfaces. The brushroll will spin when the
handle is reclined.
Always turn the vacuum cleaner off before
unplugging it from the electrical outlet.
Fig. 2
Fig. 1
R25S Model

11
Vacuuming Under Furniture
Your vacuum will lie flat on the floor for
effective cleaning under beds and tables.
• Press the Handle Release Pedal once
for normal vacuuming (Fig. 1).
• Press the Handle Release Pedal a second
time to enable the vacuum to lie flat on
the floor (Fig. 2).
Carrying the Vacuum
To safely transport your vacuum, especially
when carrying the vacuum up and down
stairs, use the Carrying Handle located at
the top of the bag compartment (Fig. 3).
OPERATION
Fig. 1
Fig. 2
Fig. 3

12
ATTACHMENT CLEANING
Telescopic Wand Cleaning
Your vacuum is a comprehensive
cleaning system equipped with a dusting
brush/upholstery tool, crevice tool,
telescopic wand and a stretch hose.
The vacuum must be in the upright
position for attachment cleaning (Fig. 1).
• Remove the Telescopic Wand from the
body of the vacuum by pulling it up and
out of the holder.
• Extend the wand by sliding the Wand
Extension Button forward while extending
the wand to desired length (Fig. 2).
• Attach any of the tools to the end of
the Telescopic Wand.
• When finished with wand cleaning,
insert the wand back into the vacuum
and secure it by pushing the wand
into the holder.
Fig. 1
Fig. 2

13
ATTACHMENT CLEANING
Cleaning Tools
Your vacuum is equipped with a dusting
brush/upholstery tool and crevice tool.
• Remove the telescopic wand from the
vacuum.
• Insert any of the tools onto the end
of the wand.

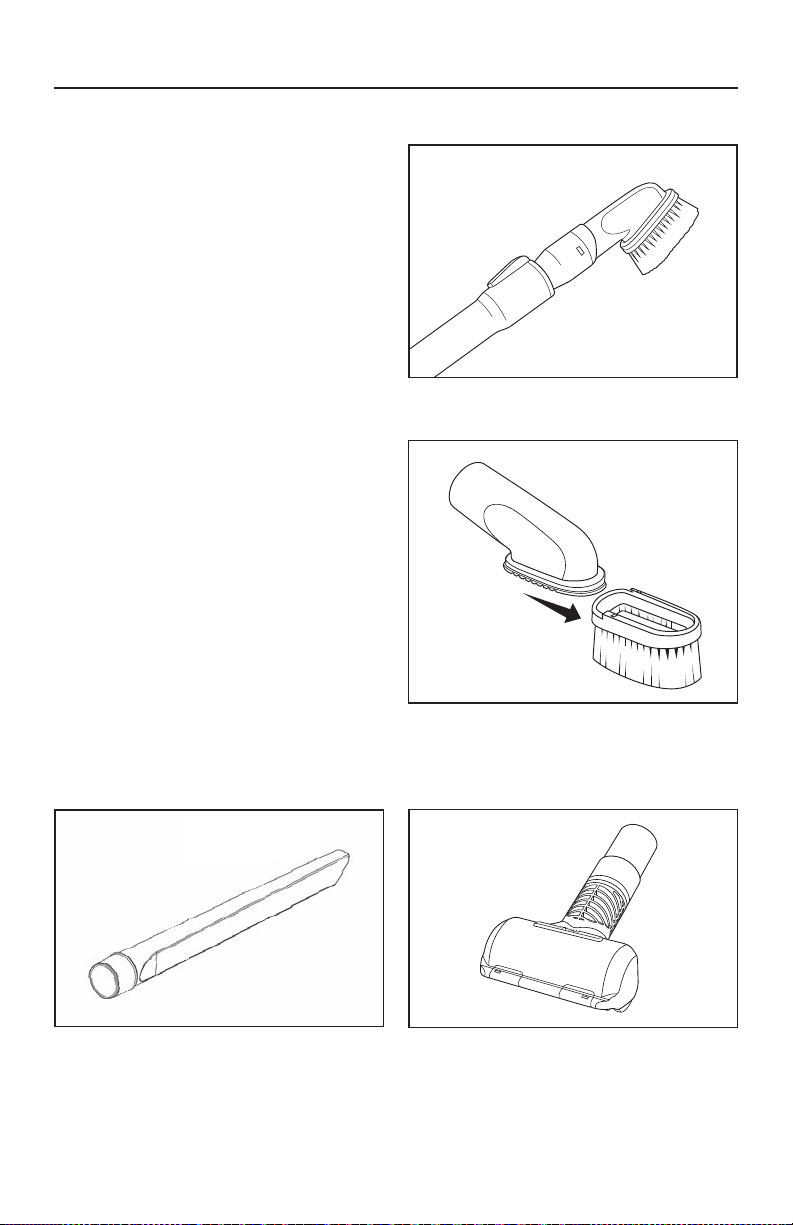

Dusting Brush
Ideal for table tops, shelves, blinds or
hard surface floors (Fig. 1).
Upholstery Tool
Ideal for soft surfaces and furniture.
Remove the dusting brush clip for
upholstery cleaning (Fig. 2).
C revice Tool
Ideal for tight places like between seat
cushions or corners (Fig. 3).
Fur Get It Pet Hair Remover Tool
(R25P Model)
Ideal for removing pet hair from upholstery,
stairs and vehicles (Fig. 4).
NOTE: Do not use the pet hair remover
tool on pets.
Fig. 3
Fig. 1
Fig. 4
Fig. 2

14
Fig. 1
ATTACHMENT CLEANING
Cleaning Tools
The cleaning tools can also be attached
to the curved handle for tasks where the
wand is not needed.
• Disconnect the wand from the curved
handle by pressing the Wand Release
Button (Fig. 1).
• Attach any of the cleaning tools
directly to the curved handle (Fig. 2).
Adjusting the Suction Power for
Tool Cleaning and PlushCarpet
Full suction power may be too strong
for some cleaning situations. For example,
reduced suction power would be
appropriate for cleaning sheer curtains
or plush, thick carpet.
• Locate the Suction Relief Valve on
the hose handle and slide it back
(Fig.3). This reduces the suction power
coming through the tool. Slide the valve
forward when finished to restore full
suctionpower.
Fig. 2
Fig. 3
Fig. 4
Disconnecting the Hose
The hose can be disconnected from the
vacuum by pressing the two buttons on
the sides of the Hose Disconnect Cuff
located low on the back of the vacuum
(Fig. 4). This provides a method for
removing debris from the hose.

15
MAINTENANCE AND CARE
R25P & R25D Models
When to Replace the Vacuum
Bag (Full Bag Indicator Light)
The Full Bag Indicator Light is designed
to show when the bag is full or when
there is a clog in the vacuum (Fig. 1).
The light can also come on when
vacuuming fine powders such as flour or
drywall dust. Before the bag is actually full
these materials can quickly block the bag
pores, significantly reducing airflow. The
vacuum bag should still be changed.
The light may also come on during
attachment cleaning. If the light goes off
when attachments are no longer in use, the
vacuum bag does not need to be changed.
R25S Model
When to Replace the Vacuum
Bag (Full Bag Indicator)
The Full Bag Indicator is designed to show
when the bag is full or when there is a
clog in the vacuum (Fig. 2).
The indicator can turn red when
vacuuming fine powders such as
flour or drywall dust before the bag is
actually full. These materials can quickly
block the bag pores, significantly reducing
airflow. The vacuum bag should still be
changed.
The indicator may also turn red during
attachment cleaning. If so, the vacuum bag
does not need to be changed.
NOTE: The vacuum bags are disposable
and intended to only be used once.
Do not attempt to reuse the bag, as
suction and filtration performance will
be greatly reduced.
Fig. 1
Fig. 2

16
MAINTENANCE AND CARE
NOTE: Unplug the vacuum cleaner from
the electrical outlet before changing
the bag.
Replacing the Vacuum Bag
• To access the vacuum bag press the
bag compartment button on back of
vacuum (Fig. 1).
• Open the bag compartment lid (Fig. 2).
• Remove the used vacuum bag by
lifting up on the collar ring and pulling
straight up (Fig. 3). Discard the
used bag.
• To install a new bag, drop the bag into
the bag compartment, ensuring the
bag collar is aligned in the top of the
compartment (Fig. 4).
• Replace the cover and press the lid
release button to secure it into place
(Fig. 5).
Fig. 1
Fig. 4
Fig. 2
Fig. 5
Fig. 3

17
MAINTENANCE AND CARE
NOTE: Unplug the vacuum cleaner from
the electrical outlet before changing
the bag.
Replacing the Post Filter
• The post filter is located on the side of
the vacuum (Fig. 1).
• Push down on the tab on the top to
remove the used filter and discard it
(Fig. 2).
• To insert a new filter, position the tabs
on the bottom of the filter cartridge
into the vacuum. Then snap it into place.
Replacing the Secondary Filter
• Pull the filter holder compartment
on the front of the vacuum straight
out (Fig. 3).
• Remove and throw away the used
filter.
• Insert a new filter under the tabs in
the holder (Fig. 4). Then align the filter
holder into the vacuum and slide it
into place.
NOTE: Filters cannot be washed and reused.
Fig. 1
Fig. 2
Fig. 3 Fig. 4

18
MAINTENANCE AND CARE
CAUTION! To Reduce the Risk of Injury
From Moving Parts, Unplug Before Servicing.
Jammed Brushroll
(R25P & R25D models)
If an object, such as a throw rug or article of
clothing is ever picked up into your
vacuum, the vacuum will sense this jammed
brushroll condition and turn off the brushroll.
When this happens the headlight will
flash red.
• Turn off and unplug the vacuum.
• Remove the cause of the jam.
• Turn the vacuum back on.
• If the brushroll is free of obstructions and
the headlight still flashes, it’s likely there
is an issue with the brushroll motor.
If so, please take your vacuum to an
Authorized Vacuum Retailer for service.
Red Lights
Red lights flash indicating a brushroll jam
Dirt Sensing Display
(R25P Model)
This model is equipped with two amber
lights (Fig. 3) that illuminate the edges
of the cleaning path when your vacuum
detects that dirt is being picked up by the
machine (while in the carpet cleaning
mode). Continue vacuuming this area
until the amber lights no longer illuminate.
When only the white headlights
are illuminated, then all of the deeply
embedded dirt has been removed from
your carpet, and you should move on to
a new area.
Amber Light Amber Light
When the amber lights are no longer
illuminated, your carpet is clean.
Fig. 3
Cleaning the Dirt Sensor Eye
(R25P model)
If the amber lights run continuously, it may
be the dirt sensor eye has become coated
with moist dirt. To remedy this situation,
simply vacuum up a small amount of
uncooked rice which works to clean the eye.
Repeat, if necessary. If the problem persists,
contact an Authorized Vacuum Retailer.
