Richmond PAC-96-24 User manual

RICHMOND OWNERS MANUAL
Air Compressor
PAC-96-24 & PAC-96-50

1
This manual has been produced by Parker Products Ltd
and should be kept with the product and referenced for
operation, maintenance and troubleshooting purposes.
This manual contains an overall description of the
product together with all the necessary information
for using the product correctly and safely. It is
highly recommended that this manual is read prior
to any operation or maintenance of this product.
The safety precautions and warnings are to ensure
your safety and protect you from harm, or damage
to the product. All photographs and drawings in this
manual are supplied by Parker Products Ltd to help
you with the operation and maintenance of the product.
The information contained in this manual was accurate at
the time of production, however Parker Products Ltd may
make modications without noication.
Contents List 1
Specication 2
Main Components 3
Set-up 4-5
Operation and adjustment 6-9
Safety precautions 10
Maintenance 11
Trouble Shooting 12
Wheel Assembly 13
Illustrated Parts Diagram 14-15
CONTENTS
Read the
Manual
■Read this manual carefully until you completely
understand all safety and operating instructions.
1

SPECIFICATION MAIN COMPONENTS
ITEM DATA
Model PAC-96-24 PAC-96-50
Power 1.5 kW / 2.5 HP
Voltage 230 V
Frequency 50 Hz
Motor Poles 2 P
Rated Speed 2850 rpm
Delivery 9.6 CFM
Discharge Pressure 115 psi / 0.8 MPa
Restart Pressure 70 PSI / 0.5 MPa
Tank Capacity 24L 50L
Dimensions 600x290x645 mm 770X330X730 mm
Air Outlet Size 1/4 in
Pressure switch
Pressure Gauge
Drain cock
Air Tank resevoir
Regulating valve
Regulating valve
Safetly valve
Release valve
Discharge Pipe
Fan Cover
Main Compressor
32

SET UP
PREPERATION FOR STARTING
1. Check all nuts and bolts. Make sure parts are tightened before
starting.
2. Before running the compressor remove the white plug and
connect the red bung in it’s place.
3. Screw the air lter in before starting the compressor.
4. Place the compressor in a clean, dry and ventilated area.
5. Keep voltage within ±4% of the rated value.
6. Keep the oil level in the red circle of the oil glass sight window.
You can purchase compressor oil from our website.
7. Open the outlet valve, set the power switch knob to the ON
position and let the compressor run for 10 minutes with no load
to ensure the moving parts are lubricated before regular service.
Red bung Glass sight window Power Switch Knob
Air lter
54

OPERATION AND ADJUSTMENT
OPERATION
The compressor is controlled by a pressure switch. It can be stopped
automatically as the pressure increases to the maximum and restarted
as pressure decreases to the minimum. The rated pressure has been
adjusted during the manufacturing process - alter this pressure with
caution. As soon as the motor is switched off the compressed air inthe
discharge pipe should be released through the release valve under the
switch. This is a necessary condition before restarting, or the motor
will be damaged. The rated pressure can be altered by turning the
adjusting screw.
The outlet pressure of compressed air can be adjusted by the regulating
valve. Grip the regulating valve knob and turn it clockwise to increase
the pressure.
PRESSURE GUAGES
There are two pressure gauges on the compressor.
1. The pressure gauge on the RIGHT shows the current pressure
in the reservoir tank.
2. The pressure gauge on the LEFT shows the ‘user set’ outlet
pressure. This can be adjusted using the regulator.
Glass sight window Regulating valve
76

When the running compressor
needs to be stopped set the
pressure switch to the OFF
position.
Glass sight window Regulating valve
Bleed nipple
Always vent the compressor
after each use by turning
the regulator knob fully
anticlockwise.
Once the compressor is vented, remove any condensation from
inside the tank by inscrewing the bleed nipple.
THERMAL RESET SWITCH
There may be instances when your compressor will overheat. If it cuts
out, this is the safety feature to protect you and your compressor. Leave
the compressor a good while before you reset it. If the compressor
turns off again on reset you should not keep running it as it may be
damaged and the system may be unsafe.
OPERATION AND ADJUSTMENT
98

SAFETY PRECAUTIONS MAINTENANCE
2
• Never unscrew any connecting parts while the tank is
still under pressure.
• Never disassemble any electrical parts before
disconneting the electrical plug.
• Always use caution when adjusting the safety valve.
• Never use the compressor when the volatage is too low
or too high.
• Never use electrical cable more than 5m long with less
than a 1.5 mm section rated to 16A.
• Never disconnect the plug to stop the compressor, turn
the switch to the OFF position.
• If the release valve does not work when the motor is
 stoppedndthecauseimmediatelytopreventdamageto
the motor.
• Before restarting the motor by pressing the RESET
button check the air compressor for problems and check
the pressure in the air tank to ensure it is under 0.8Mpa.
• Disconnect the plug to cut off the power supply and open
the outlet valve and discharge all the air in the air tank
after use.
1. Before any maintenance operation stop the air compressor,
cut off the power supply and discharge all the air in the tank.
2. Clean the crank case and renew lubricating oil after the
rst10 working hours. Check the oil through the oil level
sightglass after every 20 working hours and replenish if
necessary; you can replenish by inbolting the sump bolt, and
srain off any old oil.
3. Have the safety valve and pressure gauge checked by a
certied repair centre every 6 months to ensure they are in
correct working condition.
4. Make sure there is no rust on the air tank and the air tank is
not damaged.
5. Have the thickness of the air tank checked by a certied
repair centre every year to ensure the tank thinkness is not
less than 2.1mm.

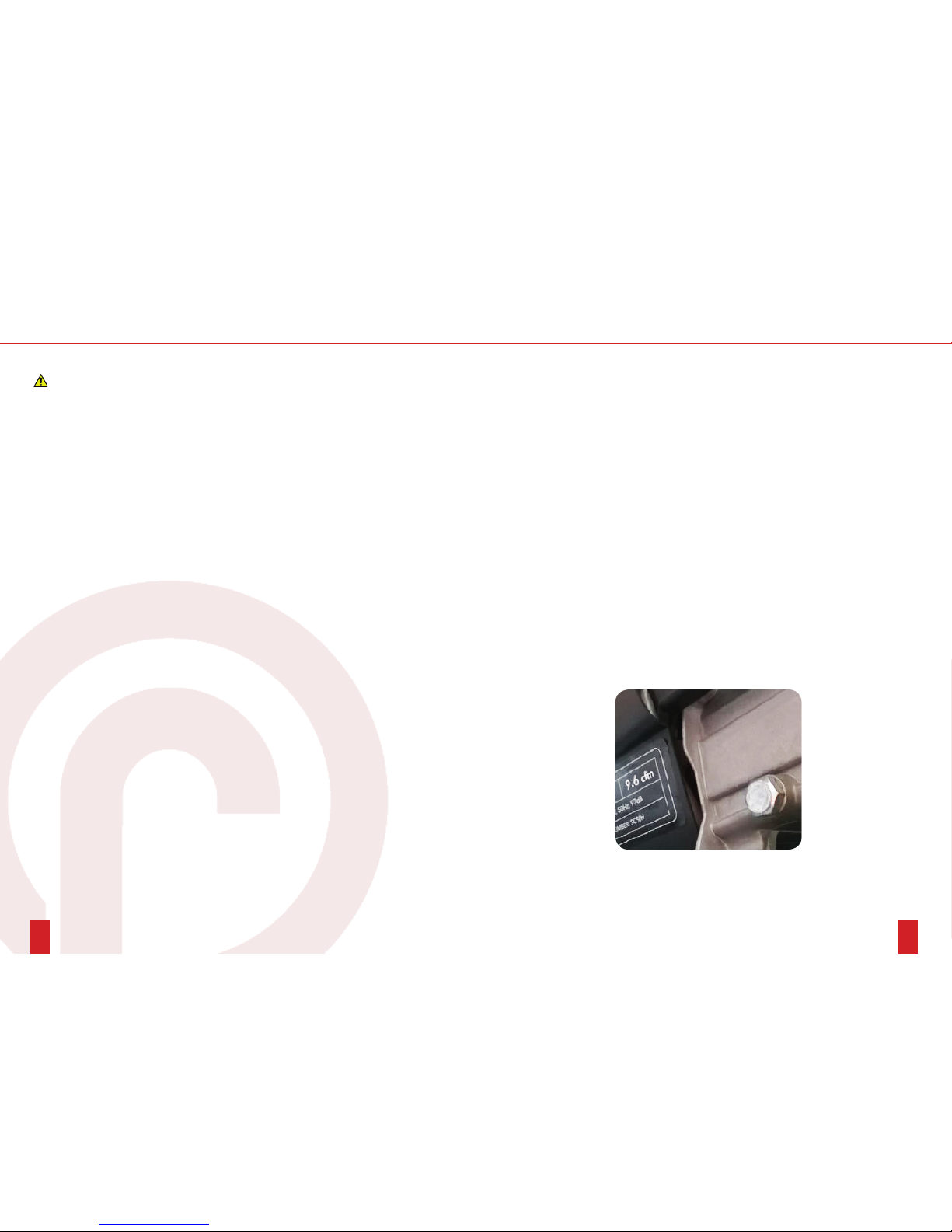

CAUTION MAINTENANCE PROCEDURE
Sump bolt
1110

TROUBLE SHOOTING WHEEL ASSEMBLY
CHECK PROBABLE CAUSES ACTION
Motor unable to run,
running slow or getting
hot.
Fault in line or insufcient voltage
Power wire too thin ot long
Fault in pressure switch
Fault im motor
Sticking of main compressor
Check the line
Replace the wire
Repair or replace
Repair or replace
Check and repair
Sticking of main
compressor
Moving parts burnt due to
insufcient oil
Moving parts damaged or
stuck by a foreign body
Check crankshaft,
bearing, connecting
rod, piston, piston ring
etc, and replace if
necessary.
Shaking or abnormal
noise
Connecting parts loose
Foreign body in the main
compressor
Piston locking the valve seat
moving parts seriously worn
Check and retighten
Check and clean
Replace with thicker
paper gasket
Repair or replace
Pressure insufcient
or discharge capacity
decreased
Motor running too slow
Air lter choked up
Leakage of safety valve
leakage of discharge pipe
Sealing gasket damaged
Valve plate damaged, stuck or
carbon build up
Piston ring and cylinder worn or
damaged.
Check and remedy
Clean or replace the
cartridge
Check and adjust
Check and repair
Check and replace
Replace and clean
Repair or replace
Excessive oil
consumption
Oil level too high
Breather pipe choked up
Piston ring and cylinder worn
or damaged
Keep the level within set
range
Check and clean
Repair or replace
Use a spanner to attached the wheels to the compressor.
Use the washers and spring washer in the positions shown.
Insert the support foot into the position shown.
1312

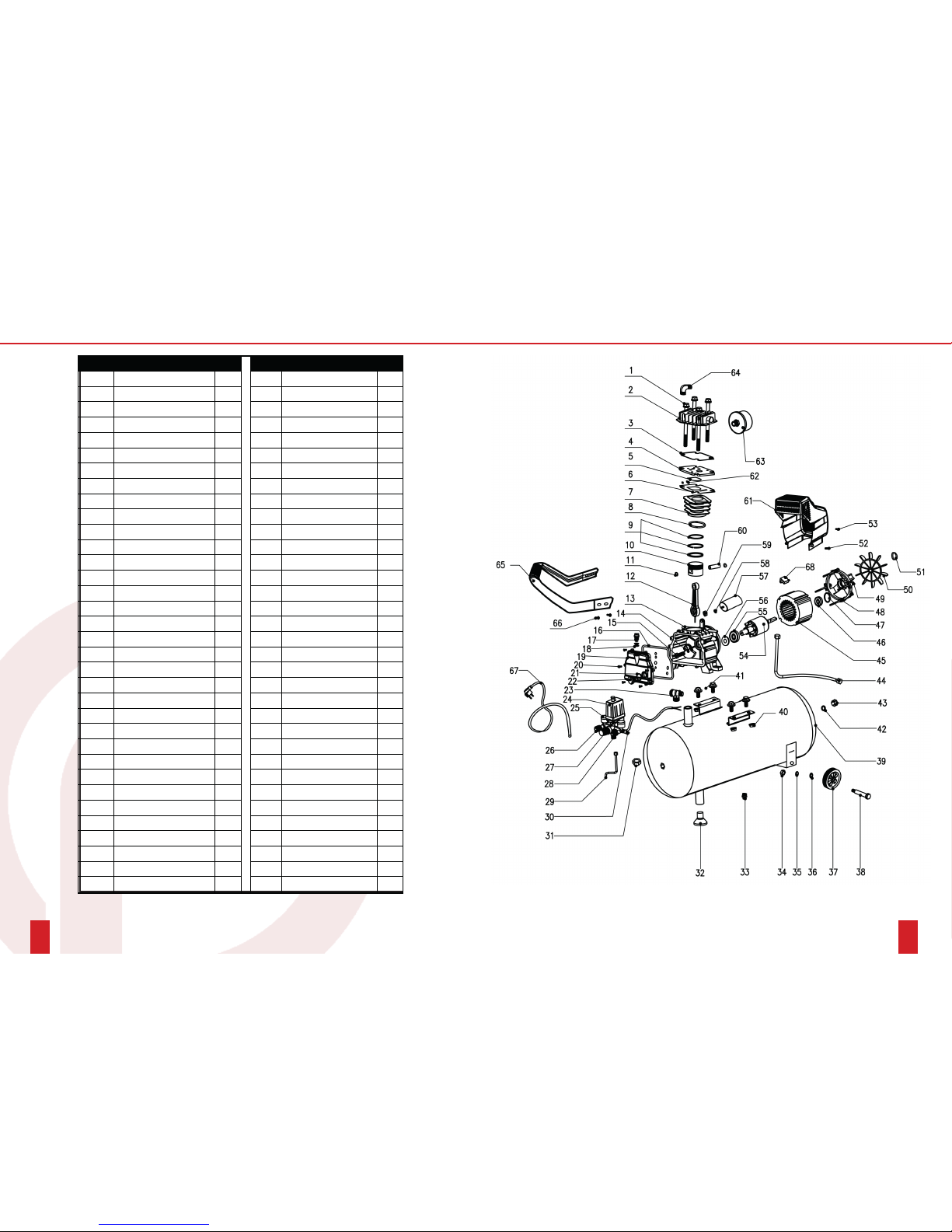

ILLUSTRATED PARTS

ITEM
PART
QTY
ITEM
PART
QTY
1
Blot M8x103
4
35
washer 10
2
2
cylinder cover
1
36
spring washer 10
2
3
cylinder cover gasket
1
37
wheel
2
4
valve plate
1
38
wheel bolt M10
2
5
valve clack
1
39
tank
1
6
valve plate gasket
1
40
lock nut M8
4
7
cylinder
1
41
lock bolt M8x30
4
8
cylinder gasket
1
42
sealed ring φ18x2.4
2
9
piston ring
3
43
stem Rp1/2
2
10
piston
1
44
discharge pipe
1
11
circlip
2
45
stator
1
12
conncting rod
1
46
brearing 6203
1
13
crank case
1
47
conugated washer
1
14
crank
1
48
motor cover
1
15
hex bolt M8x22(left)
1
49
bolt M5x105
4
16
rubber gasket
1
50
fan
1
17
breath pipe
1
51
circlip
1
18
sealed ringφ13x2.5
2
52
bolt ST3.9x19
2
19
crank case cover
1
53
bolt M5x8
2
20
bolt M6x10
6
54
rotor
1
21
oil leveler gasket
1
55
brearing 6204
1
22
oil leveler
1
56
sealing ring
1
23
only-way valve
1
57
capacitance
1
24
pressure switch
1
58
washer 8
1
25
pressure gauge
2
59
nut M8
1
26
quick couplers
2
60
piston pin
1
27
regulator valve
1
61
Fan cover
1
28
Distributor
1
62
column φ3
2
29
release pipe
1
63
Air filter
1
30
safety valve
1
64
Curved head
1
31
nut Rp1/2
1
65
plastic hand
1
32
washer foot
1
66
bolt M5x12
4
33
Drain valve
1
67
power cord
1
34
lock nut M10
2
68
thermal protector
1
1514
