RIDGID SeeSnake microReel APX User manual

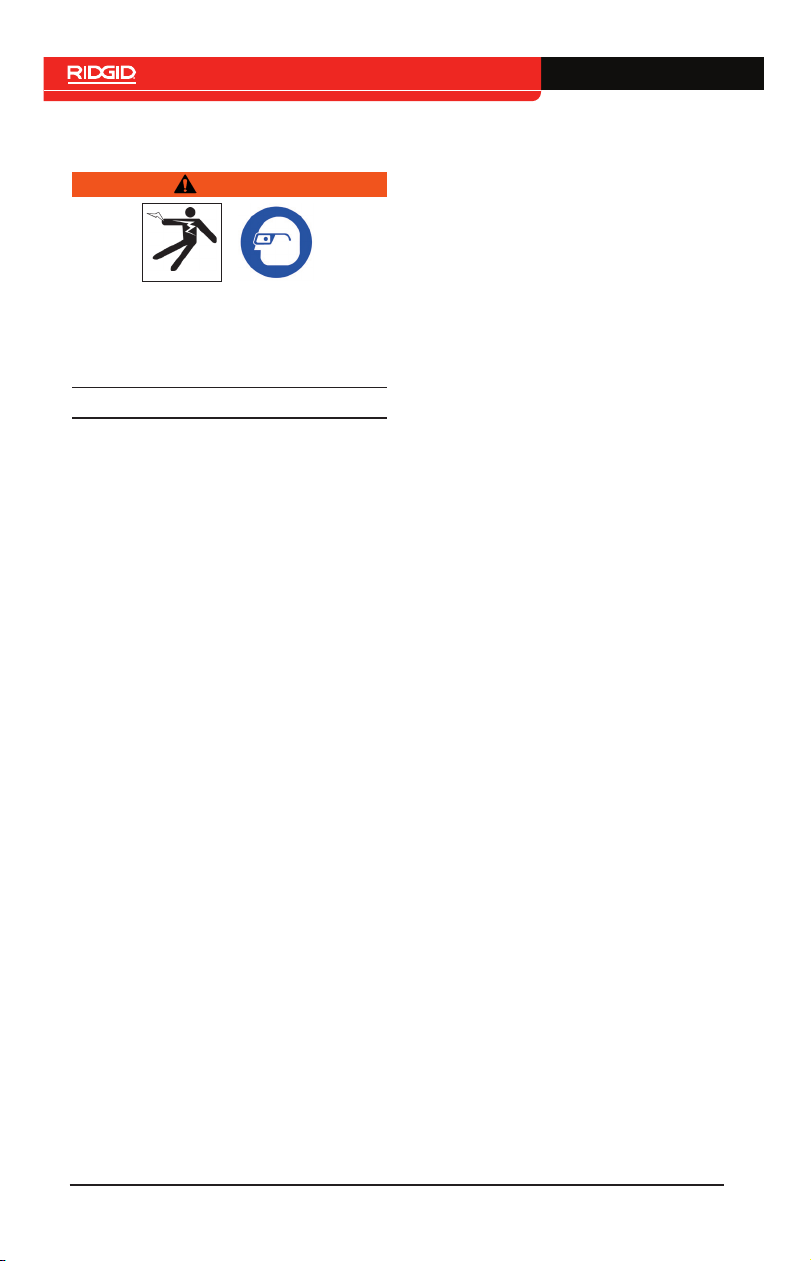

WARNING!
Read this Operator’s Man-
ual carefully before using
this tool. Failure to under-
stand and follow the con-
tents of this manual may
result in electrical shock,
fire, and/or serious per-
sonal injury.
For support and additional information
about using these products together,
go to support.seesnake.com/apxvia
or scan this QR code.
Operator’s Manual
TM
*CSx Via shown with RIDGID 18 V Li-Ion
battery, not included

2 – English – microREEL APX / CSx Via
Table of Contents
Introduction
Regulatory Statements ............................................................................................. 3
Safety Symbols......................................................................................................... 3
General Safety Rules
Work Area Safety...................................................................................................... 4
Electrical Safety........................................................................................................ 4
Personal Safety ........................................................................................................ 4
Equipment Use and Care ......................................................................................... 5
Battery Use and Care ............................................................................................... 5
Pre-Operation Inspection.......................................................................................... 6
Specific Safety Information
Product Safety .......................................................................................................... 6
Product Overview
microREEL APX ....................................................................................................... 7
CSx Via..................................................................................................................... 7
Components ............................................................................................................. 8
microREEL APX Specifications ................................................................................ 9
CSx Via Specifications.............................................................................................. 9
Operating Instructions
Opening the microREEL Case ................................................................................10
Inspection Overview ................................................................................................10
Placement................................................................................................................11
Pipe Guides.............................................................................................................11
Removal...................................................................................................................11
CSx Via Key Functions ........................................................................................... 12
LED Behaviors........................................................................................................ 12
Power States........................................................................................................... 12
Replacing the Drum................................................................................................ 13
Maintenance and Support
Cleaning the microREEL APX ................................................................................ 13
Maintaining Components........................................................................................ 13
Service and Repair................................................................................................. 14
Disposal.................................................................................................................. 14
Appendix
Appendix A: Reinserting the Push Cable................................................................ 15
*Original Instructions – English

microREEL APX / CSx Via – English – 3
Introduction
The warnings, cautions, and instruc-
tions discussed in this manual can-
not cover all possible conditions and
situations which may occur. It must
be understood by the operator that
common sense and caution are fac-
tors that cannot be built into this
product, but must be supplied by the
operator.
Regulatory Statements
The EC Declaration of Conformity
(999-995-232.10) will accompany
this manual as a separate docu-
ment when required.
Directive 2014/53/EU (CSx Via)
Radio Operating Spectrum / Power
Bluetooth
Low
Energy
(BLE)
2400 – 2483.5 MHz 5.44 dBm
Wi-Fi
802.11
b/g/n
2400 – 2483.5 MHz 15.43 dBm
Wi-Fi
802.11
a/n/ac
5470 – 5725 MHz 18.65 dBm
This device complies with Part 15
of FCC rules. Operation is subject
to the following two conditions: (1)
This device may not cause harm-
ful interference, and (2) this device
must accept any interference re-
ceived, including interference that
may cause undesired operation.
UK Importer
Ridge Tool UK (RIDGID)
44 Baker Street
London W1U 7AL, UK
Contains Transmitter Modules: FCC ID:
TFB-1004 / IC: 5969A-1004 and FCC ID:
X8WBM832 / IC: 4100A-BM832
Safety Symbols
In this manual and on the product, safety
symbols and signal words are used to com-
municate important safety information. This
section is provided to improve understand-
ing of these signal words and symbols.
This is the safety alert symbol. It is
used to alert you to potential per-
sonal injury hazards. Obey all
safety messages that follow this
symbol to avoid possible injury or
death.
DANGER
DANGER indicates a hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING
WARNING indicates a hazardous situation
which, if not avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a hazardous situation
which, if not avoided, could result in minor or
moderate injury.
NOTICE
NOTICE indicates informa-
tion that relates to the pro-
tection of property.
This symbol means read the man-
ual carefully before using the
equipment. The manual contains
important information on the safe
and proper operation of the equip-
ment.
This symbol means always wear
safety glasses with side shields or
goggles when handling or using
this equipment to reduce the risk
of eye injury.
This symbol indicates the risk of
electrical shock.
This symbol indicates the risk of
fire.

4 – English – microREEL APX / CSx Via
parts. Damaged or entangled cords in-
crease the risk of electrical shock.
• If operating equipment in a damp loca-
tion is unavoidable, use a ground fault
circuit interrupter (GFCI) protected sup-
ply. Use of a GFCI reduces the risk of elec-
trical shock.
Personal Safety
• Stay alert, watch what you are doing,
and use common sense when operat-
ing equipment. Do not use equipment
while you are tired or under the influence of
drugs, alcohol, or medication. A moment of
inattention while operating equipment may
result in serious injury.
• Dress properly. Do not wear loose cloth-
ing or jewelry. Loose clothes, jewelry, and
long hair can be caught in moving parts.
• Practice good hygiene. Use hot, soapy
water to wash hands and other body parts
exposed to drain contents after handling or
using drain inspection equipment. To pre-
vent contamination from toxic or infectious
material, do not eat or smoke while operat-
ing or handling drain inspection equipment.
• Always use appropriate personal pro-
tective equipment when handling and
using equipment in drains. Drains may
contain chemicals, bacteria, and other sub-
stances that may be toxic, infectious, and
cause burns or other issues. Appropriate
personal protective equipment always in-
cludes safety glasses and may include a
dust mask, hard hat, hearing protection,
drain cleaning gloves or mitts, latex or rub-
ber gloves, face shields, goggles, protec-
tive clothing, respirators, and steel toed,
non-skid footwear.
• If using drain cleaning equipment and
drain inspection equipment at the
same time, wear RIDGID drain clean-
ing gloves. Never grasp the rotating drain
cleaning cable with anything else, includ-
ing other gloves or a rag which can be-
come wrapped around the cable and
cause hand injuries. Only wear latex or
rubber gloves underneath RIDGID drain
General Safety Rules
WARNING
Read all safety warnings and instructions.
Failure to follow the warnings and instruc-
tions may result in electrical shock, fire,
and/or serious injury.
SAVE THESE INSTRUCTIONS!
Work Area Safety
• Keep your work area clean and well lit.
Cluttered or dark areas invite accidents.
• Do not operate equipment in explosive
atmospheres, such as in the presence
of flammable liquids, gases, or dust.
Equipment can create sparks which may
ignite the dust or fumes.
• Keep children and bystanders away
while operating equipment. Distractions
can cause you to lose control.
• Avoid traffic. Pay attention to moving ve-
hicles when using on or near roadways.
Wear high-visibility clothing or reflector
vests.
Electrical Safety
• Avoid body contact with earthed or
grounded surfaces such as pipes, radi-
ators, ranges, and refrigerators. There is
an increased risk of electrical shock if your
body is earthed or grounded.
• Do not expose equipment to rain or wet
conditions. Water entering equipment will
increase the risk of electrical shock.
• Keep all electrical connections dry and
off the ground. Touching equipment or
plugs with wet hands can increase the risk
of electrical shock.
• Do not abuse the cord. Never use the
cord for carrying, pulling, or unplugging the
power tool. Keep cord away from heat, ex-
treme cold, oil, sharp edges, and moving

microREEL APX / CSx Via – English – 5
cleaner gloves. Do not use damaged drain
cleaning gloves.
Equipment Use and Care
• Do not force equipment. Use the correct
equipment for your application. The correct
equipment does the job better and more
safely.
• Do not use equipment if the power
switch does not turn it on and off. Any
equipment that cannot be controlled with
the power switch is dangerous and must
be repaired.
• Disconnect the plug from the power
source and/or the battery pack from
the equipment before making adjust-
ments, changing accessories, or stor-
ing. Preventive safety measures reduce
the risk of injury.
• Store idle equipment out of the reach of
children and do not allow persons un-
familiar with the equipment or these
instructions to operate the equipment.
Equipment can be dangerous in the hands
of untrained users.
• Maintain equipment. Check for misalign-
ment or binding of moving parts, missing
parts, breakage of parts, and any other
condition that may affect the equipment’s
operation. If damaged, have the equipment
repaired before use. Many accidents are
caused by poorly maintained equipment.
• Do not overreach. Keep proper footing
and balance at all times. This enables bet-
ter control of the equipment in unexpected
situations.
• Use the equipment and accessories
in accordance with these instructions,
taking into account the working condi-
tions and the work to be performed. Use
of the equipment for operations different
from those intended can result in hazard-
ous situations.
• Use only accessories that are recom-
mended by the manufacturer for your
equipment. Accessories that may be
suitable for one piece of equipment may
become hazardous when used with other
equipment.
• Keep handles dry, clean, and free from
oil and grease. Clean handles give better
control of the equipment.
Battery Use and Care
• Use equipment only with specifically
designed battery packs. Use of any other
battery packs may create a risk of injury
and/or fire.
• Recharge only with the charger speci-
fied by the manufacturer. A charger suit-
able for one type of battery pack may cre-
ate a risk of fire when used with another
battery pack.
• Do not cover charger while in use. Prop-
er ventilation is required for correct opera-
tion. Covering charger while in use could
result in fire.
• Use and store batteries and chargers
in dry, appropriate temperature areas
according to their documentation. Ex-
treme temperatures and moisture can
damage batteries and result in leakage,
electrical shock, fire, or burns.
• Do not probe the battery with conduc-
tive objects. Shorting of battery termi-
nals may cause sparks, burns, or electri-
cal shock. When the battery pack is not in
use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws
or any other small metal object that can
make a connection from one terminal to
the other. Shorting the battery terminals
may cause burns or a fire.
• Under abusive conditions, liquid may
eject from battery; avoid contact. If con-
tact occurs, flush with water. If liquid con-
tacts eyes, seek medical help. Liquid eject-
ed from the battery may cause irritation or
burns.
• Properly dispose of batteries. Exposure
to high temperatures can cause the batter-
ies to explode; do not dispose of in a fire.
Some countries have regulations concern-
ing battery disposal. Follow all applicable
regulations.

6 – English – microREEL APX / CSx Via
Pre-Operation Inspection
WARNING
To reduce the risk of serious injury from
electrical shock or other causes, and to
prevent damage to your equipment, in-
spect all equipment and correct any
problems before each use.
To inspect all equipment, follow these steps:
1. Power off your equipment.
2. Disconnect and inspect all cords, ca-
bles, and connectors for damage or
modification.
3. Clean any dirt, oil, or other contami-
nation from your equipment to ease
inspection and to prevent it from slip-
ping from your grip during transporta-
tion or use.
4. Inspect your equipment for any broken,
worn, missing, misaligned, or binding
parts, or any other condition which
might prevent safe, normal operation.
5. Refer to the instructions for all other
equipment to inspect and make sure it
is in good, usable condition.
6. Check your work area for adequate
conditions to perform the job.
7. Examine the job to be done and de-
termine the correct equipment for the
task.
8. Observe the work area and erect bar-
riers as necessary to keep bystanders
away.
Specic Safety Information
WARNING
This section contains important safety in-
formation that is specific to the RIDGID
SeeSnake microREEL APX and CSx Via.
Read these precautions carefully before
using the equipment to reduce the risk of
electrical shock, fire, and/or serious injury.
SAVE ALL WARNINGS AND
INSTRUCTIONS FOR FUTURE
REFERENCE!
Product Safety
• R ead and understand this manual, the
digital reporting monitor’s manual, and
the instructions for any other equip-
ment you are using before operating the
equipment. Failure to follow all instructions
may result in property damage and/or seri-
ous injury. Keep this manual with the equip-
ment for future use.
• Operating the equipment while in water
increases the risk of electrical shock. Do
not operate the system if operator or equip-
ment are standing in water.
• The equipment is not designed to pro-
vide high voltage protection and isola-
tion. Do not use where a danger of high
voltage contact is present.
• To prevent damage to the equipment
and to decrease the risk of injury, do not
expose the equipment to mechanical
shocks. Exposure to mechanical shocks
can damage equipment and increase the
risk of serious injury.
• Ensure the push cable is secured inside
the drum to prevent the push cable from
unwinding itself if the drum is removed
from the case or if the case is left open
with the drum inside. If the push cable un-
winds, do not manually twist or force the

microREEL APX / CSx Via – English – 7
APX Features
The microREEL APX is equipped with an
auto image flip feature. When connected
to a SeeSnake CSx series device, the mi-
croREEL APX flips your onscreen image as
the camera rotates through the pipe, ensur-
ing your image remains oriented upright.
TruSense Technology Description
The camera on the microREEL APX in-
cludes features enabled by TruSense tech-
nology. TruSense technology establishes a
two-way communication link between the
camera head and a connected CSx series
monitor.
TiltSense™ inclinometer: measures the
camera’s degree of tilt and displays it on the
HQx Live app or HQ, giving you a useful in-
dicator of the camera’s angle as it lays in-
side the pipe.
High Dynamic Range Image Sensor: ex-
pands the camera’s dynamic range, allowing
both bright and dark areas to be displayed in
the image for superior clarity and detail.
CSx Via
The RIDGID SeeSnake CSx Via is a flexi-
ble inspection solution for streaming, cap-
turing, and sharing media using a mobile
device. With its integrated Wi-Fi, the CSx
Via connects to an iOS™, Android™, or Win-
dows-powered device to enable inspec-
tions with the SeeSnake HQx Live app or
SeeSnake HQ software for Windows. The
CSx Via is powered by an 18 V recharge-
able battery.
The CSx Via is compatible with most
RIDGID SeeSnake camera reels and eas-
ily installs via the slip-ring cavity. The CSx
Via Mount accessory is required for using
the CSx Via with the SeeSnake Standard or
Mini camera reels.
push cable back into the non-rotating drum.
The twisting and bending of the push cable
that results from forcing it into the drum
without the use of the outer case to rotate it
will damage the push cable. See Appendix
A for instructions on reinserting the push
cable if it has unwound itself from the drum.
Product Overview
The RIDGID®SeeSnake®microREEL™
APX™ and CSx Via™ mobile inspection de-
vice make an easy-to-use yet versatile
plumbing inspection system.
microREEL APX
The microREEL™ APX™is a portable and
customizable diagnostic camera reel with
enhanced imaging features.
The stiffer push cable makes the microREEL
APX ideal for inspecting longer runs in pipes
that are 38mm to 102 mm [1.5in to 4 in].
The included kickstand lets you set up the
microREEL APX in the optimal position
while pushing or retrieving the cable and
protects the CSx Via during use.
The microREEL APX features a built-in
sonde in the camera head that can be lo-
cated with a utility locating receiver to find
points of interest in the pipe.

8 – English – microREEL APX / CSx Via
Components
microREEL APX
Camera Clip
Carry Handle
TruSense
Counter
Push Cable
Guide
CSx Via
Transmitter Clip-
On Terminal
Battery Shoe Keypad
Connector
Serial
Number
Label
Standard Equipment
• SeeSnake microREEL APX
• SeeSnake CSx Via
• Pipe guides
• Operator’s manual
Serial Number Label
Kickstand
Shipping
Cap
Case Latch

microREEL APX / CSx Via – English – 9
microREEL APX Specifications
Weight 5.5 kg [12 lbs]
Dimensions
Length 337 mm [13.3 in]
Depth 224 mm [8.8 in]
Height 411 mm [16.2 in]
Drum diameter 305 mm [12 in]
TruSense Camera
Length 26 mm [1 in]*
37 mm [1.5 in]**
Diameter 25 mm [1 in]
Resolution 640 × 480 pixels
Sonde
Type Integrated
Frequency 512 Hz
Distance Measurement
Type TruSense Counter
Data
Communication Two-Way
Push Cable
Length 30 m [100 ft]
Diameter 6.7 mm [0.27 in]
Fiberglass core
diameter 3 mm [0.12in]
Minimum bend
radius 64 mm [2.5 in]
Pipe Capacity §38 to 101 mm
[1.5 to 4 in]
System Cable
Length 3 m [10 ft]
Operating Environment
Temperature ‡0°C to 46°C
[32°F to 115°F]
Storage
temperature
-20°C to 70°C
[-4°F to 158°F]
microREEL APX Specifications
Ingress
protection
(without monitor)
IP×5
Relative
humidity 5 to 95 percent
Altitude 4,000m [13,123ft]
Camera depth
rating
Waterproof to
100m [328.1ft]
* Measured from lens to spring.
** Measured from lens to end of threads.
§ Actual pipe capacity depends on pipe
conditions.
‡ While the camera can function in ex-
treme temperatures, some image quality
changes may occur.
CSx Via Specifications
Weight (with cap) 0.38 kg [0.83 lb]
Dimensions
Length 149 mm [5.9 in]
Depth 106 mm [4.2 in]
Height 126 mm [5 in]
Power Source
18 V Li-Ion or Lucid
18.5 V lithium
polymer battery
Connectivity
Bluetooth Bluetooth Low
Energy (BLE)
Wi-Fi 802.11 b/g/n
802.11 a/n/ac
Operating Environment
Temperature -10°C to 50°C
[14°F to 122°F]
Storage
temperature
-20°C to 60°C
[-4°F to 140°F]
Relative
humidity 5 to 95 percent

10 – English – microREEL APX / CSx Via
Inspection Overview
To perform a pipe inspection, connect the
CSx Via to the microREEL APX, power on
the system, and connect the CSx Via to HQx
Live or HQ. Push the push cable through the
pipe and observe the display.
Connecting the CSx Via to the microREEL
APX
The CSx Via Wi-Fi inspection device con-
nects to the microREEL APX through the
slip-ring cavity.
1. Remove the shipping cap from the
microREEL APX.
2. Slide the battery into the CSx Via bat-
tery shoe.
3. Remove the shipping cap from the
CSx Via connector.
4. Align the arrow on the connector with
the unlock symbol on the frame and
insert the CSx Via into the slip-ring
cavity.
5. Turn the CSx Via so that it locks into
place .
NOTICE
When the CSx Via is not
connected to the mi-
croREEL APX, keep the
shipping cap over the
slip-ring cavity to protect
the electronics inside.
Operating Instructions
Opening the microREEL Case
WARNING
Make sure the camera is completely in-
side the drum before unlatching and
opening the microREEL APX case. Do
not open the microREEL APX case while
the camera is stored in the camera clip. If
the camera is not in the drum, the push
cable can unwind and cause damage or
serious injury.
Open the microREEL APX case to route the
camera, replace the drum, rewind the push
cable, and to maintain and clean the system.
1. Set the unit on a level surface and lay
it on its back.
2. Unfasten the case latches on either
side of the microREEL APX.
3.
Case Latch
Carefully open the front case and lo-
cate the camera head in the push
cable drum.
4. Route the camera head out through
the push cable guide in the front of the
case.
5. Secure the camera head in the clip.
6. Close and relatch the case.

microREEL APX / CSx Via – English – 11
Connecting to a Mobile Device
The CSx Via can be used to perform an in-
spection using HQx Live, available on iOS
and Android devices, or SeeSnake HQ soft-
ware for Windows devices.
To connect the CSx Via to your device, en-
able your device’s Wi-Fi and Bluetooth, open
the app, and connect to the CSx Via. Once
connected, you can live stream inspection
footage and capture, view, and share media.
Visit the HQx Live and HQ support pages
on SeeSnake Support for additional instruc-
tions, including detailed connection instruc-
tions and media capturing and sharing.
• HQx Live:
support.seesnake.com/hqx-live/
• HQ: support.seesnake.com/hq
Placement
Set up your microREEL APX on a level sur-
face near the pipe entrance so you can ma-
nipulate the push cable while viewing the
display. Use the kickstand to position the mi-
croREEL APX so that it does not tip during
use. The kickstand protects the CSx Via
mobile device when connected to the mi-
croREEL.
Pipe Guides
Pipe guides center the camera in the pipe,
improve picture quality, and help keep the
lens clear. Use pipe guides when possible
to reduce wear and tear on the camera sys-
tem.
Ball Guide
Retrieving the Camera
Pull the push cable back out of the pipe with
slow, steady force and feed small lengths
back into the drum. Wipe the push cable
with a paper towel or rag as you retrieve it.
NOTICE
Do not exert excessive
force or pull at sharp an-
gles. Feeding longer
lengths or forcing the
push cable may cause it
to loop, kink, or break.
Removal
To remove the CSx Via, turn it so that the
arrow is aligned with the unlock symbol
and pull straight out.

12 – English – microREEL APX / CSx Via
CSx Via Key Functions
Power
Power on and off.
Press to wake up while
in Standby Mode.
Zero
Press and hold to set
the system measure-
ment to zero. Press
to start and stop tem-
porary segment mea-
surements.
Sonde Enable and disable
the sonde.
LED Behaviors
The CSx Via uses its LEDs to communicate
booting and Wi-Fi connectivity status.
Wi-Fi LED Sonde LED
Power and Booting LEDs
Status LED
Booting Both LEDs
alternate flashing
Restarting/
powering off
Both LEDs flash
simultaneously
Recovery mode:
The CSx Via
will refresh its
firmware and
restart in the
event it does not
power on
Both LEDs flash
simultaneously
Wi-Fi Connectivity LEDs
Status LED
Wi-Fi booting Wi-Fi LED flashes
rapidly
Wi-Fi ready Wi-Fi LED flashes
steadily
Wi-Fi connected Wi-Fi LED solid
Power States
The CSx Via has three power states: on, off,
and Standby Mode, a low power state that
turns off the camera and its LEDs to con-
serve energy. The CSx Via enters Standby
Mode after a period of inactivity, or when
closing the app or exiting live view. To wake
up the CSx Via from Standby Mode, press
the Power key or open the app’s live view.
The CSx Via beeps to communicate differ-
ent power states.
Power State Sounds
Power State Sound
Power on Single beep
Power off Long beep
Entering Standby
Mode Two beeps
Wake up from
Standby Mode Single beep

microREEL APX / CSx Via – English – 13
Replacing the Drum
The microREEL APX case gives you the
ability to swap out the drum when the job
requires a different push cable and camera
combination. Ether drums on the SeeSnake
microDRAIN™APX and NANOreel™sys-
tems can be installed into the microREEL
APX case.
To install the drum, follow these steps:
1. Open the microREEL APX case and
remove the drum.
2. Place the drum you want to use in the
microREEL APX case.
3. Make sure the product name label
faces up.
4. Spin the drum to make sure it rotates
freely.
5. Close and lock the case.
Maintenance and
Support
Cleaning the microREEL APX
Clean your system with rags and a soft
nylon brush. If desired, a mild detergent or
disinfectant can be used. Do not use sol-
vents or high pressure water to clean any
part of the system.
Maintaining Components
Camera Head
Scratches on the camera have a minimal effect
on its performance. Do not use scraping tools
or sand the camera to remove scratches.
Push Cable
Run a rag over the push cable and visually
inspect it for cuts and abrasions while push-
ing it back into the drum. Replace or repair
the push cable if the outer jacket is cut or
abraded.
Storage
Store your equipment in dry, secure area
out of the reach of children and people un-
familiar with its purpose. The microREEL
APX must be stored between -20°C and
70°C [-4°F and 158°F]. The CSx Via must
be stored between -20°C to 60°C [-4°F to
140°F]. Store away from heat sources such
as radiators, heat registers, stoves, and
other products (including amplifiers) that
produce heat.
Transport
Remove the battery before shipping and
before storing for extended periods of time
Do not expose to heavy shocks or impacts
during transport.
Support
For support and additional information
about using your microREEL APX system,
visit support.seesnake.com/microreel.
For support and additional information
about using your CSx Via, visit support.
seesnake.com/csxvia.

14 – English – microREEL APX / CSx Via
Service and Repair
Improper service or repair can cause the
equipment to be unsafe to operate.
Service and repair of the microREEL APX
and/or the CSx Via must be performed at
a RIDGID Independent Authorized Service
Center. To find your nearest service center
or for any service or repair questions:
• Contact your local RIDGID distributor.
• Visit RIDGID.com.
• Contact Ridge Tool Company
Technical Service Department at
r[email protected] or, in
the USA and Canada, call 1-800-519-
3456.
Disposal
Parts of your system contain valuable mate-
rials that can be recycled. There are compa-
nies that specialize in recycling that may be
found locally. Dispose of the components in
compliance with all applicable regulations.
Contact your local waste management au-
thority for more information.
EC Countries: Do not dis-
pose of electrical equipment
with household waste!
According to the European
Guideline 2012/19/EU for
Waste Electrical and Electronic
Equipment and its implemen-
tation into national legislation,
electrical equipment that is no
longer usable must be collect-
ed separately and disposed of
in an environmentally correct
manner.
Battery Disposal
EC Countries: Defective or used batteries
must be recycled according to the guideline
2006/66/EEC.

microREEL APX / CSx Via – English – 15
Appendix
Appendix A: Reinserting the
Push Cable
NOTICE
Do not use excessive
force when attempting to
rewind the push cable
into the drum. Feeding
longer lengths or forcing
the push cable may
cause it to loop, kink, or
break.
Follow these instructions to reinsert the
push cable if it has unwound from the drum.
1. Seat the drum in the case before rein-
serting the push cable.
2. If space permits, uncoil and straighten
the entire length of push cable on the
ground.
3. Using both hands, begin to rewind the
push cable into the drum. If the push
cable cannot be laid out straight, use
extreme care when rewinding the push
cable. Ensure the push cable does not
bend or get caught on or underobjects.
If the push cable becomes twisted or
bent, stop rewinding and untwist it be-
fore continuing.
4. Ensure the drum rotates in the case as
the push cable rewinds. To avoid dam-
aging the push cable, keep one hand
close to the drum when rewinding the
push cable to ensure that the drum ro-
tates freely.
5. Gently route the camera head through
the push cable guide.
If replacing the camera head, only pull up
on the portion of the cable that contains
the spring to avoid bending or breaking the
