Amazing Machinery 3188 Series User manual

PIPE & WALL
VIDEO INSPECTION SYSTEM
USER MANUAL
For
3188 and 4188 Series
ASSEMBLING AND OPERATING INSTRUCTIONS
--------------------------------------------------------------------------------
Read this manual carefully before operating this system

WARNING
1. NEVER USE THIS DEVICE IN AN ENVIRONMENT WITH EXPLOSIVE
MATERIALS SUCH AS GAS, OIL, ETC.
2. Avoid using the device in extremely cold, hot or humid environment; otherwise
it may damage the device. Do not drop or press hard on the device.
3. Avoid using the parts / components from other manufacturers to this system,
which may damage the equipment due to the un-compatibility.
4. Warranty invalidation if the device is disassembled by users or if there are any
physical damages.
5. Always back up your data before connecting your USB stick / micro SD card
to this system. The manufacturer is not responsible for any data damage or
loss on your USB stick / micro SD card for any reason.
6. Do not disconnect the unit while recording or playing. It may damage the unit
and/or the USB stick / Micro SD card.
7. Don’t misuse the battery charger cable and power cord, otherwise the
battery pack may be damaged or the system cannot work properly.
8. The system’s push cable made of fiberglass is very rigid and not flexible. It
can not be bent sharply or pushed too hard; otherwise it will be broken.
9. After use, the cable reel must be put back into the case in the right position;
otherwise, LCD monitor may be broken by the bulging part on the reel when
you close the case.
10. Waterproof Camera Head should NOT be used under the water of over 15FT.
11. We reserve the right to make any change about our products without any
notice in advance.

INSTRUCTION
I. This pipe inpection system manual can be used for the below models:
1)All 3188series models(7" with/ without DVR /SDcardrecorder, CCD /CMOScolorcamera.)
2) Model NO.4188 (10" pipe inspection system with DVR/SD card recorder and camera
head with 512hz built-in transmitter; yellow case)
II. Difference between old versions and new versions：
*The improvent of the new versions vs old versions
- Added manual buttons to operate DVR recording on the panel;
- Added micro SD recording feature
- Added micro phone button for voice recording

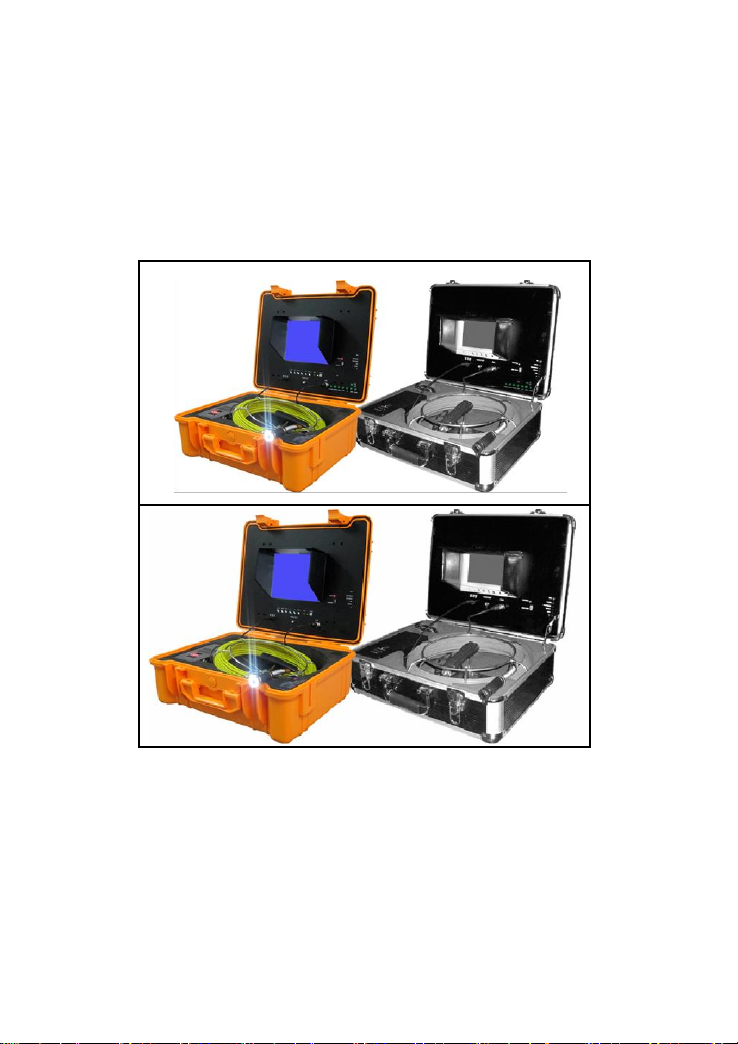

OLD VERSIONS
NEW VERSIONS

CONTENTS
Assembly Drawing and Parts List…………...................................................1
Specifications..................................................................................................2
User Manual.....................................................................................................3
Application.......................................................................................................3
Know your Device………….............................................................................4
Camera Head...................................................................................................5
Cable Reel........................................................................................................5
Counter………………………………………………………………………………5
Remote Control (For Operating DVR only)....................................................6
System Set-Up.................................................................................................7
System Menu Setting..........................................................................8
Recording Operation.........................................................................8

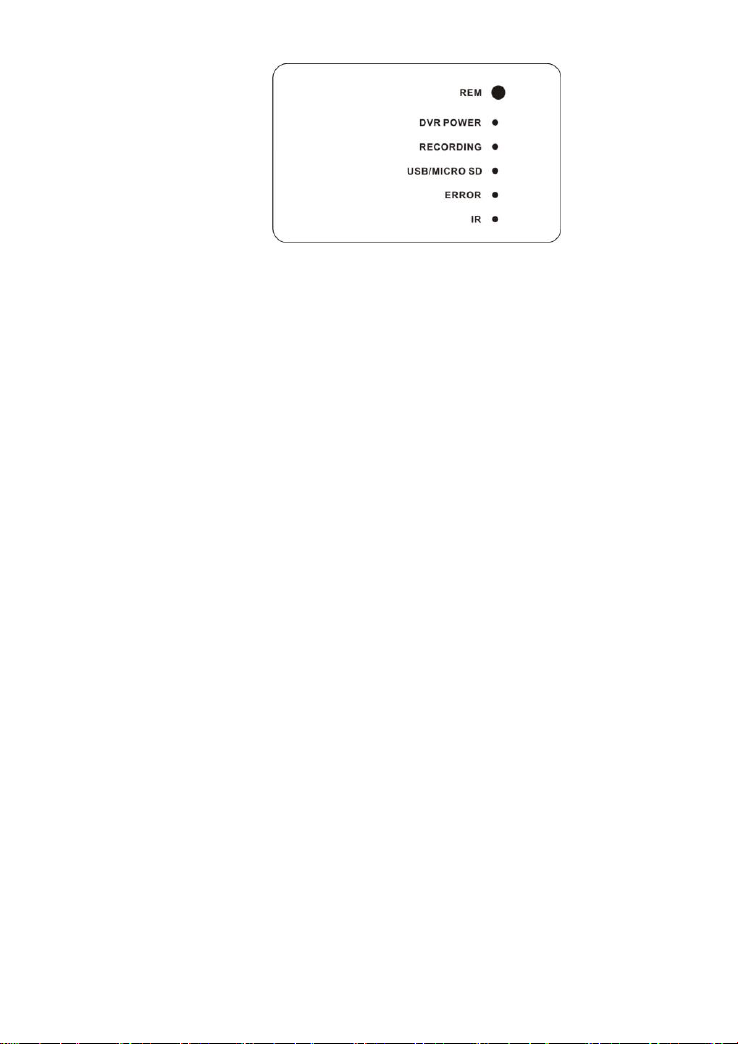

LED Indicators..............................................................................................10
Recording Time Limit....................................................................................10
Schedule Recording.....................................................................................10
Recording via USB Stick/ Micro SD Card……….......................................11
Video Recording Format...............................................................................11
Voice Recording ...........................................................................................11
Video Playing.................................................................................................11
Select the Video File......................................................................................11
Fast Forwarding and Rewinding..................................................................11
Compatible Video Format.............................................................................12

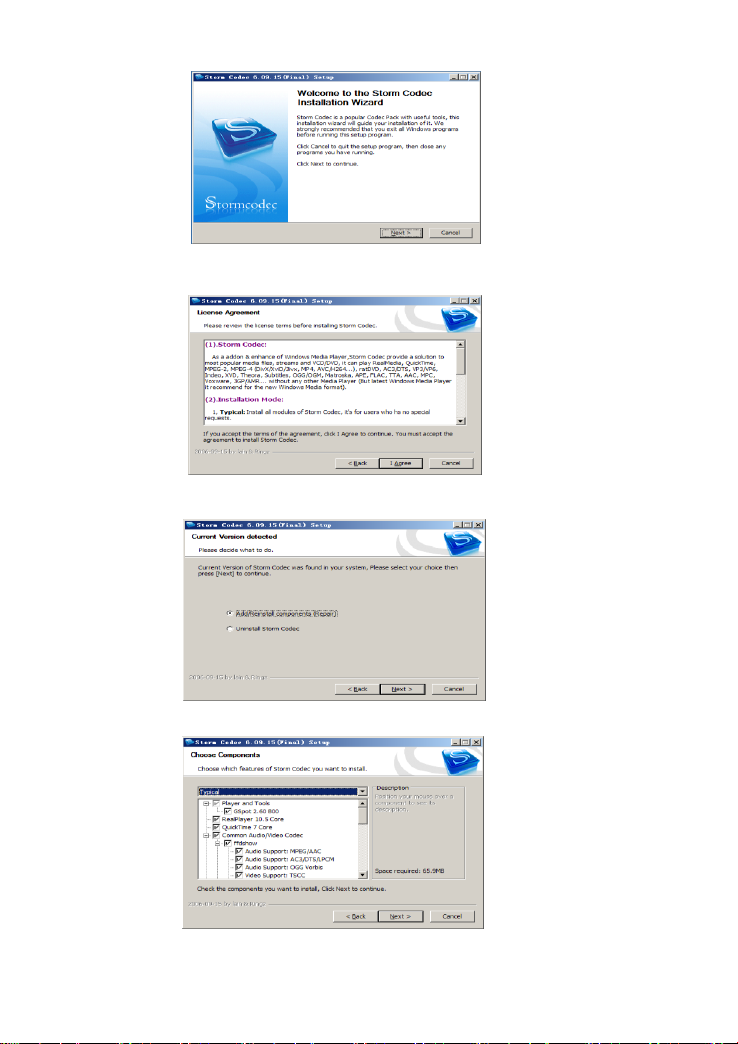

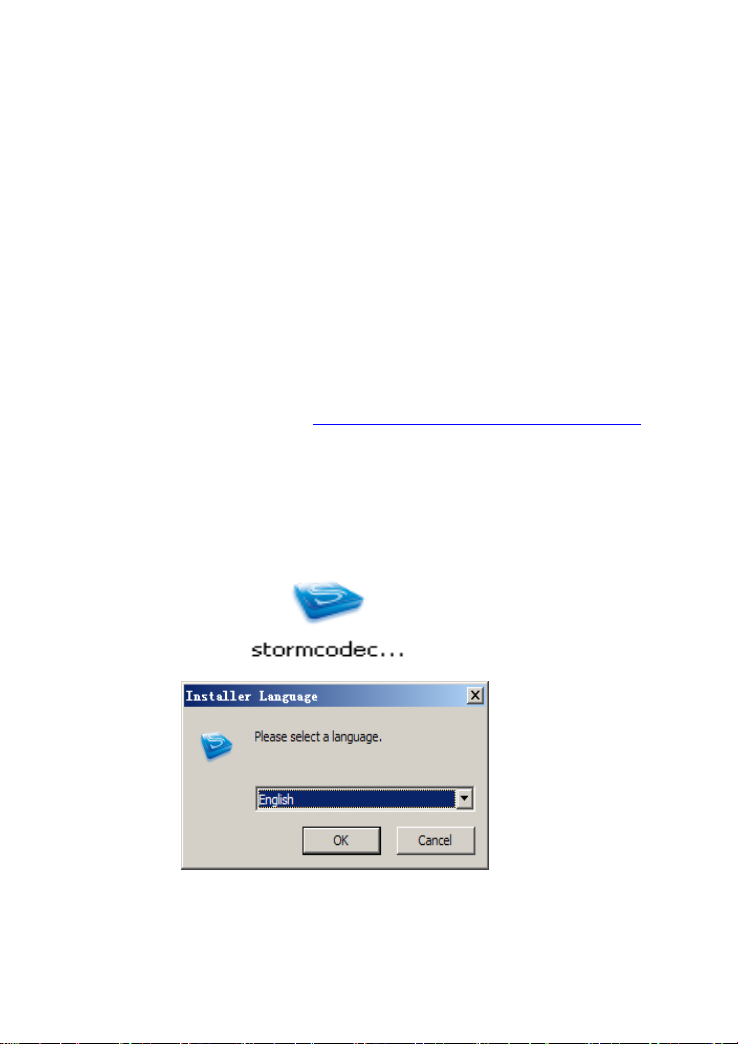

Video Player Software Installation...............................................................12
Locating the Camera Head with Built- in Transmitter…………………….15
Recharging the Battery.................................................................................15
Trouble Shooting …......................................................................................16

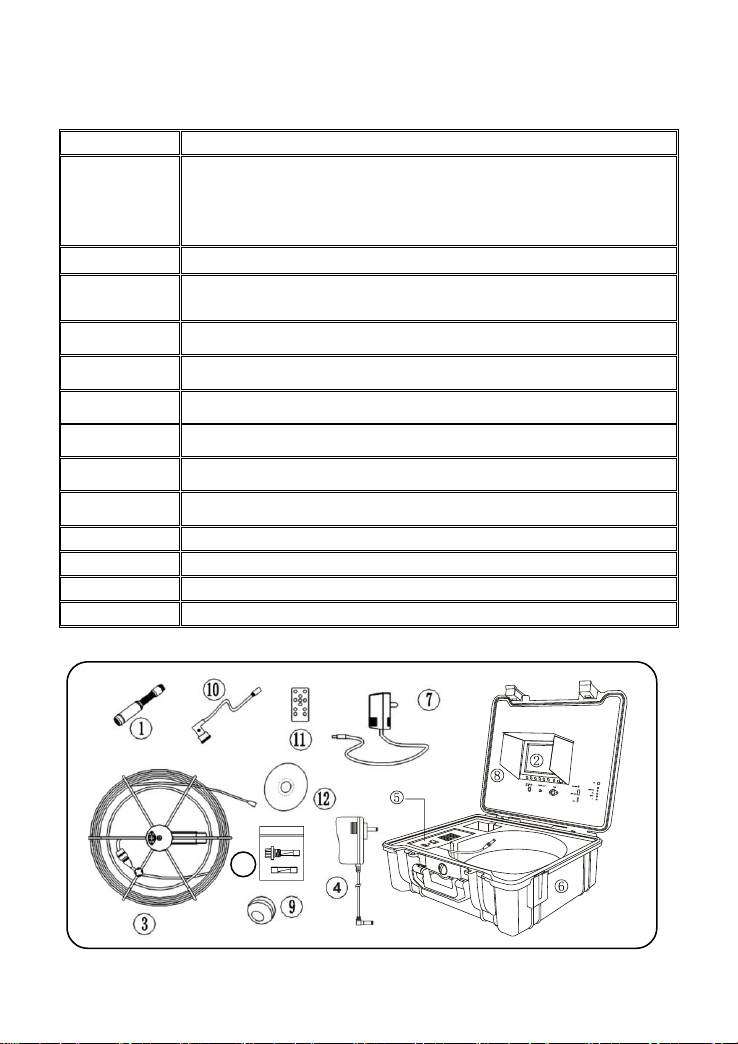

Assembly Drawing and Parts List
Part No.
Description
1
□23MM CCD camera □23MM CMOS camera
□23MM CMOS Camera with built-in 512hz transmitter
□12MM CMOS camera
*Abovecameras maycome with plastic or stainless steel housing
2
□7" Monitor □10" Monitor
3
□20m(65FT)□30m(100FT)
□40m(130FT) Cable with reel (long)
4
Charger
5
Battery pack
6
Big case □Aluminum case □ABS case
7
DC 12V power supply
8
Sun shield
9
Eva ball protection
10
1.5m Video soft cable (short)
11
Remote control
12
Disc
13
Fuse bag
1
1
13

Specifications
ITEM
DESCRIPTION
Power adapter
110VAC~240VAC 12VDC1200mA
Battery Case
LI-ION battery
Length of Cable
□20m(65FT)□30m(100FT)
□40m(130FT)
Camera Light Source
□8pcs□12pcs built-in white LED
Camera Angle-of-View
60°or 90° (horizontal),
60°or 90° (vertical)
Camera Depth-of-View
400 mm (approximate)
Camera Image
Color, 0.3Mega pixel
Monitor Image
7"/ 10" TFT LCD color monitor
Monitor Picture Resolution
7"(800*480)pixel;10"(800*600)pixel
Monitor Input Voltage
12 Volts DC
System Operating Temperature
-28°C to 50°C
2

User Manual
Application
1. WATER SUPPLY SYSTEM
2. WASTE WATER SYSTEM
3. ELECTRICALAIR CONDITIONER
4. CABLE DUCTING
5. DUCTED VACCUM SYSTEMS
6. PLUMBING
7. BUILDINGS
WARNING:
1. NEVER USE THIS DEVICE IN AN ENVIRONMENT WITH
EXPLOSIVE MATERIALS SUCH AS GAS, OIL, ETC.
2. WATERPROOF CAMERA HEAD SHOULD NOT BE USED UNDER
THE WATER OF OVER 15FT.
3

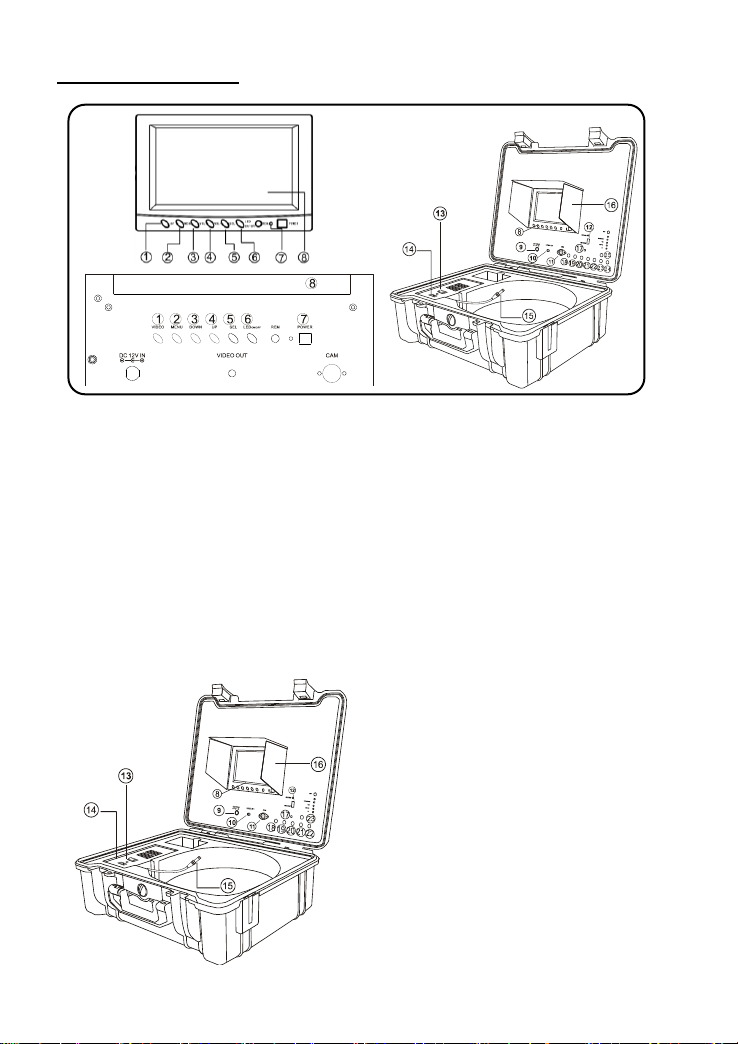

Know Your Device
RECORDING WITH DVR VIA USB PORT: (New versions equipped with items from 17 to 25.)
RECORDING VIA MICRO SD PORT: (New versions equipped with items from 17 to 23.)
4
1. VIDEO SELECTOR BUTTON
2. MENU
3. DOWN SELECTOR
4. UP SELECTOR
5. MENU UP/DOWN SELECTOR
6. LED ON/OFF
7. POWER BUTTON
8. FLAT SCREEN
9. DC 12V IN
10. VIDEO OUT
11. CAMERAPORT
12. USB
13. POWER & CHARGE BUTTON
14. CHARGE PORT
15. DC 12V OUTPUT CORD
16. SUNSHADE
17. MIC
18. DVR ON/OFF
19. RECORD
20. STOP/EXIT
21. SETUP
22. UP
23. DOWN
24. PLAY/ENT 25. MIC ON/OFF
7"LCD
10"LCD
8. FLAT SCREEN
9. DC 12V IN
10.VIDEO OUT
11.CAMERAPORT
12.MICRO SD PORT (ONLY FOR NEW VERSIONS )
13. POWER & CHARGE BUTTON
14. CHARGE PORT
15. DC 12V OUTPUT CORD
16. SUNSHADE
17. MIC
18.RECORDING/SHOOTING
19.ENTER
20.MENU/EXIT
21.LEFT
22.RIGHT
23.MIC ON/OFF

Camera Head
1.12 WHITE LEDS (8 for old versions)
2. LENS
3. SPRING
4. GOLD PINS
5. Built-in Transmitter: 512HZ (for 4188
or upgraded camera head for 3188 series)
Cable Reel
1. MALE PLUG (To monitor)
2. HANDLE
3. CABLE CONNECTER (To camera)
4. CABLE REEL
Counter:
Cable with optoelectronic meter counter (For 4188H)
1. Metric & Imperial conversion
2. Reset
3. Display of Metric or Imperial
5

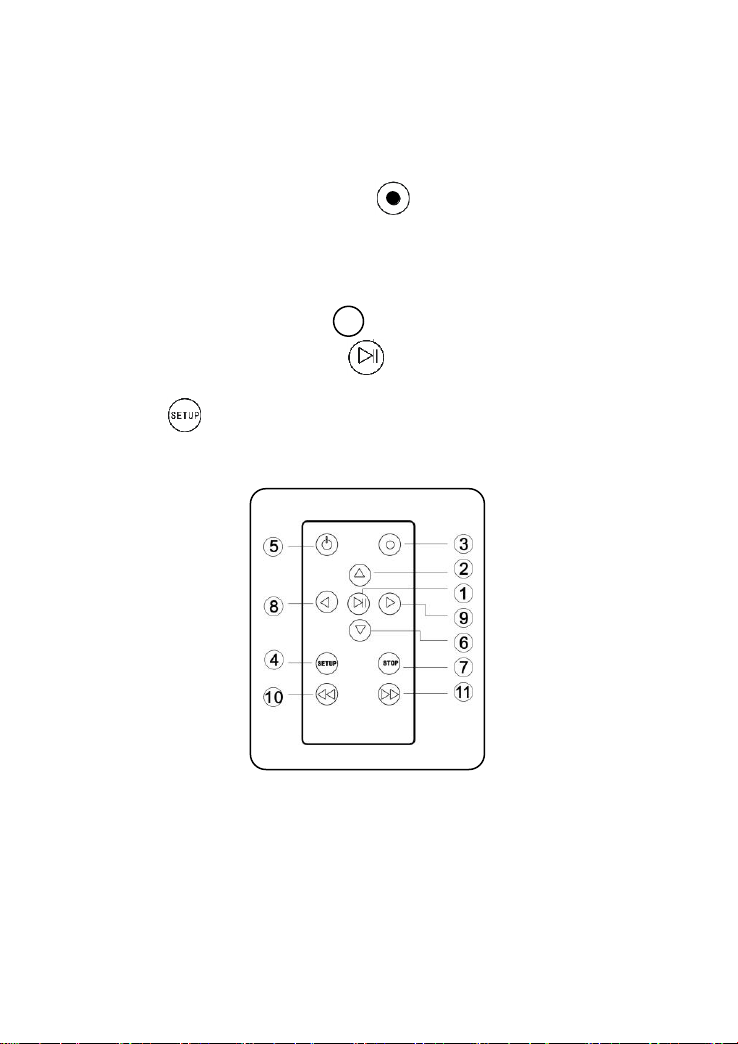

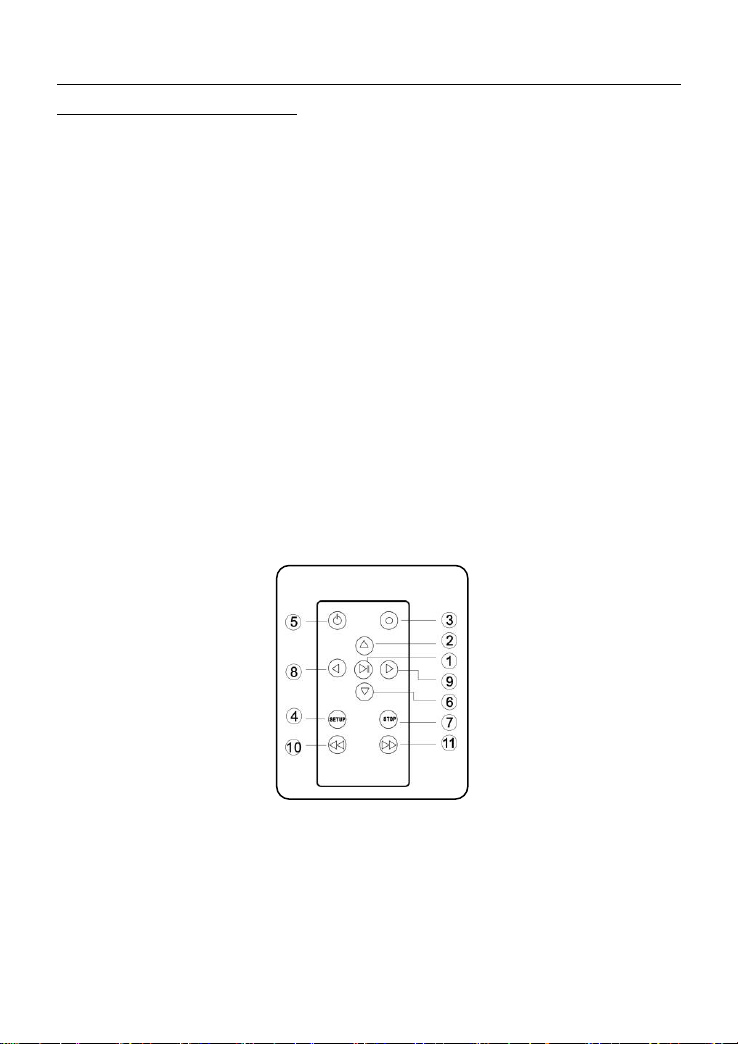

Remote Control(Only for 3188D/3188DN/4188 to operate DVR
/Micro SD card recording)
1) Enter: Enter to view and play video
2) Up: Go to up/previous item
3) REC: Start recording / snap shooting (only available for new versions )
4) Setup: System setup and recording features
5) Enter: System in
6) Down: Select down/next item
7) Exit: Stop or exit from current menu
8) Left: Select Left item
9) Right: Select Right item
10) Rewind: Review video
11) Forward: forward video
6
