RIDGID SeeSnake MicroReel APX User manual

WARNING!
Read this Operator’s Man-
ual carefully before using
this tool. Failure to under-
stand and follow the con-
tents of this manual may
result in electrical shock,
fire, and/or serious per-
sonal injury.
For support and additional informa-
tion about using your microReel go to
support.seesnake.com/microreel
or scan this QR code.
Operator’s Manual
TM TM
• Français – 17
• Español – 33
With
Technology

2 – English – microReel APX
Table of Contents
Introduction
Regulatory Statements............................................................................................. 3
Safety Symbols......................................................................................................... 3
General Safety Rules
Work Area Safety...................................................................................................... 4
Electrical Safety........................................................................................................ 4
Personal Safety ........................................................................................................ 4
Equipment Use and Care ......................................................................................... 5
Pre-Operation Inspection.......................................................................................... 6
SeeSnake microReel APX Overview
Description................................................................................................................ 7
Specifications ........................................................................................................... 8
Components ............................................................................................................. 9
Specific Safety Information
microReel Safety .....................................................................................................10
Operating Instructions
Placement................................................................................................................11
Opening the microReel Case ..................................................................................11
Installing the Drum.................................................................................................. 12
Inspection Overview ............................................................................................... 12
Pipe Guides............................................................................................................ 13
Removing the Slip Ring Assembly.......................................................................... 13
Maintenance and Support
Cleaning ................................................................................................................. 14
Maintaining Components........................................................................................ 14
Disposal.................................................................................................................. 14
Appendix
Appendix A: Reinserting the Push Cable................................................................ 15
*Original Instructions – English

microReel APX – English – 3
Introduction
The warnings, cautions, and instruc-
tions discussed in this manual can-
not cover all possible conditions and
situations which may occur. It must
be understood by the operator that
common sense and caution are fac-
tors that cannot be built into this
product, but must be supplied by the
operator.
Regulatory Statements
The EC Declaration of Conformity
(999-995-232.10) will accompany
this manual as a separate docu-
ment when required.
This device complies with Part 15
of FCC rules. Operation is subject
to the following two conditions: (1)
This device may not cause harm-
ful interference, and (2) this device
must accept any interference re-
ceived, including interference that
may cause undesired operation.
UK Importer
Ridge Tool UK (RIDGID)
44 Baker Street
London W1U 7AL, UK
Safety Symbols
In this manual and on the product, safety
symbols and signal words are used to com-
municate important safety information. This
section is provided to improve understand-
ing of these signal words and symbols.
This is the safety alert symbol. It is
used to alert you to potential per-
sonal injury hazards. Obey all
safety messages that follow this
symbol to avoid possible injury or
death.
DANGER
DANGER indicates a hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING
WARNING indicates a hazardous situation
which, if not avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a hazardous situation
which, if not avoided, could result in minor or
moderate injury.
NOTICE
NOTICE indicates informa-
tion that relates to the pro-
tection of property.
This symbol means read the man-
ual carefully before using the
equipment. The manual contains
important information on the safe
and proper operation of the equip-
ment.
This symbol means always wear
safety glasses with side shields or
goggles when handling or using
this equipment to reduce the risk
of eye injury.
This symbol indicates the risk of
electrical shock.

4 – English – microReel APX
• Do not abuse the cord. Never use the
cord for carrying, pulling, or unplugging
the power tool. Keep cord away from
heat, extreme cold, oil, sharp edges,
and moving parts. Damaged or entan-
gled cords increase the risk of electrical
shock.
• If operating equipment in a damp lo-
cation is unavoidable, use a ground
fault circuit interrupter (GFCI) protect-
ed supply. Use of a GFCI reduces the
risk of electrical shock.
Personal Safety
• Stay alert, watch what you are doing,
and use common sense when oper-
ating equipment. Do not use equip-
ment while you are tired or under the in-
fluence of drugs, alcohol, or medication.
A moment of inattention while operating
equipment may result in serious injury.
• Dress properly. Do not wear loose cloth-
ing or jewelry. Loose clothes, jewelry, and
long hair can be caught in moving parts.
• Practice good hygiene. Use hot, soapy
water to wash hands and other body
parts exposed to drain contents after
handling or using drain inspection equip-
ment. To prevent contamination from
toxic or infectious material, do not eat or
smoke while operating or handling drain
inspection equipment.
• Always use appropriate personal pro-
tective equipment when handling and
using equipment in drains. Drains may
contain chemicals, bacteria, and other
substances that may be toxic, infec-
tious, and cause burns or other issues.
Appropriate personal protective equip-
ment always includes safety glasses and
may include a dust mask, hard hat, hear-
ing protection, drain cleaning gloves or
mitts, latex or rubber gloves, face shields,
goggles, protective clothing, respirators,
and steel toed, non-skid footwear.
• If using drain cleaning equipment and
drain inspection equipment at the
same time, wear RIDGID drain clean-
ing gloves. Never grasp the rotating
General Safety Rules
WARNING
Read all safety warnings and instruc-
tions. Failure to follow the warnings
and instructions may result in electrical
shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS!
Work Area Safety
• Keep your work area clean and well lit.
Cluttered or dark areas invite accidents.
• Do not operate equipment in explo-
sive atmospheres, such as in the
presence of flammable liquids, gases,
or dust. Equipment can create sparks
which may ignite the dust or fumes.
• Keep children and bystanders
away while operating equipment.
Distractions can cause you to lose con-
trol.
• Avoid traffic. Pay attention to moving ve-
hicles when using on or near roadways.
Wear high-visibility clothing or reflector
vests.
Electrical Safety
• Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges, and refrigerators.
There is an increased risk of electrical
shock if your body is earthed or ground-
ed.
• Do not expose equipment to rain or
wet conditions. Water entering equip-
ment will increase the risk of electrical
shock.
• Keep all electrical connections dry
and off the ground. Touching equip-
ment or plugs with wet hands can in-
crease the risk of electrical shock.

microReel APX – English – 5
drain cleaning cable with anything else,
including other gloves or a rag which can
become wrapped around the cable and
cause hand injuries. Only wear latex or
rubber gloves underneath RIDGID drain
cleaner gloves. Do not use damaged
drain cleaning gloves.
Equipment Use and Care
• Do not force equipment. Use the cor-
rect equipment for your application. The
correct equipment does the job better
and more safely.
• Do not use equipment if the power
switch does not turn it on and off. Any
equipment that cannot be controlled with
the power switch is dangerous and must
be repaired.
• Disconnect the plug from the power
source and/or the battery pack from
the equipment before making adjust-
ments, changing accessories, or stor-
ing. Preventive safety measures reduce
the risk of injury.
• Store idle equipment out of the reach
of children and do not allow per-
sons unfamiliar with the equipment
or these instructions to operate the
equipment. Equipment can be danger-
ous in the hands of untrained users.
• Maintain equipment. Check for mis-
alignment or binding of moving parts,
missing parts, breakage of parts, and
any other condition that may affect the
equipment’s operation. If damaged, have
the equipment repaired before use. Many
accidents are caused by poorly main-
tained equipment.
• Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the equipment in unex-
pected situations.
• Use the equipment and accessories
in accordance with these instructions,
taking into account the working con-
ditions and the work to be performed.
Use of the equipment for operations
different from those intended can result
in hazardous situations.
• Use only accessories that are rec-
ommended by the manufacturer for
your equipment. Accessories that may
be suitable for one piece of equipment
may become hazardous when used with
other equipment.
• Keep handles dry, clean, and free from
oil and grease. Clean handles give bet-
ter control of the equipment.

6 – English – microReel APX
Pre-Operation Inspection
WARNING
To reduce the risk of serious injury from
electrical shock or other causes, and to
prevent damage to your equipment, in-
spect all equipment and correct any
problems before each use.
To inspect all equipment, follow these steps:
1. Power off your equipment.
2. Disconnect and inspect all cords, ca-
bles, and connectors for damage or
modification.
3. Clean any dirt, oil, or other contami-
nation from your equipment to ease
inspection and to prevent it from slip-
ping from your grip during transporta-
tion or use.
4. Inspect your equipment for any broken,
worn, missing, misaligned, or binding
parts, or any other condition which
might prevent safe, normal operation.
5. Refer to the instructions for all other
equipment to inspect and make sure it
is in good, usable condition.
6. Check your work area for the following:
• Adequate lighting.
• The presence of flammable liq-
uids, vapors, or dust that may ig-
nite. If present, do not work in area
until sources have been identified
and corrected. The equipment
is not explosion proof. Electrical
connections can cause sparks.
• A clear, level, stable, and dry
place for the operator. Do not use
the equipment while standing in
water.
7. Examine the job to be done and de-
termine the correct equipment for the
task.
8. Observe the work area and erect bar-
riers as necessary to keep bystanders
away.
See additional product specific safe-
ty information and warnings starting on
10.

microReel APX – English – 7
Description
The RIDGID®SeeSnake®microReel™APX™
is a portable and customizable diagnostic
camera reel with enhanced imaging fea-
tures.
The stiffer push cable makes the microReel
ideal for inspecting longer runs in pipes that
are 38mm to 102 mm [1.5in to 4 in]. The
included kickstand lets you set up the mi-
croReel in the optimal position for stability
while pushing or retrieving the cable.
The microReel features a built-in sonde in
the camera head that can be located with a
utility locating receiver to find points of inter-
est in the pipe.
The microReel is compatible with all
SeeSnake monitors. The CSx Via™mobile
inspection device easily connects to the mi-
croReel APX via the slip-ring cavity.
APX Features
The microReel APX is equipped with an
auto image flip feature. When connected
to a SeeSnake CSx series device, the mi-
croReel APX flips your onscreen image as
the camera rotates through the pipe, ensur-
ing your image remains oriented upright. An
on-screen icon indicates the vertical orien-
tation with respect to the image.
SeeSnake microReel APX Overview
TruSense Technology Description
The microReel APX includes a TruSense
technology-enabled camera. TruSense
technology establishes a two-way commu-
nication link between the camera head and
a connected CSx series Wi-Fi enabled mon-
itor. TruSense features advanced on-cam-
era sensors that convey valuable informa-
tion about the in-pipe environment.
Included TruSense-Enabled Sensors
TiltSense™
The TiltSense inclinometer measures the
camera’s degree of tilt and displays it on a
CSx series Wi-Fi enabled monitor, giving
you a useful indicator of the camera’s angle
as it lays inside the pipe.
High Dynamic Range Image Sensor
The HDR sensor expands the camera’s
dynamic range, allowing a greater ratio of
bright and dark areas to be displayed in the
same image at the same time without re-
ducing visibility. The result is superior clarity
and detail, allowing you to quickly and easily
identify problem areas.

8 – English – microReel APX
Specifications
Weight 5.8 kg [12.7 lbs]
Dimensions
Length 337 mm [13.3 in]
Depth 224 mm [8.8 in]
Height 411 mm [16.2 in]
Drum diameter 305 mm [12 in]
TruSense Camera
Length 26 mm [1 in]*
37 mm [1.5 in]**
Diameter 25 mm [1 in]
Resolution 640 × 480 pixels
Sonde
Type Integrated
Frequency 512 Hz
Distance Measurement
Type TruSense Counter
Data
Communication Two-Way
Push Cable
Length 30 m [100 ft]
Diameter 6.7 mm [0.27 in]
Fiberglass core
diameter 3 mm [0.12in]
Minimum bend
radius 64 mm [2.5 in]
Pipe Capacity §38 to 101 mm
[1.5 to 4 in]
System Cable
Length 3 m [10 ft]
Specifications
Operating Environment
Temperature ‡0°C to 46°C
[32°F to 115°F]
Storage
temperature
-20°C to 70°C
[-4°F to 158°F]
Ingress
protection
(without
monitor)
IP×5
Relative
humidity 5 to 95 percent
Altitude 4,000m [13,123ft]
Camera depth
rating
Waterproof to
100m [328.1ft]
* Measured from lens to spring.
** Measured from lens to end of threads.
§ Actual pipe capacity depends on pipe
conditions.
‡ While the camera can function in ex-
treme temperatures, some image quality
changes may occur.
Standard Equipment
• SeeSnake microReel
• Ball guides
• Operator’s manual

microReel APX – English – 9
Components
Camera Clip
Carry Handle
TruSense
Counter
Push Cable
Guide
System Cable Wrap
SeeSnake System
Cable
Serial Number Label
Kickstand Kickstand
Slip Ring
Module
Case Latch

10 – English – microReel APX
appropriate protective equipment such
as latex or rubber gloves, goggles, face
shields, and respirators when inspect-
ing drains that might contain hazard-
ous chemicals or bacteria. Always wear
eye protection to protect against dirt and
other foreign objects.
• Ensure the push cable is secured in-
side the drum to prevent the push
cable from unwinding itself if the
drum is removed from the case or if
the case is left open with the drum in-
side. If the push cable unwinds, do not
manually twist or force the push cable
back into the non-rotating drum. The
twisting and bending of the push cable
that results from forcing it into the drum
without the use of the outer case to ro-
tate it will damage the push cable. See
Appendix A for instructions on reinsert-
ing the push cable if it has unwound itself
from the drum.
Specic Safety
Information
WARNING
This section contains important safety
information that is specific to the RIDGID
SeeSnake microReel. Read these pre-
cautions carefully before using the
equipment to reduce the risk of electrical
shock, fire, and/or serious injury.
SAVE ALL WARNINGS AND
INSTRUCTIONS FOR FUTURE
REFERENCE!
microReel Safety
• Read and understand this manual,
the digital reporting monitor’s manu-
al, and the instructions for any other
equipment you are using before oper-
ating the equipment. Failure to follow all
instructions may result in property dam-
age and/or serious injury. Keep this man-
ual with the equipment for future use.
• Operating the equipment while in
water increases the risk of electri-
cal shock. Do not operate the system
if operator or equipment are standing in
water.
• The equipment is not designed to pro-
vide high voltage protection and iso-
lation. Do not use where a danger of
high voltage contact is present.
• To prevent damage to the equipment
and to decrease the risk of injury, do
not expose the equipment to mechan-
ical shocks. Exposure to mechanical
shocks can damage equipment and in-
crease the risk of serious injury.
• Always use appropriate personal pro-
tective equipment when handling
and using equipment in drains. Wear

microReel APX – English – 11

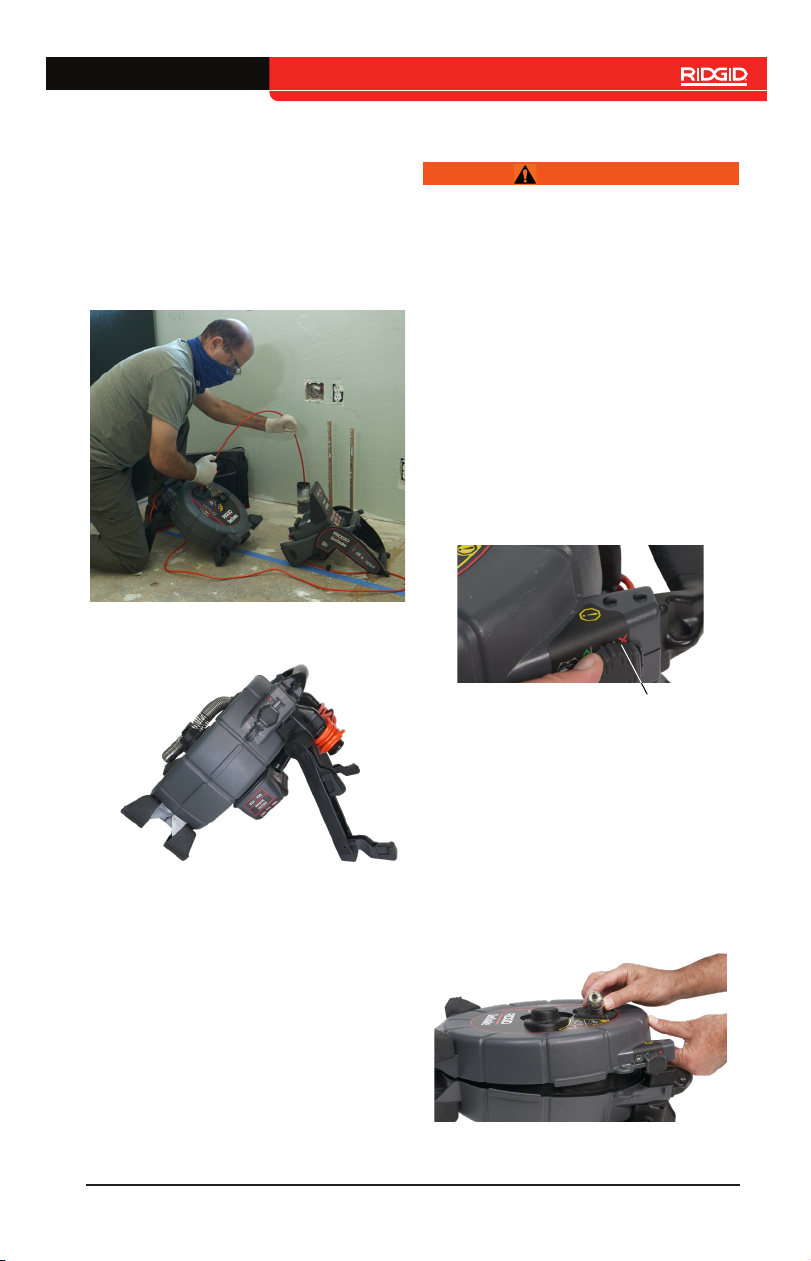

Operating Instructions
Placement
Set up your microReel near the pipe en-
trance so you can manipulate the push
cable while viewing the display. Use the
kickstand to position the microReel so that
it does not tip during use.
Opening the microReel Case
WARNING
Make sure the camera is completely in-
side the drum before unlatching and
opening the microReel case. Do not
open the microReel case while the cam-
era is stored in the camera clip. If the
camera is not in the drum, the push cable
can unwind and cause damage or seri-
ous injury.
Open the microReel case to route the cam-
era, replace the drum, rewind the push
cable, and to maintain and clean the system.
1. Set the unit on a level surface and lay
it on its back.
2. Unfasten the case latches on either
side of the microReel.
3.
Case Latch
Carefully open the front case and lo-
cate the camera head in the push
cable drum.
4. Route the camera head out through
the push cable guide in the front of the
case.
5. Secure the camera head in the clip.
6. Close and relatch the case.

12 – English – microReel APX
Installing the Drum
The microReel case gives you the ability to
swap out the drum when the job requires
a different push cable and camera combi-
nation. Either microReel drum can be in-
stalled in the microReel case, as well as the
drums on the SeeSnake microDrain™and
nanoReel™systems.
To install the drum, follow these steps:
1. Open the microReel case and remove
the drum.
2. Place the drum you want to use in the
microReel case.
3. Make sure the product name label
faces up.
4. Spin the drum to make sure it rotates
freely.
5. Close and lock the case.
Inspection Overview
To perform a pipe inspection, connect any
SeeSnake monitor to the reel, power on the
system, push the push cable through the
pipe, and observe the display.
For advanced inspection options, such as
capturing media, locating the sonde, tracing
the push cable, and delivering reports, refer
to the manual that comes with your monitor.

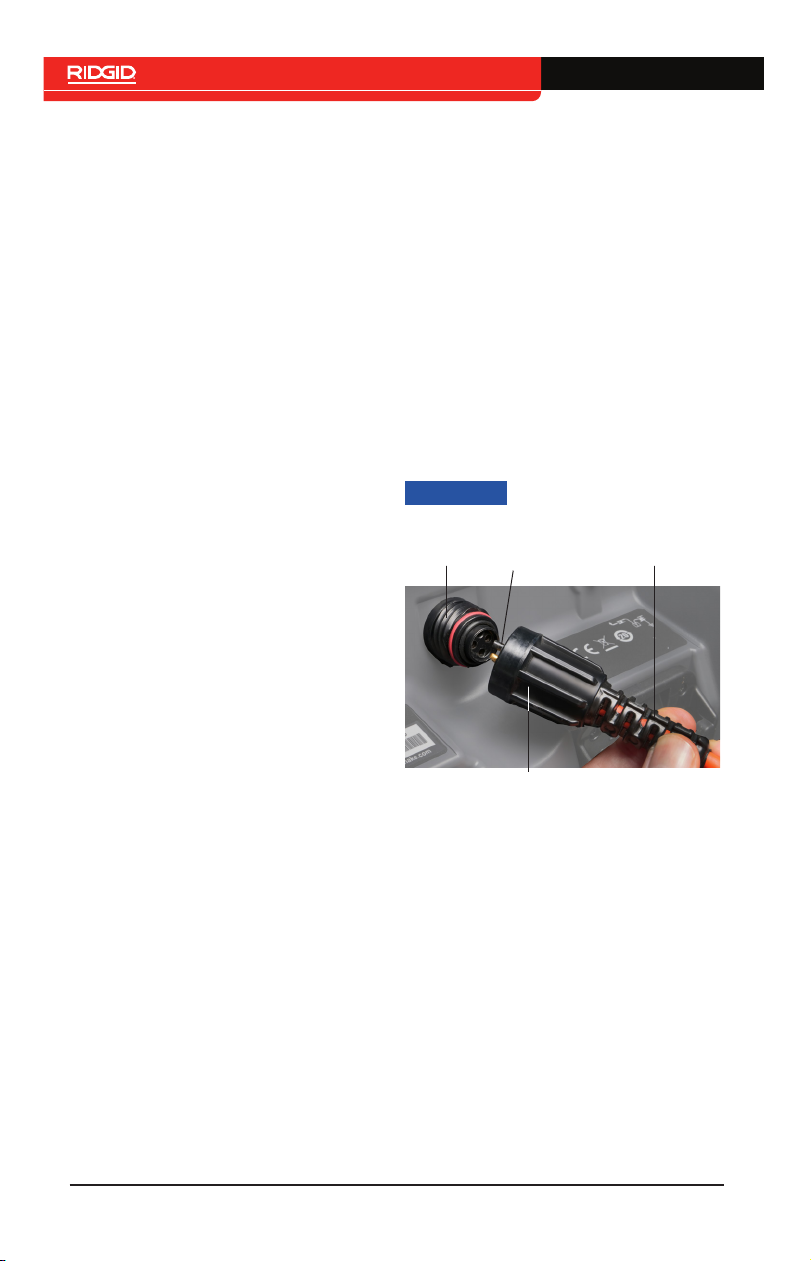

Connecting to the Monitor
Connect the system cable to the monitor by
aligning the connector guide pin with the
socket and pushing the connector straight
in.
NOTICE
Only twist the outer locking
sleeve. Never bend or twist
the connector.
Connector Ridge
Guide Pin
Outer Locking Sleeve
Socket

microReel APX – English – 13
Connecting to the CSx Via
The CSx Via Wi-Fi inspection device can be
connected to the microReel through the slip-
ring cavity. Remove the slip-ring assembly
from the microReel and install the CSx Via
into the slip-ring cavity.
For more instructions on installing the CSx
Via, refer to the operator’s manual.

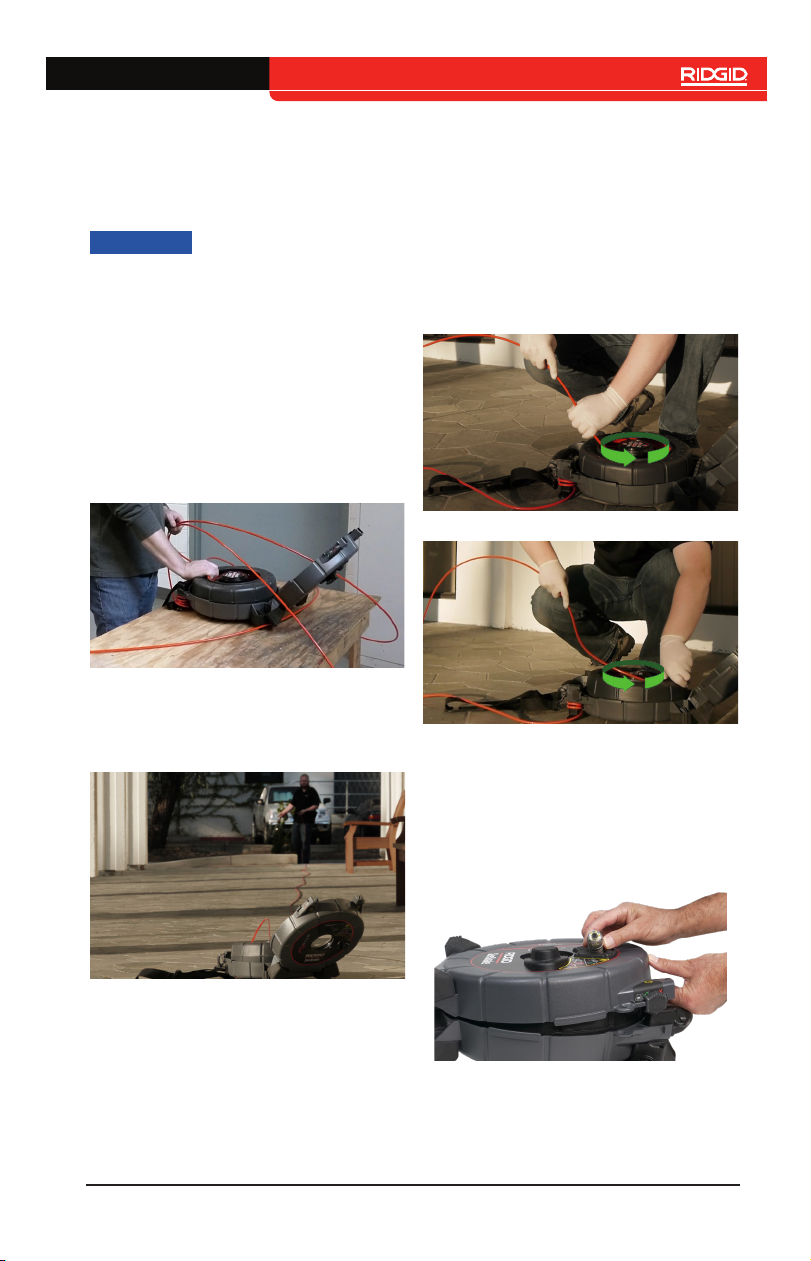

Retrieving the Camera
Pull the push cable back out of the pipe with
slow, steady force and feed small lengths
back into the drum. Wipe the push cable
with a paper towel or rag as you retrieve it.
NOTICE
Do not exert excessive
force or pull at sharp an-
gles. Feeding longer
lengths or forcing the
push cable may cause it
to loop, kink, or break.
Pipe Guides
Pipe guides center the camera in the pipe,
improve picture quality, and help keep the
lens clear. Use pipe guides when possible
to reduce wear and tear on the camera sys-
tem.

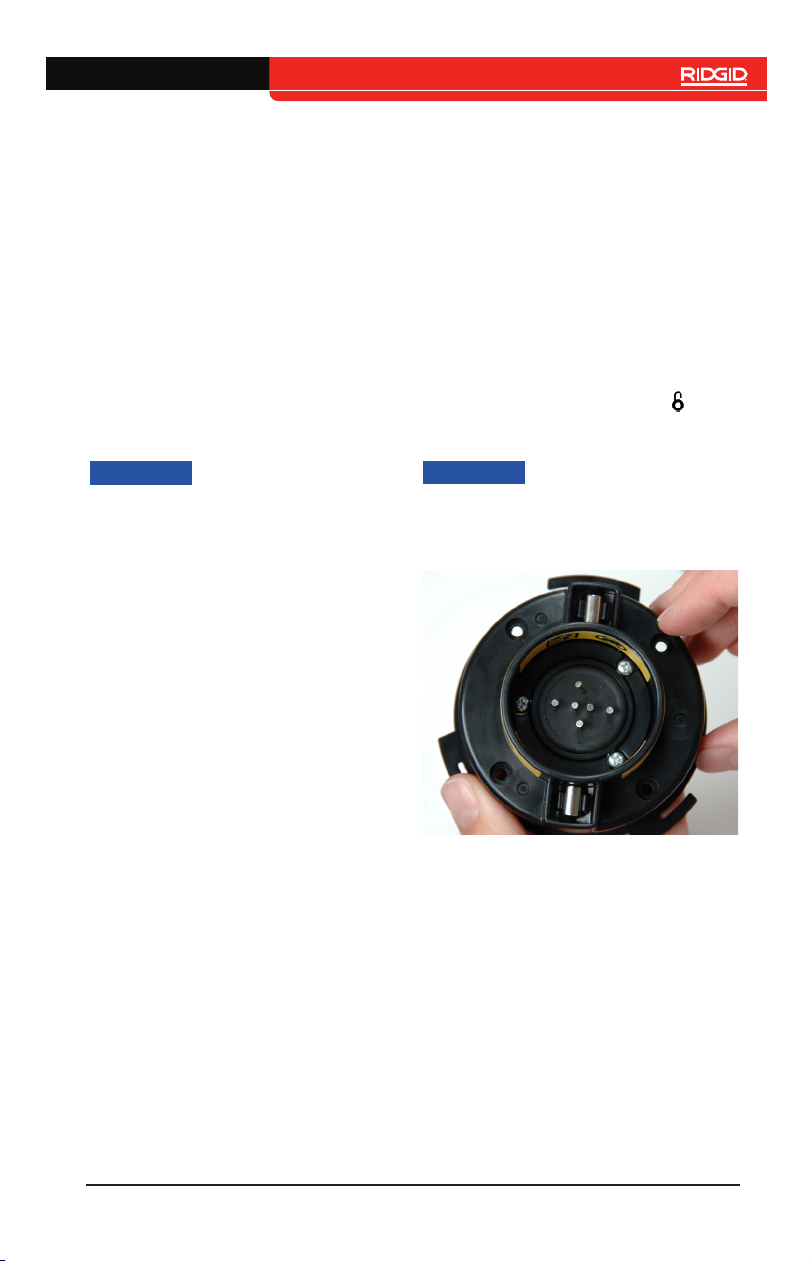

Removing the Slip Ring
Assembly
1. Disconnect the system cable from the
reporting monitor and remove the mon-
itor from the docking system.
2. Unwrap the system cable from the
cable wraps.
3. Pop the frame cable anchor off the
frame and unhook the system cable
from the frame hook.
4. Turn the slip-ring dial counter-clock-
wise to the unlocked position .
5. Pull straight out.
NOTICE
Do not touch the contact
pins inside the slip-ring
dial. Stressing the con-
tact pins can cause them
to break.

14 – English – microReel APX
Maintenance and
Support
Cleaning
Clean your system with rags and a soft
nylon brush. If desired, a mild detergent or
disinfectant can be used. Do not use sol-
vents or high pressure water to clean any
part of the system.
Maintaining Components
Camera Head
Scratches on the camera have a minimal ef-
fect on its performance. Do not use scraping
tools or sand the camera to remove scratch-
es.
Push Cable
Run a rag over the push cable and visually
inspect it for cuts and abrasions while push-
ing it back into the drum. Replace or repair
the push cable if the outer jacket is cut or
abraded.
Storage
The microReel must be stored in a dry, se-
cure area between -20°C and 70°C [-4°F
and 158°F]. Store your equipment in a
locked area out of the reach of children and
people unfamiliar with its purpose.
Support
For support and additional information
about using your system, visit support.
seesnake.com/microreel.
Service and Repair
Improper service or repair can cause the
camera reel to be unsafe to operate.
Service and repair of the camera reel must
be performed at a RIDGID Independent
Authorized Service Center. To find your
nearest service center or for any service or
repair questions:
• Contact your local RIDGID distributor.
• Visit RIDGID.com.
• Contact Ridge Tool Company
Technical Service Department at
r[email protected] or, in
the USA and Canada, call 1-800-519-
3456.
Disposal
Parts of your system contain valuable mate-
rials that can be recycled. There are compa-
nies that specialize in recycling that may be
found locally. Dispose of the components in
compliance with all applicable regulations.
Contact your local waste management au-
thority for more information.
EC Countries: Do not dis-
pose of electrical equipment
with household waste!
According to the European
Guideline 2012/19/EU
for Waste Electrical and
Electronic Equipment and its
implementation into national
legislation, electrical equip-
ment that is no longer usable
must be collected separately
and disposed of in an environ-
mentally correct manner.
Battery Disposal
EC Countries: Defective or used batteries
must be recycled according to the guideline
2006/66/EEC.

microReel APX – English – 15
Appendix
Appendix A: Reinserting the
Push Cable
NOTICE
Do not use excessive
force when attempting to
rewind the push cable
into the drum. Feeding
longer lengths or forcing
the push cable may
cause it to loop, kink, or
break.
Follow these instructions to reinsert the
push cable if it has unwound from the drum.
1. Seat the drum in the case before rein-
serting the push cable.
2. If space permits, uncoil and straighten
the entire length of push cable on the
ground.
3. Using both hands, begin to rewind the
push cable into the drum. If the push
cable cannot be laid out straight, use
extreme care when rewinding the push
cable. Ensure the push cable does not
bend or get caught on or underobjects.
If the push cable becomes twisted or
bent, stop rewinding and untwist it be-
fore continuing.
4. Ensure the drum rotates in the case as
the push cable rewinds. To avoid dam-
aging the push cable, keep one hand
close to the drum when rewinding the
push cable to ensure that the drum ro-
tates freely.
5. Gently route the camera head through
the push cable guide.
If replacing the camera head, only pull up
on the portion of the cable that contains
the spring to avoid bending or breaking the
push cable.

16 – English – microReel APX

TM TM
Avec
Technologie
AVERTISSEMENT !
Lire soigneusement ce Ma-
nuel de l'opérateur avant
d'utiliser cet appareil. Un
manque de compréhension
et un manque de respect
du contenu de ce manuel
peuvent causer un choc
électrique, un incendie et/ou
des blessures graves.
Pour toute assistance et informa-
tion supplémentaire concernant l’util-
isation de votre microReel allez sur
support.seesnake.com/fr/microreel
ou scannez ce code QR.
Manuel de l'opérateur

18 – Français – microReel APX
Introduction
Énoncés réglementaires......................................................................................... 19
Symboles de sécurité ............................................................................................. 19
Règles générales de sécurité
Sécurité de l’aire de travail ..................................................................................... 20
Sécurité électrique.................................................................................................. 20
Sécurité personnelle............................................................................................... 20
Utilisation et entretien de l’équipement .................................................................. 21
Contrôle préalable .................................................................................................. 22
Vue d’ensemble du SeeSnake microReel APX
