RIDGID WD4522 User manual

WD4522
4.5 U.S. GALLONS/15 LITERS
PRO PACK WET/DRY VAC
FOR QUESTIONS OR INFORMATION CONTACT US AT
CALL 1-800-4-RIDGID (1-800-474-3443) OR
www.ridgidvacs.com
Part No. SP6671 Printed in Mexico
OPERATOR’S MANUAL
SAVE THIS MANUAL FOR FUTURE REFERENCE
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
!
Thank you for buying a RIDGID product.
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 1

2
Table of Contents
Section Page
Important Safety Instructions. . . . . . . . . 2
Introduction . . . . . . . . . . . . . . . . . . . . . . 4
Unpacking and Checking
Carton Contents List . . . . . . . . . . . . . 4
Getting to Know Your Vac . . . . . . . . . . . 5
Installing Extension Wand Clips . . . . . . 6
Float/Cage Replacement. . . . . . . . . . . . 6
Filter Assembly/Replacement . . . . . . . . 7
Cord, Hose & Accessory Storage . . . . . 8
Operation. . . . . . . . . . . . . . . . . . . . . . . . 9
Vacuuming Dry Materials . . . . . . . . . 10
Section Page
Vacuuming Liquids . . . . . . . . . . . . . . 10
Emptying the Dust Drum . . . . . . . . . 10
Cord Storage . . . . . . . . . . . . . . . . . . 10
Blowing Feature . . . . . . . . . . . . . . . . 11
Maintenance . . . . . . . . . . . . . . . . . . . . 11
Filter . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning and Disinfecting
the Wet/Dry Vac . . . . . . . . . . . . . . 12
Repair Parts. . . . . . . . . . . . . . . . . . . . . 14
Warranty . . . . . . . . . . . . . . . . . . . . . . . 16
IMPORTANT SAFETY INSTRUCTIONS
Safety is a combination of common
sense, staying alert, and knowing how
your Wet/Dry Vac works.
Safety Signal Words
DANGER: Indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING: Indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially
hazardous situation which, if not avoided,
may result in minor or moderate injury.
When using your Wet/Dry Vac (“Vac”),
always follow basic safety precautions
including the following:
WARNING -To
reduce the risk of fire, electric shock,
or injury:
• Read and understand this operator’s
manual and all labels on the Wet/Dry
Vac before operating.
•Use only as described in this manual.
• Do not leave Vac running while
unattended.
• Sparks inside the motor can ignite
flammable vapors or dust. To reduce
the risk of fire or explosion, do not
vacuum or use near flammable or
combustible liquids, gases, or
explosive dusts, such as gasoline or
other fuels, lighter fluid, cleaners, oil-
based paints, natural gas, hydrogen,
coal dust, magnesium dust, aluminum
dust, grain dust, or gun powder.
• Do not vacuum anything that is burning
or smoking, such as cigarettes,
matches, or hot ashes.
• Do not vacuum drywall dust or cold
fireplace soot or ash with standard
filter. This is a very fine dust which may
be exhausted back into the air. Use a
fine dust filter instead.
• To reduce the risk of health hazards
from vapors or dust, do not vacuum
toxic materials.
• Do not use or store near hazardous
materials.
• Toreduce the risk of electric shock, do
not expose to rain or allow liquid to
enter motor compartment. Store
indoors.
•Do not allow to be used as a toy.Close
attention is necessary when used by or
near children.
• Do not use with a torn filter or without
the filter installed except when
vacuuming liquids as described in the
Operation section of this manual. Dry
debris ingested by the impeller may
damage the motor or be exhausted
back into the air.
• Do not leave Vac plugged in. Unplug
from outlet when not in use and before
servicing.
• Turn off Vac before unplugging.
•WARNING: The power cord on this
product contains lead, a chemical
known in the State of California to
cause birth defects or other
reproductive harm.
Wash hands
after handling.
!
!
!
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 2

CAUTION:
• To reduce the risk of hearing damage,
wear ear protectors when using for
extended hours or using in a noisy
area.
• For dusty operations, wear dust mask.
NOTE: Static shocks are common in
dry areas or when the relative humidity of
the air is low. Vacuuming fine debris with
your Vac can deposit static charge on the
hose or on the Vac. The best remedy to
reduce the frequency of static shocks in
your home or when using this Vac is to
add moisture to the air with a humidifier.
3
hazards. To reduce the risk of these
hazards when using an extension cord,
be sure it is in good condition and that
the connection does not come into
contact with liquid. To keep power loss
to a minimum, use the following table
to choose the minimum wire size
extension cord.
• To reduce the risk of injury from
accidental starting, unplug power cord
before changing or cleaning filter.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug or
other parts. If your Vac is not working
as it should, has missing parts, has
been dropped, damaged, left outdoors,
or dropped into water, return it to an
Authorized Service Center.
• Do not pull or carry by cord, use cord
as handle, close a door on cord, or pull
cord around sharp edges or corners.
Keep cord away from heated surfaces.
• Do not handle plug, switch, or the Vac
with wet hands.
• Do not put any object into ventilation
openings. Do not vacuum with any
ventilation openings blocked; keep free
of dust, lint, hair or anything that may
reduce air flow.
• Keep hair, loose clothing, fingers, and
all parts of body away from openings
and moving parts.
• Toreduce the risk of falls, use extra
care when cleaning on stairs.
• To reduce the risk of personal injury or
damage to Vac, use only Ridgid
recommended accessories.
• When using as a blower:
- Direct air discharge only at work
area.
-Do not direct air at bystanders.
- Keep children away when blowing.
- Do not use blower for any job except
blowing dirt and debris.
- Do not use as a sprayer.
- Wear safety eyewear.
• Toreduce the risk of eye injury,wear
safety eyewear. The operation of any
utility Vac or blower can result in
foreign objects being blown into the
eyes, which can result in severe eye
damage.
• Do not store or stack items on top of vac.
• This Wet/Dry Vac is double-insulated,
eliminating the need for a separate
grounding system. Use only identical
replacement parts. Read the
instructions for Servicing Double-
Insulated Wet/Dry Vacs before
servicing.
• Use only extension cords that are rated
for outdoor use. Extension cords in
poor condition or that are too small in
wire size can pose fire and shock
Extension Cord Length Gauge A.W.G.
0-50 Ft. 14
50-100 Ft. 12
Observe the following warnings that
appear on the motor housing of your Vac:
WARNING: To reduce the risk of
electric shock - do not expose to
rain - store indoors.
WARNING: Do not step, stand or sit
on vacuum. Improper use may
cause injury.
WARNING: To reduce the risk of fire,
do not store foreign objects in this
compartment. Only store Vac
Accessories.
WARNING: For your own safety, read
and understand operator’smanual.
Do not run unattended. Do not pick
up hot ashes, coals, toxic, flammable
or other hazardous materials. Do not
use around explosive liquids or
vapors.
DOUBLE INSULATED
GROUNDING NOT REQUIRED.
WHEN SERVICING USE ONLY
IDENTICAL REPLACEMENT PARTS.
SAVE THIS MANUAL
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 3

Unpacking and Checking Carton Contents
4
Remove contents of carton. Check each
item against the Carton Contents List.
Contact 1-800-4-RIDGID (www.ridgid
vacs.com) if any parts are damaged or
missing.

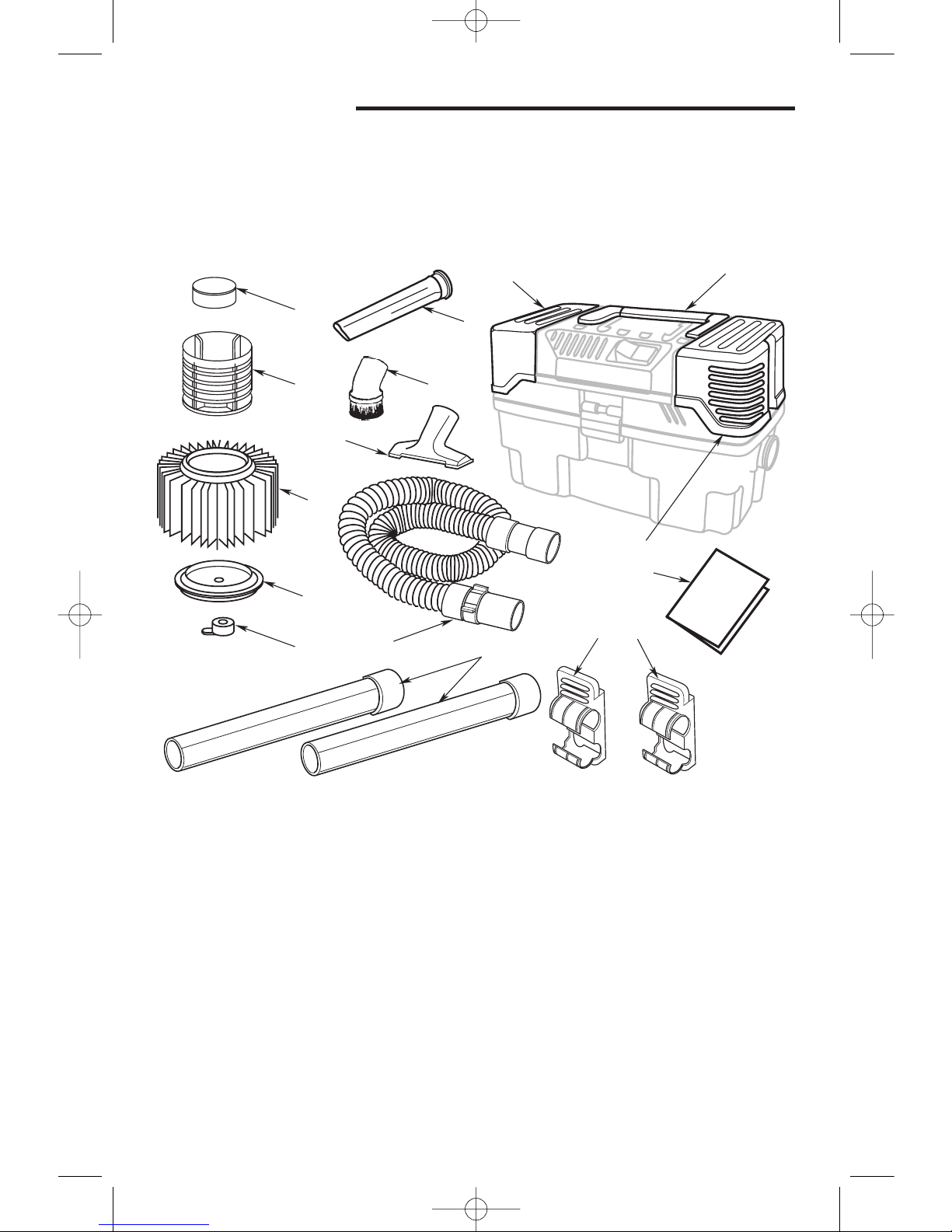

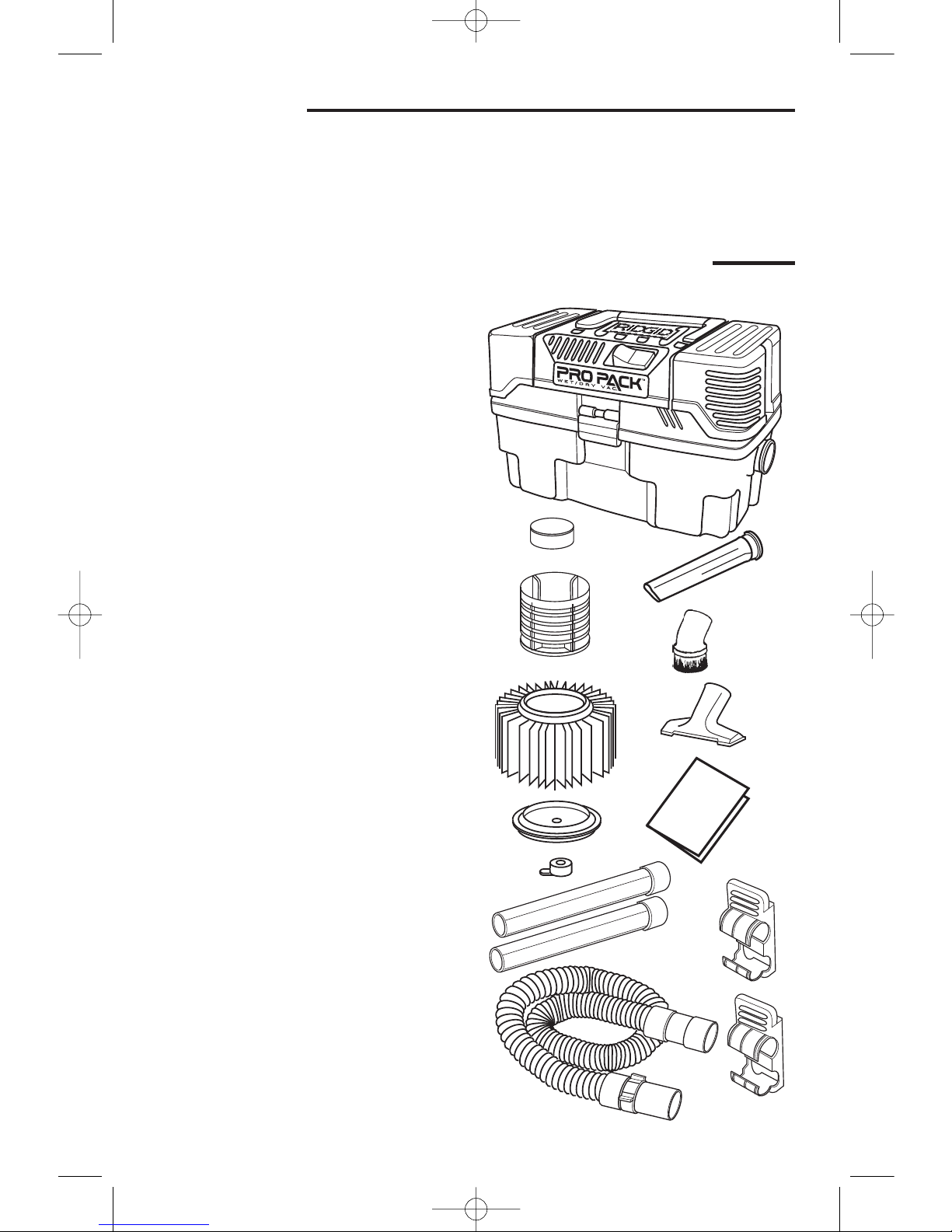

Carton Contents List
Key Description Qty
A 4.5-Gallon PRO PACK Vac..........1
B* Float (Assembled)........................1
C* Filter Cage (Assembled) ..............1
D* Fine Dust Filter VF3500
(Assembled).................................1
E* Filter Plate (Assembled) ..............1
F* Filter Nut (Assembled) .................1
G Extension Wand Clip (Left) ..........1
H Extension Wand Clip (Right)........1
IExtension Wands .........................2
J* Crevice Tool .................................1
K* Dusting Brush ..............................1
L* Utility Nozzle ................................1
M* Superflex Hose ............................1
N Operator’s Manual .......................1
* These items may come preassembled.
If they are not present in the carton,
check the vac power head to see if they
are preassembled.
A
THIS SIDE
TOWARD LID
B
C
D
E
F
J
K
L
N
I
G
H
M
Introduction
This PRO PACK Wet/Dry Vac is intended
for household use. It may be used for
vacuuming wet or dry media and may be
used as a blower.
Read this operator’s manual to familiarize
yourself with the product features and to
understand the specific usage of your
new Vac.
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 4

5

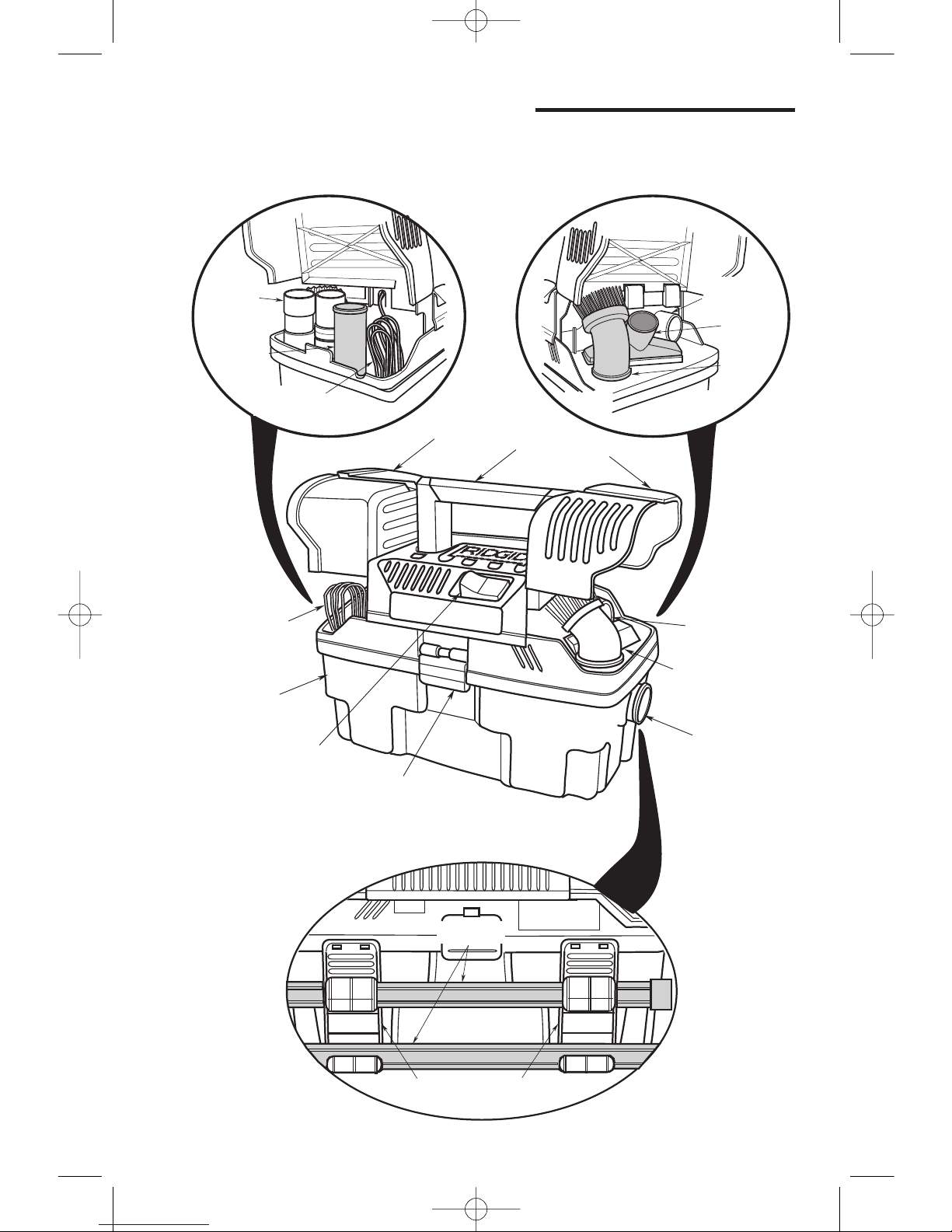

Getting to Know Your Vac
1. Familiarize yourself with the controls
and features of your vac before
operating.
Drum Latch (2)
Drum
Left
Cover Right
Cover
Accessory
Storage Area
Blowing
Port
Handle
Cord & Hose
Storage Area
Vacuum
Port Inlet
Power Switch
Hose
Storage
Crevice
Tool
Storage
Power Cord
Storage
Dusting
Brush
Storage
Utility
Nozzle
Storage
Blowing
Port
Left
Extension
Wand Clip
Right
Extension
Wand Clip
Extension
Wands
BACK VIEW OF UNIT
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 5

NOTE: If filter cage or float ever have to
be replaced, follow the instructions below
for proper assembly:
1. Grasp the drum latches on both the
right and left side of the power head.
Slowly pull the drum latches away from
the drum. Lift the power head off the
drum. Place the lid assembly of the vac
upside down on a clean, dry surface.
2. Remove the filter nut and the filter.
3. Use a flat blade screwdriver and insert
the blade near one of the tabs between
the filter cage and the center ring of the
lid. Pry the tab out of the slot. Tilt the
cage and lift away from the lid.
6
WARNING: For your own safety,
never connect plug to power source
outlet until all assembly steps are
complete and you have read and
understood the safety and operation
instructions. Do not operate vac
with any parts damaged or missing.
Float/Cage Replacement
Filter
Cage
Slots (3)
Tabs (3)
Drum Latches
(2)
Flexible
Locking
Tab
Pull
Out
And
Lift Up
Installing Extension Wand Clips
NOTE: The extension wand clips are
marked “L” and “R” and should be installed
on the back of the PRO PACK unit.
NOTE: While viewing the unit from behind,
the clip marked “L” goes on the left side
and the clip marked “R” goes on the right
side.
R
L
Left
Extension
Wand Clip
Right Extension
Wand Clip
Hook the tab on the bottom of the
extension wand clip into the depression
in the bottom of the drum. Rotate the clip
upwards until the extension wand clip
snaps into the slots in the drum, as
shown.
Slot
Rotate
Hook
Under Vac
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 6

7
WARNING: To avoid personal
injury or damage to vac be sure to
keep hands, fingers, or any other
foreign objects out of the center
opening when assembling the float.

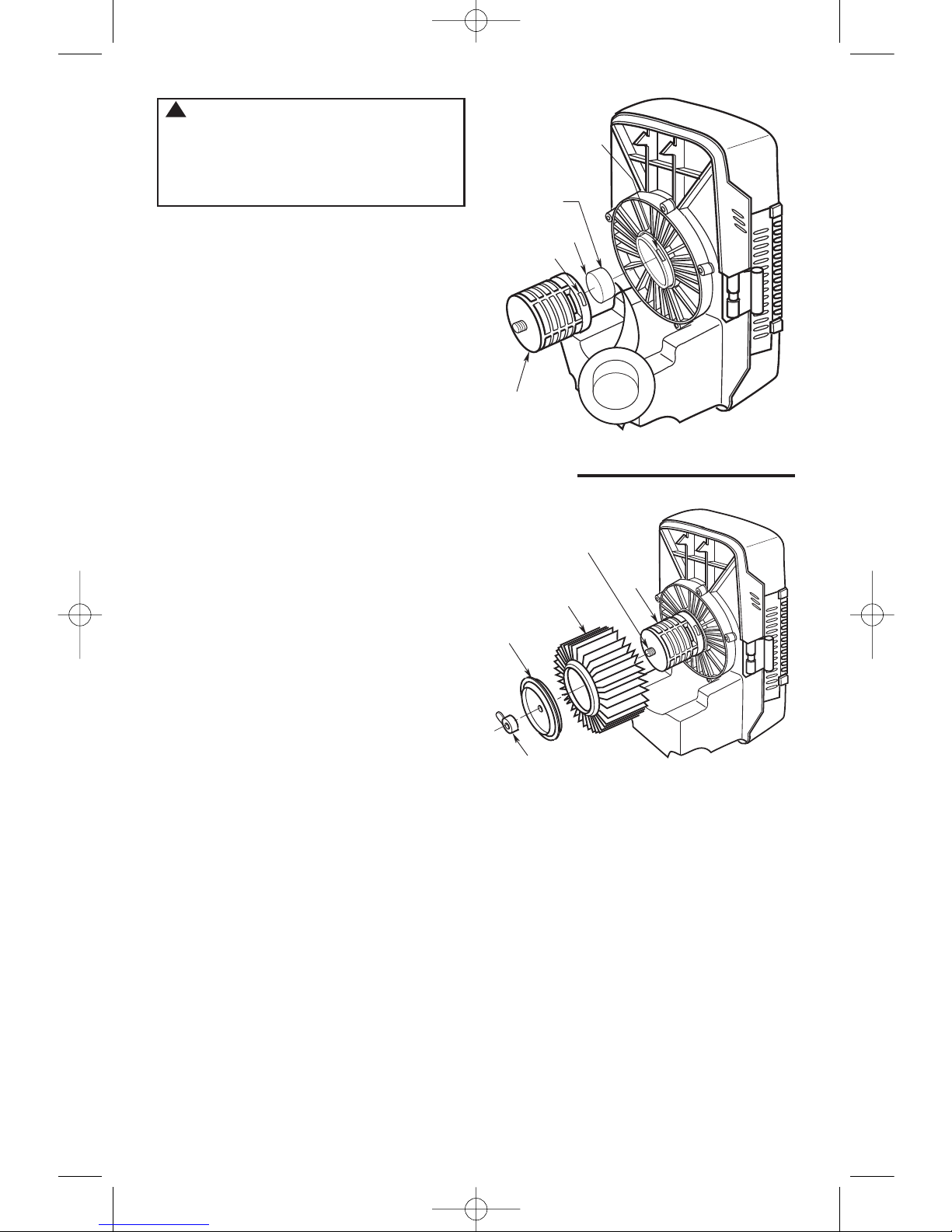

Filter
Cage
Float
Labeled
End
Tabs (3)
Slots (3)
THIS SIDE
TOWARD LID

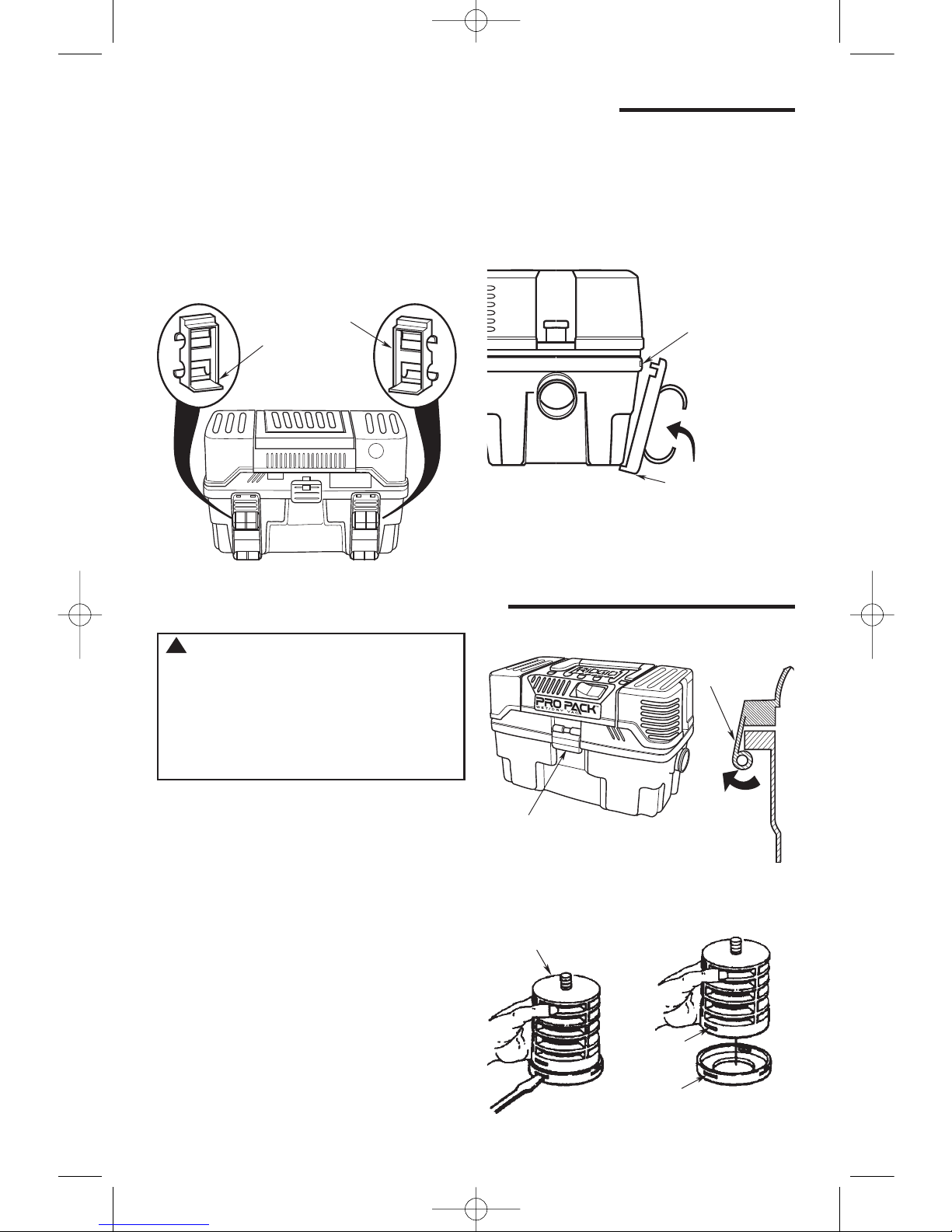

4. Place the float over the opening in the
center of the lid with the words “This
side toward lid” laying face down over
the hole.
5. Line up filter cage tabs with the slots in
the center ring of the lid assembly.
Push on the filter cage until the tabs
snap into the slots for a secure fit.
1. Carefully slide the filter over the filter
cage, sliding filter down until the filter
stops against the lid.
2. Place the hole in the filter plate over
the threaded screw of the filter cage.
3. Gently push on the filter plate to seat
the rubber ring of the filter inside the
circular channel of the filter plate.
4. Place filter nut onto threaded screw
and tighten it down. Finger tighten only.
NOTE: Lever of filter nut should be away
from plate as shown.
IMPORTANT: Do not overtighten as this
may deform or crack the filter plate, filter
cage or filter.
5. Toassemble the power head to the
drum, position power head over drum,
with drum latches lined up with recess
in drum. (The power head will only fit
on the drum one way).
6. Rotate the latches into the drum
recesses and press inward to secure
lid to drum.
7. Your vac is now ready to use. Read the
instructions on the following pages to
operate your vac safely.
Filter Assembly/Replacement
Filter Nut
Filter
Plate
Filter
Threaded
Screw Filter
Cage
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 7

8
Cord, Hose & Accessory Storage

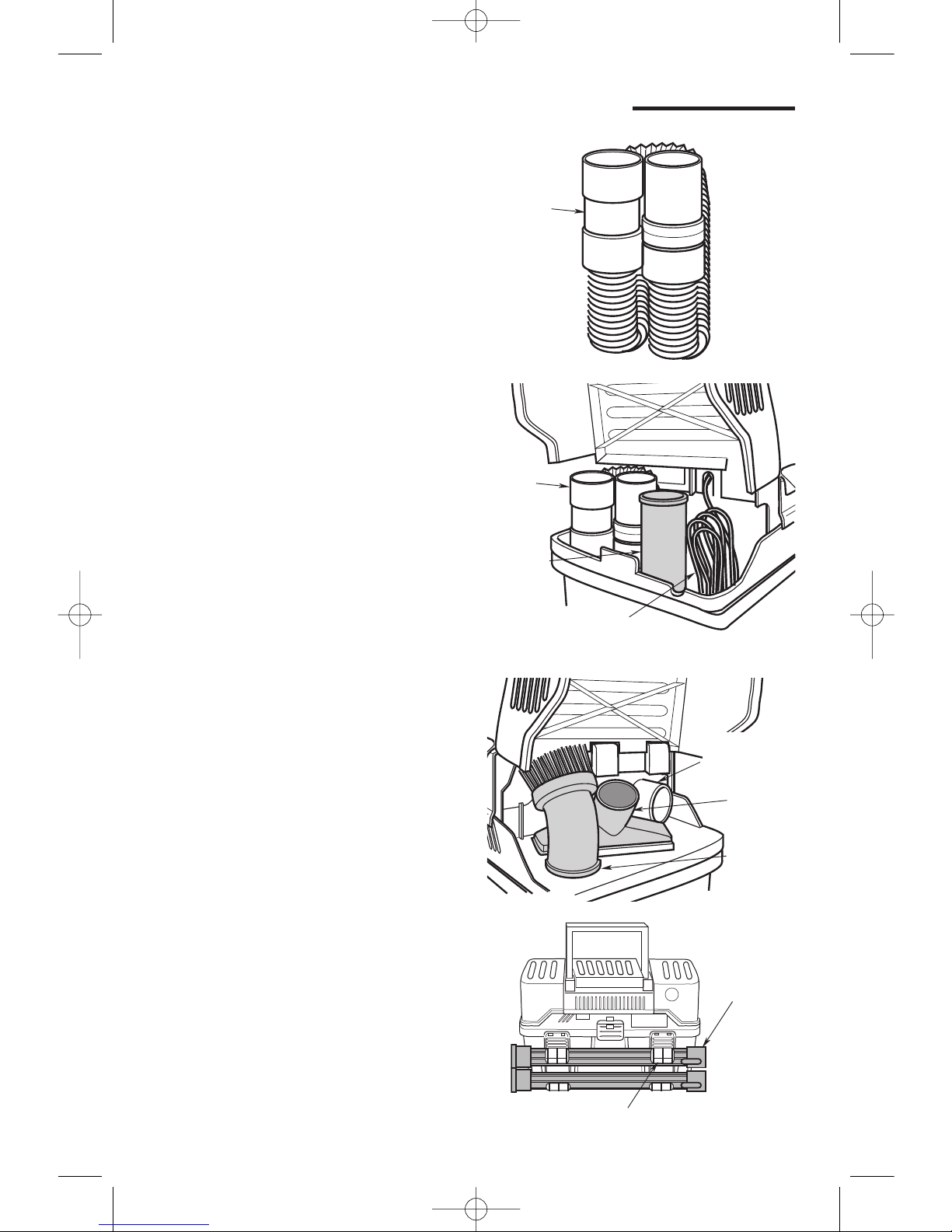

1. Your vac has convenient locations to
store your power cord, vac hose, and
accessories.
2. Under the left cover of your Wet/Dry
Vac (as shown) is a storage location
meant to hold your superflex hose,
crevice tool and power cord. For ease
of storage, the hose should be folded
as shown and placed in the storage bin
to the far left. You will also notice a
rectangular feature in the bottom of this
bin. The crevice tool will easily store
standing up in this feature, tapered
side down. Additionally, the power cord
will also fit in this bin to the far right
side. Fold or wrap the cord in
approximately 1-foot lengths until you
get within a foot of the storage bin. The
folded cord should now fit neatly into
the storage bin.
3. Under the right cover of your Wet/Dry
Vac (as shown) is a storage location for
the dusting brush and utility nozzle.
Each of these nozzles has a specific
location molded into the housing. Only
these two nozzles should be stored in
this location. Also located inside this
compartment is the blowing port.
Please see the “Blowing” section for
blowing directions.
4. To store the extension wands, snap
each extension wand into the extension
wand clips on the back of the unit.
Hose
Storage
Crevice
Tool
Storage
Power Cord
Storage
Dusting
Brush
Storage
Utility
Nozzle
Storage
Blowing
Port
Extension
Wand
Extension
Wand Clip
Correct
Hose
Wrap for
Storage
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 8

Operation
Toreduce the risk of electric shock, this
appliance has a polarized plug (one
blade is wider than the other). This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install the
proper outlet. Do not change the plug in
any way.
After you plug the power cord into the
outlet, turn the unit on by pushing the
switch from position "O" to position "l".
The symbols used on the switch actuator
are international "On & Off" symbols. "O"
is the symbol for "OFF" and "l" is the
symbol for "ON".
=OFF =ON
NOTE: When using the unit in the
vacuuming mode, the accessory storage
lid can be used as an air diffuser by
closing this lid.
Familiarize yourself with the accessories
included with the vac. Each accessory
may be used in various ways for
vacuuming and blowing debris. Here is a
list of the accessories and their uses.
Dusting Brush - Use for sweeping up
areas with fine dust or debris. Great for
detailed cleaning.
Crevice Tool - Use to pick up debris in
hard to reach locations.
Utility Nozzle - General purpose nozzle for
most vacuuming applications.
Hose - Provides transfer of vacuum or
blowing capability to work site. Provides
the means of attaching accessories.
Hose includes suction relief valve to
reduce hose pull back when the inlet is
blocked.
9

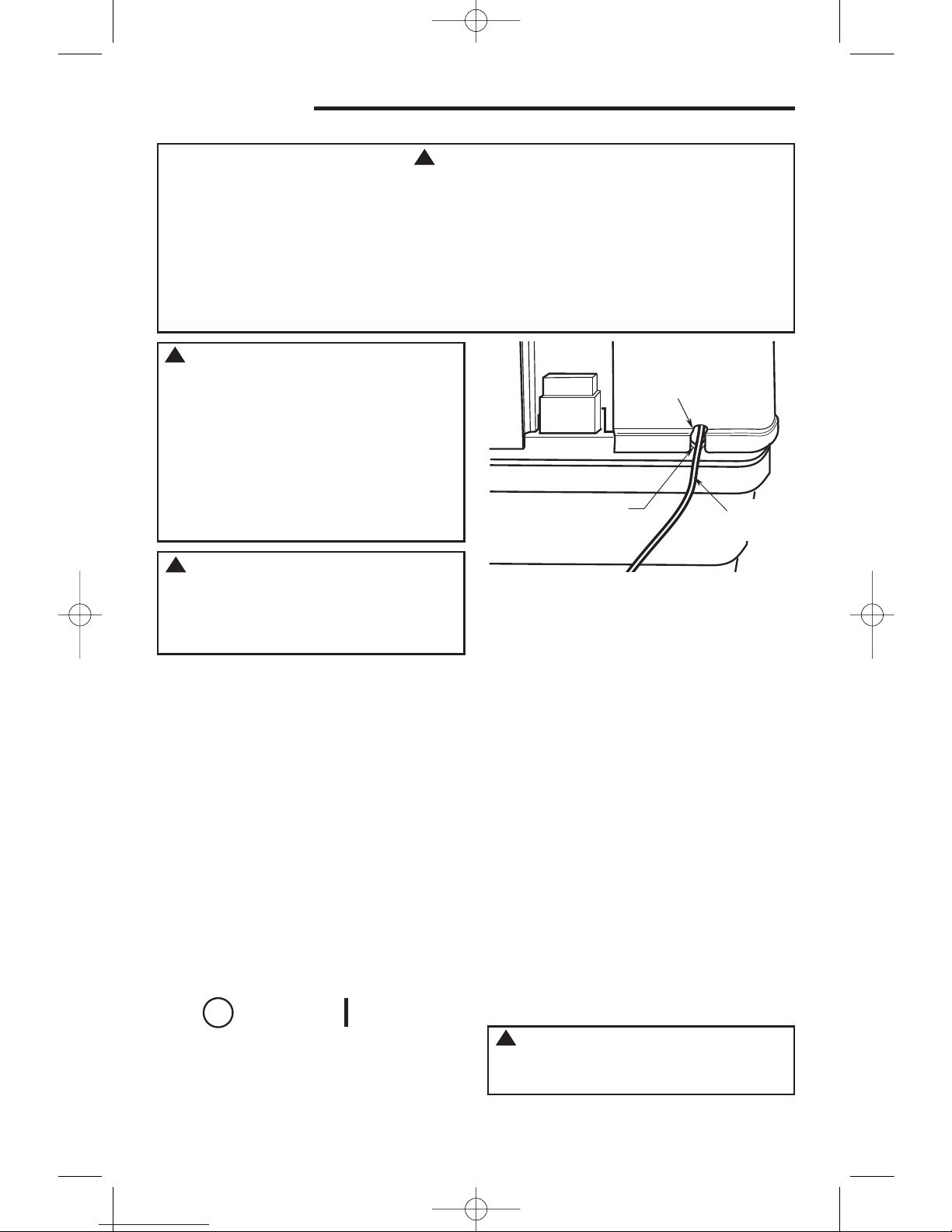

When operating your vacuum with the
storage lids closed, take care to make
sure that the power cord is positioned
through the cord opening in the cover.
Left Cover
Power Cord
Opening
Drum Power
Cord Opening Power
Cord
WARNING
To reduce the risk of fire or explosion, do not operate this vac in areas with
flammable gases, vapors or explosive dust in the air. Flammable gases or
vapors include but are not limited to; lighter fluid, solvent type cleaners, oil-
base paints, gasoline, alcohol or aerosol sprays. Explosive dusts include but
are not limited to; coal, magnesium, aluminum, grain or gun powder. Do not
vacuum explosive dust, flammable or combustible liquids or hot ashes. Do
not use this vac as a sprayer. To reduce the risk of health hazards from
vapors or dusts, do not vacuum toxic materials.
CAUTION: To reduce risk of
hearing damage, wear ear
protectors when using the vac for
extended hours or when using it in
anoisy area.
WARNING: The operation of any
utility vac can result in foreign
objects being blown into the eyes,
which can result in severe eye
damage. Always wear safety
eyewear complying with ANSI Z87.1
(or in Canada, CSA Z94.3) before
starting operation. Safety eyewear
are available at many local retail
stores.
!
!
!
WARNING: To reduce the risk of
fire or electric shock, do not run vac
unattended.
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 9

10
Operation (continued)
Emptying the Dust DrumVacuuming Dry Materials
1. The filter must always be in correct
position at all times to avoid leaks and
possible damage to vac.
2. When using your vac to pick up very
fine dust, it will be necessary for you to
empty the drum and clean the filter at
more frequent intervals to maintain
peak vac performance.
NOTE: A dry filter is necessary to pick up
dry material. If you use your vac to pick
up dust when the filter is wet, the filter will
clog quickly and be very difficult to clean.
3. If your filter is wet but you need to use
the vac to pick up dry material, you can
quickly dry the filter by running the vac
without hose attached for about
10 minutes. The clean air rushing
through the vac will help dry the filter.
Vacuuming Liquids
1. When picking up small amounts of
liquid the filter may be left in place.
2. When picking up large amounts of
liquid we recommend that the filter be
removed. If the filter is not removed, it
will become saturated and misting may
appear in the exhaust.
3. When the liquid in the drum reaches a
predetermined level, the float mech-
anism will rise automatically to cut off
suction. You will know that the float has
risen because vac airflow ceases and
the motor noise will become higher in
pitch, due to increased motor speed.
When this happens, turn off the vac,
unplug the power cord, and empty the
drum.
4. After using the vac to pick up liquids,
the filter must be dried to avoid
possible mildew and damage to the
filter.
IMPORTANT: To avoid damage to the
vac, do not run motor with float in raised
position.
1. To remove the power head to empty
contents of the dust drum, simply lift
the two drum latches on the front and
rear of the vac and lift the power head
up and off the dust drum and set to the
side.
Cord Storage
When vacuuming is complete, unplug the
cord and wrap it up as described in the
Cord, Hose & Accessory Storage section
shown on page 8.

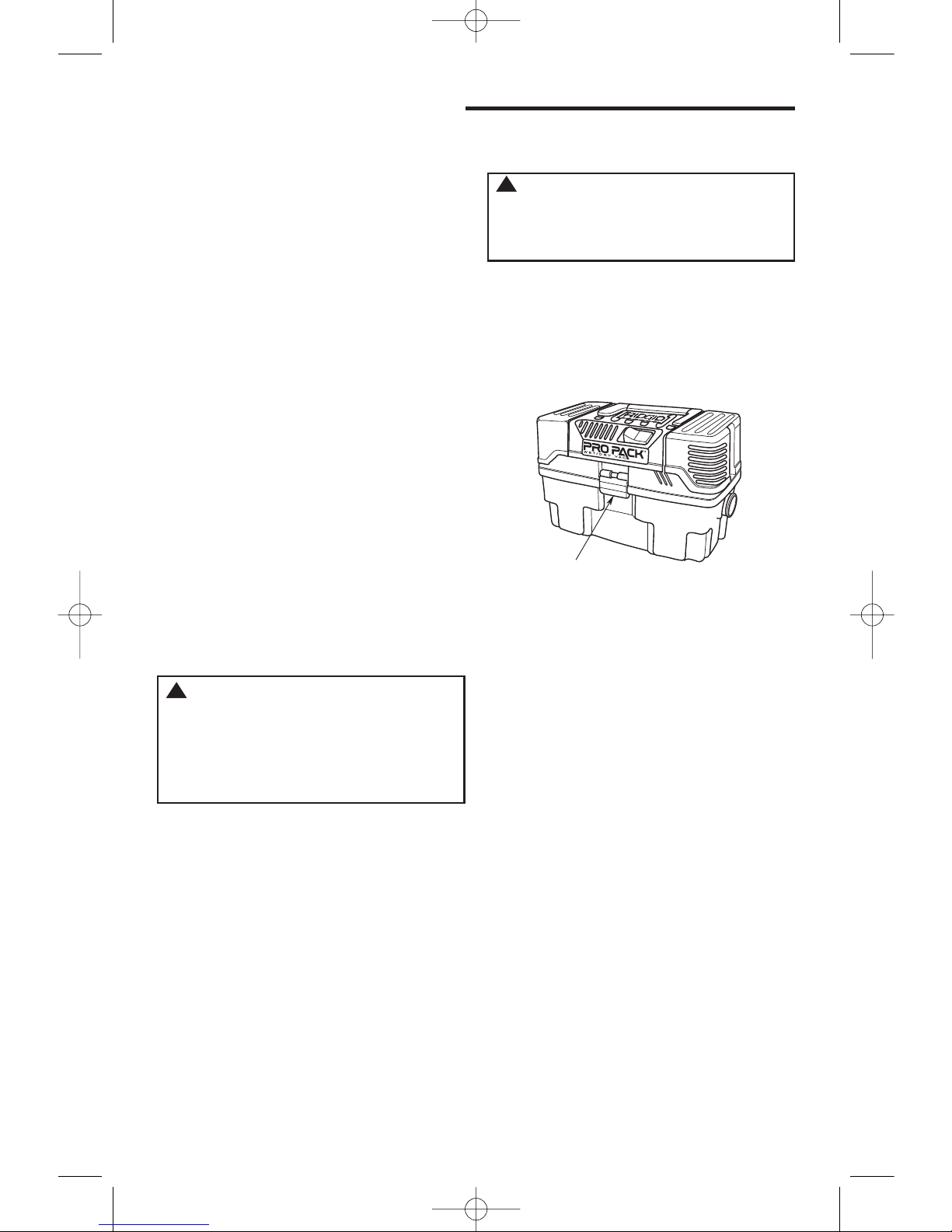

Drum Latches
(2)
WARNING: Do not remove the
filter cage and float. The float
prevents water from entering the
impeller and damaging the motor.
The cage prevents fingers from
touching the moving impeller.
2. Set the power head upright in a clean,
dry area while emptying the drum.
3. Dump the drum contents into the proper
waste disposal container.
WARNING: To reduce the risk of
injury from accidental starting,
unplug power cord before emptying
the drum.
!
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 10

NOTE: The filter is made of high quality
paper designed to stop very small
particles of dust. The filter can be used
for dry pick up or small amounts of liquid.
Handle the filter carefully when removing
to clean or installing it. Creases in the
filter pleats may occur from installation
but will not affect the performance of the
filter.
11
Maintenance
WARNING: Toreduce the risk of
injury from accidental starting,
unplug power cord before changing
or cleaning filter.
Cleaning Vac Filter
Be sure to dry the filter before storing or
picking up dry debris.
IMPORTANT: After cleaning, check the
filter for tears or small holes. Do not use
afilter with holes or tears in it. Even a
small hole can cause a lot of dust to
come out of your vac. Replace the filter
immediately.

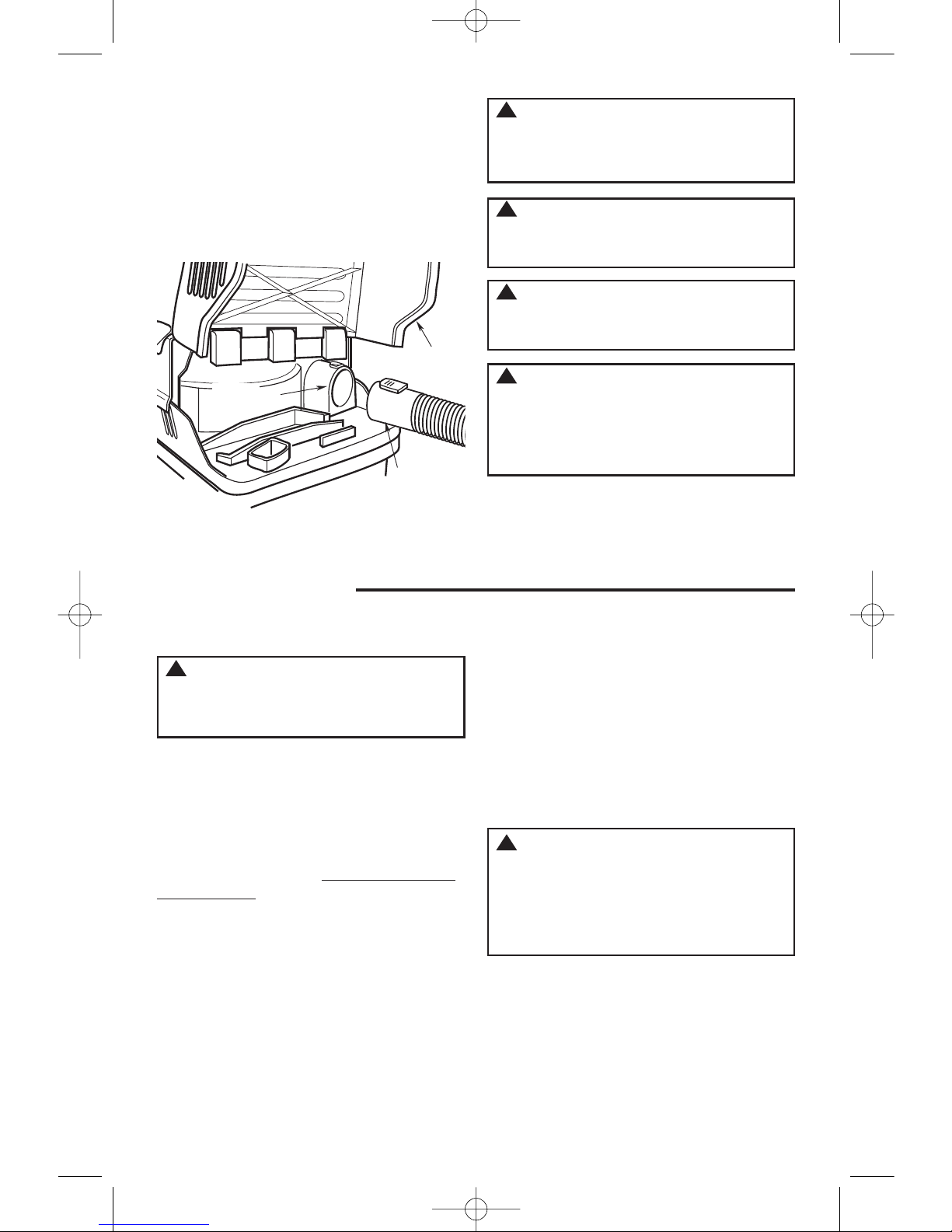

Blowing Feature
Your wet/dry vac has the capability to be
used as a blower for yard work, patio
cleanup and workshop applications to
blow sawdust and other debris. Raise the
right cover and install the locking end of
the hose into the blower port.
Right
Cover
Blowing
Port
Locking
End of
Hose
Removal
Toremove the filter for cleaning or
replacement, unscrew the filter nut from
the filter cage, remove filter plate and lift
off filter.
IMPORTANT: To avoid damage to the
blower wheel and motor,always reinstall
the filter before using the vac for dry
material pickup.
WARNING: Always wear safety
eyewear complying with ANSI Z87.1
(or in Canada, CSA Z94.3) before
using as a blower.
CAUTION: Wear a dust mask if
blowing creates dust which might
be inhaled.
CAUTION: To reduce the risk of
hearing damage wear ear protectors
when using the vac/blower for
extended hours or when using in a
noisy area.
WARNING: To reduce the risk of
injury to bystanders, keep them
clear of blowing debris.
!
!
!
!
!
WARNING: Do not remove the
filter cage and float. The float
prevents water from entering the
impeller and damaging the motor.
The cage prevents fingers from
touching the moving impeller.
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 11

12
WARNING: To assure product
SAFETY and RELIABILITY, repairs and
adjustments should be performed by
Independent Service Centers, always
using RIDGID replacement parts.
Cleaning A Dry Filter
NOTE: For best cleaning results due to
accumulated dust, clean the filter in an
open area. Cleaning SHOULD be done
outdoors and not in the living quarters.
1. Remove filter from vac. Gently tap the
filter against the inside wall of your dust
drum and the debris will loosen and
fall.
2. For thorough cleaning of a dry filter
with fine dust (no debris) you may run
water through it as described in the
“Cleaning A Wet Filter” Section.
Cleaning A Wet Filter
After filter is removed, run water through
the filter from a hose or spigot. Take care
that water pressure from the hose is not
strong enough to damage filter.
Remember: To dry a filter quickly,
reinstall the filter on the vac and allow the
unit to run for approximately 10 minutes.
The clean air rushing through the filter will
dry it.
IMPORTANT:After cleaning, check the
filter for tears or small holes. Do not use
afilter with holes or tears in it. Even a
small hole can cause a lot of dust to
come out of your vac.
IMPORTANT: If your filter is damaged or
worn, Replace the filter immediately.
Installation
Refer to "Filter Assembly/Replacement"
Section of this manual.
Allow the filter to dry before reinstalling
and storing the vac.
Cleaning and Disinfecting the
Wet/Dry Vac
To keep your Wet/Dry Vac looking its
best, clean the outside with a cloth
dampened with warm water and mild
soap.
To clean the drum:
1. Dump debris out.
2. Wash drum thoroughly with warm water
and mild soap.
3. Wipe out with dry cloth.
Before prolonged storage or as needed
(i.e., waste water pick up) the drum
should be disinfected.
Todisinfect the drum:
1. Pour 1 gallon of water and 1 teaspoon
chlorine bleach into the drum.
2. Let solution stand for 20 minutes,
carefully swishing every few minutes,
making sure to wet all inside surfaces
of the drum.
3. Empty drum after 20 minutes. Rinse
with water until bleach smell is gone.
Allow drum to dry completely before
sealing the motor on the drum.
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 12

13
Notes
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 13

Key
No. Part No. Description
1 831388 Float
2 818977 Filter Cage
3VF3500 Filter,Fine Dust
473317 Filter Plate
5 73316 Filter Nut
6 831327 Hose Assembly
7 VT1786 Crevice Tool
8VT1785 Dusting Brush
WARNING
SERVICING OF DOUBLE-INSULATED WET/DRY VAC
In a double-insulated Wet/Dry Vac, two systems of insulation are provided
instead of grounding. No grounding means is provided on a double-insulated
appliance, nor should a means for grounding be added. Servicing a double-
insulated Wet/Dry Vac requires extreme care and knowledge of the system,
and should be done only by qualified service personnel. Replacement parts
for a double-insulated Wet/Dry Vac must be identical to the parts they replace.
Your double-insulated Wet/Dry Vac is marked with the words "DOUBLE
INSULATED" and the symbol (square within a square) may also be
marked on the appliance.
To reduce the risk of injury from electrical shock, unplug power cord before
servicing the electrical parts of the Wet/Dry Vac.
Repair Parts
RIDGID 4.5 Gallon PRO PACK Wet/Dry Vac
Model Number WD45500
RIDGID parts are available on-line at www.ridgidparts.com
Always order by Part Number - Not by Key Number
Key
No. Part No. Description
9 VT1789 Utility Nozzle
10 831095 Right Cover
11 831094 Left Cover
12 831096 Handle
13 829798-1 Extension Wands (2)
14 832199 Wand Clip (Left)
15 832200 Wand Clip (Right)
16 SP6671 Operator’s Manual
†These replacement parts may be available where you purchased your vac.
†
†
14
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 14

Repair Parts
RIDGID 4.5 Gallon PRO PACK Wet/Dry Vac
Model Number WD45500
RIDGID parts are available on-line at www.ridgidparts.com
Always order by Part Number - Not by Key Number
6
9
12
11
16
10
13
14
1
3
4
5
THISSIDE
TOWARDLID
2
7
8
15
15
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 15

Part No. SP6671 Form No. SP6671 Printed in Mexico 05/07
What is covered
RIDGID®tools are warranted to be free of defects in workmanship and material.
How long coverage lasts
This warranty lasts for the lifetime of the RIDGID®tool. Warranty coverage ends when the product
becomes unusable for reasons other than defects in workmanship or material.
How can you get service
To obtain the benefit of this warranty, deliver via prepaid transportation the complete product to
RIDGE TOOL COMPANY, Elyria, Ohio, or any authorized RIDGID®INDEPENDENT SERVICE
CENTER. Pipe wrenches and other hand tools should be returned to the place of purchase.
What we will do to correct problems
Warranted products will be repaired or replaced, at RIDGE TOOL’s option, and returned at no
charge; or, if after three attempts to repair or replace during the warranty period the product is still
defective, you can elect to receive a full refund of your purchase price.
What is not covered
Failures due to misuse, abuse or normal wear and tear are not covered by this warranty. RIDGE
TOOL shall not be responsible for any incidental or consequential damages.
How local law relates to the warranty
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This warranty gives you specific rights, and you
may also have other rights, which vary, from state to state, province to province, or country to
country.
No other express warranty applies
This FULL LIFETIME WARRANTY is the sole and exclusive warranty for RIDGID®products.
No employee, agent, dealer,or other person is authorized to alter this warranty or make any other
warranty on behalf of the RIDGE TOOL COMPANY.
QUESTIONS OR COMMENTS? CALL
1-800-4-RIDGID (1-800-474-3443)
www.ridgidvacs.com
Please have your Model Number and Serial Number on hand when calling.
Professional Tools
Emerson Tool Company
ADivision Of
Emerson Electric Co.
Stock No. WD4522
Model No. WD45500
Serial Number
Model and serial numbers may be found on the handle. You should record both
model and serial numbers in a safe place for future use.
c2007 Emerson
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 16

WD4522
ASPIRADORA PARA MOJADO/SECO
PRO PACK
DE 4,5 GALONES EE.UU./15 LITROS
SI TIENE PREGUNTAS O DESEA INFORMACIÓN, CONTÁCTENOS LLAMANDO AL
1-800-4-RIDGID (1-800-474-3443) O
CONECTÁNDOSE A www.ridgidvacs.com
No. de pieza SP6671 Impreso en México
MANUAL DEL OPERADOR
GUARDE ESTE MANUAL PARA REFERENCIA FUTURA
ADVERTENCIA:
Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual del operador antes de utilizar este producto.
!
Gracias por comprar un producto RIDGID.
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 17

18
Indice
Sección Página
Instrucciones de seguridad importantes . . . . . . . 18
Introducción . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Desempaquetado y comprobación del
contenido de la caja de cartón . . . . . . . . . . . . 20
Familiarización con la aspiradora . . . . . . . . . . . . 21
Instalación de las abrazaderas para
tubos extensores . . . . . . . . . . . . . . . . . . . . . . 22
Reemplazo del flotador y la jaula . . . . . . . . . . . . . 22
Ensamblaje y reemplazo del filtro . . . . . . . . . . . . 23
Almacenamiento del cordón,
la manguera y los accesorios . . . . . . . . . . . . . 24
Funcionamiento . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Sección Página
Recogida de materiales secos con la aspiradora . 26
Recogida de líquidos con la aspiradora . . . . . . 26
Vaciado del tambor para polvo . . . . . . . . . . . . . 26
Almacenamiento del cordón . . . . . . . . . . . . . . . 26
Dispositivo de soplado . . . . . . . . . . . . . . . . . . . 27
Mantenimiento . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Filtro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Limpieza y desinfección de la aspiradora
para mojado/seco . . . . . . . . . . . . . . . . . . . . . . 28
Piezas de repuesto . . . . . . . . . . . . . . . . . . . . . . . . 30
Garantía . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
La seguridad es una combinación de sentido común,
permanecer alerta y saber cómo funciona la
aspiradora para mojado/seco.
Palabras de señal de seguridad
PELIGRO: indica una situación inminentemente
peligrosa que, si no se evita, causará la muerte o
lesiones graves
ADVERTENCIA: indica una situación potencial-
mente peligrosa que, si no se evita, podría causar la
muerte o lesiones graves
PRECAUCIÓN: indica una situación potencial-
mente peligrosa que, si no se evita, pudiera causar
lesiones leves o moderadas.
Cuando utilice la aspiradora para mojado/seco (“la
aspiradora”), siga siempre las precauciones básicas de
seguridad, incluyendo las siguientes.
ADVERTENCIA–Para
reducir el riesgo de incendio, sacudidas
eléctricas o lesiones:
• Lea y entienda este manual del usuario y todas las
etiquetas que están colocadas en la aspiradora para
mojado/seco antes de utilizarla.
• Utilice la aspiradora únicamente de la manera que
se describe en este manual.
•No deje la aspiradora en marcha mientras esté
desatendida.
•Las chispas que se producen en el interior del
motor pueden incendiar los vapores inflamables o
el polvo. Para reducir el riesgo de incendio o
explosión: No recoja con la aspiradora líquidos o
gases inflamables o combustibles, o polvos
explosivos como gasolina u otros combustibles,
líquido encendedor, limpiadores, pinturas a base de
aceite, gas natural, hidrógeno, polvo de carbón,
polvo de magnesio, polvo de aluminio, polvo de
granos de cereal o pólvora, ni use la aspiradora
cerca de estos materiales.
• No recoja con la aspiradora nada que esté ardiendo
ohumeando, como cigarrillos, fósforos o cenizas
calientes.
• No recoja con la aspiradora polvo de pared de tipo
seco ni hollín frío o ceniza fría de chimenea con un
filtro estándar. Este material es un polvo muy fino
que puede ser expulsado de vuelta al aire. Utilice un
filtro para polvo fino en lugar de un filtro estándar.
• Para reducir el riesgo de que se produzcan peligros
para la salud causados por vapores o polvo, no
recoja con la aspiradora materiales tóxicos.
•No use ni almacene la aspiradora cerca de
materiales peligrosos.
•Para reducir el riesgo de descargas eléctricas, no
exponga la aspiradora a la lluvia ni deje que entren
líquidos en el compartimiento del motor.Guarde la
aspiradora en un lugar interior.
• No permita que la aspiradora se utilice como un
juguete. Se necesita prestar máxima atención
cuando sea utilizada por niños o cerca de éstos.
• No use esta aspiradora con un filtro desgarrado o si
no tiene el filtro instalado, excepto cuando recoja
líquidos de la manera que se describe en la sección
“Funcionamiento” de este manual. Los residuos
secos absorbidos por el impulsor podrían dañar el
motor o ser expulsados de vuelta al aire.
• No abandone la aspiradora cuando esté enchufada.
Desenchúfela del tomacorriente cuando no la esté
utilizando y antes de realizar servicio de revisión.
•Apague la aspiradora antes de desenchufarla.
•ADVERTENCIA:El cordón de energía de este
producto contiene plomo, una sustancia química
que según los conocimientos del estado de
California causa defectos de nacimiento u otros
daños a la reproducción. Lávese las manos
después de manejar el producto.
• Para reducir el riesgo de lesiones debidas a un
arranque accidental, desenchufe el cordón de
energía antes de cambiar o limpiar el filtro.
• No desenchufe la aspiradora tirando del cordón.
Para desenchufarla, agarre el enchufe y no el
cordón.
!
!
!
!
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 18

riesgo de estos peligros cuando utilice un cordón
de extensión, asegúrese de que el cordón esté en
buenas condiciones y de que la conexión no entre
en contacto con líquido. Para mantener la pérdida
al mínimo, utilice la tabla que aparece a conti-
nuación para seleccionar el cordón de extensión
con el tamaño de cable mínimo.
PRECAUCIÓN:
• Para reducir el riesgo de daños a la audición, use
protectores de oídos cuando utilice la aspiradora
durante muchas horas seguidas o cuando la
emplee en un área ruidosa.
• Para operaciones que generan polvo, use una
máscara antipolvo.
NOTA: Las descargas de estática son comunes en
áreas secas o cuando la humedad relativa del aire es
baja. Si recoge residuos finos con la aspiradora, se
puede depositar carga estática en la manguera o en la
aspiradora. El mejor remedio para reducir la frecuencia
de las descargas de estática en su casa o cuando use
esta aspiradora es añadir humedad al aire con un
humidificador.
Siga las siguientes advertencias que aparecen en la
caja del motor de la aspiradora.
• No use la aspiradora con el cordón dañado, el
enchufe dañado u otras piezas dañadas. Si la
aspiradora no funciona como debe, le faltan piezas,
se ha caído, ha sido dañada, se ha dejado a la
intemperie o se ha caído al agua, devuélvala a un
Centro de Servicio autorizado.
• No tire de la aspiradora usando el cordón ni la lleve
por el cordón, ni use el cordón como asa, ni cierre
una puerta sobre el cordón, ni tire del cordón
alrededor de bordes o esquinas afilados. Mantenga
el cordón alejado de las superficies calientes.
• No maneje el enchufe, el interruptor o la aspiradora
con las manos mojadas.
• No ponga ningún objeto en las aberturas de
ventilación. No recoja nada con la aspiradora
cuando cualquiera de las aberturas de ventilación
esté bloqueada; mantenga dichas aberturas libres
de polvo, pelusa, pelo o cualquier cosa que pueda
reducir el flujo de aire.
• Mantenga el pelo, la ropa holgada, los dedos y
todas las partes del cuerpo alejados de las
aberturas y de las piezas móviles.
• Para reducir el riesgo de caídas, tenga cuidado
adicional al limpiar en escaleras.
•Para reducir el riesgo de lesiones corporales o
daños a la aspiradora, utilice únicamente
accesorios recomendados por Ridgid.
• Cuando utilice la aspiradora como soplador :
-Dirija la descarga de airesolamente hacia el área
de trabajo.
-No dirija el airehacia las personas que estén
presentes.
- Mantenga alejados a los niños durante la
operación de soplado.
- No utilice el soplador para trabajos que no sean
soplar suciedad y residuos.
- No use la aspiradora como rociador.
- Use protección ocular de seguridad.
• Para reducir el riesgo de lesiones en los ojos, use
protección ocular de seguridad. La utilización de
cualquier aspiradora utilitaria o soplador utilitario
puede hacer que se soplen objetos extraños hacia
los ojos, lo cual puede causar daños graves en los
ojos.
•No almacene ni apile artículos sobrela aspiradora.
•Esta aspiradora para mojado/seco tiene aislamiento
doble, lo cual elimina la necesidad de un sistema
independiente de conexión a tierra. Utilice
únicamente piezas de repuesto idénticas. Lea las
instrucciones de servicio de revisión de las
aspiradoras para mojado/seco con aislamiento
doble antes de realizar dicho servicio.
• Utilice únicamente cordones de extensión que
tengan capacidad nominal para uso a la intemperie.
Los cordones de extensión que estén en malas
condiciones o cuyo tamaño de alambre sea
demasiado pequeño pueden conllevar peligros de
incendio y sacudidas eléctricas. Para reducir el
GUARDE ESTE MANUAL
!
AISLAMIENTO DOBLE. NO SE REQUIERE
CONEXION A TIERRA.
CUANDO HAGA SERVICIO DE REVISIÓN DE
LA ASPIRADORA, UTILICE ÚNICAMENTE PIEZAS DE
REPUESTO IDÉNTICAS.
Longitud del cordón Calibre del cable
de extensión (A.W.G.)
0-50 pies 14
50-100 pies 12
ADVERTENCIA: Para reducir el riesgo de sacu-
didas eléctricas, no exponga la aspiradora a la
lluvia y guárdela en interiores.
ADVERTENCIA: No pise la aspiradora, no se pare
sobre ella ni se siente en ella. El uso
inapropiado puede causar lesiones.
ADVERTENCIA: Para reducir el riesgo de
incendio, no almacene objetos extraños en este
compartimiento. Almacene únicamente los
accesorios de la aspiradora.
ADVERTENCIA: Para su propia seguridad, lea y
entienda el manual del operador. No tenga en
marcha la aspiradora desatendida. No recoja
cenizas calientes, carbón caliente, materiales
tóxicos ni inflamables ni otros materiales
peligrosos. No use la aspiradora alrededor de
líquidos o vapores explosivos
19
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 19

Desempaquetado y comprobación del contenido
de la caja de cartón
20
Saque todo el contenido de la caja de cartón. Asegú-
rese de que no falte ningún artículo utilizando la lista
del contenido de la caja. Llame al 1-800-4-RIDGID
(1-800-474-3443) (www.ridgidvacs.com) si alguna
pieza está dañada o falta.
Lista del contenido de la caja de cartón
Clave Descripción Cant.
A Aspiradora PRO PACK de 4,5 galones ...........1
B* Flotador (ensamblado)....................................1
C* Jaula del filtro(ensamblada) .........................1
D* Filtro para polvo fino VF3500
(ensamblado) .................................................1
E* Placa del filtro(ensamblada) ..........................1
F* Tuerca del filtro (ensamblada) ........................1
G Abrazadera para tubos extensores
(izquierda).......................................................1
H Abrazadera para tubos extensores
(derecha) ........................................................1
ITubos extensores ...........................................2
J* Boquilla rinconera ..........................................1
K* Cepillo para polvo ..........................................1
L* Boquilla de uso general....................................1
M* Manguera Superflex .......................................1
NManual del usuario ..........................................1
* Estos artículos pueden venir preensamblados.
Si no están presentes en la caja de cartón,
compruebe el cabezal del motor de la aspiradora
para ver si están preensamblados.
A
THIS SIDE
TOWARD LID
B
C
D
E
F
J
K
L
N
I
G
H
M
Introducción
Esta aspiradora para mojado/seco PRO PACK está
diseñada solamente para uso doméstico. Se puede
utilizar para recoger materiales mojados o secos y se
puede usar como soplador.
Lea este manual del operador para familiarizarse con
las características del producto y para entender la
utilización específica de su nueva aspiradora.
SP6671 WD4522 Ridgid 6/5/07 2:51 PM Page 20
